SS-1216 - Barbecue Sogo - Free user manual and instructions

USER MANUAL SS-1216 Sogo

Black griddle grater with fried garlic platters on a flat plate, no visible text or symbols

Plancha de Asar Mini Mini Table Grill Mini Gril de Table Mini Grelhador de Mesa Mini piastra per grigliate Mini Bratpfanne

Warning symbol depicting steam inside a triangle, indicating heat or hazard

INTRODUCCIÓN

This instruction manual can also be downloaded from our website www.sogo.es

Please read this instruction manual before using the unit.

For your own safety follow the instructions for use.

Use the appliance only

• for household grilling and frying
• with the electrical connection supplied and in an earthed socket
• in a dry environment.
  Look after the plug, power cord, regulator and electrical connection as follows
• never use the appliance if the power connections are damaged; have the damage repaired by a qualified electrician; keep all electrical connections dry
• make sure nobody can trip over the cord or extension lead.
• make sure that the cord and the extension lead do not come into contact with the hotplate
• never try to move the appliance or pull the plug out of the socket by pulling on the cord.
• Keep out of the reach of children
• Read all instruction before using appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, the regulator or the

unit in water or other liquid. See Cleaning instruction.

• Close supervision is necessary when any appliance is used near children.
• This appliance is not for use by children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any damaged appliance. Do not operate with a damaged cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any manner. Contact Consumer Service for return authorization, examination, repair or adjustment.
• The use of accessory attachments not recommended may cause injuries.
• Do not use outdoors or while standing in a damp area.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electrical burner, or in a heated oven.
• Extreme caution must be taken when

moving an appliance containing hot oil or other hot liquids.

• Do not leave appliance unattended while in use.
• Use extreme caution when disposing of hot grease.
• CAUTION: HOT SURFACES.
• When using this appliance, provide 4 to 6 inches air space on all sides for air circulation. Do not use on surfaces where heat may cause a problem.
• Do not use appliance for other than intended use.
• Always attach probe to griddle before plugging cord into wall outlet. To disconnect, turn temperature control knob to “OFF”, then remove plug from wall outlet.
• Do not immerse the connector (control probe) in water or any other liquid.
• 'The appliance must only be used with the connector provided.
• Only the appropriate connector must be used.
• The connector must be removed before the appliance is cleaned and the appliance inlet must be dried before the appliance is used again.
• Use well away from walls and curtains.
• Adequate ventilation or an exhaust fan is recommended

• Do not leave plastic utensils in contact with appliance while cooking.

• Do not place grease cup, oil drawer or spatula rest on top of hot grill surface.

• Only use appliance fully assembled with all parts correctly in place, as specified in this instruction book.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service personnel.
• Always use your appliance from a power outlet of the voltage marked on the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.

When this symbol is used, it means "Caution: Hot surfaces"

Warning symbol depicting steam inside a triangle, indicating high risk or hazard

INTRODUCTION

The electric table grill is intended for grilling and frying without using any additional fat. The hotplate has a non-stick layer and a regulator that keeps the hotplate at the required temperature. This makes the electric table grill ideal for use at home for enjoyable meals with family and friends, such as teppan yaki, gourmet grilling, barbecue or preparing dishes for a children's party.

Note: Read the instructions before connecting and using for the first time!

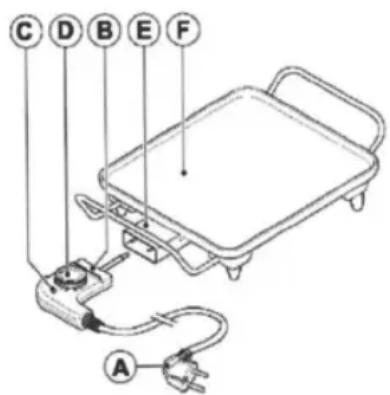

DESCRIPTION

A. Plug/power cord
B. Regulator
C. Temperature indicator light
D. Regulator control knob
E. Electrical connection
F. Hotplate

C D B E F A

USING THE UNIT

1. Prepare the ingredients.
2. Clean the hotplate with a damp cloth.
3. Place the appliance on a solid surface.
4. Insert the regulator in the electrical connection.
5. Insert the plug in an earthed socket.
6. Set the regulator using the control knob. Pilot light of the regulator will be on.
7. Wait for about 10 minutes until the temperature indicator light goes out. The temperature set has been reached now. Lay the ingredients on the hotplate.
8. While grilling and frying turn ingredients over using the spatula.

Note: Do not place the appliance on a (hot) cooker.

Note: The regulator maintains the correct temperature; the light will continually go on when the unit is heating.

Note: Do not touch the (hot) hotplate!

Note: Do not use metal implements as these could damage the non-stick coating!

Tip: small pieces cook more thoroughly and more quickly that large ones.

Tip: adjust the regulator setting to suit the recipe; experiment with the grilling time and temperature in order to achieve the best results.

Tip: turn meat and fish over once only and to prevent it drying out, do not prick in meat.

TECHNICAL SPECIFICATIONS

Model No: SS-1216

Dimensions (table grill): 26 x 26 cm.

Voltage / Frequency: 220 - 240V \~ 50/60 Hz

Power Consumption: 1500W

CLEANING THE UNIT

1. Pull the plug out of the socket and let the unit cool down.
2. Clean the electric table grill with kitchen paper when it has cooled down.
3. Clean the outside of the appliance with a damp cloth.
4. Dry the electrical connection well
5. Store the electric table grill in its box and keep the user's instructions
6. Store the electric table grill in a dry and childproof place.
   Note: Never pour cold water onto the hotplate. This will damage the hotplate and cause spitting as the water heats up very quickly!
   Note: Do not move the electric table grill while it is in use!
   Note: Do not use abrasive or strong detergents!
7. TO CLEAN THE UNIT, UNPLUG THE UNIT FROM SOCKET.
8. Always clean the unit after use. This will avoid that food remains on the unit.
9. Do not clean the unit into the dishwasher.

PRÉCAUTIONS DE SÉCURITÉ

Warning symbol depicting steam rising inside a triangle, indicating high risk or hazard

INTRODUCTION

Warning sign depicting steam rising inside a triangle, indicating high risk or hazard

INTRODUÇÃO

Warning symbol depicting steam inside a triangle, indicating high risk or hazard

INTRODUZIONE

Warning symbol depicting a flame inside a triangle, indicating heat or smoke hazard.

EINFÜHRUNG

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
