SS-14410 - Hand blender Sogo - Free user manual and instructions

Product type	Immersion blender
Brand	Sogo
Model	SS-14410
Power	1000 W
Power supply voltage	220-240 V ~ 50/60 Hz
Motor body material	Plastic
Shaft and blade material	Stainless steel
Approximate weight	1 kg
Measuring cup capacity	400 ml (estimated)
Control	On/off switch, speed I and II
Eject button	Yes, to remove the blending foot
Blades	Sharp stainless steel blades
Use	Sauces, soups, mayonnaise, baby food, milkshakes, various blending
Maximum continuous use time	Approximately 10-15 seconds depending on the food (see guide)
Rest time between cycles	At least 3 minutes
Motor block cleaning	Do not immerse, wipe with a damp cloth
Accessories cleaning	Dishwasher safe (rinse immediately after salty foods)
Safety	Unplug before assembly/disassembly/cleaning; do not use near water; blades are very sharp
Country of manufacture	China (PRC)
Importer	Sanysan Appliances S.L, Valencia, Spain
After-sales service	www.sogosat.com / [e-mail] / [phone]

Frequently Asked Questions - SS-14410 Sogo

What can I blend with this immersion blender?

The Sogo SS-14410 immersion blender is ideal for sauces, salsas, soups, mayonnaise, baby food, milkshakes, and general mixing.

Can I blend hot ingredients?

No, do not place hot ingredients in the blender. Use it only with room temperature or cold foods.

How to clean the motor block?

The motor block should never be immersed in water. Clean it with a damp cloth and dry it immediately.

Are the accessories dishwasher safe?

Yes, the measuring cup and other parts (except the motor block) can be cleaned in the dishwasher. Rinse the blades immediately after blending very salty foods to prevent discoloration.

How to remove the blending foot?

Press the eject button (E) located on the body of the appliance to release the blending foot. Make sure the appliance is unplugged before doing so.

What is the power of this blender?

The Sogo SS-14410 immersion blender has a power of 1000 W.

Can I use the blender continuously for a long time?

No, follow the processing guide: for example, for meat (250 g max) 15 seconds, for herbs (50 g) 10 seconds. After each cycle, let the appliance cool down for at least 3 minutes before using it again.

What to do if the appliance falls into water?

Unplug the power cord immediately. Do not touch the appliance while it is in water. After removing it, have it checked by a professional before using it again.

Is this blender suitable for children?

No, this appliance should not be used by children. Keep it out of reach of children and do not let them play with it.

Where can I find spare parts or after-sales service?

After-sales service is provided by Sogo. Contact them via www.sogosat.com, by email at [e-mail] or by phone at [phone].

USER MANUAL SS-14410 Sogo

Instructions for use

Please read these instructions fully before use and preserve them for future reference.

IMPORTANT WARNING

A copy of this manual can also be downloaded from our website:

www.sogo.es

KEEP THIS MANUAL IN A SAFE PLACE FOR FUTURE USE

• Please read the instructions carefully and completely before using the appliance.
• Before plugging into a socket, check whether your voltage corresponds to the rating label of the appliance.
• These appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning;
• Don't let children play with this appliance. Do not allow children to use the blender without supervision
• Switch off the appliance and disconnect from supply before changing accessories

or approaching parts that move in use.

• Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• Don't plug the appliance into the power supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
• Don't let the motor unit, cord, or plug get wet to protect against risk of electrical shock.
• Do not operate the appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifies persons in order to avoid a hazard.
• Don't let excess cord hang over the edge of the table or worktop or touch hot surface.
• The blades are very sharp!
• Don't place the appliance in the hot ingredients.
• The appliance is constructed to process normal household quantities.
• Neither the measuring beaker, nor the chopping bowl is microwave proof.
• Short-time operating. Use the appliance according to the table of Processing Guide.
• If you want to operate the unit for more

than one cycle, you should wait at least 3 minutes before the next working.

• Close supervision is necessary when any appliance is used by or near children. Keep children away from the appliance.
• Keep hands, hair, clothing, as well as spatulas and other utensils away from the beaters during operation to reduce the risk of injury to persons, and/or damaged to the mixer.
• Do not operate the hand mixer with wet hands.
• This appliance shall not be used by children

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, office and other working environments;
  -Farm houses;
  -By clients in hotels, motels and other residential type environments;

• Bed and breakfast type environments.

• This device must never be operated close to a bathtub, shower, fille hand basin or similar.

• The motor block, the power cable and the mains plug must not be immersed in water or any other liquids.
• Protect the motor block against moisture, drips and splashes.
• If liquid gets into the motor block, remove the mains plug immediately. Have the

device checked before reusing.

• If the device falls into water, disconnect the mains plug immediately. Only then is it safe to retrieve the device.
• Only connect the mains plug to a properly installed and easily accessible wall socket whose voltage corresponds to the specification on the rating plate. The wall socket must continue to be easily accessible after the device is plugged in.
• The device is not fully disconnected from the power supply, even after it is switched off. In order to fully disconnect it, pull out the mains plug.
• When using the device, ensure that the power cable cannot be trapped or crushed.
• When removing the mains plug, always pull the plug and never the cable.
• Disconnect the mains plug from the wall socket ...

... if there is a fault,
... when the blender is not in operation,
... prior to each cleaning, and
... during thunderstorms.

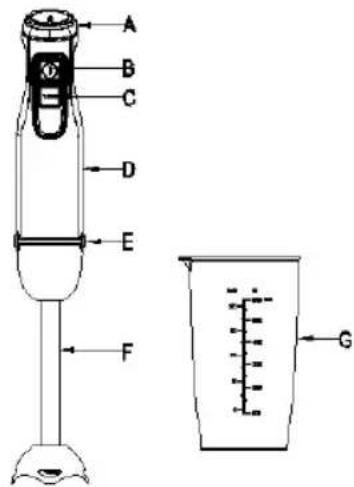

PRODUCT PARTS DESCRIPTIONS

A. Inching switch
B. Switch I
C. Switch II
D.Motor unit
E. Push out button
F. Blender stick
G. Beaker

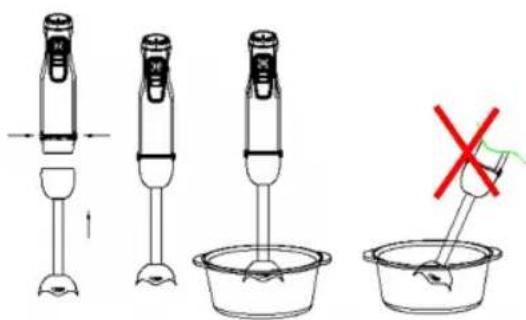

HOW TO USE THE HAND BLENDER

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing and milkshakes.

Take the blender stick on the motor unit and push it until it locks.
- Introduce the hand blender in the measuring beaker. Press the switch. The more you press, the more speed you get.
Take the blender stick out off the motor unit after use by pressing the eject button. You can use the hand blender in the measuring beaker and just as well in any other vessel.

CLEANING

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water!

• All other parts can be cleaned in the dishwasher. However, after processing very salty food, you should rinse the blades right away.
• Also, be careful not to use an overdose of cleaner. When processing food with color, the plastic parts of the appliance may become discolored. Wipe these parts with vegetable oil before placing them in the dishwasher.
  The blades are very sharp, please pay attention.
• Unplug the appliance before cleaning.

PROCESSING GUIDE

Food	Maximum (g)	Operation time(sec)
Meat	250	15
Herbs	50	10
Nuts, almonds	150	10
Cheese	100	10
Bread	80	10
Onions	200	10
Biscuits	150	10
Soft fruit	150	10

TECHNICAL SPECIFICATIONS

Model: SS-14410

Voltage / Frequency:

220-240V\~50/60Hz

Power Consumption: 1000W

Mode d'emploi

DECLARATION OF CONFORMITY

This device complies with Low Voltage Directive 2014/35/EC, Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/UE on the restriction of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L., NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. - Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail]/0034902222161
