USER MANUAL SS-16136 Sogo

Exterior view of a black and silver SOGO vacuum cleaner with orange handle (no text or symbols visible)

Descarga tu manual

Download your manual

Declaration of conformity, Responsibility of Electronic products disposal, Importers Details and After-sales service on the last pages.

• Always read the instruction manual carefully before use.
- This manual can be downloaded from our website www.sogo.es.
- Keep these instructions for future reference.

2. Safety instructions for the user

GENERAL PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use or store the appliance outdoors.
• This product is designed for indoor domestic, non-industrial and non-commercial use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems with the appliance and may cause injury to the user.
• The unit must only be used for its intended purpose. No liability is accepted for damage resulting from improper use or incorrect handling.
• Make sure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Always remove the plug from the socket when the appliance is not in use. Do not leave the appliance unattended when it is switched on.
• It is necessary to supervise when any electrical appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and allow it to cool down.
• The device is not completely disconnected from the power supply, even after it has been switched off. To disconnect it completely, unplug it from the mains socket.
• The appliances are not designed to be operated by an external timer or a separate remote-control system.

Restrictions on use to avoid personal injury

• Do not leave the appliance unattended.
• Do not place or use this appliance near water sources.
• Do not place or use the appliance and its power cord on or near hot surfaces (e.g., hotplates) or open flames.
• Do not leave the power cord hanging over sharp edges and keep it away from hot objects and naked flames. Do not coil the cord around the appliance or bend it.
• Never use accessories not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons.

• To avoid electric shock, make sure your hands are dry before plugging or unplugging the appliance.

• Do not use the appliance with wet hands, on wet floors or when the environment is damp, there is a risk of electric shock.

• Never immerse the appliance or the plug-in water or any other liquid. Should the appliance fall into water, disconnect it immediately from the mains and take it to an authorised service centre for repair before using it again.
• Do not use the appliance if it has fallen on the floor, if it shows visible signs of damage or if it is leaking.
• Do not use the appliance if the cable or plug is damaged. In the event of damage to the cord, it must be replaced only by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.
• In case of malfunction of the appliance, or if it has been damaged in any way, return the appliance to the nearest authorised service centre for examination, repair or adjustment.
• To avoid overloading the circuit when using this product, do not operate another high voltage product on the same electrical circuit.
• It is not recommended to use an extension cord with this product, but if an extension cord should be used:
• The marked electrical rating of the cable must be at least as good as that of the product.
• Arrange the extension cord so that it does not hang down where it can be tripped over or pulled unintentionally.

Restrictions for use with children and the elderly

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and maintenance of the user must not be carried out by children without supervision.
  • Children must not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of the reach of children under 8 years of age.

Instructions to be followed when using the device

• Never use this unit near bathtub, shower, wash hand basins or other containers with water.
• Caution! Do not allow small children to play with the foil: THERE IS A DANGER OF SUFFOCATION!
• Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way.

• Never wind the cord around the appliance and do not bend it.

• Do not use the appliance to vacuum the dust harmful to health

• Incorrect operation and improper use can damage the appliance and cause injury to the user.
• This device, designed for home use, complies with standards relating to this type of product.
• To avoid a circuit overload when using this product, do not operate another high-wattage product on the same electrical circuit.
• Make sure to unplug the appliance trash cans or accessories.
• It may cause a fire and injury to persons if the cleaner vacuums the following items:
• Heat source: coal fire, cigarette butts
• Big Sharp Shard - Broken Glass Piece
• Liquid: hazardous article (solvent, corrosive), acid agent, cleaner and water.
• Flammable and explosive goods: gasoline and alcohol products.
• Construction and cement waste
• Please keep the air outlet of appliance away from hair, loose clothing, fingers or other parts. Do not use suction tube, tube extension handles or other tool point at the eyes, ears or put in the mouth.
• If large pieces of paper, paper balls, plastic sheets or sharp objects are found, and anything that is thicker than a straw, please remove them in advance in case that the suction tube is blocked to affect the use of the product.
• Please stop using it at once when the electric leakage or high motor temperature and abnormal sound are found. For example, high temperature in a machine body part, abnormal sound and smell, weak suction.
• Please check the dust container regularly and clean it in time.
• Keep the air outlet unblocked to avoid loss of suction power, motor heating that may lead to the reduction of vacuum cleaner service life.
• Please check the aluminium alloy tube regularly in order to prevent the blockage, if there is a blockage, please clean it up in time to avoid the reduction of suction and affect the performance of appliance.
• Use extra care when cleaning on stairs.
• Keep end of hose, wand and other openings away from your face and body.
• Do not use the appliance if the filter is not installed! Do not use other filters except the ones (fire prevention filter) attached to the appliance by manufacturer.

CLEANING AND MAINTENANCE

See the cleaning and maintenance section for details on how to clean the appliance.

3. TECHNICAL SPECIFICATIONS

Voltage Power	Frequency Operating pressure
AC 220-240V 1200	W 50 – 60Hz 16 - 18 kPa

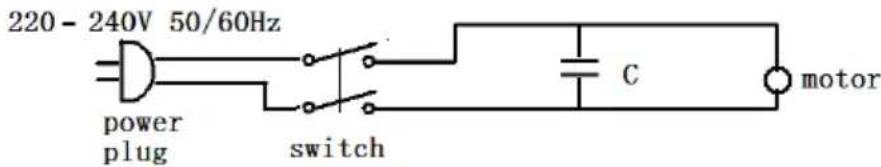

220 - 240V 50/60Hz power plug switch C motor

This product complies with EU regulation 2023/826 under directive 2009/125/EC on the Eco design requirements.

Power consumption in off mode:

Power consumption in standby mode:

Time after which the product enters into off mode:

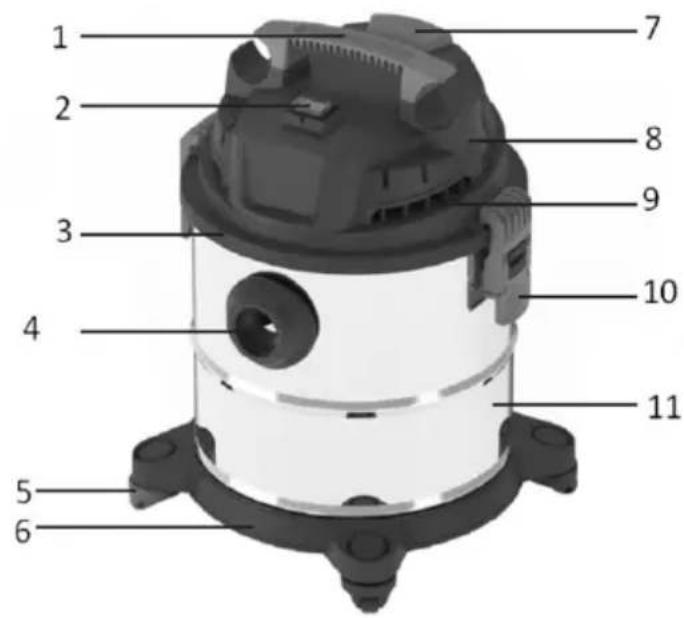

4. PARTS DESCRIPTION

1. Handle
2. Power button
3. Barrel cover
4. Suction mouth
5. Caster
6. Base
7. Dust shaking button
8. Head cover
9. Hose slot
10. Barrel buckle
11. Barrel

1 2 3 4 5 6 7 8 9 10 11

5. INSTRUCTIONS FOR USE

ASSEMBLY

Dust filterPut the filter in the dust container carefully
	Paper bag	Dust bag
Dust container:Attach the dust container to the hand vacuum cleaner.

Flexible hose (optional):To use the flexible hose, insert the end of the hose into the suction hole. Make sure, that it is snapped in the position.
Accessories:Choose your desired accessory (brush or nozzle) and attach it to the suction hole.

OPERATION

Before you start the appliance, make sure that the filter is in the position.
Before you start the appliance, make sure that the hose assembly is in the position. or else the appliance had mangled.
Unwind the power cord.
Plug the appliance and switch on.
Unplug the appliance after use

Attach the desired accessories to the vacuum cleaner.

HOW TO USE DUST SHAKE FUNCTION:

1. When using the dust shake function, don't turn off the power, you must first block the suction port.
2. Block the suction port and press the shake button for 1 second, then release, press, repeat this process 10 times.

6. CLEANING AND MAINTENANCE

Paper bag

Open the dust container.
Take out the paper bag.
Discard the paper bag.
Put the new paper bag.
Assemble the vacuum cleaner.

Dust bag

Open the dust container.
Take out the Dust bag.
Cleaning up the dust bag.( In necessity, Wash in water. But it must be dry before the next use.)
Throw out the garbage.
Put the clean dust bag.
Assemble the vacuum cleaner

ERROR DETECTION

Before you contact our service center, please check the following:

Problem Possible reason Advice
Motor does not start - Power	cord not firmly plugged into outlet- Outlet damaged- Cleaner not switched on	- Plug unit firmly- Check the Outlet- Switch on the appliance
Suction power is weaker - Unit	clogged- Paper filter needs replace	- Remove the blockage- Replace the paper filter

1. AVIS IMPORTANT :

DÉCLARATION DE CONFORMITÉ

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain Product manufactured in CHINA. After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
