USER MANUAL SS-6610 Sogo

QR code image containing encoded data, no visible human-readable text

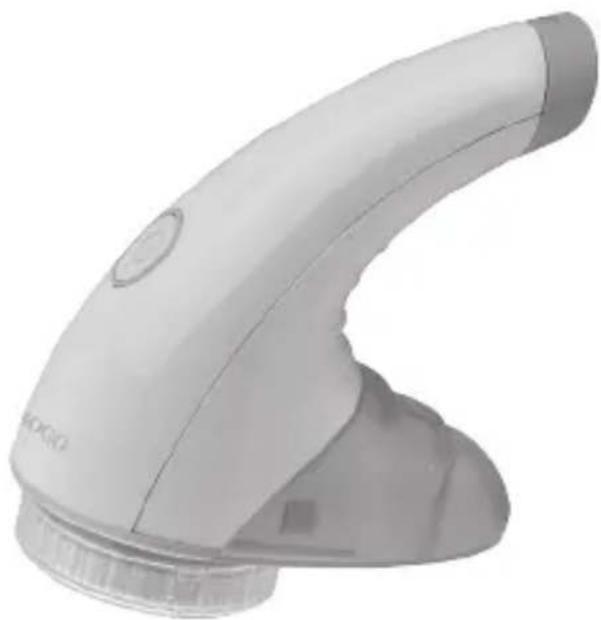

White handheld electric shaver with a black handle and circular button (no visible text or symbols)

Quita Pelusas Eléctrica Electric Lint Remover Rasoir Anti-Bouloche / Anti-Peluche Removedor de Fiapos Elétrico Eliminatore di Lanugine Fussel-Entferner

ref. SS-6610

CE RoHS 2019/1983-1984

	1
	2
	3
	4
	5
	6
	7
	8
	9
	10
	11
	12
	13
	14
	15
	16
	17
	18
	19
	20
	21
	22
	23
	24
	25
	26
	27
	28
	29
	30
	31
	32
	33
	34
	35
	36
	37
	38
	39
	40
	41
	42
	43
	44
	45
	46
	47
	48
	49
	50
	51
	52
	53
	54
	55
	56
	57
	58
	59
	60
	61
	62
	63
	64
	65
	66
	67
	68
	69
	70
	71
	72
	73
	74
	75
	76
	77
	78
	79
	80
	81
	82
	83
	84
	85
	86
	87
	88
	89
	90
	91
	92
	93
	94
	95
	96
	97
	98
	99

ATENCIÓN

No smoking sign with pictogram of heart crushing into a mouth, commonly used for smoking or health restrictions

Symbolic icon of a person holding a tool, enclosed in a circular frame with crosshairs (no text or symbols)

Line drawing of a sweater with collar and pocket, showing measurement lines (no text or symbols)

Medical illustration showing two steps of a medical procedure: first with a device and circular component, second with a hand applying a tool to a patient's abdomen.

Illustration showing two steps of clothing sewing or fabricing, labeled 3 and 4 with directional arrows and symbols.

Simple line drawing of two abstract shapes: a irregular shape and a curved, flame-like form (no text or symbols)

Line drawing of a sweater with a fish inside, showing no text or symbols

140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 ↑ ↓ 7

Two-step illustration of a medical or surgical tool: one with a circular target and arrow, the other with a long tool inserted (no text or symbols)

Simple line drawing of a handheld device with a circular inset showing a shaded area (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows (no readable text or symbols)

Illustration of a hand holding a small object above a curved object, no text or symbols present

Illustration of hands using a tool to apply liquid, labeled with number 14 (no text or symbols on the diagram itself)

Illustration of two hands holding a spoon, with the number 15 below (no text or symbols on the objects)

Line drawing of a hand pouring liquid into a bowl (no text or symbols)

Diagram showing a mechanical assembly with a top component, a belt, and a belt drive mechanism (no text or symbols)

ATTENTION

• This instruction manual can also be downloaded from our web page
www.sogo.es
- Warning symbol:

Prohibition sign with pictogram of a heart above a landscape, indicating no disease or health risk.

Prohibited to use in the bath or shower. Warning: this product is not waterproof, please keep the product dry and do not immerse it in the water or other liquids

to clean.

*Do not use this appliance near the bathtub, wash basin, or other vessels with water.

*This product can only be used on remove clothing lint, it is prohibited to use for other purposes; please never use it for shaving beard, trim hair, etc.

*To prevent battery leakage, take the battery out for long time storage.

*Take the battery out and hand it over to the official collection point for safety handling

when you discard the product.

*Do not use any accessories or parts that produced by other manufacturers not recommended by SOGO; the warranty of any quality problem caused by using such accessories will be invalidated.

A close supervision is needed for children, disabled and incapacitated persons; children should be supervised to avoid treating the product as a toy. Electromagnetic Field: This product meets all the criteria associated

with electromagnetic field (EMF). The current scientific study indicates that this product is safe if used correctly by following the instructions.

Environment:

Symbolic icon of a person holding a device, enclosed in a circular frame with cross lines (no text or symbols)

Please do not put it together with the general household waste when discard the product, it should be handed over to the recycling

center designated by the government.

This is conducive to environment protection.

Precautions for use:

1. To avoid clothing damage while pruning; prevent the clothing folds, make sure the clothing smooth before use.

2. To avoid clothing damage; hold the lint remover, do not press hard, just press the outer foil close to the objects.

3. It is prohibited to use the lint remover handle the clothes you are wearing, otherwise may cause

damage on your body and clothes.

1. Please shut the power off immediately if there is any damage or fault, and do not assembly and disassembly without authorization.

2. Please keep the power off during cleaning and maintaining this product.

BEFORE USING

Please pay special attention to the following parts

Line drawing of a sweater with collar and pocket, showing measurement lines (no text or symbols)

Around the buttons, zippers

Remove the foreign object sticked on clothes

Thin or easily torn parts

Prominent part on the clothes

Clothes connection place or sewing thread

*Test at an inconspicuous area of the clothes before using.

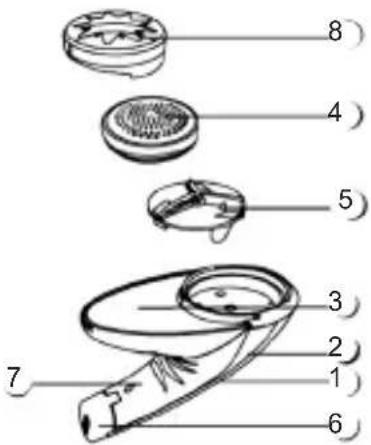

Product Structure Instruction:

1. On/off Switch

2. Product Frame

3. Store Room

4. Outer Foil

5. Blades

6. Battery

Compartments

1. Battery Cover

2. Cover

8 4 5 3 2 1 7 6

USE METHOD 1

Simple line drawing of a teardrop-shaped object with a small mark on the interior (no text or symbols)

Illustration of a hand performing a medical or surgical procedure on a patient's abdomen (no text or symbols present)

1. Turn on to start the lint remover (figure 1)

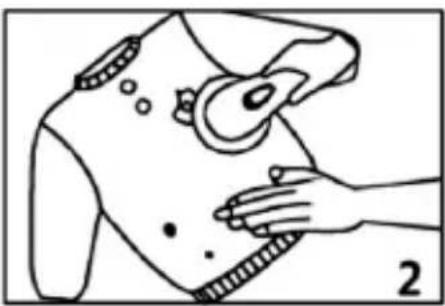

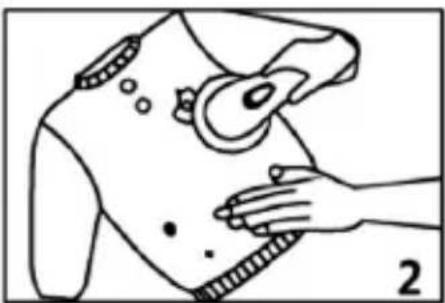

2. Slide the lint remover back and forth on the smooth clothes (figure 2)

USE METHOD 2

3

4

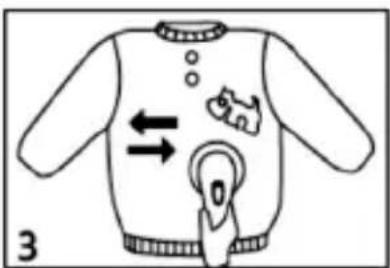

1. Quick pruning method
   Slide the lint remover around on the clothing within a narrow range (figure 3)
2. Remove stubborn lint

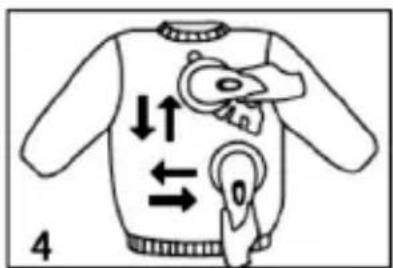

   Slide perpendicular and parallel follow the clothing lines (figure 4)
   *The lint remover has protection function, please make sure to tighten the outer foil, otherwise it cannot be started.

3.THIN CLOTHING

Simple line drawing of two abstract shapes, one irregular and one elongated, with no text or symbols

Line drawing of a sweater with a button and a small object, labeled '6' (no text or symbols on the clothing itself)

Diagram showing a grid pattern with an upward arrow and a droplet-shaped object labeled '7' (no text or symbols beyond basic diagram elements)

Fold double layer and place on ironing board to remove lint (figure 5)

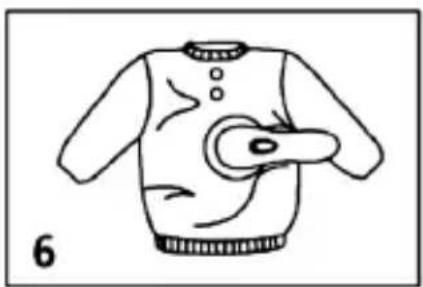

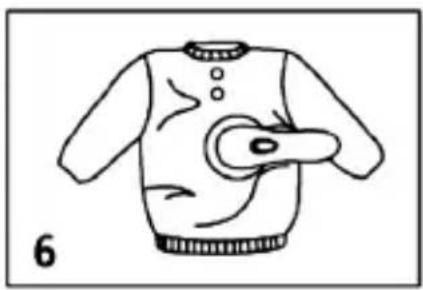

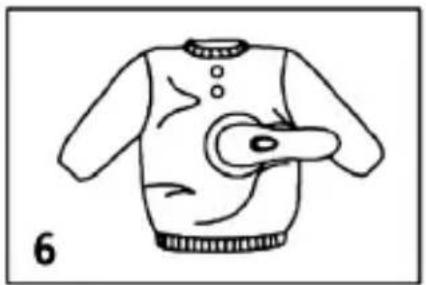

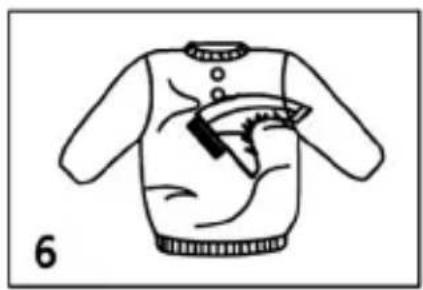

1. Clothing with prominent parts Pass the prominent parts during slide (figure 6)

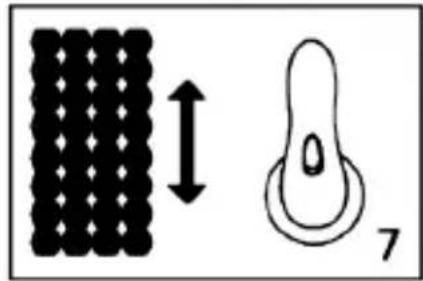

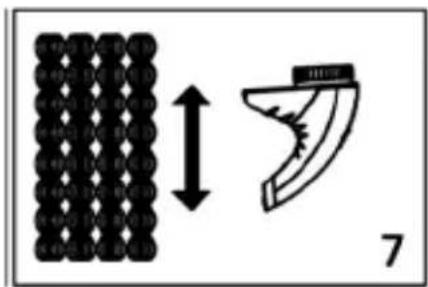

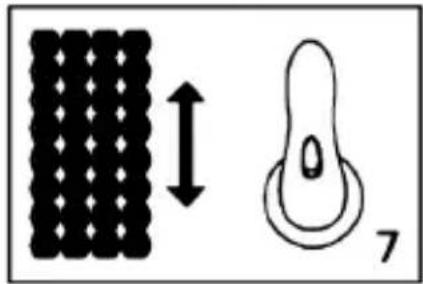

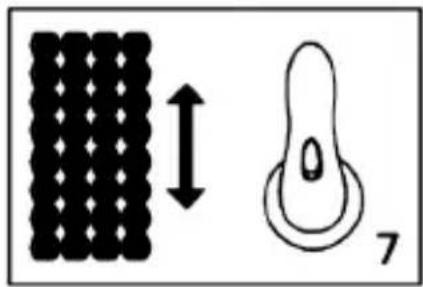

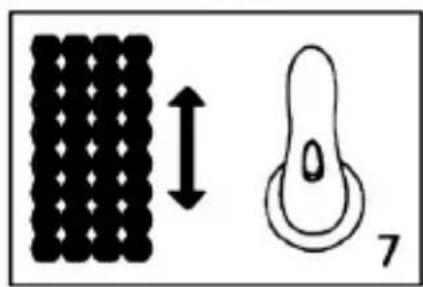

5.Weave pattern parts Slide along the direction of the pattern (figure 7)

*Please do not take the store room off unless for clean it, otherwise it may cause bodily injury or mechanical damage.

*Do not use it to remove the lint on silk stockings, otherwise it might be cause damage by sucked into the blades.

BATTERY REPLACEMENT:

Two-step illustration showing a hand holding a circular object and a foot being held, labeled 8 and 9 (no text or symbols on the objects themselves)

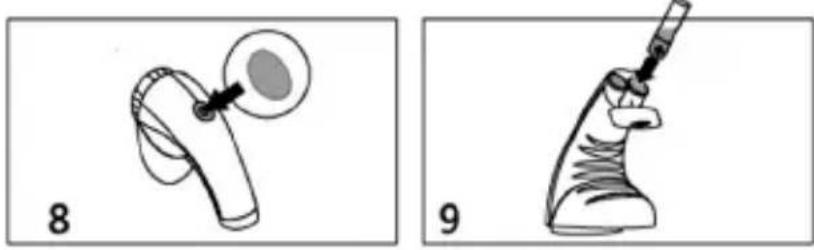

1. Make sure the lint remover is turned off before replacing battery (figure 8).
2. The product needs two AAA batteries.
3. Open the battery cover, install the two AAA batteries correctly and then replace the battery cover (figure 9).
4. To ensure good results, please replace the battery in time if you find the lint remover underpowered.
5. Please use the good quality battery produced from regular manufacturers, to avoid unnecessary damage to the machine.
6. Please handover the used battery to the recycling center designated by the government to avoid environment pollution.

CLEANING METHODS:

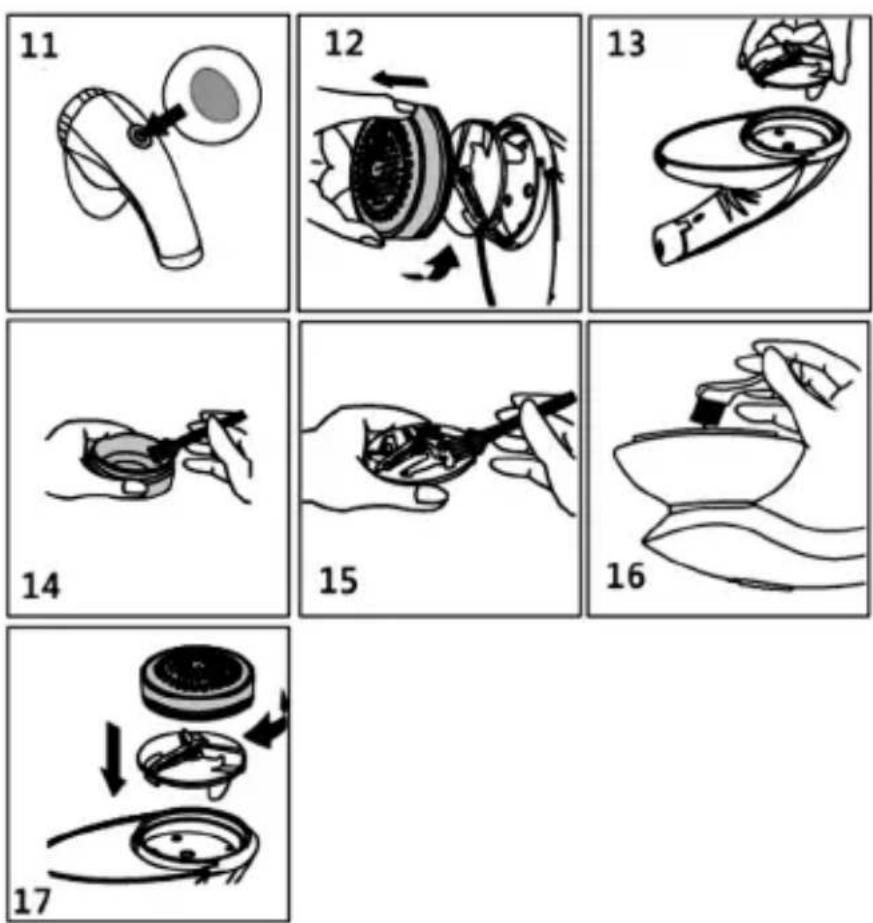

1.Shut the power off (figure 11).

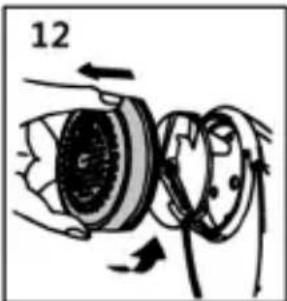

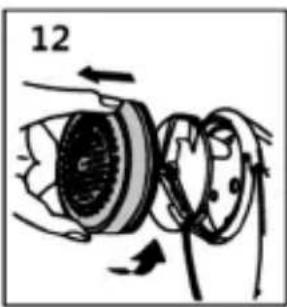

2. Unscrewing the deposit counterclockwise and use the cleaning brush to clean lint from it (figure 12).
3. Unscrewing the outer foil counterclockwise (figure 13).
4. Take the blades and rotation shaft off (figure 14).
5. Use the cleaning brush to clean outer foil (figure 15).
6. Use the cleaning brush to clean blades and rotation shaft (figure 16).
7. Use the cleaning brush to clean lint inside the product frame (figure 17).
8. Replace the blade, rotation shaft, outer foil, and deposit0 back in reverse order (figure 18).
*Be careful not to scratch the hand during removing the blade.
*Please do not press hard or strike the outer foil.
*Do not use cleaning fluids, alcohol and other products to clean this product; otherwise it will cause product damage.
*Please use the clean dry cloth or slightly damp cloth to wipe the product frame.
*Please clean the store room up before it gets 80% full.
*The lint hid in the inside of outer foil and the center of blade will affect the sharpness and the rotation, please use the cleaning brush to clean.
*Please store the product in a safe, dry and clean place.

ATTENTION

Prohibition sign with pictogram of a heart above a landscape, indicating no disease or health risk.

Abstract black-and-white icon of a person holding a tool, enclosed in an oval frame with intersecting lines (no text or symbols)

Line drawing of a sweater with collar and pocket, showing measurement lines (no text or symbols)

Simple line drawing of two abstract shapes, one resembling a leaf or abstract form and the other a rounded shape with an oval cutout (no text or symbols)

Line drawing of a sweater with a bandage and handle, no text or symbols present

Diagram showing a grid pattern with an upward arrow and a droplet shape labeled '7' (no text or symbols beyond basic diagram elements)

Two-step illustration showing a hand holding a circular object and a foot holding a tool, labeled 8 and 9 respectively (no text or symbols on the objects themselves)

Prohibition sign with pictogram of a heart above a mountain, indicating no disease or health risk.

Abstract black-and-white icon of a person holding a tool, enclosed in an oval frame with intersecting lines (no text or symbols)

Line drawing of a sweater with collar and pocket, showing measurement lines (no text or symbols)

Simple line drawing of two abstract shapes with no text or symbols

Line drawing of a sweater with a button and handle, labeled '6' (no text or symbols on the clothing itself)

Diagram showing a grid pattern with an upward arrow and a droplet-shaped object labeled '7' (no text or symbols beyond basic diagram elements)

Simple line drawing of a handheld device with a circular button and a pointer, labeled '8' (no text or symbols on the device itself)

Simple line drawing of a hand holding a tool, no text or symbols present

No smoking sign with pictogram of heart crushing into a mouth, commonly used for smoking or health restrictions

Symbolic icon of a person holding a tool, enclosed in a circular frame with crosshairs (no text or symbols)

Line drawing of a sweater with collar and pocket, showing measurement lines (no text or symbols)

1

Labeled diagram of a mechanical device with numbered parts for identification

)

UTILIZZARE IL METODO 1

Simple line drawing of a teardrop-shaped object with a small mark on the interior (no text or symbols)

Illustration of a hand applying a medical or surgical tool to a patient's abdomen (no text or symbols present)

Two-step illustration of a medical or surgical tool: one with a circular target and arrow, the other with a long tool inserted into a boot (no text or symbols)

Simple line drawing of a handheld device with a circular inset showing internal components (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of hands using a tool to apply liquid, labeled with number 14 (no text or symbols on the diagram itself)

Illustration of two hands holding a spoon, no text or symbols present

Line drawing of a hand holding a small object above a bowl, with the number 16 labeled at the bottom (no text or symbols on the object itself)

17

ACHTUNG

Prohibition sign with pictogram of a heart above a road, indicating no traffic or pollution

Symbolic icon of a person holding a device, enclosed in an oval frame with crosshairs (no text or symbols)

Line drawing of a sweater with collar and buttons, no text or symbols present

Illustration showing two-step clothing sewing technique: one with a hand pressing down on a sweater, the other with a hand holding a glove and adjusting the button.

Simple line drawing of two abstract shapes with no text or symbols

Line drawing of a sweater with a bandage and a button, no text or symbols present

Diagram showing a grid pattern with an upward arrow and a stylized teardrop shape labeled '7' (no text or symbols beyond the number)

Two line drawings of a medical or robotic device, labeled 8 and 9, showing different angles and positions (no text or symbols present)

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

Imported by:

Sanysan Appliances S.L, NIF: B98753056,

C/ Barcas 2, 2

46002 Valencia, Spain

Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com /

[e-mail] / 0034 902 222 161

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

| |

- | - |

SOGO®

Human Technology
