USER MANUAL SS-6615 Sogo

Close-up of a black handheld hairless device with a circular vent grille (no text or symbols visible)

QUITA PELUSAS ELÉCTRICA ELECTRIC LINT REMOVER RASOIR ANTI-BOULOCHE / ANTI-PELUCHE REMOVEDOR DE FIAPOS ELÉTRICO ELEKTRISCHER FLUSENENTFERNER DECAPANTE ELETTRICO

Exploded view diagram of a hand-operated device with numbered parts for identification

Line drawing of a hand gripping a mechanical component with a black arrow indicating force or direction (no text or symbols)

Line drawing of a hand using a gavel to press or press a small object (no text or symbols present)

Diagram showing a computer mouse being processed, with no text or symbols present

Diagram of a mechanical device with rotating components and directional arrows indicating rotation (no text or symbols)

Illustration of a hand using a tool to cut or press a cylindrical object with granular material, showing motion direction (no text or symbols)

Diagram of a hand holding a device with rotating arrows indicating rotation (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

This instruction manual can also be downloaded from our web page www.sogo.es

SAFETY PRECAUTIONS

1. Warning: this product is not waterproof, please keep the product dry and do not immerse it in the water or other liquids to clean.
2. Do not use this appliance near the bathtub, wash basin, or other vessels which with water.
3. This product can only be used on remove clothing lint, it is prohibited to use for other purposes; please never use it for shaving beard, trim hair, etc.
4. To prevent battery leakage, take the battery out for long time storage.
5. Take the battery out and hand it over to the official collection point

for safety handling when you discard the product.

1. Do not use any accessories or parts that produced by other manufacturers or any not recommended by SOGO; the warranty of any quality problem caused by using such accessories will be invalidated.

2. A close supervision is needed for children, disabled and incapacitated persons; children should be supervised to avoid they treat the product as toy.

PRECAUTIONS FOR USE

1. To avoid clothing damage while pruning; prevent the clothing folds, make sure the clothing smooth before use.

2. To avoid clothing damage; hold

the lint remover, do not press hard, just press the outer foil close to the objects.

1. It is prohibited to use the lint remover handle the clothes you are wearing, otherwise may cause damage on your body and clothes.

2. Please shut the power off immediately if there is any damage or fault, and do not assembly and disassembly without authorization.

3. Please keep the power off during cleaning and maintaining this product.

IMPORTANT SAFEGUARDS

• For home use only. Do not use for industrial purposes. Do not use the appliance for any other purposes but described in this instruction manual.
• Do not use this product in bathrooms or near water.

- This appliance is not intended for use by persons (including children) with reduced physical, Sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
- Do not leave the appliance switched on when not in use.
- Do not use other attachments but those supplied.
- Do not attempt to repair, adjust or replace parts in the appliance. Check and repair the malfunctioning appliance in the service center only.
- Do not place or store the appliance where it can fall or be pulled into a

bath or sink.

• Do not apply to the clothes you are wearing at the moment of using.
• Do not use the lint remover for plush clothes, clothes with nap, embroidery, etc.

INSTRUCTION FOR USE

• Remove the battery cover on the lower end of the handle by pressing arrows together.
• Insert 2×1.5V AA batteries (not included) according to diagram in the compartment, then reattach battery cover
• NOTE: Only use with non-rechargeable batteries.
• For best results, place garment on a hard, flat surface before using product to remover lint.
• Switch product to the “on” setting,

then run over the worn areas of fabric with light pressure to give them a clean, soft new look.

• Work lint remover evenly over the area on garment where necessary.
Continuous application on a fixed area may wear out garment.
- When garment is clear of lint, switch to “off” mode.
- Prevent clogging by regularly emptying the see-through lint trap on the front of the handle.

This is not a toy

Keep out of reach of children

Battery Warning:

Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (including hydride)

Do not mix old and new batteries

Exhausted batteries are to be removed The supply terminals are not to be short-circuited Only batteries of the same or equivalent type as recommended are to be used Batteries are to be inserted with the correct polarity

Battery Disposal:

The wheelie bin symbol indicates the product and batteries must not be disposed of in the domestic waste as they can contain substances that are damaging to the environment. Please use designated collection points or recycling facilities when disposing of the item or batteries. Batteries should be removed from the product.

Contact your local waste disposal agency or your retailer for further information.

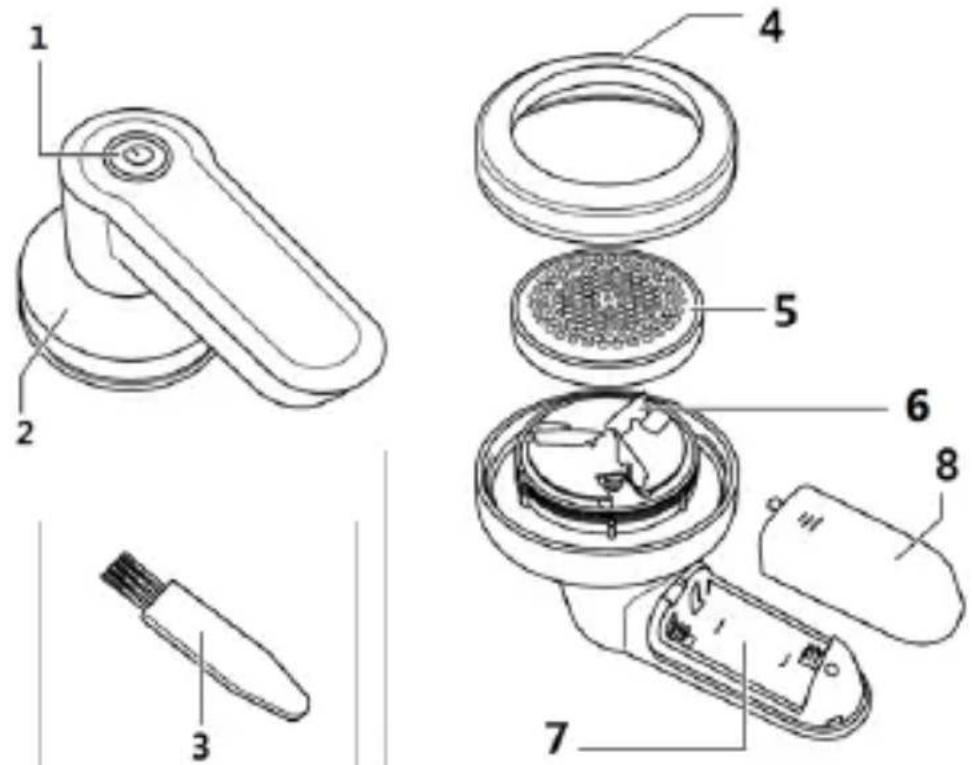

DIAGRAM

Exploded view diagram of a hand-operated device with numbered parts for identification

1. ON / OFF switch
2. Product frame
3. Brush
4. Store room
5. Mesh cover
6. Blade
7. Battery compartments
8. Battery cover

BEFORE USING

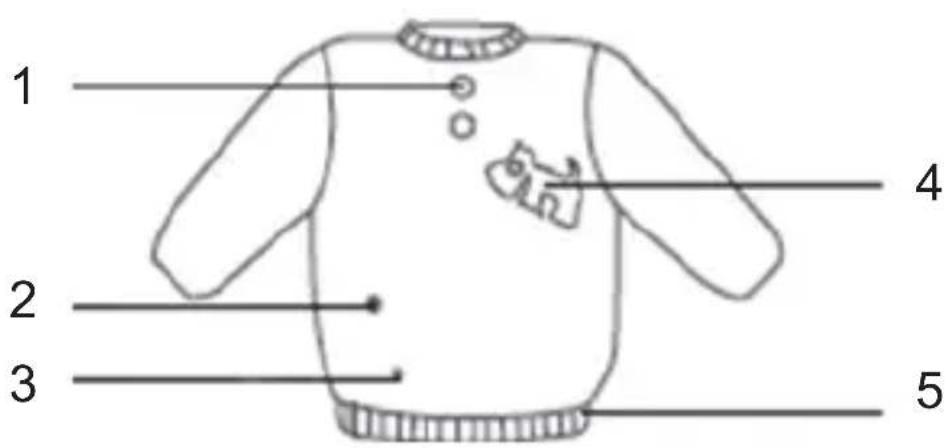

- Please pay special attention to the following parts.

1 2 3 4 5

1. Around the buttons, zippers.
2. Remove the foreign object stick on clothes.
3. Thin or easily torn parts.
4. Prominent part on the clothes.

5. Clothes connection place or sewing thread.

6. Test at an inconspicuous area of the clothes before using.

7. The lint remover has protection function, please make sure to tighten the outer foil, otherwise it cannot be started.

USE METHOD

Line drawing of a hand gripping a curved object with a black arrow pointing to the top part (no text or symbols)

Line drawing of a hand using a gavel to press or press a small object (no text or symbols present)

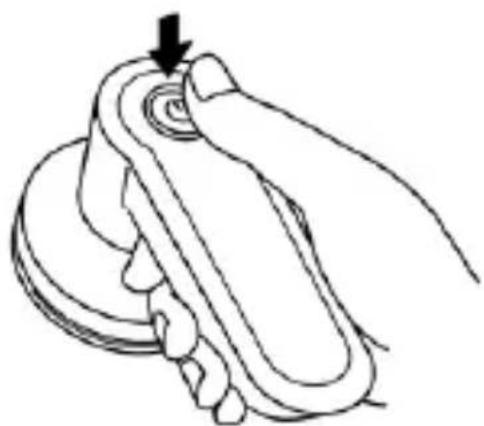

1. Turn on to start the lint remover

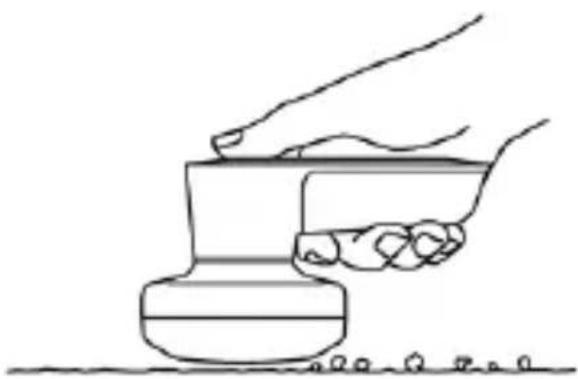

2. Slide the lint remover back and forth on the smooth clothes

3. Quick pruning method.

Slide the lint remover around on the clothing within a narrow range.

1. Remove stubborn lint.

Slide perpendicular and parallel follow the clothing lines.

1. Thin clothing.

Fold double layer and place on ironing board to remove lint.

1. Clothing with prominent parts.

Pass the prominent parts during slide.

1. Weave pattern parts.

Slide along the direction of the pattern.

- Please do not take the store room off unless for clean it, otherwise it may cause bodily

injury or mechanical damage.

- Do not use it to remove the lint on silk stockings, otherwise it might be cause damage by sucked into the blades.

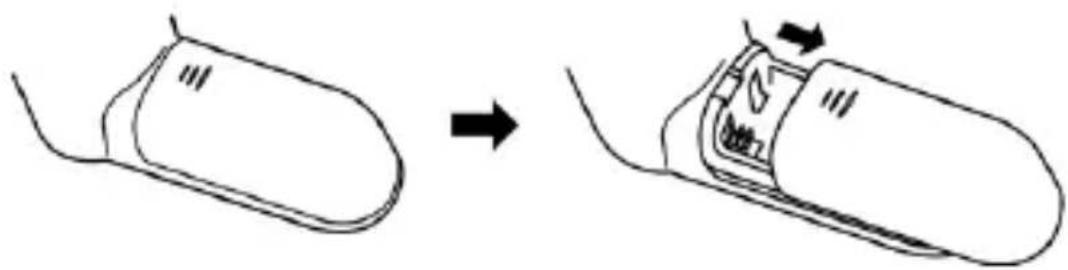

CHANGE OF BATTERY

Diagram showing a computer mouse being processed, with no text or symbols present

1. Make sure the lint remover is turned off before replace battery.
2. The product is suitable for two AA batteries.
3. Open the battery cover, install the two AA batteries correctly based the anode and cathode tips, and then replace the battery cover.
4. For ensure the using results, please replace the battery in time if you find the lint remover under powered.
5. Please use the qualified battery produced from regular manufacturers, to avoid unnecessary damage to the machine.
6. Please handed the used battery over to the recycling center designated by the government to avoid pollute the environment.

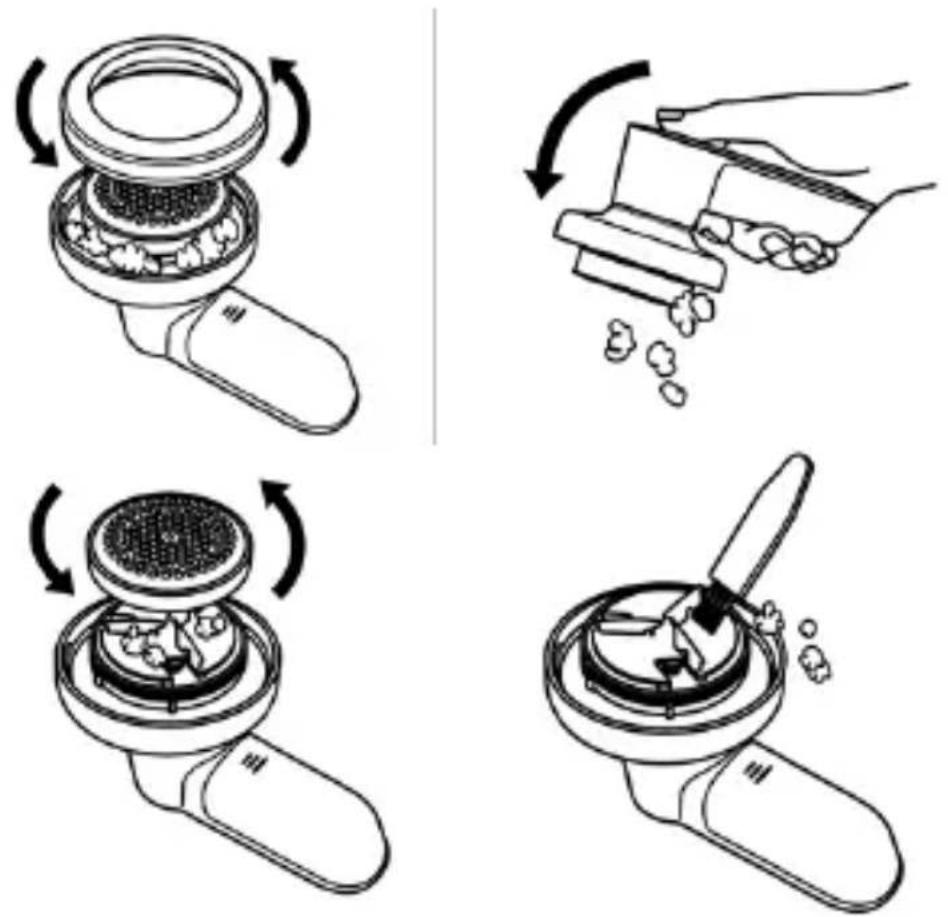

CLEANING METHODS

1. Shut the power off.

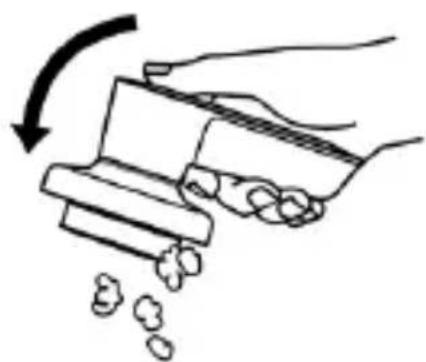

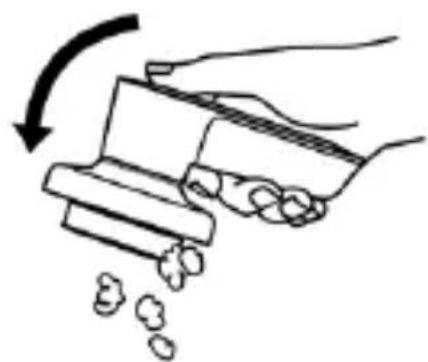

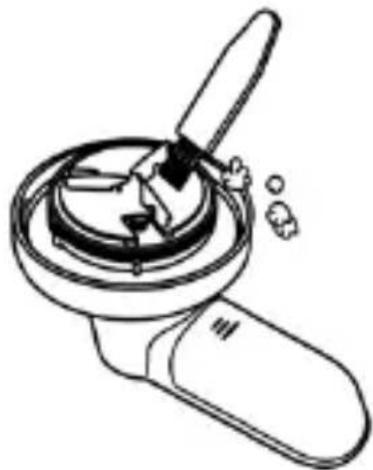

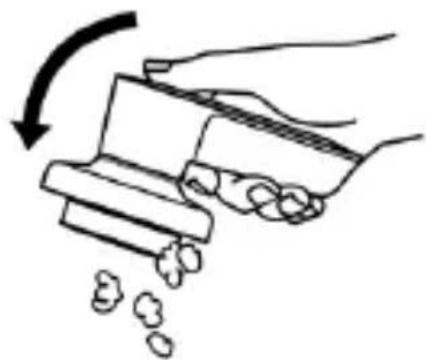

2. Unscrewing the store room counterclockwise and use the cleaning brush to clean lint in the store room

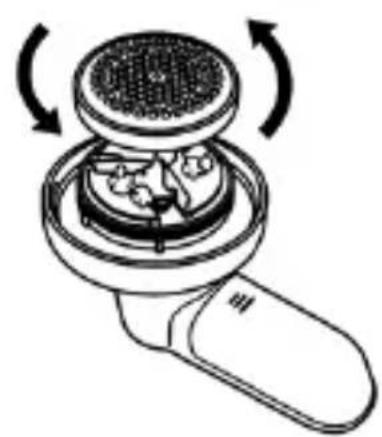

3. Unscrewing the outer foil counterclockwise
4. Take the blades and rotation shaft off
5. Use the cleaning brush to clean outer foil

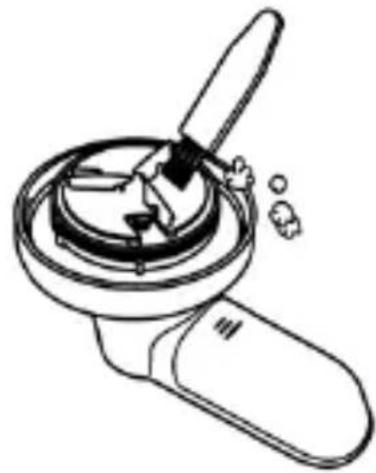

6. Use the cleaning brush to clean blades and rotation shaft
7. Use the cleaning brush to clean lint inside the product frame

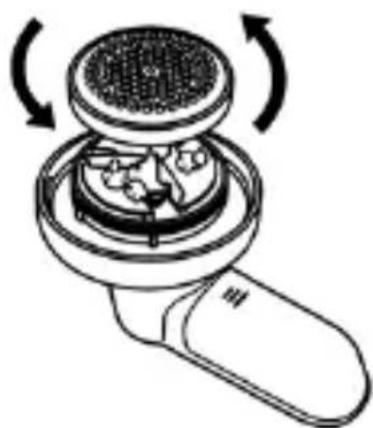

8. Replace the blade, rotation shaft, outer foil, and store room back in reverse order

9. Be careful not to scratch the hand during removing the blade.

10. Please do not press hard or strike the outer foil.
11. Do not use cleaning fluids, alcohol and other products to clean this product; otherwise it will cause product damage.
12. Please use the clean dry cloth or slightly damp cloth to wipe the product frame.
13. Please clean the store room up before it gets 80% full.
14. The lint hid in the inside of outer foil and the center of blade will affect the sharpness and the rotation, please use the cleaning brush to clean.

- Please store the product in a safe, dry and clean place.

Exploded view diagram of a hand-operated device with numbered parts for identification

Line drawings showing a hand using a tool to press down a mechanical component (left) and a hand holding a tool on a surface (right), both without any text or symbols.

Diagram showing a device being processed from a component, with arrows indicating the process (no text or symbols present)

Diagram of a mechanical device with rotating components and directional arrows indicating rotation (no text or symbols)

Illustration of a hand using a tool to cut or press a cylindrical object with granular material, no text or symbols present.

Diagram of a hand holding a device with rotating arrows indicating rotation (no text or symbols)

Line drawing of a magnifying glass with a handle and lid, showing internal components (no text or symbols)

Exploded view diagram of a cleaning device with numbered parts for identification

Line drawing of a hand gripping a curved object with a black arrow pointing to the top part (no text or symbols)

Line drawing of a hand using a gavel to press or press a small object on a surface (no text or symbols)

Diagram showing a device being processed from a left-side view, with arrows indicating the process (no text or symbols present)

Exploded view diagram of a hand-operated device with numbered parts for identification

Line drawing of a hand gripping a curved object with a downward arrow, no text or symbols present

Line drawing of a hand using a tool to press or stamp a cylindrical object (no text or symbols)

Diagram showing a device being processed from a component, with arrows indicating the process (no text or symbols present)

Exploded view diagram of a hand-operated device with numbered parts for identification

Line drawing of a hand gripping a curved object with a black arrow pointing to the top part (no text or symbols)

Line drawing of a hand using a gavel to press or press a small object (no text or symbols present)

Diagram showing a device being processed from a left-side view, with arrows indicating the process (no text or symbols present)

Diagram of a mechanical device with rotating components and a handle, showing no text or symbols.

Illustration of a hand using a tool to cut or press food items, with an arrow indicating rotation (no text or symbols)

Diagram of a hand holding a device with rotating arrows indicating rotation (no text or symbols)

Line drawing of a magnifying glass with a handle and lid, showing internal components (no text or symbols)

DECLARATION OF CONFORMITY

This device complies with Electromagnetic Compatibility Directive 2014/30/EU, Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment

DÉCLARATION DE CONFORMITÉ

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE).

Imported by:

Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2

46002 Valencia, Spain Product made in P.R.C. – Designed by SOGO based on the European Quality Standards

Customer Service: www.sogosat.com / [e-mail] / 0034 902 222 161
