USER MANUAL Dolphin X60 MAYTRONICS

Robot Pool Cleaner by Maytronics

EN User Instructions....p. 1

Exterior view of a Maytronics robotic lawn mower (no signage or text visible on body)

CLASSIC 8D-UNI

Ver.01 8151622

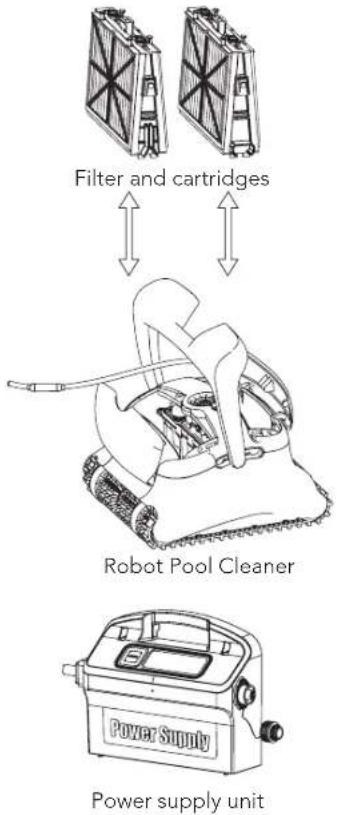

What You'll Find Inside the Box

Filter and cartridges Robot Pool Cleaner Power Supply Power supply unit

Part X Comment
Base frame for filter elements 2
Net filter 4 filters
"S" clip 4
Power supply unit 1
Robot Pool Cleaner 1
Caddy kit 1
Optional components available on request from your Robot Pool Cleaner distributor

Section 1 - Description of Main Components

1. Filters

There are two types of optional filters.

Only one type of filter is provided with your Robot Pool Cleaner.

Technical line drawing of a three-tiered mechanical or electronic component with no visible text or symbols

Net filter

For day-to-day use.

Factory default.

Technical line drawing of a mechanical assembly with no visible text or symbols

Optional: Ultra-fine filter

for fine dirt particles.

2. Brushes

There are three types of optional brushes, each designed to provide optimal traction on different pool surfaces. Only one type set is provided with your Robot Pool Cleaner.

PVC Brush

For concrete, PVC, fiberglass and liner.

Combined Brush

All surface climbing brush ideal for most pool surfaces.

Wonder Brush

For smooth ceramics.

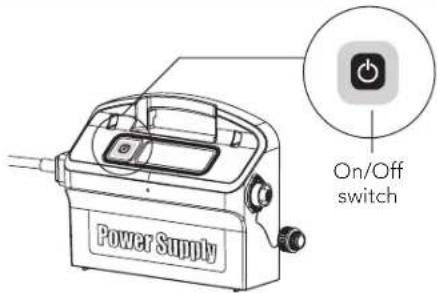

3. Power supply unit

Digital, "Switch-Mode" power supply:

• Input - 100-250 AC Volts
50-60 Hertz
180 Watt
• Output - 30 VDC
IP 54

Power Supply On/Off switch

Section 2 – Robot Pool Cleaner Operation

Part 1 – Preparing the Robot Pool Cleaner for Use

A. Assemble the Caddy kit – you will find the instructions in a separate document

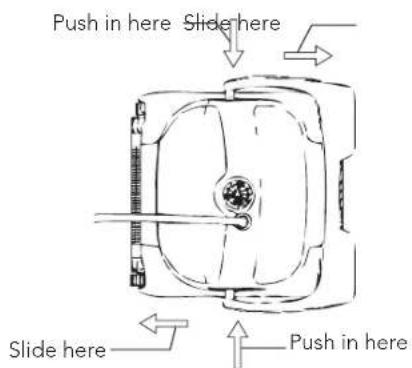

B. Adjusting the handle float angle

The handle angel must be adjusted to determine the speed that the Robot Pool Cleaner advances along the water-line.

1. Lay the handle down at an angle of 180^ to the ground.
2. Push the base of the arm into the body of the Robot Pool Cleaner and slide it towards the rear of the Robot Pool Cleaner until it clicks into the required position.

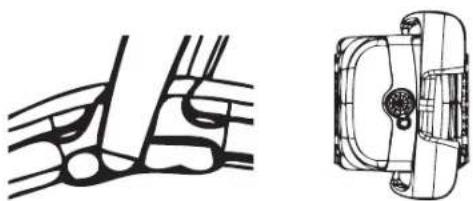

Normal advance

More efficient cleaning action on water-line.

Push in here Slide here Slide here Push in here

Technical line drawing of a mechanical component with no visible text or symbols

Fast advance

Fast speed – For faster but less efficient cleaning action on water-line.

Technical line drawing of a mechanical component with no visible text or symbols

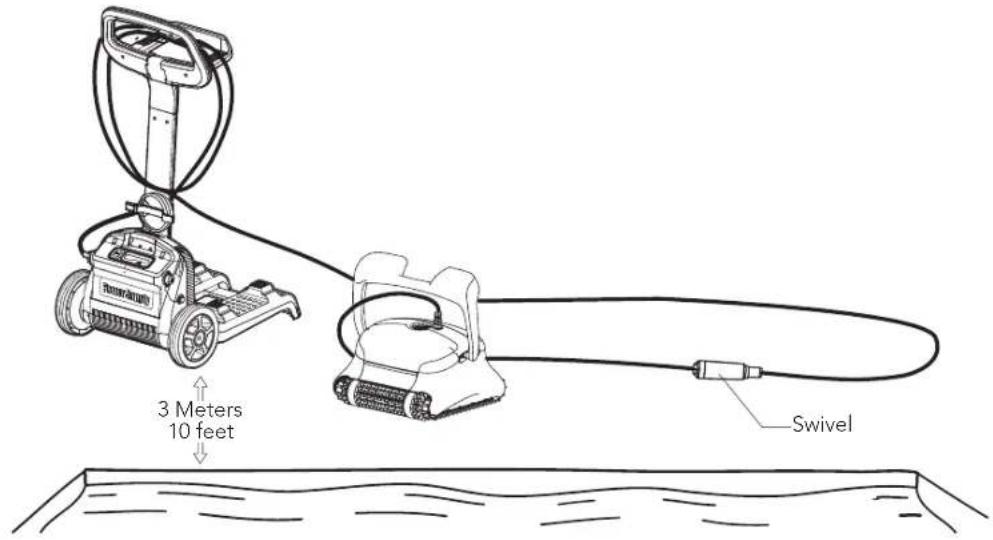

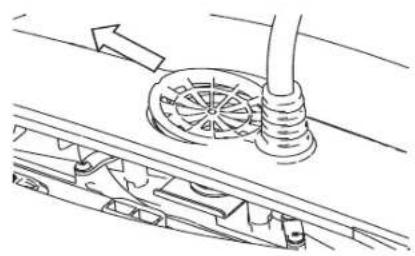

C. Laying out the cable

Unwind minimal required cable to cover the entire pool size, straight the cable along the pool side. Make sure there are no twists or kinks.

3 Meters 10 feet Swivel

Only use only the original supplied power supply unit.
The Power supply unit is splash proof – do not immerse it in water.
⚠️ Unplug the power supply unit before any servicing activity.
Do not plug the power supply unit in before placing the pool cleaner in the water.
⚠ Ensure the mains outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI).
Important: Do not enter the swimming pool while the pool cleaner is working.

Part 2 - Into the water

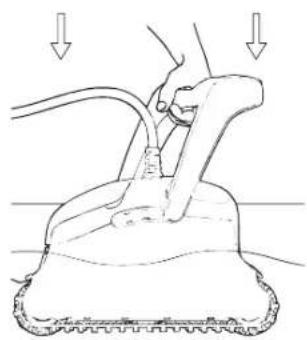

Inserting the Robot Pool Cleaner into the pool.

Place the Robot Pool Cleaner into the pool and release the handle.

Line drawing of a hand using a tool to lift a small object, with arrows indicating motion direction (no text or symbols)

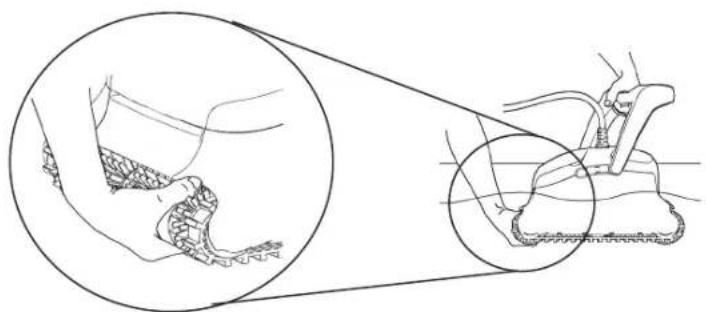

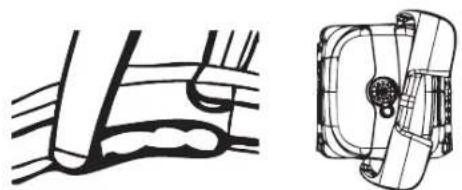

Note: When using the Combined brushes or Wonder brushes, gently squeeze the Wonder brush material until it is totally wet.

Medical illustration showing a foot and ankle joint with a close-up view of the ankle joint (no text or labels)

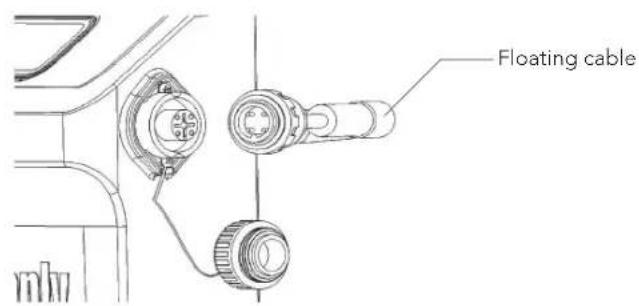

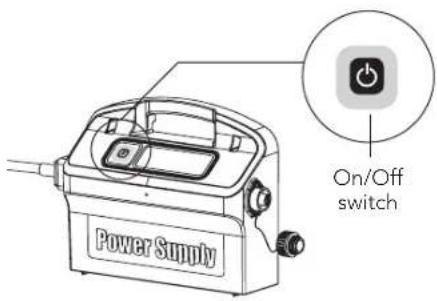

Turning the Robot Pool Cleaner ON

1. Plug the floating cable from the Robot Pool Cleaner into the power supply unit.

2. Plug the electrical cable from the power supply unit into the mains.

3. Press the ON / OFF switch.

4. The Robot Pool Cleaner will now start to work.

Floating cable

Power Supply On/Off switch

Important: Do not enter the swimming pool while the pool cleaner is working.

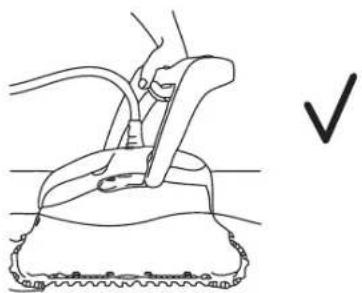

Part 3 - Taking the Robot Pool Cleaner out of the water

Unplug power supply before any servicing activity.

1. If the Robot Pool Cleaner has not finished its cycle, turn off the power supply unit and unplug the mains.
2. Pull the floating cable gently until the Robot Pool Cleaner has risen to the surface, then lift by the handle.

Line drawing of a hand using a tool to clean or repair a surface, with a checkmark indicating the correct action (no text or symbols present)

Line drawing of a hand gripping a piece of dough with a fork, next to a cross symbol (no text or labels)

Important: Do NOT lift the Robot Pool Cleaner from the water by its cable.

Section 3 - Routine Maintenance

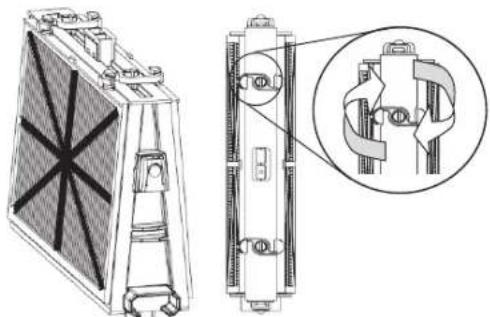

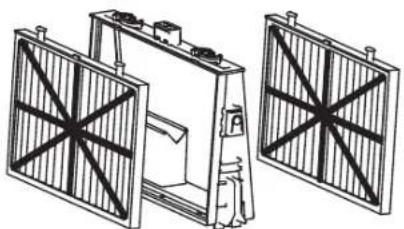

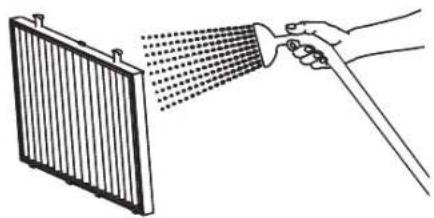

Part 1 - Extracting and cleaning the filter elements

Unplug power supply before any servicing activity.

Two identical 3D diagrams of a mechanical component with internal structure, shown with upward and downward arrows (no text or symbols)

Technical line drawing of a heat exchanger or cooling unit with internal components and a magnified inset showing internal mechanical assembly (no text or symbols)

Line drawing of a mechanical device with textured base and handle (no text or symbols)

Technical line drawing of a mechanical assembly with two rectangular panels and internal components (no text or symbols)

2

Illustration of a hand spraying water onto a wall-mounted fan (no text or symbols)

3

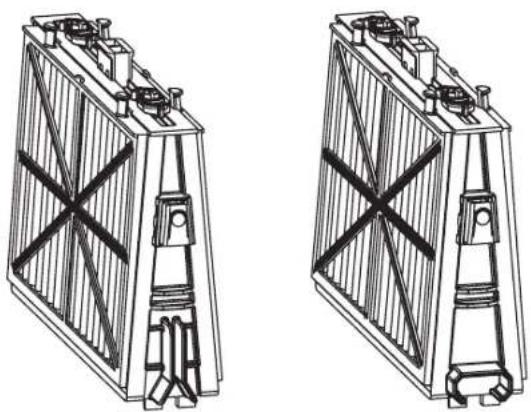

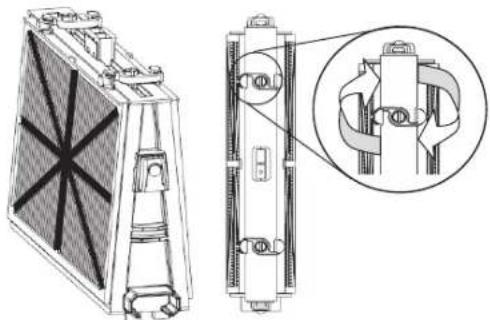

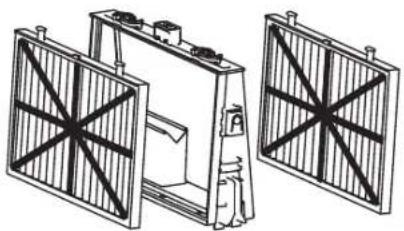

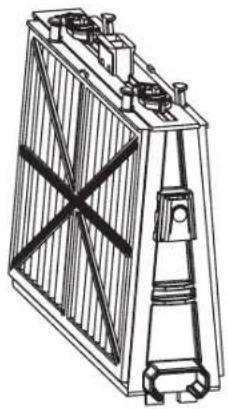

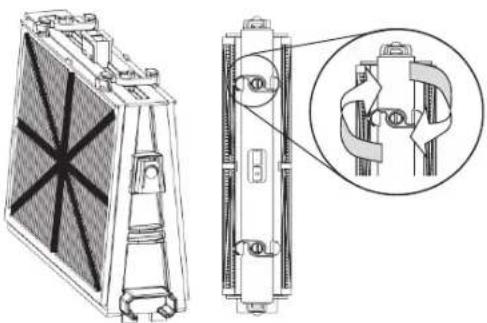

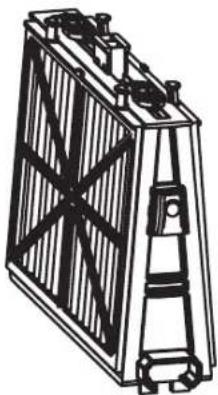

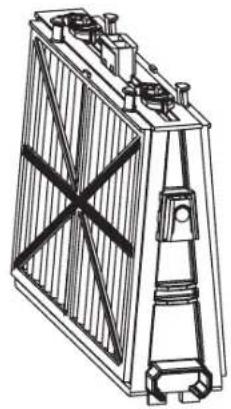

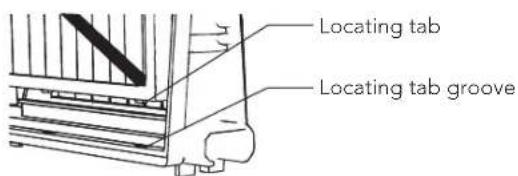

Reassembling the filter elements

Insert the locating tabs at the bottom of the filter element into their groves on the base frame, then close the "S" clip.

Locating tab Locating tab groove

Technical line drawing of a heat exchanger or cooling unit with internal components and a magnified inset showing internal structure (no text or symbols)

Reinstall the filters according to the diagram DO NOT FORCE THE FILTERS INTO PLACE.

Technical line drawings of two identical battery modules with internal components and mounting points (no text or symbols)

Grooved end fitting Octagonal end fitting

Recommendation: Rinse all brushes with clean water after each cleaning cycle.

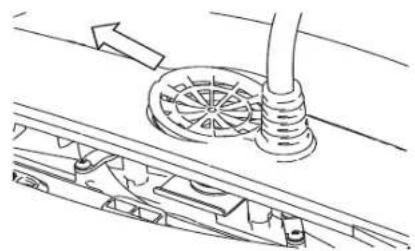

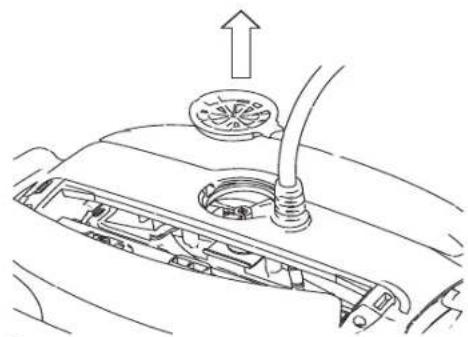

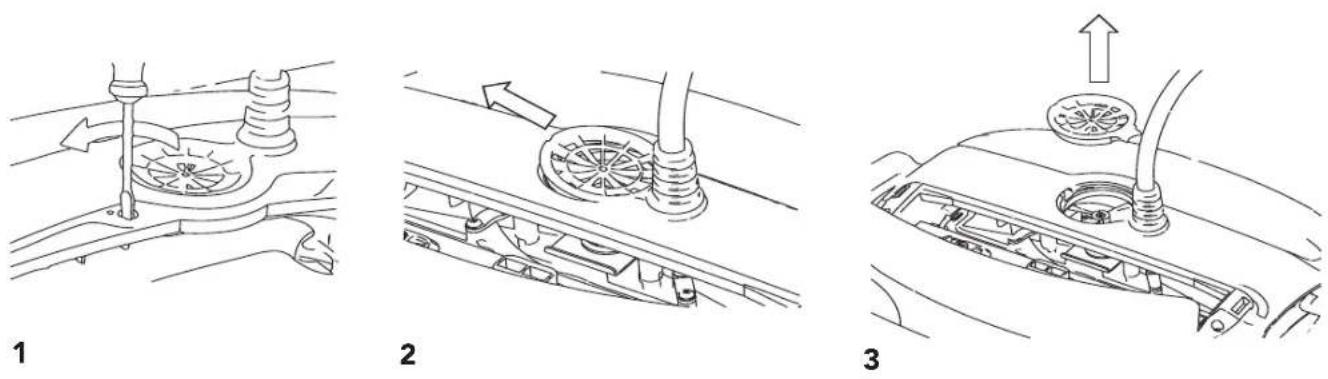

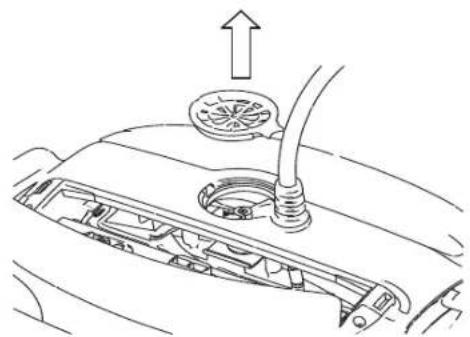

Part 2 - Dismantling and cleaning the impeller

⚠️ Unplug power supply before any servicing activity.

Dismantle the impeller cover and clean around the impeller housing, then reassemble.

Section 4 – Storage Advice

Coil the cable and store in dry cool area – preferably on the Caddy if available.

✗ Do NOT store the Robot Pool Cleaner exposed to direct sunlight.
✗ Do NOT store the Robot Pool Cleaner exposed to excessive heat.
✗ Do NOT store the Robot Pool Cleaner exposed to frost.

Troubleshooting Guide

Before contacting your Robot Pool Cleaner distributor please read through this guide.

The pool water condition must be within the following parameters:

PH: 7.0 – 7.8 NaCl: Max 5,000 ppm
Temperature: 6°C(43°F) to 34°C(93°F) Chlorine: Max 4 ppm

Symptom Solution
Cable twisting or cable coils up	Check for any obstruction in the pool
	Remove excess cable from the pool
	Make sure filter cartridge is clean
	Straighten cable and lay it in the sun periodically
Robot Pool Cleaner is moving in circles or does not reach all pool areas	Check for foreign objects in moving parts
	Make sure filter elements are clean and that the filter doors are closed
	Make sure that there is enough cable laid out to cover the whole pool
	Before using the Robot Pool Cleaner at the beginning of the season you should brush any algae from the floor and walls of the pool
Robot Pool Cleaner is not traveling sideways on walls	Adjust the diagonal angle of the handle
Robot Pool Cleaner does not climb walls	Make sure the filter cartridge is clean
	If using the Robot Pool Cleaner at the beginning of the season you should first brush any algae from the floor and walls of the pool
	Check if brushes are suitable for pool coating and replace them if necessary
	Check if brushes are worn and replace them if necessary
	Make sure the impeller area is clean
Robot Pool Cleaner not sinking	Make sure the Wonder brushes or the combined brushes are soaked in water
Robot Pool Cleaner disengaging from wall at water line	If Robot Pool Cleaner climbs too high consult your Robot Pool Cleaner distributor
Motor is not working	Check if the impeller is blocked
	Check if the drive system is blocked
	Electrical problem (power supply), check power source. If power source is in order, please contact your Robot Pool Cleaner distributor
