Product Type	Robotic pool cleaner
Brand	Maytronics
Model	Dolphin DIVER PRO 400
Motor Protection	IP68
Minimum Operating Depth	0.80 m
Maximum Operating Depth	5 m
Power Supply (power unit)	Input: 100-250 V AC, 50-60 Hz, 180 W; Output: <30 V DC; IP54
Filtration Type	Filter cartridges (4 standard, 4 ultrafine optional)
Included Brush	Brush suitable for all wall coverings
Optional Brushes	PVC brush (for concrete, PVC, fiberglass); Wonder brush (for smooth ceramics)
Handle Angle Adjustment	Yes, to adjust speed along the waterline
Automatic Cleaning Cycle	Yes, operates until the end of the cycle
Wall Climbing	Yes, depending on water conditions and appropriate brushes
Routine Maintenance	Clean filter cartridges; disassemble and clean impeller
Usage Precautions	Do not enter the pool when the robot is operating; unplug before maintenance
Recommended Water Conditions	Chlorine max 4 ppm; pH 7.0-7.8; temperature 6-34°C; NaCl max 5000 ppm
Off-Season Storage	Drain water, clean filters, rewind cable, store vertically away from frost and sun (5-45°C)
Cable Length	Not specified, adapted to pool size (sufficient to reach all corners)

Frequently Asked Questions - Dolphin DIVER PRO 400 MAYTRONICS

What to do if the robot does not move?

First, check that the power cable is properly connected and that the outlet works (circuit breaker). Then, turn off the robot, wait 30 seconds, and turn it back on. If nothing happens, unplug the power, open the impeller cover, and check that no debris is blocking the propeller.

The robot moves but does not clean properly, why?

Clean the filter cartridges. Observe the robot at startup: if it stops, check the impeller and drive system for blockages.

The robot only cleans part of the pool, how to improve coverage?

Make sure the cable is long enough to reach all corners. Clean the filters. If the model allows, adjust the handle float to achieve a 90° pivot on the floor.

The robot floats instead of staying at the bottom, what to do?

Take it out of the water and press the brushes to release air and soak them with water. Put it back in the water and it should sink.

How to clean the filter cartridges?

Unplug the power. Open the filter covers, remove the cartridges, then clean them with a garden hose. Do not let them dry before cleaning. Reassemble by inserting the tabs into the grooves and closing the S-clips.

How to disassemble and clean the impeller?

Unplug the power. Use a Phillips screwdriver to unscrew the impeller cover. Clean around the housing and reassemble.

What are the recommended water conditions for use?

The robot must be used with a chlorine level max of 4 ppm, a pH between 7.0 and 7.8, a temperature of 6 to 34°C, and a salt (NaCl) level max of 5000 ppm.

How to store the robot in off-season?

Drain the water from the robot, carefully clean the filter cartridges and put them back. Rewind the cable without kinks. Store the robot vertically on its caddy, sheltered from sun, rain, and frost, at a temperature between 5 and 45°C.

What to do if the robot does not climb walls?

Clean the filters. Check the pH and chlorine: inappropriate levels can promote algae, making walls slippery. Brush the walls if necessary. Also check the brush wear.

How to adjust the handle angle?

Press the latch down to unlock, move the handle to the desired position, then release the latch to lock. The angle influences the travel speed along the waterline.

USER MANUAL Dolphin DIVER PRO 400 MAYTRONICS

Dolphin Explorer Classic 9 / Top 9

EN

User Instructions...... p. 1

FR

EN

Dolphin Explorer Classic 9 / Top 9

User Instructions

Contents

1. INTRODUCTION ...... 2
2. SPECIFICATIONS.... 2
3. WARNINGS AND CAUTIONS 2

3.1. Warnings....2
3.2. Cautions....2

1. POOL CLEANER PARTS 3
2. USING THE POOL CLEANER....4

5.1. Setup....4

5.1.1. Adjusting the handle angle 4

5.2. Putting the Pool Cleaner into the pool....5
5.3. Removing the Pool Cleaner from the pool....6

1. ROUTINE MAINTENANCE....7

6.1. Cleaning the filter cartridges 7
6.2. Dismantling and cleaning the impeller....8

1. OFF SEASON STORAGE....9
2. TROUBLESHOOTING....10

Dolphin Explorer Classic 9 / Top 9

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and easy maintenance. You and your family will be free to enjoy swimming with full confidence that your pool is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

Digital switch-mode power supply

• Input - 100-250 AC VOLTS
50-60 Hertz
180 Watt
• Output - <30 VDC
IP 54

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only
- Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
- Keep the power supply out of standing water
- Position the power supply at least 3m/10ft away from the edge of the pool
- Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing

3.2. Cautions

When not in use store the Pool Cleaner on its Caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6-34°C (43-93°F)
NaCl Maximum = 5000 ppm

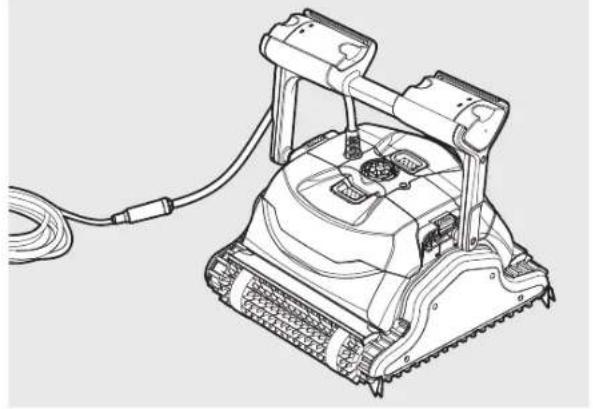

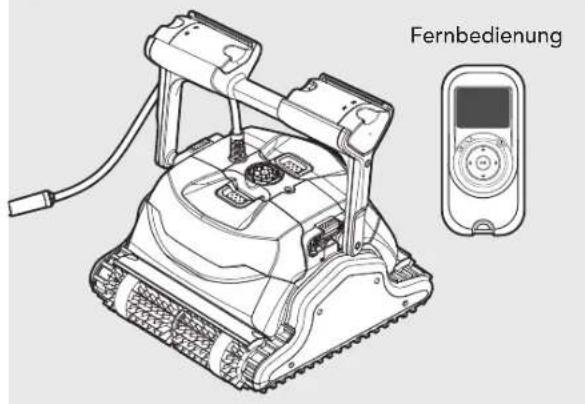

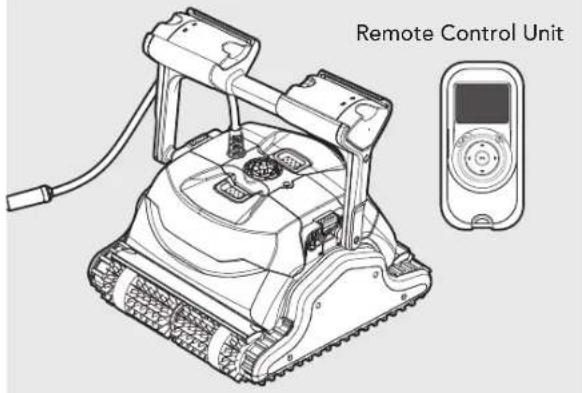

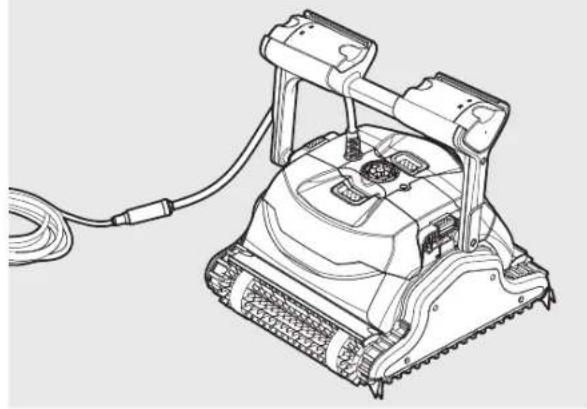

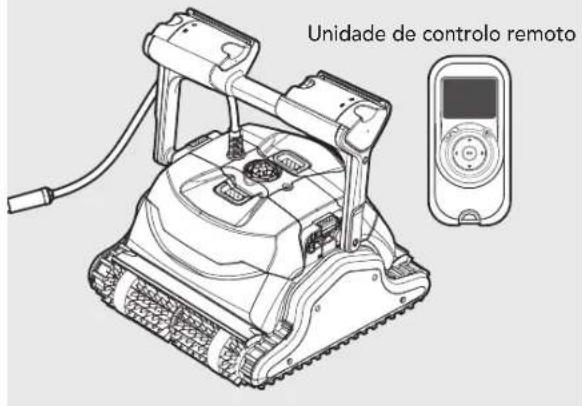

4. POOL CLEANER PARTS

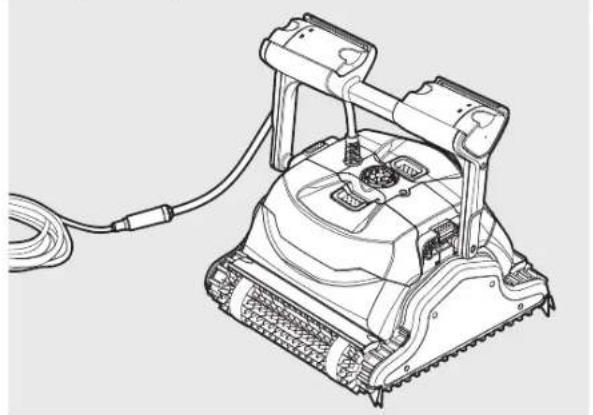

▶Dolphin Explorer Classic 9

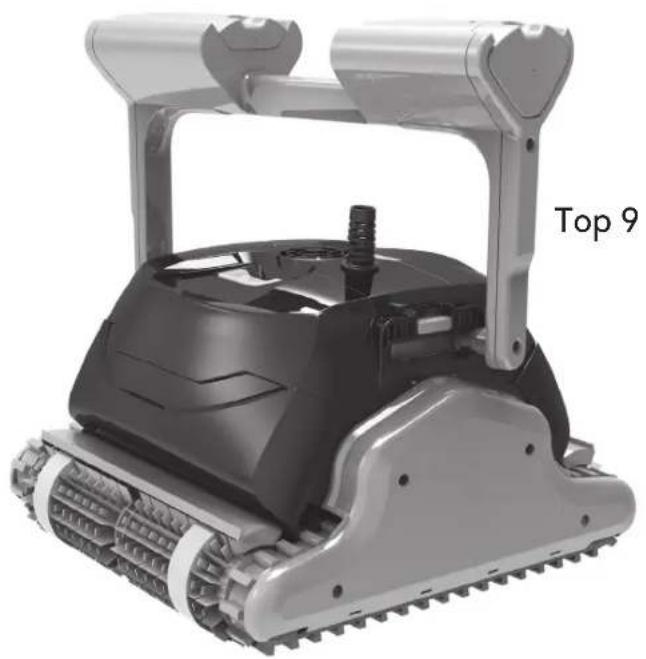

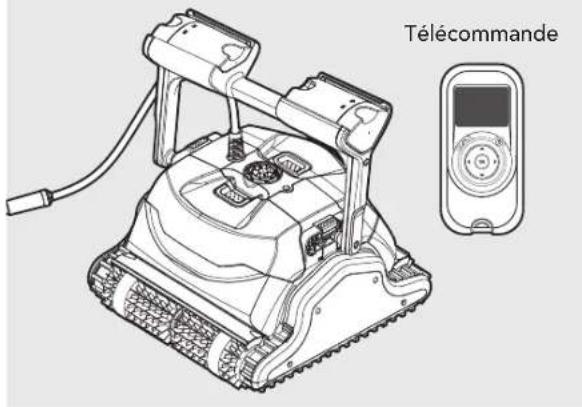

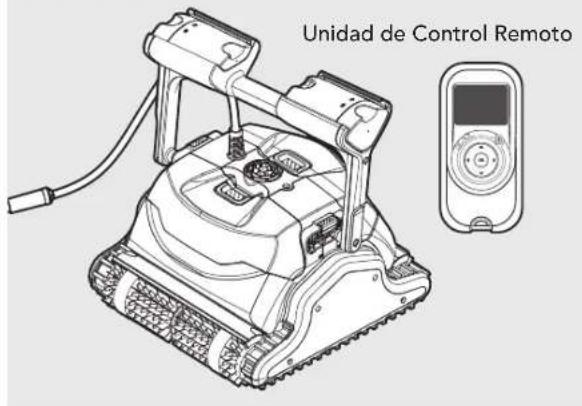

▶Dolphin Explorer Top 9

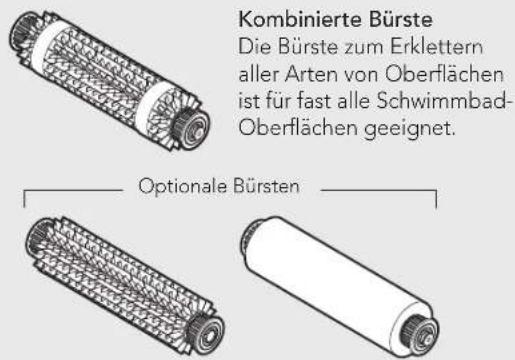

Brushes

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

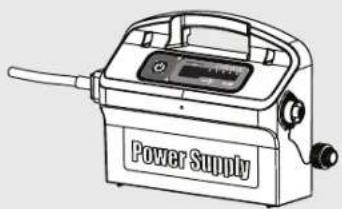

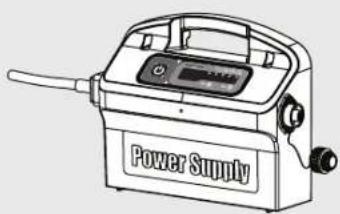

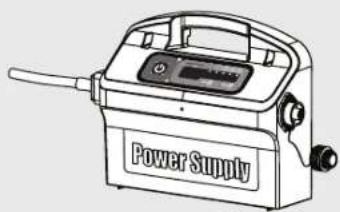

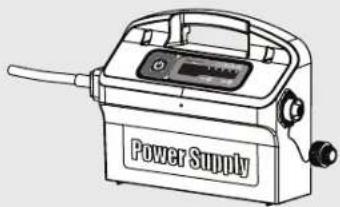

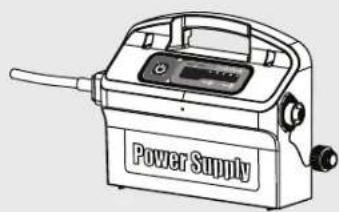

▶ Power supply unit

▶ Filtration

Cartridge with Net filters (X4)

Ultra-fine filter (X4) (optional)

5. USING THE POOL CLEANER

The Pool Cleaner is very simple to use. Simply put it into the pool and make sure that it is properly sitting on the floor of the pool. Turn it ON and let it get the job done.

5.1. Setup

Before using the Pool Cleaner for the first time perform the following steps:

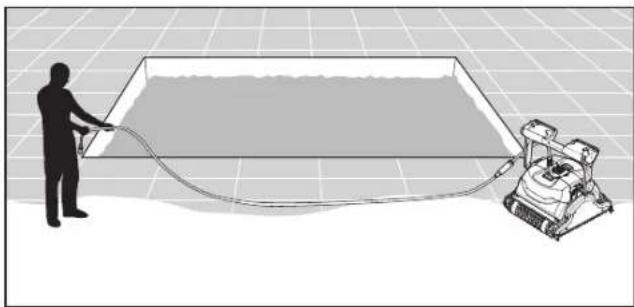

Unwind the cable and stretch it out completely so that it has no kinks.

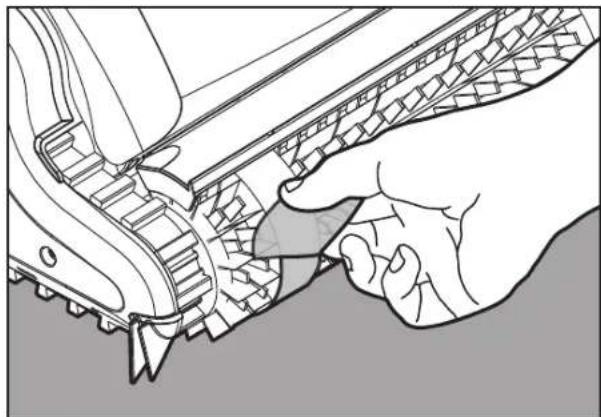

Some models arrive with plastic coverings on the brushes.

Remove them before use.

5.1.1. Adjusting the handle angle

The robot's handle should be adjusted and locked diagonally in order to ensure optimum cleaning results.

The handle angle can be adjusted also to determine the speed at which the robot advances along the water-line.

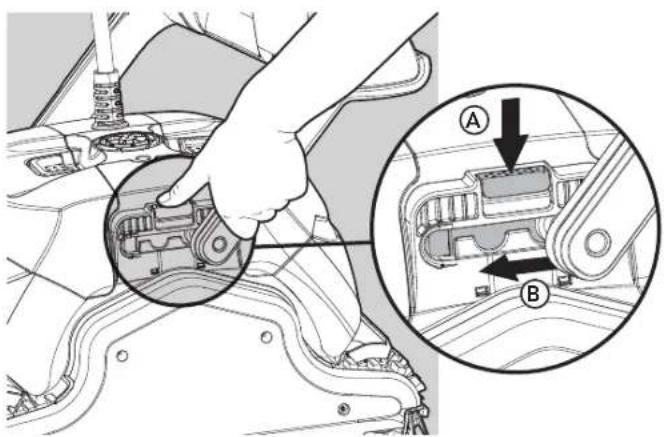

To adjust the handle angle:

A. Press the latch down and hold it in position.
B. Move the handle to the desired position and release the latch to hold the handle in place.

Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3m/10ft.

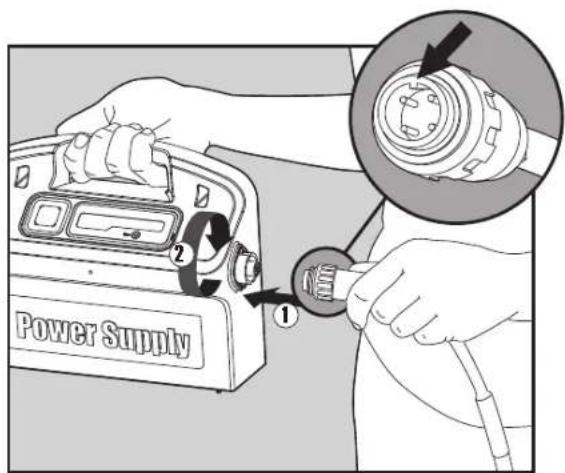

Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power supply and turning clockwise (2).

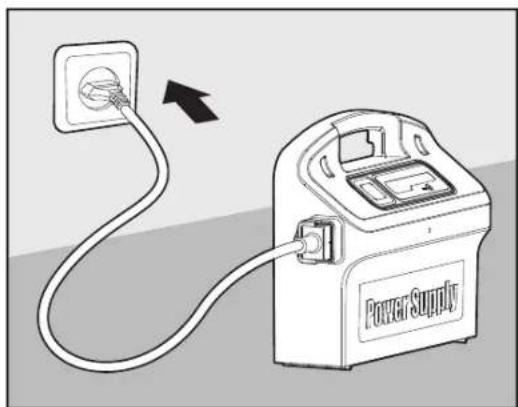

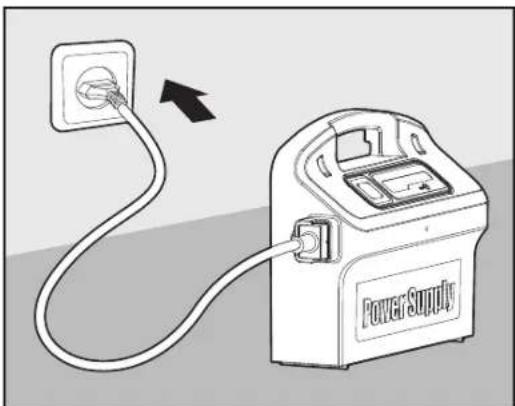

Plug in the power supply and leave it in the OFF position.

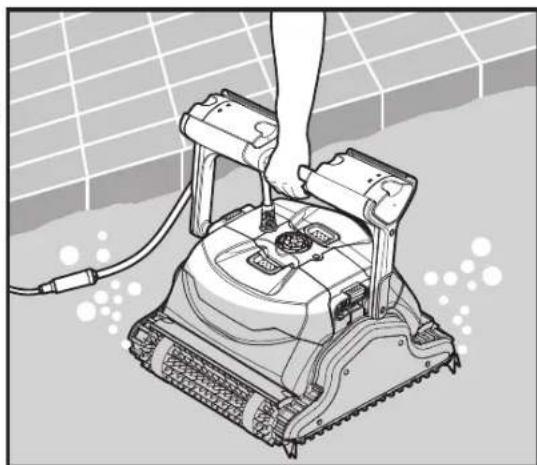

5.2. Putting the Pool Cleaner into the pool

If your Pool Cleaner is equipped with brushes that contain sponges, dip the brushes in the water and squeeze them so that they will absorb water the first time you use the Pool Cleaner, or if the brushes have dried out between uses.

Release the Pool Cleaner and let it sink to the floor of the pool.

Make sure that the floating cable is free of any obstructions.

To avoid kinks in the floating cable, place approximately enough cable in the water for the Pool Cleaner to reach the farthest corner of the pool.

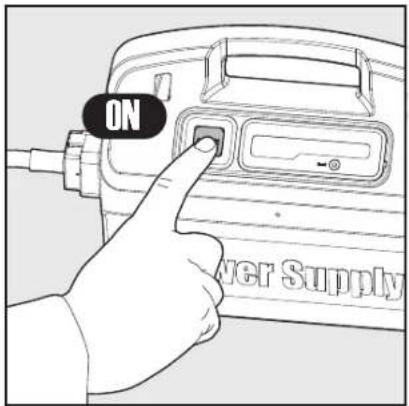

Turn the power supply ON.

The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

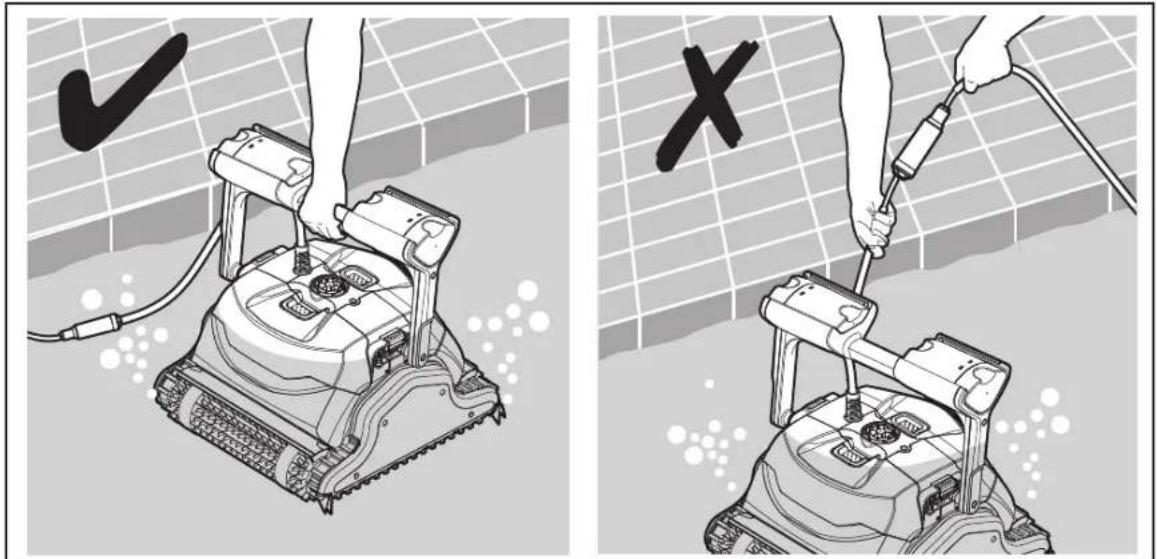

5.3. Removing the Pool Cleaner from the pool

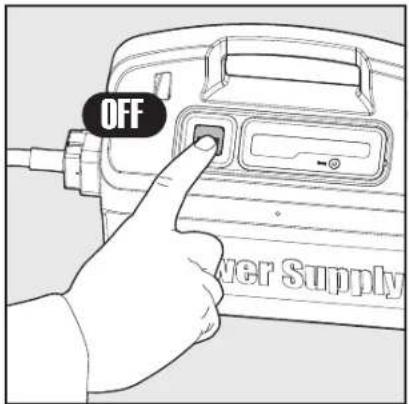

⚠️ Turn OFF and unplug the power supply.

Using the floating cable, bring the Pool Cleaner to the pool's edge.

Using the handle remove the Pool Cleaner from the pool.

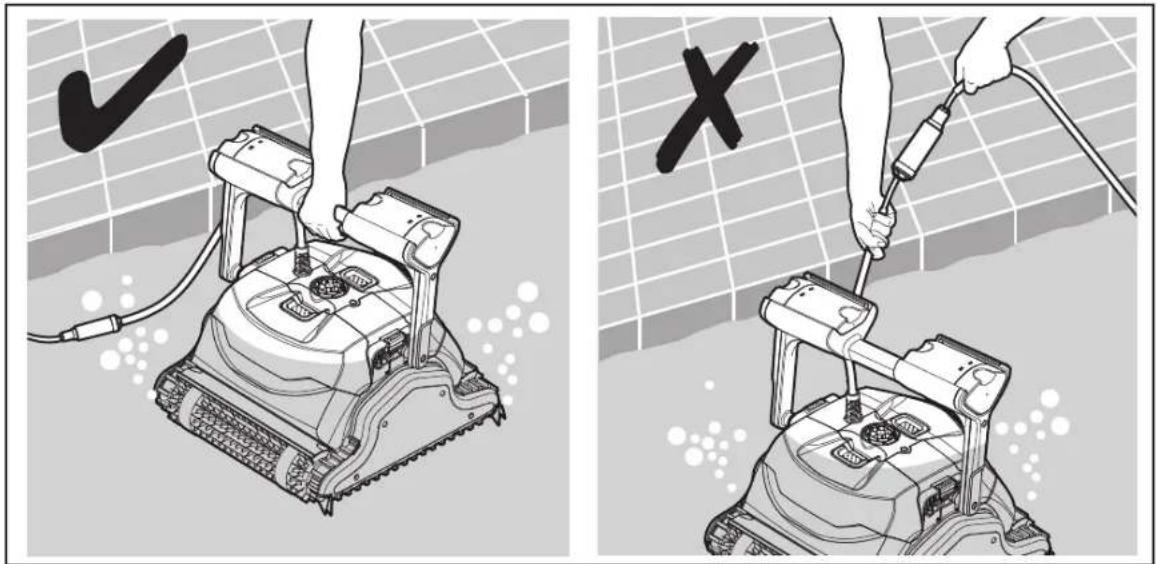

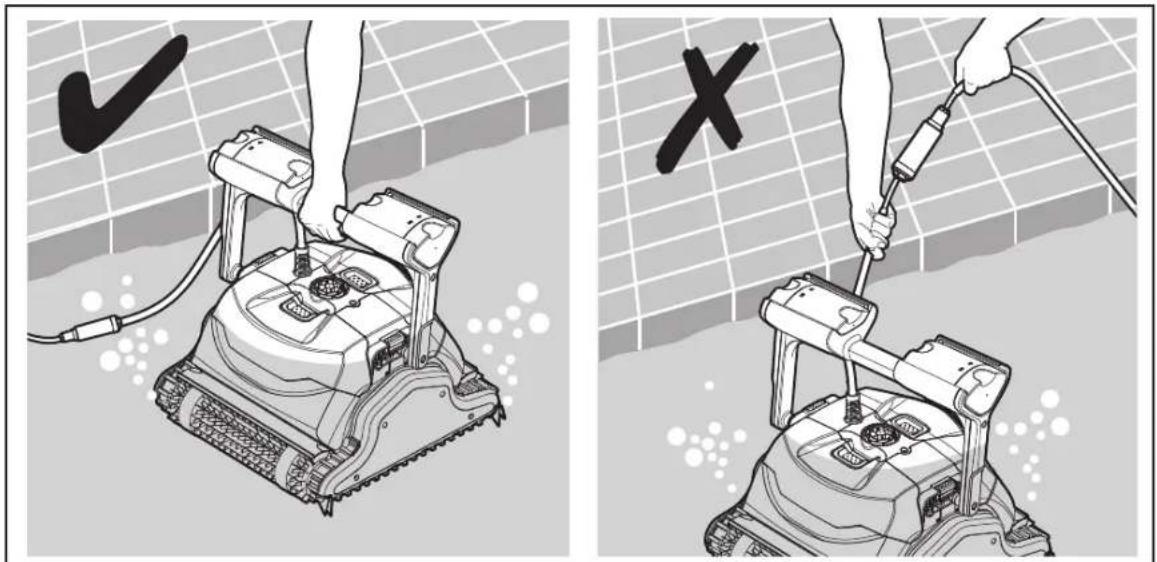

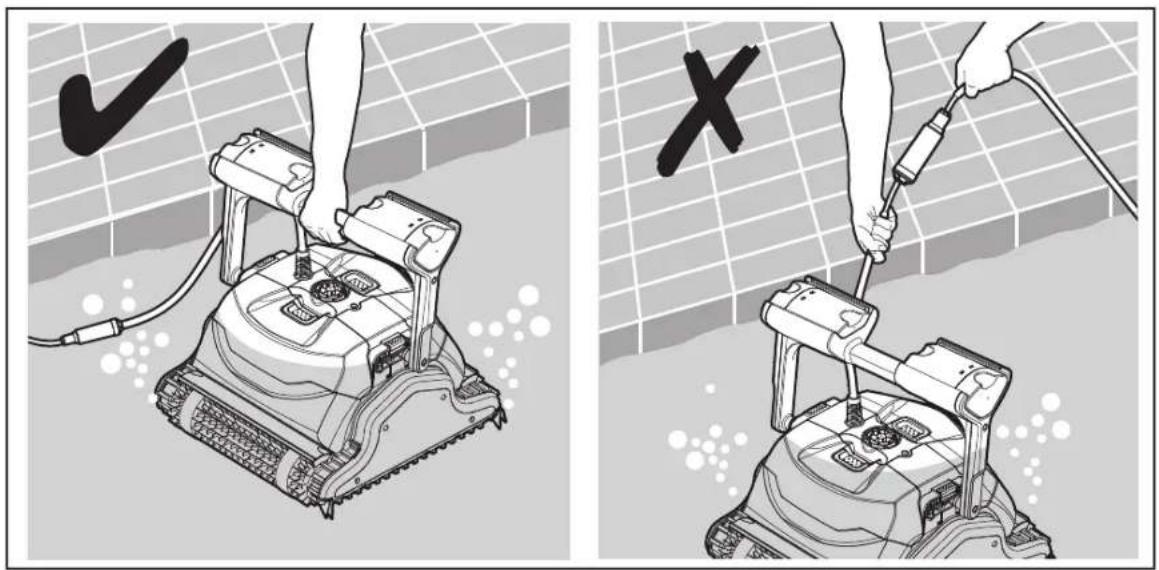

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

6. ROUTINE MAINTENANCE

6.1. Cleaning the filters of the cartridges

Unplug the power supply before any servicing activity.

Note: Do not let the filters of the cartridges dry out before cleaning.

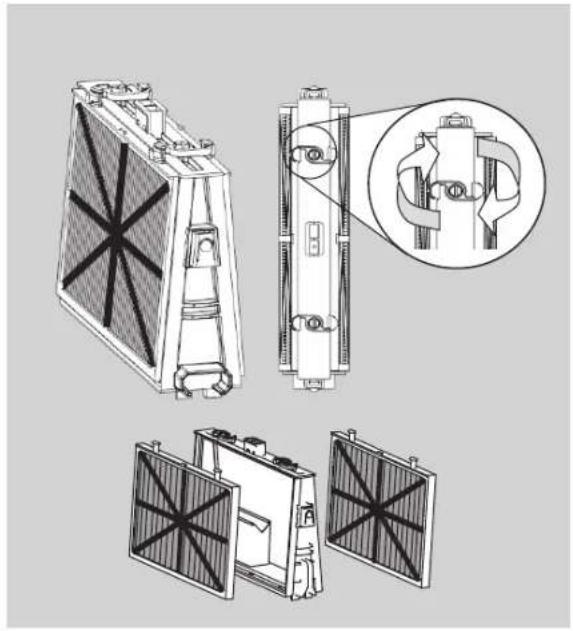

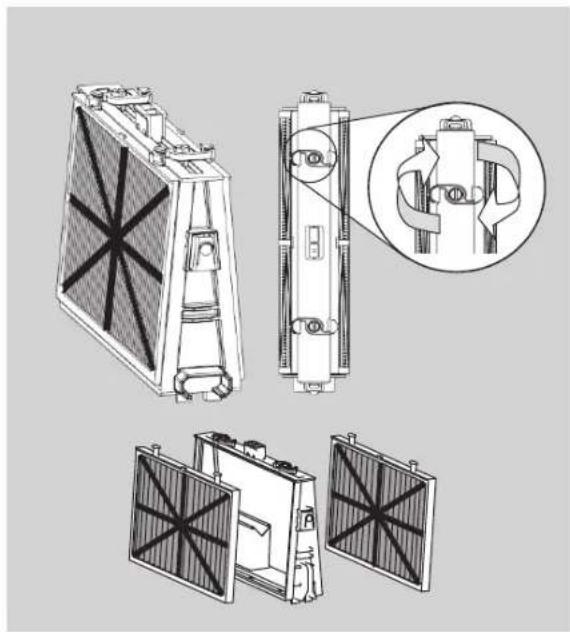

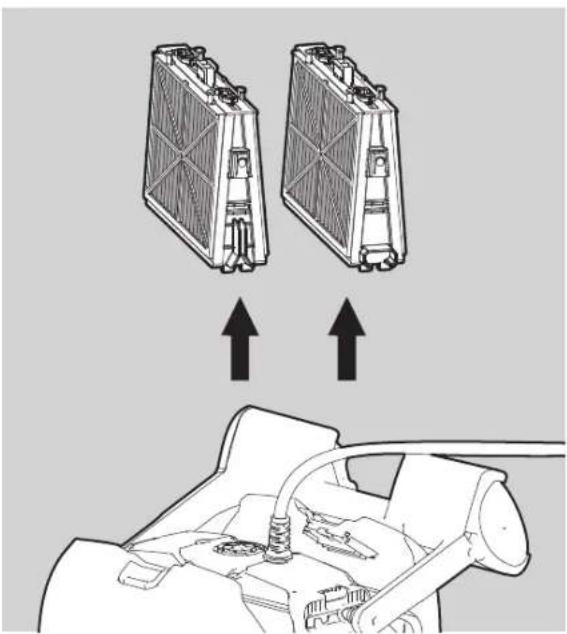

1. Open the filter covers and remove the cartridges from both sides of the robot.
2. Open the clips and remove the filters.

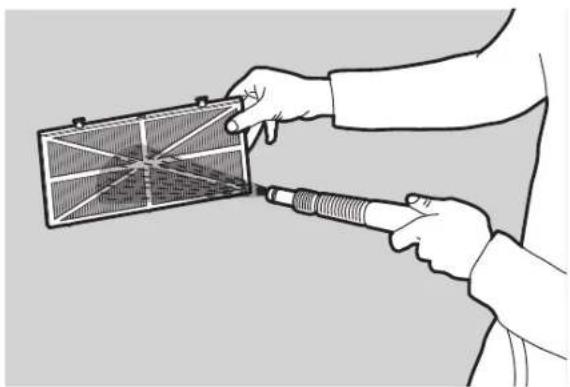

1. Clean the filters with a hose.

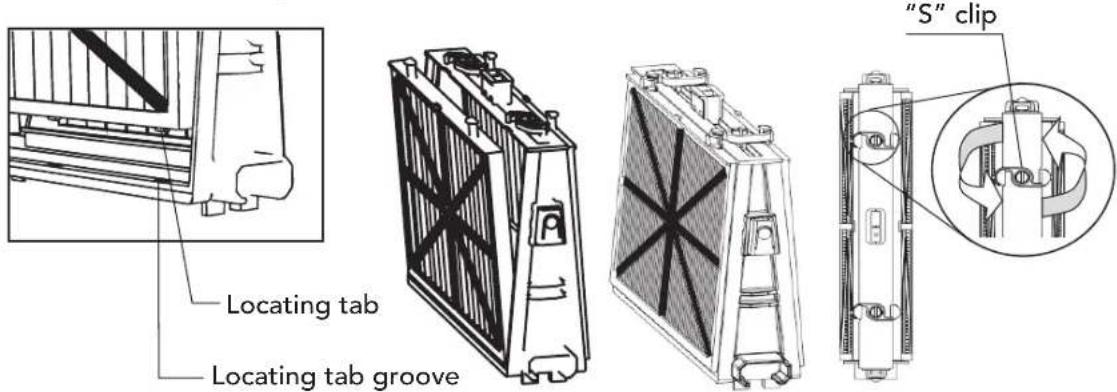

1. Reassembling the filter elements

Insert the locating tabs at the bottom of the filter element into their grooves on the base frame then close the "S" clip.

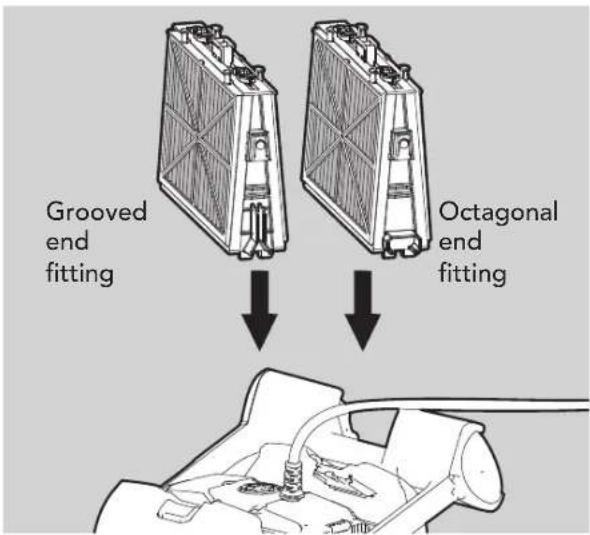

Reinstall the base frames with filters according to the diagram.

Do not force the filters into place.

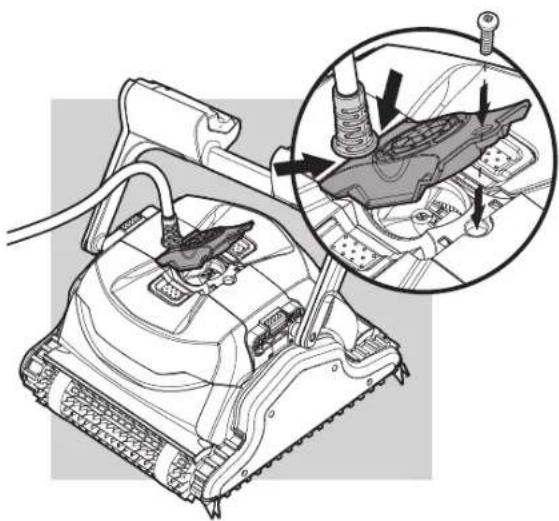

6.2. Dismantling and cleaning the impeller

Unplug the power supply before cleaning.

Dismantle the impeller cover and clean around the impeller housing, then reassemble.

(Use Phillips head screwdriver).

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filters of the cartridges and insert in place
• Roll up the cable so that it has no kinks and place on the Caddy

- Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a temperature of between 5°-45°C / 41°-113°F

8. TROUBLESHOOTING

If the suggested solutions do not solve the problem contact your dealer

Problem Solution
Pool Cleaner does not move 1.	Check that the power supply cable is plugged properly into the power supply socket. Check power to the socket and reconnect Pool CleanerEnsure the power outlet is functioning properly and that it has not tripped the breaker in the fuse boxTurn the power supply off. Wait 30 seconds then turn it back onUnplug the power supply. Open the impeller cover and check that nothing is trapped in the impeller
The Pool Cleaner moves but does not clean the pool	Clean the filters of the cartridgesAfter the Pool Cleaner starts moving observe it for several minutes and make sure that it keeps moving. If it stops moving check the impeller and the drive system to see if any debris is stuck there
The Pool Cleaner cleans only part of the pool	Check that there is enough slack in the cable for the Pool Cleaner to reach all of the poolClean the filters of the cartridgesForClassic 9only:You may enhance the pool coverage by adjusting the handle float. For optimal pool coverage the Pool Cleaner should turn on the floor at 90° angle (the Pool Cleaner rotates twice before completing the 90° turn).If the Pool Cleaner turns in an angle wider than 90° , pull out the handle float on the cable’s entry-side (A)If the Pool Cleaner does not complete a 90° turn, pull out the handle float opposite to the cable’s entry–side (B)Check the brushes to see if they are obstructed or worn out
The Pool Cleaner floats instead of sitting on the floor of the pool	Try removing the air againWith the Pool Cleaner in the water squeeze the combined brush/Wonder brush to make sure that they are completely water absorbent
Cable has kinks 1. To remove the kinks stretch the cable out completely and let it lie for at least a day in the sunClean the filters of the cartridges
The Pool Cleaner doesn’t climb the walls	Clean the filters of the cartridgesCheck the level of the chemicals of the water. Improper levels may allow the growth of algae making the walls slippery. If so, adjust the levels and scrub the wallsCheck that the brushes aren’t worn outForTop 9only: Check that the wall climbing mode hasn’t been cancelled via the remote control unit

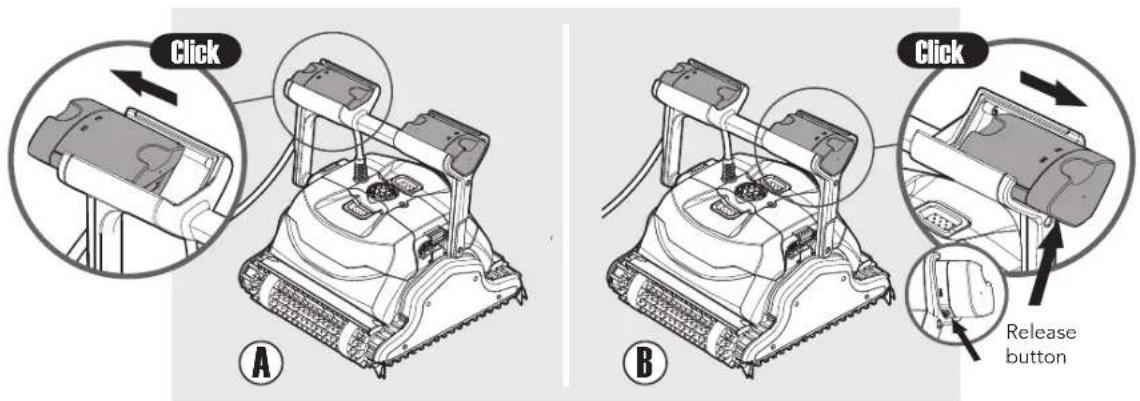

To move the floats back to their original position: while pressing the release button on the base of the handle float – push the handle float back.
