USER MANUAL Dolphin Hydro 40 MAYTRONICS

Dolphin Explorer Classic 9 / Top 9

EN

User Instructions...... p. 1

FR

Black and silver robotic device labeled 'Classic 9' (no other text or symbols visible)

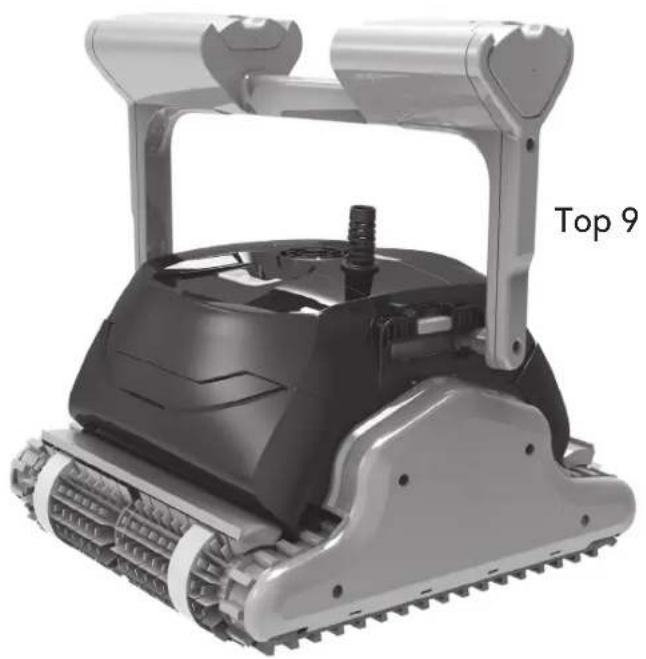

Robotic robot with extended arm and visible sensor racks, labeled 'Top 9' (no other text or symbols)

EN

Dolphin Explorer Classic 9 / Top 9

User Instructions

Contents

1. INTRODUCTION ...... 2
2. SPECIFICATIONS.... 2
3. WARNINGS AND CAUTIONS 2

3.1. Warnings....2
3.2. Cautions....2

1. POOL CLEANER PARTS 3
2. USING THE POOL CLEANER....4

5.1. Setup....4

5.1.1. Adjusting the handle angle 4

5.2. Putting the Pool Cleaner into the pool....5
5.3. Removing the Pool Cleaner from the pool....6

1. ROUTINE MAINTENANCE....7

6.1. Cleaning the filter cartridges 7
6.2. Dismantling and cleaning the impeller....8

1. OFF SEASON STORAGE....9
2. TROUBLESHOOTING....10

Dolphin Explorer Classic 9 / Top 9

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and easy maintenance. You and your family will be free to enjoy swimming with full confidence that your pool is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

Digital switch-mode power supply

• Input - 100-250 AC VOLTS
50-60 Hertz
180 Watt
• Output - <30 VDC
IP 54

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only
- Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
- Keep the power supply out of standing water
- Position the power supply at least 3m/10ft away from the edge of the pool
- Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing

3.2. Cautions

When not in use store the Pool Cleaner on its Caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6-34°C (43-93°F)
NaCl Maximum = 5000 ppm

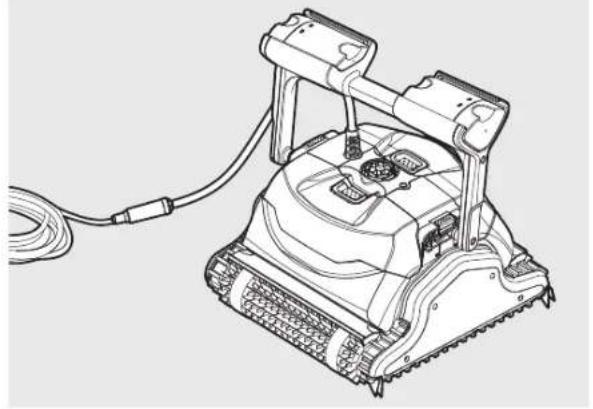

4. POOL CLEANER PARTS

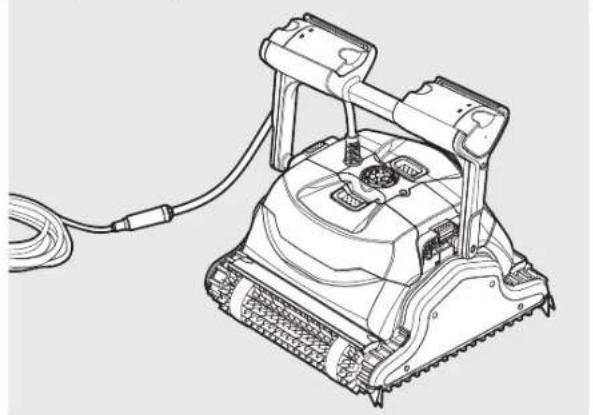

▶Dolphin Explorer Classic 9

Line drawing of a mechanical lawn mower with attached cable (no text or symbols)

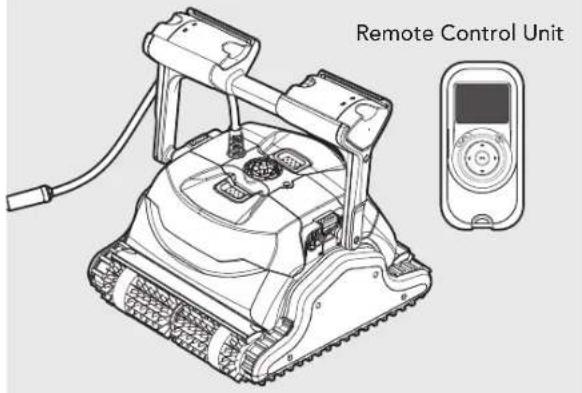

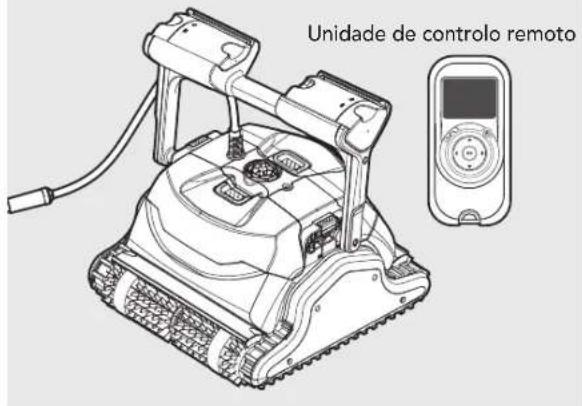

▶Dolphin Explorer Top 9

Remote Control Unit

Brushes

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

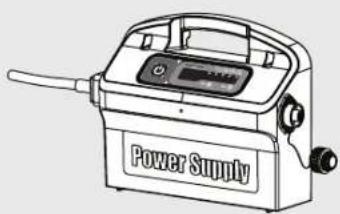

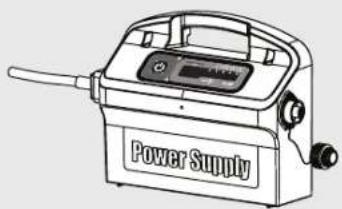

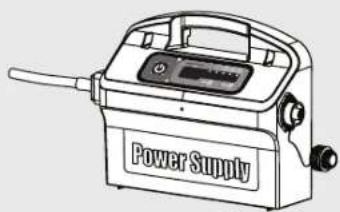

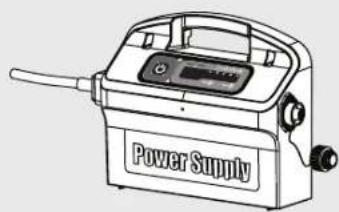

▶ Power supply unit

Line drawing of a power supply device with no visible text or symbols on the device itself

Line drawing of a power supply device with handle and control panel (no text or symbols)

▶ Filtration

Cartridge with Net filters (X4)

Ultra-fine filter (X4) (optional)

5. USING THE POOL CLEANER

The Pool Cleaner is very simple to use. Simply put it into the pool and make sure that it is properly sitting on the floor of the pool. Turn it ON and let it get the job done.

5.1. Setup

Before using the Pool Cleaner for the first time perform the following steps:

Silhouette of a person using a power tool to lift a large rectangular object, with a small robotic device nearby (no text or symbols visible)

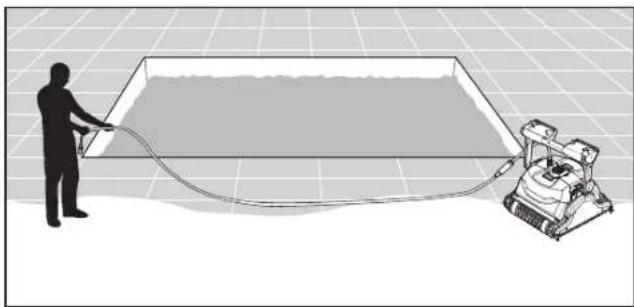

Unwind the cable and stretch it out completely so that it has no kinks.

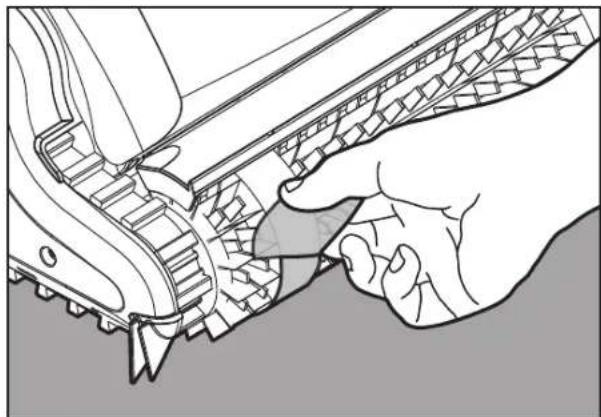

Some models arrive with plastic coverings on the brushes.

Remove them before use.

Line drawing of a hand operating a mechanical component with gear teeth (no text or symbols)

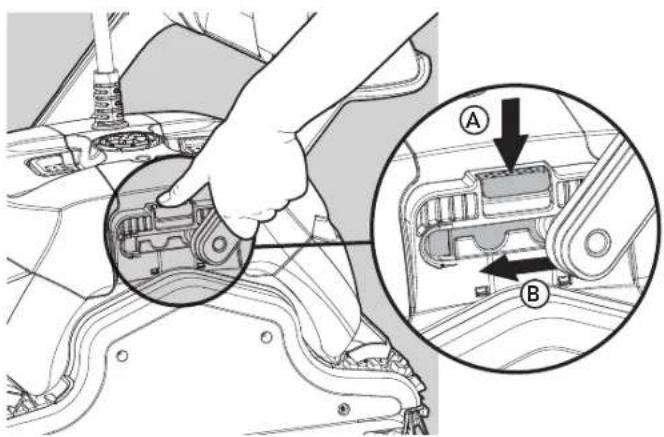

5.1.1. Adjusting the handle angle

The robot's handle should be adjusted and locked diagonally in order to ensure optimum cleaning results.

The handle angle can be adjusted also to determine the speed at which the robot advances along the water-line.

Technical diagram showing a hand adjusting internal components with labeled parts A and B, including a magnified inset view.

To adjust the handle angle:

A. Press the latch down and hold it in position.
B. Move the handle to the desired position and release the latch to hold the handle in place.

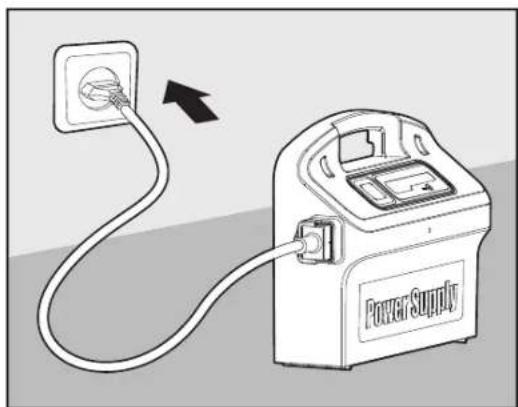

Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3m/10ft.

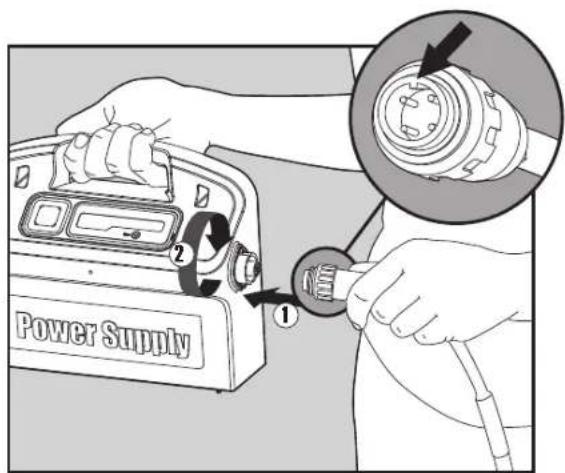

Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power supply and turning clockwise (2).

Diagram of a power supply connected to a plug, showing wiring and connection point (no text or symbols)

Power Supply ① ②

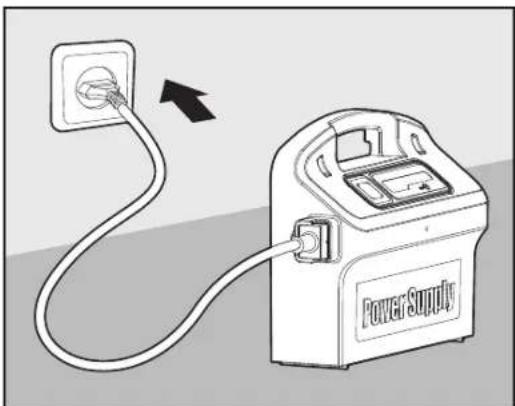

Plug in the power supply and leave it in the OFF position.

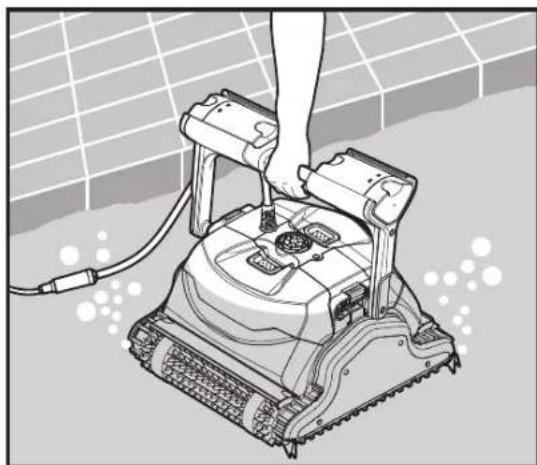

5.2. Putting the Pool Cleaner into the pool

If your Pool Cleaner is equipped with brushes that contain sponges, dip the brushes in the water and squeeze them so that they will absorb water the first time you use the Pool Cleaner, or if the brushes have dried out between uses.

Release the Pool Cleaner and let it sink to the floor of the pool.

Make sure that the floating cable is free of any obstructions.

To avoid kinks in the floating cable, place approximately enough cable in the water for the Pool Cleaner to reach the farthest corner of the pool.

Illustration of a robotic lawn mower with a hand operating it, against a tiled wall background (no text or symbols)

Turn the power supply ON.

The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

ON Power Supply

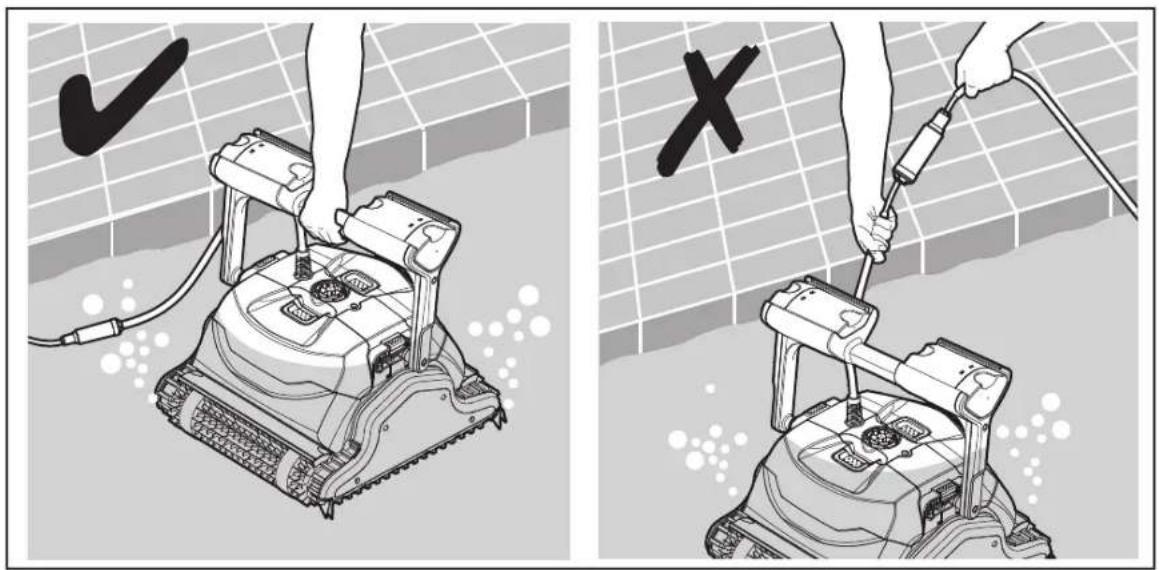

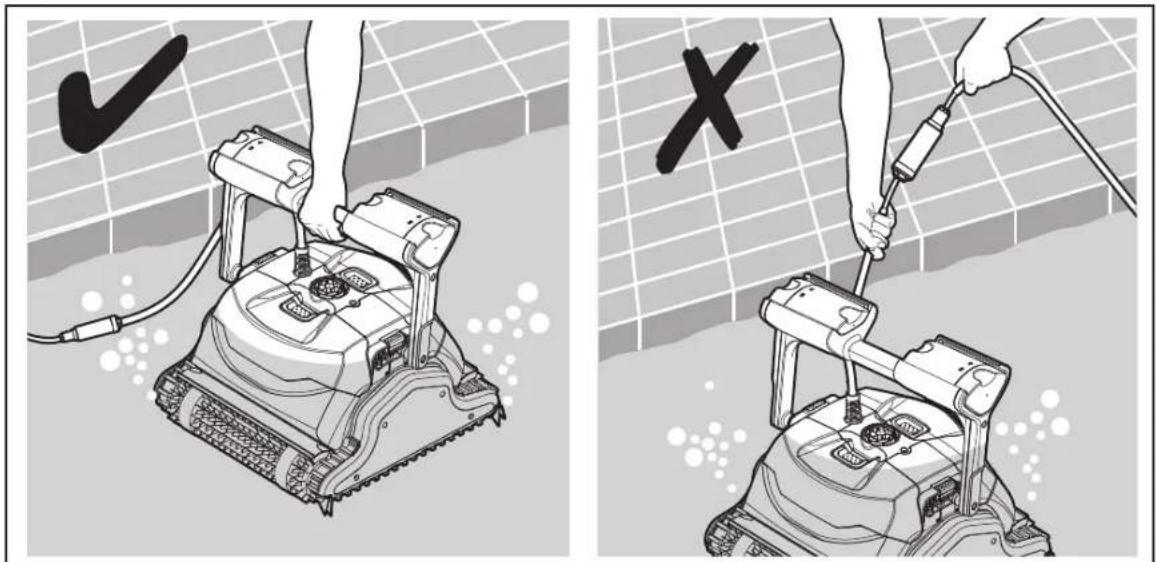

5.3. Removing the Pool Cleaner from the pool

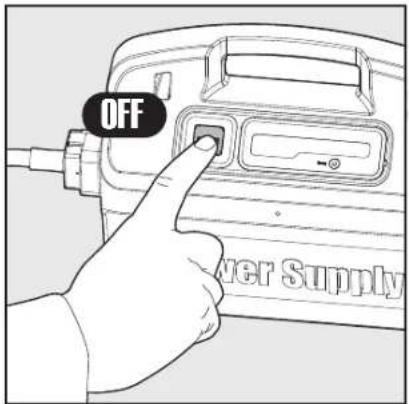

⚠️ Turn OFF and unplug the power supply.

Using the floating cable, bring the Pool Cleaner to the pool's edge.

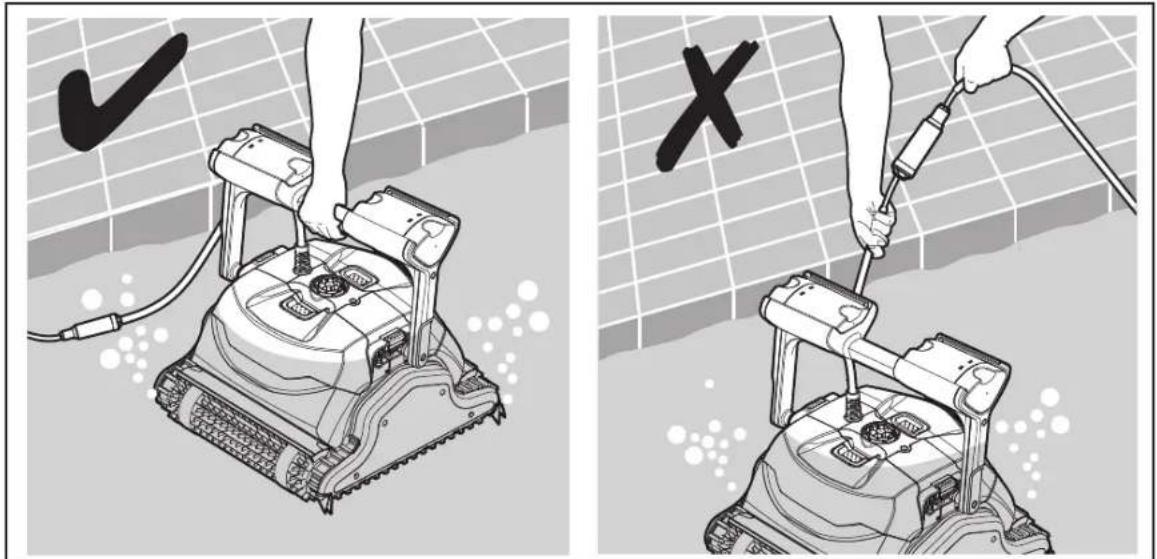

Using the handle remove the Pool Cleaner from the pool.

OFF Power Supply

Illustration showing two different cleaning or maintenance techniques: a manual scrubber and a handheld tool, both marked with checkmarks and X symbols.

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

6. ROUTINE MAINTENANCE

6.1. Cleaning the filters of the cartridges

Unplug the power supply before any servicing activity.

Note: Do not let the filters of the cartridges dry out before cleaning.

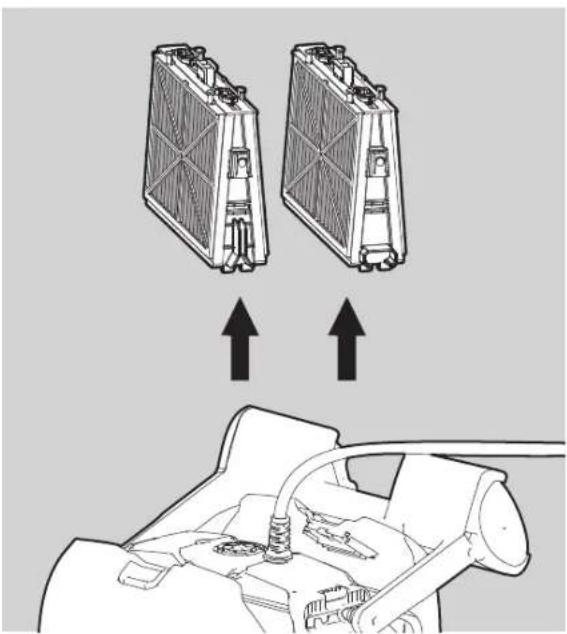

1. Open the filter covers and remove the cartridges from both sides of the robot.
2. Open the clips and remove the filters.

Diagram showing two heat exchangers above a car intake manifold, with arrows indicating upward movement (no text or symbols present)

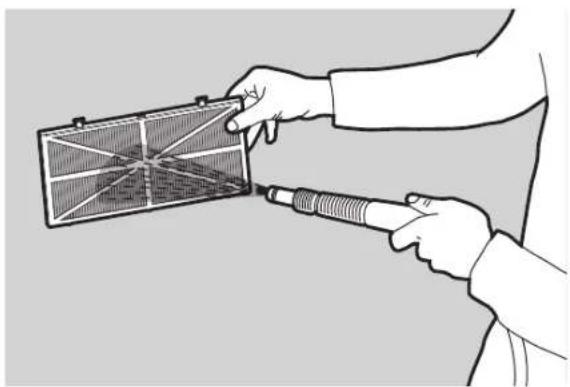

1. Clean the filters with a hose.

Technical line drawings of industrial heat exchangers and fans, showing internal components and assembly (no text or labels)

Illustration of hands using a handheld tool to interact with a grid-patterned device (no text or symbols visible)

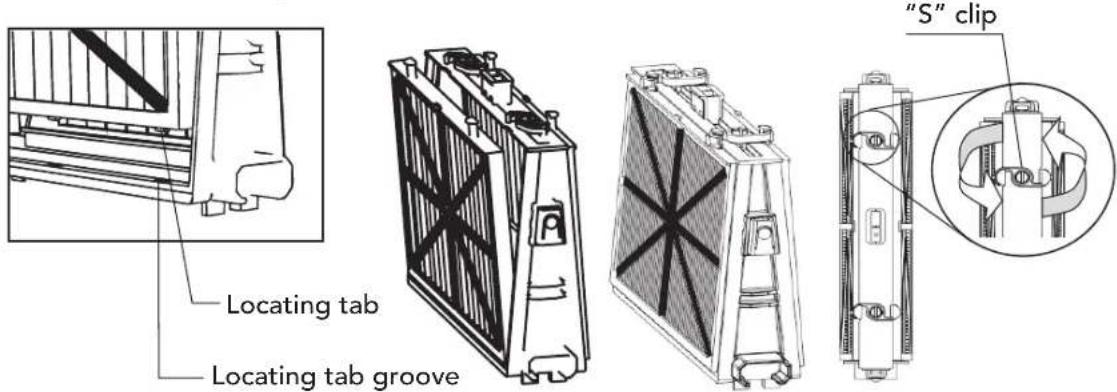

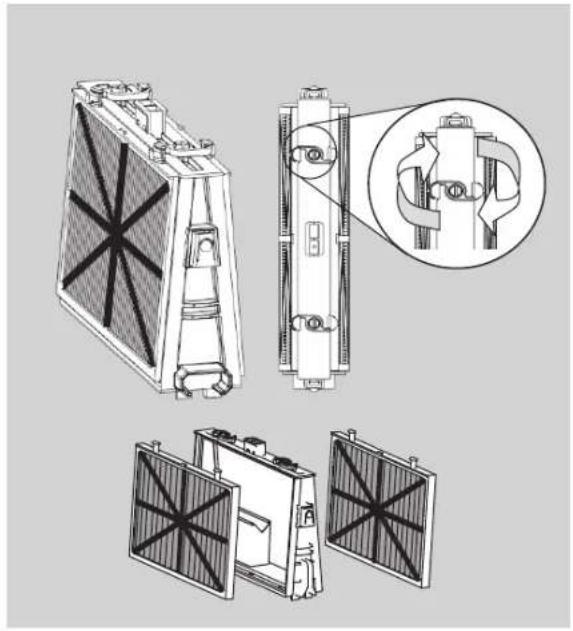

1. Reassembling the filter elements

Insert the locating tabs at the bottom of the filter element into their grooves on the base frame then close the "S" clip.

Locating tab Locating tab groove "S" clip

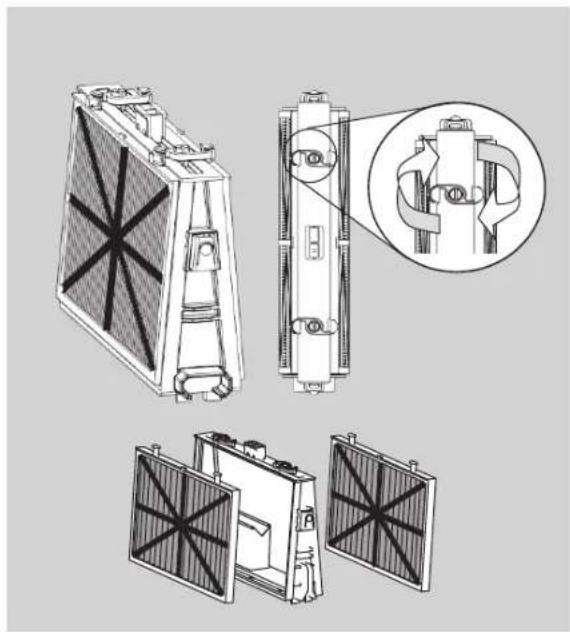

Reinstall the base frames with filters according to the diagram.

Do not force the filters into place.

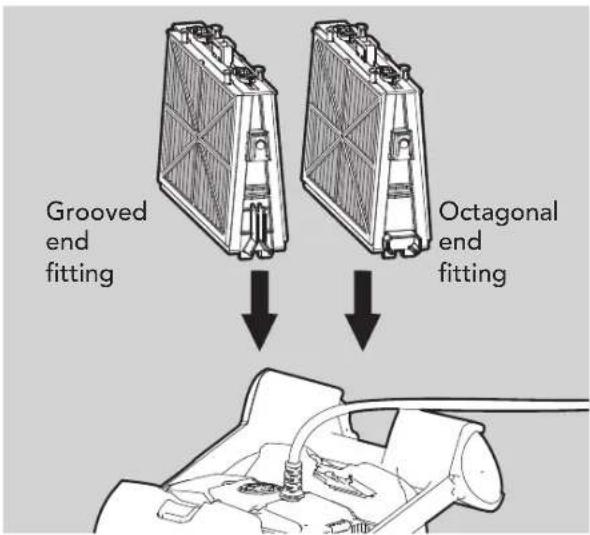

Grooved end fitting Octagonal end fitting

Technical diagram of a mechanical device with an inset showing internal components (no text or symbols present)

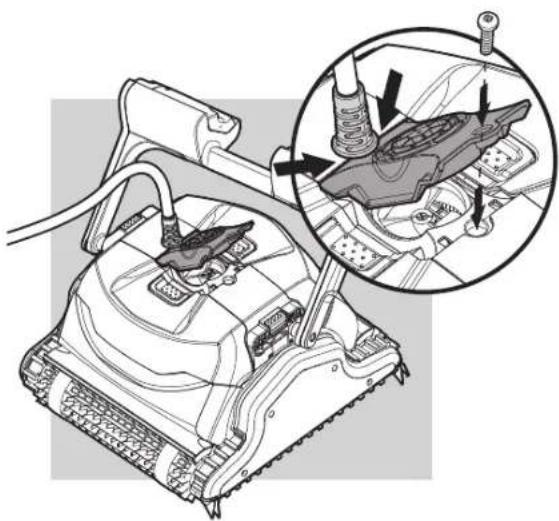

6.2. Dismantling and cleaning the impeller

Unplug the power supply before cleaning.

Dismantle the impeller cover and clean around the impeller housing, then reassemble.

(Use Phillips head screwdriver).

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filters of the cartridges and insert in place
• Roll up the cable so that it has no kinks and place on the Caddy

- Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a temperature of between 5°-45°C / 41°-113°F

8. TROUBLESHOOTING

If the suggested solutions do not solve the problem contact your dealer

Problem Solution
Pool Cleaner does not move 1.	Check that the power supply cable is plugged properly into the power supply socket. Check power to the socket and reconnect Pool CleanerEnsure the power outlet is functioning properly and that it has not tripped the breaker in the fuse boxTurn the power supply off. Wait 30 seconds then turn it back onUnplug the power supply. Open the impeller cover and check that nothing is trapped in the impeller
The Pool Cleaner moves but does not clean the pool	Clean the filters of the cartridgesAfter the Pool Cleaner starts moving observe it for several minutes and make sure that it keeps moving. If it stops moving check the impeller and the drive system to see if any debris is stuck there
The Pool Cleaner cleans only part of the pool	Check that there is enough slack in the cable for the Pool Cleaner to reach all of the poolClean the filters of the cartridgesForClassic 9only:You may enhance the pool coverage by adjusting the handle float. For optimal pool coverage the Pool Cleaner should turn on the floor at 90^ angle (the Pool Cleaner rotates twice before completing the 90^ turn).If the Pool Cleaner turns in an angle wider than 90^ , pull out the handle float on the cable’s entry-side (A)If the Pool Cleaner does not complete a 90^ turn, pull out the handle float opposite to the cable’s entry–side (B)Check the brushes to see if they are obstructed or worn out
The Pool Cleaner floats instead of sitting on the floor of the pool	Try removing the air againWith the Pool Cleaner in the water squeeze the combined brush/Wonder brush to make sure that they are completely water absorbent
Cable has kinks 1. To remove the kinks stretch the cable out completely and let it lie for at least a day in the sunClean the filters of the cartridges
The Pool Cleaner doesn’t climb the walls	Clean the filters of the cartridgesCheck the level of the chemicals of the water. Improper levels may allow the growth of algae making the walls slippery. If so, adjust the levels and scrub the wallsCheck that the brushes aren’t worn outForTop 9only: Check that the wall climbing mode hasn’t been cancelled via the remote control unit

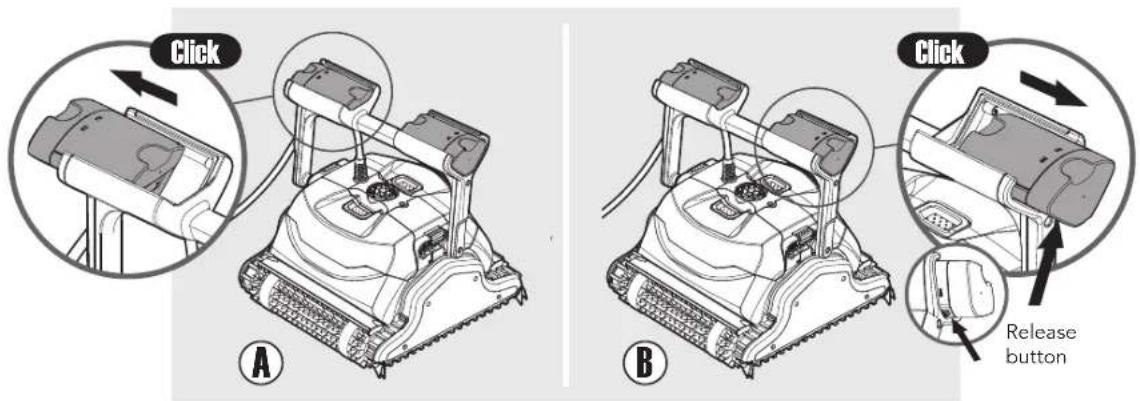

Click Click Release button A B

To move the floats back to their original position: while pressing the release button on the base of the handle float – push the handle float back.

FR

Dolphin Explorer Classic 9 / Top 9

▶Dolphin Explorer Classic 9

Line drawing of a mechanical robotic device with attached cable (no text or symbols)

▶Dolphin Explorer Top 9

▶ Brosses

Brosse combinée

Line drawing of a power supply device with buttons and a handle (no text or symbols)

Line drawing of a power supply device with a digital display and handle (no text or symbols on the device itself)

Silhouette of a person using a power tool to lift a large rectangular object, with a machine nearby (no text or symbols visible)

Illustration of a hand operating a mechanical gear assembly (no text or symbols visible)

Technical diagram showing a hand operating a car interior with labeled parts A and B, including a zoomed-in view of the component.

Diagram of a power supply device connected to a plug, showing wiring and connection (no text or symbols)

Power Supply ① ②

Illustration of a robotic vacuum cleaner with a hand operating it, no text or symbols present

ON Power Supply

OFF Power Supply

Illustration of two different cleaning or cleaning techniques: a hand using a scrubber and a tool on a tiled floor (no text or symbols present)

NE PAS RETIRER LE NETTOYEUR DE LA PISCINE EN TIRANT SUR LE CABLE.

6. EFFECTUEZ LA MAINTENANCE ROUTINIÈRE

Diagram showing two battery cells above a car intake manifold, with arrows indicating upward movement (no text or symbols present)

Technical line drawings of industrial heat exchangers and cooling units, showing internal components and assembly (no text or labels)

Illustration of two hands holding a grid-patterned device with a tool, no text or symbols present

Technical diagram of a mechanical device with an inset showing internal components (no text or symbols present)

▶Dolphin Explorer Classic 9

Line drawing of a robotic lawn mower with attached cable (no text or symbols)

▶Dolphin Explorer Top 9

Spazzola "Wonder Brush"

Line drawing of a power supply device with no visible text or symbols on the device itself

Line drawing of a power supply device with a digital display and handle (no text or symbols on the device itself)

Silhouette of a person cleaning a large rectangular area with a power tool nearby (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing a hand operating a mechanical component with labeled parts A and B, including a magnified inset view.

Diagram of a power supply device connected to a plug, showing wiring and connection (no text or symbols)

Power Supply ① ②

Illustration of a robotic lawn mower with a hand adjusting the blade (no text or symbols visible)

ON Power Supply

OFF Power Supply

Two-panel illustration showing a person using a scrubber on a tiled floor, with checkmark and cross symbols (no text or labels)

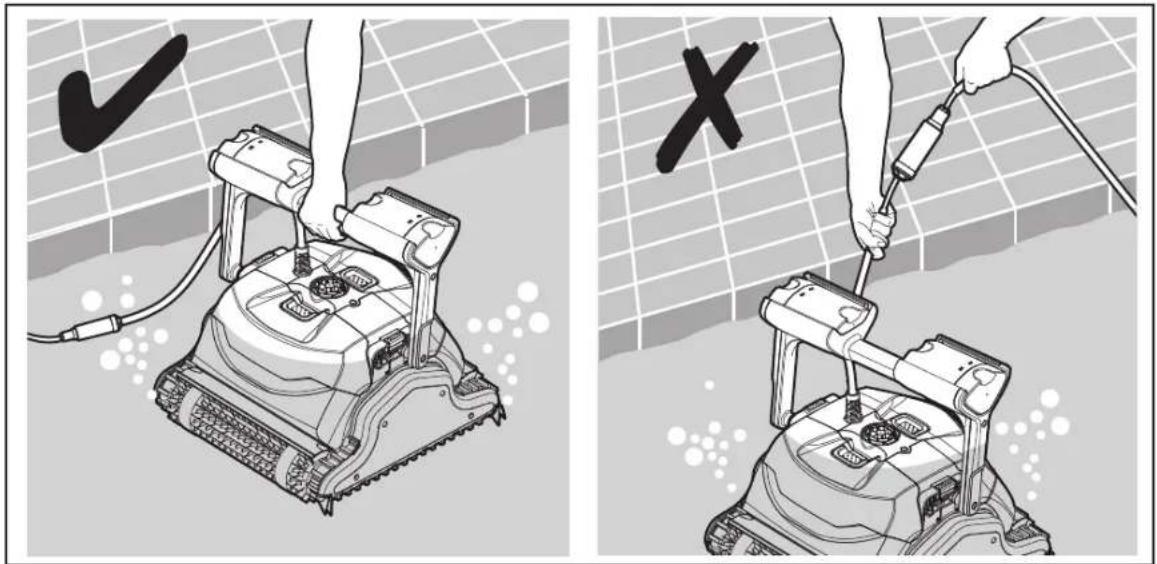

! NON ESTRARRE IL PULITORE DALLA PISCINA TIRANDO IL CAVO.

Diagram showing two electric vehicle battery modules above a car intake manifold, with arrows indicating direction of flow or movement (no text or symbols present)

1. Pulire i filtri con una pompa.

Technical line drawing of a mechanical device with multiple views and a close-up inset showing internal components (no text or symbols)

Illustration of hands using a tool to adjust a grid-patterned device (no text or symbols visible)

Technical diagram of a mechanical device with an inset showing internal components (no text or symbols present)

▶Dolphin Explorer Classic 9

Line drawing of a manual lawn mower with attached cable (no text or symbols)

▶Dolphin Explorer Top 9

Line drawing of a Power Supply device with handle and control panel (no text or symbols on body)

Line drawing of a power supply device with a digital display and attached components (no text or symbols on the device itself)

Silhouette of a person cleaning a large rectangular area with a robotic arm nearby (no text or symbols visible)

Illustration of a hand operating a mechanical component with gears and a textured handle (no text or symbols)

Technical diagram showing a hand operating a mechanical component with labeled parts A and B, including a zoomed-in detail view.

Power Supply ① ②

Diagram of a power supply connected to a plug, showing wiring and connection point (no text or symbols)

Illustration of a robotic vacuum cleaner with a hand operating it, no text or symbols present

ON Power Supply

OFF Power Supply

Illustration of two different cleaning or cleaning techniques: a manual scrubber and a handheld tool, both without any text or symbols.

Diagram showing two electric vehicle heat exchangers above a car intake manifold, with arrows indicating upward movement (no text or symbols present)

Technical line drawings of industrial heat exchangers and fans, showing structural components and assembly (no text or labels)

Illustration of hands using a handheld tool to adjust a grid-patterned air vent (no text or symbols present)

Technical diagram of a mechanical device with an inset showing internal components (no text or symbols present)

▶Dolphin Explorer Classic 9

Line drawing of a mechanical lawn mower with attached cable (no text or symbols)

▶Dolphin Explorer Top 9

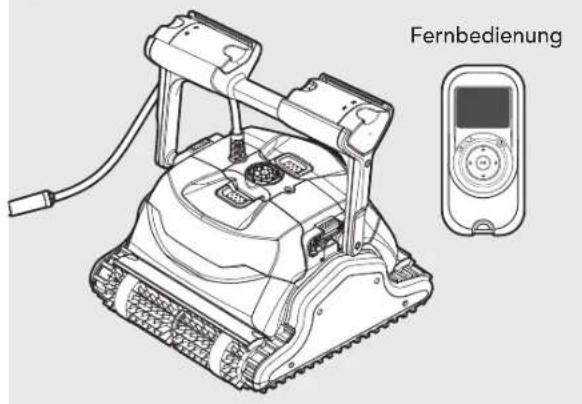

Fernbedienung

Line drawing of a power supply device with handle and control panel (no text or symbols)

Line drawing of a power supply device with a digital display and handle (no text or symbols on the device itself)

Silhouette of a person using a power tool to clean or spray a large rectangular object, with a vintage rotary device nearby (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram showing a hand operating a mechanical component with labeled parts A and B, including a magnified inset view.

Power Supply

Power Supply ① ②

Illustration of a robotic vacuum cleaner with a hand operating it, no text or symbols present

ON Power Supply

OFF Power Supply

Illustration of two different manual cleaning techniques: one using a scrubber, the other using a tool on a tiled floor (no text or symbols)

ZIEHEN SIE DEN POOLREINIGER NICHT AM KABEL AUS DEM POOL.

Diagram showing two heat exchangers above a car intake manifold, with arrows indicating upward movement (no text or symbols present)

Technical line drawings of industrial heat exchangers and a vertical heat exchanger unit, showing internal components and assembly (no text or labels)

Illustration of hands using a tool to adjust a grid-patterned device (no text or symbols visible)

Technical illustration of a mechanical device with an inset close-up showing internal components (no text or symbols)

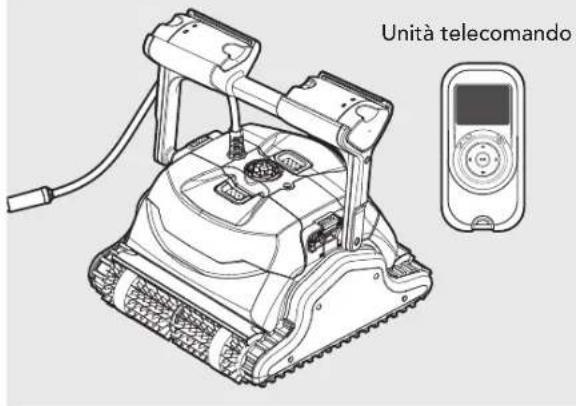

▶Dolphin Explorer Classic 9

Line drawing of a robotic lawn mower with attached cable (no text or symbols)

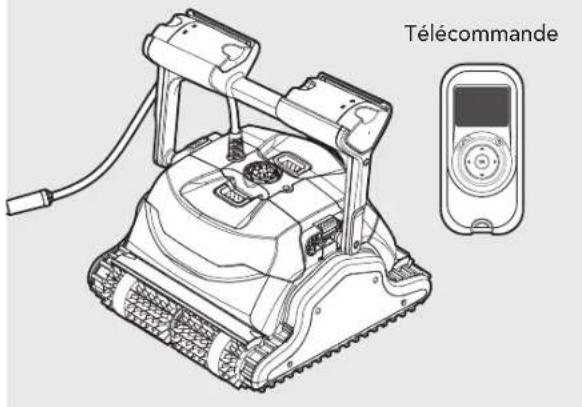

▶Dolphin Explorer Top 9

Line drawing of a power supply device with handle and control buttons (no text or symbols)

Line drawing of a power supply device with a digital display and handle (no text or symbols on the device itself)

Silhouette of a person cleaning a large rectangular area with a robotic arm nearby (no text or symbols visible)

Illustration of a hand operating a mechanical component with gears and a textured handle (no text or symbols)

Technical diagram showing a hand adjusting a mechanical component with labeled parts A and B, including a magnified inset view.

Power Supply ① ②

Diagram of a power supply device connected to a socket, showing wiring and connection (no text or symbols)

Illustration of a robotic lawn mower with a hand adjusting the blade (no text or symbols visible)

ON Power Supply

OFF Power Supply

Illustration showing two steps of cleaning a small robotic device, with checkmark and X symbols indicating inspection or testing phases.

Diagram showing two electric vehicle battery modules above a car intake manifold, with arrows indicating direction of flow or movement (no text or symbols present)

Technical line drawings of industrial heat exchangers and fans, showing internal components and assembly (no text or labels)

Illustration of two hands holding a grid-based device with a probe inserted (no text or symbols visible)

Technical illustration of a mechanical device with a magnified inset showing internal components (no text or symbols)
