Product type	Robot pool cleaner
Brand	Maytronics
Model	Dolphin SF60
Minimum depth	0.80 m
Maximum depth	5 m
Motor protection	IP 68
Power supply input	Input: 100-250 V AC, 50-60 Hz, 180 W / Output: <30 V DC
Power supply protection rating	IP 54
Brush type	Brush suitable for all surfaces (standard); options: PVC brush, Wonder brush, combined brush
Filtration	4 mesh filter cartridges (standard); option: 4 ultra-fine filters
Handle angle adjustment	Yes, to adjust speed along the waterline
Main functions	Automatic floor and wall cleaning, active brushing, full cycle programming
Maintenance and cleaning	Cleaning filter cartridges with hose; disassembly and cleaning of the impeller
Safety	Mandatory use of a residual current circuit breaker; do not enter water during operation; disconnect before maintenance
Off-season storage	Drain water, clean filters, reel cable, store frost-free between 5 and 45°C
Recommended water temperature	6 to 34 °C
Recommended pH	7.0 - 7.8
Maximum chlorine	4 ppm
Maximum NaCl	5000 ppm

Frequently Asked Questions - Dolphin SF60 MAYTRONICS

What to do if the robot does not move?

Check that the power supply is properly plugged in and the socket works. Make sure the circuit breaker has not tripped. Turn off the robot, wait 30 seconds, then turn it back on. If nothing changes, unplug the power supply and check that no debris is blocking the impeller.

How to clean the filter cartridges?

Unplug the power supply. Open the filter covers and remove the cartridges. Open the clips and take out the filters. Clean them with a garden hose. Reassemble by inserting the positioning tabs into their grooves and close the S-clips.

Why does the robot not climb the walls?

Clean the filter cartridges. Check the chemical levels (chlorine, pH) as algae can make the walls slippery. Adjust if necessary and scrub the walls. Also check that the brushes are not worn.

How to adjust the handle angle?

Press the latch and hold it. Move the handle to the desired position. Release the latch to lock. The angle affects the robot's speed along the waterline.

What to do if the cable has kinks?

Unroll the cable completely and stretch it in the sun for at least one day. The kinks should disappear. Also clean the filter cartridges.

The robot floats instead of sinking, what to do?

Squeeze the brushes (if they contain sponges) to absorb water. Try putting it back in the water, removing trapped air.

How to store the robot for winter?

Drain all water from the robot. Carefully clean the filter cartridges and put them back. Coil the cable without kinks. Store the robot vertically on its Caddy in a shaded, frost-free place between 5 and 45 °C.

What types of brushes are available?

The robot comes with a brush suitable for all surfaces. As an option, you can use a PVC brush for concrete, PVC, fiberglass, or a Wonder brush for smooth ceramics, as well as a combined brush.

What is the required water depth?

The robot operates in water depths between 0.80 m (minimum) and 5 m (maximum).

What to do if the robot only cleans part of the pool?

Check that the cable is long enough to reach all corners. Clean the filters. To improve coverage, adjust the handle float: pull it towards the cable side if the robot turns too much, or to the opposite side if it does not turn enough.

USER MANUAL Dolphin SF60 MAYTRONICS

Dolphin Explorer Classic 9 / Top 9

EN

User Instructions...... p. 1

FR

EN

Dolphin Explorer Classic 9 / Top 9

User Instructions

Contents

1. INTRODUCTION ...... 2
2. SPECIFICATIONS.... 2
3. WARNINGS AND CAUTIONS 2

3.1. Warnings....2
3.2. Cautions....2

1. POOL CLEANER PARTS 3
2. USING THE POOL CLEANER 4

5.1. Setup....4

5.1.1. Adjusting the handle angle 4

5.2. Putting the Pool Cleaner into the pool....5
5.3. Removing the Pool Cleaner from the pool....6

1. ROUTINE MAINTENANCE....7

6.1. Cleaning the filter cartridges 7
6.2. Dismantling and cleaning the impeller....8

1. OFF SEASON STORAGE....9
2. TROUBLESHOOTING....10

Dolphin Explorer Classic 9 / Top 9

User Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions, active brushing, and all-surface climbing brush enhance maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting performance and easy maintenance. You and your family will be free to enjoy swimming with full confidence that your pool is completely clean.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

Digital switch-mode power supply

• Input - 100-250 AC VOLTS
50-60 Hertz
180 Watt
• Output - <30 VDC
IP 54

3. WARNINGS AND CAUTIONS

3.1. Warnings

• Use the originally supplied power supply only
- Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
- Keep the power supply out of standing water
- Position the power supply at least 3m/10ft away from the edge of the pool
- Do not enter the pool while the Pool Cleaner is working
• Unplug the power supply before servicing

3.2. Cautions

When not in use store the Pool Cleaner on its Caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 6-34°C (43-93°F)
NaCl Maximum = 5000 ppm

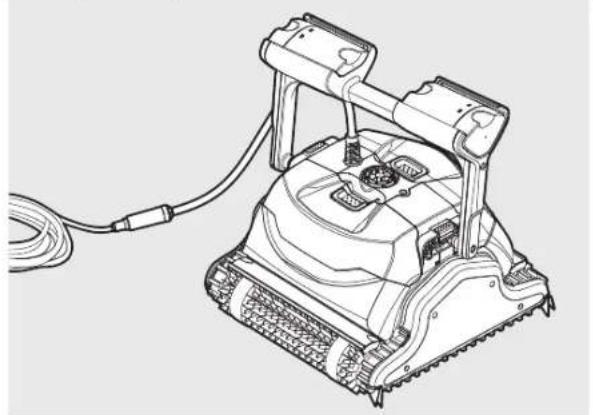

4. POOL CLEANER PARTS

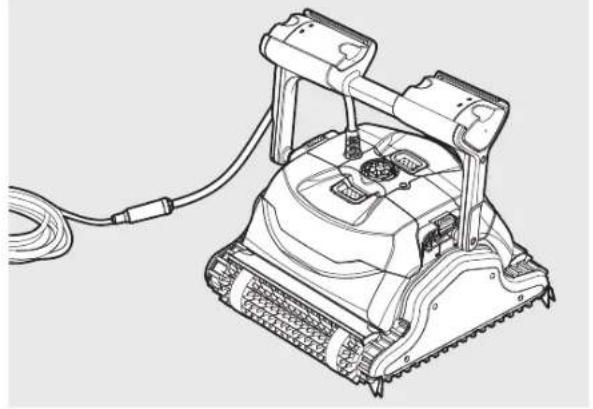

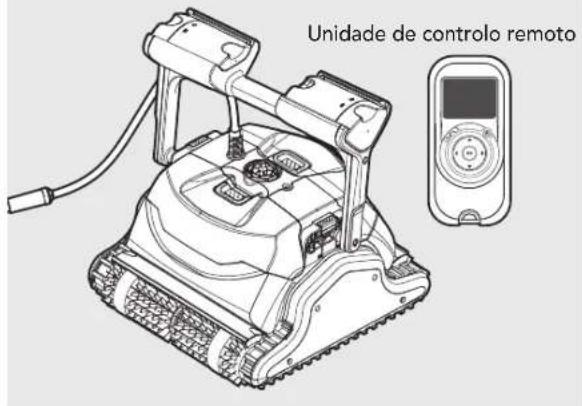

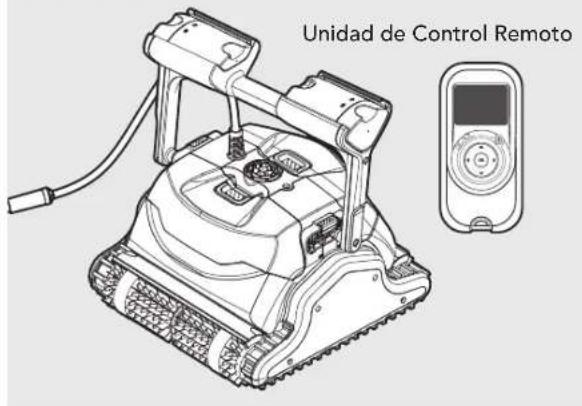

▶Dolphin Explorer Classic 9

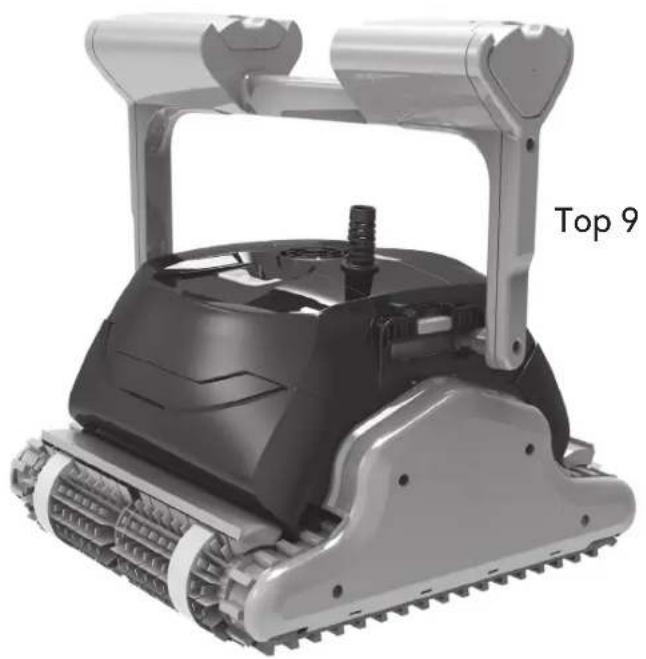

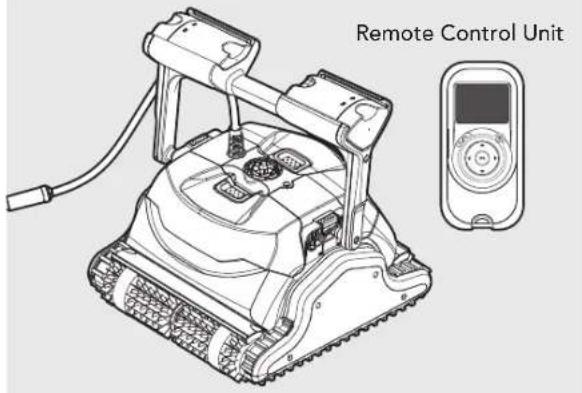

▶Dolphin Explorer Top 9

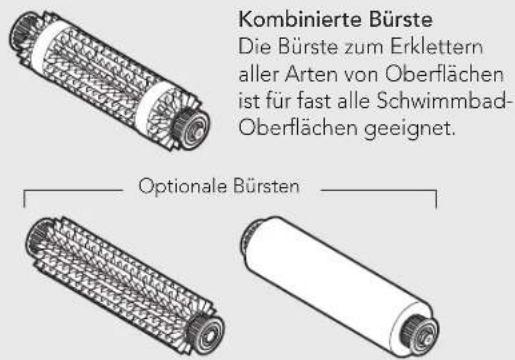

Brushes

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

Combined Brush
All surface climbing brush, ideal for most pool surfaces.

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.
For smooth ceramics.

Wonder Brush

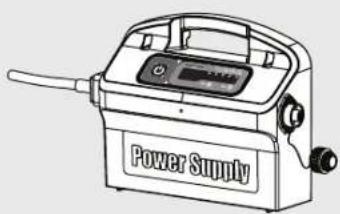

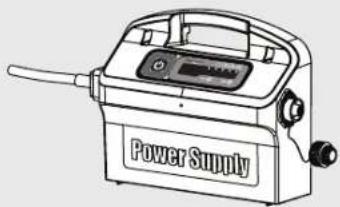

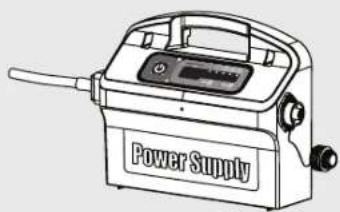

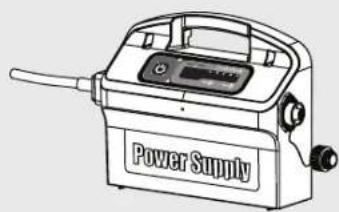

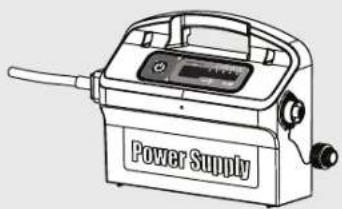

▶ Power supply unit

▶ Filtration

Cartridge with Net filters (X4)

Ultra-fine filter (X4) (optional)

5. USING THE POOL CLEANER

The Pool Cleaner is very simple to use. Simply put it into the pool and make sure that it is properly sitting on the floor of the pool. Turn it ON and let it get the job done.

5.1. Setup

Before using the Pool Cleaner for the first time perform the following steps:

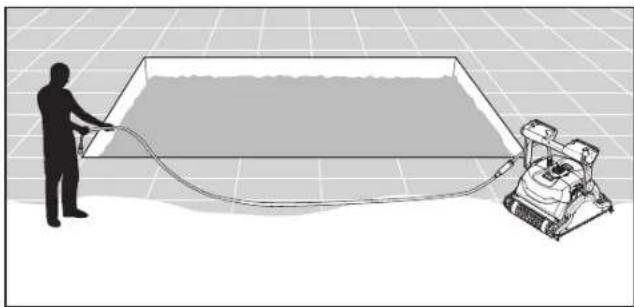

Unwind the cable and stretch it out completely so that it has no kinks.

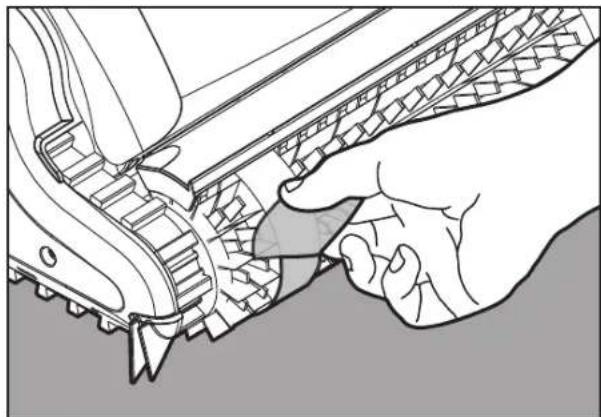

Some models arrive with plastic coverings on the brushes.

Remove them before use.

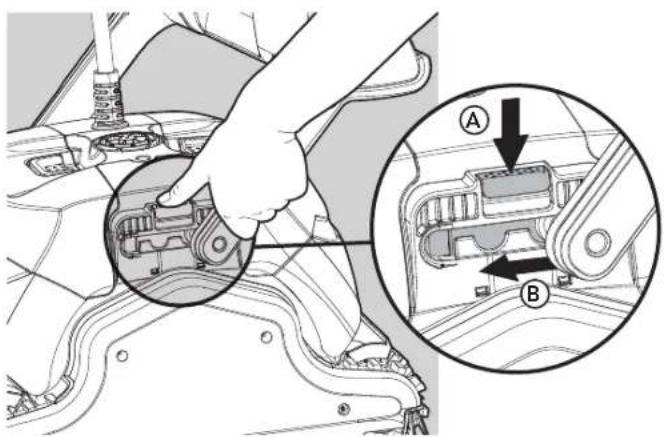

5.1.1. Adjusting the handle angle

The robot's handle should be adjusted and locked diagonally in order to ensure optimum cleaning results.

The handle angle can be adjusted also to determine the speed at which the robot advances along the water-line.

To adjust the handle angle:

A. Press the latch down and hold it in position.
B. Move the handle to the desired position and release the latch to hold the handle in place.

Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3m/10ft.

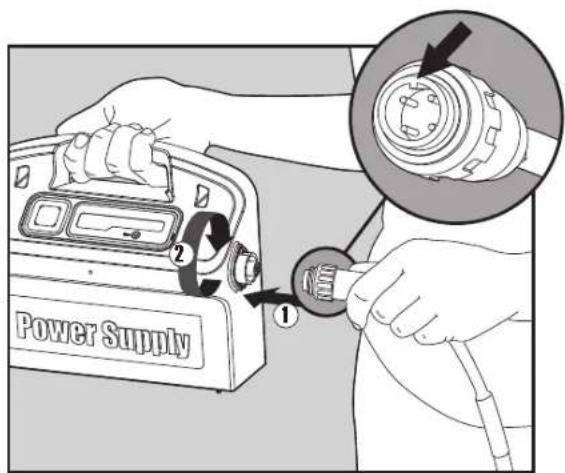

Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power supply and turning clockwise (2).

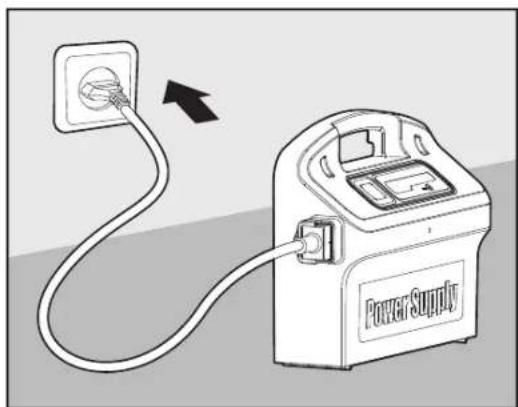

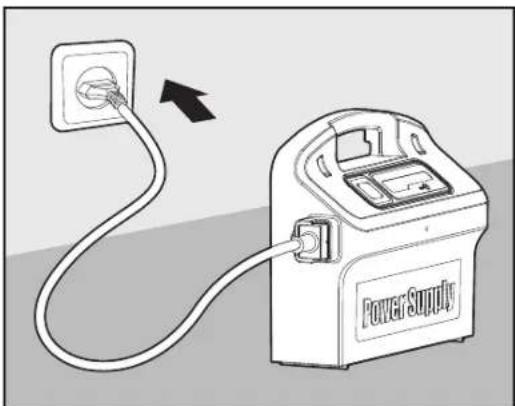

Plug in the power supply and leave it in the OFF position.

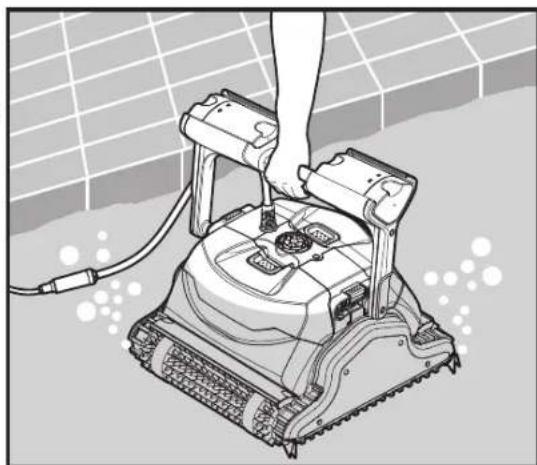

5.2. Putting the Pool Cleaner into the pool

If your Pool Cleaner is equipped with brushes that contain sponges, dip the brushes in the water and squeeze them so that they will absorb water the first time you use the Pool Cleaner, or if the brushes have dried out between uses.

Release the Pool Cleaner and let it sink to the floor of the pool.

Make sure that the floating cable is free of any obstructions.

To avoid kinks in the floating cable, place approximately enough cable in the water for the Pool Cleaner to reach the farthest corner of the pool.

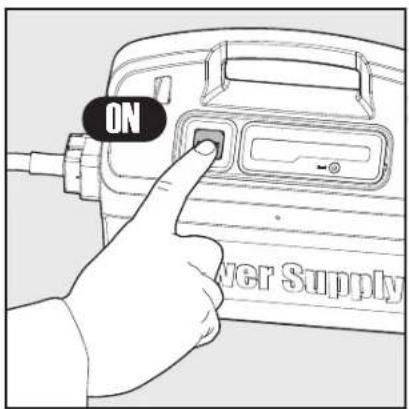

Turn the power supply ON.

The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

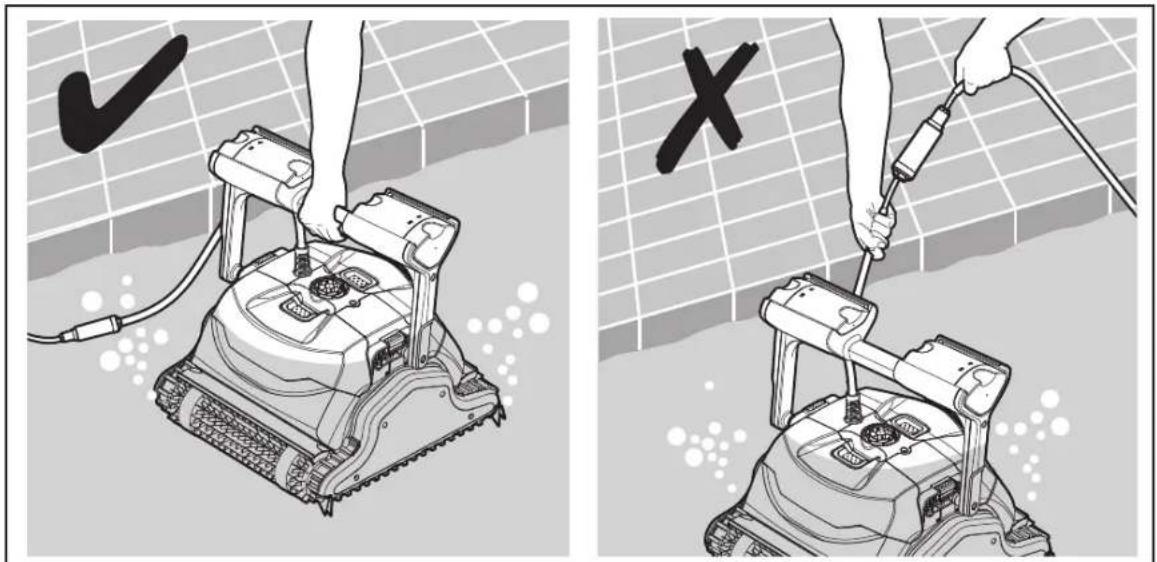

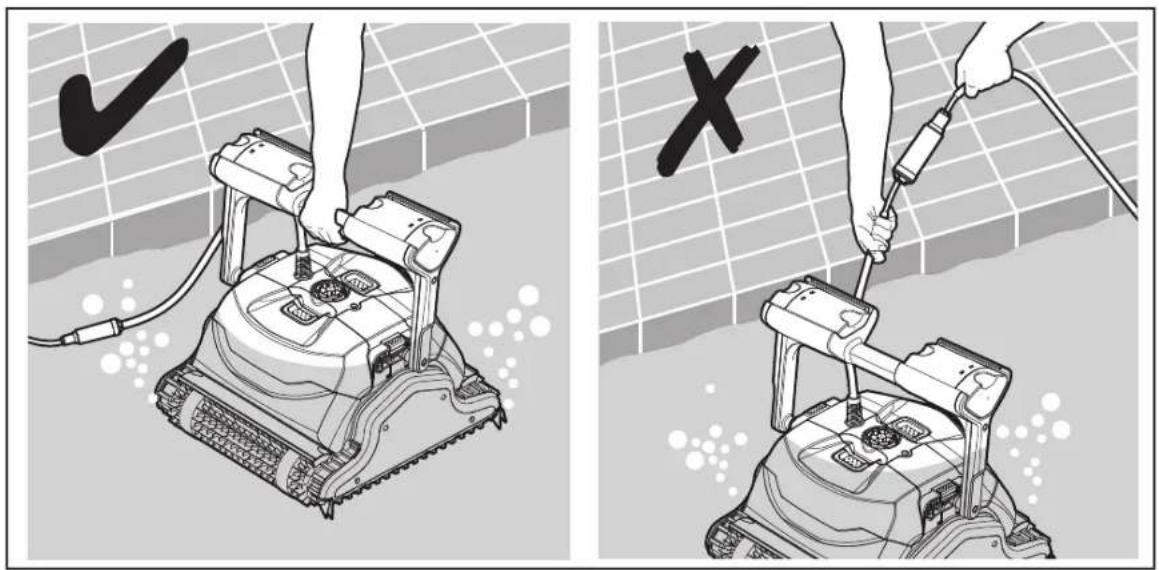

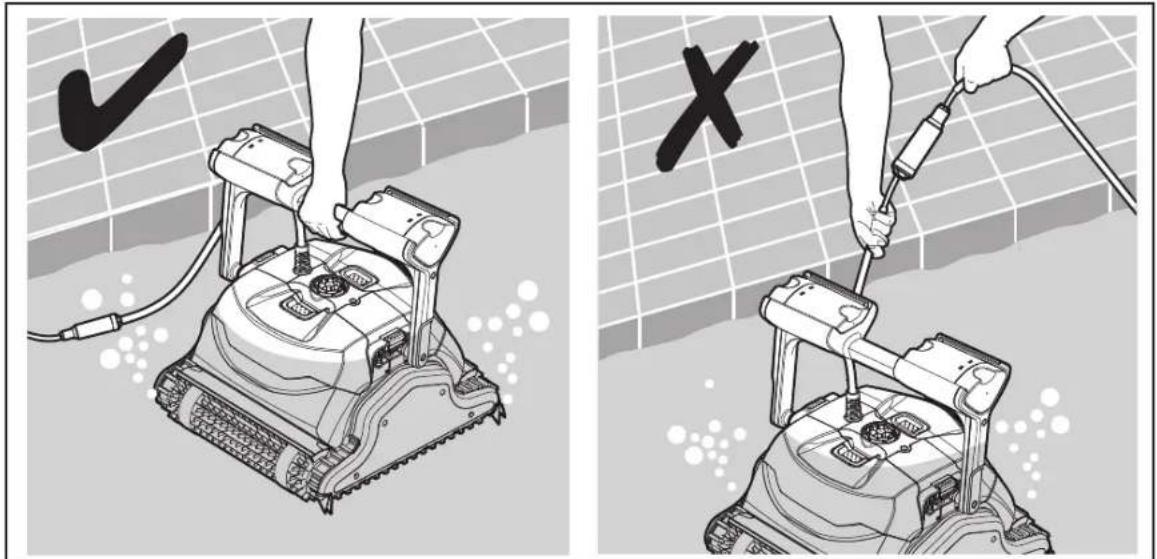

5.3. Removing the Pool Cleaner from the pool

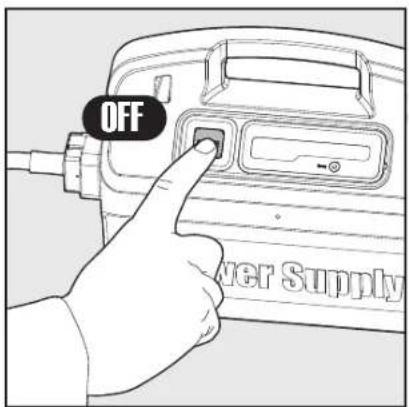

⚠️ Turn OFF and unplug the power supply.

Using the floating cable, bring the Pool Cleaner to the pool's edge.

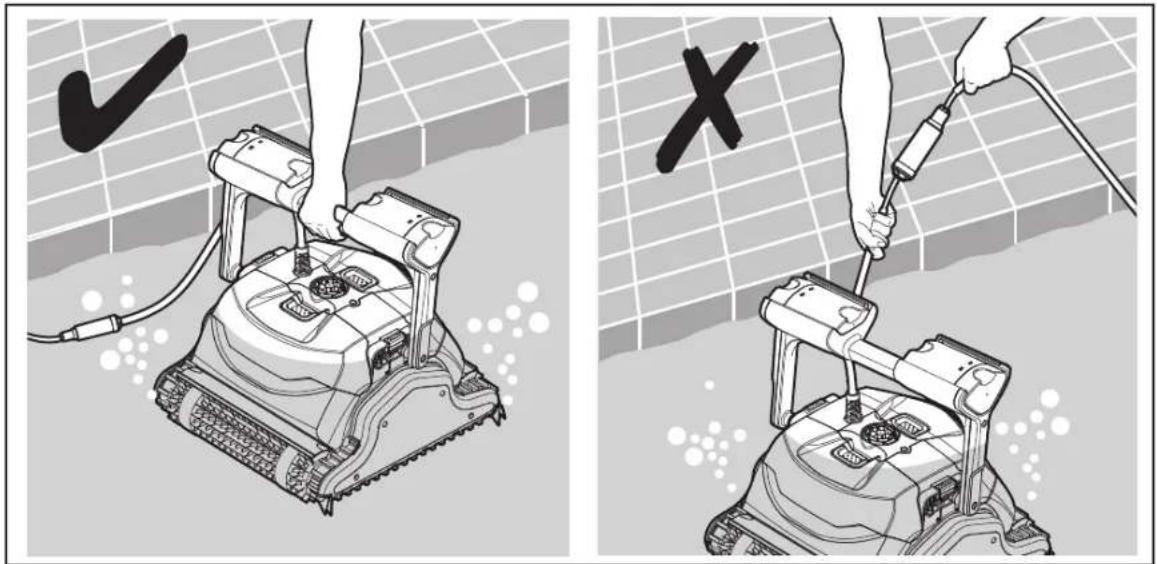

Using the handle remove the Pool Cleaner from the pool.

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

6. ROUTINE MAINTENANCE

6.1. Cleaning the filters of the cartridges

Unplug the power supply before any servicing activity.

Note: Do not let the filters of the cartridges dry out before cleaning.

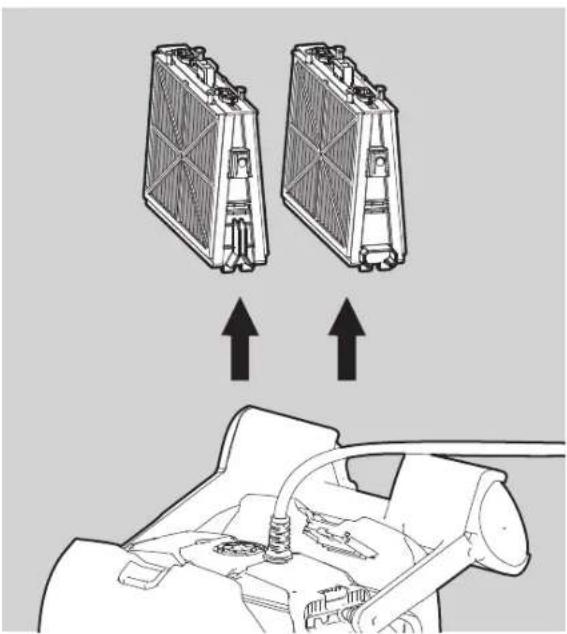

1. Open the filter covers and remove the cartridges from both sides of the robot.
2. Open the clips and remove the filters.

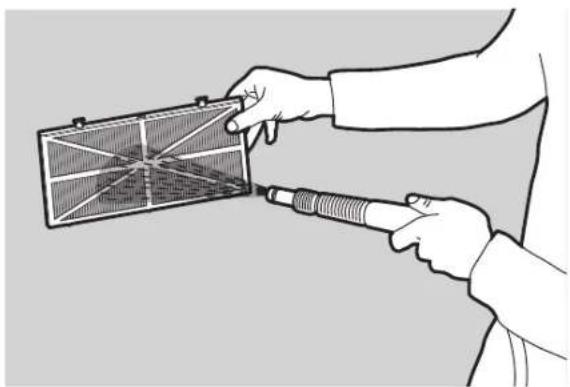

1. Clean the filters with a hose.

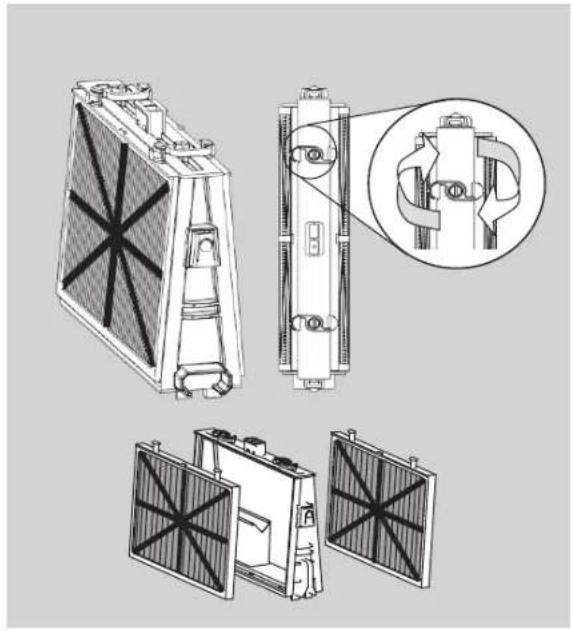

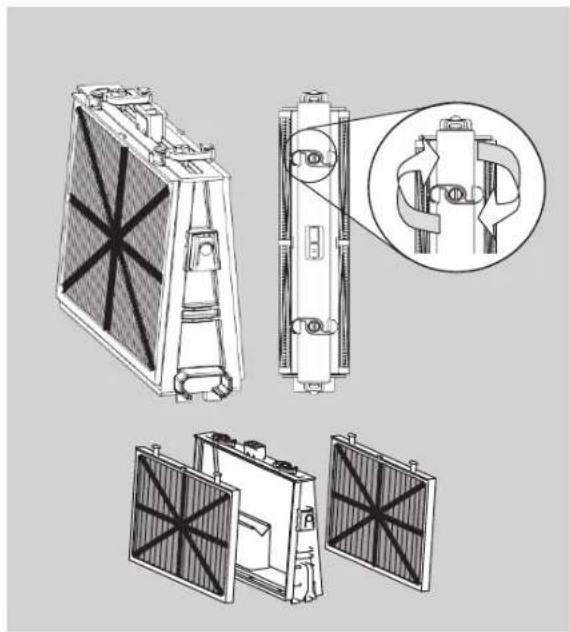

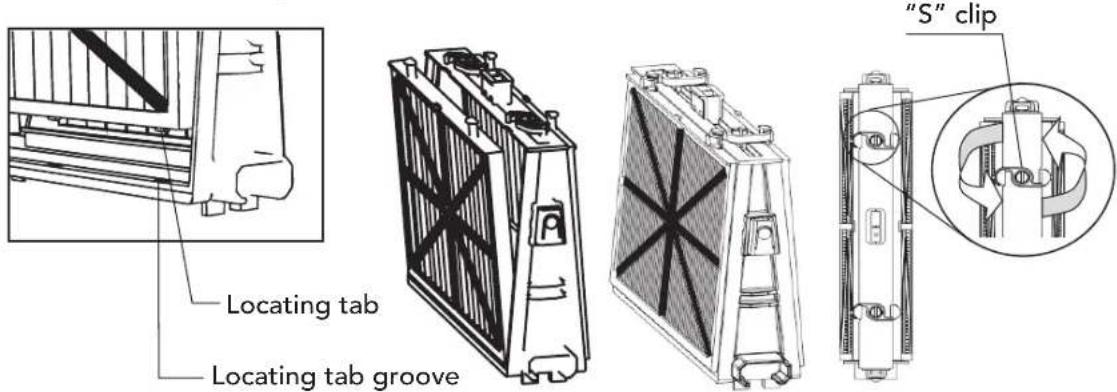

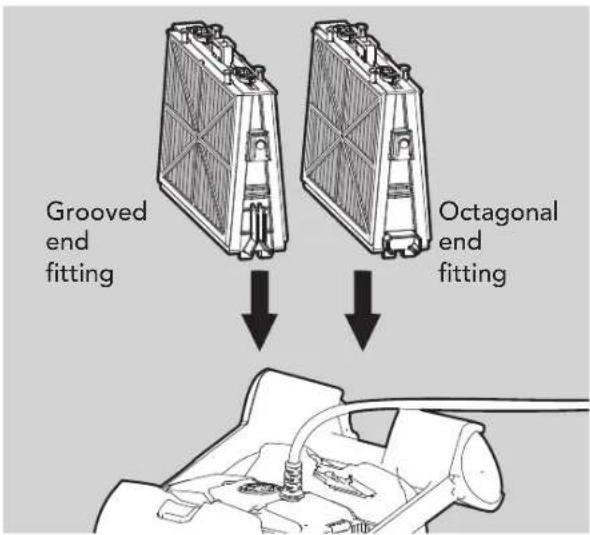

1. Reassembling the filter elements

Insert the locating tabs at the bottom of the filter element into their grooves on the base frame then close the "S" clip.

Reinstall the base frames with filters according to the diagram.

Do not force the filters into place.

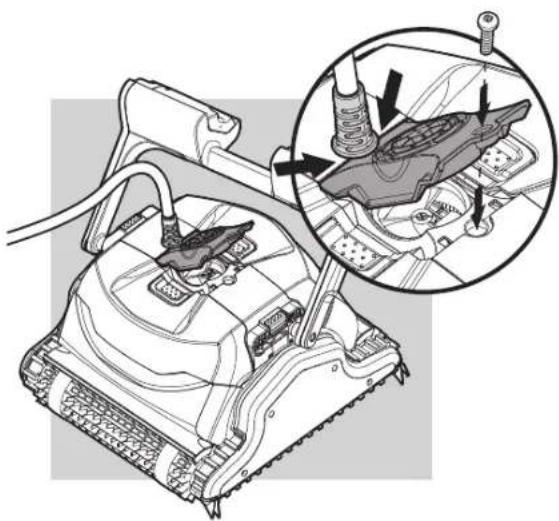

6.2. Dismantling and cleaning the impeller

Unplug the power supply before cleaning.

Dismantle the impeller cover and clean around the impeller housing, then reassemble.

(Use Phillips head screwdriver).

If the Pool Cleaner will not be in use for an extended period, perform the following storage steps:

• Make sure that no water is left in the Pool Cleaner
• Thoroughly clean the filters of the cartridges and insert in place
• Roll up the cable so that it has no kinks and place on the Caddy
- Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a temperature of between 5°-45°C / 41°-113°F

8. TROUBLESHOOTING

If the suggested solutions do not solve the problem contact your dealer

Problem Solution
Pool Cleaner does not move 1.	Check that the power supply cable is plugged properly into the power supply socket. Check power to the socket and reconnect Pool CleanerEnsure the power outlet is functioning properly and that it has not tripped the breaker in the fuse boxTurn the power supply off. Wait 30 seconds then turn it back onUnplug the power supply. Open the impeller cover and check that nothing is trapped in the impeller
The Pool Cleaner moves but does not clean the pool	Clean the filters of the cartridgesAfter the Pool Cleaner starts moving observe it for several minutes and make sure that it keeps moving. If it stops moving check the impeller and the drive system to see if any debris is stuck there
The Pool Cleaner cleans only part of the pool	Check that there is enough slack in the cable for the Pool Cleaner to reach all of the poolClean the filters of the cartridgesForClassic 9only:You may enhance the pool coverage by adjusting the handle float. For optimal pool coverage the Pool Cleaner should turn on the floor at 90° angle (the Pool Cleaner rotates twice before completing the 90° turn).If the Pool Cleaner turns in an angle wider than 90° , pull out the handle float on the cable’s entry-side (A)If the Pool Cleaner does not complete a 90° turn, pull out the handle float opposite to the cable’s entry–side (B)Check the brushes to see if they are obstructed or worn out
The Pool Cleaner floats instead of sitting on the floor of the pool	Try removing the air againWith the Pool Cleaner in the water squeeze the combined brush/Wonder brush to make sure that they are completely water absorbent
Cable has kinks 1. To remove the kinks stretch the cable out completely and let it lie for at least a day in the sunClean the filters of the cartridges
The Pool Cleaner doesn’t climb the walls	Clean the filters of the cartridgesCheck the level of the chemicals of the water. Improper levels may allow the growth of algae making the walls slippery. If so, adjust the levels and scrub the wallsCheck that the brushes aren’t worn outForTop 9only: Check that the wall climbing mode hasn’t been cancelled via the remote control unit

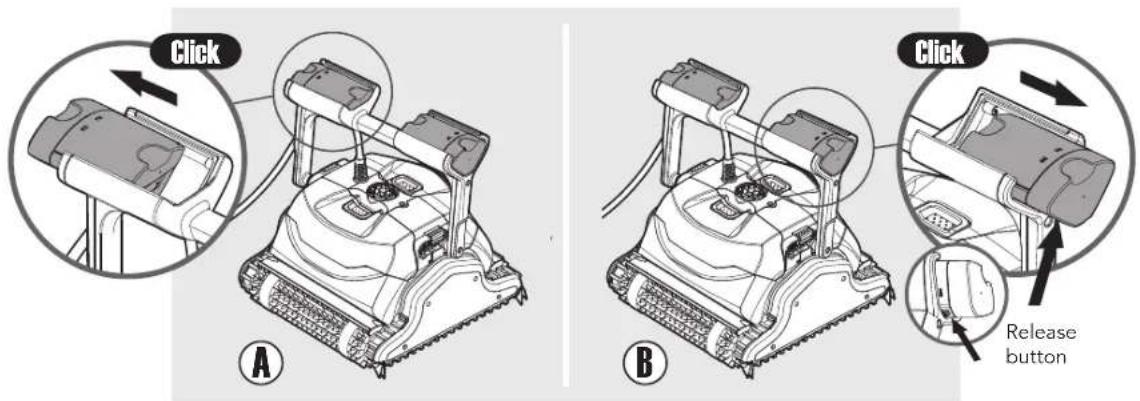

To move the floats back to their original position: while pressing the release button on the base of the handle float – push the handle float back.

FR

Dolphin Explorer Classic 9 / Top 9

▶Dolphin Explorer Classic 9

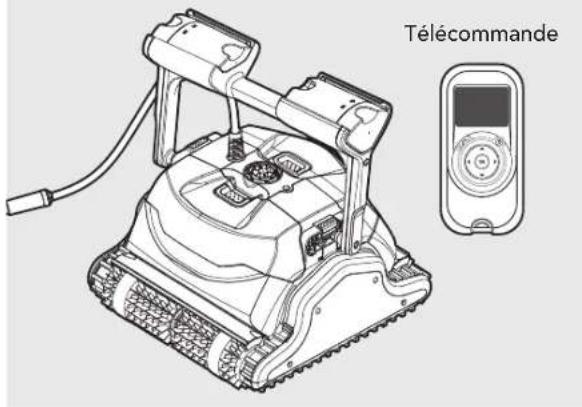

▶Dolphin Explorer Top 9

▶ Brosses

Brosse combinée

NE PAS RETIRER LE NETTOYEUR DE LA PISCINE EN TIRANT SUR LE CABLE.

6. EFFECTUEZ LA MAINTENANCE ROUTINIÈRE

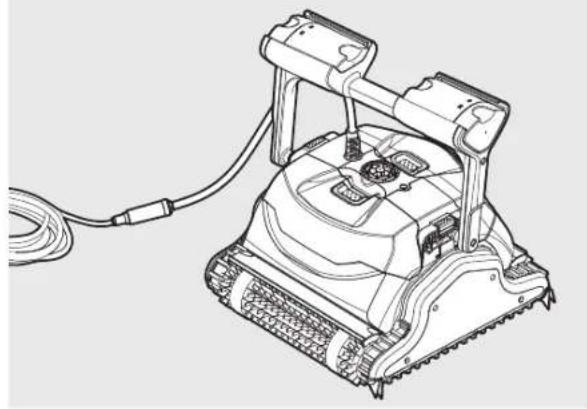

▶Dolphin Explorer Classic 9

▶Dolphin Explorer Top 9

Spazzola "Wonder Brush"

! NON ESTRARRE IL PULITORE DALLA PISCINA TIRANDO IL CAVO.

1. Pulire i filtri con una pompa.

▶Dolphin Explorer Classic 9

▶Dolphin Explorer Top 9

▶Dolphin Explorer Classic 9

▶Dolphin Explorer Top 9

Bürsten

ZIEHEN SIE DEN POOLREINIGER NICHT AM KABEL AUS DEM POOL.

▶Dolphin Explorer Classic 9

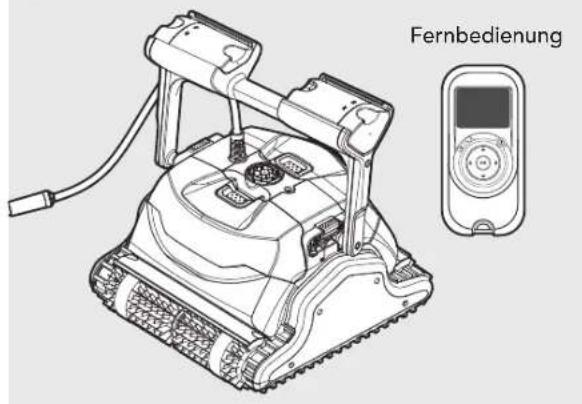

▶Dolphin Explorer Top 9
