USER MANUAL GMOS1266SS FRIGIDAIRE

Installation Instructions

Over the Range Microwave Oven

Questions? Call 1-800-944-9044(US) or 1-800-265-8352(Canada)

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT-Save these instructions for local inspector's use.
• IMPORTANT- Observe all governing codes and ordinances.

• Note to Installer - Be sure to leave these instructions with the Consumer.

• Note to Consumer - Keep these instructions for future reference.

• Skill level - Installation of this appliance requires basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.

Line drawing of a rectangular appliance with three windows and a side panel (no text or symbols)

READ CAREFULLY.

KEEP THESE INSTRUCTIONS

p/n A06823451

August 2022

CONTENTS

General information

Important Safety Instructions .... 3

Electrical Requirements 3

Damage - Shipment/Installation.... 4

Parts Included.... 4

Tools You Will Need 5

Mounting Space 5

Step-by-step installation guide

Placement of The Mounting Plate 6-8

Removing the Mounting Plate 6

Finding the Wall Studs 6

Determining Wall Plate Location .....7

Aligning the Wall Plate 8

Installation Types....9

A Recirculating 10-12

Attach Mounting Plate to Wall .....10

Preparation of Top Cabinet ....11

Check Blower Plate 11

Mount the Microwave Oven .....11-12

Installing or Change

the Charcoal Filter....12

External Exhaust Duct.... 13-14

B Outside Back Exhaust....15-18

Preparing Rear Wall for

Outside Back Exhaust....15

Remove Blower Plate.... 15

Attach Mounting Plate to Wall .....16

Preparation of Top Cabinet ......16

Adapting Microwave Blower

for Outside Back Exhaust......16-17

Mount the Microwave Oven .....18

C Outside Top Exhaust....19-22

Attach Mounting Plate to Wall.....19

Preparation of Top Cabinet......20

Adapting Microwave Blower for

Outside top Exhaust ...... 20 -21

Checking for Proper Damper

Operation....21

Mount the Microwave Oven .....21-22

Adjust the Exhaust Adaptor .....22

Connecting Ductwork......22

Before You Use Your Microwave....23

IMPORTANT SAFETY INSTRUCTIONS

This product requires a three-prong grounded outlet.

The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

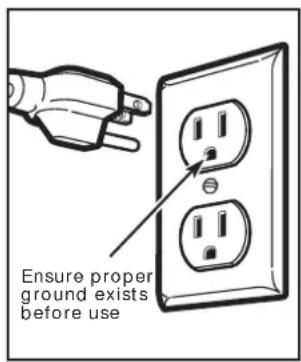

Illustration of a hand interacting with an electrical outlet box (no text or symbols visible)

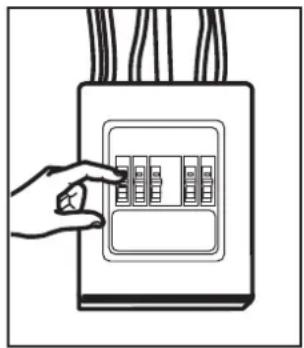

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63–85 pound

(28.5–38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of

113–135 pounds (51.3–61.2 kg).

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal safety, it is recommended that two people install this product.

IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

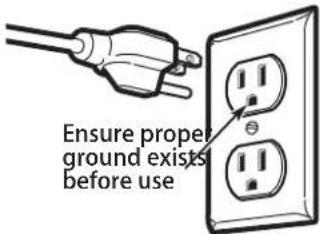

Ensure proper ground exists before use

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and 1.6 kilowatts. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 15- to 20- ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlier box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

DAMAGE—SHIPMENT/ INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

PARTS INCLUDED

HARDWARE PACKET

PART QUANTITY
	Wood Screws(1/4" x 2")	2
	Toggle Bolts (and wing nuts) (3/16" x 3")	2
	Self-Aligning Machine Screws(1/4"-28 x 31/4")	3
	Nylon Grommet(for metal cabinets)	1

You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts. NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.)

ADDITIONAL PARTS

PART QUANTITY
	Top Cabinet Template	1
	Rear Wall Template	1
	Installation Instructions	1
	Use & Care Manual	1
	Separately Packed Grease Filters	2
	Exhaust adaptor	1
	Glass Tray 1
	Turntable Ring	1

Tools you will need:

• Tape measure
• Hole saw
  • Stud finder or hammer
• Level
  • Duct and masking tape
• Scissors

•#1 Phillips screw driver
- Electric drill
• 3/16", 1/2", 5/8" drill bit
- Filler wood blocks for recessed bottom cabinets
- Tin snips

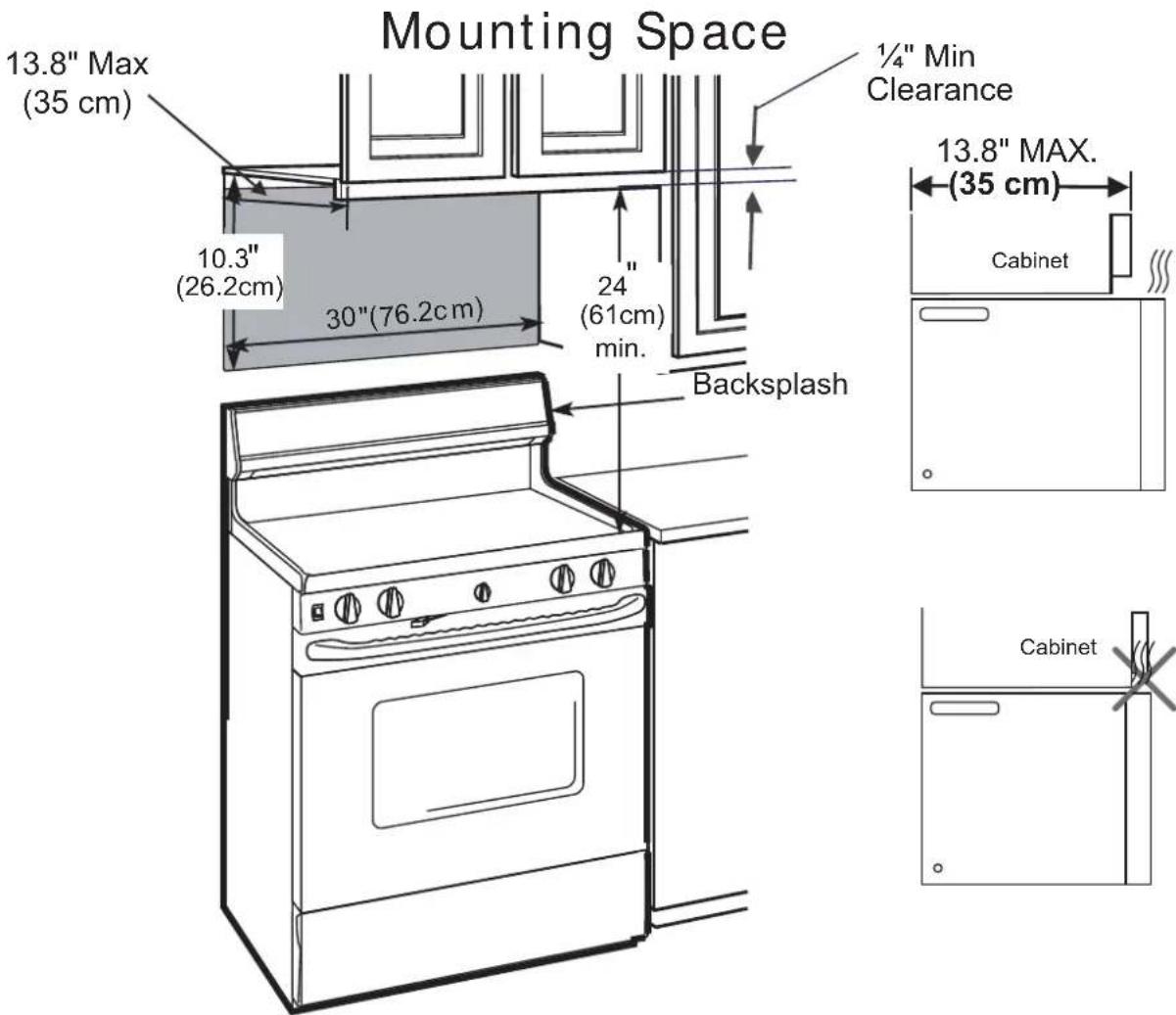

Mounting Space 13.8" Max (35 cm) 10.3" (26.2cm) 30"(76.2cm) 24" (61cm) min. 1/4" Min Clearance 13.8" MAX. (35 cm) Cabinet Backsplash Cabinet

• The space between the cabinets must be 30" (76.2 cm) wide and free of obstructions.
• If you are going to vent your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation
• When installing the microwave oven beneath smooth, flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance.
• As a guide to installation, see page 26 for Mounting Template Information.
• If the cabinet depth, including the cabinet doors, is more than 13.8", then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

1 PLACEMENT OF THE MOUNTING PLATE

A. REMOVING THE MICROWAVE OVEN FROM THE CARTON/REMOVING THE MOUNTING PLATE

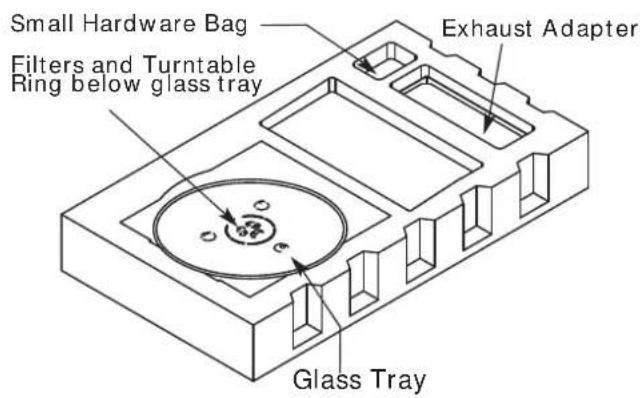

1 Remove the installation instructions, use and care, exhaust adapter, turntable ring, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the top of the oven. please note: Do Not Remove plastic plug protective cover until just before hanging the unit. Keep the unit at least 8 inches away from the counter top edge to prevent to dropping because of the heavy doo.r

Small Hardware Bag Filters and Turntable Ring below glass tray Glass Tray Exhaust Adapter

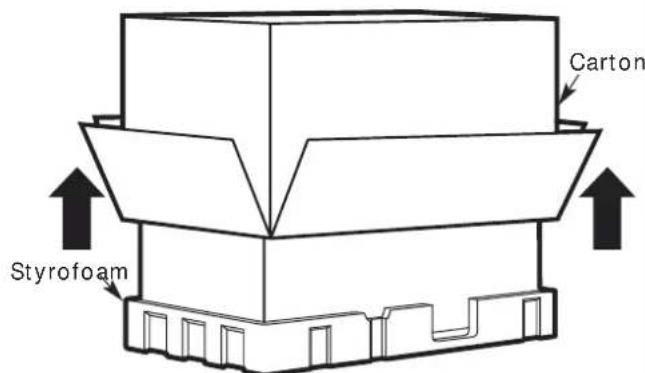

2 Fold back all 4 carton flaps fully against carton sides. Then carefully roll the oven and carton over onto the top side. The oven should be resting in the Styrofoam.

Carton Styrofoam

3 Pull the carton up and off the oven.

4 Cut the middle of the outer protective plastic bag to remove the mounting plate.

Screws Mounting Plate Screws

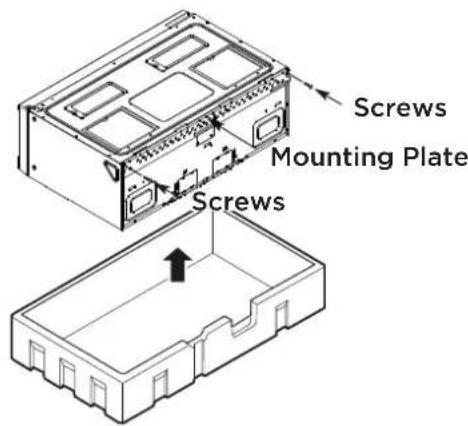

5 Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting. Reinstall the screws into the holes where they were removed.

B. FINDING THE WALL STUDS

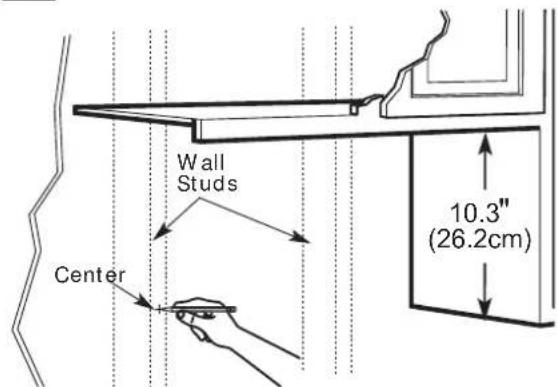

Wall Studs 10.3" (26.2cm) Center

1 Find the studs, using one of the following methods:

A. Stud finder – a magnetic device which locates nails. B. Use a hammer to tap lightly across the mounting surface to find a solid sound This will indicate a stud location.

2 After locating the stud(s), find the center by probing the wall with a small nail to find the edges of the stud. Then place a mark halfway between the edges. The center of any adjacent studs should be 16 (40.6 cm) or 24 (61 cm) from this mark.

3 Draw a line down the center of the studs. THE MICROWAVE MUST BE CONNECTED TO AT LEAST ONE WALL STUD.

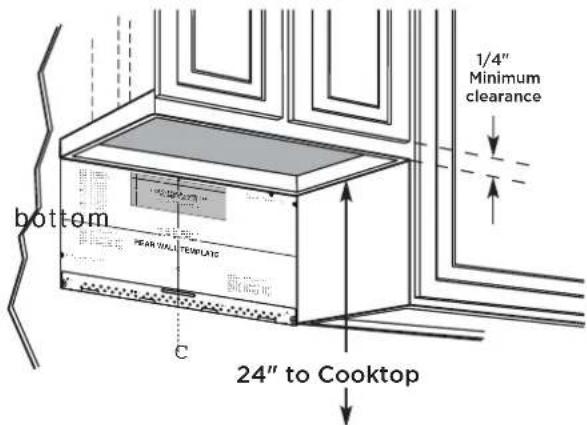

C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate position-beneath fiat bottom cabinet

1/4" Minimum clearance C At least 30"

Draw a vertical line on the wall at the center of the 30" wide space.

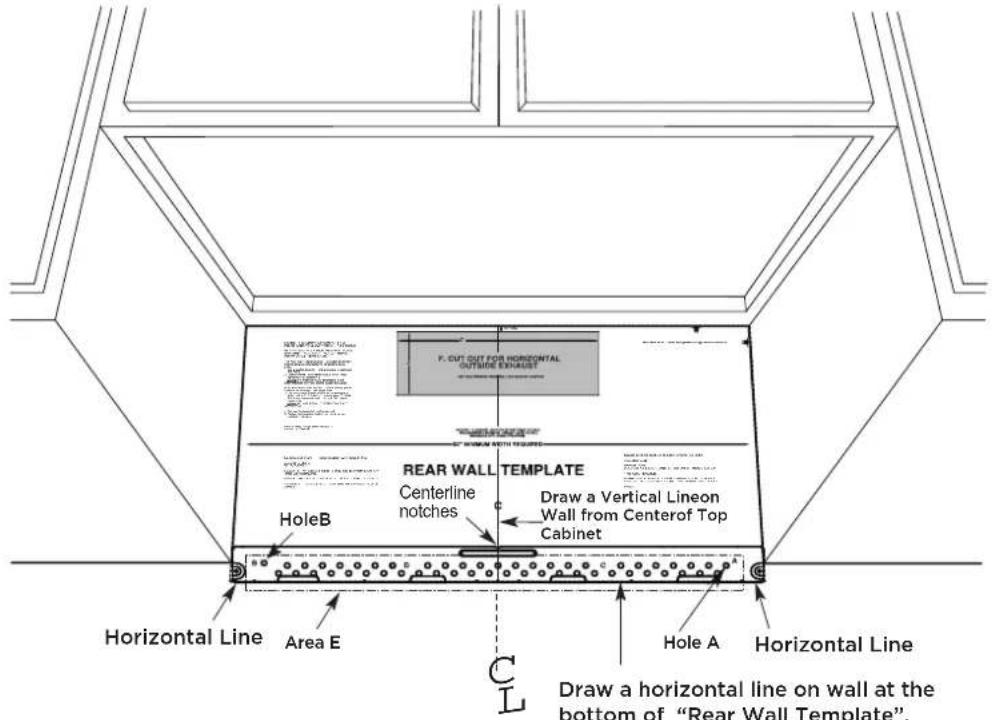

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet.

Plate position-beneath recessed bottom cabinet with front

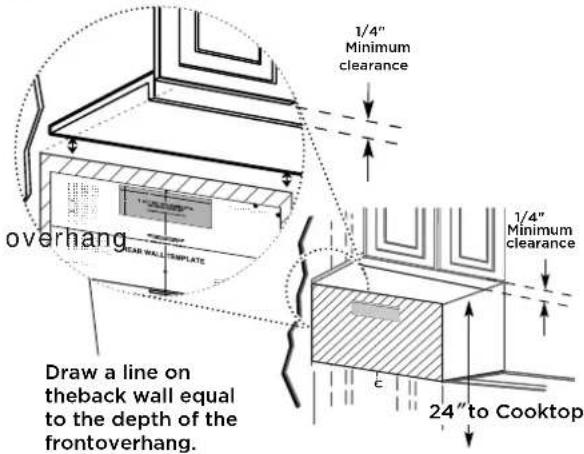

1/4" Minimum clearance overhang 1/4" Minimum clearance Draw a line on theback wall equal to the depth of the frontoverhang. 24" to Cooktop

Plate position-beneath framled recessed cabinet

bottom PEAR WALL TEMPLATE C 24" to Cooktop 1/4" Minimum clearance

Draw a vertical line on the wall at the center of the 30" space.
Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom cabinet frame.

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Use a level to make sure the cabinet bottom is level.

If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

1 Measure the inside depth of the front overhang.
2 Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3 For this type of installation with front overhang only, align the mounting tabs with this horizontal line, not touching the cabinet bottom as described in Step D.

D. ALIGNING THE WALL PLATE

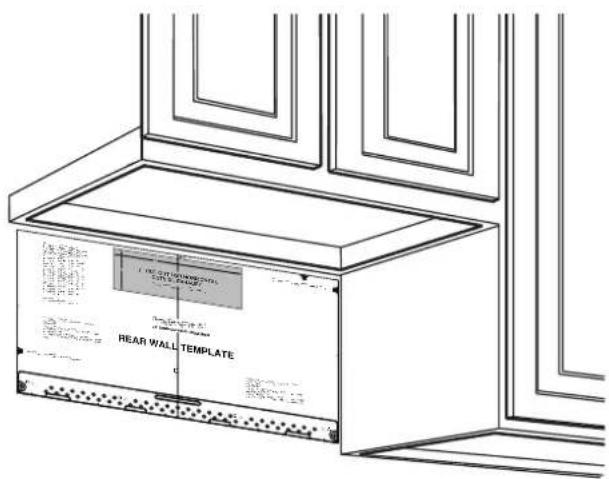

F. CUT OUT FOR HORIZONTAL OUTSIDE EXHAUST REAR WALL TEMPLATE Centerline notches Draw a Vertical Lineon Wall from Centerof Top Cabinet HoleB Horizontal Line Area E Hole A Horizontal Line Draw a horizontal line on wall at the bottom of "Rear Wall Template".

1 Draw a vertical line on the wall at the center of the 30" wide space.
2 Draw a horizontal line on the wall at the bottom of "Rear Wall Template".
3 Find a wall stud in area "E" of mounting plate Refer to section 1B. Finding the wall studs.
4 For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 1 other location (Hole A or Hole B) NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: Holes A and B are inside area E. If neither of Holes A and B are not in a stud, find a stud somewhere in area E and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

2 IMPORTANT SAFETY INSTRUCTIONS (Choose A, B or C)

This microwave oven is designed for adaptation to the following three types of ventilation:

A. Recirculating (Non-Vented Ductless)

B. Outside Back Exhaust (Horizonta I Duct

C. Outside Top Exhaust (Vertical Duct)

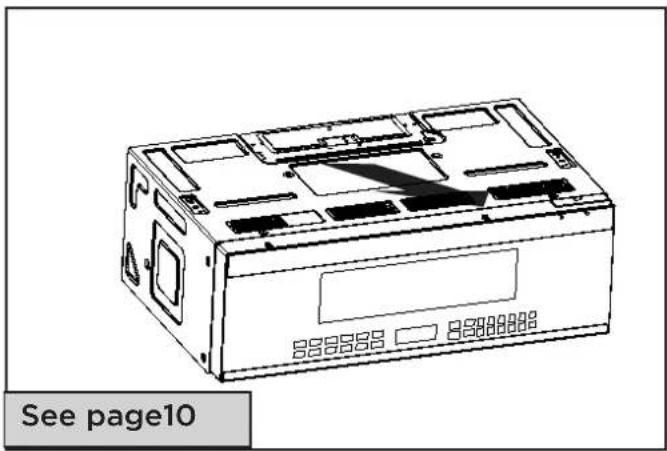

NOTE: This microwave is shipped assembled for Recirculating. Select the type of ventilation required for your installation and proceed to that section.

A. RECIRCULATING (NON-VENTED DUCTLESS)

Line drawing of a computer case with internal components and ventilation slots (no text or symbols)

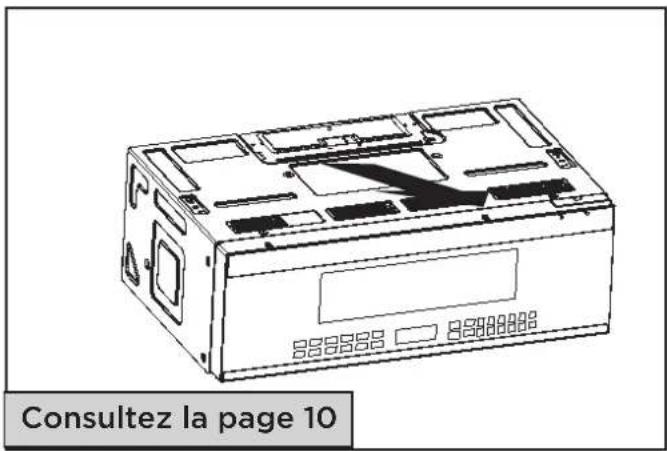

Models are shipped for recirculating exhaust. Some models have a disposable charcoal filter installed to help remove smoke and odors.

B. OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

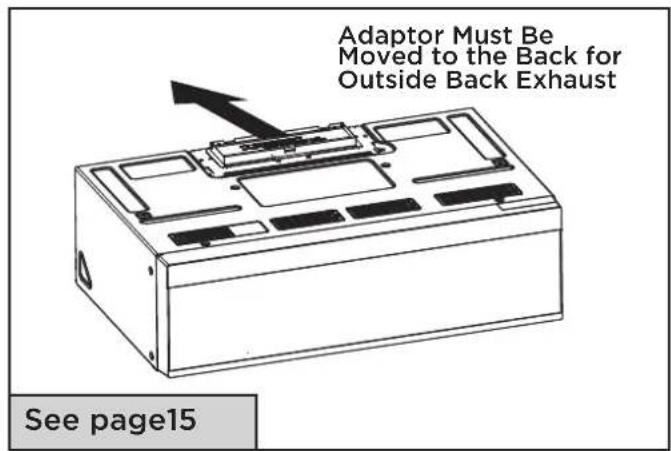

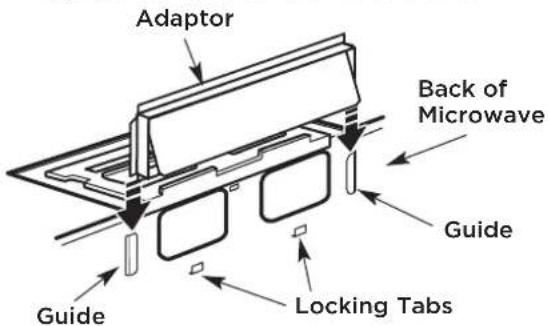

Adaptor Must Be Moved to the Back for Outside Back Exhaust See page15

C. OUTSIDE TOP EXHAUST (VERTICAL DUCT)

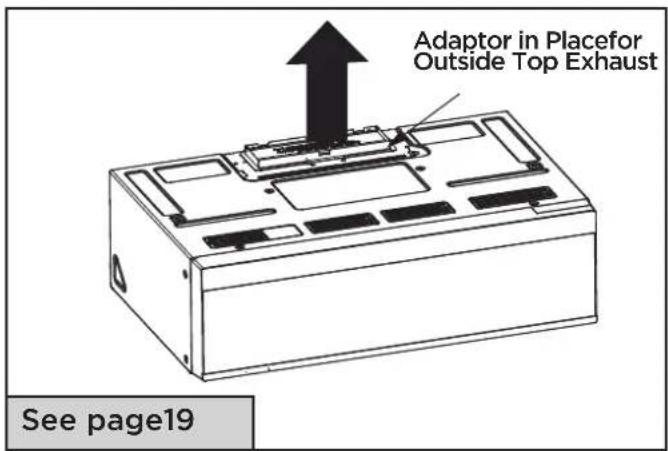

Adaptor in Placefor Outside Top Exhaust See page19

NOTE: Read the pages 13-14 only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 10.

A | RECIRCULATING (Non-Vented Ductless)

INSTALLATION OVERVIEW

A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Check Blower Plate
A4. Mount the Microwave Oven
A5. Install or change Charcoal Filter

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

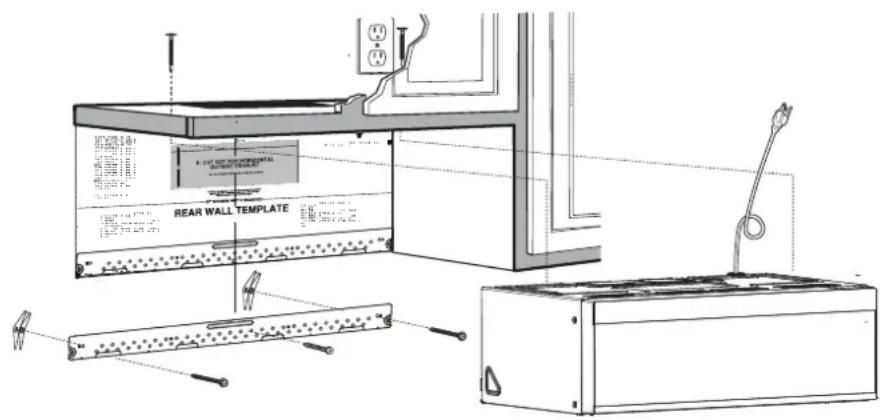

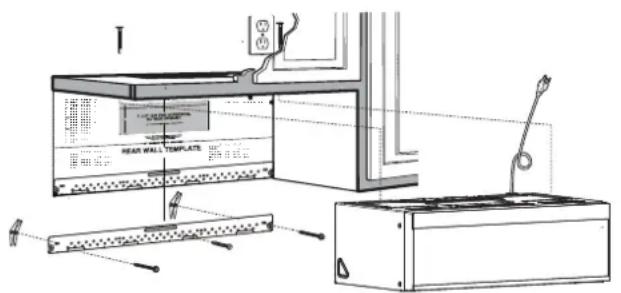

Technical diagram showing installation of rear wall templates and a computer drive, with labeled components and wiring connections.

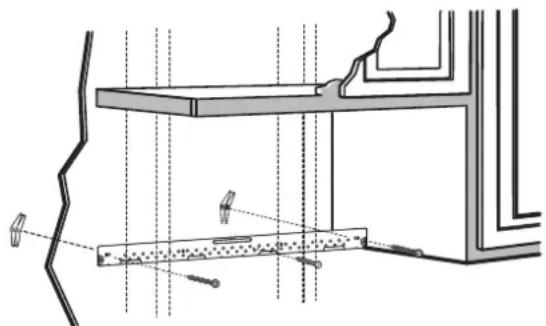

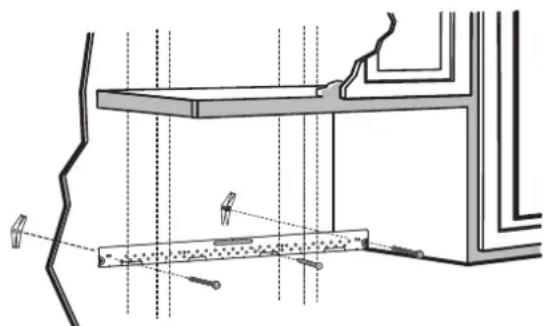

A1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

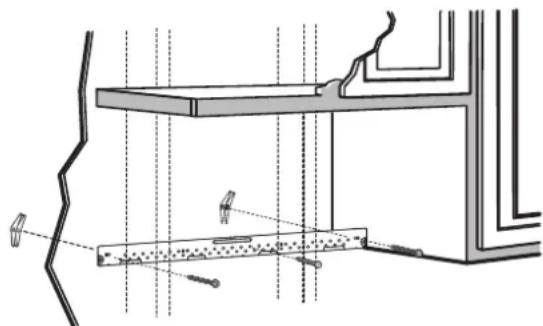

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

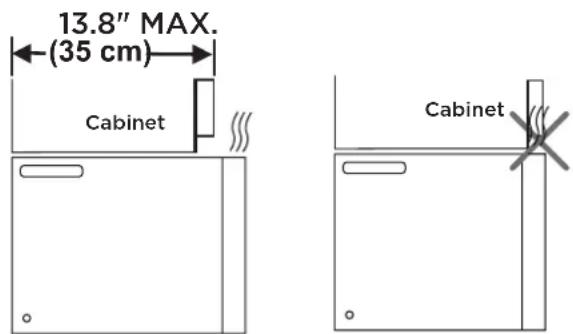

NOTE: If the cabinet depth including the cabinet doors is more than 13""" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/intake.

13.8" MAX. (35 cm) Cabinet Cabinet

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 3/4"(19 mm) onto each bolt.

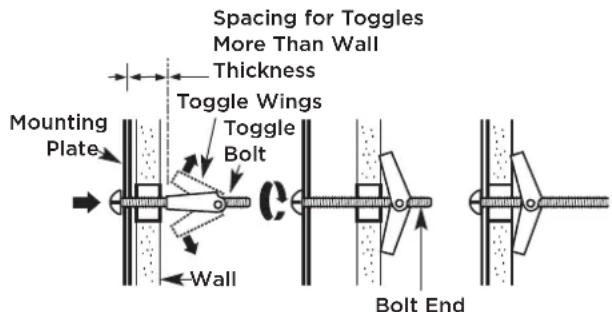

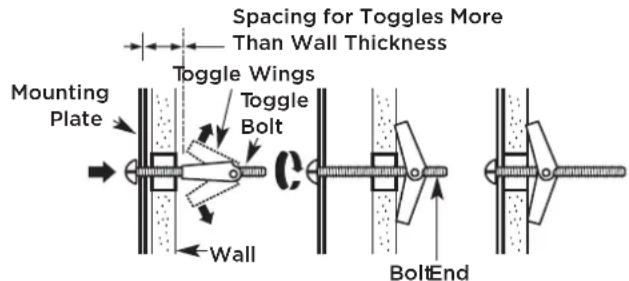

To use toggle bolts:

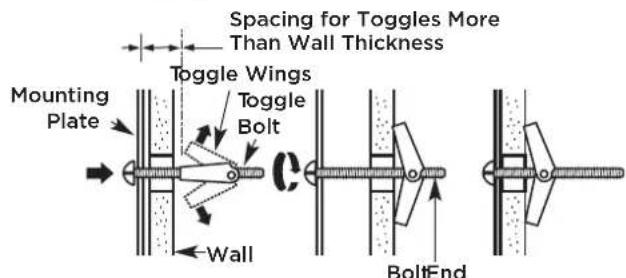

Spacing for Toggles More Than Wall Thickness Toggle Wings Mounting Plate Toggle Bolt Wall Bolt End

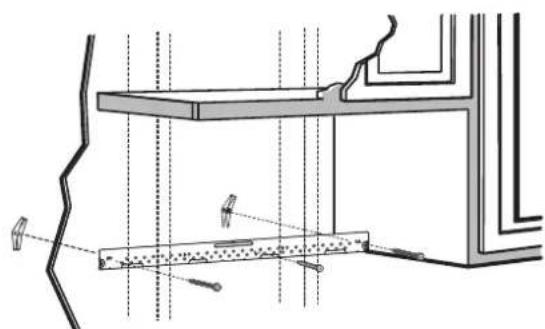

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

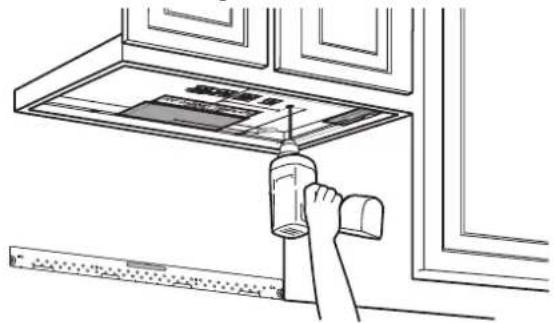

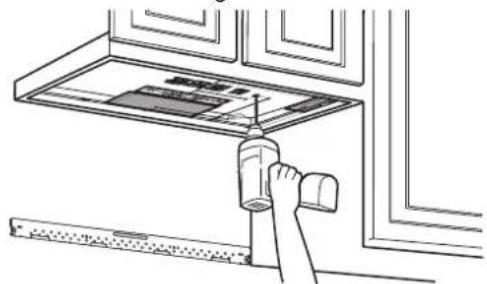

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

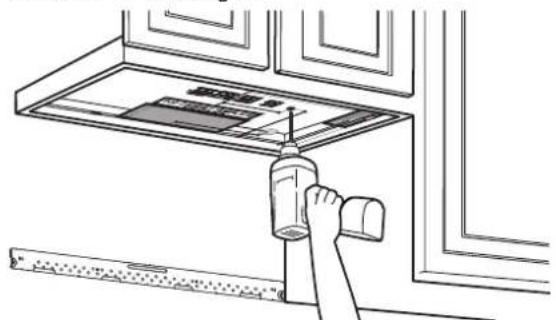

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a cabinet (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.

NOTE: Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more than 13".

- Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

A3. CHECK BLOWER PLATE

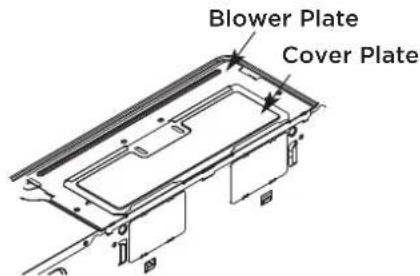

Blower Plate Cover Plate

• Place the microwave in its upright position, with the top of the unit facing up.
• Check to see that the blower plate and cover plate are correctly installed on the unit.

A4. MOUNT THE MICROWAVE OVEN

Illustration showing three scenes of people crossed out of a table, possibly indicating a cross-section or exclusion of items.

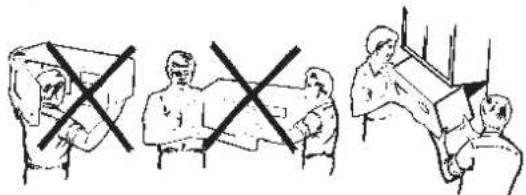

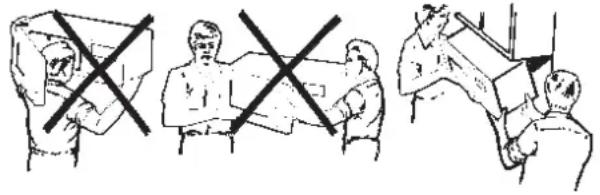

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep

it tight throughout Steps 1-3. Do not pinch cord or lift oven by pulling cord.

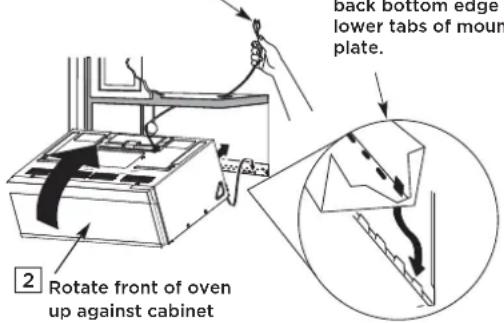

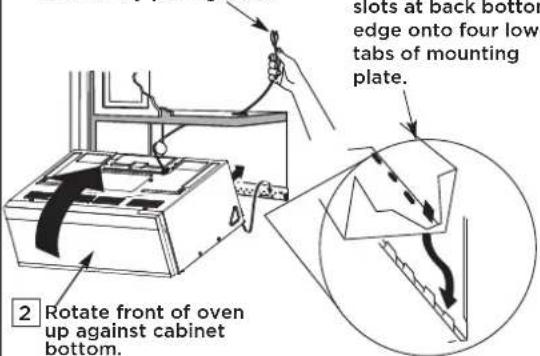

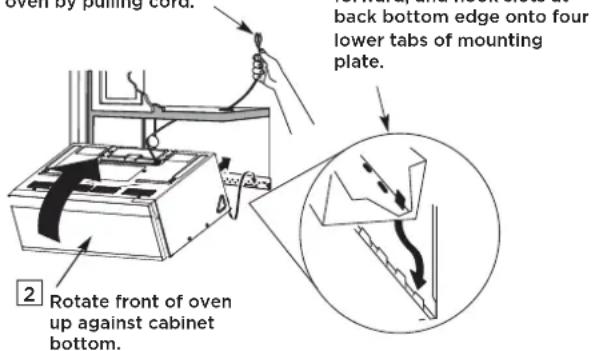

slots at back bottom edge onto four low tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged.(It will be completely tightened later.) Be sure to keep power cord-tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

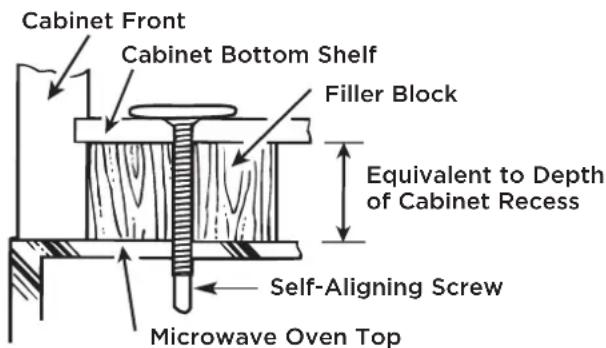

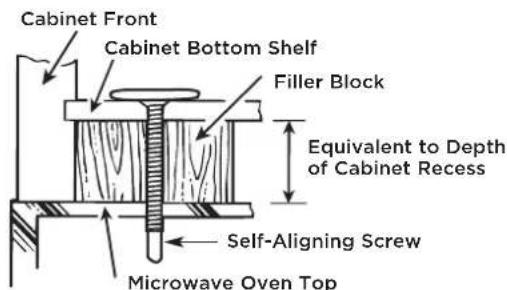

Cabinet Front Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

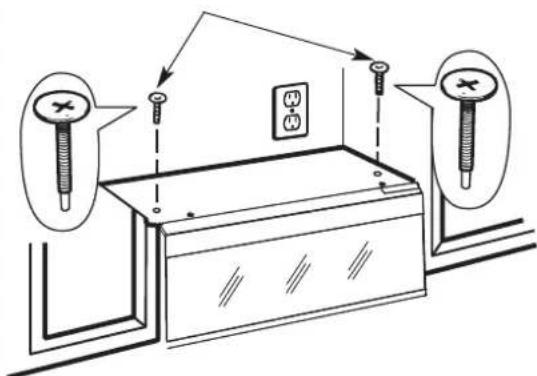

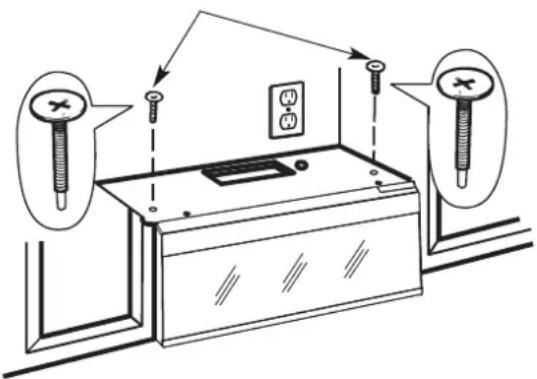

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

Diagram showing electrical circuit setup with screwdrivers and a battery, illustrating power distribution or connection points.

6 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned device (no text or symbols)

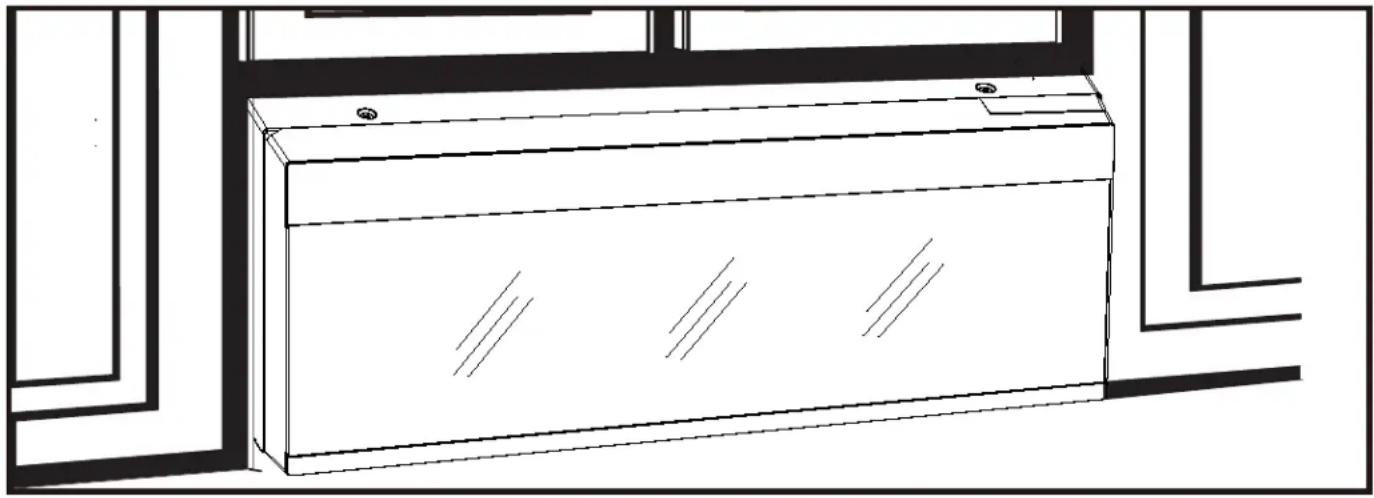

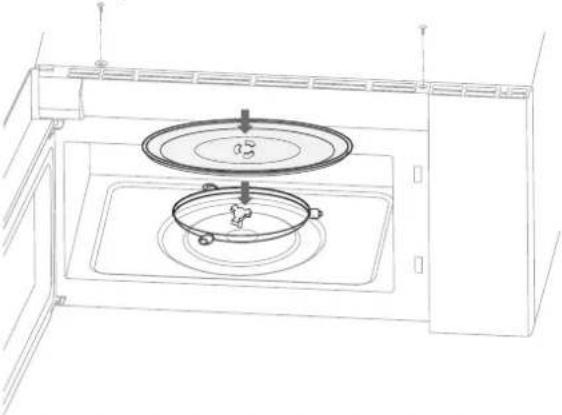

7 Install grease filters. See the Use & Care Manual packed with the microwave.

A5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models)

NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information.

For models without the recirculation filter access door, follow these steps to replace or install a charcoal filter.

A 5.1 Unplug microwave oven or disconnect power.

A 5.2 Remove the plastic air guide located on the top of the microwave.

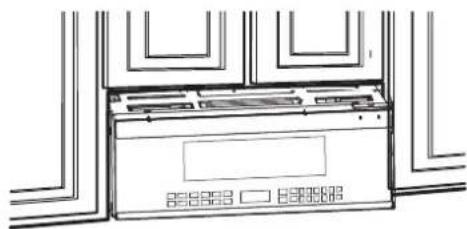

Line drawing of a front panel with control buttons and ventilation grilles (no text or symbols)

A 5.3 Change the charcoal filter.

Charcoal Filter

A 5.4 Install the plastic air guide located on the top of the microwave.

A 5.5 Close the microwave door. Plug in microwave oven or reconnect power.

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

NOTE: If you need to install ducts, note that the total duct length of 34" x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/ 6" (15.2 cm) diameter round duct should not exceed 140 equivalent feet (42.7 m). Outside ventilation requires an EXTERNAL EXHAUST DUCT. Read the following carefully. NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with a standard 34" x 10" (8.2 x 25.4 cm) rectangular duct. If a round duct is required, a rectangular-to-round transition adaptor must be used. "A5" (12.7cm)/ "6" (15.2cm) diameter duct is acceptable to use.

Maximum duct length:

For satisfactory air movement, the total duct length of 34" x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 140 equivaler feet (42.7 m). Elbows, transitions, wall and roof caps, etc.,

present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

DUCT PIECES		EQUIVALENT LENGTH	x	NUMBER USED	=	EQUIVALENT LENGTH
	Rectangular-to-Round Transition Adaptor*	5 Ft. (1.5 m) x ( )	= Ft.	or m
	Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m
	90° Elbow 10 Ft. (3 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	Roof Cap 24 Ft. (7.3 m) x ( ) = Ft. or m
	Straight Duct 6" (15.2 cm) Round or 31/4" x 10" (8.2 x 25.4 cm Rectangular)	1 Ft. (0.3 m) x ( )	= Ft.	or m
Total Ductwork = Ft. or m

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

EXTERNAL EXHAUST DUCTING

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

Simple line drawing of a cylindrical object with a flanged top and base (no text or symbols)

DUCT PIECES		EQUIVALENT LENGTH	x	NUMBER USED	=	EQUIVALENT LENGTH
	Roof Cap 24 Ft.	(7.3 m) x (1) = 24 Ft.	(7.3 m)
[IMAGE]	12 Ft. (3.6 m)Straight Duct (6”/15.2 cm Round)	12 Ft. (3.6 m) x (1) =	12 Ft.	(3.6 m)
[IMAGE]	Rectangular-to-Round Transition Adaptor*	5 Ft. (1.5 m) x (1) =	5 Ft.	1.5 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.				Total Length		41 Ft. (12.5 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fi t, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

Pure line drawing of a curved pipe or duct with a triangular notch (no text or symbols)

DUCT PIECES		EQUIVALENT LENGTH	x	NUMBER USED	=	EQUIVALENT LENGTH
	Wall Cap 40 Ft. (12.2 m) x (1) =		40 Ft. (12.2 m)
[YWHT]	3 Ft. Straight Duct (31/4" x 10"/8.2 x 25.4 cm Rectangular)	3 Ft. (0.9 m)	x (1) = 3 Ft. (0.9 m)
	90° Elbow	10 Ft. (3 m)	x	(1)	=	20 Ft. (6.1 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.				Total Length		63 Ft. (19.2 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

B | OUTSIDE BACK EXHAUST (Horizontal Duct)

INSTALLATION OVERVIEW

B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
  • Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

REAR WALL TEMPLATE 1. 100% 250mm x 300mm x 400mm x 500mm x 600mm x 700mm x 800mm x 900mm x 1000mm x 1100mm x 1200mm x 1300mm x 1400mm x 1500mm x 1600mm x 1700mm x 1800mm x 1900mm x 2000mm x 2100mm x 2200mm x 2300mm x 2400mm x 2500mm x 2600mm x 2700mm x 2800mm x 2900mm x 3000mm x 3100mm x 3200mm x 3300mm x 3400mm x 3500mm x 3600mm x 3700mm x 3800mm x 3900mm x 4000mm x 4100mm x 4200mm x 4300mm x 4400mm x 4500mm x 4600mm x 4700mm x 4800mm x 4900mm x 5000mm x 5100mm x 5200mm x 5300mm x 5400mm x 5500mm x 5600mm x 5700mm x 5800mm x 5900mm x 6000mm x 6100mm x 6200mm x 6300mm x 6400mm x 6500mm x 6600mm x 6700mm x 6800mm x 6900mm x 7000mm x 7100mm x 7200mm x 7300mm x 7400mm x 7500mm x 7600mm x 7700mm x 7800mm x 7900mm x 8000mm x 8100mm x 8200mm x 8300mm x 8400mm x 8500mm x 8600mm x 8700mm x 8800mm x 8900mm x 9000mm x 9100mm x 9200mm x 9300mm x 9400mm x 9500mm x 9600mm x 9700mm x 9800mm x 9900mm x1

B1. PREPARING THE REAR

WALL FOR OUTSIDE BACK EXHAUST

You need to cut an opening in the rear wall for outside exhaust.

REAR WALL TEMPLATE 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100%

• Read the instructions on the REAR WALL TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the REAR WALL TEMPLATE.

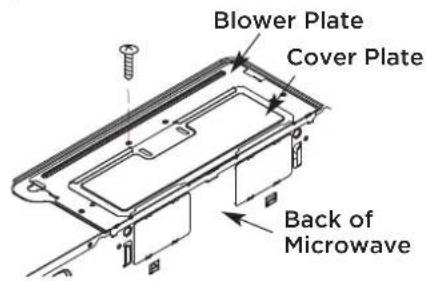

B2. REMOVE BLOWER PLATE

Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate.

Blower Plate Cover Plate Back of Microwave

- The cover plate is installed with the blower plate, no need to separate.

Installation Instructions

B3. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports (no text or symbols)

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 3/4"(19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Mounting Plate Toggle Wings Toggle Bolt Wall BoltEnd

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

B4. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or store items on a shelf, no text or symbols present

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

B5. ADAPTING MICROWAVE AIR DIRECTOR FOR OUTSIDE BACK EXHAUST

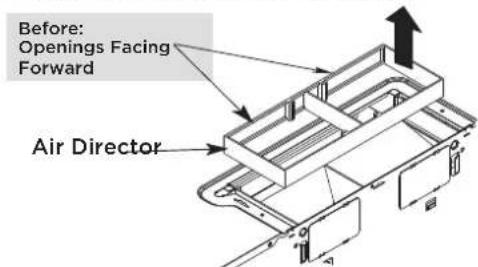

1 Carefully pull out the air director.

Before: Openings Facing Forward Air Director

2 Rotate the air director counterclockwise 180°

Before Rotation After Rotation

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

3 Remove the knockout plates in the back of the unit with snips. (For some models)

Technical line drawing of a mechanical assembly with no visible text or symbols

Back of microwave

Knockout Plates: Snip all 4 webs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

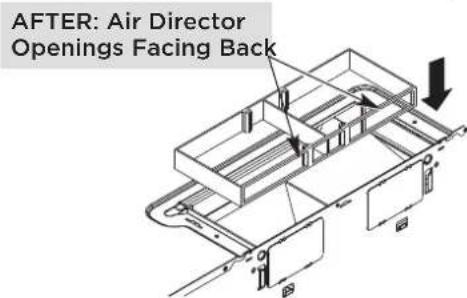

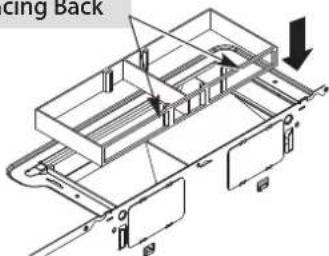

4 Place the air director back into the opening.

AFTER: Air Director Openings Facing Back

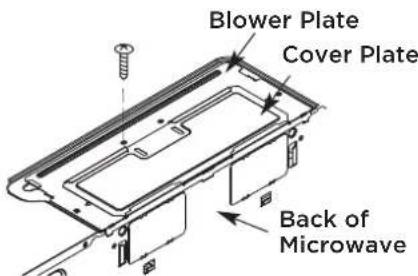

5 Secure the blower plate to the microwave with the original screw.

Blower Plate Cover Plate Back of Microwave

6 Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven.

Adaptor Back of Microwave Guide Guide Locking Tabs

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

Left Blank Intentionally

B6. MOUNT THE MICROWAVE OVEN

Illustration showing three scenes of people crossed out of a box, possibly indicating a cross-section or exclusion of items.

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1-3 Do not pinch cord or lift oven by pulling cord.

even by pulling cord. back bottom edge onto four lower tabs of mounting plate. 2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Front Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Place the air director back into the opening.
5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

Diagram showing electrical connections to a battery appliance with screwdrivers and a wall-mounted switch, illustrating electrical system setup.

6 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned device with a small object nearby (no text or symbols)

7 Install grease filters. See the Use & C are manual packed with the microwave.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

C | OUTSIDE TOP EXHAUST (Vertical Duct)

INSTALLATION OVERVIEW

C1. Attach Mounting Plate to Wall

C2.Prepare Top Cabinet

C3. Adapting Microwave Blower for Outside Top Exhaust

C4. Check Damper Operation

C5. Mount Microwave Oven

C6.Adjust Exhaust Adaptor

C7. Connect Ductwork

IMPORTANT NOTES:

- Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.

- Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

REAR WALL TEMPLATE (1) (2)

C1. ATTACH THE MOUNTING PLATE TO THE WALL

Architectural cross-section diagram showing structural components and lighting fixtures (no text or labels)

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 3/4"(19 mm) onto each bolt.

To use toggle bolts:

Spacing for Toggles More Than Wall Thickness Mounting Plate Toggle Wings Toggle Bolt Wall BoltEnd

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the cabinet when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

C2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.
  CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

C3. ADAPTING MICROWAVE AIR DIRECTOR FOR OUTSIDE BACK EXHAUST

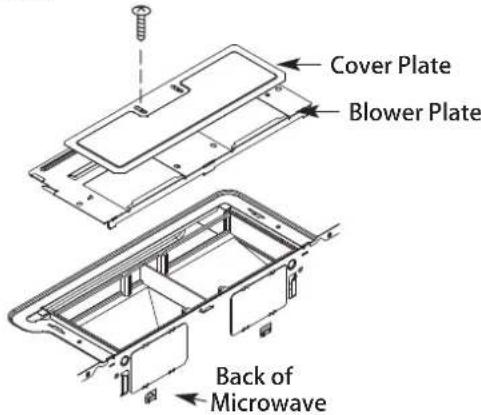

1 Remove the screw that holds the blower plate to the microwave. Remove the cover plate.

Cover Plate Blower Plate Back of Microwave

2 Carefully pull out the air director.

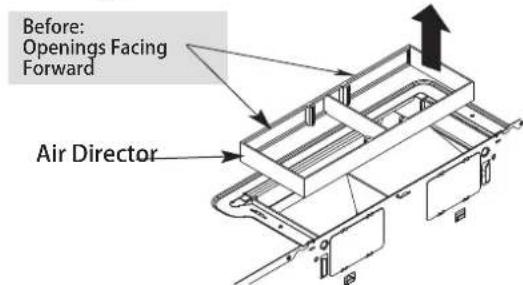

Before: Openings Facing Forward Air Director

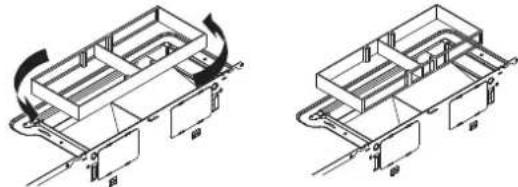

3 Rotate the air director counterclockwise 180°

Before Rotation After Rotation

Technical line drawing of two mechanical assembly configurations with directional arrows indicating motion (no text or symbols)

4 Place the air director back into the opening.

AFTER: Air Director Openings Facing Back

Cing Back

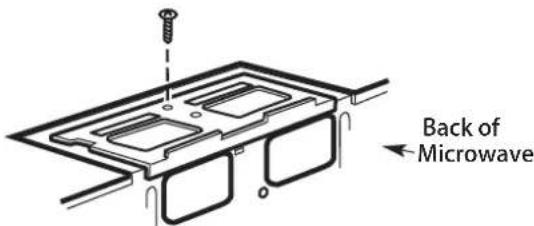

5 Replace blower plate with the screw removed in Step 1. Make sure the screw is tight.

Back of Microwave

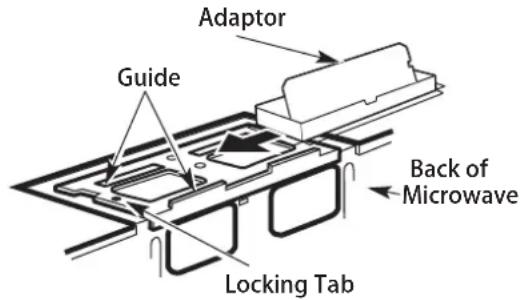

6 Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate.

Adaptor Guide Back of Microwave Locking Tab

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

Blower Plate ExhaustAdaptor Damper Back of Microwave

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.
• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

Illustration showing three scenes of a meeting with crossed-out boxes, one person holding a 'X' sign, another seated at a table, and a third person presenting in front.

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1-Do not pinch cord or lift oven by pulling cord.

back bottom edge lower tabs of mound plate. 2 Rotate front of oven up against cabinet

3 Insert a self-aligning screw through top center cabinet hole. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

Cabinet Bottom Shelf Filler Block Equivalent to Depth of Cabinet Recess Self-Aligning Screw Microwave Oven Top

4 Attach the microwave oven to the top cabinet.

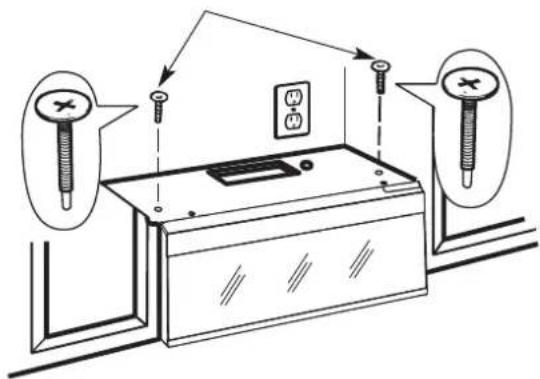

5 Insert 2 self-aligning screws through outer top cabinet holes. Turn two full turns on each screw.

Diagram showing installation of a battery with screwdrivers and electrical outlets, including a close-up view of the switch.

6 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Hand holding a grid-patterned device with a small pen tip, no text or symbols visible

7 Install grease filters. See the Use & C are manual packed with the microwave.

IMPORTANT: Remove the cardhoard spacers between heat shield and door.

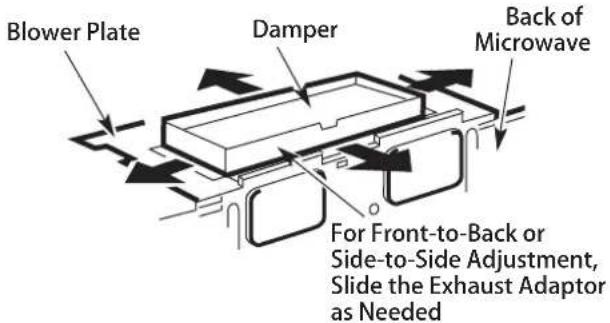

C6. ADJUST THE EXHAUST ADAPTOR

Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.

Blower Plate Damper Back of Microwave For Front-to-Back or Side-to-Side Adjustment, Slide the Exhaust Adaptor as Needed

C7. CONNECTING DUCTWORK

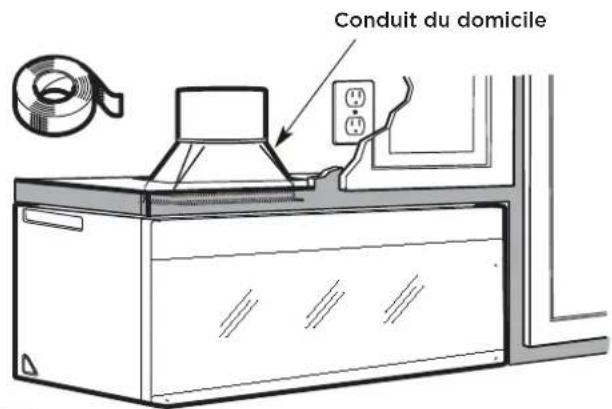

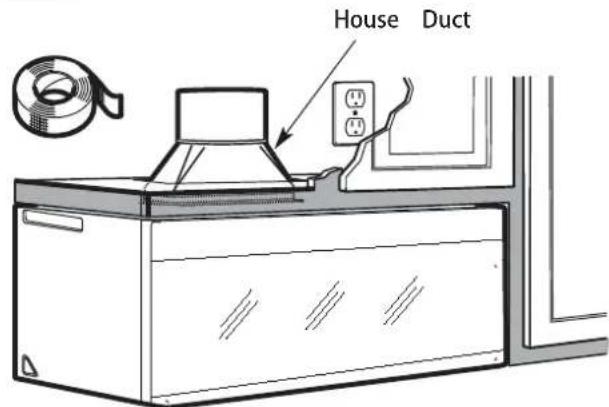

House Duct

1 Extend the house duct down to connect to the exhaust adaptor.
2 Seal exhaust duct joints using furnace duct tape for high temperature applications.

1. Make sure the microwave oven has been installed according to instructions.

INSTALLATION INSTRUCTIONS

1. Replace house fuse or turn breaker back on.

Hand placing a button on an electrical outlet panel (no text or symbols visible)

1. Remove all packing material from the microwave oven.

2. Install turntable ring and glass stray in cavity.

Line drawing of a microwave oven with a lid and base, showing internal components (no text or symbols)

1. Read the USE&CARE Manual.

USE & CARE MANUAL

1. KEEP INSTALLATION INSTRUCTIONS FOR THE LOCAL INSPECTOR'S USE.

INSTALLATION INSTRUCTIONS

1. Plug power cord into a separate and dedicated 15- to 20-amp electrical outlet.

Ensure proper ground exists before use

1. FILL OUT PRODUCT REGISTRATION CARD AN SEND IN.

PRODUCT REGISTRATION CARD

Line drawing of a rectangular appliance with three vertical slots, mounted on a shelf (no text or symbols)

LEA CUIDADOSAMENTE.

CONSERVE ESTAS INSTRUCCIONES.

CONTENIDO

Información general

Illustration of a hand inserting a box into an electrical outlet (no text or symbols visible)

Technical diagram showing installation of a rear wall template device with labeled components and wiring connections

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to clean or install a kitchen appliance (no text or symbols visible)

Illustration of three scenes showing people crossed out of a box, no text or symbols present

Line drawing of a hand holding a grid-patterned device (no text or symbols)

Line drawing of a front view of a server rack unit with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and base (no text or symbols)

Pure line drawing of a curved pipe or duct with a triangular notch (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Technical line drawings of two mechanical assembly configurations with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Parte trasera del microondas

Three-panel illustration showing a person handling a box, another with a crossed-out shirt, and a third holding a box (no text or symbols)

Diagram showing electrical connections between a battery pack and two screwdrivers, with labeled components and wiring.

Line drawing of a hand holding a grid-patterned object over a rectangular panel (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

Technical line drawing of two mechanical assembly configurations with no visible text or symbols

Three-panel line drawing showing a person crossed out of a box, another with a cross symbol, and a third with a person holding a box (no text or symbols present)

Diagram showing electrical connections to a battery appliance with screw holes and power outlets, labeled in English.

Line drawing of a hand inserting a grid into a rectangular device (no text or symbols)

Technical line drawing of a kitchen appliance with a chimney, fan, and electrical outlet (no text or symbols)

Hand placing a button into an electrical outlet panel (no text or symbols visible)

Line drawing of a microwave oven with a circular lid and a side sink (no text or symbols)

Line drawing of a rectangular appliance with three vertical slots, mounted on a shelf (no text or symbols)

VEUILLEZ LIRE ATTENTIVEMENT.

CONSERVEZ CES INSTRUCTIONS.

INDEX

Pièces comprises ....4

Illustration of a hand pointing at an electrical outlet with wires (no text or symbols)

A. RECYCLAGE D'AIR (ÉVACUATION SANS CONDUIT)

Consultez la page 10

Technical diagram showing installation of a rear wall template and server rack with labeled components

A1. FIXATION DE LA PLAQUE DE MONTAGE AU MUR

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to clean or install a kitchen appliance (no text or symbols visible)

Illustration of three scenes showing people crossed out of a table, no text or symbols present

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing electrical connections between a wall-mounted device and two screwdrivers, with labels indicating components.

Line drawing of a hand holding a tablet with a mesh screen (no text or symbols)

Line drawing of a front view of a server rack unit with control panel (no text or symbols)

Simple line drawing of a cylindrical object with a flanged top and tapered base (no text or symbols)

Pure line drawing of a curved pipe or duct with a triangular notch (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to clean or store items on a shelf, no text or symbols present

Technical line drawing of two mechanical assembly configurations with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Three-panel illustration showing a person handling a box with a cross symbol, and two others interacting with a device (no text or symbols present)

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing electrical connections between a battery pack and two screwdrivers, with labeled components and wiring paths.

Line drawing of a hand holding a grid-patterned device on a flat surface (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand using a tool to clean or install a wall-mounted device (no text or symbols visible)

Three-panel line drawing showing a person crossed out of a box, another with a cross symbol, and a third holding a box (no text or symbols present)

POUR VOTRE SÉCURITÉ ET POUR FACILITER L'INSTALLATION, L'INSTALLATION DE CE FOUR DOIT ÊTRE EFFECTUÉE PAR DEUX PERSONNES.

Diagram showing electrical circuit setup with screwdrivers and a battery, illustrating installation or maintenance process.

Line drawing of a hand inserting a grid into a rectangular device (no text or symbols)

C7. CONNEXION AU CONDUIT

Hand placing a button into an electrical outlet panel (no text or symbols visible)

Line drawing of a microwave oven with two circular chambers and a central lid, showing internal components (no text or symbols)
