USER MANUAL FPFU19F8WSS FRIGIDAIRE

Single-Door All Refrigerator and All Freezer Trim Kit Installation

Product Line: All Refrigerator and All Freezer Models Serial Number Range: All Serial Number Ranges

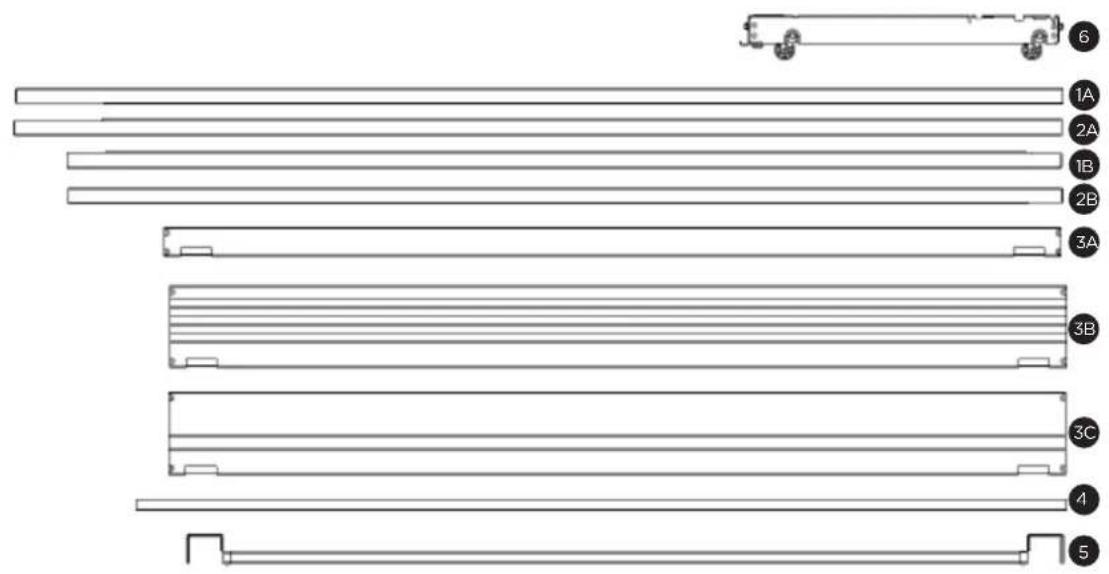

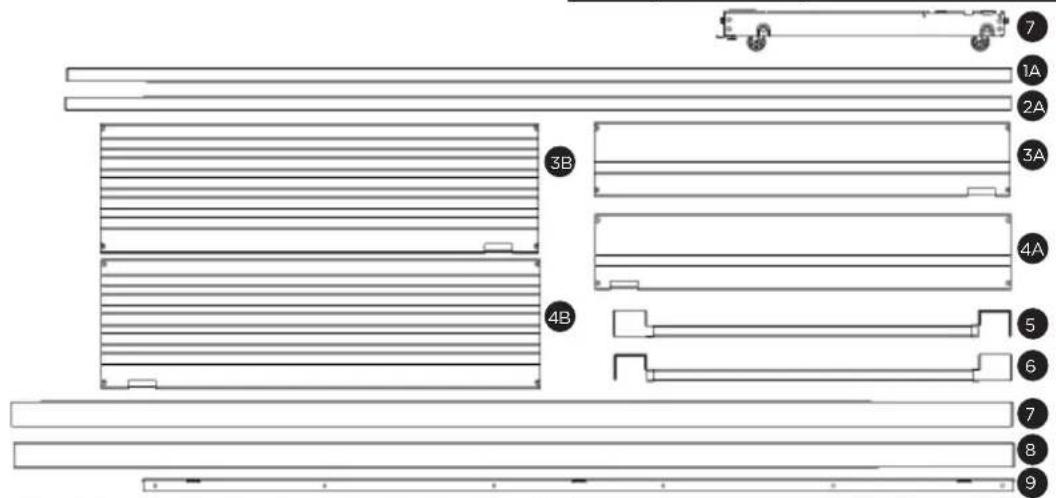

Single Trim Kit Components (79" & 84" Tall Cabinet Cutouts)

Brand Kit # Single Trim Kit #
Frigidaire Professional TRMKTEZIFL79 A16405201
Item # Part Number Description Qty
1A	A18684901 Side Trim, RH 1
2A	A18684902 S de Trim, LH 1
3A	A16766503 Top Trim, Flat RH		1
4A	A16766505 Top Trim, Flat LH		1
5	A18684505 Toe Kick, RH		1
6	A18684507 Toe Kick, LH		1
7	A17111301 Leveler Assembly		2
8	A20841303 Hardware Pack U19, Single		1

Brand		Kit #	Single Trim Kit #
Electrolux		TRMKTSSILV84	A19895901
Item #	Part Number	Description	Qty
1B	A19036503	Side Trim, RH	1
2B	A19036504	Side Trim, LH	1
3B	A19036402	Top Trim, Louver RH	1
4B	A19036403	Top Trim, Louver LH	1
5	A18684506	Toe Kick, RH	1
6	A18684508	Toe Kick, LH 1
7	A17111301	Leveler Assembly	2
8	A20841304	Hardware Pack U19, Single	1
9	A19036701	Side Trim Attachment	2

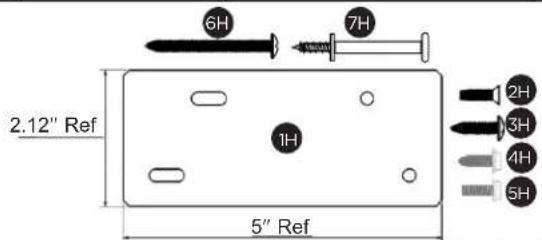

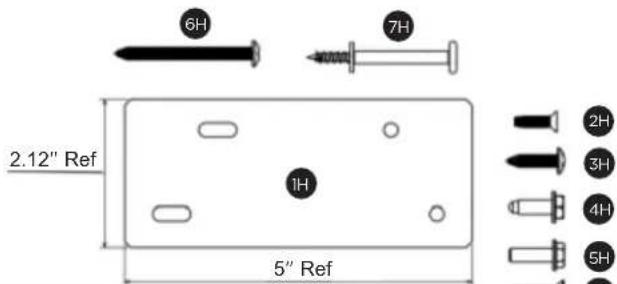

Hardware Pack A20841303
ITEM	PART NUMBER	DESCRIPTION	QTY
1H	A18695801	Tie-Bar, Top	1
2H	297142600	Screw, Flathead, #8-32	2
3H	050149	Screw, Round, #8-18	4
4H	A16955502	Bolt, M5 x 16	6
5H	A21188301 Bolt,	%-20	2
6H, 7H	A20706101	Trim Base Screw	1

NOTE: All Hardware Pack components mentioned throughout this instruction sheet will have an "H" after the item number.

Hardware Pack A20841304
ITEM	PART NUMBER	DESCRIPTION	QTY
1H	A18695801	Tie-Bar, Top	1
2H	297142600	Screw, Flathead, #8-32	2
3H	050149	Screw, Round, #8-18	12
4H	A16955502	Bolt, M5 x 16	6
5H	A21188301 Bolt,	%-20	2

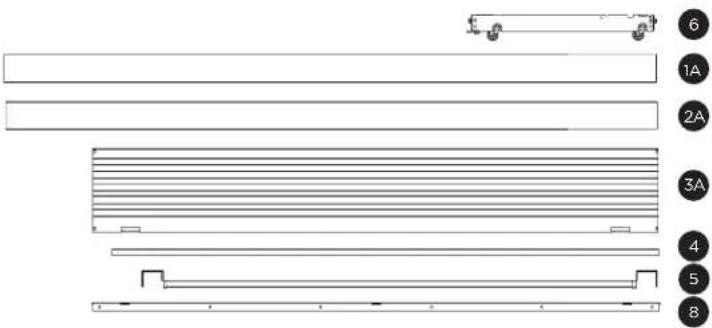

Dual Trim Kit Components (75" & 79" Tall Cabinet Cutouts)

Brand Kit # Dual Trim Kit #
Frigidaire TRMKTEZ2FL75 A18643301
Item # Part Number Description Qty
1B	A18685001 Side Trim, RH 1
2B	A18685002 Side Trim, LH 1
3A	A18694901 Top Trim, Collar
4	A18685101	Center Trim		1
5	A18684501 Toe Kick
6	A17111301	Leveler Assembly		4
7	A20841301 Hardware Pack U19, Single

Brand		Kit #	Dual Trim Kit #
Frigidaire		TRMKTEZ2LV79	A16405401
Item #	Part Number Description Qty
1A	A18684901 Side Trim, RH
2A	A18684902 Side Trim, LH		1
3B	A18804301 Top Trim, Louver		1
4	A18685101 Center Trim		1
5	A18684501 Toe Kick		1
6	A17111301 Leveler Assembly		4
7	A20841301 Hardware Pack U19, Single

Brand Kit # Dual Trim Kit #
Frigidaire TRMKTEZ2 FL79 A16404901
Item # Part Number Description Qty
1A	A18684901 Side Trim, RH 1
2A	A18684902 Side Trim, LH 1
3C	A16766501 Top Trim, Flat 1
4	A18685101	Center Trim		1
5	A18684501 Toe Kick
6	A17111301	Leveler Assembly		4
7	A20841301 Hardware Pack U19, Single

Brand		Kit #	Dual Trim Kit #
Electrolux		TRMKTSS2FL79	A16404902
Item #	Part Number Description Qty
1A	A18684903	Side Trim, RH	1
2A	A18684904	Side Trim, LH	1
3C	A16766502	Top Trim, Flat	1
4	A18685102 Center Trim
5	A18684502	Toe Kick	1
6	A17111301	Leveler Assembly	4
7	A20841301 Hardware Pack U19, Single

Hardware Pack A20841301
ITEM	PART NUMBER	DESCRIPTION	QTY
1H	A18695801 Tie- Bar, Top 1
2H	297142600 Screw, Flathead, #8-32 2
3H	050149	Screw, Round, #8-18	4
4H	A16955502	Bolt, M5 x 16	6
5H	A21188301	Bolt, 1/4-20	2
6H, 7H	A20706101	Trim Base Screw	1
8H	A20632701	Screw, 10-24 x 1/4	8

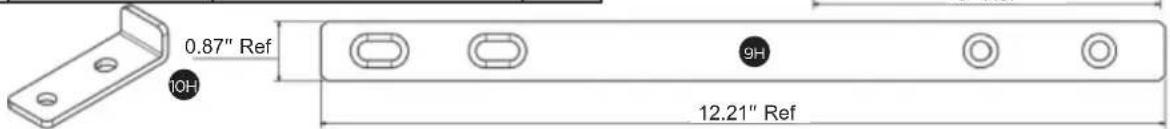

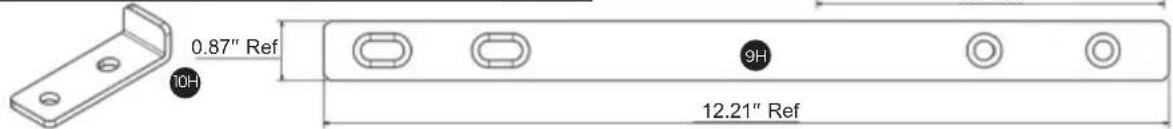

9H	A16770801 Tie Bar, Bottom 2
10H	A18685301 Center Trim Support 1

Dual Trim Kit Components (84" Tall Cabinet Cutouts)

Brand Kit # Dual Trim Kit #
Electrolux TRMKTSS2 L V84 A16405301
Item # Part Number Description Qty
1A	A19036501 Side Trim, RH 1
2A	A19036502 Side Trim, LH 1
3A	A19036401 Top Trim, Louver 1
4	A18685102 Center Trim			1
5	A18684502 Toe Kick			1
6	A17111301 Leveler Assembly			4
7	A20841302 Hardware Pack U19, Double			1
8	A19036701 Side Trim Attachment			2

Hardware Pack A20841301
ITEM PART NUMBER DESCRIPTION
1H	A18695801 Tie- Bar, Top 1
2H	297142600 Screw, Flathead, #8-32 2
3H	050149 Screw, Round, #8-18 12
4H	A16955502 Bolt, M5 x 16 14
5H	A21188301 Bolt, %-20 4
8H	A20632701 Screw, 10-24 x 3/4 8
9H	A16770801 Tie Bar, Bottom 2
10H	A18685301 Center Trim Support 1

Single Trim Kits (79" & 84" Tall Cabinet Cutouts)

TRMKTEZ1FL79 (Frigidaire) TRMKTSSLV84 (Electrolux)

IMPORTANT

Make sure there are two separate dedicated grounding-type duplex wall outlets for the freezer and the refrigerator as specified in the Use & Care Manual.

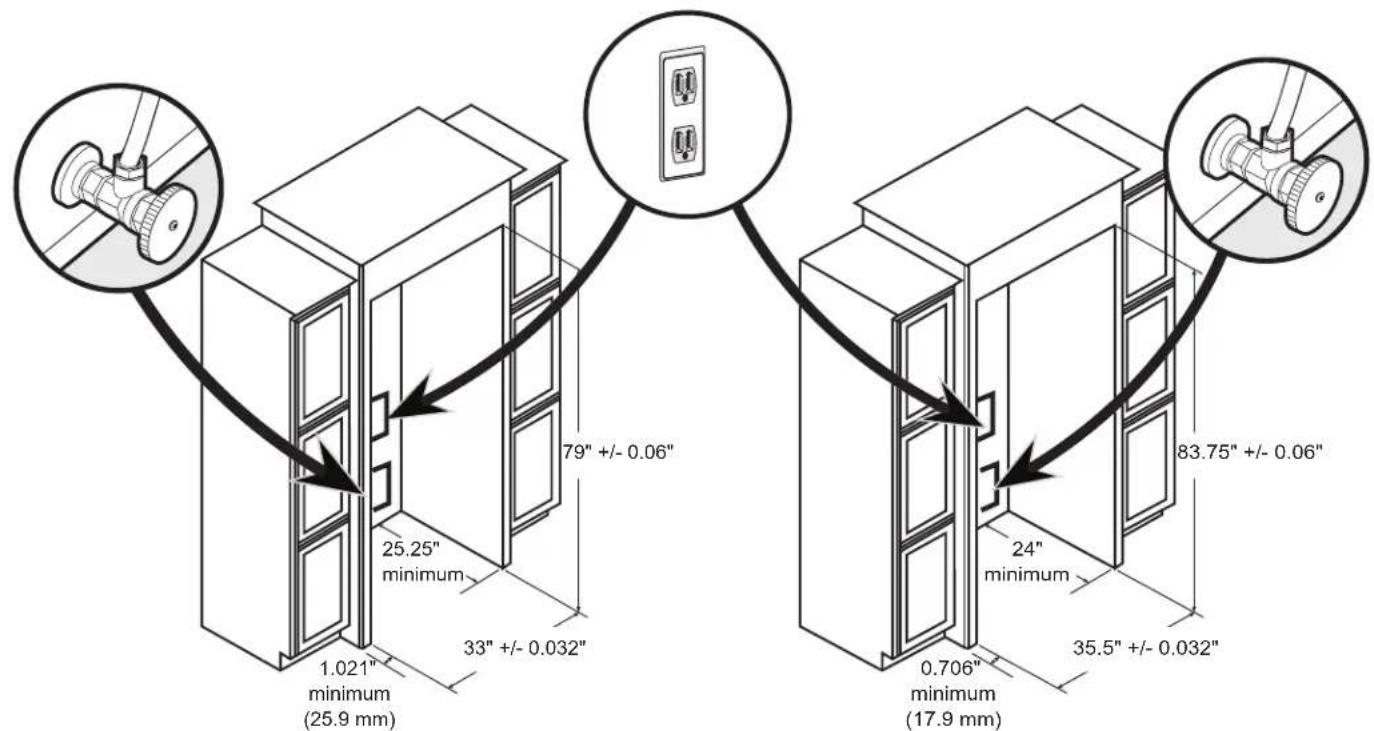

Cabinet Cutout Dimensions

Use these dimensions to build kitchen cabinet openings for the refrigerator and freezer.

Single Trim Kits (79" & 84" Tall Cabinet Cutouts)

TRMKTEZ1FL79 (Frigidaire) TRMKTSSLV84 (Electrolux)

IMPORTANT

Make sure there are two separate dedicated grounding-type duplex wall outlets for the freezer and the refrigerator as specified in the Use & Care Manual.

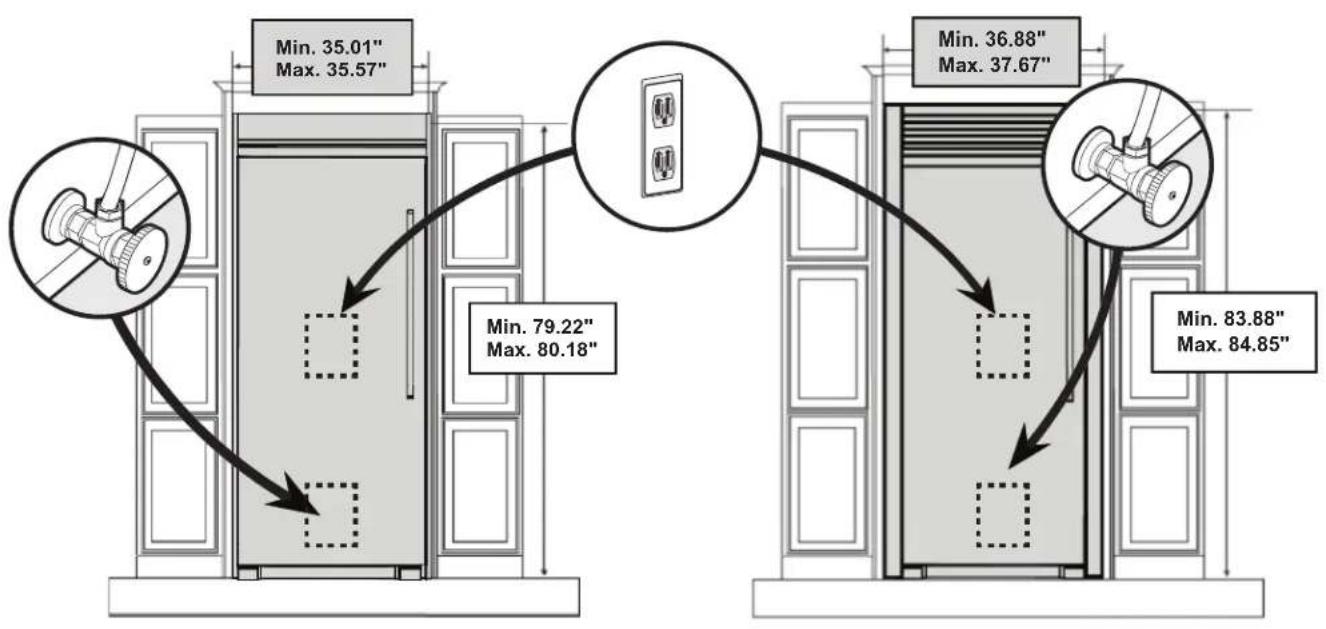

Trim Kit Finished Dimensions

Use these dimensions to layout adjoining cabinet door, drawers, and shelves.

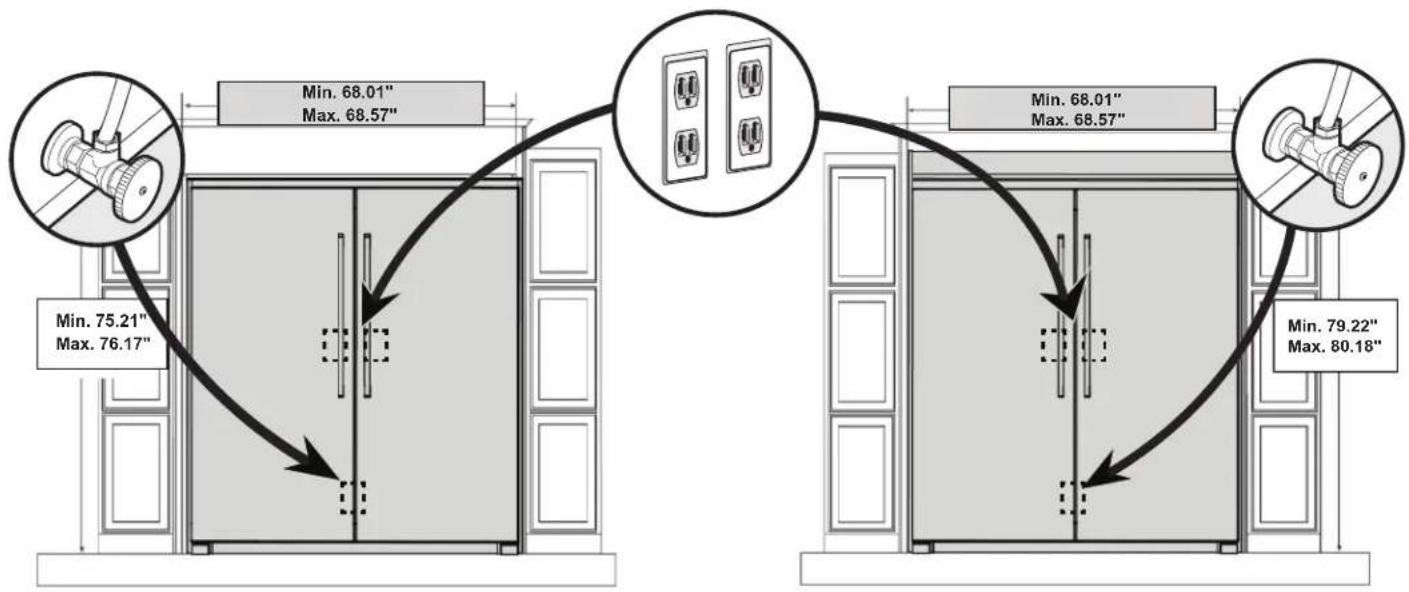

Dual Trim Kits (75" & 79" Tall Cabinet Cutouts)

IMPORTANT

Use two recessed duplex electrical outlets and a recessed water shutoff valve for a 24^ minimum opening. For new construction, use a 25.25^ cabinet depth dimension.

TRMKTEZ2FL75 (Frigidaire)

NOTE

To install a dual trim kit or a pairing kit, a partition cannot exist between the Freezer and the Refrigerator.

TRMKTEZ2FL79 (Frigidaire)

TRMKTSS2FL79 (Electrolux)

TRMKTEZ2LV79 (Frigidaire)

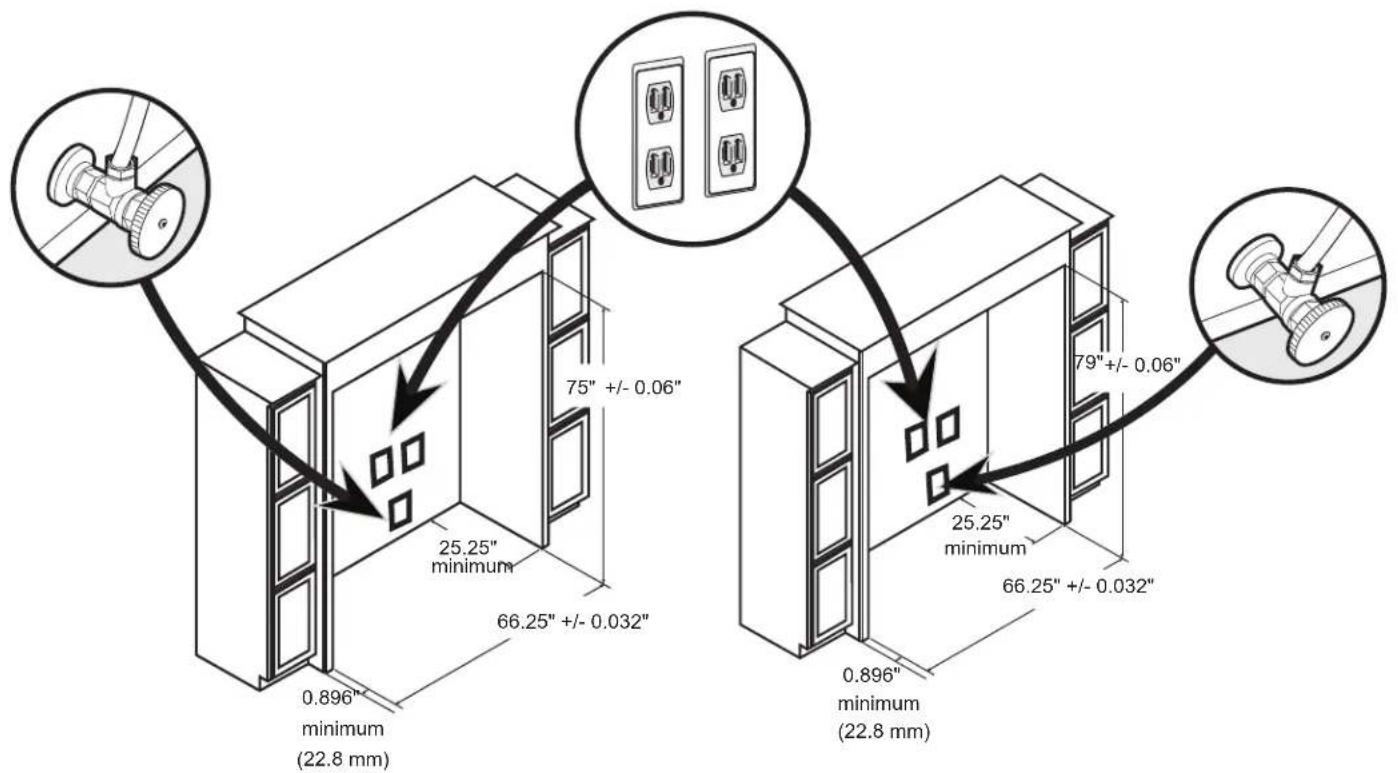

Cabinet Cutout Dimensions

Use these dimensions to build kitchen cabinet openings for the refrigerator and freezer.

Dual Trim Kits (75" & 79" Tall Cabinet Cutouts)

IMPORTANT

Use two recessed duplex electrical outlets and a recessed water shutoff valve for a 24^ minimum opening. For new construction, use a 25.25^ cabinet depth dimension.

TRMKTEZ2FL75 (Frigidaire)

NOTE

To install a dual trim kit or a pairing kit, a partition cannot exist between the Freezer and the Refrigerator.

TRMKTEZ2FL79 (Frigidaire)

TRMKTSS2FL79 (Electrolux)

TRMKTEZ2LV79 (Frigidaire)

Trim Kit Finished Dimensions

Use these dimensions to layout adjoining cabinet door, drawers, and shelves.

Dual Trim Kits (84" Tall Cabinet Cutouts)

TRMKTSS2LV84 (Electrolux)

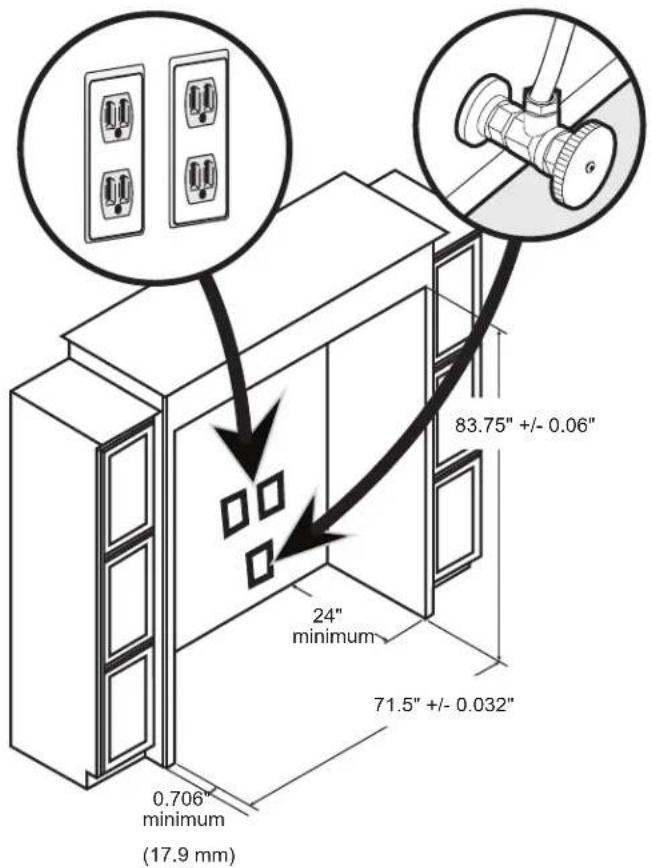

Cabinet Cutout Dimensions

Use these dimensions to build kitchen cabinet openings for the refrigerator and freezer.

Dual Trim Kits (84" Tall Cabinet Cutouts)

TRMKTSS2LV84 (Electrolux)

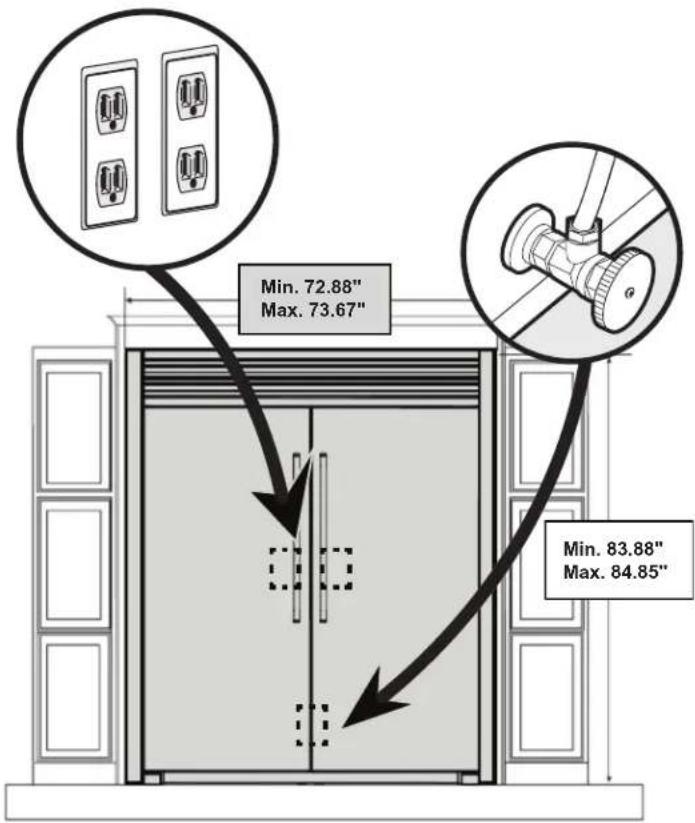

Trim Kit Finished Dimensions

Use these dimensions to layout adjoining cabinet door, drawers, and shelves.

IMPORTANT

Use two recessed duplex electrical outlets and a recessed water shutoff valve for a 24" minimum opening. For new construction, use a 25.25" cabinet depth dimension.

Safety: Always wear safety glasses when using power tools.

Tools Needed:

• Phillips™ Screwdriver -

3/8" & 5/16" Socket Wrench. Step Ladder

• Flathead Screwdriver - Power Drill and

5/16 Nut Driver Bit - Tape Measure

Safety Glasses

3/8" Nut Driver - Gloves

Level

Before You Begin

• Be careful when unpacking components. Do not use sharp objects when removing packaging material. This may scratch the surface of trim components.
• Handle the metal trim pieces with extreme care as corners damage easily if dropped.

Instructions for Dual Installation Trim Kits:

TRMKTEZ2FL75 (Frigidaire)

TRMKTEZ2LV79 (Frigidaire)

TRMKTEZ2FL79 (Frigidaire)

TRMKTSS2FL79 (Electrolux)

TRMKTSS2LV84 (Electrolux)

Power and Water Line Connection

NOTE

Refer to the Use & Care Manual for power requirements and water supply hookup before proceeding. Find Service Kit TTFLTRICEKIT at ElectroluxAppliances.com for connecting the water line and filtering ice.

NOTE

If freezer unit is compatible with water filter kit, please see filtered water kit instructions.

CAUTION

Appliances are heavy. Installation requires two people.

IMPORTANT

Make sure there are two separate outlets for the freezer and the refrigerator.

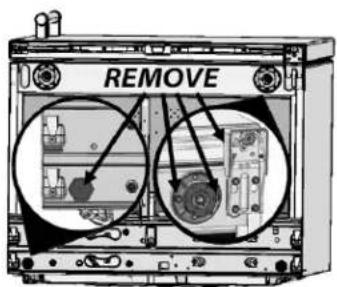

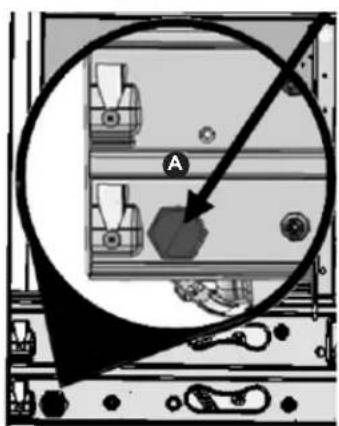

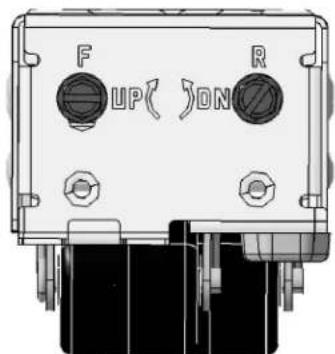

Leveling System Installation

1. a. Lay the refrigerator and freezer on their backs on packing material or a drop cloth to prevent damage and protect the floor.

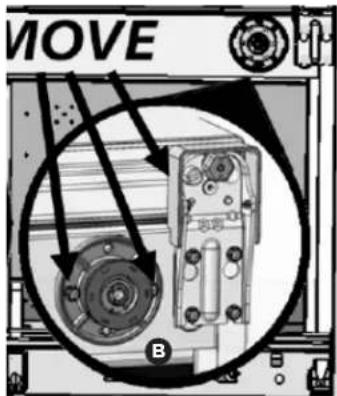

b. Remove all 4 rear leg levelers from the 2 units by unscrewing counterclockwise (Fig. 1A), and store them with your Product Literature.

c. Remove all 4 front leg levelers from the 2 units by unscrewing the outer peg and 2 bolts on each front leveler with a 5 / 16'' nut driver and store them with your Product Literature. Remove the hinge cover if it is installed (Fig 1B).

1. Lay the parts out on a cleared area face down. Be sure to place a drop cloth over the floor to prevent scratching the trim kit and/or floor (Fig. 2).

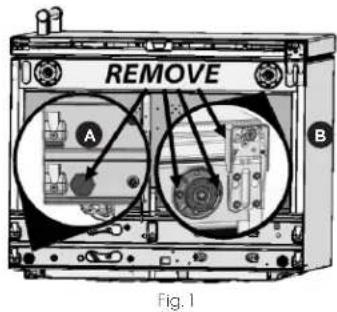

Fig.1

Fig 2

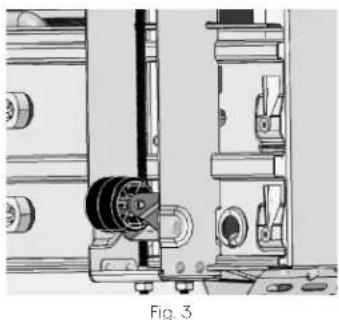

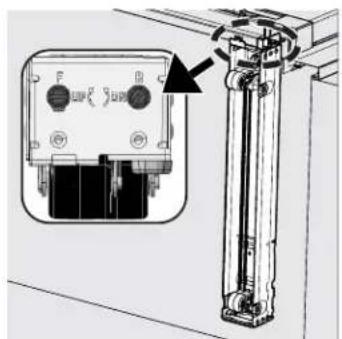

1. a. Fit the first Leveler Assembly onto a refrigerator/freezer (Fig. 3).

Fig. 3

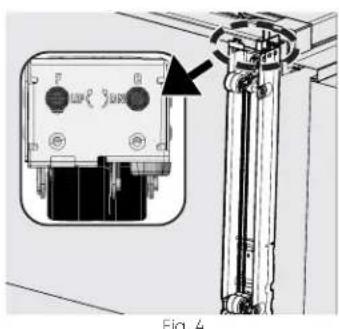

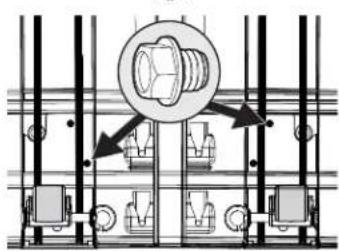

b.Using a 5H bolt and a power drill, fasten the bottom of the Leveler Assembly with a 38 hex drill bit in whichever hole overlaps the screw hole (Fig.4). Note: The rear of the bracket is contoured to slip over the metal compressor base. Driving the rear bolt first will ensure proper alignment of the lever assembly.

Fig.4

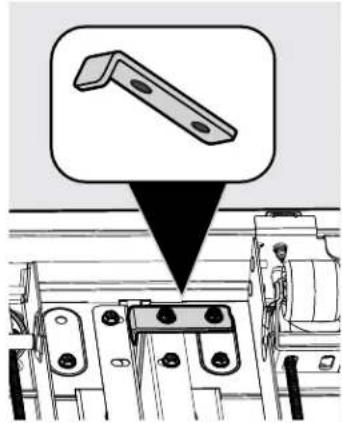

Trim Kit Center Trim Support

1. With the refrigerator still on its back, use a 5 / 16 nut driver to remove two 4H bolts and fasten the 10H L-Bar (Fig. 8). Note: The short flange on L-Bar should be facing upward toward the top of the refrigerator.

Fig. 8

1. Stand both units upright.

CAUTION

The cabinet is heavy. We recommend two people to lift or move the cabinet.

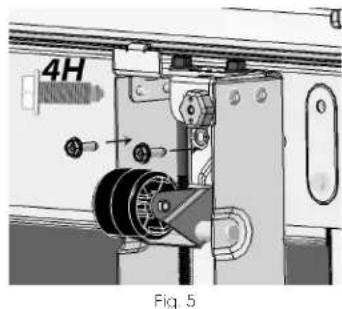

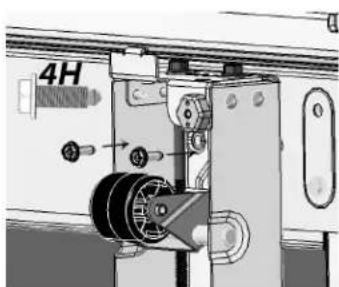

c. Using the 4H bolts from step 1, fasten the front of the Leveler Assembly to the refrigerator/freezer using a 5/16'' nut driver (Fig. 5).

Fig.5

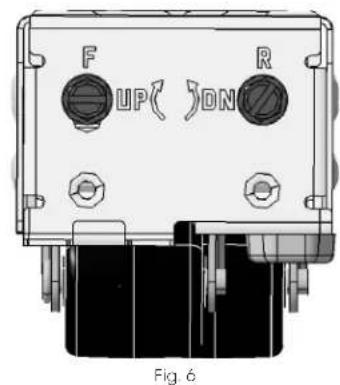

For steps 3b and 3c, if you require more space for nut driver clearance, rotate the bolt labeled F clockwise (Fig. 6) using a flathead screwdriver or a 3/8'' socket wrench.

Fig. 6

d. Attach remaining 3 Leveler Assemblies as described in the previous 3 steps using the remaining six 4H bolts and the remaining three 5H bolts. With the unit(s) still on their backs, adjust all leveling wheels to approximately the orientation in Fig.7.

Fig. 7

Pairing Kit Installation

Before cleaning your appliance, turn off power to your appliance by unplugging the power cord from the electrical outlet. Wipe down both sides of the refrigerator and the freezer.

NOTE

Never use CHLORIDE to clean stainless steel. Clean stainless-steel front and handles with non-abrasive soapy water and a dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless-steel cleaner, such as Frigidaire ReadyClean™ Stainless Steel Cleaner found on Frigidaire.com. Always follow the manufacturer's instruction.

NOTE

Always, clean, wipe and dry with the grain to prevent scratching. Wash the rest of the cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.

CAUTION

Use gloves for the next step.

NOTE: Before removing the paper backing, align the heaters to ensure the wires exit toward the center and rear of refrigerator/freezer (as shown in Fig 9).

1. Peel off the paper backing from the first heater.
2. Adhere the first heater to the lower right side of the left-side unit (0.5" from the bottom and 0.5" from the back wall) so the harnesses come out at the top.

NOTE: Make sure you adhere the heater completely with no air pockets (Fig. 9A).

1. Peel off the paper backing from the second heater.
2. Adhere the second heater to the upper left side of the right-side unit (0.5" from the top and 0.5" from the back wall) so the harnesses come out at the bottom.

NOTE: Make sure you adhere the heater completely with no air pockets (Fig. 9B). For better adhesion remove the yellow label on the side of the cabinet.

Fig.9

NOTE: For the best results, please use the configurations of the heaters mentioned (Freezer-top right side and Refrigerator bottom left side).

Avoid:

Both heaters on the Freezer
Both heaters on the Refrigerator
- Both heaters on the top
- Both heaters on the bottom
- Both heaters in the center

1. Plug in the connector of the two Heaters A into the Power Supply C (Fig. 10).

NOTE: You cannot feel the heater temperature as the pads barely heat up.

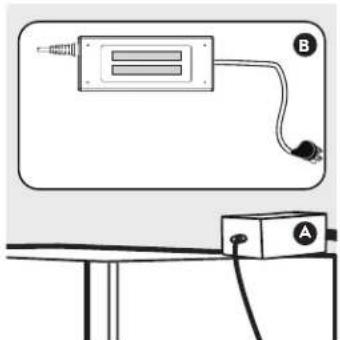

NOTE: Confirm the power supply fits into the cutout when placed on top of the unit. Also confirm the power supply reaches the power outlet when placed on top of the unit (Fig. 11A). The extra wire length is provided to accommodate receptacle location.
11. Apply the 2 strips of double-sided tape to the power supply and adhere the power supply on top of the unit (Fig. 11B).
12. If the power supply cannot be placed on top of the unit, adhere it vertically on the back wall of the unit and make sure the connection of the 3-prong connector to the power supply is facing down (Fig. 12).

Fig.10

Fig.11

Fig. 12

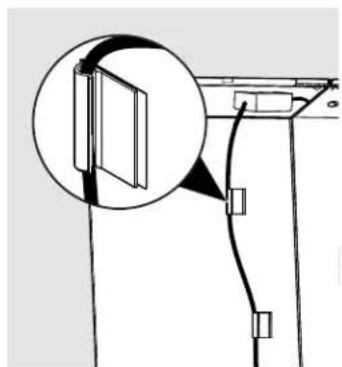

1. Use the clips provided to hold the excess power cords to the back of the units such that all wires are away from the floor (Fig. 13).
   NOTE: Make sure the harnesses and cables are cleared off the floor before the units are pushed back in place. This will prevent any damage to the wires.
   NOTE: The location of clips shown is an example.
2. Plug the power supply into the main outlet before pushing the units into the final position.

Trim Kit Tie Bar Installation

IMPORTANT

• Before proceeding with trim installation, make sure both refrigerator and freezer are leveled front to back and side to side.
  Make sure all 8 wheels are touching the floor.

Hand tighten only!

1. Having the refrigerator/ freezer standing side by side 12 apart, fasten a 9H bracket to the front of the Levelers (Fig. 14), keeping the left-side 8H screws loose.
   NOTE: One side of the bracket is slotted for fine adjustments in step 18c.
2. Attach the other 9H bracket to the rear levelers (Fig. 15), keeping the right screws loose. Hand tighten only!

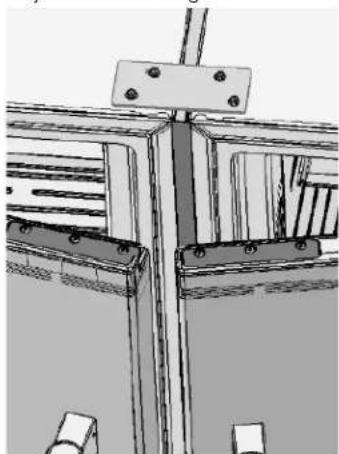

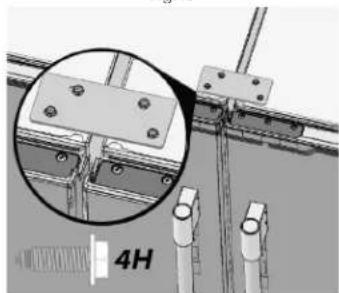

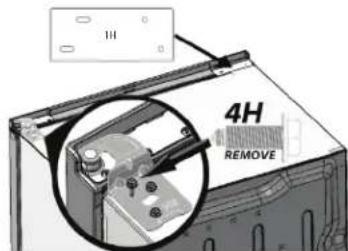

3. Attach the 1H top tie bar (Fig. 16), keeping the 2 left 4H bolts loose.

Fig. 13

Fig.14

Fig.15

Fig.16

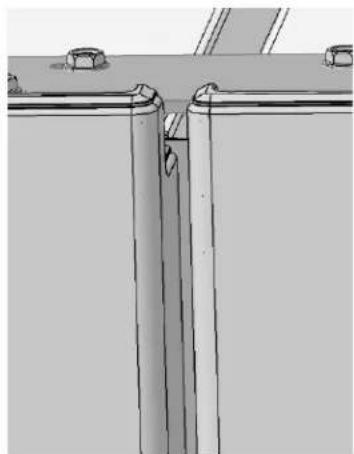

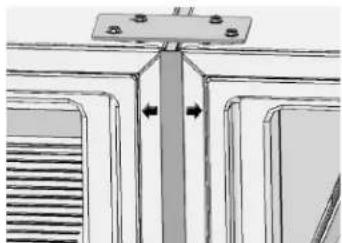

1. a. Open the doors and place the middle trim in between the 2 units.

b. Adjust the proximity of the units as needed to centralize the middle trim. Start by fastening the screws on top 1H bracket in order to evenly space the Center Trim (Fig. 17).

Fig.17

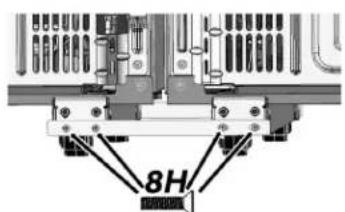

c. Fasten the four 8H screws (Fig. 14 and 15) through 2 front and back 9H brackets. You may need several adjustments for the center trim to be consistently flush and centered to the units.

NOTE: Before continuing, ensure doors close without interference and remain parallel. Adjusting the height of the wheels can help remedy door alignment issues. Refer to INSTALLATION in the Use & Care Manual to adjust the door height.

Fig. 18

NOTE

Before proceeding plug in units and verify they are functioning properly.

NOTE

Some cabinet substrates may require pre-drilling holes using a^1 /8'' (3 mm) diameter drill bit.

Electrolux TRMKTSS2LV84 Side Trim Attachment Setup (some models)

1. Using eight 3H screws and a power drill, attach the two Side Trim Attachment brackets to the front left and right cabinet cut-out edges with the brackets touching the floor (Fig. 19). Ensure the rectangular slots extend over the cabinet edge.

Fig.19

Side Trim Attachment Setup For:

TRMKTEZ2FL75 (Frigidaire)

TRMKTEZ2LV79 (Frigidaire)

TRMKTEZ2FL79 (Frigidaire)

TRMKTSS2FL79 (Electrolux)

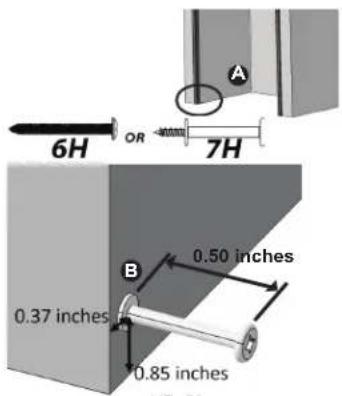

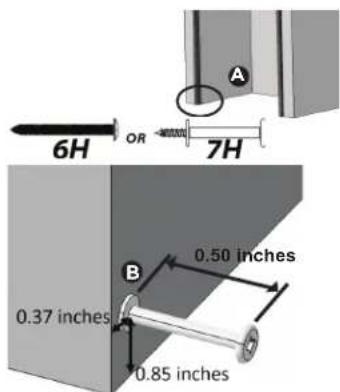

1. Depending on which long screw you received (6H or 7H), screw a long screw into the lower left (Fig. 20A) of the front wall cabinet, close to the location shown in Fig. 20B.

2. Repeat step 20 for the right side of the wall cabinet using the other 6H/7H screw.

NOTE: The depth of the screw will vary depending on the cabinet cutout final dimensions. We recommend you leave approximately 12 of screw extending away from the cabinet wall.

Fig. 20

Top Trim Attachment

You will need a step ladder to install top trim components.

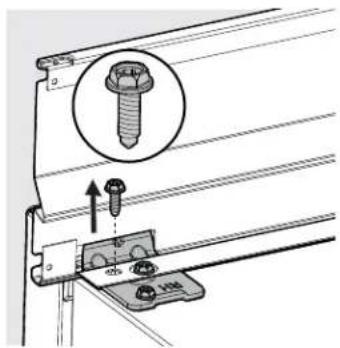

1. a. Remove the front outer hinge screws, common on both sides of the dual installation, as well as the front two 4H screws that fasten the 1H Tie Bar (Fig. 21).

b. Roll the dual installation into the cabinet, roughly 12 of the way in, ensuring the product is centered in the cabinet cutout.

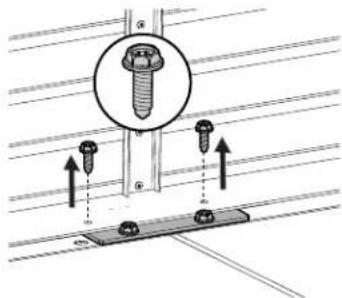

c. Install the top trim by fastening four 4H screws along the base of the trim with a 5 / 16^ socket wrench (Fig. 22).

1. a. Slide the dual installation into place, and make sure it is center inside the cabinets.
   b. Drill 18 pilot holes and fasten two 3H screws on the right side of the Top Trim (one screw per side for Collared top trim) with a Phillips screwdriver to the cabinets (Fig. 23).
   c. Repeat for the left side.

Fig. 21
Fig. 22

Fig. 23

Electrolux TRMKTSS2LV84 Side Trim Installation

1. a. Slide the left Side Trim into place by carefully guiding the Side Trim Attachment slots. Fig. 25 shows an inside view.

b. Fasten 2H screws to the top trim (Fig. 26) and repeat for the right hand side. Hand tighten only!

1. a. Carefully place the Toe Kick slots over the 4 Leveler Assembly Tabs. The first Leveler Assembly tab is circled in Fig. 27, the second and third tabs are circled in Fig. 28, and the fourth tab is circled in Fig. 29.

b. Adjust the Toe kick until the magnets are engaged to the Leveler Assembly and the Toe Kick is resting vertically in place.

Fig. 25

Fig. 26
Fig.27

Fig. 28

Fig. 29

Side Trim Installation For:

TRMKTEZ2FL75 (Frigidaire)

TRMKTEZ2LV79 (Frigidaire)

TRMKTEZ2FL79 (Frigidaire)

TRMKTS2FL79 (Electrolux)

1. a. Place side trims in position by dropping them over the placement screw as seen in Fig. 21 and fitting over the top trim (Fig. 24).

Fig. 24

Instructions for Single Installation Trim Kits:

TRMKTEZ1FL79 (Frigidaire)

TRMKTSSILV84 (Electrolux)

CAUTION

Appliances are heavy. Installation requires two people.

Leveling System Installation

1. a. Lay the unit on its back on packing material or a drop cloth to prevent damage and protect the floor.

b. Remove both rear leg levelers by unscrewing counterclockwise (Fig. 1A), and store them with your Product Literature.
c. Remove both front leg levelers by unscrewing the outer peg and 2 bolts on each front leveler with a 5 / 16'' nut driver. Remove the hinge cover if it is installed (Fig 1B), and store them with your Product Literature

1. Lay the parts out on a cleared area face down. Be sure to place a drop cloth over the floor to prevent scratching the trim kit and/or floor (Fig. 2).
2. a. Fit the first Leveler Assembly onto a refrigerator/freezer (Fig. 3).

b.Using a 5H bolt and a power drill, fasten the bottom of the Leyeler Assembly with a 36'' hex drill bit in whichever hole overlaps the screw hole (Fig.4). Note: The rear of the bracket is contoured to slip over the metal compressor base. Driving the rear bolt first will ensure proper alignment of the lever assembly.

c Using the 4H bolts from step 1, fasten the front of the Leveler Assembly to the refrigerator/freezer using a 3/16'' nut driver (Fig. 5). For steps 3b and 3c, if you need more space for the nut driver clearance, rotate the bolt labeled "F" clockwise (Fig. 6) using a flathead screwdriver or a 3/8'' socket wrench.

d. Attach the remaining Leveler Assembly as described in the previous 3 steps. With the unit still on its back, adjust all leveling wheels to approximately the orientation in Fig. 7.

Leveling the Unit

1. a. Tilt the unit upright.

b. Place the unit into the cabinet space, or as close to the final position as possible (do not hook up power or water yet). This step is important to accurately level the unit prior to further installs.
c. Use a flat head screw

Fig.8

driver or a 3 / 8 " socket wrench to adjust the front bolts of the Leveler Assemblies (Fig. 8). Raise or lower the front and back wheels as needed until the unit rests properly in the cabinet space.

d. Once the Leveler Assemblies have been checked, roll out the unit in front of the cabinetry for accessibility.

NOTE

Some cabinet substrates may require pre-drilling holes using a 1 / 8'' (3 mm) diameter drill bit.

Electrolux TRMKTSSILV84 Side Trim Attachment Setup

1. Using eight 3H screws and a power drill, attach the 2 Side Trim Attachment brackets to the front left and right cabinet cutout edges with the brackets touching the floor (Fig. 9). Ensure the rectangular slots extend over the cabinet edge.

Fig.8

Frigidaire TRMKTEZIFL79 Side Trim Attachment Setup

1. Depending on which long screw you received (6H or 7H) screw a long screw in the lower left area (Fig. 9A) of the front cabinet space, approximately in the location described in Fig. 9B.
2. Repeat step 6 for the right side of the cabinet using the other 6H/7H screw.

Fig.9

Power and Water Line Connection

Note: Refer to the Use & Care Manual for power requirements and water supply hookup before proceeding. Find Service Kit TFLTRICEKIT at ElectroluxAppliances.com for connecting the water line and filtering ice.

Top Trim Attachment

NOTE

You will need a step ladder to install top trim components.

8.a. Remove the front outer screw from the top hinge (Fig.10) using a 5 / 16^ socket driver or wrench and save for later. Locate bracket 1H and place it on the top of the unit to be used on Step 8d.
b. Roll the unit into the cabinet roughly 14 of the way in, ensuring the product is centered in the cabinet cutout.
c. Choose the top trim according to which side the door hinge is on (Fig. 11). You do not need the other Top Trim for the installation.
d. Install the Top Trim by fastening two 4H screws along the base of the trim with a 5 / 16'' socket wrench (Fig. 12). Screw through the 1H bracket in step 8a to properly level the Top Trim.

Fig.10
Fig. 11

Fig.12

1. a. Slide the unit into place, and ensure the dual installation is centered.
   b. Drill '78' pilot holes and fasten two 3H screws on the right side of the Top Trim with a Phillips screwdriver to cabinets (Fig. 13).
   c. Repeat for the left side.

Fig.13

Frigidaire TRMKTEZIFL79 Side Trim Installation

1. a. Place the Side Trims in position by dropping them over the placement screw as seen in Fig. 9 and fitting them over the Top Trim (Fig. 14).

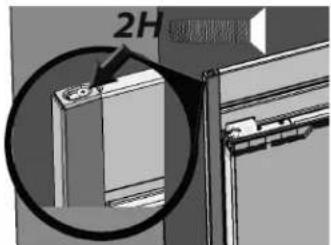

b. Fasten a 2H screw to each side of the Top Trim (Fig.14). Hand tighten only!

Fig. 14

Electrolux TRMKTSSILV84 Side Trim Installation

1. a. Slide the left Side Trim into place by carefully guiding the Side Trim hooks through the Side Trim Attachment slots. Fig. 15 shows an inside view.

Fig.15

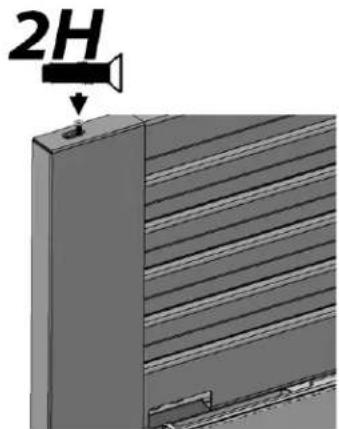

b. Fasten 2H screws to the Top Trim (Fig.16) and repeat for the right hand side. Hand tighten only!

Fig. 16

1. a. Choose which Toe Kick to place below the unit based on which side the door hinge is on (Fig. 17). You do not need the other Toe Kick.

b. Carefully place the Tow Kick over the 2 Leveler Assembly Slots. The first Leveler Assembly slot is circled in Fig. 18, and the second Leveler Assembly slot is circled in Fig. 19.
c. Adjust the Toe Kick until the magnets are engaged to the Leveler Assembly bolts and the Toe Kick is resting vertically in place.

Fig 17

Fig 18

Fig. 19

Note: Refer to the Use & Care Manual to adjust the door height if needed.
