USER MANUAL ELFE7738WH ELECTROLUX

Use & Care Manual EN 2

Clothes Dryer

Please read and save this manual

Thank you for choosing Electrolux, our premium brand in home appliances. This Use & Care Manual is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Keep a record for quick reference

Purchase date

Electrolux model number

Electrolux serial number

Electrolux model series*

* The series number can be found within the Model number (example ELFE7637AW = 600 series)

NOTE

Registering your product with Electrolux enhances our ability to serve you. You can register online at

www.electrolux.com, by sending your Product Registration Card in the mail, or PHOTOREGISTER ^SM using a smart phone. See registration card for details.

TABLE OF CONTENTS

Important Safety Information......2

Features......8

Pre-Installation Requirements....9

Installation....18

Accessories and Replacement Parts......27

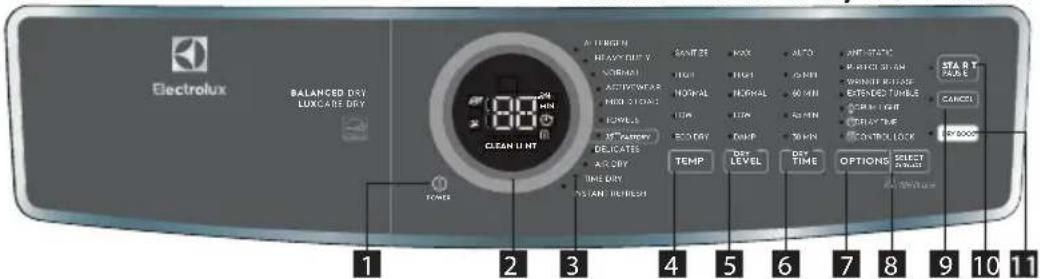

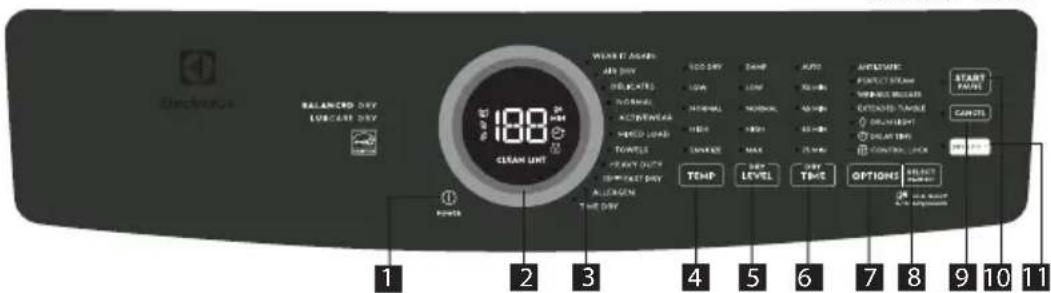

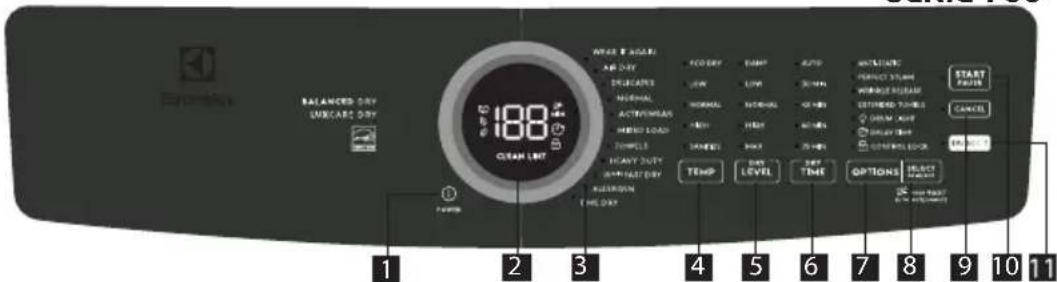

Controls and Settings 28

Operating Instructions 39

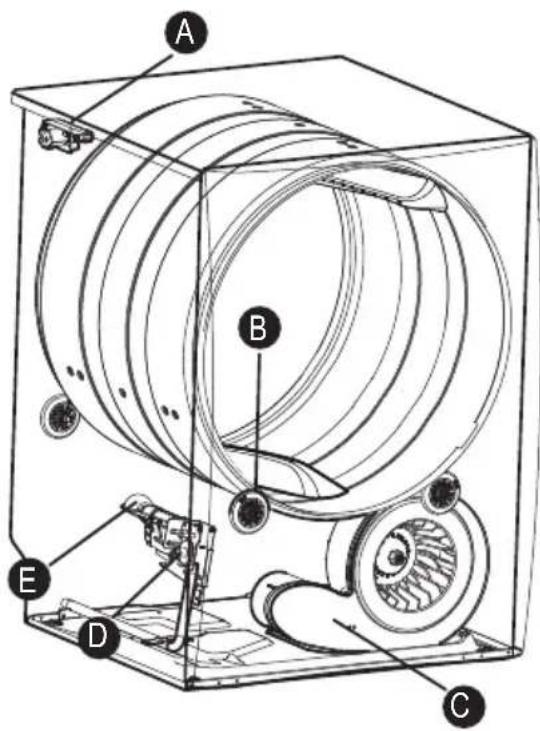

Normal Operating Sounds 41

Care and Cleaning 42

Troubleshooting 44

Limited Warranty....47

Questions?

For toll free telephone support or online support in the US and Canada contact:

U.S.

1-877-4 ELECTROLUX (1-877-435-3287)

www.electrolux.com

Canada

1-800-265-8352

www.electrolux.ca

NOTE

The instructions appearing in this Use & Care Manual are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance.

READ ALL INSTRUCTIONS BEFORE OPERATING THIS DRYER.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Important safety instructions - gas dryer

WARNING

FIRE or explosion hazard

Failure to follow safety warning exactly could result in serious injury, death, or property damage.

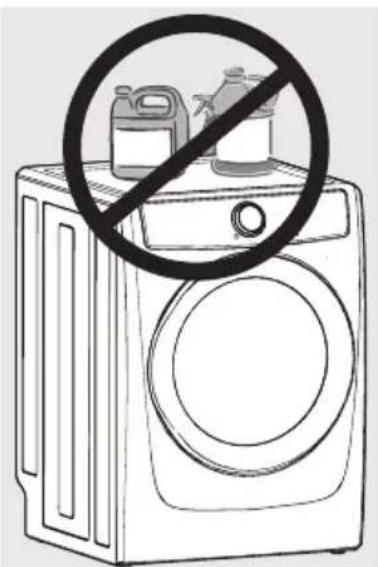

DO NOT store or use gasoline or other fl ammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

• DO NOT try to light any appliance.
- DO NOT touch any electrical switch; DO NOT use any phone in your building.
- Clear the room, building or area of all occupants.
- Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
- If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

DANGER

If using Liquid Propane (LP), STOP and install the LP kit before operating your gas dryer.

WARNING RISK OF FIRE

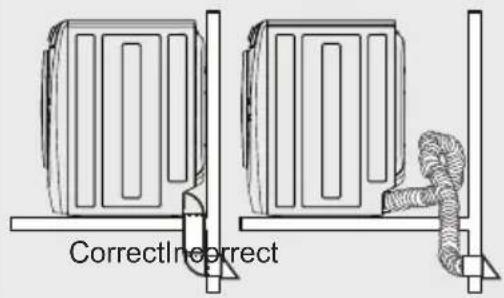

• Ensure the entire dryer exhaust system is clean and free of lint and debris prior to the installation of your new dryer. The entire exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. Failure to comply with cleaning your exhaust system will increase the RISK of FIRE.

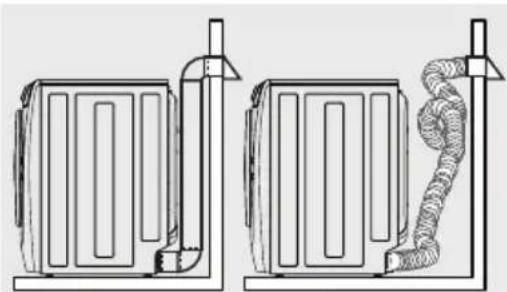

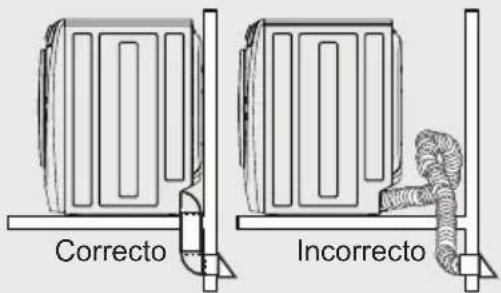

• DO NOT install a clothes dryer with fl exible plastic or fl exible foil venting material. Flexible venting materials are known to collapse, be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
• DO NOT screen the exhaust ends of the vent system, or use any screws, rivets or other fasteners that extend into the duct to assemble the exhaust system. NO screen or grate of any mesh size is allowed to cover the outdoor exhaust opening.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
• The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian Electrical Code CSA C22.1 part 1.
• The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54, or in Canada, the Natural Gas and Propane Installation Code, CSA B149.1. An individual manual shutoff valve must be installed within 6 ft. (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.

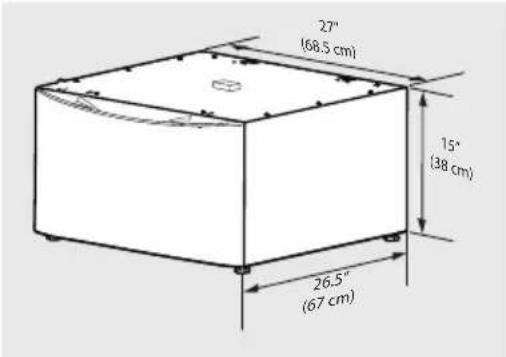

• DO NOT stack a dryer on top of washer already installed on pedestal. DO NOT stack washer on top of dryer. DO NOT stack washer on top of another washer.
• The dryer is designed under ANSI Z21.5.1/CSA 7.1 or UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
• Destroy the carton and plastic bags after the dryer is unpacked. Children might use them to play. Cartons covered with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a garbage container or make materials inaccessible to children.
• To reduce the risk of severe injury or death, follow all installation instructions in this manual.

The instructions in this manual and all other literature included with this dryer are not meant to cover every possible condition and situation that may occur. Good safe practice and caution MUST be applied when installing, operating and maintaining any appliance.

WARNING

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life. DO NOT store or use gasoline or other fl ammable vapors and liquids in the vicinity of this or any other appliance.

Definitions

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

IMPORTANT

IMPORTANT indicates installation, operation or maintenance information which is important but not hazard-related.

WARNING

FIRE HAZARD

To reduce the risk of fire, electrical shock, or injury to persons when using this dryer, comply with the basic warnings listed below. Failure to comply with the Important Safety Instruction warnings could result in property damage, serious personal injury, or death.

Prevent fi re

- DO NOT dry items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes, or other fl ammable or explosive substances. DO NOT store these items on or near the dryer. These substances give off vapors that could ignite or explode.

• DO NOT place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• DO NOT dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants, plastic bags and pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.
• DO NOT operate the dryer if the lint screen is blocked, damaged or missing. Fire hazard, overheating and damage to fabrics can occur.

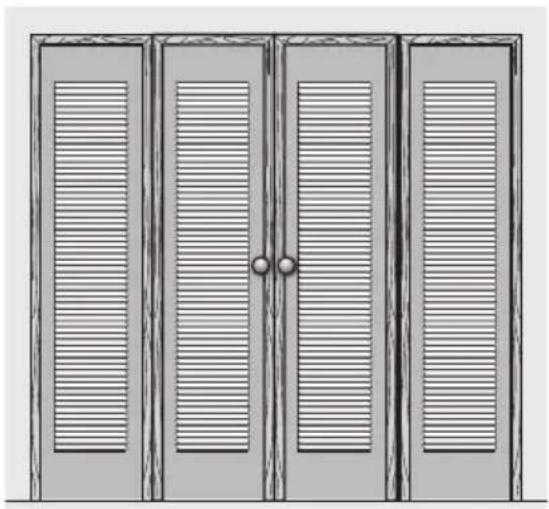

• DO NOT obstruct the flow of ventilating air. DO NOT stack or place laundry or throw rugs against the front or back of the dryer.

WARNING

FIRE HAZARD

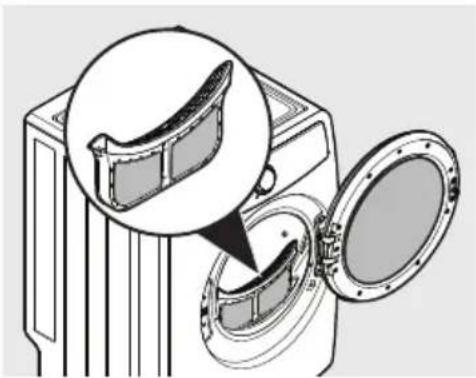

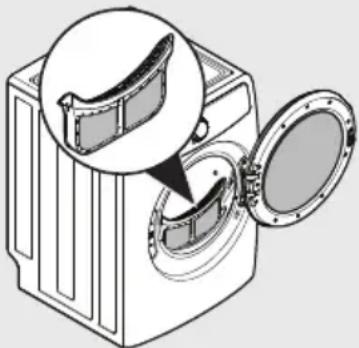

Clean the lint screen before or after each load. The interior of the dryer, lint screen housing and exhaust duct should be cleaned approximately every 18 months by qualified service professional. An excessive amount of lint build-up in these areas could result in inefficient drying and possible fire. See Care and Cleaning.

WARNING

FIRE HAZARD

A clothes dryer produces combustible lint. The dryer must be connected to an outdoor exhaust. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the opening and in the surrounding area.

- DO NOT spray any type of aerosol into, on or near dryer at any time.

- DO NOT use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

WARNING

DO NOT continue to use the dryer if you hear squeaking, grinding, rubbing or other unusual noises. This could be a sign of mechanical breakdown and lead to fire or serious injury. Contact a qualified technician immediately.

- Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the dryer.

Protect children

• DO NOT allow children to play on or in the dryer. Close supervision of children is necessary when the dryer is used near children. As children grow, teach them the proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing materials after the dryer is unpacked. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers.
• Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
• Before the dryer is removed from service or discarded, remove the dryer door to prevent accidental entrapment.
• Failure to comply with these warnings could result in serious personal injuries.

Risk of child entrapment

Child entrapment and suffocation are not problems of the past. Junked or abandoned washers and dryers are still dangerous – even if they will sit for "just a few days". If you are getting rid of your old washer or dryer, please follow the instructions below to help prevent accidents.

We strongly encourage responsible appliance recycling/disposal methods. Contact your State/Provence Energy Office, Local Electric and Water Utilities or Conservation Program Offi ce or visit www.energystar.gov/recycle for more information on recycling your old washer or dryer.

Before you throw away your old washer or dryer:

• Remove doors
• Remove the electric power cord
• Secure all hoses and drain pipes to prevent water from leaking out and creating a slip hazard.

Prevent injury

• To prevent shock hazard and assure stability during operation, the dryer must be installed and electrically grounded by a qualified service person in accordance with local codes. Installation instructions are included in this manual for reference. Refer to the installation sections for detailed grounding procedures. If the dryer is moved to a new location, have it checked and reinstalled by a qualified service professional.
• To prevent personal injury or damage to the dryer, the electrical power cord of a gas dryer must be plugged into a properly grounded and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the dryer to a gas pipe. DO NOT use an extension cord or an adapter plug.
• ALWAYS disconnect the dryer from the electrical supply before attempting any service or cleaning. Failure to do so can result in electrical shock or injury.
• DO NOT use any type of spray cleanser when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
• To prevent injury, DO NOT reach into the dryer if the drum is moving. Wait until the dryer has stopped completely before reaching into the drum.

Prevent injury and damage to the dryer

• All repairs and servicing must be performed by an authorized service provider unless specifically recommended in this Use & Care Manual. Use only authorized factory parts.
  • DO NOT tamper with controls.

• DO NOT sit on, step on or stand on the dryer. DO NOT rest heavy loads on top. The dryer is not meant to support weight.

• DO NOT install or store the dryer where it will be exposed to standing water, dripping water or outdoor weather conditions.

• Thermal limiter switches automatically turn off the motor in the unlikely event of an overheated situation. A service technician must replace the thermal limiter switch(es) after correcting the fault.
• Failure to comply with these warnings could result in serious personal injuries.

- Do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

WARNING

FIRE/ELECTRICAL SHOCK HAZARD

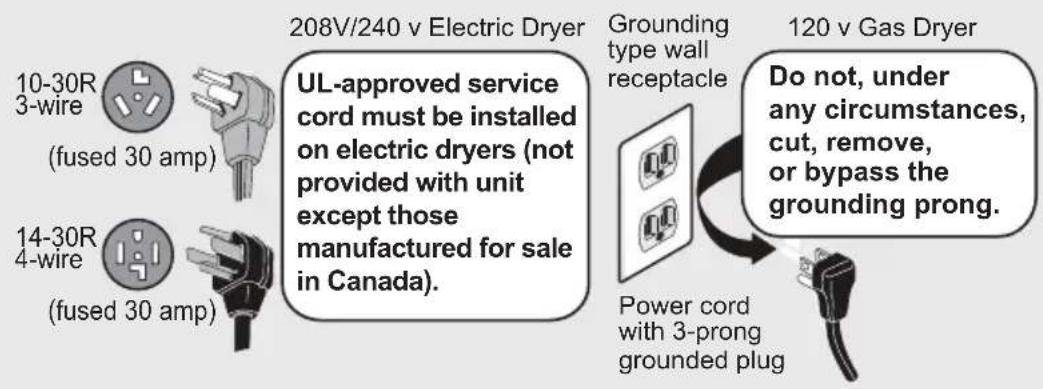

Avoid fire hazard or electrical shock. DO NOT use an adapter plug or extension cord or remove grounding prong from electrical power cord. Failure to follow this warning can cause serious injury, fire, or death.

208V/240 v Electric Dryer UL-approved service cord must be installed on electric dryers (not provided with unit except those manufactured for sale in Canada). Grounding type wall receptacle 120 v Gas Dryer Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

Technical diagram of a washing machine with numbered components and exploded view

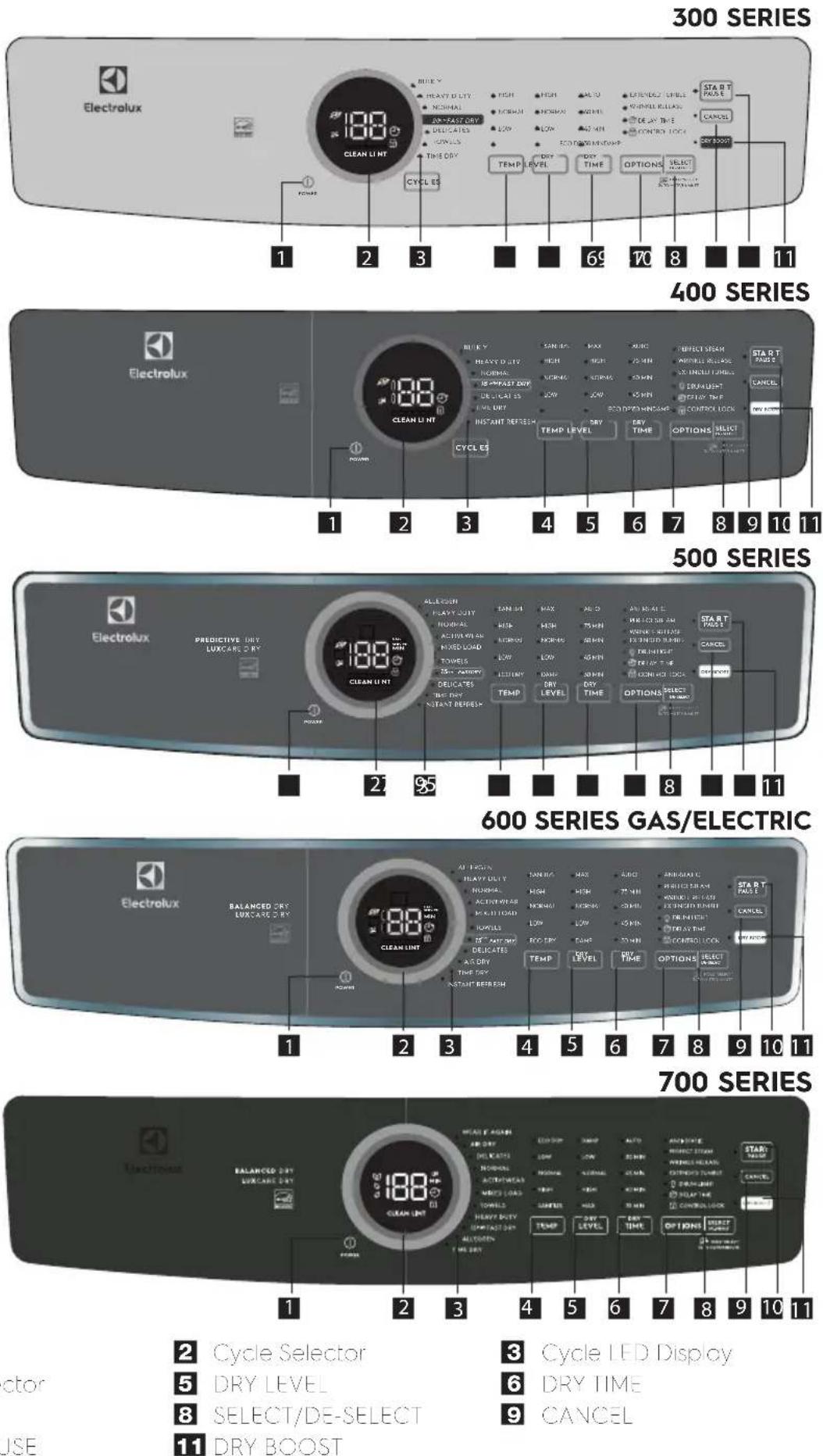

Not all cycles, options, or features listed are available on every model.

1. Door Latch 7. Serial Number and Model Number
2. Front-Mounted Moisture Sensor (on select models)	8. 3 Drum Vanes
3. Drum Light (on select models)	9. Wide-Angle Door Hinge
4. Cycle Selector	10. Reversible Door

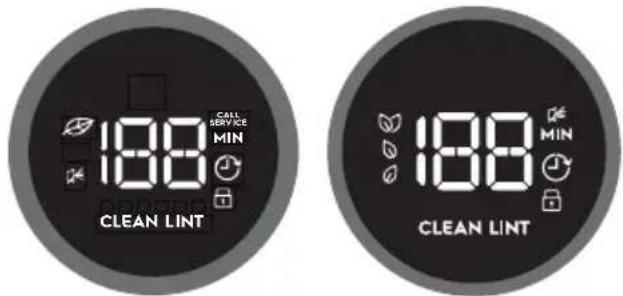

5. LED Display	11. Door Striker

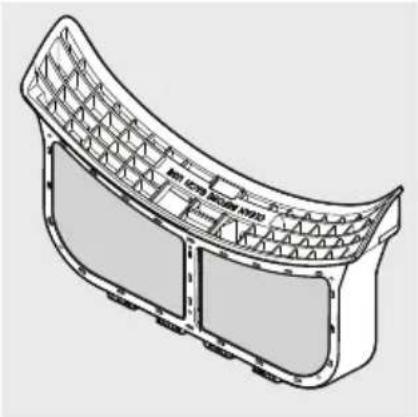

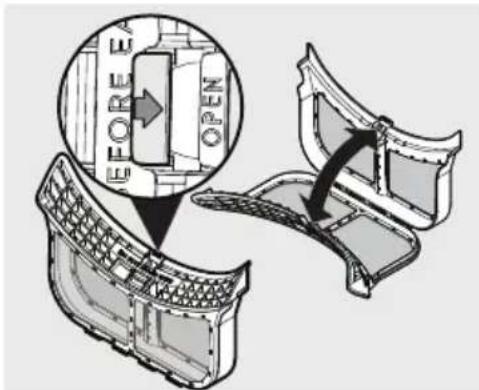

6. Control Lock	12. LuxCareTM Lint Shield

Refer to the table below for an overview of features available for each model series.

Anti Static

Perfect Steam

Wrinkle Release

Extended Tumble

Drum Light

Delay Time

Control Lock

Allergen

Wear it Again

Sanitize

Eco Dry

Fast Dry

300 Series

No

No

Yes

Yes

No

Yes

Yes

No

No

No

Yes

20 min

400 Series

No Yes Yes

Yes Yes

Yes Yes

Yes Yes

No No

Yes Yes

18 min

500 Series

Yes Yes Yes

Yes Yes

Yes Yes

Yes Yes

Yes No

Yes Yes

15 min

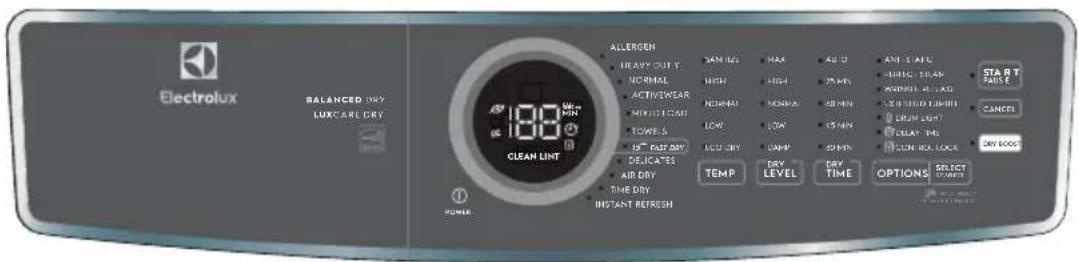

600 Series

Yes Yes Yes

Yes Yes

Yes Yes

Yes Yes

Yes No

Yes Yes

15 min

700 Series

Yes Yes Yes

Yes Yes

Yes Yes

Yes Yes

No Yes

Yes Yes

15 min

Installation Checklist

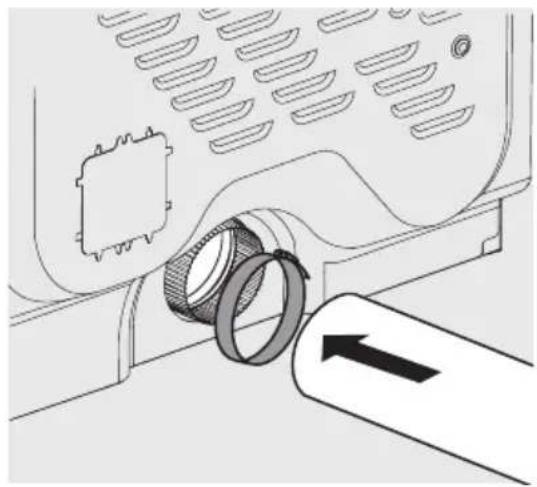

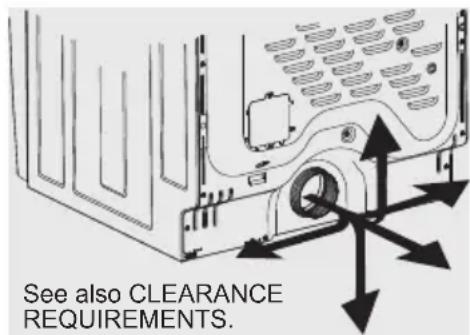

Exhaust Venting

☐ Free-flowing, clear of lint buildup
☐ 4 inch (102 mm) rigid metal or semi-rigid metal transition ducting of minimal length and turns
☐ NO foil or plastic venting material
☐ Approved vent hood exhausted to outdoors

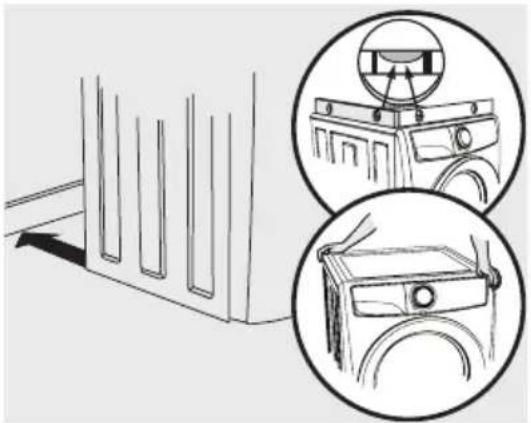

Leveling

☐ Dryer is level, side-to-side and front-to-back
☐ Cabinet is sitting solid on all corners

Gas Supply (Gas Dryer)

☐ Manual shutoff valve present in supply
☐ All connections sealed with approved sealer and wrench tight
☐ Conversion kit for LP GAS system # PCK4200 (not included) and must be purchased separately
☐ Gas supply turned on
☐ No leaks present at all connections - check with soapy water, NEVER check with flame

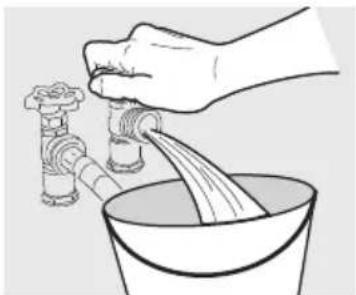

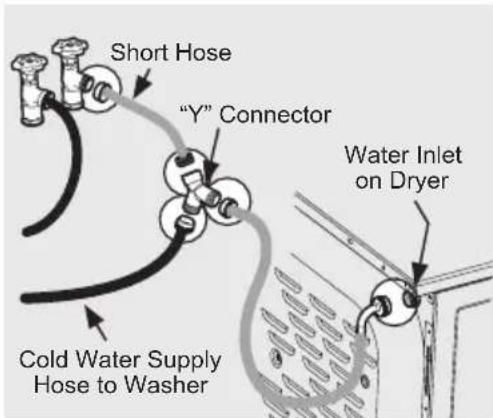

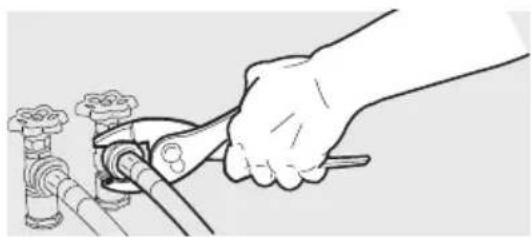

Water Hookup (Select Models)

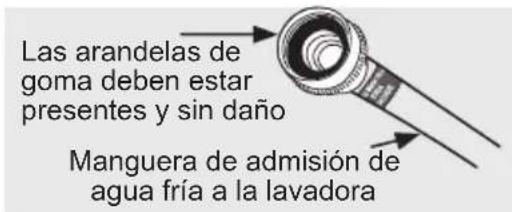

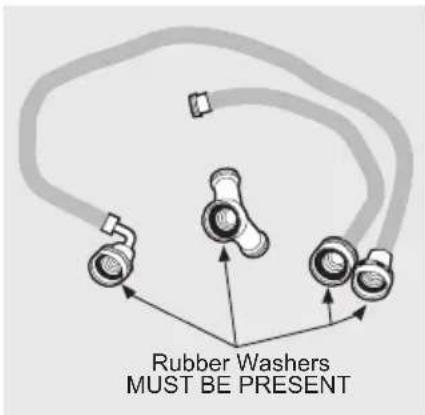

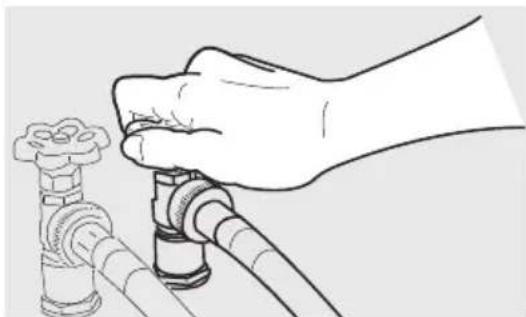

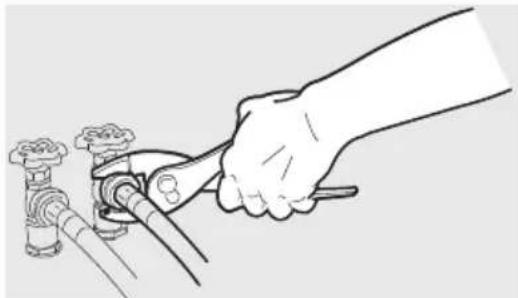

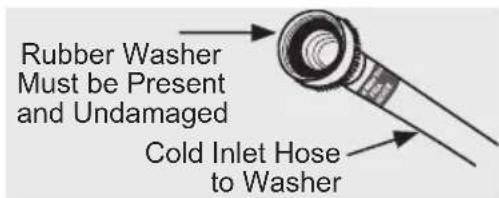

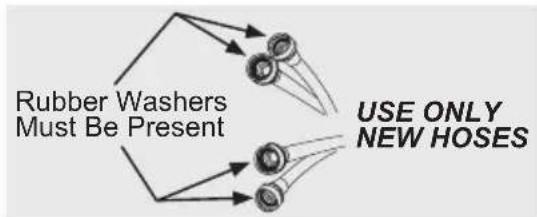

☐ Inspect hoses for proper placement of rubber washers
☐ Water supply is turned on

□ Check for leaks
☐ Steam model dryers require use of ASSEMBLY HOSE Kit #5304495002 (not included) and must be purchased separately.

240v Electric Supply

(Electric Dryer)

☐ Approved NEMA 10-30 or 14-30 service cord with all screws tight on terminal block
☐ Approved strain relief installed
☐ Terminal access cover installed before initial operation

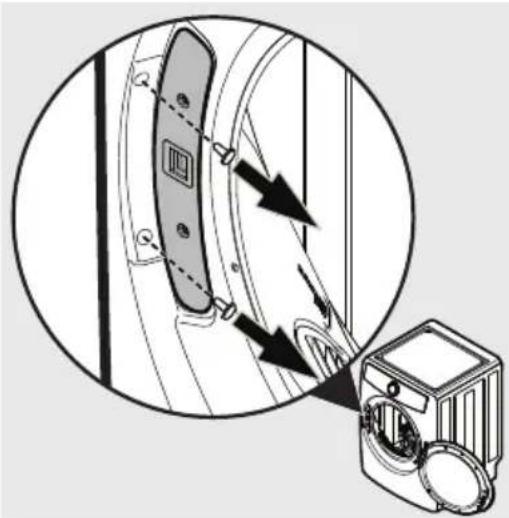

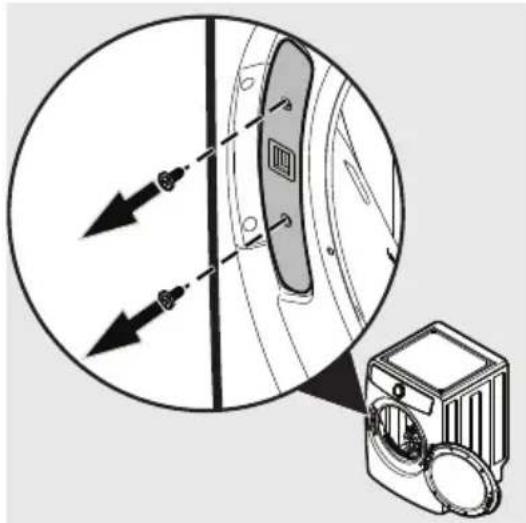

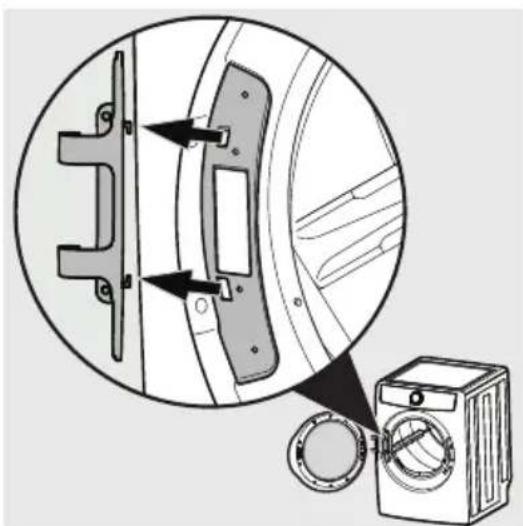

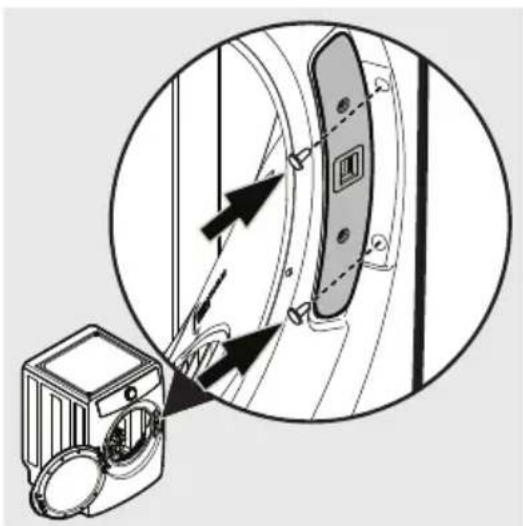

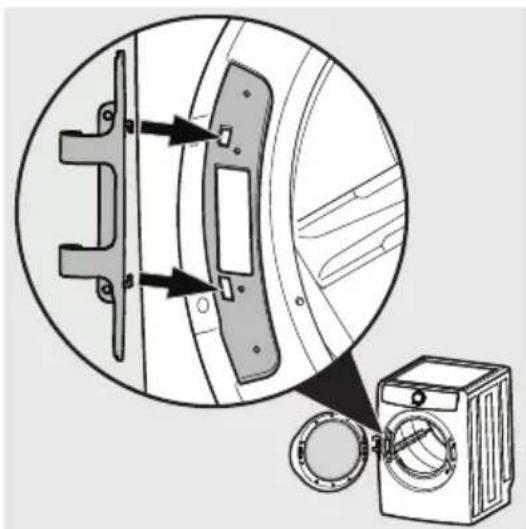

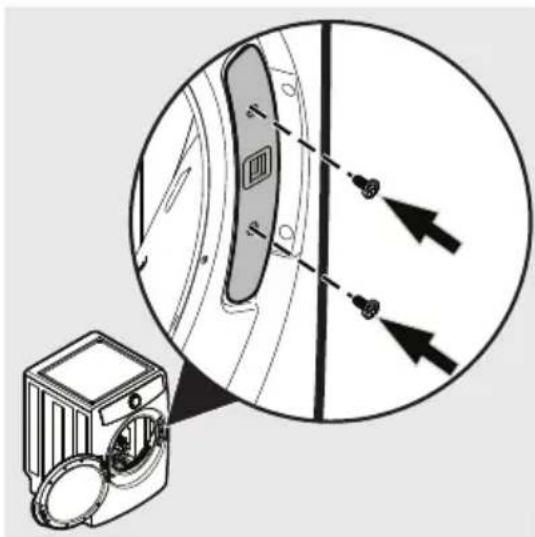

Door Reversal

☐ Follow detailed instructions in this manual
☐ Test hinge and latch for function

Electrical Power

□ House power turned on
□ Dryer plugged in

Final Checks

☐ Installation Instructions and Use & Care Manual read thoroughly
☐ Door latches and drum tumbles when cycle starts
☐ Registration card sent in

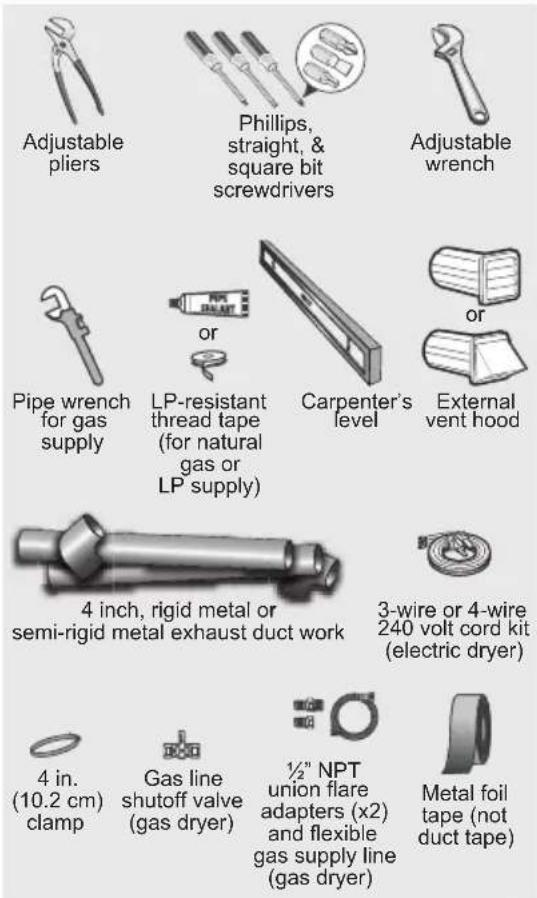

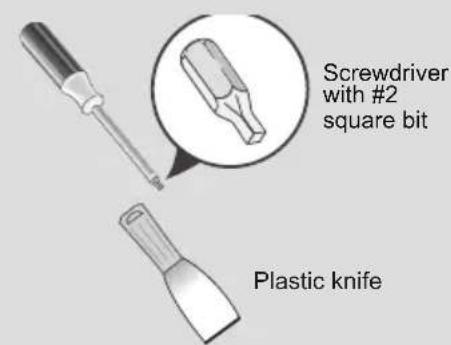

Tools and materials needed for installation:

ASSEMBLY

HOSE KIT - P/N 5304495002, for steam models only, is not included and must be purchased separately.

Illustration of a medical or surgical device with multiple lenses and a clip (no text or symbols)

WARNING

FIRE HAZARD

• Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
• DO NOT install a booster fan in dryer exhaust duct.
  • Install all clothes dryers in accordance with the installation instructions in this manual.

Electrical system requirements

NOTE

Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered generators, solar powered generators, wind powered generators or any other generator other than the local utility company is not recommended.

Electrical requirements for electric dryer:

CIRCUIT - Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers. Use separately fused circuits for washer and dryer. DO NOT operate washer and dryer on same circuit.

POWER SUPPLY - 3-wire or 4-wire, 120/240 volt, single phase, 60 Hz, Alternating Current.

NOTE

A 120/208 volt, single phase, 60 Hz, Alternating Current supply may be used on dryers marked for use on rating plate.

NOTE

The electric dryer has been designed and certified to operate at both 240V and 208V. Drying times on a 208V power supply will, however, be approximately 20% longer than drying times on a 240V power supply. This is normal and expected behavior and applies to all drying cycles.

IMPORTANT

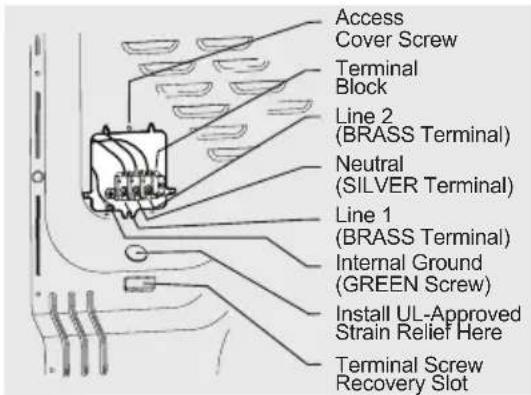

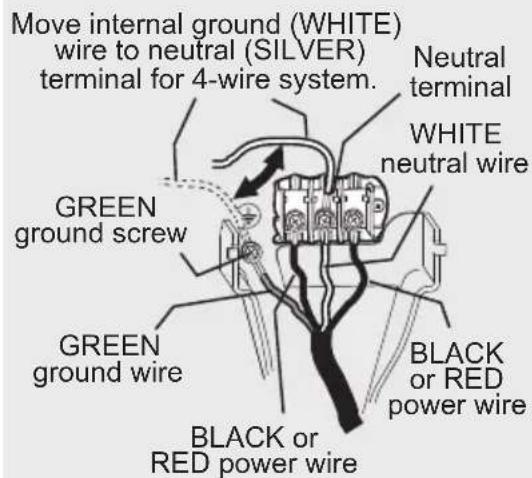

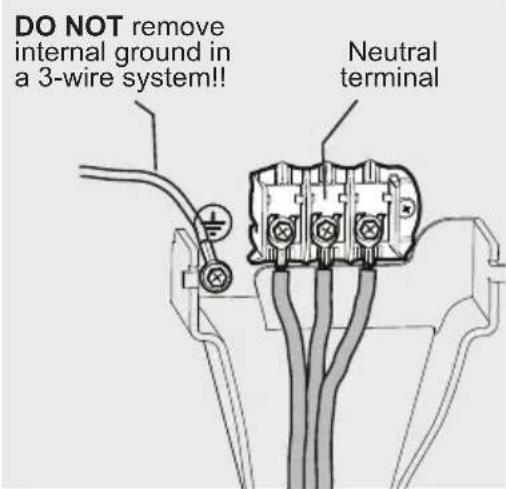

Dryer is internally grounded to neutral unless it was manufactured for sale in Canada.

Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral link is prohibited for: (1) new branch circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes DO NOT permit grounding through the neutral.

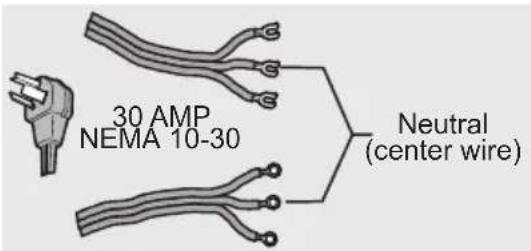

3-wire power supply cord (not supplied)

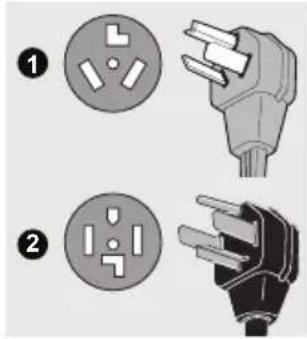

3-wire receptacle (NEMA type 10-30R)

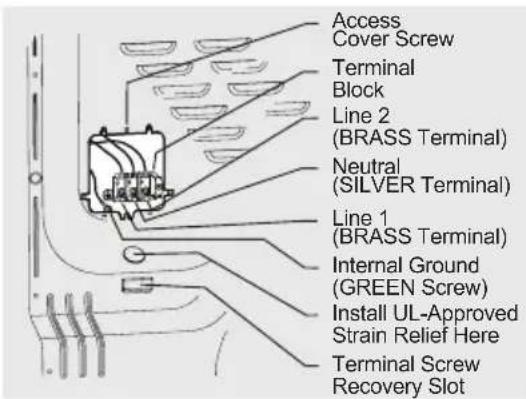

The dryer MUST employ a 3-conductor power supply cord NEMA 10-30 type SRDT rated at 240 volt AC minimum, 30 amp, with 3 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 3-wire cord connection instructions see "Electrical connection (non-Canada) - 3-wire cord" in Electrical Installation section.

OUTLET RECEPTACLE - NEMA 10-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position.

GROUNDING CONNECTION - See "Grounding requirements" in Electrical Installation section.

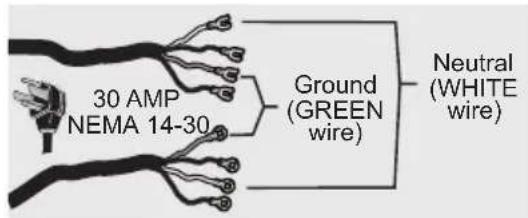

4-wire power supply cord (not supplied)

4-wire receptacle (NEMA type 14-30R)

The dryer MUST employ a 4-conductor power supply cord NEMA 14-30 type SRDT or DRT (as required) rated at 240 volt AC minimum, 30 amp, with 4 open end spade lug connectors with upturned ends or closed loop connectors and marked for use with clothes dryers. For 4-wire cord connection instructions see "Electrical connection (non-Canada) - 4-wire cord" in Electrical Installation section.

NOTE

Dryers manufactured for sale in Canada have factory-installed, 4-wire power supply cord (NEMA 14-30).

OUTLET RECEPTACLE - NEMA 14-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position.

GROUNDING CONNECTION - See "Grounding requirements" in Electrical Installation section.

Electrical requirements for gas dryer:

CIRCUIT - Individual, properly polarized and grounded 15 amp. branch circuit fused with 15 amp. time delay fuse or circuit breaker.

POWER SUPPLY - 2-wire, with ground, 120 volt, single phase, 60 Hz, Alternating Current.

POWER SUPPLY CORD - Dryer is equipped with 120 volt 3-wire power cord.

GROUNDING CONNECTION - See "Grounding requirements" in Electrical Installation section.

WARNING

Improper grounding of the dryer may cause serious injury or death. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

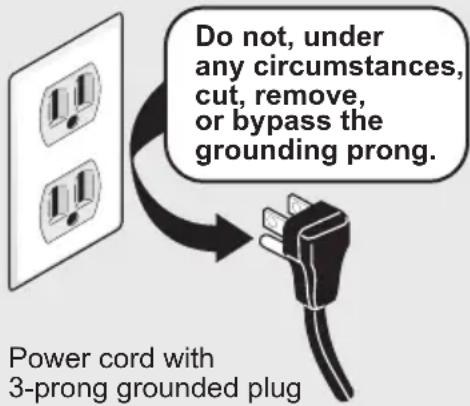

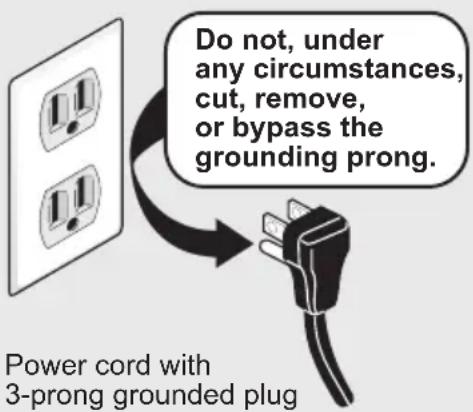

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

Gas supply requirements

WARNING

EXPLOSION HAZARD

Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plastic-coated brass piping for gas supply.

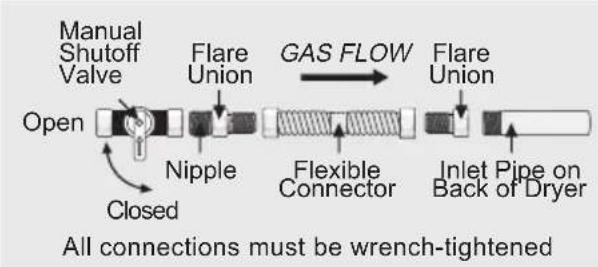

1. The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas Code ANSI Z223.1/
2. NFPA 54, or in Canada, the Natural Gas and Propane Installation Code, CSA B149.1.
3. The gas supply line should be 1/2 inch (1.27 cm) pipe.
4. If codes allow, fl exible metal tubing may be used to connect your dryer to the gas supply line. The tubing MUST be constructed of stainless steel or plastic-coated brass.

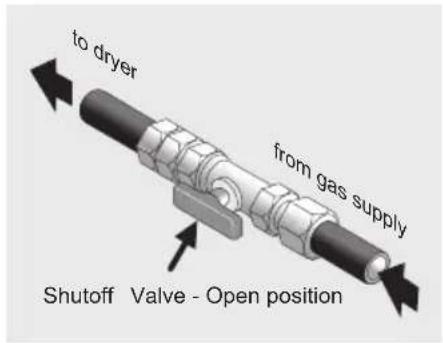

5. The gas supply line MUST have an individual shutoff valve installed in accordance with the B149.1, Natural Gas and Propane Installation Code.
6. A 1/8 inch (0.32 cm) N.P.T. plugged tapping, accessible for test gauge connection, MUST be installed immediately upstream of the gas supply connection to the dryer.
7. The dryer MUST be disconnected from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures in excess of 1/2 psig (3.45 kPa).
8. The dryer MUST be isolated from the gas supply piping system during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig (3.45 kPa).
9. Connections for the gas supply must comply with the Standard for Connectors for Gas Appliances, ANSI Z21.24/CSA 6.10.

Exhaust system requirements

Use only 4 inch (102 mm) diameter (minimum) rigid or semi rigid metal duct and approved vent hood which has a swing-out damper or dampers that open when the dryer is in operation. When the dryer stops, the damper or dampers automatically close to prevent drafts and the entrance of insects and rodents. To avoid restricting the outlet, maintain a minimum of 12 inches (30.5 cm) clearance between the vent hood and the ground or any other obstruction.

WARNING

FIRE HAZARD

Failure to follow these instructions can create excessive drying times and fire hazards.

The following are specific requirements for proper and safe operation of your dryer.

WARNING

FIRE HAZARD

• Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
• DO NOT install a booster fan in dryer exhaust duct.
  • Install all clothes dryers in accordance with the installation instructions in this manual.

Diagram of two mechanical or electrical setups with pipes and structural elements (no text or symbols)

CorrectIncorrect

CorrectIn correct

WARNING

FIRE HAZARD

• A clothes dryer must be exhausted outdoors.
• DO NOT exhaust dryer into a chimney, a wall, a ceiling, an attic, a crawl space or any concealed space of a building.
• A clothes dryer produces combustible lint. If the dryer is not exhausted outdoors, some fine lint will be expelled into the laundry area. An accumulation of lint in any area of the home can create a health and fire hazard.
• The dryer must be connected to an exhaust outdoors.
• Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the surrounding area.

WARNING

FIRE HAZARD

• DO NOT allow combustible materials (for example: clothing, draperies/curtains, paper) to come in contact with exhaust system. The dryer MUST NOT be exhausted into any gas vent a chimney, a wall, a ceiling, or any concealed space of a building which can accumulate lint, resulting in a fire hazard.
• DO NOT screen the exhaust ends of the vent system, or use any screws, rivets or other fasteners that extend into the duct to assemble the exhaust system. No screen, grate, or guard

of any mesh size is allowed to cover the exhaust opening. Lint can become caught in the scre

Prohibition sign with crossed-out circle and prohibition symbol, indicating no prohibition or exclusion

grate, guard, or on the screws or rivets, clogging the duct work and creating a fire hazard as well as increasing drying times. Use an approved vent hood to terminate the duct outdoors, and seal all joints with metal foil tape. All male duct pipe fittings MUST be installed downstream with the flow of air.

WARNING

FIRE HAZARD

Never exceed more than 4-90° elbows in the exhaust duct system. Exceeding the length of duct pipe or number of elbows allowed in the "MAXIMUM LENGTH" charts can cause an accumulation of lint in the exhaust system. Plugging the system could create a fire hazard, as well as increase drying times.

Max. Number of 90° turns	MAXIMUM LENGTH of 4" (102 mm) Rigid Metal Duct
	VENT HOOD TYPE
	(Preferred)
	4" (10.2 cm)	louvered 2	2.5" (6.35 cm)
0 125	ft. (38 m) 110 ft. (33.5 m)
1 115	ft. (35 m) 100 ft. (30.5 m)
2 105	ft. (32 m) 90 ft. (27.5 m)
3 95	ft. (29 m) 80 ft. (24.5 m)
4 85	ft. (26 m) 70 ft. (21.5 m)

WARNING

FIRE HAZARD

• DO NOT install flexible plastic or flexible foil venting material.
• DO NOT exceed 8 ft. (2.4 m) duct length if installing semi-rigid venting.
• DO NOT use screws, rivets or other fasteners that extend into the duct to assemble the exhaust system.

Exhaust direction

Directional exhausting can be accomplished by installing a quick-turn 90° dryer vent elbow directly to exhaust outlet of dryer. Dryer vent elbows are available through your local parts distributor or hardware store.

See also CLEARANCE REQUIREMENTS.

NOTE

Use of 90° quick-turn elbow required to meet minimum installation depth.

Technical line drawing of two mechanical components (no text or symbols)

WARNING

FIRE HAZARD

DO NOT install the dryer where gasoline or other fl ammables are kept or stored. If the dryer is installed in a garage, it must be a minimum of 18 inches (45.7 cm) above the floor. Failure to do so can result in death, explosion, fire or burns.

In installations where the exhaust system is not described in the charts, the following method must be used to determine if the exhaust system is acceptable:

1. Connect an inclined or digital manometer between the dryer and the point the exhaust connects to the dryer.
2. Set the dryer timer and temperature to air fl uff (cool down) and start the dryer.
3. Read the measurement on the manometer.
4. The system back pressure MUST NOT be higher than 1.0 inch of water column. If the system back pressure is less than 1.0 inch of water column, the system is acceptable. If the manometer reading is higher than 1.0 inch of water column, the system is too restrictive and the installation is unacceptable.

Install male fittings in correct direction:

Correct Incorrect

Although vertical orientation of the exhaust system is acceptable, certain extenuating circumstances could affect the performance of the dryer:

• Only the rigid metal duct work should be used.

• Venting vertically through a roof may expose the exhaust system to down drafts causing an increase in vent restriction.

• Running the exhaust system through an uninsulated area may cause condensation and faster accumulation of lint.

• Compression or crimping of the exhaust system will cause an increase in vent restriction.
• The exhaust system should be inspected and cleaned a minimum of every 18 months with normal usage. The more the dryer is used, the more often you should check the exhaust system and vent hood for proper operation and that it is free of obstructions.

Manufactured or mobile home installation

1. Installation MUST conform to current Manufactured Home Construction & Safety Standard, Title 24 CFR, Part 32-80 (formerly the Federal Standard for Mobile Home Construction and Safety for Mobile Homes, Title 24, HUD Part 280) or Standard CAN/CSAZ240 MH.
2. Dryer MUST be exhausted outside (outdoors, not beneath the mobile home) using metal ducting that will not support combustion. Metal ducting must be 4 inches (10.16 cm) in diameter with no obstructions. Rigid metal duct is preferred.
3. If dryer is exhausted through the floor and area beneath the mobile home is enclosed, the exhaust system MUST terminate outside the enclosure with the termination securely fastened to a non-combustible portion of the mobile home structure.
4. Refer to previous sections in this manual for other important exhaust venting system requirements.
5. When installing a gas dryer into a mobile home, a provision must be made for outside make up air. This provision is to be not less than twice the area of the dryer exhaust outlet.
6. Installer MUST anchor this (1) dryer or (2) dryer mounted on pedestal to the floor with approved Mobile Home Installation Kit - P/N 137067200.

Clearance requirements

IMPORTANT

DO NOT INSTALL YOUR DRYER:

1. In an area exposed to standing water, dripping water, or outside weather conditions.
2. In an area where it will come in contact with curtains, drapes, or anything that will obstruct the flow of combustion and ventilation air.
3. On carpet. Floor MUST be solid with a maximum slope of 1 inch (2.5 cm)

Installation in a recess or closet

1. A dryer installed in a recess or closet, MUST be exhausted outdoors.
2. No other fuel burning appliance shall be installed in the same recess or closet as a gas dryer.

3. Your dryer needs space around it for proper ventilation. See "Clearance Requirements" chart.

4. A minimum of 120 square inches of inlet ventilation opening to the recess or closet is required for proper air flow to the dryer.

5. Inlet air ventilation to the recess or closet can be satisfied by adding 120 square inches of opening, equally divided at the top and bottom of the door and located 3 inches from the bottom and top of the door.

or, adding 120 square inches of ventilation openings to the top, sides or rear wall of the closet wall, if the wall is adjacent to an open room, hallway, or exterior.

or, a louvered door with equivalent air openings equaling 120 sq. inches of ventilation for the full length of the door is acceptable.

It is NOT approved to derive the 120 sq. inches of ventilation from the space between the door edges and the casing or the floor.

** The presence of forced heating and air-conditioning vent openings in the closet does NOT satisfy the 120 square inch ventilation requirement to the closet.

NOTE

To achieve an installation with 0" (0 cm) clearance for the back of the dryer (for other than straight back venting), a quick-turn 90° dryer vent elbow must be installed as described previously in this manual.

For other than straight back venting, a quick-turn 90° dryer vent elbow must be installed to achieve 0" (0 cm) installation.

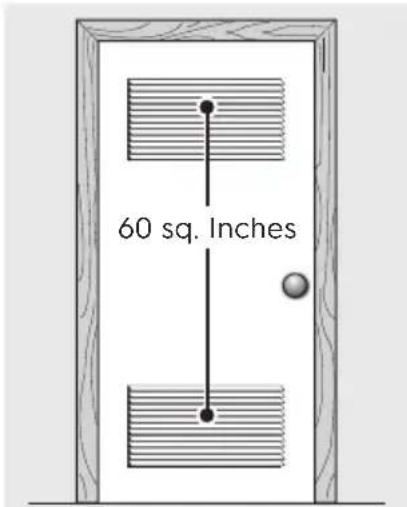

60 sq. Inches

120 sq. Inches Equally Divided Split Vent Door

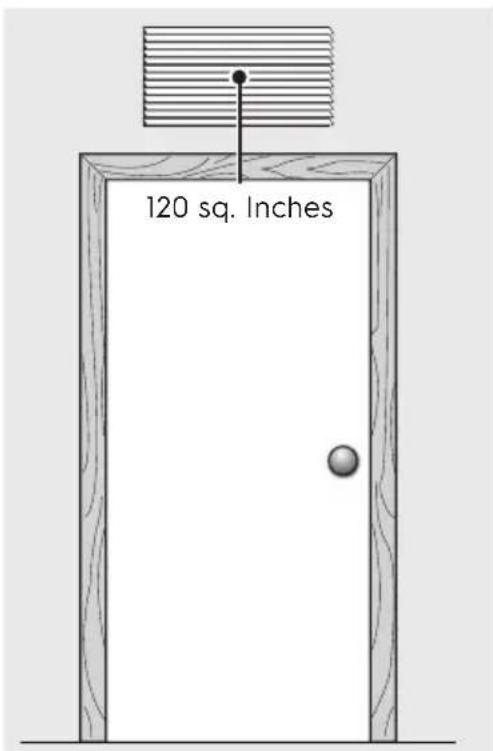

120 sq. Inches

Solid Door with Wall Ventilation

120 sq. Inches min. Louvered Opening

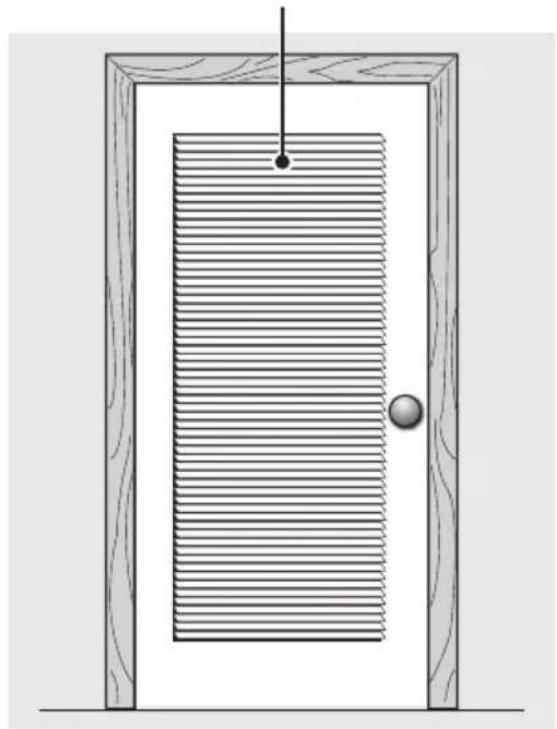

Simple line drawing of a wooden door with horizontal slats and a hanging handle (no text or symbols)

Louvered Door

Illustration of a four-panel door with horizontal slats and a double door handle (no text or symbols)

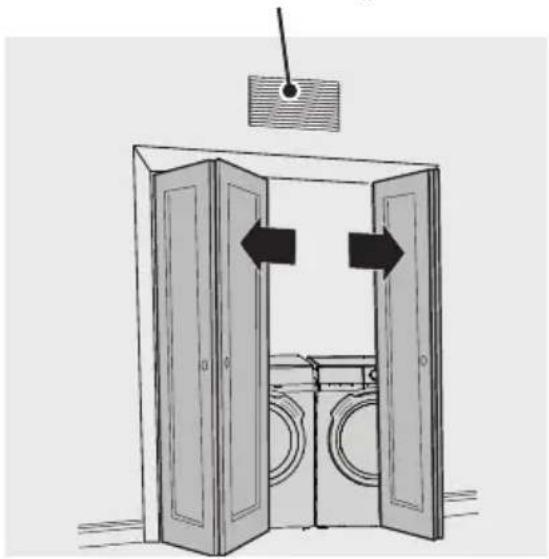

Bi-Fold louvered doors with 120 sq. in of ventilation

120 sq. Inches of wall venting

Diagram of a double door with two doors open, showing front and back views of a washing machine (no text or symbols)

Solid Bi-Fold doors with no ventilation

MIN INSTALLATION CLEARANCES - Inches (cm)
	Sides	Rear Top	Front
Alcove/ recess	0" (0 cm)	0" (0 cm)	0" (0 cm)	Open
Closet with door vent	0" (0 cm)	0" (0 cm)	0" (0 cm)	1" (2.5 cm)
Closet with wall vent	1" (2.5 cm)	1" (2.5 cm)	1" (2.5 cm)	1" (2.5 cm)

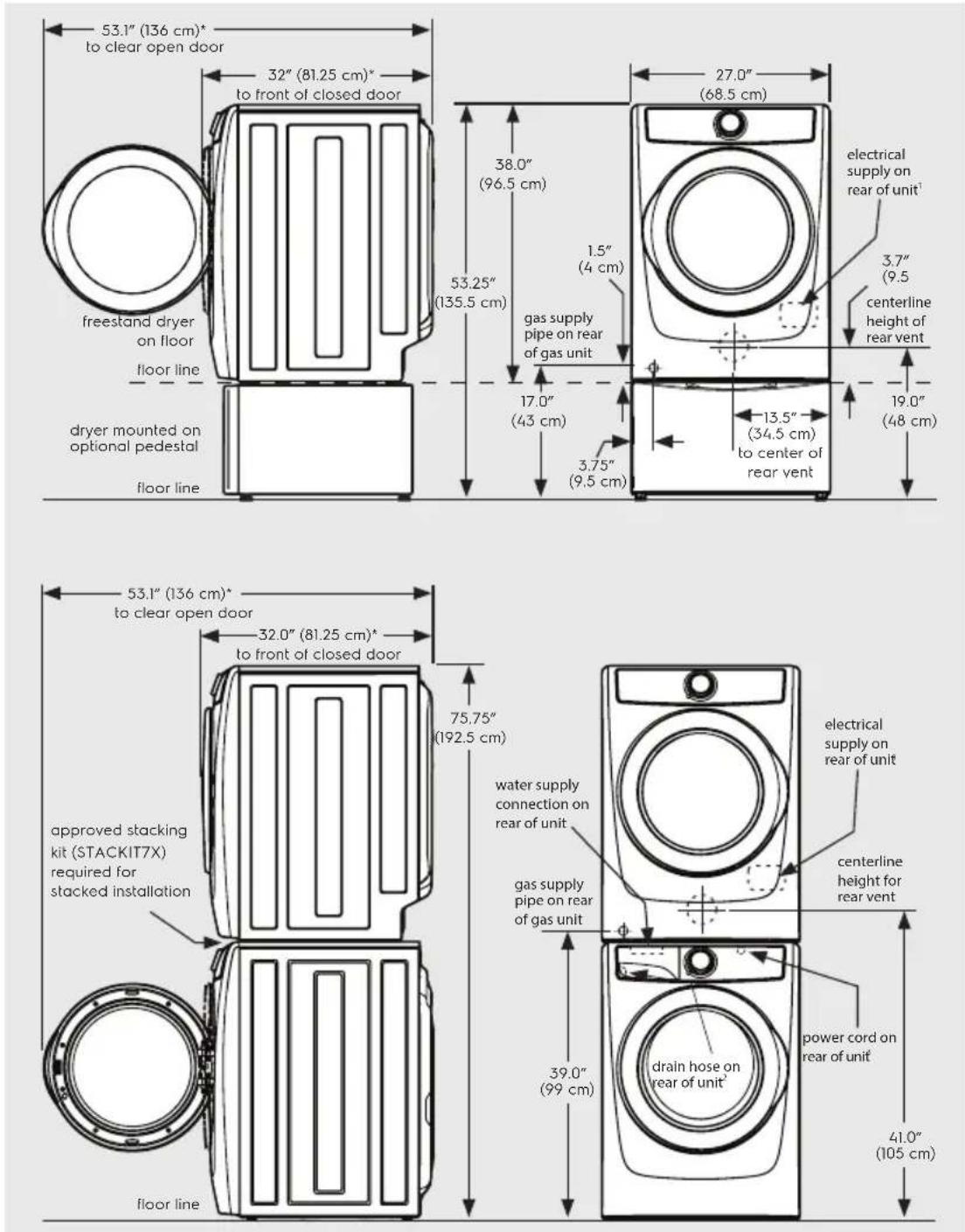

Dryer dimensions

* Connection of water inlet hose on steam dryer adds 3/4 in. (2 cm) to installation depth.
^1 Power supply cord length on gas dryer or electric Canadian dryer approximately 60 inches (152.5 cm).
^2 Drain hose length on washer approximately 59 inches (150 cm).
^3 Power supply cord length on washer approximately 60 inches (152.5 cm).

Connecting the electrical system

The following are specific requirements for proper and safe electrical installation of your dryer. Failure to follow these instructions can create electrical shock and/or a fire hazard.

WARNING

ELECTRICAL SHOCK HAZARD

• This appliance MUST be properly grounded. Electrical shock can result if the dryer is not properly grounded. Follow the instructions in this manual for proper grounding.
• DO NOT use an extension cord with this dryer. Some extension cords are not designed to withstand the amounts of electrical current this dryer utilizes and can melt, creating electrical shock and/or fi re hazard. Locate the dryer within reach of the receptacle for the length power cord to be purchased, allowing some slack in the cord. Refer to the Pre-Installation Requirements section of this manual for the proper power cord to be purchased.

WARNING

ELECTRICAL SHOCK HAZARD

• A U.L.-approved strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock.
• DO NOT use an aluminum wired receptacle with a copper wired power cord and plug (or vice versa). A chemical reaction occurs between copper and aluminum and can cause electrical shorts. The proper wiring and receptacle is a copper wired power cord with a copper wired receptacle.

NOTE

Dryers operating on 208 volt power supply will have longer drying times than dryers operating on 240 volt power supply.

The dryer, when installed, must be electrically grounded in accordance with local codes and the National Electrical code ANSI/NFPA 70 or the Canadian Electrical Code, Part 1, CSA C22.1.

Grounding requirements - electric dryer (USA)

WARNING

Improper grounding of the dryer may cause serious injury or death. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.
2. After you purchase and install a 3-wire or 4-wire power supply cord having an equipment-grounding conductor and a grounding plug that matches your wiring system, the plug MUST be plugged into an appropriate, copper wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.

3 DO NOT modify the plug you've installed on this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

For a permanently connected dryer:

The dryer MUST be connected to a grounded metal, permanent wiring system; or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance.

Grounding requirements - electric dryer (Canada)

WARNING

Improper grounding of the dryer may cause serious injury or death. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

For a grounded, cord-connected dryer:

1. The dryer MUST be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.
2. Since your dryer is equipped with a power supply cord having an equipment-grounding conductor and a grounding plug, the plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.
   3 DO NOT modify the plug provided with this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Grounding requirements - gas dryer

1. The dryer is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle.
2. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. If in doubt, call a licensed electrician.
   3 DO NOT modify the plug provided with this appliance. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.

WARNING

Improper grounding of the dryer may cause serious injury or death. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

Grounding type wall receptacle

Do not, under any circumstances, cut, remove, or bypass the grounding prong. Power cord with 3-prong grounded plug

Electrical connection (non-Canada) - 3 wire cord

3-wire receptacle (NEMA type 10-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

WARNING

ELECTRICAL HAZARD

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

1. Turn off power supply to outlet.
2. Remove the screw securing the terminal block access cover in the lower corner on the back of the dryer.
3. Install a UL-approved strain relief according to the power cord/strain relief manufacturer's instructions in the power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.
4. Thread an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 10-30 type SRDT, through the strain relief.
5. Attach the power cord neutral (center wire) conductor to the SILVER colored center terminal on the terminal block. Tighten the screw securely.
6. Attach the remaining two power cord outer conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.

WARNING

ELECTRICAL SHOCK HAZARD

DO NOT make a sharp bend or crimp wiring/conductor at connections.

1. Follow manufacturer's guidelines for firmly securing the strain relief and power cord.

2. Reinstall the terminal block cover.

IMPORTANT

If moving dryer from a 4-wire system and installing it in a 3-wire system, move the internal ground from the center terminal back to the GREEN screw next to the terminal block.

30 AMP NEMA 10-30 Neutral (center wire)

Access Cover Screw Terminal Block Line 2 (BRASS Terminal) Neutral (SILVER Terminal) Line 1 (BRASS Terminal) Internal Ground (GREEN Screw) Install UL-Approved Strain Relief Here Terminal Screw Recovery Slot

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.

DO NOT remove internal ground in a 3-wire system!! Neutral terminal

Electrical connection (non-Canada) - 4 wire cord

4-wire receptacle (NEMA type 14-30R)

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

WARNING

ELECTRICAL HAZARD

Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.

1. Turn off power supply to outlet.

2. Remove the screw securing the terminal block access cover in the lower corner on the back of the dryer.

3. Install a UL-approved strain relief according to the power cord/strain relief manufacturer's instructions in the power cord entry hole below the access panel. At this time, the strain relief should be loosely in place.

4. Thread an UNPLUGGED, UL-approved, 30 amp. power cord, NEMA 14-30 type DRT or SRDT, through the strain relief.

5. Disconnect the internal (WHITE) dryer harness ground wire from the (GREEN) ground screw next to terminal block.

6. Attach the ground (GREEN) power cord wire to the cabinet with the ground (GREEN) screw. Tighten the screw securely.

7. Move the internal dryer harness ground (WHITE) wire to the terminal block and attach it along with the neutral (WHITE) power cord wire conductor to center, SILVER colored terminal on the terminal block. Tighten the screw securely.

8. Attach the RED and BLACK power cord conductors to the outer, BRASS colored terminals on the terminal block. Tighten both screws securely.

WARNING

ELECTRICAL SHOCK HAZARD

DO NOT make a sharp bend or crimp wiring/conductor at connections.

1. Follow manufacturer's guidelines for firmly securing the strain relief and power cord.

2. Reinstall the terminal block cover.

30 AMP NEMA 14-30 Ground (GREEN wire) Neutral (WHITE wire)

Access Cover Screw Terminal Block Line 2 (BRASS Terminal) Neutral (SILVER Terminal) Line 1 (BRASS Terminal) Internal Ground (GREEN Screw) Install UL-Approved Strain Relief Here Terminal Screw Recovery Slot

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the terminal screw recovery slot below the access panel.

Move internal ground (WHITE) wire to neutral (SILVER) terminal for 4-wire system. Neutral terminal WHITE neutral wire GREEN ground screw GREEN ground wire BLACK or RED power wire BLACK or RED power wire

Connecting the gas

This gas dryer comes from the factory with natural gas burner components installed. DO NOT operate this gas dryer, using LP (liquid propane) gas, unless the LP gas conversion kit has been properly installed by a qualified service personnel. Improper gas installation or LP conversion kit installation could result in injury or even death.

1. Remove the shipping cap from gas pipe at the rear of the dryer.

WARNING

DO NOT connect the dryer to L.P. gas service without converting the gas valve. An L.P. conversion kit PN# PCK4200 (not included) must be installed by a qualified gas technician.

1. Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or approved pipe from gas supply line to the 3/8 inch (0.96 cm) pipe located on the back of the dryer. Use a 1/2 inch to 3/8 inch (1.27 cm to 0.96 cm) reducer for the connection. Apply an approved thread sealer that is resistant to the corrosive action of liquefied gases on all pipe connections.

1. Open the shutoff valve in the gas supply line to allow gas to flow through the pipe. Wait a few minutes for gas to move through the gas line.

IMPORTANT

The supply line must be equipped with an approved manual shutoff valve. This valve should be located in the same room as the dryer and should be in a location that allows ease of opening and closing. DO NOT block access to the gas shutoff valve.

to dryer from gas supply Shutoff Valve - Open position

1. Check for gas system leaks with a manometer. If a manometer is not available, test all connections by brushing on a soapy water solution.

WARNING

EXPLOSION HAZARD

NEVER test for gas leaks with an open flame.

IMPORTANT

Installation to the gas service must follow local codes and ordinances and the latest edition of the National Fuel Gas Code ANSI Z223.1/NFPA 54 or in Canada, CSA B149.1.

Connecting the water (steam models only)

WARNING

Periodically inspect all water inlet hoses for water leaks, wear, cuts, corrosion and bulges. Replace all hoses, if any sign of the above is visible. All hoses should be replaced every 5 years to reduce the risk of hose failures.

Water supply requirements

Cold water faucet MUST be installed within 42 inches (107 cm) of your dryer's water inlet. The faucet MUST be 3/4 inch (1.9 cm) with threading for laundry hose connection. Water pressure MUST be between 20 and 120 psi. Your water department can advise you of your water pressure.

1. Turn off COLD water supply to washer.

Line drawing of a hand adjusting a pipe fitting with a valve (no text or symbols)

Rubber Washer Must be Present and Undamaged Cold Inlet Hose to Washer

1. Remove COLD inlet hose from COLD water supply and inspect for rubber washer. Replace washer if it is torn or worn out.

Line drawing of a hand using a tool to adjust or install a pipe fitting (no text or symbols present)

1. Turn on COLD supply and run water to clear any contaminants in the line.

Illustration of a hand washing a faucet into a bucket with a straw (no text or symbols)

1. Inspect hose couplings for proper placement of rubber washers. Use hoses from ASSEMBLY HOSE KIT# 5304495002 (not included).

Rubber Washers MUST BE PRESENT

1. If your installation has room for the COLD water supply to accept the "Y" connector directly, thread the "Y" connector to the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

NOTE

If you were able to install the "Y" connector directly to the COLD water supply, please skip to step 8.

Short Hose "Y" Connector Cold Water Supply Hose to Washer Water Inlet on Dryer

1. If there is not room to install the "Y" connector directly, thread the short extension hose on to the COLD water supply and snug it by hand; then tighten it another 2/3 turn with pliers.

Line drawing of a hand using a pliers to handle a pipe (no text or symbols)

1. Thread the "Y" connector to the short extension hose and snug it by hand; then tighten it another 2/3 turn with pliers.

2. Connect the COLD inlet hose for the washer to the "Y" connector and snug it by hand; then tighten it another 2/3 turn with pliers.

3. Connect the straight end of the long hose from the kit to the other outlet on the "Y" connector and snug it by hand. Connect the hose's 90° coupling to the brass water inlet on the back of the dryer and snug it by hand. Tighten each connection of the dryer inlet hose another 2/3 turn with pliers.

4. Turn on the water and check for leaks at all connections.

Line drawing of a hand connecting a pipe to a valve (no text or symbols present)

Completing the installation

1. Connect the exhaust duct to the outside exhaust system. Use of a 4" (102 mm) clamp (item A) is recommended to connect the dryer to the exhaust vent system. Use metal foil tape to seal all other joints.

Diagram of a mechanical component with a rotating ring and directional arrow (no text or symbols)

1. Use a carpenter's level to level your dryer front-to-back and side-to-side.
2. Use adjustable pliers to adjust the leveling legs so the dryer is level front-to-rear and side-to-side, and stable corner-to-corner.

Technical line drawing of a washing machine with two circular insets showing front and side views (no text or symbols)

1. Press down on alternate corners and sides and feel for the slightest movement. Adjust the appropriate leg(s) so the dryer sits solidly on the floor on ALL four legs. Keep the leveling leg extension at a minimum for best performance of the dryer.

IMPORTANT

Be sure the power is off at a circuit breaker/fuse box before plugging the power cord into an outlet.

1. Plug the power cord into a grounded outlet.

WARNING

Improper grounding of the dryer may cause serious injury or death. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

Illustration of three types of electrical plugs: two with three leads and one with a terminal plug (no text or symbols)

WARNING

Do not store combustible materials, gasoline, and other fl ammable vapors and liquids near this dryer.

1. Turn on the power at the circuit breaker/fuse box.
2. Read the Use & Care Manual provided with the dryer. It contains valuable and helpful information that will save you time and money.
3. If you have any questions during initial operation, please review the "Avoid Service Checklist" in your Use & Care Manual before calling for service.
4. Place these instructions in a location near the dryer for future reference.

NOTE

A wiring diagram and technical data sheet are located under the dryer top panel.

CAUTION

When discarding or storing your old dryer, remove the door.

Reversing the door

NOTE

Door reversibility is available on all dryer models.

IMPORTANT

1. Be sure you have adequate swing area before reversing door.
2. Gather your tools - including a screw driver with a #2 square bit and plastic knife (or small, fl at prying tool that won't damage paint).
3. Be sure dryer is unplugged from power source!

Tools needed for reversal:

Screwdriver with #2 square bit Plastic knife

WARNING

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source before servicing could result in personal injury or even death.

Removing latch and hole plugs

1. Open the door.
2. Remove plastic hole plugs and save to reinstall later. You may have to use a non-scratching plastic knife if you are unable to dislodge the plugs manually.

Diagram showing mechanical components with arrows indicating motion or force, no text or symbols present

1. Remove both screws from door latch. Save latch and screws for reinstallation later.

Diagram showing directional arrows and a magnified view of a device component (no text or symbols)

Removing door assembly

1. Completely open the door to expose all four hinge screws.
2. Remove all four hinge screws with #2 square bit driver. Save for reinstalling later.

Diagram showing a door lock mechanism inside a vehicle, with an inset view of the lock switch and a close-up of the device (no text or symbols present)

1. Grasp the door with both hands and lift slightly as you pull door and hinge away from the front panel.

1. Rotate the door and hang the upper hook on the back of the hinge in the upper hole of the front panel.

Diagram showing a mechanical component with arrows pointing to a washing machine (no text or symbols present)

1. Reinstall and tighten all four screws removed earlier - two front screws first, then two side screws.

Reinstalling latch and hole plugs

1. Install door latch with screws removed earlier.

Diagram showing a device with labeled parts and directional arrows, including a magnified inset view.

1. Insert plastic hole plugs removed earlier.

Diagram showing a device with a lock mechanism and directional arrows, no text or symbols present

Verify reversed door operation

1. Test door for free, smooth swinging operation and secure latching when closed.
2. Plug in dryer and close the door. Start a test cycle: drum should tumble until door is pulled open or cycle is paused or canceled.

Accessories

MATCHING STORAGE PEDESTAL*

White Pedestal - P/N EPWD257UIW

Titanium Pedestal - P/N EPWD257UTT

A storage pedestal accessory, specifically designed for this dryer may be used to elevate the dryer for ease of use. This pedestal will add about 15" (38 cm) to the height of your unit.

*Other colors may be available. Contact the source where you purchased your dryer.

DRYER STACKING KIT P/N STACKIT7X

Depending on the model you purchased, a kit for stacking a matching dryer on top of this washer may have been included in the initial purchase of your dryer. If your model did not include a stacking kit or you desire another stacking kit, you may order one.

LP CONVERSION KIT P/N PCK4200

Gas dryers intended for use in a location supplied with LP must use a conversion kit prior to installation.

MOBILE HOME INSTALLATION KIT P/N 137067200

Installations in mobile homes require use of MOBILE HOME INSTALLATION KIT.

UNIVERSAL APPLIANCE WRENCH P/N 137019200

A UNIVERSAL APPLIANCE WRENCH is available to aid in dryer/washer/pedestal feet adjustment.

TOUCH UP PAINT PENS

White - P/N 5304468812

Titanium - P/N 5304475700

*Other colors may be available. Contact the source where you purchased your dryer.

ASSEMBLY HOSE KIT

P/N 5304495002

For use in dryer models that include a steam feature.

WARNING

Failure to use accessories manufactured by (or approved by) the manufacturer could result in personal injury, property damage or damage to the dryer.

27" (66.3 cm) 15" (38 cm) 26.5" (67 cm)

Storage Pedestal

Line drawing of a fork-like tool with two blades and a handle (no text or symbols)

Universal Appliance Wrench

Replacement parts in U.S. and Canada

If replacements parts are needed for your dryer, you can contact the source where you purchased your dryer, call 1-877-4ELECTROLUX (1-877-435-3287) in the U.S. or 1-800-265-8352 in Canada, or visit our website, www.electrolux.com in the U.S. or www.electrolux.ca in Canada for the Electrolux Authorized Parts Distributor nearest you.

Model series

1 POWER
4 Temp Selector
7 Options
10 START/PAJSE

2 Cycle Selector
5 DRY LEVEL
8 SELECT/DE-SELECT
11 DRY BOOST

3 Cycle LED Display
6 DRY TIME
9 CANCEL

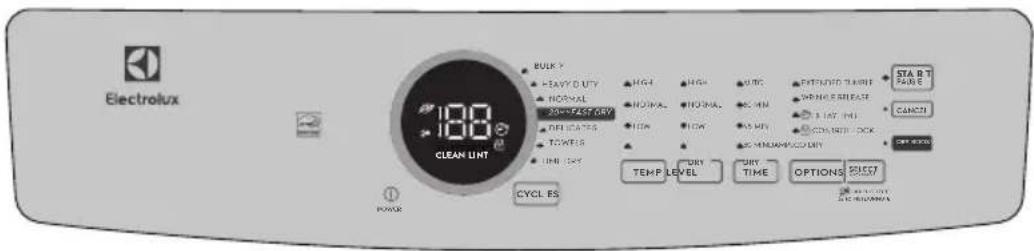

Setting chart - 300 series dryer

Electrolux 188 CLEAN UNT BULK Y HEAVY DUTY NORMAL DRY TEST ONY DELICATES TOWERS LINE DAY Cycl. ES POWER TEMP LEVEL DRY TIME OPTIONS SELECT START PARE CHANGE ONION OK MENDUM/NO ONY OFF COLD

These temperature, dryness levels and options are available with the following cycles:

CYCLE SELECTIONS

BULKY

HEAVY DUTY

NORMAL

20 MIN FAST DRY

DELICATES

TOWELS

TIME DRY

TEMPERATURE (temp)

High	√	√	√	√
Normal			√	√	√	√
Low				√		√	√
Eco Dry									√

DRYNESS

High	√	√	√
Normal		√	√	√	√
Low				√		√
Damp				√		√

Dry Time

Auto Dry	√	√	√	√	√
60 Min									√
45 Min									√
30 Min									√

OPTIONS

Extended Tumble	√	√	√	√	√	√
Wrinkle Release	√	√	√	√	√	√
Delay Time	√	√	√	√	√	√	√
Control Lock	√	√	√	√	√	√	√
Dry Boost	√	√	√	√	√	√	√

√ = Available selections. □ = Factory presets. ■ Non-modifiable presets.

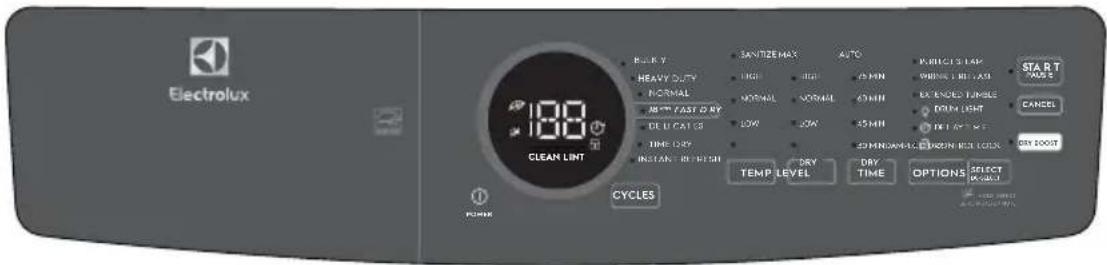

Setting chart - 400 series dryer

Electrolux 188 CLEAN LINT Cycles FULLY HEAVY DUTY NORMAL SHORT FAST OR HY DE E L CAT IS TIME DRY INSTANT 10 PULSE SANTIZE MAX HIGH NORMAL LOW SHORT AUTO MINI MINI 65 MINI 35 MINI SHORT S T A P WHENS 1 INT. MAX EX ENOCES TURBLE OPEN LIGHT EXIT OF 10" MINI START VACC. CANCEL DRY DOGDT TEMP LEVEL DRI TIME DRI OPTIONS SELECT PLUGS

These temperature, dryness levels and options are available with the following cycles:

CYCLE SELECTIONS

BULKY

HEAVY DUTY

NORMAL

18 MIN FAST DRY

DELICATES

TIME DRY

INSTANT REFRESH

TEMPERATURE (temp)

Sanitize	√	√	√
High	√	√	√	√
Normal			√	√	√	√
Low					√	√
Eco Dry								√

DRYNESS

Max	√	√
High		√ √
Normal		√ √ √
Low			√		√
Damp			√		√

DRY TIME

Auto Dry	√	√	√	√
75 Min							√
60 Min							√
45 Min							√
30 Min							√

OPTIONS

Perfect Steam			√	√	√
Wrinkle Release	√	√	√	√	√
Extended Tumble	√	√	√	√	√
Drum Light	√	√	√	√	√	√
Delay Time	√	√	√	√	√	√
Control Lock	√	√	√	√	√	√
Dry Boost	√	√	√	√	√

√ = Available selections. □ = Factory presets. ■ Non-modifiable presets.

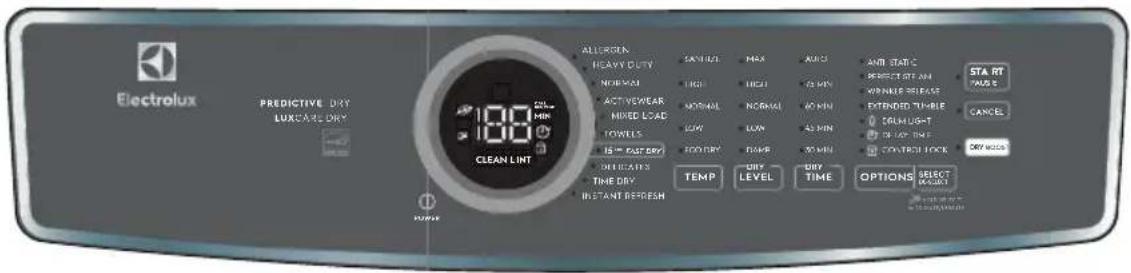

Setting chart - 500 series dryer

Electrolux PREDICTIVE DRY LUXCARE DRY 180 ALLEROUN HEAVY DUTY NORMAL ACTIVEWEAR MIND LEAD TOWELS IS THE BARRY DELICATES TIME DRY INSTANT REFRESH FULL SHORT SHORTLY SHORT SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY SHORTLY

These temperature, dryness levels and options are available with the following cycles:

CYCLE SELECTIONS

ALLERGEN

HEAVY DUTY

NORMAL

ACTIVE WEAR

MIXED LOADS (COLORS)

TOWELS

15MIN FAST DRY

DELICATES

TIME DRY

INSTANT REFRESH

TEMPERATURE (temp)

Sanitize	√	√				√			√
High	√	√			√	√	√		√	√
Normal		√	√	√	√	√			√
Low			√	√	√	√		√	√
Eco Dry (No Heat/Air)									√

DRYNESS

Max	√	√	√			√
High		√	√	√	√	√
Normal		√	√	√	√	√		√
Low			√	√	√			√
Damp			√		√			√

DRY TIME

Auto Dry	√	√	√	√	√	√		√
75 Min									√
60 Min									√
45 Min									√
30 Min									√

OPTIONS

Anti-Static		√	√	√	√	√		√
Perfect Steam			√	√	√	√		√		√
Wrinkle Release	√	√	√	√	√	√		√	√
Extended Tumble	√	√	√	√	√	√		√	√
Drum Light	√	√	√	√	√	√	√	√	√	√
Delay Time	√	√	√	√	√	√	√	√	√	√
Control Lock	√	√	√	√	√	√	√	√	√	√
Dry Boost	√	√	√	√	√	√	√	√	√

√ = Available selections. □ = Factory presets. ■ = Non-modifiable presets.

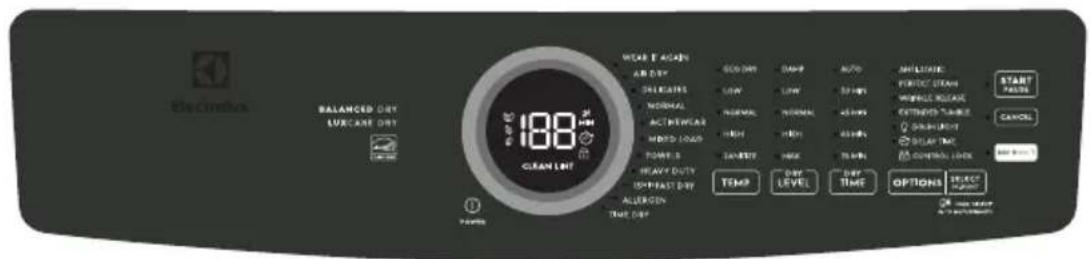

Setting chart - 600 series dryer

Electrolux BALANCED DRY LUXCARE DRY 189 GREEN LINT ALLERGEN HEAVY DRY NORMAL ACTIVISWEAR MINIUSABLE TOWERS MUT DRY DESICATES AIR DRY TIME DRY INSTANT REFRESH POWER CAN INS HIGH HIGH MINI MINI LOW LOW LOW DRY TEMP MAX MAX MAX DRY MINI MINI MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DRY MINI DCRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DCRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY MAX DRY ST A R T PA I S E CANCEI

These temperature, dryness levels and options are available with the following cycles:

CYCLE SELECTIONS

ALLERGEN

HEAVY DUTY

NORMAL

ACTIVE WEAR

MIXED LOADS (COLORS)

TOWELS

15 MIN FAST DRY

DELICATES

AIR DRY

TIME DRY

INSTANT REFRESH

TEMPERATURE (temp)

Sanitize	√	√				√				√
High	√	√			√	√	√			√	√
Normal		√	√	√	√	√				√
Low			√	√	√	√		√		√
Eco Dry (No Heat/Air)									√	√

DRYNESS

Max	√	√	√			√
High		√	√	√	√	√
Normal		√	√	√	√	√		√
Low			√	√	√			√
Damp			√		√			√	√

Dry Time

Auto Dry	√	√	√	√	√	√		√	√
75 Min										√
60 Min										√
45 Min										√
30 Min										√

OPTIONS

Anti-Static		√	√	√	√	√		√
Perfect Steam			√	√	√	√		√			√
Wrinkle Release	√	√	√	√	√	√		√	√	√
Extended Tumble	√	√	√	√	√	√		√	√	√
Drum Light	√	√	√	√	√	√	√	√	√	√	√
Delay Time	√	√	√	√	√	√	√	√	√	√	√
Control Lock	√	√	√	√	√	√	√	√	√	√	√
Dry Boost	√	√	√	√	√	√	√	√		√

√ = Available selections. □ = Factory presets. ■ = Non-modifiable presets.

Setting chart - 700 series dryer

Electric bus BALANCED DRY LUXCARE DRY 188 GREEN LIME WIRE T AGAIN AIR DRY DELICATES NORMAL ACTIVITIES MIDDL LOGS POOLS HEAVY DUTY IMP-FAST DRY ALUERGEN TIME DRY GOLD DRY CAMP LOW LOW NORMAL HIGH HIGH SHORT SHORT TEMP OFF LEVEL OFF TIME OPTIONS SELECT CURRENT

These temperature, dryness levels and options are available with the following cycles:

CYCLE SELECTIONS

ALLERGEN

HEAVY DUTY

NORMAL

ACTIVE WEAR

MIXED LOADS (COLORS)

TOWELS

15 MIN FAST DRY

DELICATES

AIR DRY

TIME DRY

Wear it again

TEMPERATURE (temp)

Sanitize

√

√

√

√

High

√

√

√

√

√

Normal

√

√

√

√

√

√

Low

√

√

√

√

√

Eco Dry (No Heat/Air fluff)

√

√

DRYNESS

Max

√

√

√

√

High

√

√

√

√

√

Normal

√

√

√

√

√

√

Low

√

√

√

√

Damp

√

√

√

√

Dry Time

Auto Dry

√

√

√

√

√

√

√

√

75 Min

√

60 Min

√

45 Min

√

30 Min

√

OPTIONS

Anti-Static

√

√

√

√

√

√

Perfect Steam

√

√

√

√

√

√

Wrinkle Release

√

√

√

√

√

√

√

√

√

Extended Tumble

√

√

√

√

√

√

√

√

√

Drum Light

√

√

√

√

√

√

√

√

√

√

Delay Time

√

√

√

√

√

√

√

√

√

√

Control Lock

√

√

√

√

√

√

√

√

√

√

Dry Boost

√

√

√

√

√

√

√

√

√

√ = Available selections. □ = Factory presets. ■ = Non-modifiable presets.

Cycle selection

Selecting the right cycle to save energy

This dryer has been specifically designed with options to help you save energy and at the same time utilize the optimal drying setting for your clothing.

The energy efficiency rating is based on the Normal Cycle using the Normal temperature setting and the normal dryness level.

Some cycles save more energy than others. Cycles that use the least amount of heat save the most energy and display the leaf icon Ⓧ on the console. Use the lowest heat setting (auto and timed dry cycles) and less dry setting (auto dry cycles) to save on energy and prevent over drying your clothing.

Press the power button to turn on the unit. Turn the cycle selector in either direction or repeatedly press the cycles button (depending on your model) to scroll to the desired cycle. The indicator light for the cycle selected will be illuminated and the estimated drying time for Auto Dry cycles or the actual drying time for Time Dry cycles will be displayed on the LED display screen.

Default settings and options will automatically be indicated for the cycle selected. In most cases cycle settings and options can be changed. See Cycle Settings, Cycle Options, and Setting Charts for more details.

To change the cycle once it has begun, press the cancel button before selecting a new cycle. Turning the cycle selector ring or pressing the cycles button WILL NOT change the cycle.

Auto dry cycles

Auto dry cycles take the guesswork out of selecting the correct drying time for each load. Moisture sensors sense the moisture level of the load as it tumbles through the heated air. With auto dry cycles, the load will automatically be dried at the selected temperature to the desired dryness level.

Auto dry cycles save time and energy and protect fabrics. When the load has reached the selected dryness level, it will continue to tumble, unheated, during a cool down period. This helps reduce wrinkling and makes items easier to handle during unloading.

NOTE

Initial cycle times for auto dry cycles are only estimates, the actual drying time may differ slightly from the time displayed.

Drying times vary depending on size and dampness of the load and fabric type. If the load is too small or almost dry, the moisture

sensors may not detect enough moisture to continue the cycle and the cycle may end after a few minutes. If this occurs, then select the time dry cycle to dry such loads.

Room temperature and humidity, type of installation and electrical voltage or gas pressure can also affect drying time.

NOTE

Models equipped with the Predictive Dry feature use the first 90 seconds of Auto Dry cycles to sense the load in the dryer. During this 90 second period the LED display will show 2 circling lines. When the sensing is complete, the LED display will show the remaining cycle time in minutes and accurately count down to the end of the cycle.

Timed dry cycles

The timed drying cycles allow the selection of exact drying times. The time dry cycle allows the option to select drying time settings ranging from 30 to 75 minutes (depending on the model). Various drying times and temperature settings can be selected when using this cycle.

The fast dry cycles (on select models) have preset times of 15, 18 or 20 minutes (dependent on model) with a preset temperature of high only.

Dryness levels will not be an available option when using either of the timed drying cycles.

WARNING

FIRE HAZARD

To avoid fire hazard, DO NOT use heat to dry items containing feathers or down, foam rubber, plastics similarly textured, rubber-like materials. Use the time dry cycle and the eco dry (no heat) setting.

Cycles

LOAD LOAD	TYPE CYCLE PRESET
ALLERGEN(select models)	Allergen removal(not for items prone to heat damage)	high temperature*maximum dryness*auto dry*
BULKY(select models)	Large loads and durable fabrics(such as towels, jeans and overalls)	high temperaturemaximum drynessauto dry*
HEAVY DUTY(select models)	Large loads and durable fabrics(such as jeans and overalls)
NORMAL Everyday loads(cottons, linens and sheets)		normal temperaturenormal drynessauto dry*
ACTIVEWEAR(select models)	Lightweight synthetic athletic apparel(synthetic athletic fabrics and stretch fabrics)	low temperaturenormal drynessauto dry*
MIXED LOAD(select models)	Mixed load of fabrics · normal temperature	normal drynessauto dry*
TOWELS(select models)	Large loads and durable fabrics(such as towels, jeans and overalls)	high temperature*maximum dryness*auto dry*
FAST DRY(varies by model)15/18/20 min.	Small loads of 3 to 5 garments · high temperature*	preset time*(15,18 or 20 minutes)
DELICATES Knit fabrics and delicates · low temperature*		normal drynessauto dry*
TIME DRY Manually set drying time, heat and dry levelfor any type of load		normal temperature30-75 minutes time
AIR DRY	Small loads of 3 to 5 garments	no heat
INSTANT REFRESH(select models)	Refresh fabrics, remove odors and reducestatic by injecting steam into clothing.	high temperature*perfect steamTM*
WEAR IT AGAIN(select models)	Optimized cycle to reduce odors, pet hairand wrinkles on slightly used clothing,allowing them to be worn once again beforea complete washing cycle.	high temperature*perfect steamTM*preset time*

* setting can not be changed from preset.

NOTE

It is not recommended to use fabric softener sheets with steam cycles or steam options as it may cause staining on clothes.

NOTE

To change a cycle setting once the cycle has begun, press the start/pause button, make the new selection and press start/pause again.

Cycle settings

To set or change the drying temperature, dryness level, or drying time press the temp, dryness or time dry buttons to scroll to the desired settings. The indicator light for each setting will be illuminated when selected.

To protect your fabrics, not all temperatures or dryness levels are available with every cycle. If a temperature or dryness level is not appropriate for the cycle, it cannot be selected and will not be lit when scrolling through the settings.

With exception of the sanitize and perfect steam ^™ , adjustments made to cycle settings and options will be remembered and recalled each time that cycle is selected in the future.

Front view of a computer control panel with buttons and dials (no text or symbols visible)

To return to factory settings, press the dryness and options buttons at the same time and hold until the signal sounds.

Drying temperature (temp)

To change the temperature, press the temp button to scroll to the desired setting.

For best results

Follow the fabric care label instructions on items to be dried.

sanitize (on select models)

Recommended for durable fabrics and towels. Use this selection to remove harmful bacteria from your clothing or other items where sanitization is desired. This option will kill 99.9% of bacteria using a higher temperature required to kill bacteria. Please check fabric care labels to prevent damage.

high

Recommended for most cotton fabrics.

normal

Recommended for wrinkle free, easy care, lightweight fabrics and bulky loads.

low (on select models)

Recommended for delicate fabrics.

eco dry (no heat)

This setting should only be used with a time dry cycle to dry items containing feathers, down, foam rubber, plastics or rubber-like materials; to refresh clothing, stuff ed animal, pillows or blankets; and to dust draperies.

Dryness level (dryness)

To set or change the dryness level, press the dryness button to scroll to the desired setting.

The dryness levels include max (on select models), high, normal, low (on select models), and damp. Most Auto Dry cycles default to the normal dryness level.

Occasionally a load may seem too damp or over-dried at the end of the cycle. To increase drying time for similar loads in

the future, select high or max (on select models). To decrease drying time for similar loads, select less (on select models).

Select damp for items you wish to partially dry before hanging or ironing.

Drying time (time dry)

Manually select or change the drying time for a time dry cycle (on select models) by pressing the time dry button to scroll though the available options. Time dry options include 30, 45, 60 and 75 minutes (dependent on model).

The auto selection is a default for all auto dry cycles and fast dry cycles and cannot be selected or changed. All actual or predicted dry times will count down on the LED display.

Cycle options

To select an option, press options and scroll though the options until the indicator light for the desired option fl ashes, then press select (set). The indicator will illuminate when the option has been selected. Follow the same steps to deselect an option. The indicator light will turn off when the option is deselected.

options

select de-select

NOTE

To change a cycle option once the cycle has begun, press the start/pause button, make the new selection and press start/pause again.

To protect your fabrics, not all options are available with every cycle. If an option is not available for a cycle, the indicator will not light.

Occasionally, two options or settings in the same cycle will conflict with each other, like the perfect steam option and sanitize temperature (on select models). When this happens, the option selected first will cause the conflicting option to not be selectable.

perfect steam™ (on select models)The perfect steam™ option injects steam into the clothing prior to cool down to reduce wrinkling, ironing and static cling.

NOTE

It is not recommended to use fabric softener sheets with steam cycles or steam options as it may cause staining on clothes.

anti-static (on select models)

The anti-static option injects steam into the clothing just before cycle completion to reduce static.

dry boost

This option increases the drying eff ectiveness for heavier fabrics or bulky loads by increasing the drying temperature by less than 20^ F ( >1^ C). (Varies based on cycle selection).

leaf icon

This icon will appear on the console when the dryer is using energy efficient settings. These settings use less heat and longer cycle times to dry. The dryer will always default to the energy efficient Normal cycle with the leaf icon displayed. For 700 models, the eco indicator has 3 levels: the higher the number of leaves, the more eco friendly.

wrinkle release

The wrinkle release option helps prevent wrinkles and tangling by tumbling the dry load without heat for 5 minutes out of every 10 minutes. The 5 minutes on and 5 minutes off is repeated for a total 45 minutes. A chime will sound after each tumble as a reminder to remove the dried load.

NOTE

When extended tumble and wrinkle release options are both selected the amount of time the load will tumble without heat will increase to a period of up to 75 minutes.

extended tumble (on select models)

Select the extended tumble option if the dried load might not be removed promptly at the end of the cycle. The dried load will tumble continuously without heat for 30 minutes. A chime will sound periodically to remind you to remove the dried load.

delay time (on select models)

Use delay time to delay the start of the drying cycle to a time convenient to your schedule or during off -peak energy hours. The start of any cycle can be delayed for 30 minutes to 12 hours. After selecting the delay time option, use the cycle button

(models 300/400) or the cycle selector (models 500/600/700) to scroll to the desired delay time and press start. The delay time icon will illuminate on the LED display to indicate the delay time option is activated, The delay time will begin counting down on the LED display once activated.

NOTE

While counting down during delay time, you will notice your dryer periodically tumbling for a few minutes without heat to redistribute the load, maximizing load freshness.

control lock

To lock the controls between cycles, scroll to the control lock option and press select. The control lock icon will show on the LED display. To unlock the controls scroll to the control lock option again and press select. Use this feature to reduce the likelihood of accidental operation by children. Dryer cycles will not run when Control Lock is activated.

chime

A signal will sound at the end of the cycle (and periodically during extended tumble or wrinkle release). To mute or unmute the chime, press and hold the select button for 3 seconds.

options select de-select

hold 'select' 3 s to mute/unmute

Other features

LED display

CALL SERVICE MIN 100 CLEAN LINT

188 MIN ON CLEAN LINT

Icons may vary according to model.

The estimated cycle time for auto dry, the actual time for time dry, or the delay time countdown will be displayed when the cycle is selected. Once the cycle has started, the estimated remaining time will be displayed for the remainder of the cycle.

Models equipped with the Predictive Dry feature use the first 90 seconds of Auto Dry cycles to sense the load in the dryer. During this 90 second period the LED display shows 2 circling lines. When the sensing is complete, the LED display shows the remaining cycle time in minutes and accurately count down to the end of the cycle.

Delay time, leaf, control lock, mute icons (select models) and CLEAN LINT will also appear on this LED display when activated.

Drum light (on select models)

The drum light will come on whenever the door is opened to illuminate the drum during loading and unloading. Closing the door turns off the light. The drum light will automatically turn off if the door is left open more than 3 minutes. Select the drum light option to enable or disable the drum light.

Reversible door

The dryer is equipped with a reversible door. The door can be hinged on the right or left side.

NOTE

For step-by-step instructions on door reversal, refer to the installation sections of this manual.

LuxCare™ Lint Shield fi Iter

The dryer is equipped with a clamshell style LuxCare™ Lint Shield fi Iter.

Technical line drawing of a curved mechanical component with internal grating (no text or symbols)

WARNING

Clean the filter after every load. A CLEAN LINT message will appear on the LED display at the end of the cycle to remind you to remove the lint from the filter.

NOTE

For step-by-step instructions cleaning the lint filter, refer to Cleaning the Filter in the Care and Cleaning section of this Use & Care Manual.

Operating the dryer

WARNING

To reduce the risk of fire, electric shock or injury to persons, read the Important Safety Information in this Use & Care Manual before operating your dryer.

WARNING

DO NOT operate dryer without lint filter in place.

WARNING

Clean the lint fi Iter after every load.

STEPS	TIPS IMPORTANT
1. Prepare load for drying.	Dry items of similar fabric, weight and construction in the same load.Separate dark items from light-colored items. Separate items that shed lint from those that attract lint.Check for stains which may not have been removed in washing. Repeat stain removal process and wash again before drying. Dryer heat may permanently set some stains.Place delicate, rubber coated, or small items in a mesh bag (not included).Be sure buckles, buttons and trim are heatproof and won't damage the drum fi nish. Close zippers; fasten hooks and loop fasteners. Tie strings and sashes to prevent snagging and tangling.	DO NOT machine wash items containing fi berglass. Small particles of fi berglass left in drum may transfer to fabrics in other loads and cause skin irritation and/or damage to fabrics.DO NOT wash water resistant and water repellent type clothing or other materials.
2. Check that the lint fi lter is clean and in place.		DO NOT operate dryer without lint fi lter in place.
3. Load the dryer and close the door.	Load items loosely. The average wet load will fi ll the drum 1/3 to 1/2 full. Items need room to tumble freely for even drying and less wrinkling.If desired, place a dryer fabric softener sheet on top of the load at the beginning of the cycle.When drying large items, dry only two or three items at a time. Fill out the load with smaller items.For delicate or very small loads, add two or three similar items to improve tumbling action.	DO NOT overload the dryer. To save energy, time and avoid uneven drying and wrinkling avoid overloading the dryer.DO NOT over-dry. Over-drying can cause wrinkles, shrinkage, lint, and a build up of static electricity.
1. Select the appropriate cycle and settings for each load.	SeeCycle SelectionandCycle Settingsfor detailed descriptions of cycle controls.SeeCycle Setting Chartsto determine which settings are available for each cycle.To provide the best care, not every setting or option is available with every cycle. If a setting or option is not available for the cycle selected, the indicator will not light. SeeSetting Chartfor information of available options for each cycle by model.Adjustments made to most cycle settings will be remembered each time the cycle is selected in the future. When the dryer is powered on, the default cycle will be the normal cycle. Select your desired cycle and previous settings will remain. To return to factory settings, press the dryness button and the options button at the same time and hold until the signal sounds.	Over-drying can cause wrinkles, shrinkage, lint, harshness, and a build up of static electricity.To prevent unintentional and accidental exposure of delicate material to excess heat or unexpected steam, thesanitizetemperature setting and theperfect steamTMoption will not be remembered and must be reselected each time.
2. Close the dryer door and start the drying cycle.	To start the drying cycle, close the door and press thestart/pausebutton.To add an item to the dryer drum, pressstart/pause.Add the item, close the door and pressstart/pauseto resume the cycle.To change settings or options after the cycle has begun, pressstart/pause, change the settings, and then pressstart/pause. If the cycle is not paused first, the unit will emit several beeps when the buttons are pressed but no changes to the cycle will be applied.To change the cycle once the cycle has begun, presscancelto cancel the cycle, select the new cycle, and pressstart/pauseto begin the new cycle. Changing a cycle selection without cancelling the currentWILL NOTchange the cycle.To cancel a cycle, presscancel.	The dryerwill notoperate with the door open.When drying a single large or bulky item, such as a comforter, pause the cycle part way through to turn the item “inside out” and maximize drying eff ectiveness.
3. Remove items when done.	A signal will sound at the end of the cycle if the chime option is not set to mute.Immediately remove items when the cycle is completed and hang or fold.	See product manufacturer’s instructions.
4. Clean the lint filter.	See Care and Cleaning section of this instruction.CLEAN LINTwill be displayed at the end of the cycle as a reminder to remove lint from filter.	ALWAYS REMOVE LINTat the end of the cycle (see warning on previous page).

Normal operating sounds

You may or may not hear the following sounds from your new dryer:

1. WATER VALVE (Steam models only.) The flow of water is controlled by electric solenoids. During operation there may be a clicking sound as the valve opens and closes to control the water flow.

2. SUSPENSION ROLLERS The dryer drum is supported by a set of suspension rollers. At times there may be a thumping or rolling sound when the dryer starts. This may happen if the dryer has not been in use for a period of time, or after a heavy load has remained in the dryer drum for an extended period, creating a temporary fl at spot on the edge of the roller. The noise should dissipate as the dryer operates and the fl at spots smooth out.

3. AIR FLOW SYSTEM Your dryer is equipped with a high volume air handling system. In some installations there may be some sounds associated with air movement throughout the dryer, including the air duct, blower, and exhaust system. This is normal and can vary with load size and type.

4. GAS VALVE (Gas models only.) The flow of gas is controlled by electric solenoids. During operation there may be a clicking sound as the valve opens and closes to control the gas flow.

5. GAS BURNER (Gas models only.) When the burner is operating, there may be sounds generated as the air flow mixes with the gas flame. This noise is normal and will only occur when the gas is ignited in the combustion tube.

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

Before operating your dryer

Read the important instructions in this section of the Use & Care Manual before operating your dryer.

WARNING

To reduce the risk of fire, electric shock or injury to persons, read the Important Safety Information in this Use & Care Manual before operating your dryer.

WARNING

To reduce risk of fire or serious injury to persons or property, comply with the basic warnings listed in the Important Safety Information and those listed below.

Cleaning the fi Iter

WARNING

Clean the lint fi Iter after every load. CLEAN LINT will be displayed at the end of the cycle to remind you to remove lint from the fi Iter.

Clean the lint fi Iter after every load. Lint build-up on the fi Iter restricts air flow, which causes longer drying times. The fi Iter is located at the bottom of the door opening.

Cleaning the LuxCare™ Lint Shield fi Iter

1. Remove the filter by pulling it straight up from the dryer.

Diagram of a device with an open lid and internal compartments, showing a magnified view of the lid (no text or symbols present)

1. Press down the button on the top of the filter to open the clamshell.

FOREX OPEN

1. Gently clean the lint from the filter.

2. Snap the filter closed and place back into the dryer.

IMPORTANT

• DO NOT open the clamshell filter beyond the hinge limit.
• ALWAYS handle the clamshell filter by the frame, not by the mesh material.

Inside

• Occasionally a waxy build-up may form on the lint fi liter and/or moisture sensing bars from using dryer-added fabric softener sheets. To remove this build-up, wash them with warm, soapy water. Dry the fi liter thoroughly and replace. DO NOT operate the dryer without the lint fi liter in place.
• If the dryer drum becomes stained from non colorfast fabrics, clean the drum with a damp cloth and a mild liquid household cleanser. Remove cleanser residue before drying the next load.
• Before cleaning the dryer drum interior, unplug the electrical power cord to avoid electrical shock hazards.
• DO NOT use any type spray cleanser when cleaning the dryer interior. Hazardous fumes or electrical shock could occur.
• Every 18 months a qualified service professional should clean the dryer cabinet interior, lint screen housing and exhaust duct. These areas can collect lint and dust over time. An excessive amount of lint build-up could result in inefficient drying and possible fire hazard.

Outside

• Clean the dryer cabinet with mild soap and water. Never use harsh, gritty or abrasive cleansers.
• If the cabinet becomes stained, clean with diluted chlorine bleach (1 part bleach to 8 parts water). Rinse several times with clear water.

• Remove glue residue from tape or labels with a mixture of warm water and mild detergent. Or, touch residue with the sticky side of the tape or label.

• When cleaning chrome parts, it is best to use only a damp cloth.

• Before moving the dryer, place a strip of cardboard or thin fi berboard under the front leveling legs to prevent damage to the floor.

WARNING

FIRE HAZARD

A clothes dryer produces combustible lint. The dryer must be connected to an outdoor exhaust. Regularly inspect the outdoor exhaust opening and remove any accumulation of lint around the opening and in the surrounding area.

IMPORTANT

DO NOT store or place laundry products on top of dryer at any time. They can damage the finish or controls. It is recommended to keep laundry products in the storage drawer between cycles if installed on a pedestal.

Line drawing of a washing machine with a prohibition symbol overlay (no text or symbols present)

Water inlet hose inspection (steam models only)

Periodically inspect all water inlet hoses for water leaks, wear, cuts, corrosion and bulges. Replace all hoses, if any sign of the above is visible. All hoses should be replaced every 5 years to reduce the risk of hose failures. When replacing hoses, refer to the installation instructions for proper installation. DO NOT overtighten or cross

thread the fittings. DO NOT allow the hose to rub against sharp objects. Always ensure the hose fitting rubber gasket is installed and free from water leaks when water pressure is applied.

Limited use, vacation, and away from home

CAUTION

Your dryer should be operated ONLY when you are home. If you are away from home or not using your dryer for extended periods of time, follow these steps:

1. Turn off the water supply to dryer (steam models only) to avoid water leaks due to water pressure surges and unforeseen occurrences in the water supply.
2. Disconnect or unplug the electrical power to the dryer.

Reconnecting water supply and electrical

IMPORTANT

When reinstalling the dryer after disconnecting the water supply lines (steam models only) and electrical power, please follow the steps below:

1. Review the installation instructions provided with the dryer to ensure the appliance is level and the water and electrical power supply is properly connected.
2. Ensure the water lines are flushed of debris, prior to connecting the water lines to the dryer inlet.
3. Check for water leaks and replace supply hoses if needed.

Common drying inquiries

Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.

PROBLEM	POSSIBLE CAUSES	SOLUTIONS PREVENTIVE MEASURES
Greasy, oily stains	·Fabric softener sheet	·Rub fabric softener stains with bar soap. Rinse and rewash.
Lint · Overloading	·Overdrying causes static electricity·Lint screen not clean when cycle began·Lint is attached to "pills"	·Reduce load size and rewash using liquid fabric softener in the final rinse.·Or, add a fabric softener sheet and tumble without heat.·Use lint brush or roller to remove lint.
Pilling (fi bers break off, ball up and cling to fabric)	·Overdrying · Use	·a lint brush or shaver to remove pills.
Shrinking · Temperature too high·Overdrying	·Irreversible condition.	·Follow fabric care label directions.·If shrinking is a concern, check load often.·Remove items while slightly damp and hang or lay fl at to complete drying.·Block knits into shape.
Wrinkling · Overloading	·Leaving items in dryer after cycle ends	·Reduce load size and tumble at medium or low heat for 5-10 minutes.·Remove items immediately. Hang or fold.
Isolated wet spots on fabrics after completed Steam cycle	·Low water pressure in home is not suffi cient to atomize incoming water during steam cycle	·Check water line pressure.

Before calling

Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this dryer.

PROBLEM POSSIBLE CAUSES SOLUTIONS
Dryer does not start.	Electrical power cord is not securely plugged in or plug may be loose.House fuse blown or circuit breaker tripped.Action of pressing start button on “touch screen” style console not recognizedThermal limiter tripped.Delay time inadvertently activated.Door may be open. Unit will not operate with door open.Diffi cult load to dry.	Make sure the plug fi ts tightly in wall outlet.Reset circuit breaker or replace fuse.Make sure electrical line is not overloaded and the dryer is on a separate circuit.Press start button with bare fi ngertip.Call authorized service person for replacement.Ensure delay time not activated.Ensure door is closed.Select Dry Boost option
LED displays "dn".	Dryer has been programmed to temporarily perform a repeating demo cycle.	Reset the unit back to factory default settings as described earlier.
Dryer runs but won’t heat.	There are 2 house fuses in the dryer circuit. If 1 of the 2 fuses is blown, the drum may turn but the heater will not operate (electric models).Gas supply valve is not open (gas models).Dryer does not have enough air supply to support the burner fl ame (gas models).LP gas supply tank is empty or there has been a utility interruption of natural gas (gas models).	Replace fuse.Check to make sure supply valve is open. Refer to the installation instructions provided with the dryer.See the Installation sections of this manual.Refi ll or replace tank. Dryer should heat when utility service is restored.
Drying cycle takes too long, outside of the dryer feels too hot or smells hot.	Lint filter is clogged with lint.Exhaust duct requirements have not been met.Electric dryer is connected to a 208 volt circuit.Drying procedures have not been followed.Outside exhaust hood or exhaust duct may be clogged or restricted.High humidity.	Make sure all lint has been removed from the dryer lint filter before starting each cycle.Exhaust duct must be at least 4 inches in diameter and made of rigid or semi-rigid metal.When in place, the duct must not exceed length listed in the installation instructions.Drying time will be 20% longer than drying on a 240 volt circuit.See Operating Instructions.Clean out any obstruction.Use a dehumidifi er near the dryer.
Excess moisture in drum between cycles.	Exhaust damper stuck open or not present.	Fix or clean the damper, or install new one.
Excessive wrinkling.	Dryer is overloaded.Items left in dryer too long.Insuffi cient sorting of items.Drying temperature too high.Drying load is very small.	DO NOT overload. See Operating Instructions.Remove items as soon as cycle ends.See Operating Instructions.Follow fabric care label instructions.Add two or three larger items.
Scratching or chipping of the drum finish.	Foreign objects such as coins, pins, clips or buttons are inside the dryer.*Permanently attached items such as belt buckles, zippers and fasteners may be hitting the inside of the drum.*	Always remove foreign objects from pockets before laundering. Remove objects from drum and restart dryer.It may be necessary to sew a scrap of material securely around ornaments before drying to prevent scratching and damage to the dryer.
* Drum damage caused by foreign objects or permanently attached items is not covered by the warranty.

For the applicable warranty period as set forth below, as measured from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Warranty Periods:

- All parts – One year including labor. In addition, your appliance is covered by a one year, parts only, limited warranty. During the 2nd year from your original date of purchase, Electrolux will pay for parts needed for this appliance that have proven to be defective in materials or workmanship when your appliance is installed, used, and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Products used in a commercial setting.
6. Service calls which DO NOT involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.
7. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
8. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.
9. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
10. Pickup and delivery costs; your appliance is designed to be repaired in the home.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

Use & Care Manual Clothes Dryer

Technical diagram of a washing machine with numbered components and cross-sectional views

Illustration of a medical or laboratory device with tubing and circular components (no text or symbols)

AVERTISSEMENT

RISQUE D'INCENDIE

Prohibition sign with crossed-out circle and no text, indicating no prohibition or exclusion

Diagram of a refrigerator interior showing ventilation slots and airflow direction (no text or labels)

Technical line drawing of two mechanical components (no text or symbols)

AVERTISSEMENT

RISQUE D'INCENDIE

Simple line drawing of a door with horizontal striped pattern and a hanging handle (no text or symbols)

Porte à persiennes

Illustration of a four-panel door with slatted cutouts and a handle (no text or symbols)

Diagram of a double door with open doors and laundry units, showing directional arrows indicating movement or flow (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Line drawing of a hand adjusting a pipe fitting (no text or symbols)

Line drawing of a hand using a pliers to adjust or install a pipe fitting (no text or symbols present)

Illustration of a hand pouring liquid into a bucket with a faucet (no text or symbols)

Line drawing of a hand using a tool to adjust or install a pipe with two valves (no text or symbols present)

Line drawing of a hand connecting a pipe fitting to a valve (no text or symbols)

Diagram of a device's internal components with a hand pointing to a circular component (no text or symbols)

Technical line drawing of a mechanical component with two circular insets showing close-ups of parts (no text or symbols)

Illustration of three electrical plug symbols: three circular socket, two straight plug with terminal, and one black plug with four pins (no text or labels)

AVERTISSEMENT

Diagram showing a device with directional arrows indicating motion or force, no text or symbols present

Diagram showing a device with directional arrows and a magnified view of its internal components (no text or symbols)

Diagram showing a mechanical component with arrows pointing to a washing machine (no text or symbols present)

Diagram showing a mechanical component with arrows pointing to a circular inset view of its side, alongside a close-up of a washing machine (no text or symbols present)

Diagram showing a device with labeled parts and directional arrows, including a magnified view of the interior panel.

Diagram showing a device with a close-up view of its internal components, no text or symbols present.

Line drawing of a fork-like tool with two blades and a handle (no text or symbols)

Electrolux BALANCED BY LUXCARE DRY 100% CLEAN UNIT POWER 1 2 3 4 5 6 7 8 9 10 11 A FERGEN HEAVY DUTS NECKMAN AUTOWING FREE CLOSING POOLS ST CARRY DELICATES AS DRY TIME DRY INSTANT REFERENCE- GARLES MAX HIGH MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI

SÉRIE 700

BALANCED DRY LUB/CART DRY 180 CLEAN LUNT WHAT IT ALGAR AIR DAY DELEATED SHORT ACTIVITIES SPEED LOAD TOWERS SHORT OUTLET SHORT OUTLET ALLIAGEN TIME DRY TEMP OFF LEVEL OFF TIME OPTIONS SELECT ON START PANEL CANCRETE 1 2 3 4 5 6 7 8 9 10 11

Front view of a computer monitor with control buttons and indicator lights (no text or symbols visible)

options select de-select

hold 'select' 3 s to mute/unmute

Autres fonctions

Affi chage à DEL

CALL SERVICE MIN 100 CLEAN LINT 100 CLEAN LINT

Technical line drawing of a curved mechanical component with internal grid structure (no text or symbols)

AVERTISSEMENT

Technical diagram of a mechanical device with labeled parts A, B, C, D, and E

Diagram of a device with an open lid and internal components, showing a magnified view of the lid (no text or symbols present)

Line drawing of a washing machine with a prohibition symbol overlaid (no text or labels)

Technical diagram of a washing machine with numbered components and cross-sectional view

Illustration of a medical or surgical device with multiple earbuds and tubing (no text or symbols)

ADVERTENCIA

PELIGRO DE INCENDIO

Diagram of two mechanical or electrical setups with vertical supports and a coiled hose, no text or symbols present

Correcto
Incorrecto

Prohibition sign with crossed-out circle and prohibition symbol over a computer monitor icon

Technical line drawing of two mechanical components (no text or symbols)

ADVERTENCIA

PELIGRO DE INCENDIO

Simple line drawing of a door with horizontal striped pattern and a hanging handle (no text or symbols)

Illustration of a four-panel door with slatted cutouts and a handle (no text or symbols)

Diagram of a double door with two doors open, showing front and back views of a washing machine (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure electrical circuit lines without any symbols

Line drawing of a hand connecting two pipe fittings (no text or symbols)

Line drawing of a hand using a pliers to handle a pipe fitting (no text or symbols)

Illustration of a hand pouring liquid into a bucket with a faucet (no text or symbols)

Line drawing of a hand using a tool to adjust or install a pipe fitting (no text or symbols present)

Line drawing of a hand connecting a pipe to a valve (no text or symbols present)

Diagram of a device's internal components with a hand pressing a button labeled '←' (no text or symbols present)

Diagram showing a door frame with two circular insets illustrating the components of a washing machine (no text or symbols present)

Illustration of three different types of electrical plugs: three circular socket, two plug-in socket, and one plug-in socket (no text or symbols present)

NOTA

Illustration of two screwdrivers with one showing a close-up view (no text or symbols)

Diagram showing a device with arrows indicating motion or force, next to a circular panel with mechanical components (no text or symbols)

Diagram showing mechanical components with directional arrows, including a magnified view of a device component (no text or symbols present)

Diagram showing a mechanical component with arrows pointing to a washing machine (no text or symbols present)

Diagram showing a door panel being installed into a washing machine, with no visible text or symbols.

Diagram showing a device with labeled components and directional arrows indicating movement or assembly.

Diagram showing a device interacting with a door panel, with arrows indicating movement or assembly (no text or symbols present)

Line drawing of a fork-like tool with two blades and a handle (no text or symbols)

Llave universal para electrodomésticos

Electrolux PREDICTIVE BUY LUCK OUT DRY 188 CLEAN LIST A. B. C. D. E. F. G. H. I. J. K. S. T. U. V. W. X. Y. Z. T. E. F. G. H. I. J. K. T. E. F. G. H. I. J. T. E. F. G. H. I. J. T. E. F. G. H. I. J. T. E. F. G. H. I. J. T. E. F. G. H. I. J. T. E. F. G. H. I. J. T. E. F. G. H. I. J. T. E. F. G. H. I. J. A. B. C. D. E. F. G. S. T. U. V. W. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. I. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G. H. T. E. F. G 100% T. E. F. G 100% T. E. F. G 100% T. E. F 100% T. E 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 100% T 10 2 95 81 11

SERIE 600 A GAS/ELÉCTRICO

Electrolux BALANCED DRY LUXCARE DRY 18:00 100 00 A LTRIGEN HEAVY DRY NORAN ACVOCWAR WHIP STACH TOMES 35" KATMERY DELICATES AIR DRY TIME DRY STAIN MURBUSH CLEAN UNT TEMP DRY LEVEL DEV TIME OPTIONAL SELECT SELECT ON START PASS CANCEL BY 80000 1 2 3 4 5 6 7 8 9 10 11

SERIE 700

BALANCED DRY LMCARE DRY 188 WHAR & AGGAR AIR DRY DRUGARS NORMAL ACTIVITIES MINT LOAD TEMPLE HEAVY DUTY WHIPD DRY RASSIGN THE DRY FOR KEY LOW HIGH MINI SHORT THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU THRU

Decoiva BALANCED DRY LUXCARE DRY GREEN 188 °F CLEAN LINT WEAT IT AGAIN AIR DRY BEANSYS NORMAL ACTRICHEAV HOLD LOAD TOWLES HEAVY DUTY TOMBAST DRY ALTERNATION TIME DRY RED DAY LOW NOMINAL HIGH SANSUR DAY LEVEL DRY TIME AUTO MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI START PAGES CANCEL DRY ROOTS

options select de-select hold 'select' 3 s to mute/unmute

180 CALL SERVICE MIN CLEAN LINT 180 CLEAN LINT

Technical line drawing of a curved mechanical component with internal grating and mounting brackets (no text or symbols)

ADVERTENCIA

Technical diagram of a mechanical device with labeled components A, B, C, D, and E

Diagram of a washing machine showing internal components and a close-up view of the lid (no text or symbols present)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows indicating movement or force.

Diagram showing a washing machine with a prohibition symbol crossed out, indicating no chemical waste or disinfection.

Electrolux Home Products, Inc.,

Norte América

10200 David Taylor Drive

Charlotte, NC 28262

Electrolux

Canadá

1-800-265-8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

CE

A20448905 (June / juin / junio 2024)
