USER MANUAL Enjoy 63 Melchioni

Black Melchioni Family microwave oven with control knobs and a gridded front panel (no visible text or symbols on main body)

IT Manuale d'uso

EN User manual

Illustration showing four types of kitchen appliances with prohibition signs, indicating no protection or disapproval.

Thank you for purchasing this product. Before use, it is recommended that you carefully read all the instructions and keep them for future reference. Do not use this appliance for purposes other than those described in this manual.

WARNING

- Remove the packing and make sure that the appliance is intact. In case of doubt do not use the appliance and contact our after-sales service. Do not leave packaging materials like bags and staples within reach of children.

- Before switching on appliance check if the electrical voltage and frequency of the circuit correspond to those indicated on the appliance.

- The appliance has to be connected to a circuit according to the rules in force concerning the civil plant. The plant has to be related to the nominal power of the appliance and has to be provided with an earth-wire.

- Use the appliance only for the mentioned purpose. Do not use it for any other application as it could get dangerous.

- The manufacture/importer is not responsible for any eventual damages caused by improper or faulty use.

- Never expose the appliance to atmospheric conditions (rain, sun, etc.)

- The appliance must be always placed on a flat and stable surface.

- When the appliance is not in use switch it off and unplug it. Make harmless the parts of the appliance which could be handled hazardously by children for playing.

- In case the power cord is damaged, send it to the nearest after sale service recommended by the manufacturer for the replacement.

- This appliance is not intended use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Do not connect the appliance to extension cords or multiple outlets.

- Do not damage and do not kink the power cord.

- Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

- Always use containers or dishes (not supplied) suitable for food contact and resistant to high temperatures.

- Do not place the food directly on the grill or on the pan but use pans, trays or special containers suitable for food contact and cooking in the oven.

- Do not touch the hot parts of the oven. Use the handle or knobs.

- To protect yourself from electric shock, do not immerse the cord, plug or any part of the oven's kitchen in water or other liquids.

- Do not let the cable come into contact with hot surfaces.

- Do not place the electric oven near a gas stove or other heat sources.

- During oven operation, keep at least 10 cm of space on all sides of the oven to allow adequate air circulation.

- Be extremely careful when moving an appliance containing hot oil or other hot liquids.

• Do not cover any part of the oven with metal or aluminum foil
• Do not clean with abrasive metal sponges, the pieces can break and touch the electrical parts, creating the risk of electric shock.
• Never leave the appliance unattended during operation
• Risk of fire if the oven is covered or touches flammable material, including curtains for curtains, walls. Do not store objects on the oven during operation.
• Do not put the following materials in the oven: cardboard, plastic, paper or the like.
• Always wear insulated oven protective gloves when inserting or removing objects from the hot oven.
• Do not use outdoors.

SPECIAL WARNING:

Attention: during operation, the oven can reach high temperatures. Do not touch the hot parts of the oven. Use the handle or knobs.

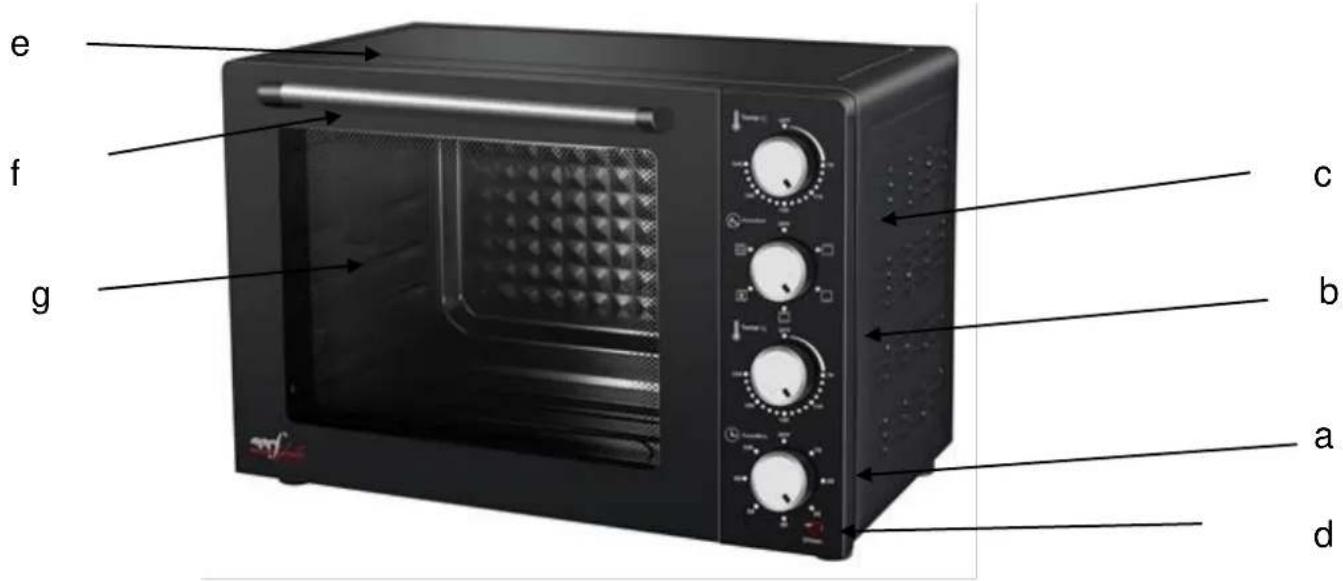

PARTS IDENTIFICATION

e f g c b a d

h

a. Timer control knob
b. Heating control knob
c. Temperature control knob
d. Indicator light

i

e. Housing
f. Door handle
g. Glass door
h. Bake tray

j

i. Wire rack
j. Tray handle
k. Girarrosto

k

CAUTIONS

Always use the tray handle when inserting or removing the tray.

Touching it directly will cause severe burns.

When hot, do not apply water to the glass window, it may cause the glass to break.

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during use. Doing so could prevent correct temperature control.

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.

ATTENTION: For cooking, we recommend using special containers suitable for food contact. No put the food direct on wire rack or tray.

BEFORE USING YOUR OVEN FOR THE FIRST TIME

Before using this oven cooker for the first time

1. Make sure that the oven is unplugged and the TIMER switch is in the "OFF" position
2. Remove all rack and pans and clean them in hot sudsy water.
3. Thoroughly dry all accessories and re-assemble in oven. Plug oven into socket and you are ready to use your new oven. After re-assembling your oven, we recommend that you run it at the MAX temperature, turn on all the function of oven and hot plates for approximately 15 minutes to eliminate any packing oil that may remain after shipping.

Note:

- Be careful when removing pudding and other hot liquids.

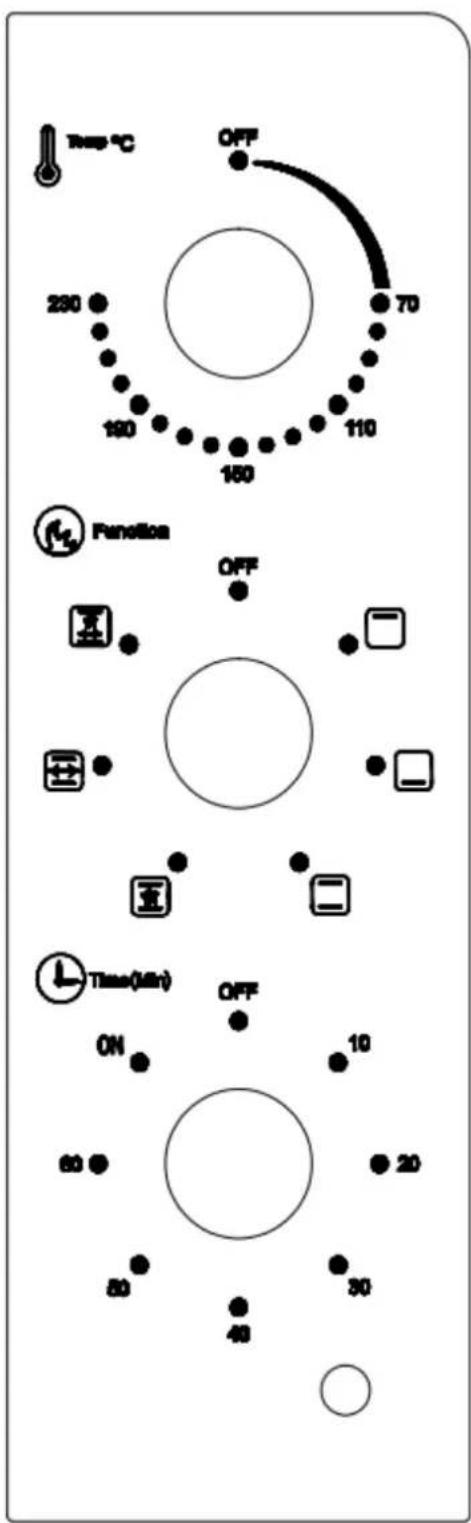

CONTROL PANEL: OPERATING AND INSTRUCTIONS

Temp °C 230 190 160 70 OFF 110 Panotion OFF Time (Min) ON 60 80 40 10 20 30 50

Temperature setting

Turn the temperature adjustment knob clockwise until reaching the desired value (from 100^ C to 230^ C).

The optimal temperature varies according to the food to be cooked.

Function setting

Select the optimal operating mode based on the food to be cooked.

The upper heating element is working

The bottom heating element is working

Both upper and bottom heating elements are working

Convection function working together with both upper and bottom heating elements

Rotisserie function is working together both upper and bottom heating elements

Both rotisserie and convection are working together

Timer setting

From 0-60 minutes adjustable

CLEANING AND MAINTENANCE OF THE APPLIANCE

Take off the plug and cool down before cleaning.

When cleaning, wash the interior and exterior surface, tray, grid, and food fork with soft cotton (or sponge) with neutral cleaner. Then wash with clean water. Do not use hard brush or any others to wash, so as not to scrape the interior surface of the oven, and to protect the tray, the net and the food fork.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

1. It is important that you clean the appliance after each use to prevent an accumulation of grease and avoid unpleasant odors.
2. Allow the appliance to cool and unplug from outlet before cleaning.
3. Do not immerse appliance in water or wash it under waterspout.
4. Removable wire rack, bake pan, crumb tray and rotisserie can be washed, as normal kitchenware.
5. Clean outside of appliance with a damp sponge.
6. Do not use abrasive cleaners or sharp utensils to clean the oven, as scratching may weaker it and cause shattering.
7. Let all parts and surfaces dry thoroughly prior to plugging oven in and using.
8. For any repairs, contact an authorized Technical Assistance Center.
9. This appliance has been designed for INDOOR USE ONLY and in the home: avoid any commercial or industrial use.

BAKING REFERENCE OF COMMON FOOD

TYPE OF FOOD	TEMPERTURE (°C)	SITE (SHELF)	TIME (minutes)
Bread	180	3	9-13
Cake	180	2	25-35
Fish	230	2	10-15
Chicken/Duck	220-230	2	30-45
Pancake	160	1	7-10
Beef	230	2	8-15
Egg/Peanut	125-150	2	6-10
Hot Dog	200	2	6-10
Hamburger	230	2	10-14

INSTRUCTIONS FOR USE

The first time you use the oven, you may notice a burning smell and / or smoke. This is normal, does not indicate a malfunction and will disappear within 20 minutes.

In general, it is not necessary to preheat the oven, since the appliance has had the test cycle on the production line. But you could get better results if you heat the oven before cooking some delicate dishes, such as meat and cakes.

HOW TO TOAST

1. Set the temperature control to 230^
2. Turn the operation knob to the position to use UPPER AND LOWER HEATING.
3. Place the pan on the wire rack. Close the oven door
4. Turn the timer knob to the desired cooking time.
5. At the end of cooking, turn the timer knob to the "Off" position to switch off the oven.

HOW TO BAKE

1. Place the grill in the desired position.
2. Place the pan on the wire rack. Close the oven door.
3. Turn the timer knob to the desired cooking time.
4. Turn the operation knob to the position to use the UPPER HEATING.
5. Turn the temperature knob to the desired one.
6. At the end of cooking, turn the timer knob to the "Off" position to switch off the oven

HOW TO BROIL

1. Insert the grill in the desired position.
2. Place the pan on the wire rack. Close the oven door
3. Turn the timer knob to the desired cooking time.
4. Keep the door half open.
5. Turn the thermostat knob to the position to use the LOWER HEATING.
6. Turn the temperature knob to the desired one.
7. At the end of cooking, turn the timer knob to the "Off" position to switch off the oven

HOW TO USE THE ROTISSERIE FUNCTION

This rotisserie function can be effected when you turn the "Heater &Function switch knob" to stage 6 or stage 7, which also have the "TOP&BOTTOM HEATING", while the Stage 7 is also with CONVECTION FUNCTION at the same time.

1. Set the thermostat control to max.
2. Set the function control to Rotisserie Insert the pointed end of SPIT through skewer, making sure the points of skewer face in the same direction as pointed end of the spit. Slide towards square of the spit and secure with thumbscrew.

3. Place food to be cooked on the spit by running the spit directly through the center of the food.

4. Place the second skewer into the other end of the roast of poultry and secure skewer with the thumbscrew.

5. Check the food is centered on the SPIT.
6. Insert the point end of the spit it into the DRIVE SOCKET make sure the square end of the spit rests on the spit support.
7. Turn the time control to the desired cooking time.
8. When complete, turn the TIME control to the OFF position.
9. Remove the spit by placing side the hooks of the rotisserie handle under the grooves on either side of the spit, Lift the left side of the spit first by lifting it up and out, Then pull the spit out of the drive socket and carefully remove the roast from the oven take the meat off the of the spit and place on cutting board or platter.
10. If you need convection function at the same time, please set the function control to rotisserie and convection.

HOW TO USE THE VENTILATION FUNCTION

This convection function can be effected when you turn the "Heater & Function switch knob" to stage 5 or 7, which also have the "TOP&BOTTOM HEATING", while the Stage 7 is also with rotisserie FUNCTION at the same time. turn on the temperature knob to 230C at the same time.

CAUTIONS

If the oven is positioned to close to a wall, the wall will be burned or stained. Be sure the curtain, etc., are not in contact with the body.

Do not put anything between the bottom of the body and the surface on which it is set, an object so placed could be burned.

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

Any bottled or tinned food can not be heated directly as the bottle or tin would be broken out and scald the person.

Be careful! Not to bum yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when opening and closing the door.

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. if it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet.

SPECIFICATION

Model ENJOY63

Power supply 220-240V \~ 50/60Hz

Power 2200 W

DISPOSAL

The producer Melchioni Spa declares that the product Electric Oven 2200W Mod. ENJOY63 (Cod. 118380027) is in compliance with Directive 2014/30/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The producer Melchioni Ready Srl declares that the product Electric Oven 2200W Mod. ENJOY63 (Cod. 118380027) is in compliance with Directive 2014/35/EU of the European Parliament and of the Council, of 26 february 2014, on the harmonisation of the laws of the Member States relating to the making available on the market of electrical equipment designed for use within certain voltage limits.

The producer Melchioni Ready Srl declares that the product Electric Oven 2200W Mod. ENJOY63 (Cod. 118380027) is in compliance with Directive 2009/125/EC of the European Parliament and of the Council, of 21 october 2009, establishing a framework for the setting of ecodesign requirements for energy-related products.

The producer Melchioni Ready Srl declares that the product Electric Oven 2200W Mod. ENJOY63 (Cod. 118380027) is in compliance with Directive 2011/65/EU of the European Parliament and of the Council, of 8 June 2011 and subsequent Commission Delegated Directive 2015/863, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

According to Directive 2012/19/EU of the European Parliament and of the Council, of 4 July 2012, on waste electrical and electronic equipment (WEEE), the presence of the crossed-out bin symbol indicates that this appliance is not to be considered as urban waste: its disposal must therefore be carried out by separate collection. Disposal in a non-separate manner may constitute a potential harm to the environment and health.

This product can be returned to the distributor when purchasing a new device. Improper disposal of the

appliance constitutes misconduct and is subject to sanctions by the Public Security Authority. For further information, contact the local administration responsible for environmental matters.
