USER MANUAL ErgoMixx MFQ37490 BOSCH

new device on MyBosch now and get free benefits:

bosch-home.com/ welcome

ErgoMixx

MFQ37...

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001311493

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[da]	Scan QR-koden, eller besøg hjemmesiden, for at åbne de udvidede anvisninger om anvendelse. Der kan der findes yderligere oplysninger om apparatet eller tilbehøret.
[no]	Skann QR-koden eller besøk nettstedet for å åpne mer informasjon om bruken. Der finner du mer informasjon om apparatet eller tilbehøret.
[sv]	Scanna QR-koden eller gå till webbplatsen och öppna de utökade användningsanvisningarna. Där finns mer information om din apparat eller dina tillbehör.
[fi]	Skannaa QR-koodi tai vieraile internet-sivustollamme, jotta voit avata laajennetut käyttötiedot. Sieltä löydät laitetta tai varustetta koskevia lisätietoja.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratin veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrintılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.

Illustration of two handwheels with tassels and coiled spring, no text or symbols present

2

Diagram of a car air vent system with blue eyes and airflow direction arrows (no text or labels)

3

CLICK

4

Diagram showing two methods of a hand mixer with checkmark and cross symbols indicating inspection or testing steps

5

Illustration of hands using a blue handheld device to press or install a circular component, with arrows indicating the process (no text or symbols present)

6

Illustration of a hand using a tool to press down a blue bucket on a stand (no text or symbols)

7

Diagram showing a mechanical component with a gear and a downward arrow indicating force or motion (no text or symbols present)

8

Illustration of a blue industrial machine with attached components, mounted on a bucket (no text or symbols visible)

9

CLICK

10

Diagram showing a blue iron cutting into a container with labeled steps 1 and 2

The image is too blurry to recognize any text content.

M 0 1 • 3 • 5

12

M 0 1 · 3 · 5 →

The image is too blurry to recognize any text content.

M 0 1 • 3 • 5

14

Diagram showing a blue mechanical device with labeled parts and directional arrows indicating assembly or operation.

The image is too blurry to recognize any text content.

Diagram of a blue handheld device with labeled parts, showing mechanical assembly and directional arrows.

16

Diagram showing a steam iron with labeled parts and a checkmark indicating inspection or repair.

The image is too blurry to recognize any text content.

Diagram showing a hand mixer with two motors, a plastic cup, and a measuring bowl with a checkmark indicating inspection.

18

M 0 1 • 3 • 5

The image is too blurry to recognize any text content.

M 0 1·3·5

20

Illustration of a blue hand mixer in a bowl with directional arrows indicating rotation (no text or symbols)

The image is too blurry to recognize any text content.

M 0 1 • 3 • 5

22

Diagram showing a hairdryer with numbered parts and a checkmark indicating inspection or repair.

The image is too blurry to recognize any text content.

Diagram showing a blender and a pot with a checkmark indicating inspection or cleaning.

24

Diagram of a device rear panel showing internal components and directional arrows (no text or symbols)

The image is too blurry to recognize any text content.

Diagram showing a medical device with an arrow pointing to a blue cylindrical component (no text or symbols present)

CLICK

Blue cable inserted into a square socket with an arrow indicating direction (no text or symbols)

M.0 1·3·5

26

Illustration of a blue handheld device being inserted into a clear beaker with a black arrow indicating the process (no text or symbols present)

M 0 1 · 3 · 5

Illustration of a hand using a hairdryer to test liquid in a beaker with an hourglass icon (no text or symbols)

28

M 0 1 • 3 • 5

Illustration of hands installing a wall socket with a blue tool, showing a black arrow indicating downward motion (no text or symbols)

Diagram showing two labeled steps of a device or tool, with arrows pointing to specific components.

Diagram showing a pen tip with an arrow pointing to a blue circular object, labeled with number 1 and a checkmark.

30

Illustration of a pitcher pouring liquid into a beaker with a drop, accompanied by an inset showing a sandwich (no text or symbols)

M 0 1 · 3 · 5

Illustration of a blue hairdryer being inserted into a glass with a black arrow indicating the insertion point (no text or symbols present)

32

Illustration showing a funnel pouring liquid into a glass with a hand holding a glass, illustrating a process (no text or symbols present)

34

M 0 1·3·5

The image is too blurry to recognize any text content.

Diagram illustrating a hand operating a hairdryer with directional arrows indicating movement and checkmark.

36

		√	×	×	×	×
		√	√	√	√	√

Diagram illustrating a mechanical or electrical system with a blue tool and directional arrows, accompanied by an icon labeled 'i'.

37

			200-600 g	1-6 min	5
			1-8 x	2-5 min	5
			2-6 x
			600-1200 g	30 s	1
				2-4 min	5
			500-1500 g	30 s	1
				2-4 min	5
			350-500 g	30 s	1
				3-5 min	5
			250-500 g	30 s	1
				3-5 min	5
			1 x	2 min	M*
			300-600 g	40 s-2 min	M*
			300-600 g	40 s-2 min	M*

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

Only use this appliance:

■ with genuine parts and accessories.
■ for stirring, beating and mixing soft foods and liquids.
■ to knead soft dough.
■ for normal processing quantities and for normal processing times for domestic use.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

After each use, whenever the appliance is unsupervised, prior to assembly, disassembly or cleaning and in the event of an error, it must always be disconnected from the mains.

Only use the appliance stand with the hand mixer provided.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or a lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children.

The appliance must not be used by children. Keep children away from the appliance and power cable.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never immerse the appliance or the power cord in water or clean in the dishwasher.
  ▶ Never immerse the main unit in the food to be blended.
  ▶ Never operate a damaged appliance.

Avoiding material damage

▶ Never let the power cord come into contact with hot parts or be dragged over sharp edges.
▶ Never place the appliance on or near hot surfaces.
▶ After switching off, wait until the drive has come to a complete standstill.
- Keep hands, hair, clothing and utensils away from rotating parts.
▶ Never open the swivel arm during processing.
▶ Never leave the appliance switched on if the power supply is interrupted. The appliance will automatically start up again following the interruption in the power supply.
- Do not place the hand mixer on the appliance stand or take off the stand until the drive has stopped and the mains plug has been pulled out.
▶ Only attach and remove accessories once the drive has stopped and the appliance has been unplugged.
▶ Never touch the edges of the blades with bare hands.
- Care should be taken when handling sharp blades, emptying the container and during cleaning.
- Do not reach into the bowl or housing when lowering the swivel arm.
▶ Be careful when processing hot food.
Leave boiling food to cool down to at least 70 °C before processing.
▶ Follow the cleaning instructions.
- Clean surfaces which come in contact with food before each use.

Avoiding material damage

▶ Do not operate the appliance at no-load.
▶ Never use the blender jug in the microwave or oven.

Overview

→ Fig. 1

1	Slide for actuating the lock
2	Openings for the locking mechanism

^1 Depending on the model
^2 separate operating instructions

3	Apertures (with lock) for inserting the tools
4	Release buttons
5	Ejector button
6	Switch
7	Rear aperture with lock
8	Mixing bowl
9	Drive gear wheel

^1 Depending on the model
^2 separate operating instructions

10	Locking mechanism for the hand mixer
11	Lever for the locking mechanism
12	Bowl drive
13	Release button for the swivel arm
14	Appliance stand with swivel arm
15	Turbo whisks
16	Worm drive gear
17	Kneading hooks
18	Plastic blender jug ^1
19	Blender foot ^1
20	Chopper ^1 2

^1 Depending on the model

^2 separate operating instructions

Note: If an accessory is not included in the scope of supply, it can be ordered from customer service.

Operating elements

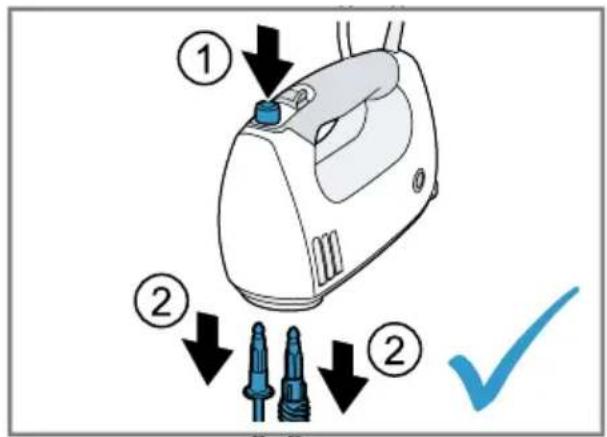

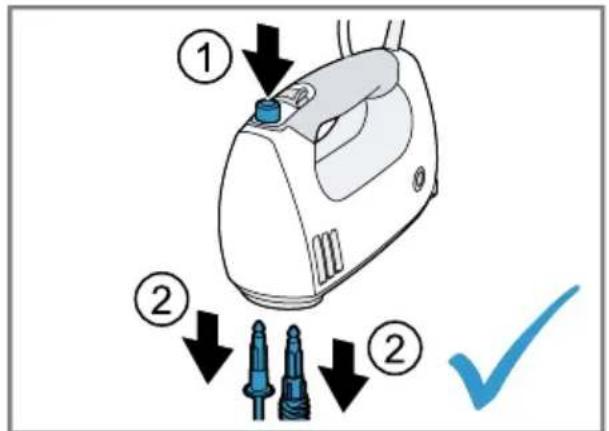

Ejector button

For removing the tools.

Note: The ejector button can only be actuated if the switch is position0.

Slide

When the slide is actuated, either the apertures for inserting the tools or the rear aperture is released.

Only move the slide in switch position0.

Release buttons

For removing the accessories from the rear aperture.

Switch

Symbol Function
0	switched off
1	lowest speed
5	highest speed
M	Instantaneous switching(highest speed) press tothe left and hold in place

Note: When the rear aperture is open, the selector switch will not function between levels 1 and 5.

Tools

Whisks

The whisks are suitable for the following tasks:

■ beating egg whites or cream
■ making light dough such as sponge mixture, cake mixture or pancake batter Recommendations for optimum results:

■ Use cream with a fat content of at least 30% and when at 4-8 °C
■ Whip cream or beat egg whites in a wide jug

Note: To make mayonnaise, use the blender foot.

Kneading hooks

The kneading hooks are suitable for making different types of dough such as yeast dough, bread dough, pizza, strudel or short-crust pastry.

Note: The maximum processing quantity is 500 g flour and ingredients.

Preparing the appliance

Notes

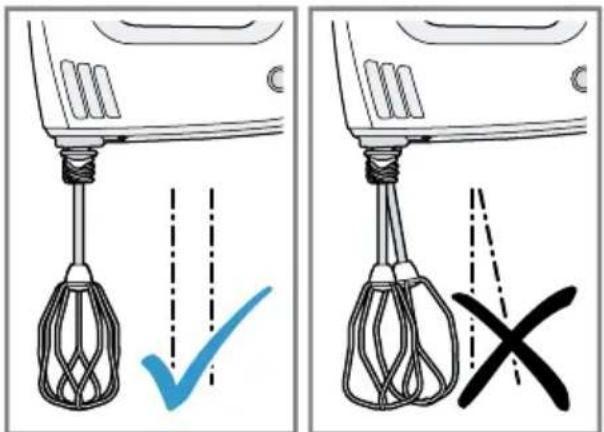

■ Only use tools of the same type in pairs.
■ Note the shape of the plastic parts on the tools to avoid mixing up the tools!
■ Insert the tools one after the other to prevent them from becoming entangled.

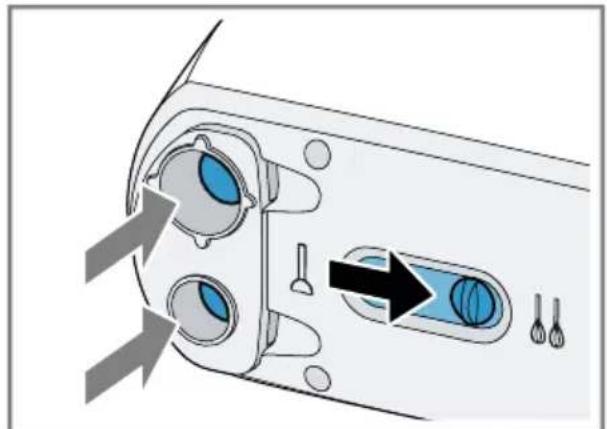

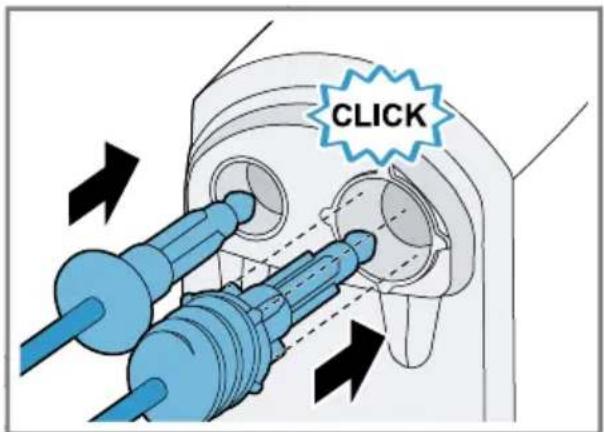

$$ \rightarrow \text { Fig. } \boxed {2} - \boxed {5} $$

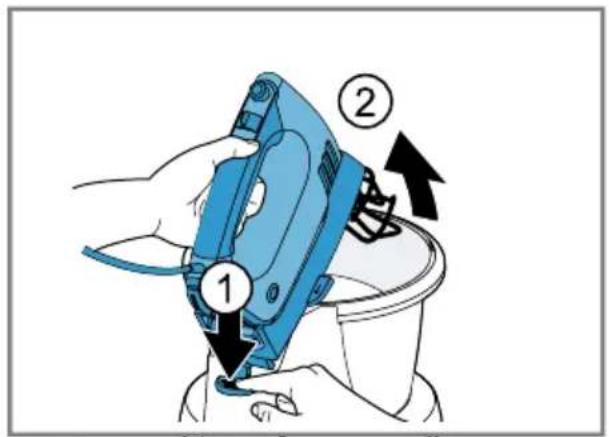

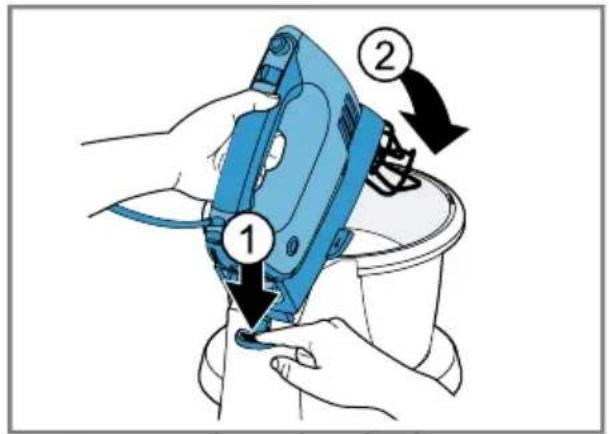

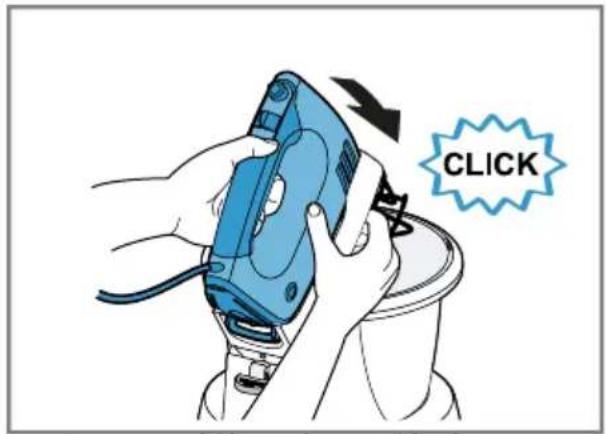

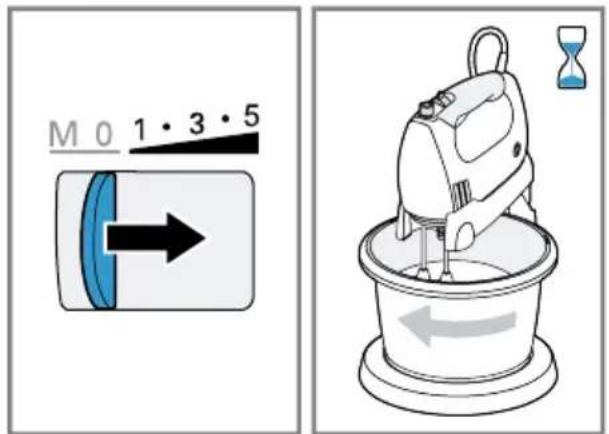

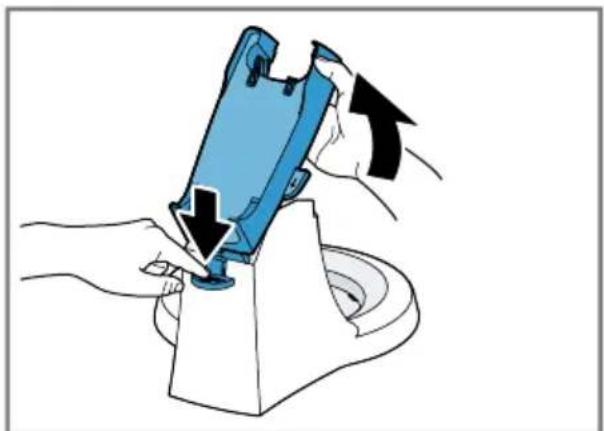

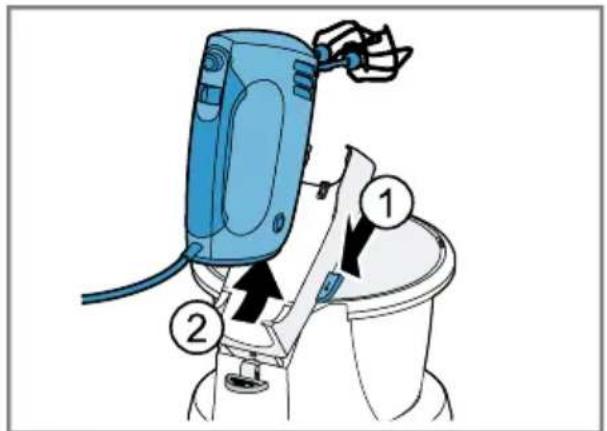

Using with the appliance stand

Only use tools that come with the appliance stand.

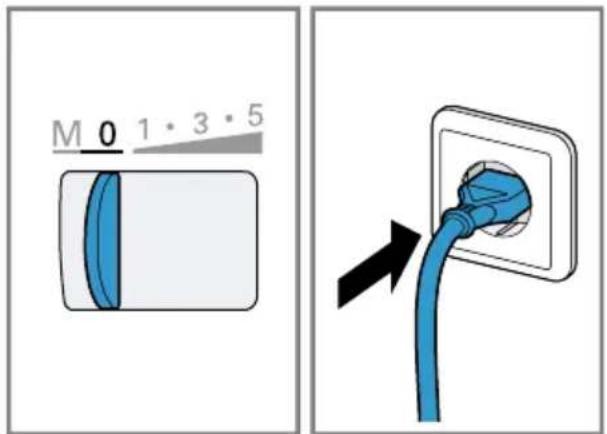

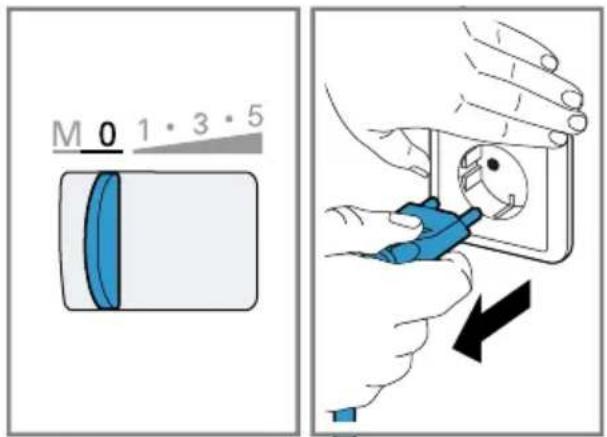

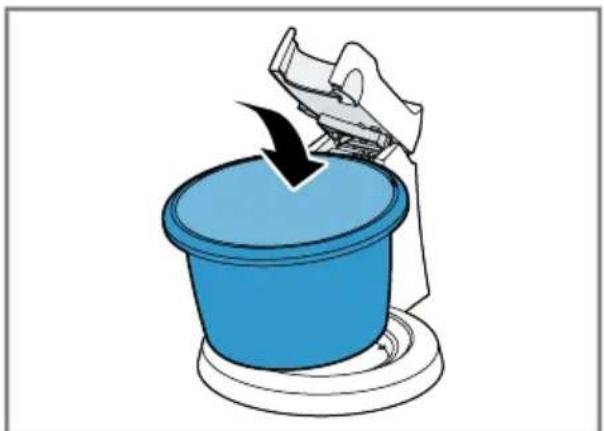

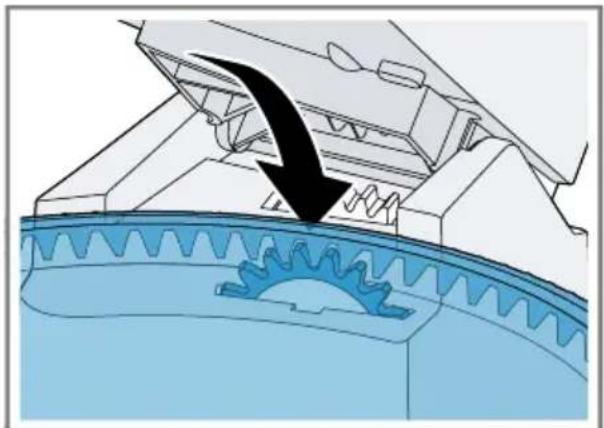

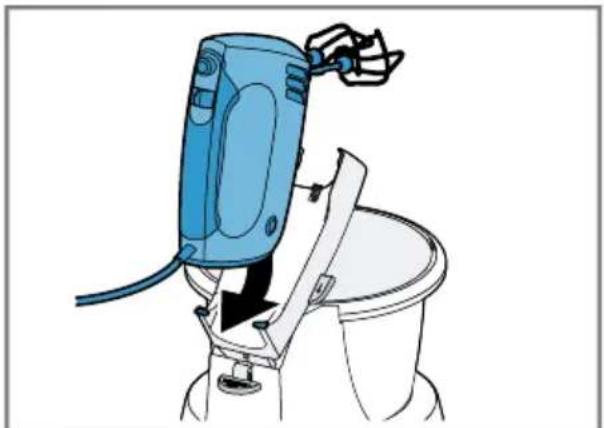

$$ \rightarrow \text { Fig. } 6 - 1 7 $$

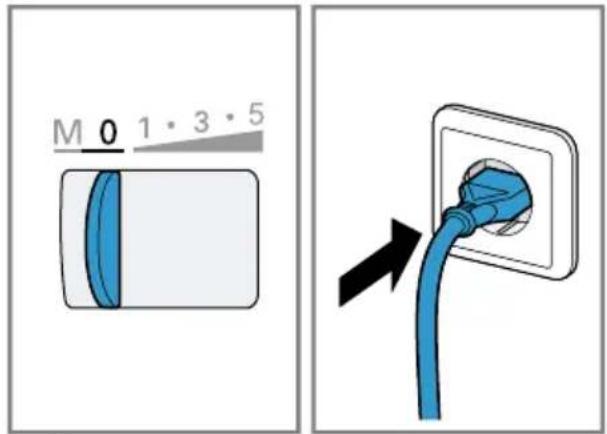

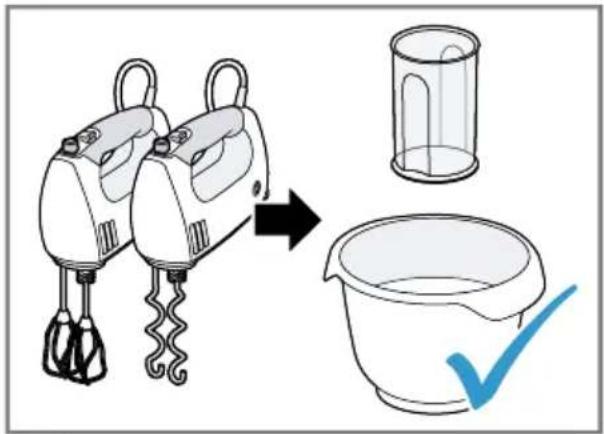

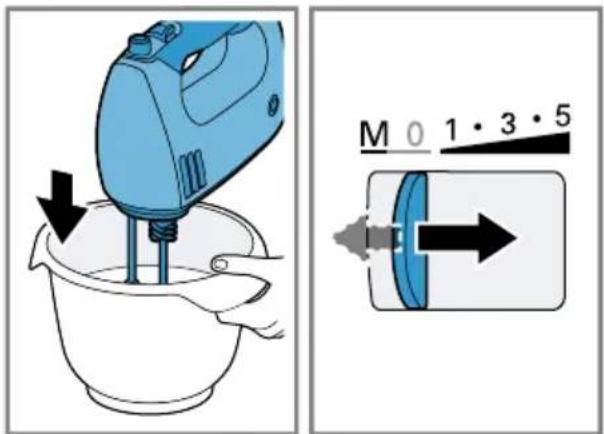

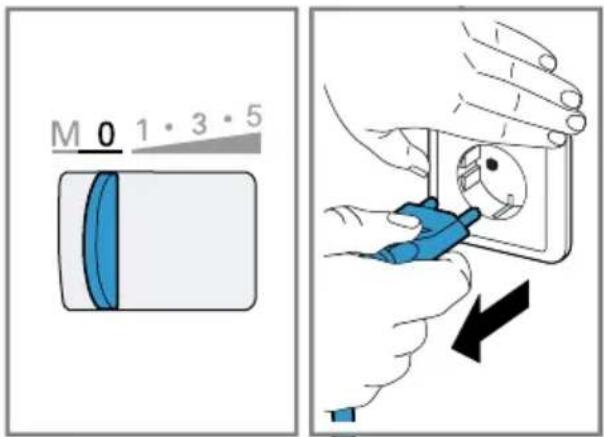

Using without the appliance stand

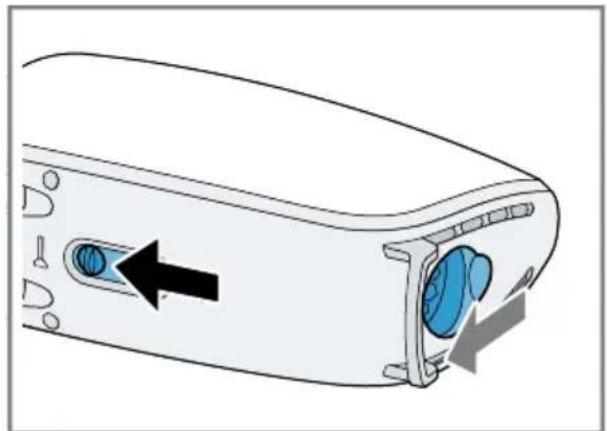

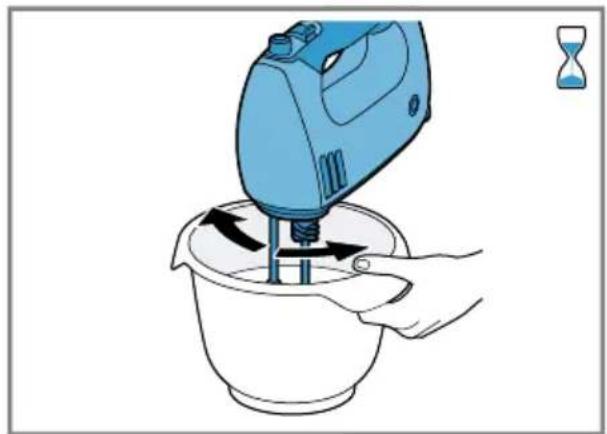

$$ \rightarrow \text { Fig. } \boxed {1 8} - \boxed {2 3} $$

Blender foot

The blender foot is not suitable for preparing purées consisting solely of potatoes or foods with a similar consistency.

en Overview of cleaning

The blender foot is suitable for the following purposes:

■ Mixing drinks
■ Making pancake batter, mayonnaise, sauces and baby food
■ Puréeing cooked food, e.g. fruit, vegetables, soup

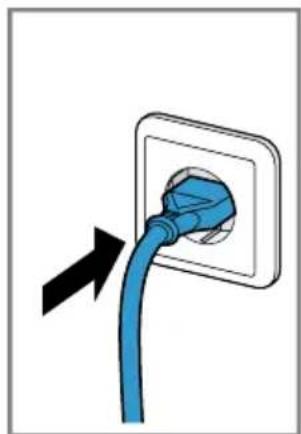

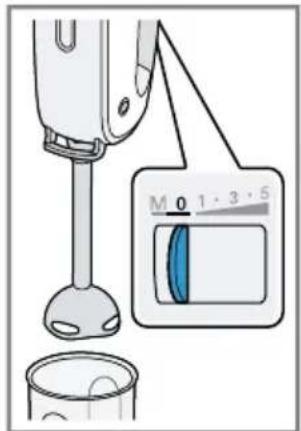

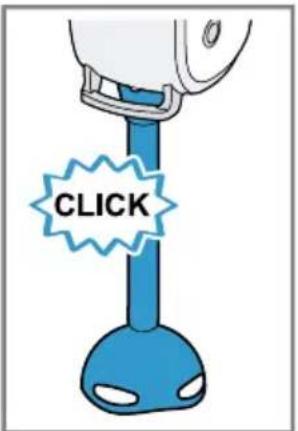

Using the blender foot

Notes

■ Solid foods should always be cut up and cooked until soft before processing, e.g. apples, potatoes or meat.
■ Use the chopper for cutting up raw food without adding liquid, e.g. onions, garlic or herbs.
■ Before processing the food in a pan, take the pan off the heat.

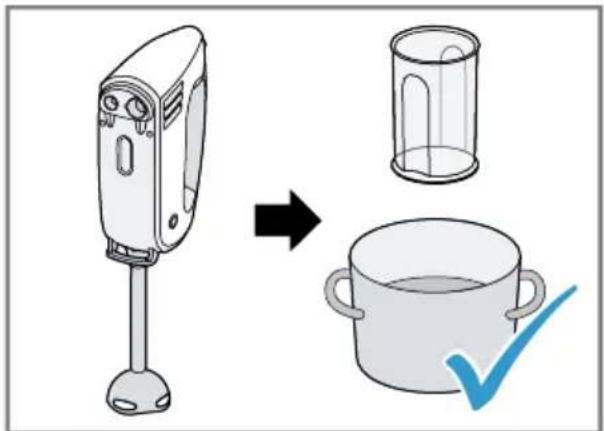

→ Fig. 24 - 31

Sample recipe Mayonnaise

■ 1 egg (egg yolk and egg white)
■ 1 tbsp mustard
■ 1 tbsp lemon juice or vinegar
■ 200-250 ml oil
■ Salt and pepper to taste

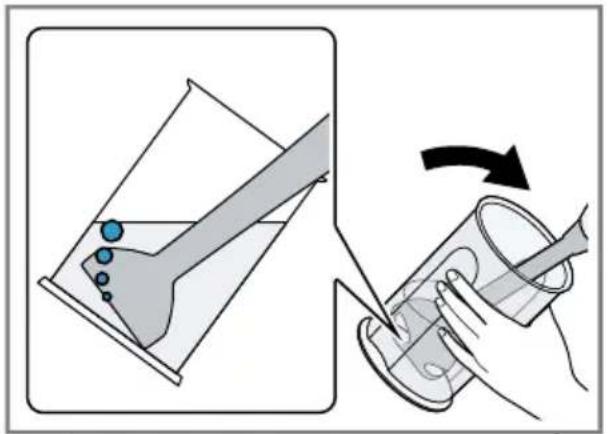

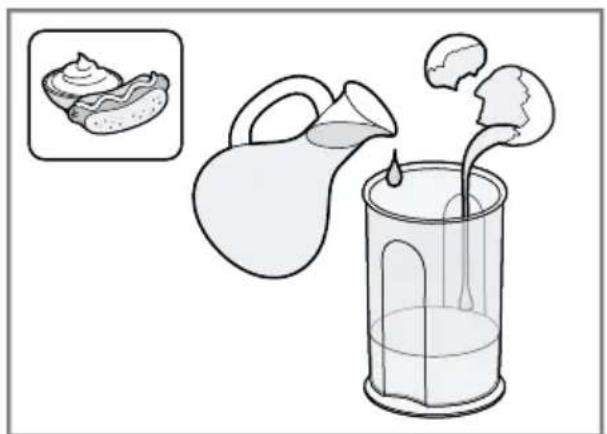

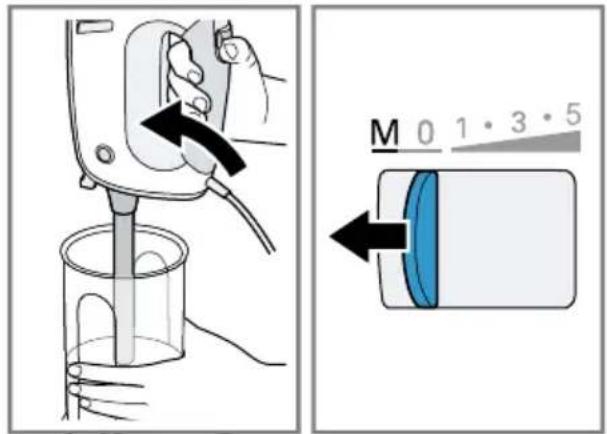

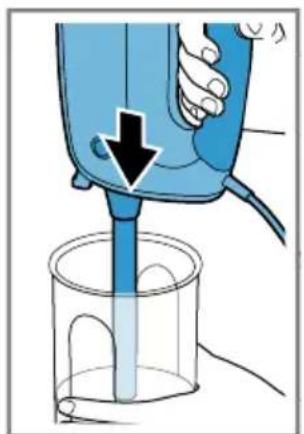

Making mayonnaise

Notes

■ When using the blender foot, mayonnaise can only be made with whole eggs (egg white and egg yolk).
- When making mayonnaise, air underneath the blender foot prevents the ingredients blending together well. For optimum results, let the air escape before mixing.

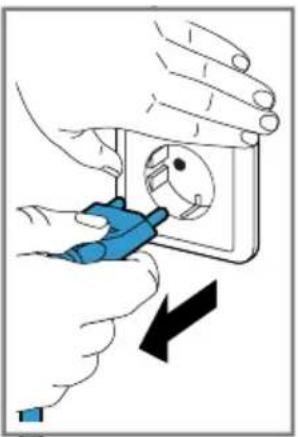

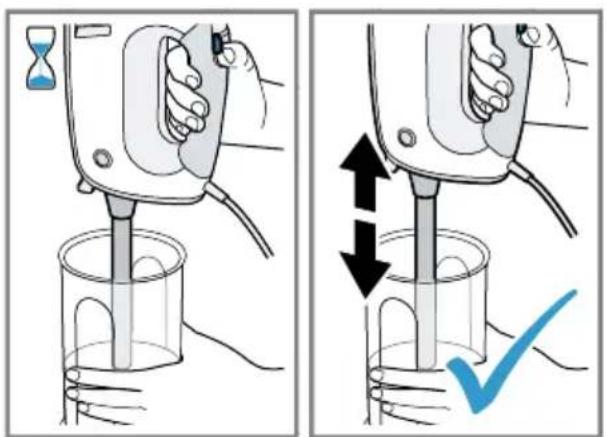

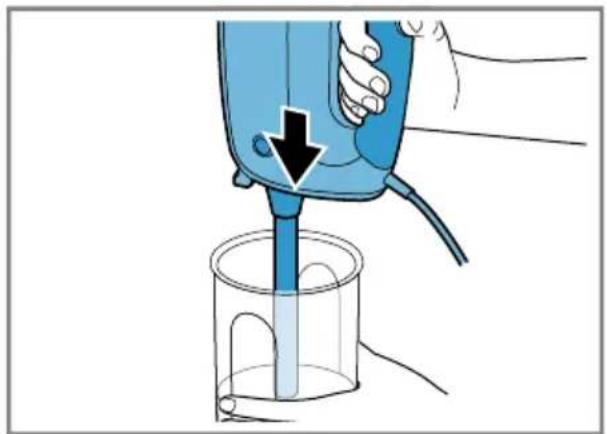

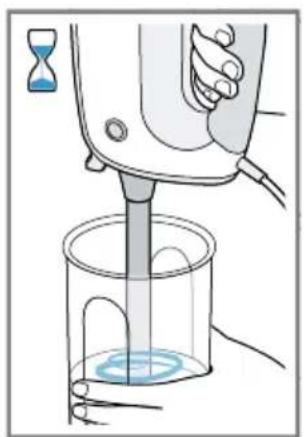

→ Fig. 32 - 36

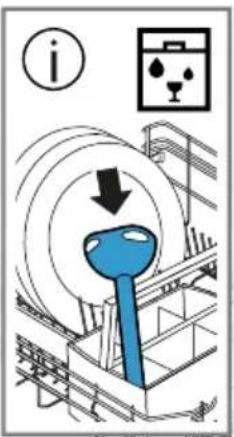

Overview of cleaning

Clean the individual parts as indicated in the table.

→ Fig. 37

Application examples

Always observe the maximum quantities and processing times in the table. Note: For the recipes marked with (*) in the recipe table, let the appliance cool down to room temperature after each operating cycle.

→ Fig. 38

Troubleshooting

Appliance switches off during processing.

The overload protection feature has been activated.

- Disconnect the mains plug and allow the appliance to cool down to deactivate the overload protection device.

Note: If the fault cannot be eliminated, please contact customer service.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

QR code image containing encoded data, no visible human-readable text

electrical and electronic

.(equipment - WEEE

The image contains a series of empty rectangular boxes, which are likely part of a larger text or diagram. According to the instructions, non-text figures/diagrams are to be ignored. Therefore, the correct OCR output is an empty string.

(No text to output)

□□□□□□□□□□□□□□□□□□□□□□□□□□□□

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

8001309458 (040213)

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, uk, ru, ar

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
