Frequently Asked Questions - PVD630C CANDY

How to install the CANDY PVD630C hob?

Installation must be carried out by a professional. Provide at least 5 cm space between the appliance and vertical walls. Use the supplied seal gasket around the table before installation. Respect the built-in dimensions (560 x 490 mm) and a minimum clearance of 15 cm under the table.

How to clean the ceramic glass surface?

Wait for complete cooling. Use a specific ceramic glass cleaner and a scraper for stubborn stains (30° angle). Avoid overly wet sponges, abrasive products and steel tools. For limescale marks, use white vinegar or lemon, then apply the specific cleaner.

What to do if the hob does not turn on?

Check that the plug is properly connected and that the circuit breaker has not tripped. Ensure the child lock is not activated (no 'L' display). If the problem persists, contact after-sales service.

How to lock and unlock the controls?

To lock: press On/Off, then simultaneously press the '-' and '+' keys of the front right zone (or front left depending on model), then press '+'. The display shows 'L' for 20 seconds. To unlock: same procedure but finish with '-' instead of '+'.

How to use the heat booster?

Activate the desired zone, press '+' to position 9, release briefly then press '+' again. The display alternates 'A' and '9'. You can then reduce to the desired power; the booster remains active until you return to a normal position.

How to program the timer on a zone?

Start the desired zone, press the Timer key. Use '+' or '-' to set the time from 0 to 99 minutes. Once the time has elapsed, the zone turns off automatically and a beep sounds; press Timer to stop the beep.

What does the display 'H' on the hob mean?

This is the residual heat indicator. It lights up when the surface temperature exceeds about 60°C and stays on even after the zone is switched off until the area cools below 60°C. Use this heat to finish cooking gently.

What types of utensils to use on this hob?

Use flat-bottomed and thick-bottomed containers, preferably stainless steel with sandwich base. Avoid thin aluminum, cast iron, untreated copper and non-suitable porcelain. The base must completely cover the cooking zone for good heat transmission.

The hob emits a long beep and shuts off, what to do?

This may be due to a spill covering at least two keys for more than 10 seconds. Clean the spill or remove the object. If the problem persists, check that the control panel is not locked.

Where to find the serial number of the appliance?

The serial number is on the rating plate located under the lower casing of the hob. Note it down before installation for any after-sales service requests.

USER MANUAL PVD630C CANDY

Illustration of a four-tan appliance with square cutouts and a small sun icon on the side (no text or symbols)

INSTRUCTIONS GENERALES

Triphasé 380-415 V2N\~

Ph = Phase
N = Neutre
T = Terre

LA TABLE VITROCÉRAMIQUE SANS COMMANDES - MODELE PVS -

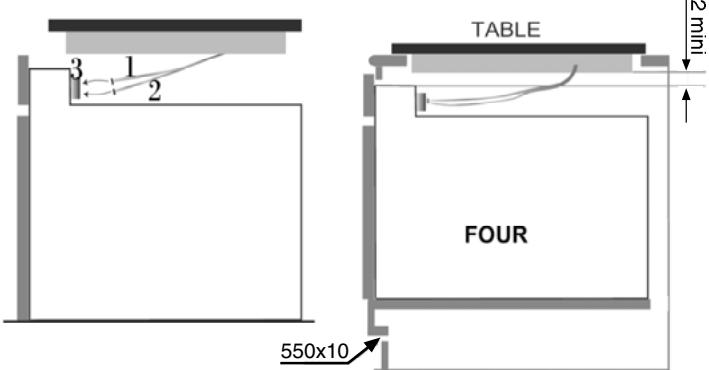

INSTALLATION AVEC FOUR ENCHASSE

3 1 2 TABLE 2 mini FOUR 550x10

Three identical illustrations of cooking utensils with crossed-out triangular marks, no text or symbols present.

A: 30° Maxi

We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number below in case you need to get help from the after sales service.

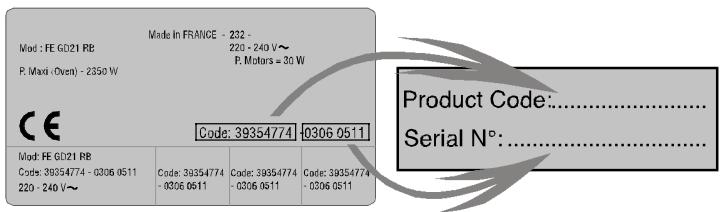

Identification plate

(located under the hob's bottom casing)

Made in FRANCE - 232 - Mod : FE G021 RB 220 - 240 V~ P. Mardi (Open) - 2350 W P. Motors = 30 W CE Code: 39354774 0306 0511 Mod : FE G021 RB Code: 39354774 - 0306 0511 220 - 240 V~ Code: 39354774 - 0306 0611 Code: 39354774 - 0306 0611 Code: 39354774 - 0306 0611 Product Code:.......... Serial N°:..........

• It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns.
• When cooking with fats or oils, take care always to watch the cooking process as heated fats and oils can catch fire rapidly.
• Aluminium foil and plastic pans must not be placed on heating zones.

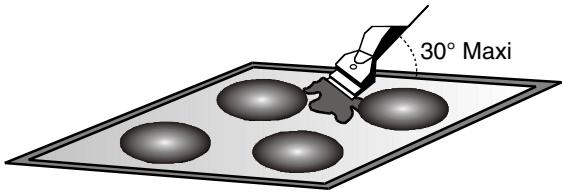

• After every use, some cleaning of the hob is necessary to prevent the build up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation.
• It is advisable not to stare directly at the halogen elements.
• Do not touch the heat zones during operation or for a while after use.
• Never cook food directly on the glass ceramic hob. Always use the appropriate cookware.
  • Always place the pan in the centre of the unit that you are cooking on.
• Do not use the surface as a cutting board.
• Do not slide cookware across the hob.
• Do not store heavy items above the hob. If they drop onto the hob, they may cause damage.
• Do not use the hob as a working surface.
• Do not use the hob for storage of any items.
• In the unlikely event of a surface crack appearing, do not use the hob.
  Immediately disconnect the hob from the electrical power supply and call the After Sales Service
• Never use a steam or high pressure spray to clean the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Supply voltage220-240/380-415 V3N . 50Hz		Product size (l x p) mm.Building-in dimensions (AxB)	60 cm	75 cm
			595x510560x490	774x510PVD 742/1: 560x490PVD 750/1E: 740x490
PVS	Installed electric power6500 W	Installed electric power6200 W	Installed electric power6400 W	Installed electric power7000 W
	PVS 640	PVS 640 R	PVS 641	PVS 642
PVDPVC	Installed electric power5700 W	Installed electric power6500 W	Installed electric power7000 W	Installed electric power7100 W	Installed electric power7100 W
	PVD 633/1	PVD 640/1-PVC 460C-PVD641	PVD 642/1	PVD 647	PVD 644/1
PVK	Installed electric power6600 W	Installed electric power6500 W	Installed electric power7600 W	Installed electric power7600 W
	PVK 644	PVK 640	PVD 742/1	PVD 750/1 E

We are constantly striving to improve product quality and as such may modify appliances to incorporate the latest technical improvements.

CE Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

INSTALLATION

Installing a domestic appliance can be a complicated operation which if not carried out correctly, can seriously affect consumer safety. It is for this reason that the task should be undertaken by a professionally qualified person who will carry it out in accordance with the technical regulations in force. In the event that this advice is ignored and the installation is carried out by an unqualified person, the manufacturer declines all responsibility for any technical failure of the product whether or not it results in damage to goods or injury to individuals.

BUILT-IN

The furniture in which your hob will be installed and all adjacent furniture, should be made from materials that can withstand high temperatures. In addition, all decorative laminates should be fixed with heat-resistant glue.

Installation:

- A watertight seal is supplied with the hob.

Before fitting:

- turn the hob upside down, with the glass surface facing downwards.

Make sure the glass is protected.

• fit the seal round the hob.
• make sure that it is correctly fitted to avoid any leakage into the supporting cabinet.
• Leave a gap of at least 5 cm between the appliance and the vertical sides of the adjacent furniture.
• If, when installing the hob, the lower hob face is adjacent to an area normally accessible when handling or cleaning, fit a partition 1 cm (7 cm for PVS) below the base of the hob to avoid any risk of scorching or damage.

Hob Seal

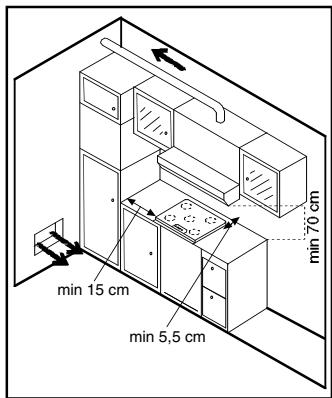

min 15 cm min 5,5 cm min 70 cm

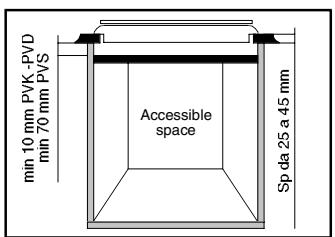

min 10 mm PVK-PVD min 70 mm PVS Accessible space Sp da 25 a 45 mm

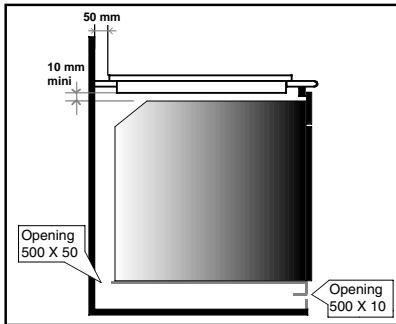

50 mm 10 mm mini Opening 500 X 50 Opening 500 X 10

It is forbidden to fit the hob above a non-ventilated oven

ELECTRICAL CONNECTION

"The installation must conform to the standard directives." The manufacturer declines all responsibility for any damage that may be caused by unsuitable or unreasonable use.

Warning: we cannot be held responsible for any incident or its consequences that may arise during the use of an appliance not linked to the earth, or linked to an earth whose continuity is defective.

• Always check before any electrical operation, the supply tension shown on the electricity meter, the adjustment of the circuit-breaker, the continuity of the connection to earth to the installation and that the fuse is suitable.
• The electrical connection to the installation should be made via a socket with a plug with earth, or via an omnipole cut-out switch.

If the appliance has a socket outlet, it must be installed so that the socket outlet is accessible.

• The yellow/green wire of the power supply cable must be connected to the earth of both power supply and appliance terminals.
• Any queries regarding the power supply cord should be referred to After Sales Service or a qualified technician.

ATTENTION:

should it be necessary to replace the supply cord, connect the wire in accordance with the following colours/codes:

BLUE - NEUTRAL (N)

BROWN - LIVE (L)

A power cord is not supplied with the appliance, but the hob is equipped with a terminal block which enables you to choose the correct connection for the particular power supply.

CONNECTION TO THE TERMINALS ON THE TERMINAL BLOCK:

To proceed with the connection, you must adhere to the following instructions.

• Before making the connection, make sure that the installation is protected by a suitable fuse, see table, and that it is fitted with wires of a large enough section to supply the appliance normally.
• Choose the supply cord in accordance with the recommendations in the table.
• Turn the hob, with the glass side against the worktop, providing you have protected the glass!

• Remove the cover located under the control knobs, fitted by 2 screws at the front.
• Pass the supply cord into the cover hole.
  • Pass the supply cord into the clamp.
• Strip the end of each conductor of the supply

cord on a 10 mm length, by taking account of the requested length of the cord for the connection on the terminal block.

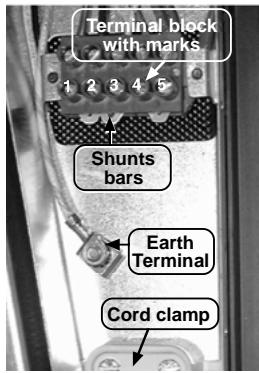

Terminal block with marks 1 2 3 4 5 Shunts bars Earth Terminal Cord clamp

• The terminal block offers different types of connection.
  So, in accordance with installation instructions and with the help of shunt bars*, fix the conductors as shown on the chart.
  * The shunt bars, placed on the Earth Terminal,
  allow to make a bridge between two phases. Screw the screw fully home.

Note : Please take care to ensure that the shunt bars do not fall through the hole.

• Screw the cable clamp back.
• Screw the cover hole back do not forget the fan-lock washers.

ELECTRICAL CONNECTION

	Monophase220-240V~	Two phases220-240V2~	Two phases380-415V2N~	Three phases220-240V3~	Three phases380-415V3N~
FUSE	20 A	20 A	20 A	20 A	16 A
CABLE AREA TYPE	3 G 2,5 mm _2 H05RR-F,H05VV-F,H05V2V2-F	3 G 2,5 mm _2 H05RR-F,H05VV-F,H05V2V2-F	4 G 2,5 mm _2 H05RR-F,H05VV-F,H05V2V2-F	4 G 2,5 mm _2 H05RR-F,H05VV-F,H05V2V2-F	5 G 1,5 mm _2 H05RR-F,H05VV-F,H05V2V2-F
CONNEC-TION TO THE TERMIMAL BLOCK	12345 T[IMAGE]PH N T	12345 T[IMAGE]PH PH T	12345 T[IMAGE]PH PH N T	12345 T[IMAGE]PHPH PH T	12345 T[IMAGE]PHPH PH N T
	PH Phase shunt 1-2 shunt 2-3N Neutral shunt 4-5T Earth E	PH Phase shun 1-2 shunt 2-3PH Phase shunt 4-5T Earth E	PH Phase PH Phase shunt 2-3N Neutral shunt 4-5T Earth E	PH Phase shunt 1-2PH Phase shunt 3-4PH PhaseT Earth E	PH PhasePH PhasePH PhaseN Neutral shunt 4-5T Earth E

- Models PVD

The hob is fitted with a power supply cord which allows it to be connected only to a power supply of 220-240 V between phases or between phase and neutral.

- Connect to a socket, to choose the correct fuse, you must refer on the table.

It is however possible to connect the hob to :

. Three phase 220-240 V3\~
. Three phase 380-415 V2N\~

To proceed to the new connection, you must adhere the following instructions.

• Before making the connection, make sure that the installation is protected by a suitable fuse, see table, and that it is fitted with wires of a large enough section to supply the appliance normally.
• Turn over the hob, glass side against the work top, taking care to protect the glass.

- Open the cover in the following sequence:

• unscrew the cable clamp "1",
  • find the two tabs located on the sides,
• put the blade of a flat screw-driver in front of each tab "2" e "3", push in and press,
• remove the cover.

To release the power supplying cord.

• remove the screws retaining the terminal block which contains the shunt bars and the conductors of the supply cord,
• Pull out the supply cord.

- Operations to be carried out to make a new connection :

• Choose the power supply cable in accordance with the recommendations in the table.
• Pass the power supply cable into the clamp.

SHUNT ↓ ↓

• Strip the end of each conductor of the supply cord on a 10 mm length, by taking in account the requested length of the cord for the connection to the terminal block.
• According to the installation and with the help of shunt bars which you should have recovered in the first operation, fix the conductor as shown on the chart.
• Fix the cover.
• Screw the cable clamp.

Note: make sure the terminal board screws are tight.

Connection to the terminals on the terminal block

	PVD 633/1	PVD 642/1PVD 644/1PVD 647	PVD 742/1PVD750/1EPVD 750	PVD 640/1PVC 460 CPVD 641
MONOPHASE or TWO PHASES 220-240 V~
Fuse	25 A	25 A	25 A	20 A
Cable HO5V2V2F	3 × 2,5 mm^2	3 × 2,5 mm^2	3 × 2,5 mm^2	3 × 2,5 mm^2
THREE PHASES 220-240 V3~
Fuse	25 A	20 A	25 A	20 A
Cable HO5V2V2F	4 × 2,5 mm^2	4 × 2,5 mm^2	4 × 2,5 mm^2	4 × 2,5 mm^2
THREE PHASES 380-415 V2N~
Fuse	16 A	20 A	20 A	16 A
Cable HO5V2V2F	4 × 1,5 mm^2	4 × 2,5 mm^2	4 × 2,5 mm^2	4 × 1,5 mm^2

Ph = Phase N = Neutral T = Earth

VITROCERAMIC HOB WITHOUT CONTROL KNOBS "PVS"

Connection to the electrical circuit, on the oven or glass ceramic hob, should be made via the oven. For this reason, it is important that the instructions given in the oven instructions booklet are followed carefully.

The ceramic hob without controls "PVS", has been developed to be used only in conjunction with specific separate control units or built in ovens with integral hob controls.

A detailed table (supplied with ovens with integral hob control or with independent control units) shows clearly how the hobs are to be connected to the specified units.

Under no circumstances must the hob be connected with any other control or oven not specified in the list.

To proceed with the connection, it is necessary to joint male connectors ① and ② of the hob with the "female" connectors ③ of the oven or of the control panel.

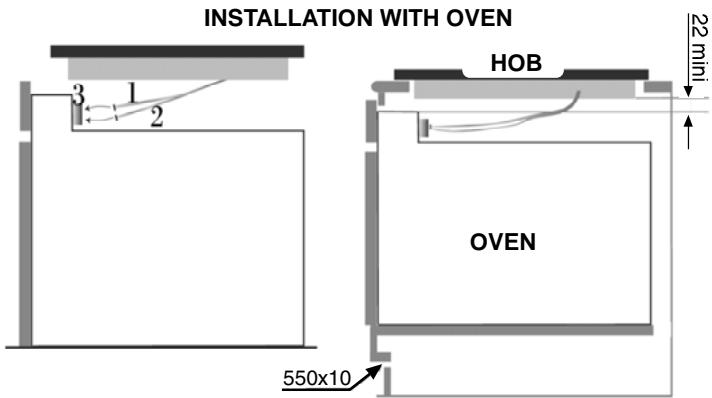

INSTALLATION WITH OVEN HOB 22 mini OVEN 550x10

Built-in oven "apertures": Refer to the instruction booklet concerned.

This connection can be made before or after the oven is screwed into place.

PRESENTATION

• hilight zone : a metallic conductor strip is spread uniformly over the whole surface unit. It is effective within 3 seconds and is suitable for steady, homogeneous and also sustained cooking.
  The glass-ceramic hob benefits from greater heat output which is generated by the hilight cooking zones thereby accelerating the cooking process. Modifications to the design of the hob have not affected the capacity of the glass to withstand high temperatures, but they have improved controllability.
  With the "Sprinter" facility, reduced cooking times of up to 15% can be achieved, depending upon the method of cooking and the type of saucepans being used.
• halolight zone : it is a combination of halogen (1/3) and hilight (2/3). The temperature rise of this surface unit is extremely rapid. It is suitable for frying meat, rapid boiling and intensive cooking where a hight temperature is required for a very short period of time.
• Radiant zone : it offers either rapid or slow rises in temperature and great stability in maintaining the required temperature. It is extremely precise and offers very good heat diffusion.

HOB COOKWARE ADVICE

Using good quality cookware is critical for setting the best performance from your hob.

Three identical illustrations of cooking pots with crossed-out x marks, no text or symbols present

• Always use good quality cookware with perfectly flat and thick bases: using this type of cookware will prevent hot spots that cause food to stick. Thick metal pots and pans will provide an even distribution of heat.
• Ensure that the base of the pot or pan is dry : when filling pans with liquid or using one that has been stored in the refrigerator, ensure that the base of the pan is completely dry before placing it on the hob. This will help to avoid staining the hob.
• Use pans whose diameter is wide enough to completely cover the surface unit: the size of the pan should be no smaller than the heating area. If it is slightly wider the energy will be used at its maximum efficiency.

THE CHOICE OF COOKWARE - The following information will help you to choose cookware which will give good performance.

Stainless Steel : highly recommended. Especially good with a sandwich clad base. The sandwich base combines the benefits of stainless steel (appearance, durability and stability) with the advantages of aluminium or copper (heat conduction, even heat distribution).

Aluminium : heavy weight recommended. Good conductivity. Aluminium residues sometimes appear as scratches on the hob, but can be removed if cleaned immediately.

Because of its low melting point, thin aluminium should not be used.

Cast Iron : usable, but not recommended. Poor performance. May scratch the surface.

Copper Bottom / stoneware: heavy weight recommended. Good performance, but copper may leave residues which can appear as scratches. The residues can be removed, as long as the hob is cleaned immediately. However, do not let these pots boil dry. Overheated metal can bond to glass hobs. An overheated copper pot will leave a residue that will permanently stain the hob.

Porcelain/enamel : Good performance only with a thiny smooth, flat base.

Glass-ceramic : not recommended. Poor performance. May scratch the surface.

HOW TO OPERATE THE GLASS CERAMIC HOB

• VITROCERAMIC HOB WITH CONTROL KNOBS "PVK"

• Locate the sign corresponding to the cooking zone that you need: Each surface unit is regulated by a control knob which provides access to any power levels.
• It is recommended that heat setting is at its highest until it has properly warmed up and then lower to the desired cooking setting.
• The residual heat indicator lights up when the heat zone temperature reaches 60^ and above. It will stay on, even if the unit is switched off, until the surface has cooled down. It will switch off when the temperature of the heat zone falls below 60^ .
• To switch off an heat zone, turn the corresponding knob back on the "0" setting.
• Positions : the examples below are intended as a guide. When you become familiar with using your hob you will be able to work out the settings which suit you best.

Positions		Some tips...
1	Very low	To keep a dish hot, melt butter and chocolate...
2	Low	Slow coocking, sauces, stews, rice pudding, poached eggs...
3	Moderately	Beans, frozen foods, fruit, boiling water...
4	Medium	Steamed apples, fresh vegetables, pasta, crepes, fish...
5	Higt	More intense coocking, omelettes, steaks...
6	Very higt	Steaks, chops, frying...

• VITROCERAMIC HOB WITHOUT CONTROL KNOBS "PVS"

• Locate the sign corresponding to the cooking zone that you need.
• Turn the control knob to the required cooking setting. Initially we recommend that the heat zone be set at the highest position until such times as the contents of the saucepan have reached the required temperature, the heat can then be reduced to the required cooking setting.
• The residual heat indicator light is illuminated when the hob surface temperature reaches 60 degrees or above. It will remain on even if the hob is switched off and will only go out when the hob surface has cooled down.
• To switch off the hob, turn the knob to "0".

Warning : The extra large highlight zone, will depending upon the dimensions of the cookware and/or the quantity of food being cooked provide even higher levels of performance.

* The oval heating zone consists of two heating areas, a circular area with a complementary oval shaped section. Turn the control knob from 1 to 12 to regulate the circular area. To operate the oval section, simply turn the control knob to position 12 and then select a position from 1 to 12.
* The heating area consists of two concentric zones. The inner circle is activated when the knob is turned to any of the positions from 1 to 12.
The outer ring will only be activated when the control is turned beyond 12 up to a power of 2200 W.

Positions			Some Tips
1	1-2	Very Low	To keep a dish hot, melt butter and chocolate...
2	3-4	Low	Slow cooking, sauces, stews, rice pudding poached eggs...
3	5-6	Moderate	Beans, frozen foods, fruit, boiling water...
4	7-8	Medium	Steamed apples, fresh vegetables, pasta, crepes, fish...
5	9-10	High	More intense cooking, omelettes, steaks...
6	11-12	Very High	Steaks, chops, frying...

VITROCERAMIC HOB WITH SENSITIVES CONTROLS "PVD"

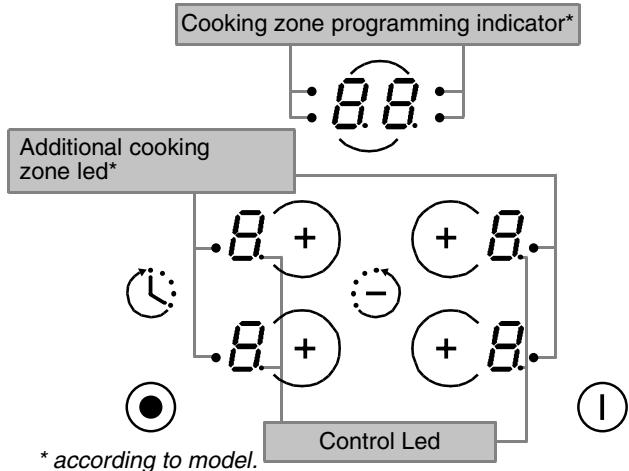

• PRESENTATION TOUCH SENSITIVES CONTROLS
    note right of C
        * according to model.
    end

- After powering up the hob, wait some seconds to activate the electronic controls.

• Press the button Ⓘ.
  Electronic control of the hob is activated. In each display zone the heat level is displayed and the control LED blinks.
• After 20 seconds without use, the electronic control goes off and the starting operation has to be repeated.

• STARTING A COOKING ZONE

- Press the selection button of the required cooking zone. In the display zone, the control LED is on steady. It shows that the zone is live.

.8. + + 8. .8. + + 8.

- Press the - or + button to select a heat level between 1 and 9. Hold down the + or - button and the heat level increases or decreases gradually.

The following examples are for information only. Personal experience should then let you adapt these settings to your taste and habits.
0 : Off 1 : ) 2 : ) ..... Melting heat 3 : Keeping hot 4 : Heating up 5 : Thawing, stewing, full cooking, low temperature cooking 6 : Cooking without lid 7 : Frying, meat browning and roasting 8 : High temperature cooking and roasting, seizing 9 : Frying, boiling large quantities of water.....

• STOPPING A COOKING ZONE

• Press the selection button of the required cooking zone.
• Press the - button to display heat level ☐. Now the zone goes off, the indicator ☐ goes off after 10 seconds.
• To stop rapidly, press the - and + buttons at the same time. The heat level automatically goes down to ☐. The cooking zone goes off.

- GENERAL STOP

The cooking zones and the timer can be stopped at any moment by pressing the On-Off button.

• RESIDUAL HEAT INDICATOR

The control panel tells the user when the surface temperature of the cooking zones exceeds about 60^ C, by the following displaying: H. When the temperature goes back below 60^ C, the H display goes off.

For ending the cooking, we advise switching off the cooking zone and using the residual heat of the zone to finish cooking gently. N.B. After a cut in the current, the residual heat indicator disappears completely, even if the surface temperature exceeds 60^ C.

The cooking zone with two zones is fitted certain models. It can be either concentric or extendable.

It is active in totality when the cooking zone is in function; the control led of the additional cooking is displayed.

To desactivate the additional cooking zone :

- Press on the additional cooking zone button(●). The corresponding control led for the additional cooking zone goes off when it is deactivated.

To re-activate the additional cooking zone :

- Press on the additional cooking zone button●. The corresponding control led for the additional cooking zone is active.

The additional cooking zone is fitted only one model. It is active in totality when the cooking zone is in function; the two control leds of the additional cooking are displayed.

To desactivate the additional cooking zones :

• Press one time the additional cooking zone button Ⓞ. The corresponding control led for the external additional cooking zone goes off when it is deactivated.
• Press two times the additional cooking zone button (●). The corresponding control led for the central additional cooking zone goes off when it is desactivated.

To re-activate the additional cooking zones :

- Press on the additional cooking zone button, one or two times on the additional cooking zone button, according to the need.

- PROGRAMMING A COOKING ZONE (according to the model)

Every cooking zone can be programmed for a maximum time of 99 minutes.

- Start the required zone by following the previous instructions. The control LED near the heat level must be displayed, it shows that the zone is live.

- Press the Timer button.

The zone mark around the timer display shows the controlled zone.

• Press again on the timer button to select a time in minutes between 0 and 99 minutes or press on the "-" button to decrease the time between 60 minutes and 0.
  the programmed time can be modified at any moment reactivating the cooking zone and then the timer button.

When the time is run, the cooking zone goes off automatically and an audible beep sounds for 1 minute, press the timer button to stop it.

the time can be used alone as reminder, it will ring at the end of the programmed time.

The locking function prevents the children from starting the hob. It is also used for cleaning the control strip as the controls can be locked without the hob being on.

To lock the hob :

• Press the on/off button Ⓘ.
• Press simultaneously " - " button and " + " button of the front right zone (PVD 633/1 front left zone), and then press again on the " + " button of this zone. The hob is locked, the locking indicator " L " is displayed on all zones for 20 seconds.

To unlock the hob :

• Press the on/off button ①. The locking indicator "L" is displayed on all zones.
• Press simultaneously the " - " button and the " + " button of the front right zone (PVD 633/1 front left zone), and then press again on the " - " button of this zone.
  The hob is unlocked.

Starting the fast heater

• Press the on/off button ①.
• Start the required zone, press the " + " button to obtain position "9", release the button briefly and press again the " + " button; the display alternates showing "A" "fast heater" and "9" heat level.
• If necessary reduce to the required heat position, the display alternates showing "A" "fast heater" and the new heat position.

Cooking position	Power released (%)	Time of fast heater (minutes)	Maximum operating time before automatic cut off*
0	0 %	0	0 H
1	3 %	1	6 H
2	6 %	3	6 H
3	11 %	5	5 H
4	16 %	6,5	5 H
5	19 %	8,5	4 H
6	32 %	2,5	1,5 H
7	45 %	3,5	1,5 H
8	65 %	4,5	1,5 H
9	100 %	0	1,5 H

E.g. 1800 W zone at position 6 = 32% of 1800 W power released When the “Fast heater” is on, the zone supplies 1800 W power for 2.5 minutes, and adjusts to 576 W after this time.

* For increased safety, the cooking zones cut off automatically if they are left on too long. The cut off depends on the heat level used.

To desactivate the fast heater

- Switch on the cooking zone, press the " - " button to come back to a normal heat level, decrease to the heat level required or to " 0 " to stop the cooking zone.

CLEANING AND MAINTENANCE

• Before carrying out any maintenance work on the hob, allow it to cool down.
• Only products, (creams and scrapers) specifically designed for glass ceramic surfaces should be used. They are obtainable from hardware stores.
• Avoid spillages, as anything which falls on to the hob surface will quickly burn and will make cleaning more difficult.
• It is advisable to keep away from the hob all substances which are liable to melt, such as plastic items, sugar, or sugar-based products.

MAINTENANCE:

• Place a few drops of the specialised cleaning product on the hob surface.
• Rub any stubborn stains with a soft cloth or with slightly damp kitchen paper.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.

If there are still some stubborn stains:

• Place a few more drops of specialised cleaning fluid on the surface.
• Scrape with a scraper, holding it at an angle of 30^ to the hob, until the stains disappear.
• Wipe with a soft cloth or dry kitchen paper until the surface is clean.
• Repeat the operation if necessary.

A FEW HINTS:

Frequent cleaning leaves a protective layer which is essential to prevent scratches and wear. Make sure that the surface is clean before using the hob again. To remove marks left by water, use a few drops of white vinegar or lemon juice. Then wipe with absorbent paper and a few drops of specialised cleaning fluid. The control knobs can be removed for a complete cleaning. However, you must care not to let any liquid go into the open zones, and then to push the knobs fully on fitting back. The glass ceramic surface will withstand scraping from flat-bottomed cooking vessels, however, it is always better to lift them when moving them from one zone to another.

NB:

30° Maxi

Do not use a sponge which is too wet.

Never use a knife or a screwdriver.

A scraper with a razor blade will not damage the surface, as long as it is kept at an angle of 30^ .

Never leave a scraper with a razor blade within the reach of children.

Never use abrasive products or scouring powders.

- The metal surround : to safely clean the metal surround wash with soap and water, rinse, then dry with a soft cloth.

AFTERCARE

Before calling out a Service Engineer please check the following:

— that the plug is correctly inserted and fused;

If the fault cannot be identified switch off the appliance — do not tamper with it — call the Aftercare Service Centre. The appliance is supplied with a guarantee certificate that ensures that it will be repaired free of charge at the Service Centre.

PROBLEM SOLVING

The cooking zones do not simmer or only fry gently

• Only use flat-bottomed pans. If light is visible between the pan and the hob, the zone is not transmitting heat correctly.
• The pan bottom should fully cover the diameter of the selected zone.

The cooking is too slow

- Unsuitable pans are being used. Only use flatbottomed utensils, that are heavy and have a diameter at least the same as the cooking zone.

Small scratches or abrasions on the hob's glass surface

- Incorrect cleaning or rough-bottomed pans are used; particles like grains of sand or salt get between the hob and the bottom of the pan. Refer to the “CLEANING” section; make sure that pan bottoms are clean before use and only use smooth bottomed pans. Scratches can be lessened only the cleaning is done correctly.

Metal marks

• Do not slide aluminium pans on the hob. Refer to the cleaning recommendations.
• You use the correct materials, but the stains persist. Use a razor blade and follow the “CLEANING” section.

Dark stains

- Use a razor blade and follow the “CLEANING” section.

Light surfaces on the hob

- Marks from an aluminium or copper pan, but also mineral, water or food deposits; they can be removed using the cream cleaner.

Caramelisation or melted plastic on the hob.

- Refer to the "CLEANING" section

The hob does not operate or certain zones don't work

• The shunts are not positioned correctly on the terminal board. Have a check made that the connection is done in compliance with the recommendations.
• Hobs with sensitive controls: a big spill or object covers at least two buttons, for at least 10 seconds. Clean up the spill or remove the object.
• The control panel is locked. Unlock the hob.

The hob does not cut off.

- The control panel is locked. Unlock the hob.

The hob stops automatically

• A spill covers at least two buttons for more than 10 seconds; the hob switches to safety, and an audible beep sounds. Clean up the spill or remove the object.
• The cooking zones stop automatically if they are left on for too long. Refer to the section, “operating time”.

Frequency of on/off operations for cooking zones

• The on-off cycles vary according to the required heat level:
• low level: short operating time,
• high level: long operating time.

“H” display, residual heat indicator, blinking.

- The electronic temperature is too high. A technician should verify the fitting in compliance with the recommendations.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Ph = Phase N = Nulleiter T = Erdung

CERANFELDER OHNE BEDIENELEMENTE "PVS"

Three identical illustrations of cooking pots with crossed-out handles, no text or symbols present

Three identical illustrations of cooking pots with crossed-out marks, no text or symbols present

TA: 30° Maxi

PVD 750/1 E

Interior view of a battery pack with multiple connectors and metal clamps (no visible text or symbols)

Three identical illustrations of cooking pots with crossed-out marks, no text or symbols present

Ph = Fas
N = Nollan
T = Jord

- GLASKERAMIKHÄLL UTAN KONTROLLVRED "PVS"

Three identical illustrations of cooking pots with crossed-out handles, no text or symbols present

Ph = Vaihe N = Nolla T = Maa

LASIKERAAMINEN PVS-LIESI, JOSSA EI OLE SÄÄTÖNUPPEJA

Three identical illustrations of cooking pots with crossed-out handles, no text or symbols present

M: 30° Maxi

TILKOBLING TIL POLENE I KOBLINGSBOKSEN:

Interior view of a battery pack with shunt and three metallic components (no text or symbols visible)

Three identical illustrations of cooking pots with crossed-out marks, no text or symbols present

Starte hurtigoppvarming

Deaktivere hurtigoppvarming

Interior view of a battery pack with shunt and two plastic components (no text or symbols visible)

Three identical illustrations of cooking pots with crossed-out marks, no text or symbols present

Vermogen elektrische 7000 W Hilight 1450 + 750 W Hilight 1800 W Hilight 1200 W Hilight 1800 W Cany

Vermogen elektrische 7100 W Halolight 2400 W Hilight 1800 W Hilight 1200 W Hilight 1000 + 700 W

PVK	Vermogen elektrische 6600 W	Vermogen elektrische 6500 W
	PVK 644	PVK 640

Close-up of a mechanical device with a cylindrical rod inserted, showing internal components and no visible text or symbols.

Close-up of a black electronic device with wires and connectors, no visible text or symbols

Close-up of a black electronic device with a coiled cable and connectors (no visible text or symbols)

• Schroef de klem los "1"

Ph = Fase
N = Neutraal
T = Aarding

KOOKPLAAT ZONDER BEDIENINGSKNOPPEN - PVS -

Three identical illustrations of cooking pots with crossed-out marks, no text or symbols present

Close-up of a mechanical device with a coiled cable and a probe inserted, no visible text or symbols

Close-up of a black electronic device with wires and connectors, no visible text or symbols

Close-up of a black electrical component with wires and connectors (no visible text or symbols)

Three identical illustrations of a cooking pot with a handle crossed out, no text or symbols present.

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)
