USER MANUAL 6592 U Busch-Jaeger

Betriebsanleitung

Work on the 230 V supply system may only be carried out by authorised electricians!

The line-side fuse is to be disconnected when working on the lighting unit.

The dimmer 6592U-101 is installed in a flush-type box according to DIN 49073-1.

5 extension units maximum can be operated in parallel.

Technical Data

Busch-Jaeger 6592 U - Technical Data - 1

Rated voltage: 230 V \~ ±10%, 50/60 Hz

max. number of extension 5 x 6592U

units:

Max. line length: 100 m

Type of protection: IP 20

Ambient temperature range: 0 to +35°C

Connection

Busch-Jaeger 6592 U - Connection - 1

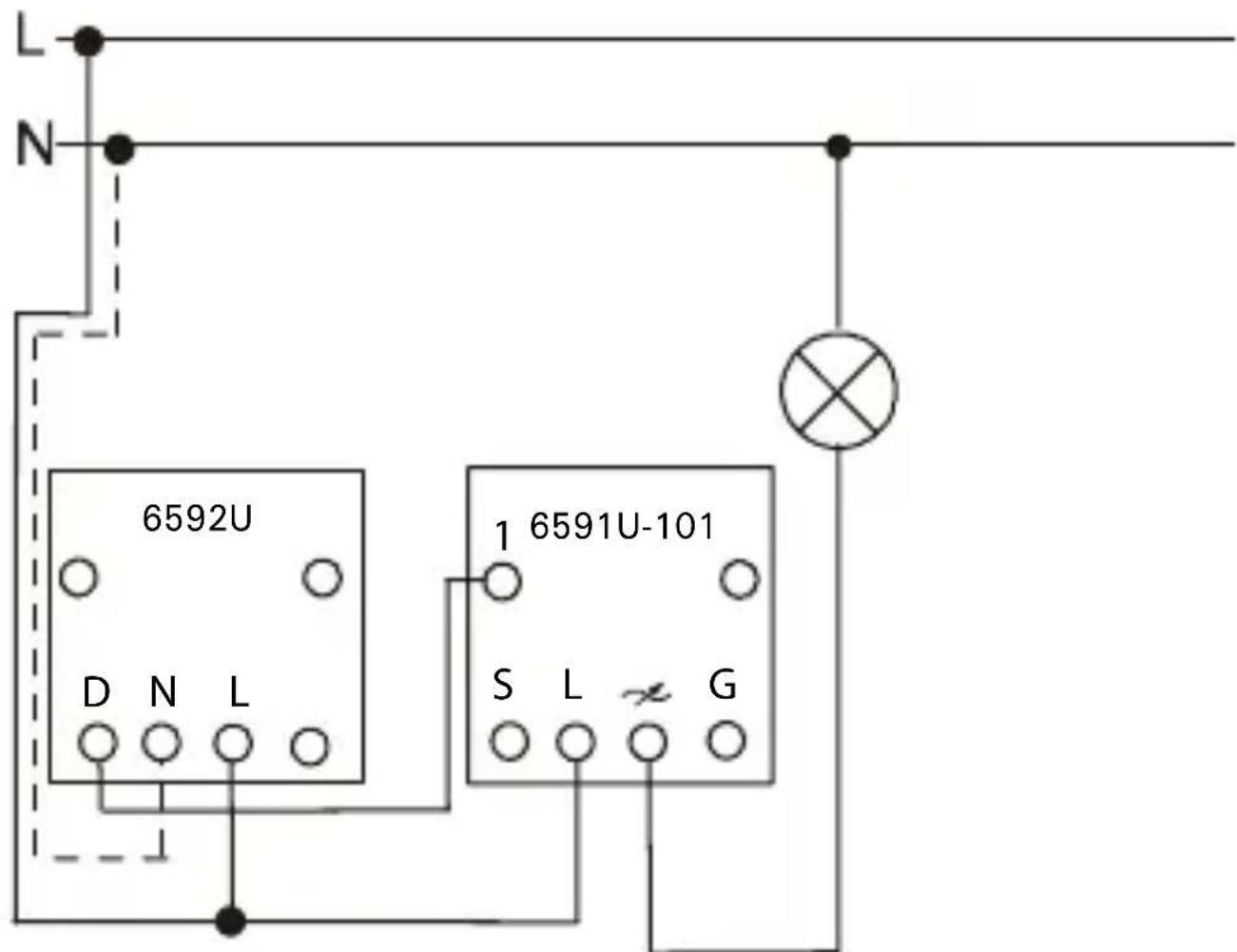

Extension unit operation with Busch universal rotary dimmer 6591U-10 and rotary extension unit 6592U.

L N 6592U D N L 1 6591U-101 S L G

5 extension units maximum can be operated in parallel. N-connection is only required for illuminated extension units!

Operation

Busch-Jaeger 6592 U - Operation - 1

The operation of the Busch universal dimmer 6591U-101 is identical with the operation of the extension unit 6592U

Activation with the last brightness value

Press the rotary button when the dimmer is off.

Activation with minimum brightness

First turn the rotary knob to the left, then press it.

Activation with maximum brightness

First turn the rotary knob to the right, then press it.

Increasing the brightness

Turn the rotary knob to the right when the dimmer is on.

Decreasing the brightness

Turn the rotary knob to the left when the dimmer is on.

Deactivation

Press the rotary button when the dimmer is on.

Hint

The rotary button has no end stop!
