USER MANUAL DXAM2815 DEWALT

Line drawing of a DeWALT electric fan with visible blades and mounting bracket (no text or symbols beyond branding)

www.DeWALT.com

DXAM2815

English (original instructions) 7

III ( HIGH ) II (MEDIUM) I (LOW)O (OFF)

Fig. D Fig. E

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Fig. F

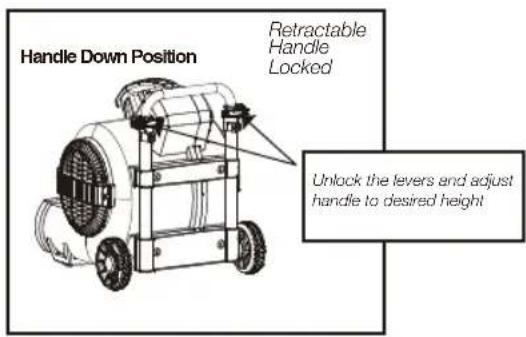

Handle Down Position Retractable Handle Locked Unlock the levers and adjust handle to desired height

Fig. G

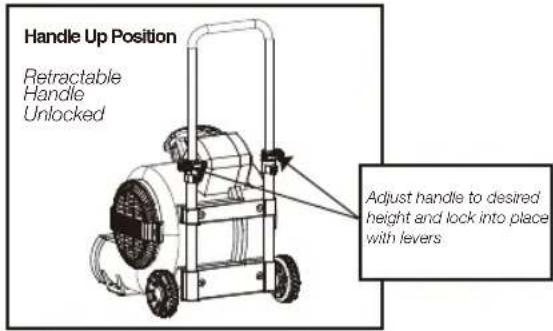

Handle Up Position Retractable Handle Unlocked Adjust handle to desired height and lock into place with levers

Fig. H

Line drawing of a portable electric fan with wheels and control panel (no text or symbols)

Dansk

PRODUKTSPECIFIKATIONER

Model DXAM2815
Strømforsyning	220-240V / 50Hz
Motor	450W
	700L/SLuftstrøm (maks.)
Strømledning	3C x 0,75 mm^2 / 9,0m

▲ ADVARSEL:

PRODUCT SPECIFICATIONS

Model DXAM2815
Power	220-240V / 50Hz
Motor	450W
Air flow(max)	700L/S
Power cord	3C x 0,75 mm ^2 / 9,0m

WARNING:

Extension cords in poor condition or that are too small in wire size can pose fire and shock hazards. To reduce the risk of these hazards when using an extension cord, be sure it is in good condition and that the connection does not come into contact with liquid.

DEFINITIONS: SAFETY GUIDELINES

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

▲DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

⚠ WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

▲CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

⚠ WARNING: When using electric appliances, always follow basic safety precautions to reduce the risk of fire, electric shock and personal injury, including the following:

BEFORE USING THIS APPLIANCE, READ AND FOLLOW ALL INSTRUCTIONS.

⚠ WARNING: To reduce the risk of electric shock. Do not expose to rain. Store indoors.

• Do not leave the appliance when it is connected to a power source. Unplug it from outlet when not in use and before servicing.
• Do not allow the appliance to be used as a toy. Pay close attention when the appliance is used by or near children.
• Use this appliance ONLY as described in the manual.

• Do not use this appliance with a damaged cord or plug. If the appliance is not working correctly, or if it has been dropped, damaged, left outdoors, or dropped in water, return it to a service center.

• Do not pull or carry this appliance by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. Do not run the appliance over the cord. Keep cord away from heated surfaces.

• Do not unplug this appliance by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug or appliance with wet hands.
• Do not put any objects into the openings of the appliance. Do not use the appliance with any opening blocked; keep free of dust, lint, hair and anything else that may reduce air flow.
• Keep hair, loose clothing, fingers, and all body parts away from the openings and moving parts.
• Turn off all controls before unplugging appliance.
  • Take extra care when cleaning on stairs.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under funiture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

⚠CAUTION: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervise to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS

ADDITIONAL SAFETY RULES

• An extension cord must have adequate wire size for safety.
• When using more than one extension cord to make up the total length, be sure each individual extension cord contains at least the minimum wire size.
• Do not use to blow combustible explosive materials, such as coal, grain, or other finely divided combustible material.
• Do not use to blow hazardous, toxic or carcinogenic materials, such as asbestos or pesticide.
• Never pick up explosive liquids (e.g. gasoline, diesel fuel, heating oil, paint thinner, etc.), acids or solvents.
• Some wood contains preservatives which can be toxic. Take extra care to prevent inhalation and skin contact when working with these materials. Request and follow any safety information available from the material supplier.
• Do not use air mover as a step ladder.
• Do not place heavy objects on air mover.

WARNING:

To reduce your exposure to chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

English

DESCRIPTION (Fig. A)

⚠ WARNING : Never modify the power appliance or any part of it. Damage or personal injury could result.

1 Putt
2 Power switch
3 Handle
4 Roller
5 Cam wrench

SAVE THESE INSTRUCTIONS OPERATING INSTRUCTIONS

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS AIR MOVER WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

Follow these instructions to operate the air mover:

• Unpack air mover from carton.
• To use the unit, place the unit in the area most suitable for the application. Several factors need to be considered; the unit must be placed close enough to an AC outlet to be plugged in, there must be a minimum clearance of two feet from either side of the unit to allow proper air flow, and the unit should not be placed where it can become a tripping or safety hazard (Fig B).
• Place unit in the proper operating position for the application. Refer to the operating positions section in this manual.
• Plug unit into the wall.
• Turn unit on and select the air speed by turning the switch clockwise which is located near the top handle.
• When the drying job is completed, turn the unit off and follow the directions for Storage in this manual.

⚠️CAUTION: Once the unit is plugged in, the air mover can be turned on by rotating the switch to one of the settings shown in Fig C.

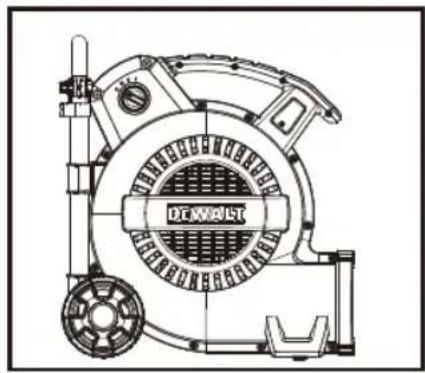

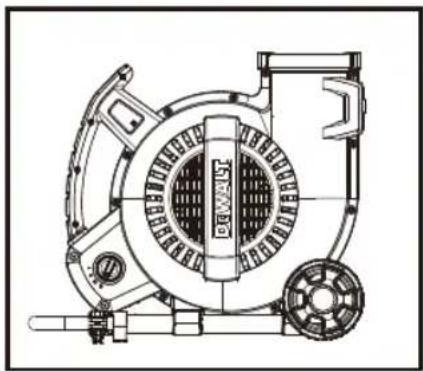

AIR MOVER OPERATING POSITION (Fig D,E)

The air mover may be set in one of two operating positions. Pick the position best suited for the application.

• Use the down position for applications such as: drying wet floors, shampooed carpets, etc. To use this position simply place unit on its base.
• Use the up position for applications such as: drying paint on the ceiling. To use this position, lay the unit on the back side with the front grill pointing towards the ceiling.

UNPACKING AND CHECKING CARTON CONTENTS (Fig F,G)

Carefully unpack and inspect the Air Mover. Contact customer service if any parts are damaged or missing.

This Air Mover includes a retractable handle, It is packaged in its locked lowest position.

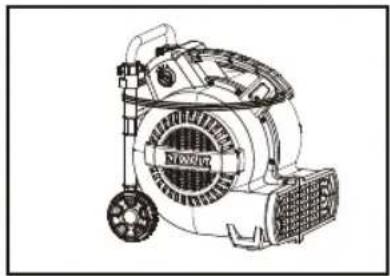

STORAGE (Fig H)

CAUTION:

To clean the air mover, use a cloth dampened only with water and mild soap. Never let any liquid get inside the air mover. Never immerse any part of the air mover into a liquid.

• Before storing air mover it should be cleaned.
• Wrap the power cord around the carry handle on the top of the unit to keep it untangled.

THE AIR MOVER SHOULD BE STORED INDOORS.

CAUTION:

This Air mover is equipped with a motor thermal protection device. Once activated, it can restart without notice. If it is triggered, turn switch to OFF position, unplug unit and wait a moment before plugging air mover back in and restarting it.

TROUBLESHOOTING

⚠ WARNING: Unplug before any disassembly or servicing.
⚠ WARNING: All disassembly and repairs should be performed by qualified personnel.

Minor problems often can be fixed without calling customer service.

PROBLEM	SOLUTION
Unit will not run.	Plug unit in. Check circuit breaker.
	Place in “ON” position.
	Reset circuit breaker.
Unit runs but Air Mover makes loud scraping noise.	Contact customer service.
Unit runs but vibrates excessively.	Clean air mover wheel blades.
	Contact customer service.
Unit runs but air mover wheel does not turn.	Contact customer service.
Unit runs briefly, then shuts off on overload.	Remove obstruction.
	Contact customer service.

⚠ WARNING: If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified people in order to avoid the hazard.

TOOL GUARANTEE 3 YEAR LIMITED GUARANTEE

Español

SPÉCIFICATIONS DU PRODUIT

Extension cords in poor condition or that are too small in wire size can pose fire and shock hazards. To reduce the risk of these hazards when using an extension cord, be sure it is in good condition and that the connection does not come into contact with liquid.

DEFINITIES: RICHTLIJNEN VOOR DE VEILIGHEID

PRODUKT SPESIFIKASJONER

Modell DXAM2815
Strøm	220-240V / 50Hz
Motor	450W
	700L/SLuftstrøm(maks)
Strømledning	3C x 0,75 mm ^2 / 9,0m

▲ADVARSEL:

PAKK OPP OG SJEKK INNHOLDET I ESKEN (Fig F,G)

TYTO POKYNY USCHOVEJTE PROVOZNÍ POKYNY

⚠️VAROVÁNÍ:

KE SNÍŽENÍ RIZIKA POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM:

NEPOUŽÍVEJTE TENTO VYSOUŠEČ S ŽÁDNÝM PŘÍSTROJEM NA KONTROLU RYCHLOSTI S PEVNOU FÁZÍ.

MÕISTED: OHUTUSJUHISED

OLULISED OHUTUSJUHISED

SALVESTAGE NEED JUHISED KASUTUSJUHISED

▲HOIATUS:

TULE- VÖI ELEKTRILÖÖGIOHU VÄHENDAMISEKS ÄRGE KASUTAGE SEDA ÖHULIIGUTAJAT KOOS ÜHEGI TAHKIS-SEADME KIIRUSEKONTROLLIGA. Järgige neid juhiseid öhuliigutaja kasutamiseks:

IRANKIO GARANTIJA 3 METU RIBOTA GARANTIJA

PRODUKTA TEHNISKIE RĀDĪTĀJI

Modelis DXAM2815
Jauda	220-240V / 50Hz
Motors	450W
Gaisa plūsma (maks.)	700L/S
Strāvas vads	3C x 0,75 mm^2 / 9,0m

Bridinajums:

DEWALT is confident of the quality of its products and offers an outstanding guarantee for professional users of the product. This guarantee statement is in addition to and in no way prejudices your contractual rights as a professional user or your statutory rights as a private non-professional user. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

Subject to the DEWALT European PPT Guarantee terms and conditions available from your local DEWALT office, seller or at www.2helpU.com, if your DEWALT product becomes defective due to faulty materials or workmanship within 36 months from the date of purchase, DEWALT may replace all defective parts free of charge, or at our discretion, replace the unit free of charge.

DEWALT reserves the right to refuse any claim under this guarantee which in the opinion of the authorised repair agent is not in accordance with the stated DEWALT European Guarantee terms and conditions.

If you wish to make a claim, contact your seller or check the location of your nearest authorised DEWALT repair agent online, in the DEWALT catalogue or contact your DEWALT office at the address indicated in the instruction manual.

A list of authorised DEWALT repair agents and full details of our after-sales service is available on the Internet at: www.2helpU.com

DEWALT EUROPEAN POWER TOOL (PT) 3 YEARS GUARANTEE

The DEWALT European PT Guarantee for your product is 3 years from the date of purchase subject to the following terms and conditions.

1. General terms and Conditions

1.1 The DEWALT European PT 3 Years Guarantee is available to the original DEWALT product user who has purchased the DEWALT products from an authorised DEWALT European reseller for use in the course of their trade or profession. The DEWALT European PT Guarantee is not available to persons purchasing DEWALT product for the purpose of resale or Hire.

1.2 This guarantee is not transferrable. It is only available to the original DEWALT product user who has purchased the product as identified above.

1.3 In addition to the terms and conditions outlined in this document, the terms and conditions stated in the DEWALT European PT Guarantee also apply.

1.4 A product repair or replacement under this guarantee does not extend or renew the guarantee period. The 3 years guarantee period starts from the original purchase date and ends 36 months later.

1.5 This product is excluded from the DEWALT 30-1-1 policy withdrawn 01-01-2016.

1. Products excluded from the DEWALT European PT 3 Years Guarantee. In addition to the product exclusions stated in the DEWALT European PT Guarantee, section 3, the following DEWALT branded products are also excluded: Fastening Tools e.g. Nailers, Powder Impact tools.

Batteries and Chargers.

Rebuilt or Reconditioned products identified with additional markings – “Factory rework” and/or “Q”. Compressors and generators.

1. Making a Guarantee Claim

3.1 To make a guarantee claim contact your seller or check the location of your nearest DEWALT authorised DEWALT repair agent at www.2helpU.com.

3.2 The DEWALT Tool must be returned to the seller or an authorised DEWALT repair agent with all parts complete, with the original proof of purchase.

3.3 DEWALT reserves the right to refuse any claim under this guarantee which in the opinion of the authorised repair agent is not due to material or manufacturing defect or in accordance with the stated DEWALT European PT Guarantee terms and conditions.

1. Changes to Terms and Conditions

4.1 DEWALT reserves the right to review and amend its guarantee policies, periods and product eligibility without notice as DEWALT considers appropriate.

4.2 Current DEWALT European PT Guarantee Terms and Conditions are available from www.2helpU.com, your local DEWALT seller or DEWALT office.

DXAM2815

EC-Declaration of Conformity Machinery Directive

CE

ALTON declares that these products described under

Technical Data are in compliance with:

2006/42/EC, EN60335-1:2012 +A11:2014 EN60335-2-69:2012.

These products also comply with Directive, 2014/30/EU and

2011/65/EU.

john bao

John Bao

Senior Manager

Suzhou Alton Electrical & Mechanical Industry Co., Ltd.

North linhu Road, East Laixiu Road, Wujiang Foho Economic

Development Zone, Jiangsu, 215211, China

09.11.2023
