USER MANUAL ATLCK60X20X ATLANTIC

Line drawing of a four-c� electric stove with four circular ventricles and a control panel at the bottom (no text or symbols)

INHALT

RICHTIG FALSCH FALSCH FALSCH

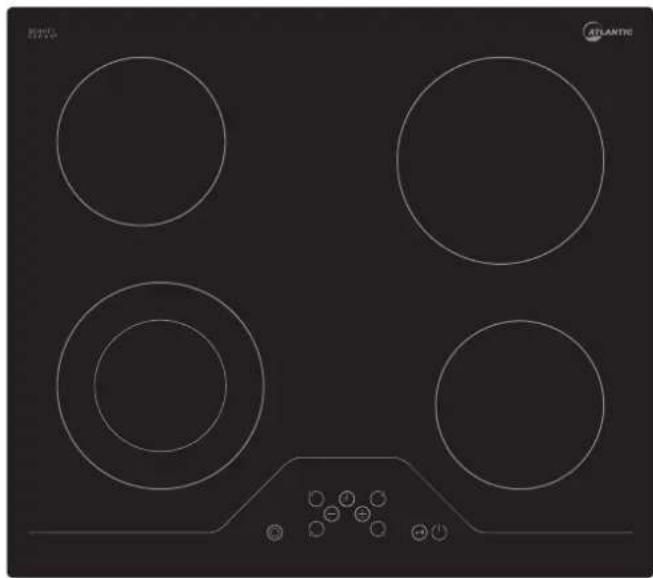

BUILT-IN VITROCERAMIC HOB

Line drawing of a four-c� electric stove with four circular ventricles and a control panel (no text or symbols)

CONTENTS

1. DESCRIPTION OF THE HOB
2. SAFETY INSTRUCTIONS
3. INSTALLATION
4. ELECTRICAL CONNECTION
5. USAGE
6. TOUCH CONTROL SAFETY FUNCTIONS
7. CLEANING AND CARE

Dear Customer,

Thank you for purchasing this Atlantic Cooking Hob. The safety precautions and recommendations in these instructions are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please keep this booklet in a safe place. It may be useful infuture, either to yourself or to others in the event that doubts should arise relating to its operation.

This appliance must be used only for its intended purpose, that is for the domestic cooking of foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper or incorrect use of the appliance.

BEFORE USING FOR THE FIRST TIME

Read the instructions carefully before installing and using the appliance. After unpacking the appliance, make sure it is not damaged. In case of doubt, do not use the appliance and contact your supplier or a qualified engineer.

Remove all packaging and do not leave the packing material (plastic bags, polystyrene, bands etc) in easy reach of children as they may cause serious injury. The packaging materials are recyclable.

The appliance should be installed and all the electrical connections made by a qualified engineer in compliance with local regulations in force and following the manufacturers instructions.

Do not attempt to modify the technical properties of the appliance, as it may become dangerous to use.

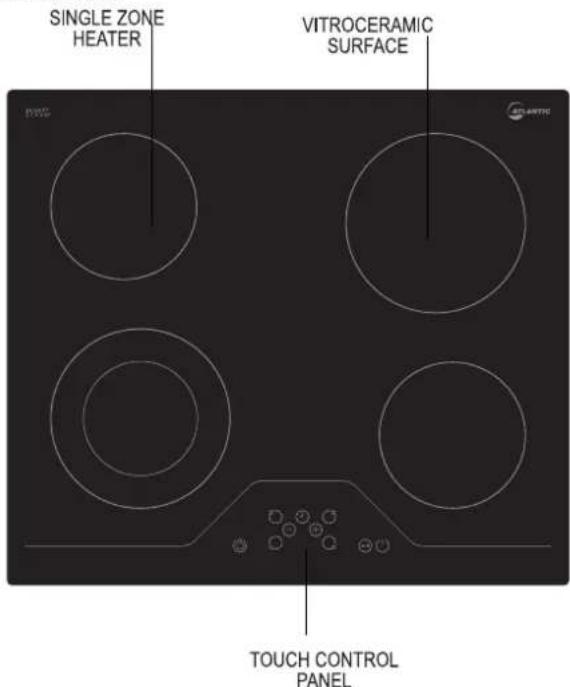

SINGLE ZONE HEATER VITROCERAMIC SURFACE TOUCH CONTROL PANEL

Note: Appearance of your hob maybe different than the model shown above due to production changes.

PART 2 SAFETY WARNINGS

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE USING YOUR APPLIANCE, AND KEEP IT IN A CONVENIENT PLACE FOR REFERENCE WHEN NECESSARY.

THIS MANUAL IS PREPARED FOR MORE THAN ONE MODEL IN COMMON. YOUR APPLIANCE MAY NOT HAVE SOME OF THE FEATURES THAT ARE EXPLAINED IN THIS MANUAL. PAY ATTENTION TO THE EXPRESSIONS THAT HAVE FIGURES, WHILE YOU ARE READING THE OPERATING MANUAL.

General Safety Warnings

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- For hobs incorporating a lid, any spillage should be removed from the lid before opening. And also the hob surface should be allowed to cool before closing the lid.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass and other surface since they can scratch the surface, which may result in shattering of the glass or damage to the surface.

- Do not use steam cleaners for cleaning the appliance.

- Your appliance is produced in accordance with all applicable local and international standards and regulations.

- Maintenance and repair work must be made only by authorized service technicians. Installation and repair work that is carried out by unauthorized technicians may endanger you. It is dangerous to alter or modify the specifications of the appliance in any way.

- Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure or electricity voltage and frequency) and the requirements of the appliance are compatible. The requirements for this appliance are stated on the label.

- CAUTION: This appliance is designed only for cooking food and is intended for indoor domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment or room heating.

- All possible security measures have been taken to ensure your safety. Since the glass may break, you should be careful while cleaning to avoid scratching. Avoid hitting or knocking on the glass with accessories.

- Ensure that the supply cord is not wedged during the installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to prevent a hazard.

Installation Warnings

- Do not operate the appliance before it is fully installed.

- The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement and installation by unauthorized people.

- When you unpack the appliance, make sure that it is not damaged during transportation. In case of any defect; do not use the appliance and contact a qualified service agent immediately. As the materials used for packaging (nylon, staplers, styrofoam...etc) may cause harmful effects to children, they should be collected and removed immediately.

- Protect your appliance against atmospheric effects. Do not expose it to effects such as sun, rain, snow etc.

- The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min 100°C.

During usage

- Do not put flammable or combustible materials, in or near the appliance when it is operating.

- Do not leave the cooker while cooking with solid or liquid oils. They may catch fire on condition of extreme heating. Never pour water on to flames that are caused by oil. Cover the saucepan or frypan with its cover in order to choke the flame that has occurred in this case and turn the cooker off.

- Always position pans over the centre of the cooking zone, and turn the handles to a safe position so they cannot be knocked or grabbed.

- If you will not use the appliance for a long time, plug it off. Keep the main control switch off. Also when you do not use the appliance, keep the gas valve off.

- Make sure the appliance control knobs are always in the "0" (stop) position when it is not used.

During cleaning and maintenance

- Always turn the appliance off before operations such as cleaning or maintenance. You can do it after plugging the appliance off or turning the main switches off.

- Do not remove the control knobs to clean the control panel.

TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU ALWAYS USE ORIGINAL SPARE PARTS AND TO CALL ONLY OUR AUTHORIZED SERVICE AGENTS IN CASE OF NEED.

• Be careful when using small household appliances, such as irons, near the elements.
• Do not use the cooking zones with empty cookware or without cookware.
• Make sure all the controls are in the off position when not in use.
• For cleaning, the appliance must be switched off at the supply and cooled down.
• Do not use a steam cleaner to clean the appliance as this could damage the product and may invalidate the warranty.
• Use only stable flat-based pans.

WARNING

When correctly installed, your product meets all safety requirements laid down for this type of product category. However special care should be taken around the underneath of the appliance as this area is not designed or intended to be touched and may contain sharp or rough edges, that may cause injury.

Fire Risk! Do not leave inflammable materials on the Hob top. Make sure that electrical cords connecting other appliances in the proximity cannot come in to contact with the hob top.

Do not allow heavy or sharp objects to drop on the ceramic hob. If the hob is cracked or damaged, unplug and call the after-sales service. Do not scratch the hob with sharp objects. Don't use the hob as a work surface.

Before disposing of an unwanted appliance, it is recommended that it is made inoperative and that all potentially hazardous parts are made harmless. Important: This appliance has been designed for domestic use only. The appliance is NOT suitable for use within a semi-commercial, commercial or communal environment.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid an electrical hazard.

INSTALLATION

The electrical connection of this hob should be carried out by an authorised service personal or a qualified electrician, according to the instructions in this guide and in compliance with the current regulations.

• Prior to installation, ensure that the local distribution conditions and the adjustment of the appliance are compatible.
• The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

Locating your built-in hob

After removing the packaging material from the appliance and its accessories, ensure that the hob is not damaged. If you suspect any damage, do not use the appliance, contact an authorised service personal or a qualified electrician immediately.

• This built-in hob is to be inserted into a cut out of a worktop. It will be electrically connected with the switch box below counter level, especially provided for this purpose.

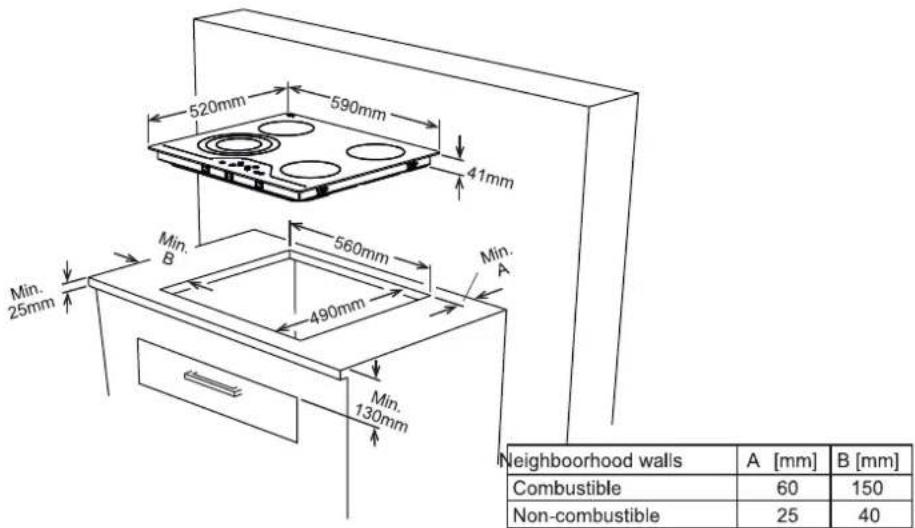

• Cut an opening with the dimensions shown in the picture below.

520mm 590mm 41mm 560mm 490mm Min. 25mm Min. B Min. A Min. 130mm Neighborhood walls A [mm] B [mm] Combustible 60 150 Non-combustible 25 40

Neighborhood walls	A [mm]	B [mm]
Combustible	60	150
Non-combustible	25	40

• Apply the one-sided self-adhesive sealing tape supplied all the way round the lower edge of the cooking surface along the outer edge of the glass ceramic panel. Do not stretch it.

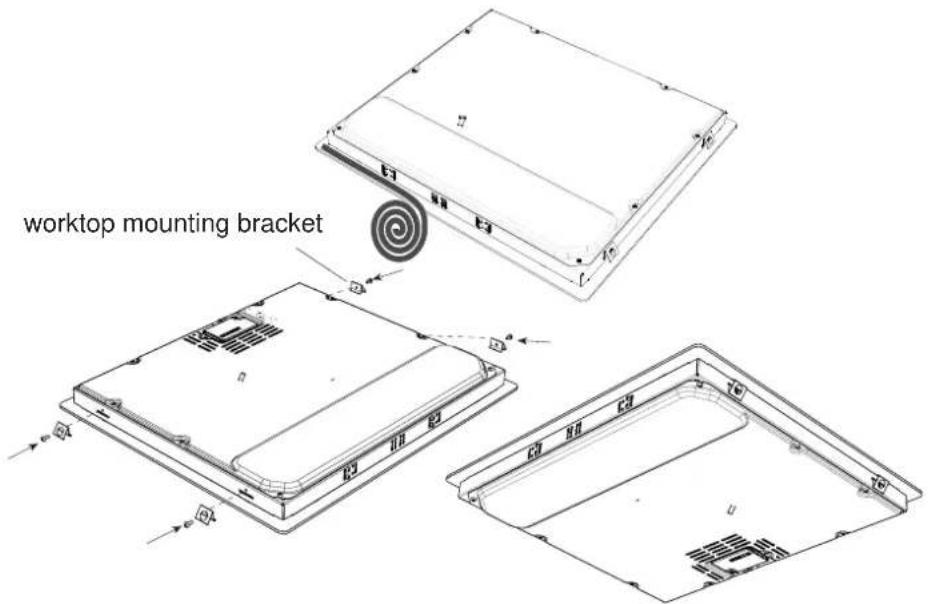

• Screw the 4 worktop mounting brackets on the side walls of product.

worktop mounting bracket

ELECTRICAL CONNECTION

Electrical connection of your hob

• Before proceeding with the electrical connection, verify that the current carrying capacity of the system and the socket is adequate for the maximum power rating of the hob.
• Electrical installation of the residence and the electrical current plug in use must be earthed and conform with safety regulations.
• If there is no dedicated hob circuit and fused switch, they must be installed by a qualified electrician before the hob is connected.
• The fused switch must be easily accessible once the hob has been installed.

Do not use adaptors, multiple sockets and/or extension leads. Declaration of conformity with the requirements of the following EEC W/declares that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced radio interference,

1. EEC/89/109 relating to contact with foods.

- A circuit breaker with a contact opening of at least 3 mm, rated 32 A and delayed functioning type must be installed in the supply circuit.

3x2.5 mm² 220V\~
3x2.5 mm² 230V\~
3x2.5 mm² 240V\~

5x1.5 mm² 380V 3N\~
5x1.5 mm² 400V 3N\~
5x1.5 mm² 415V 3N\~

3x2.5 mm² 220V\~
3x2.5 mm² 230V\~
3x2.5 mm² 240V\~

5x1.5 mm² 380V 3N\~
5x1.5 mm² 400V 3N\~
5x1.5 mm² 415V 3N\~
Supply cable connection can be differ according to terminal box type.

• The supply cable must be H05VV-F 3X2,5 mm ^2 / 60227 IEC 53. You will find the connection diagram shown on the back of your appliance.
• During installation, please insure that isolated cables are used. An incorrect connection might damage your appliance. The guarantee will not cover such damages.
• All repairs must be carried out by an authorised service personal or a qualified electrician.
• Unplug your appliance before each maintenance. For reconnection, follow the connection diagrams.

The appliance is operated by touching buttons and the functions are confirmed by displays and acoustic signals.

NOTE: See the section on HOB RESET if you see a flashing H in any of the displays.

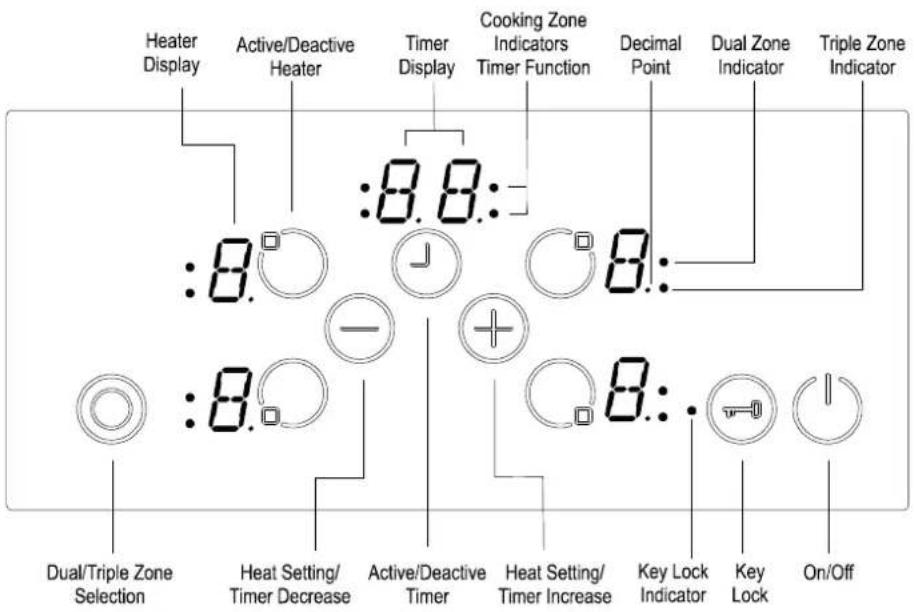

Heater Display Active/Deactive Heater Timer Display Cooking Zone Indicators Timer Function Decimal Point Dual Zone Indicator Triple Zone Indicator :8.0 :8.0 :8.0 Dual/Triple Zone Selection Heat Setting/ Timer Decrease Active/Deactive Timer Heat Setting/ Timer Increase Key Lock Indicator Key Lock On/Off

Stand-By-Mode $-Mode	The mains are applied to the hob control and all heater displays are off or a residual heat display is active.
Operating-Mode	B-Mode	At least one heater display shows a heat setting between '0' and '9'
Lock Mode	VR-Mode	The hob control is locked.

Mode Descriptions

Turning the appliance on / off.

If the appliance is in Stand-By-Mode, it is put in Operating-Mode by pressing the On/Off button ⏻ at least 1 second. A beep indicates a successful operation.

On all heaters a '0' appears and all Decimal Point of the heater flashes.

If there is no operation within 10 sec, the display of all heaters will turn off.

If the displays are turned off, the heater will be set to off.

If ⏻ is pressed more than 2 sec (in Operating-Mode), the appliance is switched off and is set into the off mode again. The appliance can be turned off by pressing ⏻ at any time; even if other buttons are pressed simultaneously.

If there is residual heat remaining, this will be indicated by a flashing H in the corresponding Heater Display.

Select Heater

If a single heater is chosen with the corresponding Active/Deactive Heater Button ☐, the Decimal Point of the related Heater Display flashes. For the selected heater, you can set the heat level between 1-9 by touching the Heat Setting Buttons + or - .

The buttons must be pressed within 3 sec, otherwise the heater selection is erased and heat setting dot will disappear (Decimal Point). If there is no further operation within 10 sec, the heater falls back into off mode.

The heat setting can always be changed by pressing + or - between level 1-9.

Each button operation or each display change is accompanied by a beep.

Dual/Oval zone activation

. Touch the related zone selection key,

⊕ - key to adjust heating level.. Touch or

. Then touch the dual/oval zone selection Ⓞ key.

Set Cooking Level With and Without Heat Boost

All heaters are equipped with heat boost functionality.

If the heat boost is active, then the heater will be operated with maximum power for the period of the heat boost time, which is dependent on the selected heat setting. This is indicated by a flashing 'A', alternating with the heat setting value (e.g. 'A' and then '9') in the heater display. Once the heat boost time has ended, only the heat setting will be displayed.

If you want to use heat boost level 9 must be selected by pressing — starting from level 0. After setting the heat to level 9, 'A' and the heat setting will be displayed alternately. This means that level 9 and heat boost is active. Continue to press the — button to set a lower heat setting.

The heat boost can be turned off by pressing ⏻ until heat setting '0' is selected.

If the heat boost should be used, it can always be activated by actuating + again if the heat setting is set to level 9. In the heat display 'A/9' flashes.

Turn Off Individual Heaters

A selective heater can be turned off in two ways:

. Simultaneous operation of + and - buttons - Reduction of the heat setting to '0' by operating - button

Simultaneous operation of + and - buttons

The corresponding heater must be chosen with one of the Active/Deactive Heater Button ☐ the Decimal Point of the selected Heater Display flashes. To turn off the heater, + and - must be pressed at the same time. A beep signal sounds and '0' appears in the heat setting display.

If there is a residual heat for this heater remaining, this will be indicated by a static display 'H' in the heat setting display.

Reduction of the heat setting to '0' by operating ⏻ button

The heater can also be turned off by reducing the heat setting to '0'. When Heater Display indicates '0', the Decimal Point of the selected heater will also turn off.

If there is a residual heat for this heater remaining, this will be indicated by a static display 'H' in the heat setting display.

Key Lock

Key lock functionality is for blocking and set the appliance into a save modus during operation. Touch modifications as for example rise heat settings and others should not be possible. It is only possible to switch the appliance off.

To lock the current operating mode, press the Key Lock button ⬤ for at least 2 seconds. This operation is acknowledged by a beep. The Key Lock Indicator flashes and the controls are locked. The heater can only be locked in Operating Mode.

If the heater is locked, only ⏻ can be operated, all other buttons are disabled. Only the On-Off switch ⏻ will operate. If you switch off the appliance, you must switch it on again and press the lock button to unlock the appliance before you can use it.

After pressing ⬤ 2 sec, the Key Lock Indicator disappears. Now, the hob control is unlocked and can be operated normally.

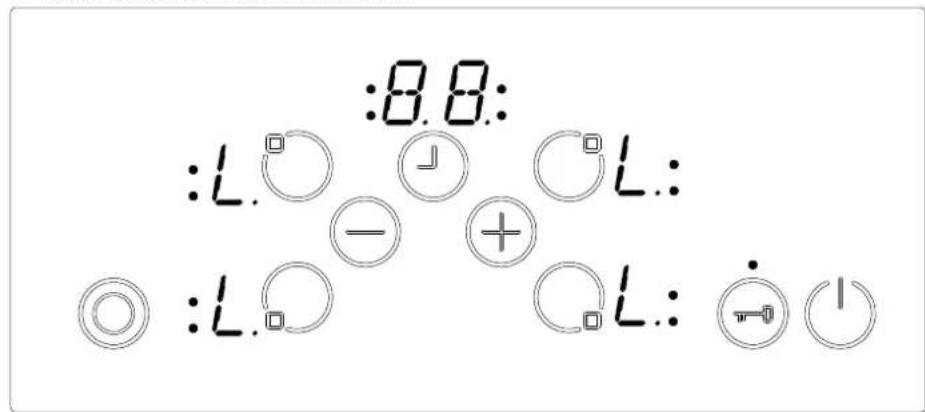

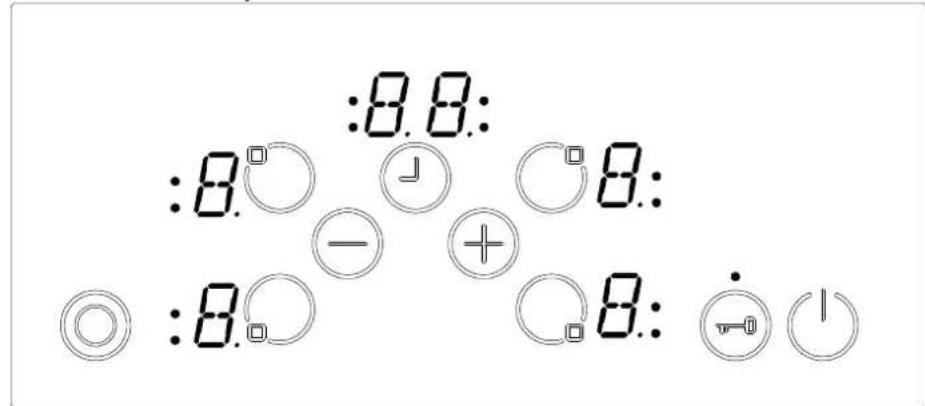

Child Lock

Child lock functionality is foreseen to lock the appliance in a complicated Multi-Step process.

Child locking and unlocking is only available in the S-Mode.

First ⏻ has to be pressed until the buzzer beeps, then the ⊕ and ⊖ have to be pressed for at least 0.5 sec, but max 1 sec. simultaneously. Following that, the appliance can be locked by touching the ⊕ . All 4 heater displays 'L' is showed as a confirmation.

In the case the minute minder is still running, it will proceed until '00' is reached and the timer will beep. After confirmation of timer run out, the appliance is fully locked. None of the buttons can be used as long as the appliance is locked.

The same way the child lock is activated, it can also get deactivated. After pressing ⏻ until the beep, then the ⊕ and ⊖ have to be pressed simultaneously for at least 0,5 sec, followed by touching only the ⊖. As a confirmation for successful unlocking, 'L' symbol in the displays will be erased immediately.

The following safety functions are available to avoid unintended operations of the hob control.

Sensor Safety Cut Off

To prevent the appliance from unwanted, random sensor operation, sensor monitoring is included.

In case of one or more buttons are pressed longer than 12 sec, the sensor monitoring routine indicates with a beep, that wrong operation (pot or other object placed on the button, sensor failure, etc.) and switches off the appliance.

The safety turn off causes the hob to turn off to standby. An 'F' will flash in all heater displays once before switching to standby.

If residual heat is present, 'H' will be displayed in the appropriate heater displays.

Over Temperature Switch Off

Due to the control panel being close to the front two heaters it can get too hot to touch if the pans have been badly placed so the bottom edge of the pan is close to but not touching the control buttons.

To prevent the hob control unit from damage, the control monitors the temperature and switches off, if the control panel exceeds 60^ . All 4 heater displays show 't', until the hob cools down.

:8.8: :t.○─+○t: ◎ :t.○ ○t.: ·

After the hob cools the 't' displays will be erased and the hob control enters standby mode. This means that the user can reactivate the appliance by touching ⏻.

Residual Heat Functions

After the hob is turned off when cooking is finished, there is some heat stored in the vitroceramic glass called residual heat. The hob can calculate roughly how hot the glass is. If the calculated temperature is higher than +60 °C, the corresponding heater display will flash an 'H' symbol. The residual heat display is shown as long as the calculated heater temperature is higher than +60 °C.

The display of the residual heat has the lowest priority and is overwritten by every other display value such as safety turn off's and displaying error codes.

HOB RESET

When the Hob is first turned on after installation or after a power outage during operation, the Hob will display a flashing 'H' on all or some heater displays.

Which displays flash an 'H' depends on mode of operation when the power outage happened.

This is due to the Hob retaining heater information in its memory, this is not a fault and is normal.

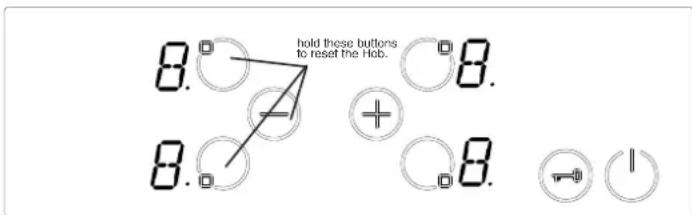

To reset the Hob, press and hold the top left heater, bottom left heater and the ⏻ buttons at the same time for roughly 2 seconds.

hold these buttons to reset the Hob.

Cookware with rough bottoms should not be used since these can scratch the ceramic surface. The bottom of the cookware should be as thick and flat as possible. Before use, make sure that cookware bottoms are clean and dry.

Always place the cookware on the cooking zone before it is switched on. If possible, always place the lids on the cookware. Bottom of the cookware must not be smaller or larger than the cooking zones, they should be at the proper size as indicated below.

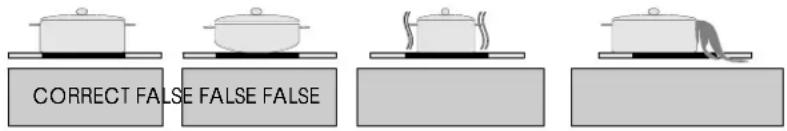

CORRECT FALSE FALSE FALSE

Before cleaning the hob, first disconnect from the electrical supply socket. Then ensure that there is no residual heat stored in the appliance. Vitroceramic glass is very resistant to high temperature and overheating. If there is residual heat stored in the appliance, 'H' is flashing in the Heater Display. In order to avoid burns, let the appliance cool down.

CLEANING THE CERAMIC HOB

Before you begin cleaning make sure that the hob is switched off. Remove spillages and other types of encrustations.

Dust or food particles can be removed with a damp cloth. If you use a detergent, please make sure that it is not abrasive, Do not use abrasive cleaners or scouring powders as these can damage the ceramic surface of the hob.

All traces of the cleaner must be removed with a damp cloth. Dust, fat and liquids from food that has boiled over must be removed as soon as possible.

If they are allowed to harden they become increasingly difficult to remove.

This is especially true in the case of sugar/syrup mixtures which could permanently pit the surface of the hob if left to burn on it. If any of these products has melted on the ceramic surface, you should remove it immediately (when the surface is still hot) by using a scraper to avoid any permanent damage to the surface of the hob (available from the store where you purchased this appliance).

Do not put articles on the hob which can melt: i.e. plastic, aluminium foil, sugar, sugar syrup mixtures etc.

Avoid using a knife or other sharp utensil as these may damage the ceramic surface.

Do not use steel wool or an abrasive sponge which could scratch the surface permanently.

Brand		ATLANTIC
Model		ATLCK60X20X
Type of Hob		Electric
Number of Cooking Zones		4
Heating Technology-1		Radiant
Size-1	cm	∅14,5
Energy Consumption-1	Wh/kg	192,0
Heating Technology-2		Radiant
Size-2	cm	∅14,5
Energy Consumption-2	Wh/kg	192,0
Heating Technology-3		Radiant
Size-3	cm	∅18,0
Energy Consumption-3	Wh/kg	192,0
Heating Technology-4		Radiant
Size-4	cm	∅18,0
Energy Consumption-4	Wh/kg	191,0
Energy Consumption of Hob	Wh/kg	191,8
This hob complies with EN 60350-2

Energy Saving Tips

Hob

• Use cookwares having flat base.
• Use cookwares with proper size.
• Use cookwares with lid.
• Minimize the amount of liquid or fat.
• When liquid starts boiling, reduce the setting.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ATLANTIC

FR

ATLCK60X20X

Line drawing of a four-c� electric stove with four circular ventricles and a control panel (no text or symbols)

TABLE DES MATIÈRES

1. DESCRIPTION DE L'APPAREIL
2. CONSIGNES DE SÉCURITÉ
3. INSTALLATION
4. BRANCHEMENT ELECTRIQUE
5. UTILISATION
6. FONCTIONS SECURITAIRE DU BOUTON DE COMMANDE
7. NETTOYAGE ET ENTRETIEN

Chère cliente, cher client,
