USER MANUAL Iridea D2DBL51IRZU Tognana

thank you for choosing our kitchen scale made exclusively for the weighing of food for domestic consumption. Tognana Porcellane S.p.A. declines any liability for any damage that may arise, directly or indirectly, for persons, things and pets as a result of failure to comply with all the requirements indicated in the appropriate "Manual of use" regarding the installation, use and maintenance of the appliance.

SYMBOLS IN THE MANUAL/PRODUCT AND THEIR MEANING

This symbol indicates that you need to read this manual carefully before use. Pay particular attention to safety guidance. Keep this manual as an integral part of the product.

DANGER: the word indicates a potential imminent danger with a high level of risk that, if not avoided, has a high probability of causing serious injury or death.

WARNING: the word indicates a potential hazard with an average level of risk that, if not avoided, has a high probability of causing serious injury or death.

ATTENTION: the word indicates a potential hazard with a low level of risk that, if not avoided, could lead to minor or moderate injuries.

IMPORTANT NOTICE: the words indicate useful information for the correct use of the product.

This symbol on the product or packaging indicates that the appliance at the end of its useful life must be collected separately from other waste for proper treatment and recycling.

This symbol on the product or packaging indicates that batteries or accumulators at the end of their useful life must be disposed separately from other household waste to allow for adequate treatment and recycling.

This symbol indicates that the appliance complies with the safety requirements laid down in EU regulations/directives.

This symbol indicates that the materials and objects in contact with food (MOCA) are suitable for food contact.

PRODUCT SAFETY

IMPORTANT NOTES ON CORRECT USE

1. This appliance is only intended for weighing food.
2. This appliance is intended for domestic use and similar applications, such as:

*kitchen areas of shop staff, offices and other working environments;

*agrotourism

*customers of hotels, guesthouses and other residential environments;

*rooms like bed and breakfast.

1. This product is not a toy.
2. Do not leave parts of the packaging (plastic bags, polystyrene foam, etc.) within reach of children or dependant persons, as these objects are potential sources of danger (e.g.: risk of suffocation).
3. Use the product for the sole purpose for which it was designed. The manufacturer is not liable for damage or injury caused by improper use.
4. Unauthorised repairs or modifications will invalidate the warranty.
5. Do not use outdoors.
6. Never leave the turned on appliance unattended.
7. Do not place on or near a gas or electric stove, or in a hot oven.
8. Before use, place the appliance on a solid, flat and horizontal surface.
9. Never put the appliance in the dishwasher.
10. Do not leave objects or food on the scale for a long time after weighing. The weighing operation must be relatively fast.
11. Use only original or manufacturer-recommended spare parts and accessories.
12. Do not weigh objects that exceed the maximum scale capacity, as this may damage the scale system.
13. Do not shake or drop the appliance: the scale is a precise instrument and must be handled with care.
14. Avoid exposing the scale to heat or cold for extended periods.

DANGER

PRODUCT

1. Prevent impact with hard objects.
2. Never immerse the scale in water or rinse it under the tap.
3. Do not place anything on the scale when it is not in use.
4. Strong electromagnetic fields (e.g. mobile phones) may affect the accuracy of the measurement.
5. Incorrect use of the product can cause damage or injury.
6. The appliance may be used by children of at least 8 years of age and by persons with reduced physical, sensory or mental abilities, or without experience or knowledge, provided that they are supervised or have received instructions on the safe use of the appliance and the understanding of the hazards inherent thereto. Children should not

play with the appliance. Cleaning and maintenance intended to be carried out by the user shall not be carried out by children without supervision.

1. Supervise the children so that they do not play with the appliance.
2. To avoid electric shock, do not immerse the scale in water or other liquids.
3. This product does not contain repairable parts. Don't try to fix it yourself. Have maintenance performed by a qualified service centre using only identical spare parts. This will ensure that the safety of the product is maintained.
4. Do not use the appliance at high temperatures, in very humid or wet environments or in the vicinity of flammable material.
5. Do not use if the appliance has fallen or has been damaged in any way. Do not attempt repairs yourself. Contact your dealer for repair/replacement, if under warranty, or customer support.
6. Do not clean using metal scourers. Parts can detach from the base and come into contact with the electrical parts, causing the risk of electric shock.

BATTERIES

1. Use only the size and type of battery specified on the product.
2. Make sure to follow the correct polarity when installing the battery. Reversed batteries may cause damage to the device.
3. If the device battery is low or the device will not be used for a long period of time, remove the battery to avoid damage or injury due to possible battery leakage.
4. Do not attempt to charge batteries that are not intended to be charged; they may overheat and break (follow the battery manufacturer's instructions).
5. Do not dispose of batteries in fire, as they may explode or leak.
6. Clean the battery contacts as well as those of the device before installing the battery.
7. Remove the depleted batteries from the product and dispose/recycle them in accordance with all applicable laws.
8. Keep the battery away from children and pets. Batteries can be harmful if swallowed. If a child or pet swallows a battery, seek medical attention immediately.

CONFORMITY OF THE PRODUCT

The manufacturer Tognana Porcellane S.p.A. declares that the product Digital kitchen scale Mod. Iridea complies with Directive 2014/30/EU of the European Parliament and of the Council of 26 February 2014 on the harmonisation of the laws of the Member States relating to electromagnetic compatibility.

The manufacturer Tognana Porcellane S.p.A. declares that the product Digital Kitchen Scale Mod. Iride complies with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 and subsequent Commission Delegated Directive 2015/863 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

TECHNICAL FEATURES

• Capacity: 5 kg
  Division: 1 g
  LCD display: 050mm
  Automatic switch-off after 90 seconds
  Power supply: 3VDC (2 UM4/AAA BATTERIES)
• Dimensions: 18 × 18 × 17 cm
  Net weight: 420g
  Tare function
  Overload indicator
• Low battery indicator

BEFORE FIRST USE

1. Remove the different components from the packaging, check that they are complete and intact, carefully remove any protections and labels. The package contains:

No. 1 Scale with bowl
NO.2UM4/AAA Batteries
No.1 User Manual

1. Make sure that all parts are assembled correctly and in place before use.
2. Before using the appliance it is recommended to wash all removable parts that will come into contact with food, using a damp cloth. Dry well.

DO NOT PUT IN THE DISHWASHER OR SOAK IN LIQUIDS.

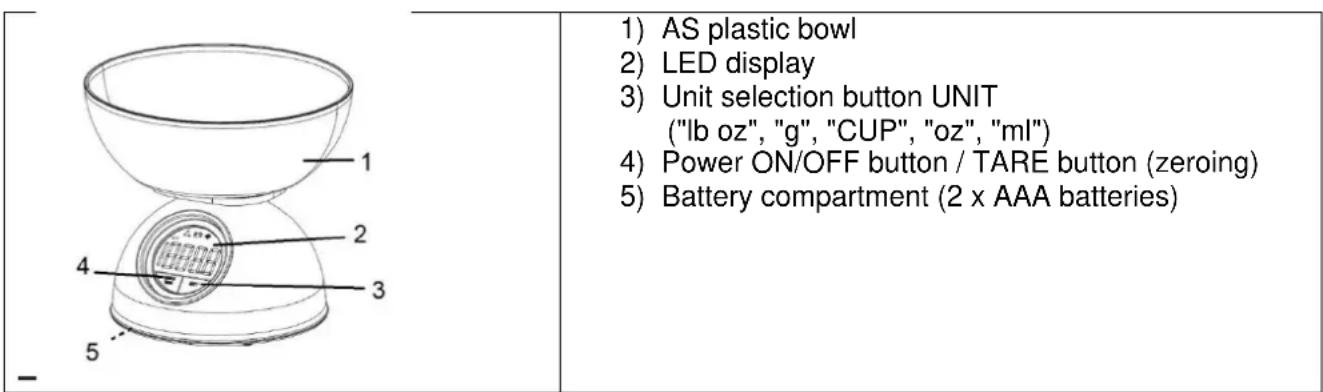

COMPONENTS

DISPLAY SYMBOL DESCRIPTION

SYMBOL	DESCRIPTION
lb oz	Weight unit indicator in pounds
g	Weight unit indicator in grams
oz	Weight unit indicator in ounces
ml	Unit of volume indicator in milliliters
CUP	Cup unit indicator (237 ml for liquids, 200 g for solids)
Tare	Tare indicator
-	Negative weight or volume (when tare is selected)
O-ld	Overload indicator
0	Weight indicator reset
||	Low battery indicator

BUTTON DESCRIPTION

UNIT: To select the weight/volume lb/g/fl'oz/oz/ml function

ON/OFF/TARE: ON/OFF, ZERO/TARE

INSTRUCTIONS FOR USE

1. Open the battery compartment cover under the scale.
2. Insert 2 UM4/AA batteries, paying attention to the correct polarity and close the cover.
3. Place the appliance on a flat and stable surface.
4. Place the bowl or any other container on the scale platter before you switch it on.
5. Press the "ON/TARE" button to switch on the instrument.
6. The display will show "-18.8.8.8." for approximately 2 seconds, after which "0.0" is displayed, and then the scale is ready to weigh.
7. To change the unit of measurement, as soon as the display shows "0.0", press the "UNIT" key to choose lb/g/oz/fl'oz/oz/ml.
8. Put the food to be weighed in the bowl; the display will show the measured weight.

USEFUL SUGGESTIONS:

• When switching on the scale, if nothing appears on the display, check that the batteries have been inserted correctly. If the problem persists, the batteries may be low, in which case replace them with new batteries of the same type.
  Always wait until the display shows "0.0" before putting the food to be weighed on the platform.
• Press the 'ON/OFF/TARE' button to switch off the appliance. Otherwise, the appliance will automatically switch off after approximately 90 seconds.

BATTERY REPLACEMENT

When the low battery symbol (LO) appears on the display or the values indicated are inaccurate, replace the battery.

1. Open the battery compartment cover located under the scale.
2. Remove the discharged batteries and replace them with two new batteries of type UM4/AAA. Close the cover.

IMPORTANT NOTE:

• When changing the battery, do not press too hard on the weighing plate.
  If the product is not used for an extended period of time, it is recommended to remove the batteries.

OVERLOAD INDICATOR

1. When the Product is overloaded (above 5kg ), the display shows "O-Ld".

2. Remove excess weight immediately to avoid damaging the scale.

3. Select the measurement mode (lb/g/oz/fl'oz/oz/ml) by pressing the UNIT key.
4. Proceed with weighing.

TARE/WEIGH FUNCTION

1. Turn on the product.
2. Place the food in the scale bowl.

To remove the weight of the container, press the "ON/OFF/TARE" button. The display will show "0.0".

1. Put the food to be weighed in the container. The display will then show the measured weight.

PLEASE NOTE: If the bowl or other container is placed on the platter BEFORE switching on, the appliance automatically excludes this weight.

TARE NEGATIVE

Tare weight is displayed as a negative number, when all weight is removed from the scale (including the container).

CLEANING AND MAINTENANCE

1. Cleaning

Clean the bowl with a slightly damp cloth or with water and some mild dishwashing liquid.

DANGER! DO NOT PUT IN THE DISHWASHER OR SOAK IN LIQUIDS.

IMPORTANT NOTE Do not use chemical detergents, steel wool or abrasive cleaners for cleaning.

2. Storing

When you do not use the appliance for a long time, we advise you to remove the batteries before storing it.

INFORMATION ON DISPOSAL

PRODUCT

Pursuant to art. 26 of Legislative Decree No. 49 of 14 March 2014 "Implementation of Directive 2012/19/EU on waste electrical and electronic equipment (WEEE)", the presence of the wheeled bin symbol indicates that this product is not to be considered urban waste: Non-separate disposal can be a potential harm to the environment and health. This product may be returned to the distributor upon purchase of a new appliance.

Improper disposal of the product constitutes fraudulent conduct and is subject to sanctions by the Public

Safety Authority. For more information, please contact the local environmental authority.

BATTERY

This symbol shown on the product or on the packaging indicates that batteries or accumulators at the end of their useful life must be disposed separately from other household waste to allow for adequate treatment and recycling. If the batteries or accumulators contain more than 0.0005 mass percent mercury, more than 0.002 mass percent cadmium or more than 0.004 mass percent lead, they are

marked with the chemical symbols for metals (Hg, Cd, Pb) for which the limit value is exceeded

PACKAGING

For information on how to properly dispose of the packaging that protects this product and its parts and/or accessories, follow the instructions in the packaging.

The Company Tognana Porcellane S.p.A. thanks its Customers for their choice and guarantees that its appliances are the result of the latest technologies and research.

This warranty applies only to small appliances marked with the "Tognana" brand and is valid as a conventional warranty pursuant to Article 135-quinques of the Italian Consumer Code (Legislative Decree 206 of 6 September 2005). This warranty does not in any way affect the rights expressly provided for in favour of the consumer by the regulations on the sale of consumer movable goods, whether Italian or of the consumer's country of residence: the consumer can therefore always assert his rights against the retailer from which he purchased the appliance, under the conditions and within the terms provided for by these regulations. Under this warranty, the appliance is covered by the conventional warranty for a period of two years from the date of purchase by the first user.

It is up to the consumer - through a delivery document issued by the retailer (or by Tognana Porcellane S.p.A. itself, in the case of a purchase made by the consumer directly in the online shop of the latter) or by another evidentiary document (for example, tax receipt, cash receipt or similar, purchase order, etc.), which shows the name of the retailer and the date on which the sale was made - to demonstrate that this warranty is still valid at the time of filing the complaint of defect of the appliance.

In the event of a defect in the appliance, pursuant to this warranty, the consumer may highlight this defect by contacting the appliance dealer or by contacting Tognana Porcellane S.p.A. directly at the e-mail [e-mail], or at the telephone number [phone].

Tognana Porcellane S.p.A. guarantees the free repair or replacement of the appliance and/or its components that have defects due to ascertained causes of manufacture and/or malfunctions, directly or through affiliated service centres (check any contacts on the Tognana Porcellane S.p.A. website:

www.tognana.com). Tognana Porcellane S.p.A. reserves the right to completely replace the appliance, if repairability is impossible or too expensive, with another identical or similar appliance (or one that has functional and aesthetic characteristics similar to those of the purchased appliance), without the consumer being able, in this second hypothesis, to contest the choice made by Tognana Porcellane S.p.A.

The consumer, in the presentation of the complaint, in addition to specifying the defect found, also providing photographic documentation, if indispensable for the purpose of ascertaining the defect of the appliance, must communicate their personal data - name and surname, residence address, email and telephone number - for each subsequent contact. For the successful replacement or repair of the appliance, the consumer will in any case be required to follow the instructions provided in this regard by the employees of Tognana Porcellane S.p.A. or the service centre in charge.

All costs of repair and delivery of the replacement appliance or defect-free components will be entirely borne by Tognana Porcellane S.p.A., which will also bear the costs of returning the defective appliance or component, if expressly requested by the consumer.

It should be noted that, following the replacement or repair of the appliance, the effective date of this warranty remains that of the first purchase: therefore, the service performed under the warranty does not extend the period of its validity.

For the purposes of the effectiveness of this warranty, it is specified that: the appliance has been designed and built for exclusively domestic use, consequently terminating this warranty for any other different use. In addition, the appliance can never be considered defective if it has to be adapted or modified to comply with national or local safety and/or technical standards, in force in the consumer's country, if outside the European Union.

In any case, this warranty does not cover:

• parts subject to wear and tear, nor those that require periodic replacement and/or maintenance;

• negligence or carelessness in the use of the appliance (e.g. failure to comply with the operating instructions of the appliance);

• professional use of the appliance;

• defects due to incorrect installation, configuration, updating of software/BIOS/firmware not performed by authorized personnel Tognana Porcellane S.p.A;

• repairs or interventions carried out by personnel not authorised by Tognana Porcellane S.p.A.;

• manipulations of components of the appliance or, where applicable, of the software;

• other circumstances that, in any case, cannot be traced back to manufacturing defects in the appliance.

Tognana Porcellane S.p.A. declines all responsibility for any damage that may, directly or indirectly, result to people, property and pets as a result of failure to comply with all the requirements indicated in the specific instruction booklet and concerning especially the warnings regarding installation, use and maintenance of the device.

Further claims, in particular if they relate to claims, are excluded, unless the liability arises from express provision of law. At the end of the period of validity of this warranty, or for goods that are not covered by it, Tognana Porcellane S.p.A. remains available to the customer for any questions or information. Further information is available on the website: www.tognana.com
