Product Type	Two-handle kitchen faucet
Model	UNJ-HC-304
Brand	Franke
Recommended water pressure	35-75 PSI (2.4-5 bar)
Maximum water pressure	145 PSI (10 bar)
Recommended hot water temperature	120-140°F (50-60°C)
Mounting hole diameter	32 mm (1-1/4 in)
Main functions	Separate hot water and filtered water dispensing, 360° swivel spout
Number of ways	2 ways (hot water and filtered water)
Cold water connection	3/8" poly tube with push-in fitting
Hot water connection	1/4" poly tube and high temperature silicone hose
Cartridge	Replaceable ceramic cartridge (ref. F3401 for cold water, F3402 for hot water)
Material	Not specified, likely chrome finish
Care and cleaning	Soft sponge and soapy water, avoid harsh detergents and chlorine
Safety	Do not operate both handles simultaneously to avoid overpressure in the tank; professional plumber installation recommended
Spare parts	Cartridges (F3401, F3402), connector kit (F3403), handle assembly (F3440), hoses (F3405, 10305), adapters (F3406, F3438), mounting set (F3408), silicone kit (F3409)
Repairability	Cartridge easily replaceable with 2.5 mm Allen key; parts available
Standards	ASME A112.18.1 / CSA B125.1, NSF/ANSI/CAN 61-2021, NSF 372, California Energy and DOE compliant

Frequently Asked Questions - UNJ-HC-304 FRANKE

What is the recommended water pressure for the Franke UNJ-HC-304 faucet?

The recommended water pressure is 35 to 75 PSI (2.4 to 5 bar). The maximum pressure is 145 PSI (10 bar).

What types of water does the UNJ-HC-304 faucet dispense?

This faucet dispenses hot water and filtered water separately via two distinct handles.

How to install the UNJ-HC-304 faucet?

Installation requires drilling a 32 mm hole, fixing the faucet with the escutcheon and mounting plate, then connecting the tubes: 3/8" for cold water, 1/4" for filtered water and a silicone hose for hot water. Tighten fittings by hand only.

Can I use non-Franke components with this faucet?

Franke strongly recommends using only original Franke components (filtration, tanks) to ensure operation and safety.

How to replace the faucet cartridge?

Turn off the water, briefly open the faucet to release pressure, remove the handle with a 2.5 mm Allen key, unscrew the connector kit and lock nut, then replace the ceramic cartridge.

What to do if the faucet leaks?

Check that the push-in fittings are fully inserted and hand-tightened. If the leak persists, it may be necessary to replace the cartridge or contact customer service.

Can the faucet spout swivel?

Yes, the spout has a 360° swivel capability for ease of use.

How to maintain the faucet finish?

Clean with a soft sponge and soapy water. Avoid harsh detergents, chlorine, and metal sponges that could damage the surface.

What safety precautions should be observed?

Do not operate both handles at the same time to avoid overpressure in the heating tank. In case of extended absence, follow the seasonal shutdown instructions for the filtration system.

Where can I find spare parts for the UNJ-HC-304?

Spare parts are listed in the manual: cartridges (F3401, F3402), connector kit (F3403), handle assembly (F3440), hoses, adapters, and mounting kit. Contact Franke at 1-800-626-5771 or at www.franke.com.

USER MANUAL UNJ-HC-304 FRANKE

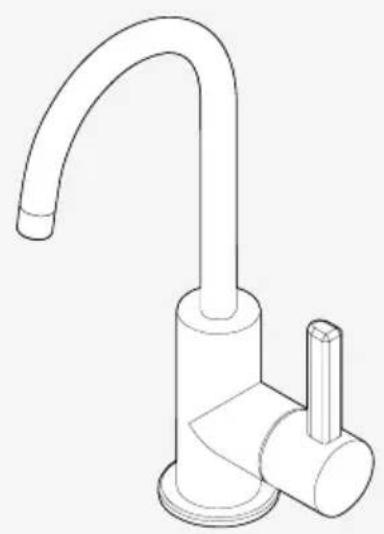

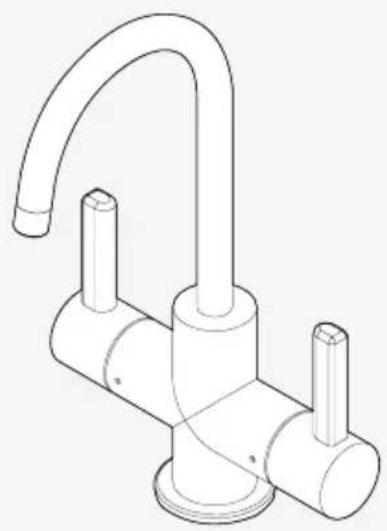

Universal Filtration J Spout

UNJ-FW-304

UNJ-HO-304

UNJ-HC-304

UNJ-FW-CHR

UNJ-HO-CHR

UNJ-HC-CHR

UNJ-FW-IBK

UNJ-HO-IBK

UNJ-HC-IBK

UNJ-FW-GLD

UNJ-HO-GLD

UNJ-HC-GLD

ENInstallation manual KitchenFaucet

Installation instructions 5

Before you begin 5

Hot water installation options 5

Cold water installation options 5

Preliminary steps 6

Installation steps UNJ-FW-304 7

Installation steps UNJ-HO-304 / UNJ-HC-304 8

Usage and maintenance 9

Usage 9

General maintenance 9

Replacing the cartridge 10

Spare/replacement list UNJ-FW-304 11

Spare/replacement list UNJ-HO-304 12

Spare/replacement list UNJ-HC-304 13

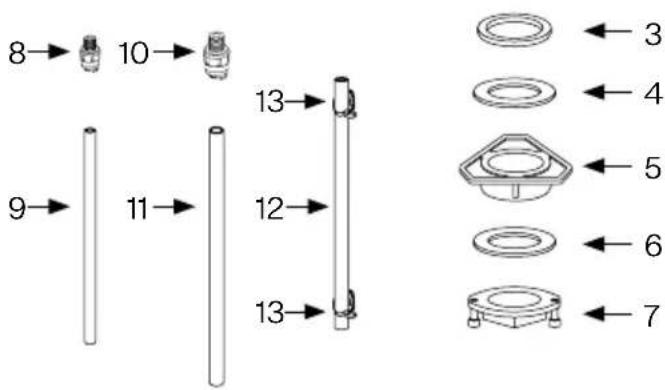

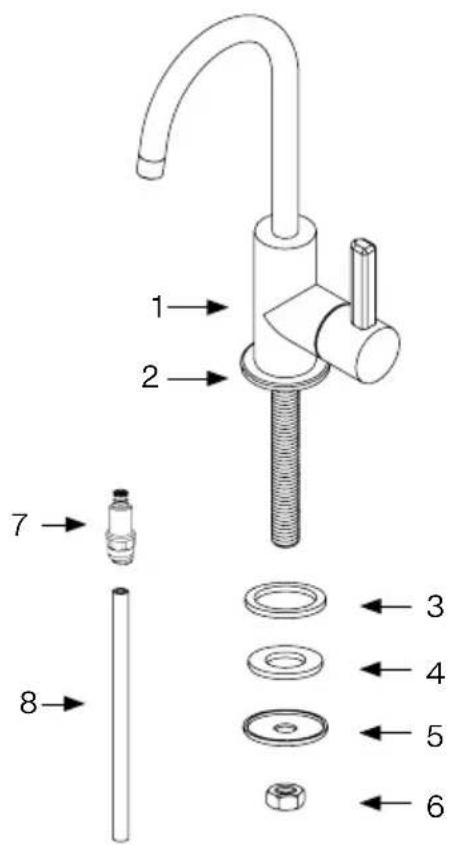

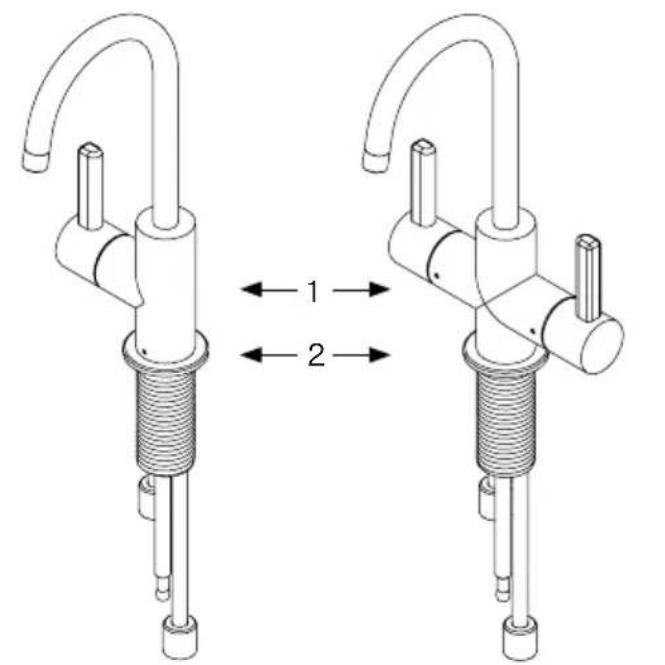

Contents in box

UNJ-HO-304 UNJ-HC-304 UNJ-FW-304

1. Facet Assembly
2. Escutcheon
3. Escutcheon Rubber Washer
4. Rubber Washer
5. Plastic Flange

6. Fixing Plate

7. Fixing Nut

8. 1/4'' Push Fitting
9. 1 / 4'' Poly-tube
   10.3/8"Push Fitting
10. 3 / 8'' Poly-tube
11. Silicone Tube

12. Plastic Clamps

13. Facet Assembly

14. Escutcheon
15. Escutcheon Rubber Washer
16. Rubber Washer
17. Press Plate
18. Fixing Nut
19. 3/8" Push Fitting
20. 3 / 8'' Poly-tube

Note: Contact us immediately if you see inconsistencies.

phone: [phone]

website: www.franke.com

email: [e-mail]

Technical data

Operating data Value

Water Pressure (recommended) 35-75 PSI 2.4-5 bar 240-500 kPa

Water Pressure (max.) 145 PSI 10 bar 1000 kPa

Hot Water Temperature (recommended) 120-140°F 50-60°C

Hole Size For Faucet 1-1/4" 32 mm

Certifies this faucet complies with ASME A112.18.1 / CSA B125.1, NSF/ANSI/CAN 61-2021: Q < 1 , NSF 372. The faucet also complies with water usage requirements of the California Energy Commission and the US Department of Energy.

Installation instructions

Before you begin

For best results, Franke recommends this faucet be installed by a licensed, professional plumber. The installer should familiarize themselves with how this dispensing faucet will be installed and function as part of a point-of-use water dispensing arrangement before the products are installed because there are several installation options. Make certain to observe all local plumbing and building codes during the installation.

Hot water installation options

The UNJ-HO-304 Series dispenser offers hot water only. This dispenser is required to be used in conjunction with a Franke heating tank unit. Use of a Franke filtration system in addition to the heating tank is optional, but strongly recommended in order to prolong the life and improve the performance of the heat tank, as well as providing much higher quality water as compared to un-filtered water entering the tank.

The UNJ-HC-304 Series dispenser offers hot and filtered water separately. This dispenser must be used in conjunction with both a Franke heating unit and a Franke filtration system.

These models both utilize 3 tubes to connect to the system.

• A 3/8'' poly-tube for the cold water supply into the dispensing faucet.
• A 1/4'' poly-tube to carry the filtered water from the dispensing faucet to the heating tank unit.
• An opaque high temperature silicone tube to carry the heated water from the heating tank back to the dispensing faucet.

Cold water installation options

The UNJ-FW-304 Series dispenser provides filtered drinking water as well as the option of chilled drinking water. This dispenser is required to be used in conjunction with a Franke filtration system. For chilled drinking water, a Franke chiller tank unit is required. This model utilizes a 3/8'' poly-tube to supply filtered water to the faucets.

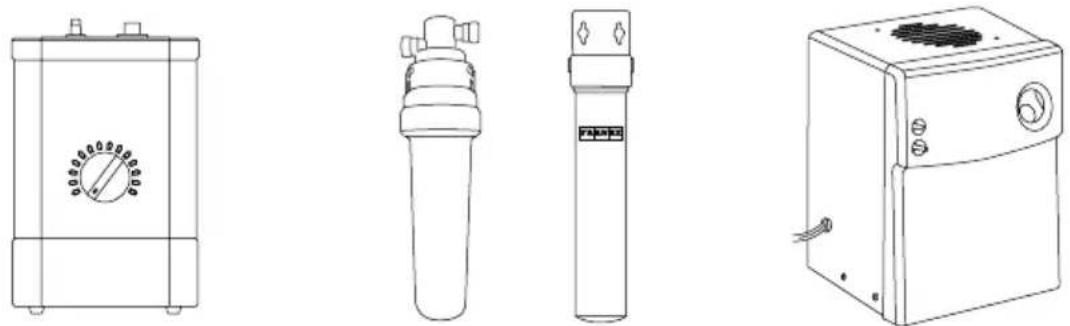

Heating Tank Filtration Systems Chiller Tank

Important: Franke strongly recommends using only genuine Franke components in tandem with all Franke dispensing faucets. The function of the dispensing faucets cannot be guaranteed if using filtration products, heating tanks, or accessories other than genuine Franke components.

Preliminary steps

1. It is recommended to take the components and locate their optimum positions before starting the installation.
2. Make sure there is adequate clearance for the dispenser handle(s) to open fully without interference.
3. Make sure all plumbing and electrical connections will reach the intended mounting positions for all the components and there will be no obstruction or sharp bends in the plumbing.
4. Make sure the counter top is no thicker than 2".

Important: For subsequent steps, it will be required to cut and route tubing to fit the specific application in your home. All tubing must be cut squarely and free of burrs. Ensure there is no damage within 1" of the cut end.

Do not use any forms of sealing

compounds: This is not required for push fit connections, and using sealing compounds could cause leaks.

All tubing connections must be routed to avoid sharp bends and have enough slack to avoid straining connections. Pull gently on each connection to make sure they are secure. See diagram below for details on tubing installation and removal.

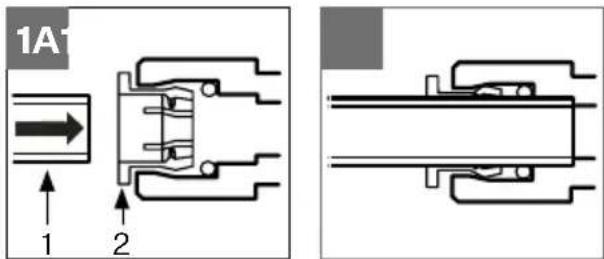

1. How to insert/remove tubing in push fit connections:

2. Insert the Tube (1) squarely (fig. 1A).

3. Make sure to insert tubing completely (fig. 1B).

• To remove, push in Collet (2) and pull out Tubing (1) (fig. 1C).

1. Remove all contents from the package and check for completeness.
2. Cut mounting hole 1 - 1 / 4'' in diameter (32mm) in the desired position (if one isn't available).
3. Turn off water supply.

Installation steps UNJ-FW-304

1. Remove mounting hardware from faucet body shank.

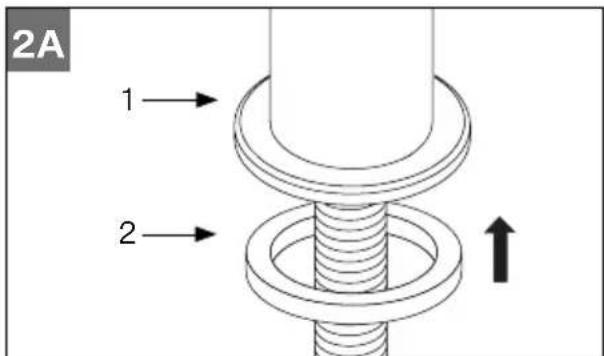

2. Slide the Escutcheon (1) over the shank. Make sure the Rubber Washer (2) is positioned in its seat in the Escutcheon (fig. 2A).

1. Place the faucet in the hole, orienting the spout towards the sink bowl with the handles in position to rotate forward.

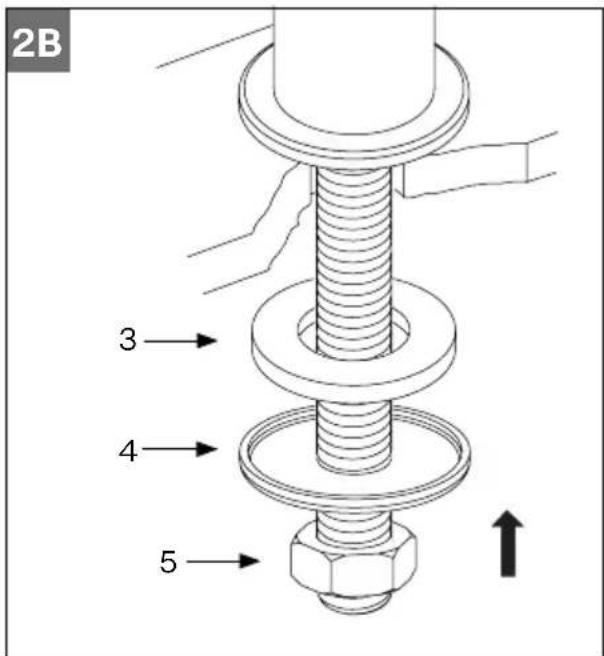

2. Install mounting hardware underneath the mounting surface in the following order: Rubber Washer (3), Press Plate (4) and Fixing Nut (5) (fig. 2B).

1. Connect the cold water supply to the faucet:

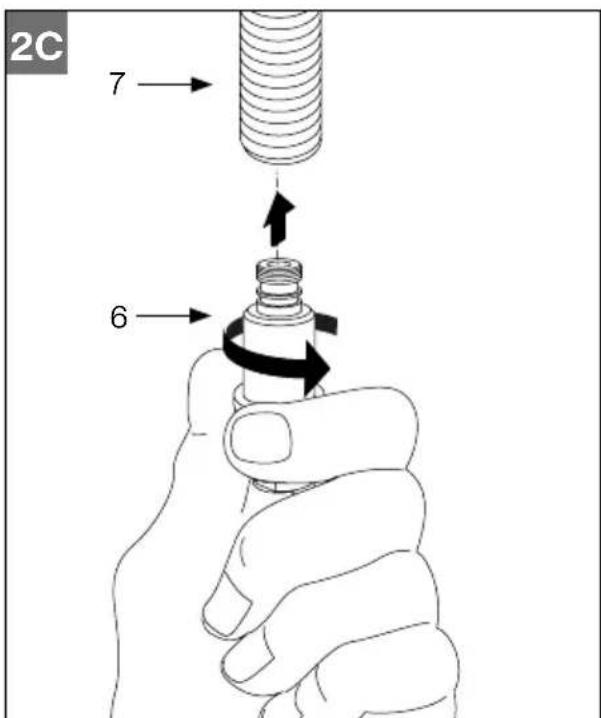

Screw in 3/8" Push Fitting (6) into Mounting Shank (7) (fig. 2C). Hand tighten only!.

Warning: Use of tools to tighten this fitting can lead to leaks!

• Insert the 3/8'' Poly-tube into the Push Fitting (fig. 1A, 1B).

Note: There should be a service label attached to the poly-tubing. Do not remove label.

1. Connect the 3/8'' poly-tube to the outlet of the filtration system as outlined in the filtration system instructions.
2. Turn on the water and check for leaks.

Installation steps UNJ-HO-304/ UNJ-HC-304

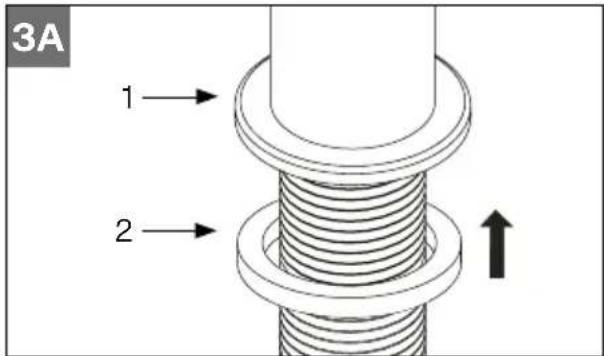

1. Remove mounting hardware from faucet body shank.
2. Slide the Escutcheon (1) over the shank. Make sure the Rubber Washer (2) is positioned in its seat in the Escutcheon (fig. 3A).

1. Place the faucet in the hole, orienting the spout towards the sink bowl with the handles in position to rotate forward.
2. Install mounting hardware to the mounting shank underneath the mounting surface in the following order: Rubber Washer (3), Plastic Flange (4), Fixing Plate (5) and Fixing Nut (6) (fig. 3B).

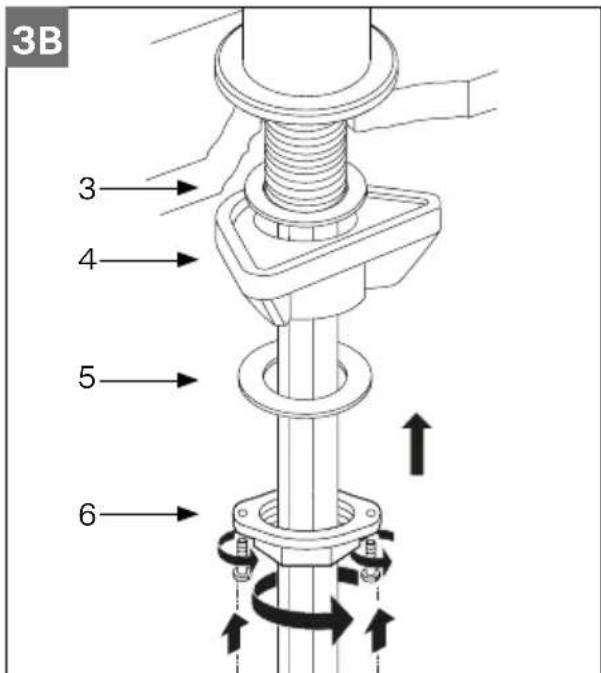

1. Tighten 2 screws in Fixing Nut (6) to secure the nut (fig. 3B).

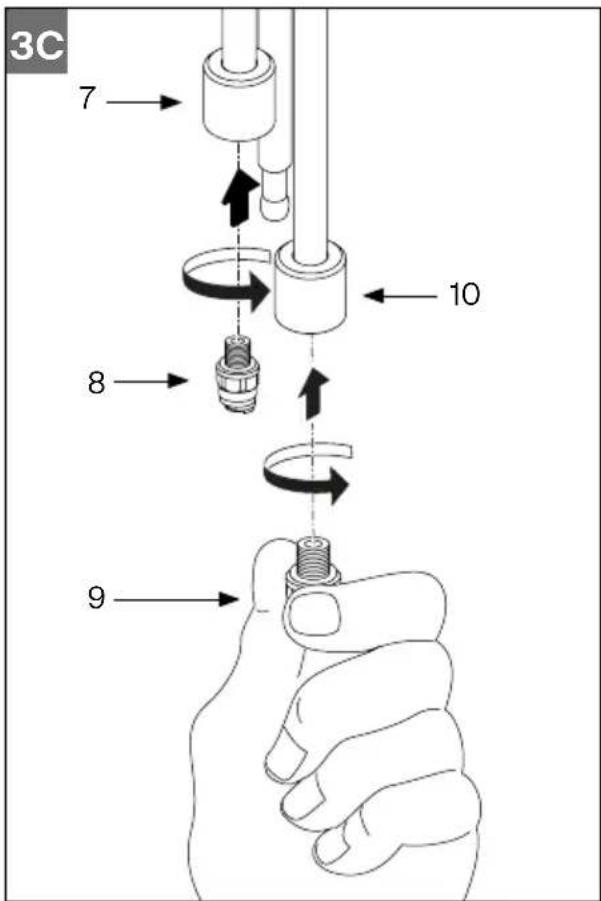

2. Screw in the 1/4'' Push Fitting (8) into the Hot Water Inlet (7) and screw the 3/8'' Push Fitting (9) into the Cold Water Inlet (10) (fig. 3C). Hand tighten only!

Warning: Use of tools to tighten this fitting can lead to leaks!

1. For the cold side, connect the 3/8'' poly-tube to the 3/8'' Push Fitting (fig. 1A, 1B) and connect the other end of the tube to the filtration system as outlined in the filtration system instructions.

Note: There should be a service label attached to the water supply pipes from the faucet. Do not remove label.

1. For the hot side, connect the 1/4'' poly-tube to the 1/4'' Push Fitting (fig. 1A, 1B) and connect the other end of the poly-tube to the heating tank inlet as outlined in the heating tank instructions.

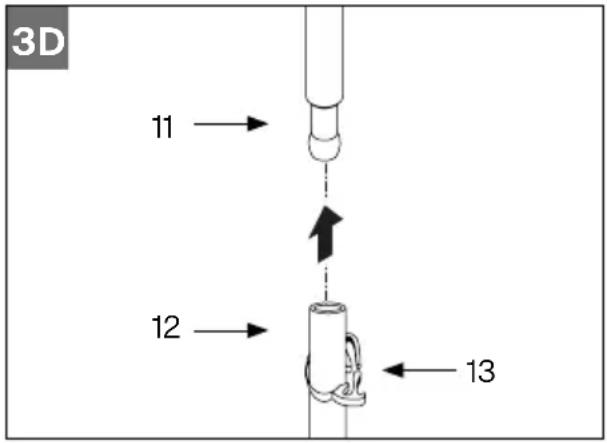

2. Connect the high temp Silicone Tube (12) to the Mounting Nipple (11) and secure the tubing using the Hose Clips (13) (fig. 3D).

1. Connect the other end of the high temp silicone tube to the heating tank outlet as outlined in the heating tank instructions.

Note: All tubing provided with the faucet is intended to be longer than will be necessary to make the connections to the heating tank. It is recommended to cut these tubes to the proper length to remove any unnecessary loops or low spots in tubing after installed.

1. Turn on the water and check for leaks.

Usage and maintenance

Usage

Pull the handle(s) forward to turn on the water supply. Both valves will stay in the 'on' position until rotated back to upright position.

Note: The spout has a 360^ swivel capability.

Warning: Do not operate both handles at the same time, as this can build up pressure in the heating tank causing the bladder to expand and eventually burst. Such damage is not covered by the warranty.

Seasonal Shutdown: If you plan to be away from home for extended periods of time, refer to the filtration system and/or heating tank system instructions (if applicable) under the Winterizing or Seasonal Shutdown sections to prevent system failures.

General maintenance

Do not use harsh detergents, solvents, chemical agents, especially CHLORINE based cleaners, metallic sponges, etc. that could harm the surface and damage the finish. Clean only with soft sponge and soapy water.

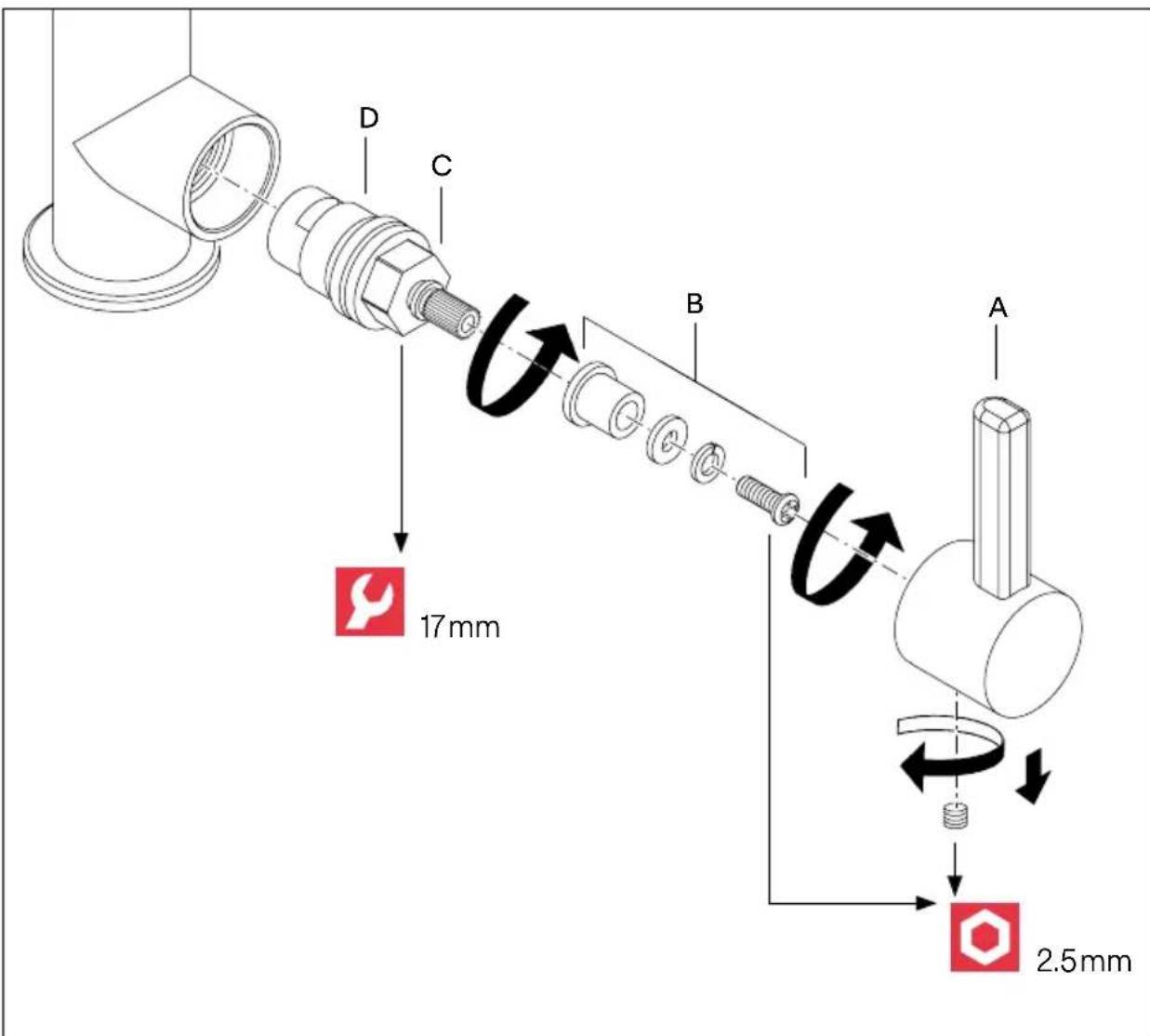

Replacing the cartridge

1. Shut off the water supply to the faucet.
2. Turn on the faucet briefly to relieve any pressure inside the faucet.
3. Move the faucet handle to the "OFF" position.
4. Remove the set screw from the Handle Assembly (A) using a 2.5 mm Hex Key.

5. Pull the Lever Handle (A) from faucet body.

6. Unscrew the Connector Kit (B) from the cartridge.

7. Uscrew the Cartridge Lock Nut (C).
8. Lift Ceramic Disc Cartridge (D) from the body and replace it with a new one.
9. Re-assemble faucet in reverse order.
10. Test for leakage.

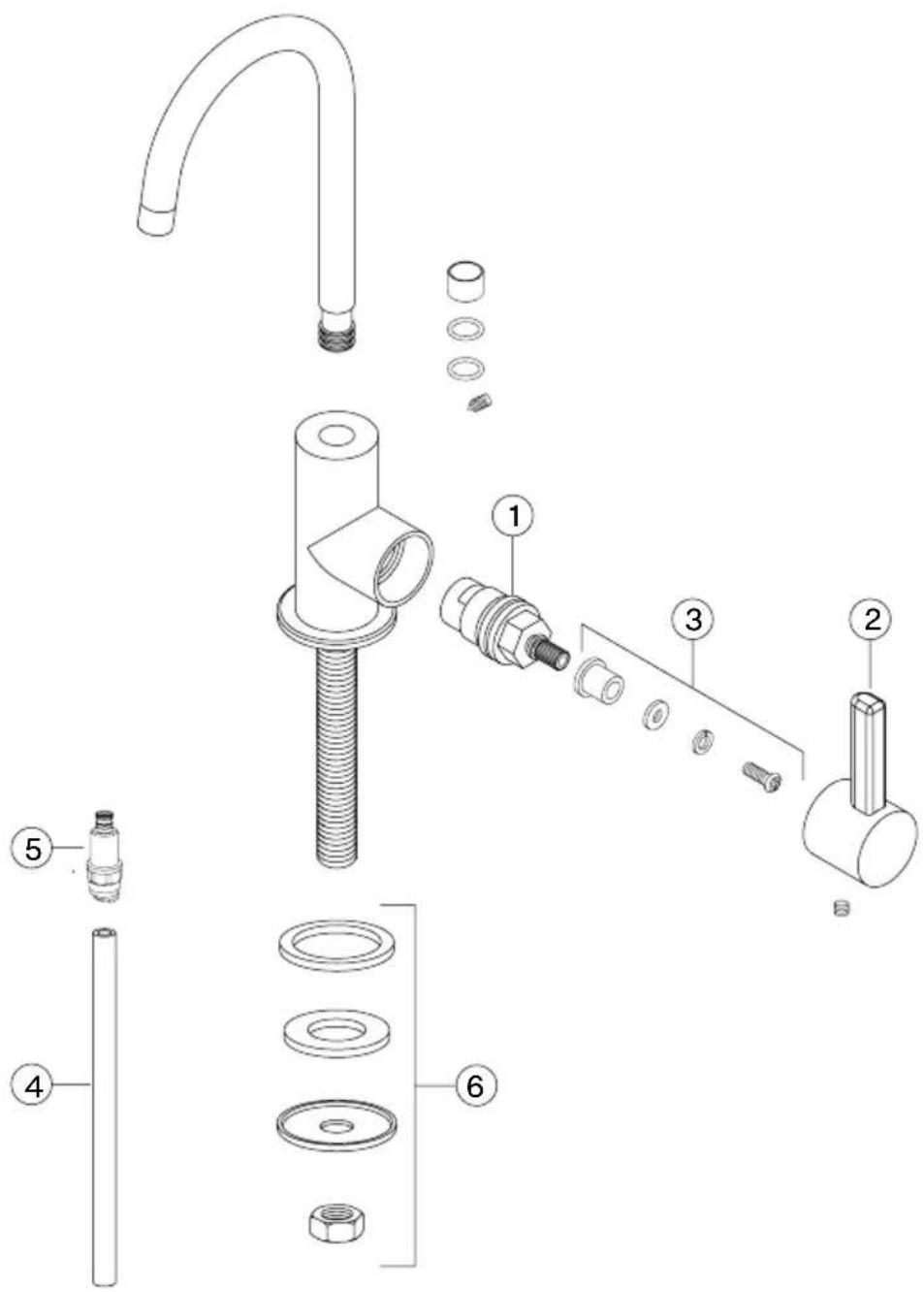

Spare/replacement list UNJ-FW-304

1 F3401 Cold Cartridge
2 F3440 Handle Assembly*
3 F3403 Cartridge Connector Kit
4 10305 3/8" Water Supply Tubing
5 F3439 3/8" Push Fitting Adapter
6 F3407 Fastening Set

• Must Specify Finish

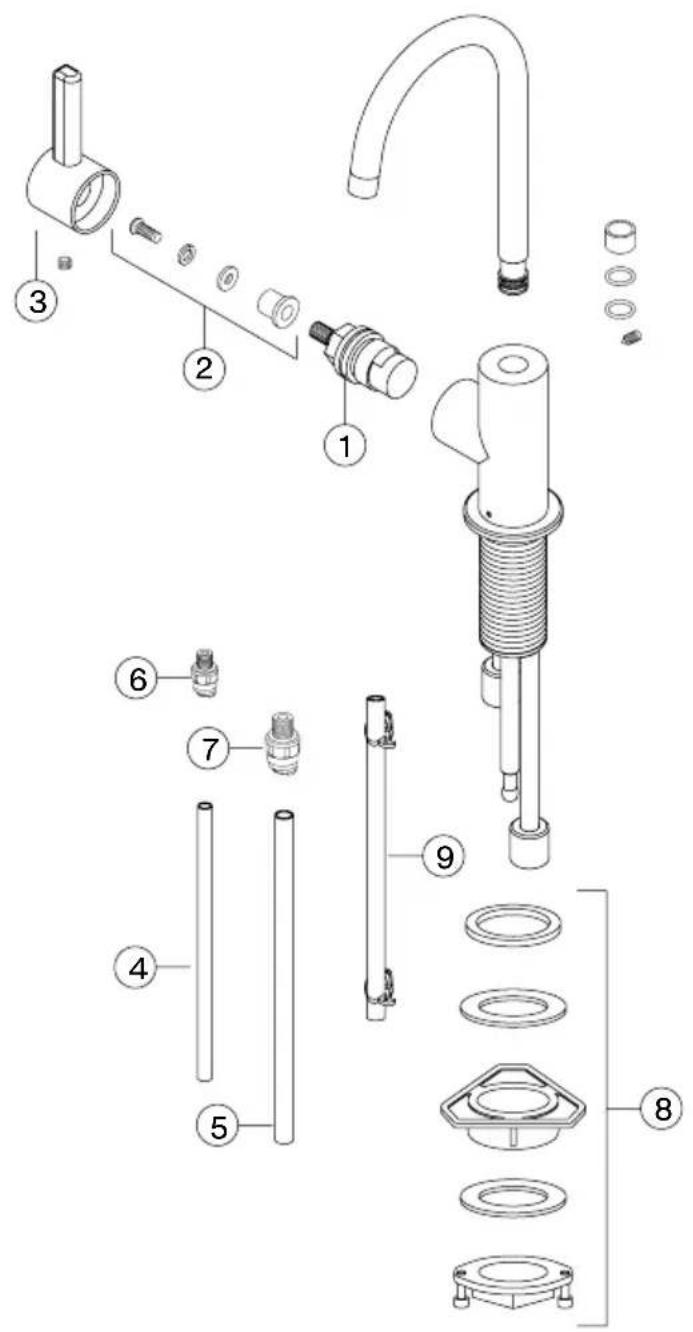

Spare/replacement list UNJ-HO-304

1	F3402 Hot Cartridge	6	F3406 1/4" Push Fitting Adapter
2	F3403 Cartridge Connector Kit	7	F3438 3/8" Push Fitting Adapter
3	F3440 Handle Assembly*	8	F3408 Fastening Set
4	F3405 1/4" Water Supply Tubing	9	F3409 Silicone Tubing Kit
5	10305 3/8" Water Supply Tubing

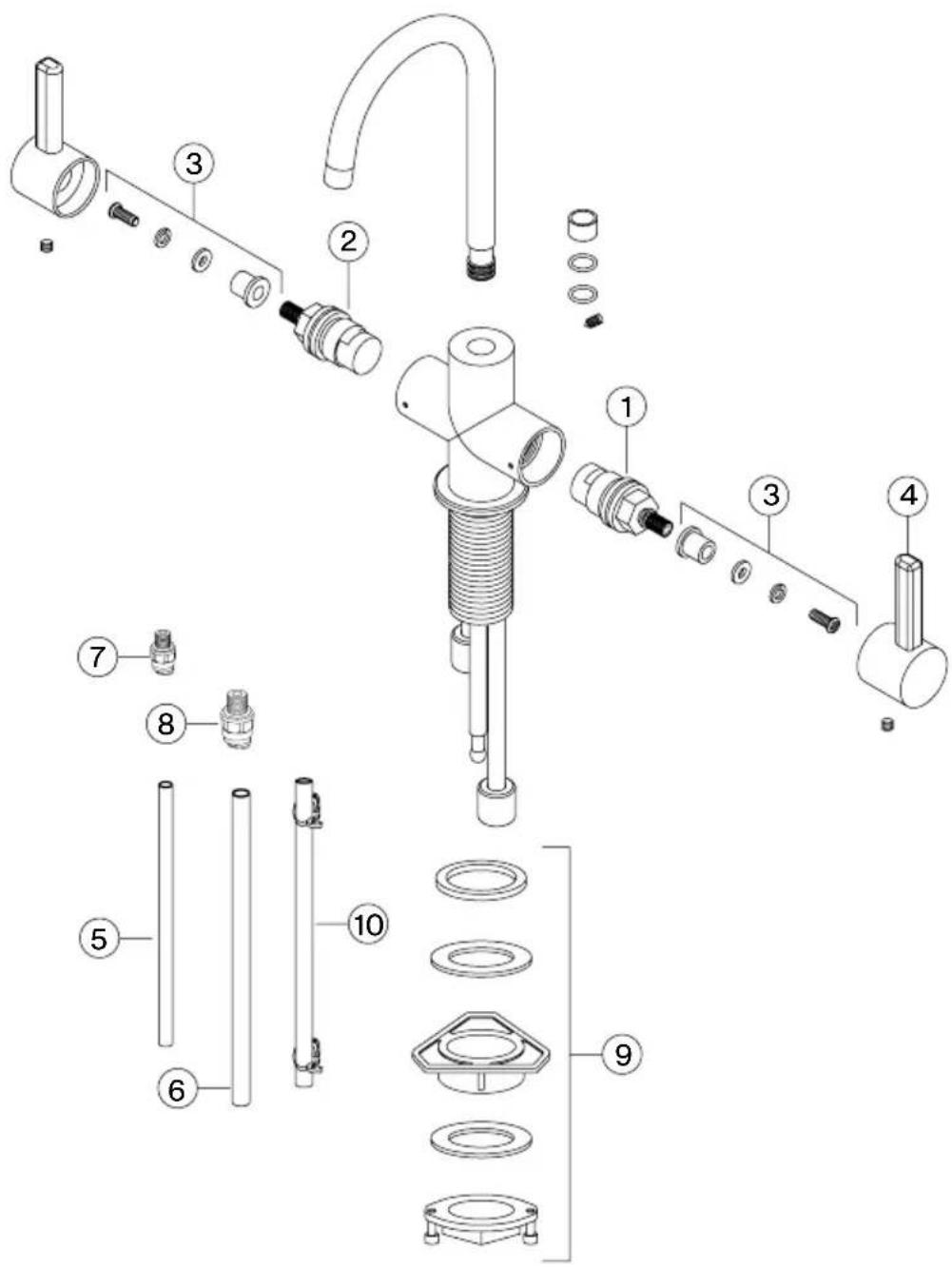

Spare/replacement list UNJ-HC-304

1	F3401 Cold Cartridge	6	10305 3/8" Water Supply Tubing
2	F3402 Hot Cartridge	7	F3406 1/4" Push Fitting Adapter
3	F3403 Cartridge Connector Kit	8	F3438 3/8" Push Fitting Adapter
4	F3440 Handle Assembly*	9	F3408 Fastening Set
5	F3405 1/4" Water Supply Tubing	10	F3409 Silicone Tubing Kit
