FDL 9165 XS - Range hood FRANKE - Free user manual and instructions

Brand	Franke
Model	FDL 9165 XS
Category	Range hood
Installation Type	Wall mounting
Width	90 cm
Minimum distance to cooktop	650 mm (gas), 650 mm (electric)
Number of speeds	4
Control	Touch
Lighting	Integrated
Grease filter	Dishwasher safe
Activated carbon filter	Replace every 4 months
Air outlet diameter	120 mm minimum
Power supply	220-240 V, 50/60 Hz
Protection class	Class I (grounding required)
Material	Stainless steel
Weight	Approximately 15 kg
Grease filter maintenance	Every 2 months
Use	Household use only

Frequently Asked Questions - FDL 9165 XS FRANKE

What is the minimum distance between the hood and the cooktop?

The minimum safety distance is 650 mm for gas and electric cooktops. If the cooktop instructions specify a larger distance, follow that.

How to clean the grease filters?

Grease filters should be cleaned every 2 months (or more often with heavy use). They are dishwasher safe.

When to replace the activated carbon filter?

The activated carbon filter cannot be washed and must be replaced approximately every 4 months, or more frequently with heavy use.

Can I use the hood with a gas stove?

Yes, but ensure the room is well ventilated and the negative pressure does not exceed 0.04 mbar to prevent backdraft.

How to adjust the hood speeds?

Use the touch keys: T1 for 1st speed (stop), T2 for 2nd, T3 for 3rd (short press) or timed 4th (long press of 2 seconds). The light turns on with the L key.

What to do in case of failure or malfunction?

First check the power supply. If the problem persists, contact an authorized technician for repair. Do not disassemble the appliance yourself.

Can I install the hood myself?

The electrical installation must be carried out by a qualified technician to comply with safety standards. Grounding is mandatory for Class I appliances.

Is the hood compatible with external exhaust?

Yes, it can be connected to an external exhaust duct. Use a pipe of at least 120 mm diameter and comply with local regulations.

How to maintain the hood lighting?

The integrated lighting turns on via the L key. For replacement, consult a professional. Clean the surface with a damp cloth and neutral detergent.

What products to use for cleaning the hood?

Use a damp cloth and neutral liquid detergent. Avoid abrasive or alcohol-based products that could damage the surface.

USER MANUAL FDL 9165 XS FRANKE

Lampada	Assorbimento (W) Attacco	Voltaggio (V)	Dimensione (mm)	Codice ILCOS
	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100
	5	GU10 230	52 x 50		DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

1. SAFETY INFORMATION

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by a specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regard to the technical and safety measures to be adopted for fume discharging,

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the hood, remove the protective films.

Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

Do not flambé under the range hood; risk of fire.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.

The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack

of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop

where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

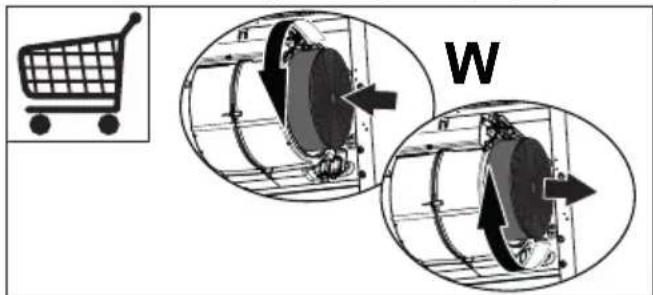

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

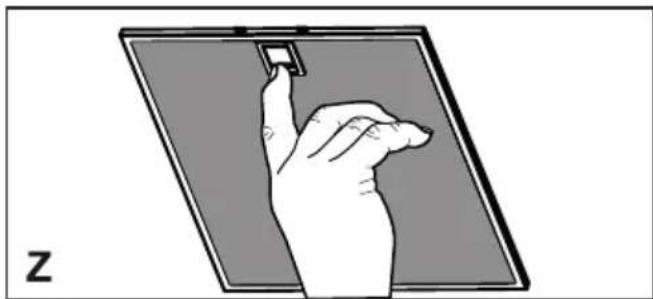

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

- Clean the hood using a damp cloth and a neutral liquid detergent.

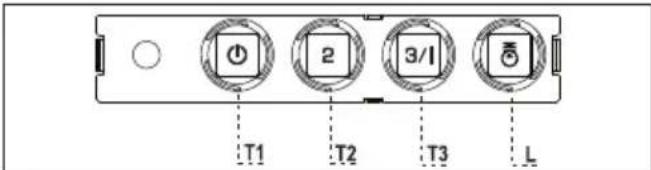

4. CONTROLS

BUTTON LED FUNCTIONS
T1 Speed	On Turns	the Motor on at Speed one.
	- Turns the	Motor off.
T2 Speed	On Turns	the Motor on at Speed two.
T3 Speed	Fixed When pressed briefly, turns the Motor on at Speed three.
	Flashing	Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light	-	Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

Lamp Power (W) Socket Voltage	(V) Dimension (mm) ILCOS Code
	4 E14 220 – 240 107 x 37	DRBB/F-4-220-240-E14-35/100
	5 GU10 230 52 x 50		DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

1. SAFETY INSTRUCTIONS

Ampoule	Absorption (W)	Culot	Voltage (V)	Dimensions (mm)	Code ILCOS
	4	E14	220 – 240	107 x 37	DRBB/F-4-220-240-E14-35/100
	5 GU10	230	52 x 50		DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Ampoule Absorption (W) Culot Voltage (V) Dimensions (mm) Code ILCOS
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100
	5 GU10 230	52 x 50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

Lámpara Consumo de energía (W) Casquillo Voltaje (V) Dimensión (mm) Código ILCOS
	4 E14 220 – 240 107 x 37		DRBB/F-4-220-240-E14-35/100
	5	GU10	230	52 x 50	DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

1. SAFETY INFORMATION

Bec Putere absorbită (W) Dulie Tensiune (V) Dimensiune (mm) Cod ILCOS
	4 E14 220 – 240 107 x 37	DRBB/F-4-220-240-E14-35/100
	5 GU10 230 52 x 50				DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

1. SAFETY INFORMATION

Pære Forbrug (W) Fatning Spænding	(V) Mål (mm) ILCOS art. nr.
	4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100
	5 GU10 230 52 x 50		DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

1. SAFETY INFORMATION

Lampa Förbrukning (W) Sockel Spänning (V) Mätt (mm) ILCOS art.nr
	4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100
	5 GU10 230 52 x 50

1. SAFETY INFORMATION

Lampa Förbrukning (W) Sockel Spänning (V) Mått (mm) ILCOS art.nr
	4 E14 220 – 240 107 x 37 DRBB/F-4-220-240-E14-35/100
	5 GU10 230 52 x 50

1. SAFETY INFORMATION

Lamppu Ottoteho (W) Kanta Jännite (V) Koko (mm) ILCOS-koodi
	4 E14 220 – 2	40 107 x 37	DRBB/F-4-220-240-E1	4-35/100
	5 GU10 230 5	2 x 50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

1. SAFETY INFORMATION

Ljós Afl (W) Innstunga Spenna (V) Mál (mm) ILCOS-kóði
	4 E14 220 –	240 107 x 37	DRBB/F-4-220-240-E14-35/100
	5 GU10 230	52 x 50			DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36

ILCOS الرمز	(الحجم (م)	(V) فولتاج	قابس	(الاستهلاك (ROAD)	م MSNBC
DRBB/F-4-220-240-E14-35/100 107 x 37 220 - 240 E14 4
DRPAR-5/840-220/240-GU10-35/36DRPAR-5/830-220/240-GU10-35/36	52 x 50 230	GU10 5

Franke S.p.a.

Via Pignolini, 2

37019 Peschiera del Garda (VR)

www.franke.it

991.0531.628 04 - 190122

D00004302_03
