EOS-PD-316 - Faucet FRANKE - Free user manual and instructions

Product Type	Kitchen Faucet
Brand	Franke
Model	EOS-PD-316
Service Pressure (Ideal)	60 PSI (4 bars, 400 kPa)
Service Pressure (Max.)	115 PSI (8 bars, 800 kPa)
Service Pressure (Min.)	30 PSI (2 bars, 200 kPa)
Water Temperature (Ideal)	140 °F (60 °C)
Water Temperature (Max.)	158 °F (70 °C)
Mounting Hole Diameter	35 mm (1 3/8 in)
Pull-Out Spray Head	Yes, with hose and counterweight
Aerator	Removable (key provided)
Body Material	Stainless Steel (estimated)
Finish	Available in multiple finishes (IBK, GLD, etc.)
Cartridge	Ceramic, replaceable (part F206502)
Mounting System	Plastic flange, mounting plate and tightening nut
Supply Hoses	2 braided hoses (hot and cold water)
Recommended Maintenance	Clean with a soft sponge and soapy water
Precautions	Do not use chlorine, solvents or metal sponges
Freeze Protection	Disconnect and drain in case of freezing
Compliance Standards	ASME A112.18.1 / CSA B125.1, NSF/ANSI/CAN 61-2020
Available Spare Parts	Handle assembly, cartridge, spray head, hoses, mounting kit
Customer Service	Tel: [phone], email: [e-mail]

Frequently Asked Questions - EOS-PD-316 FRANKE

What is the minimum water pressure required for this faucet?

The minimum service pressure is 30 PSI (2 bars, 200 kPa). Below that, the flow may be insufficient.

How to install the faucet on an existing countertop?

Drill a 35 mm diameter hole. Insert the faucet passing the hoses first. Fix under the counter with the rubber washer, plastic flange, plate and nut. Tighten the nut screws.

What to do if the faucet leaks at the base?

Check that the rubber O-ring is properly in place between the base and the counter. Do not use sealant. If the leak persists, replace the O-ring.

How to replace the ceramic cartridge?

Turn off the water, open the faucet to relieve pressure. Remove the handle (2.5 mm Allen screw), unscrew the cap and locking nut, then remove the cartridge. Reassemble in reverse order.

What type of maintenance does this faucet require?

Regularly clean the aerator to remove deposits. Use a soft sponge and soapy water. Avoid chlorine, solvents and metal sponges.

Is the faucet compatible with a tankless water heater?

Yes, as long as the water temperature does not exceed 70 °C (158 °F) and the pressure does not exceed 8 bars (115 PSI).

How to remove the aerator for cleaning?

For model EOS-PD-316, use the provided key to unscrew the aerator. Clean it with clear water and reassemble.

Is the faucet under warranty?

The manual does not specify the warranty period. Contact Franke customer service at 1-800-626-5771 for more information.

Can I use this faucet outdoors?

Yes, but it must be protected from freezing. In winter, disconnect the hoses, open the handle to drain and cover the faucet with insulation.

What spare parts are available?

Parts include: handle assembly (F4202*), cartridge (F206502), spray head (F3319*), water hoses (F3320), spray hose (F3321) and mounting kit (F4203). *The finish must be specified.

USER MANUAL EOS-PD-316 FRANKE

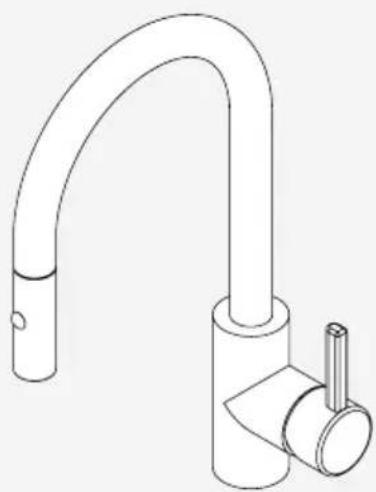

Line drawing of a kitchen sink with curved pipe and handle (no text or symbols)

Line drawing of a kitchen sink with curved handle and side faucet (no text or symbols)

Line drawing of a kitchen faucet with handle and side outlet (no text or symbols)

EOS-PD-316 EOS-PD-304 EOS-PR-304 EOS-BR-304 EOS-PD-IBK EOS-PR-IBK EOS-BR-IBK EOS-PD-GLD EOS-PR-GLD EOS-BR-GLD

EN Installation manual Kitchen Faucet

Installation instructions 5

Cleaning and maintenance 7

Replacing the cartridge 7

General maintenance 7

Spare/replacement list

EOS-PD-316 / 304 / IBK / GLD

and EOS-PR-304 / IBK / GLD 8

Spare/replacement list

EOS-BR-304 / IBK / GLD 9

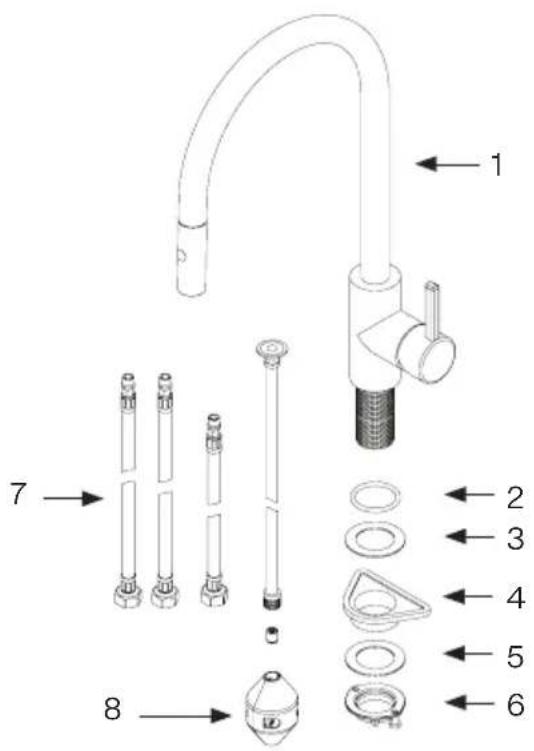

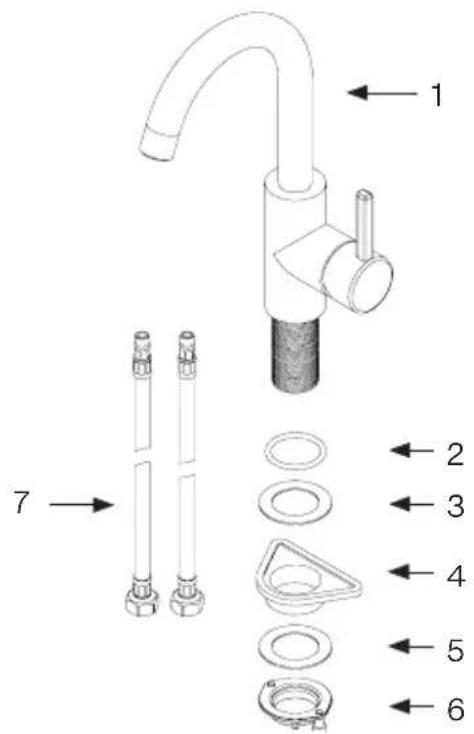

Contents in box

EOS-PD-316 / 304 / IBK / GLD

EOS-PR-304 / IBK / GLD EOS-BR-304 / IBK / GLD

1. Faucet Assembly
2. Rubber O-Ring
3. Rubber Washer
4. Plastic Flange
5. Fixing Plate
6. Fixing Nut
7. Supply Hoses
8. Weight

Note: Contact us immediately if you see inconsistencies.

phone: [phone]

website: www.franke.us/ks

e-mail: [e-mail]

Technical data

Operating data Value

Operating pressure (ideal) 60 PSI 4 bar 400 kPa
Operating pressure (max.) 115 PSI 8 bar 800 kPa
Operating pressure (min.) 30 PSI 2 bar 200 kPa
Water temperature (ideal)	140°F	60°C
Water temperature (max.)	158°F	70°C
Hole Size For Faucet	13/8"	35 mm

Certifies this faucet complies with ASME A112.18.1 / CSA B125.1, NSF/ANSI/CAN 61-2020 (AB100 compliant, Q<1) & NSF 372. The faucet also complies with water usage requirements of the California Energy Commission and the US Department of Energy.

Installation instructions

1. Remove all contents from the package and check for completeness.
2. Turn off water supply.
3. Remove Faucet (1) and hardware from its protective packaging - faucet comes assembled. Remove fixing hardware.
4. Cut mounting hole 1-3/8" in diameter (35 mm) in the desired position (if one isn't available).

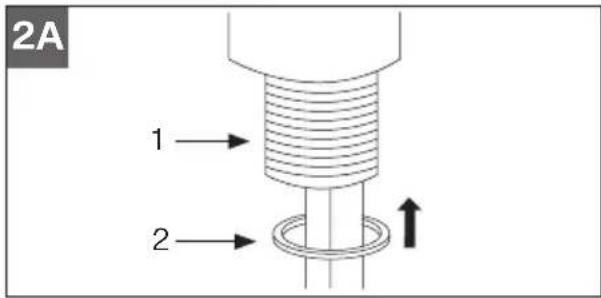

5. Ensure Rubber O-Ring (2) is in place in the Faucet Base (1) (fig. 2A).

1. Insert the Faucet into the hole, hoses first (fig. 2B).

Attention: Rubber O-Ring (2) should be sitting between the countertop and faucet base.

Do not use putty or other sealant at this location.

Notes: Solid surface installation: The countertop mounting surface needs to be flat and free of debris; otherwise the faucet may not sit properly and could leak.

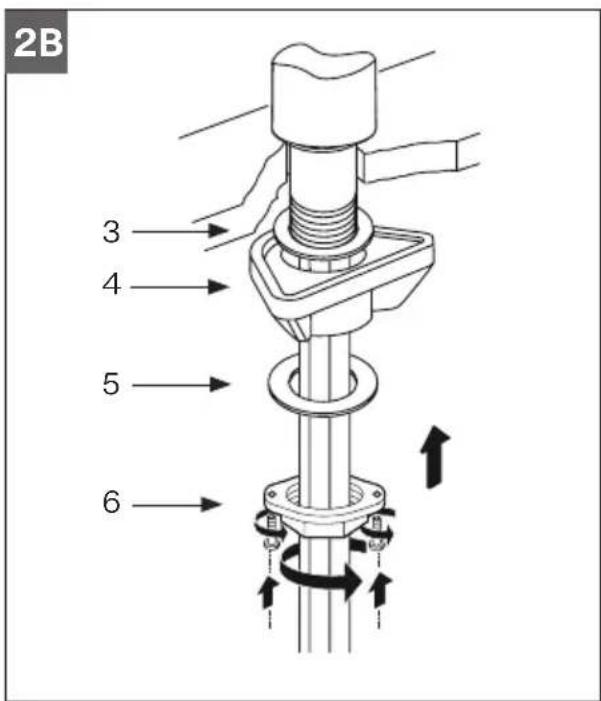

1. Install the mounting hardware to the mounting shank of the Faucet Base (1) underneath the mounting surface in the following order: Rubber Washer (3), Plastic Flange (4) and Fixing Plate (5) (fig. 2B).

EN

1. Secure the faucet by tightening the Fixing Nut (6) onto the mounting shank of the Faucet Base (1) and tightening the screws in Fixing Nut (6) (fig. 2B).

Attention: For EOS-BR-304 - skip to Step 11.

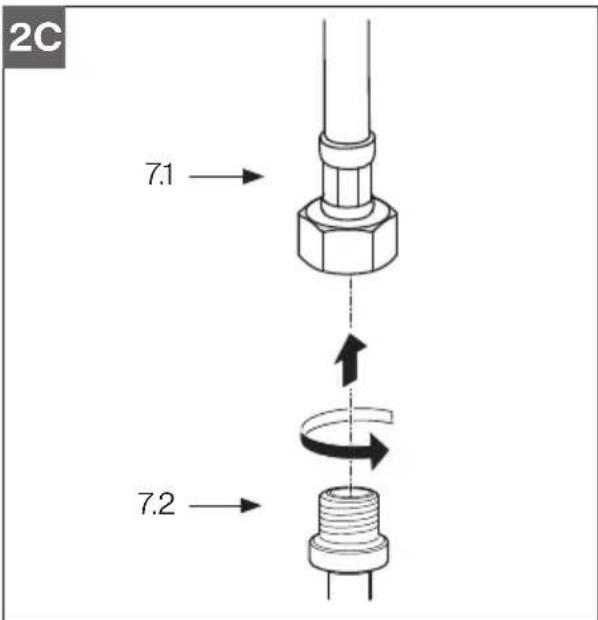

1. Connect Spray Hose (7.1) to Spray Supply Hose (7.2) (fig. 2C).

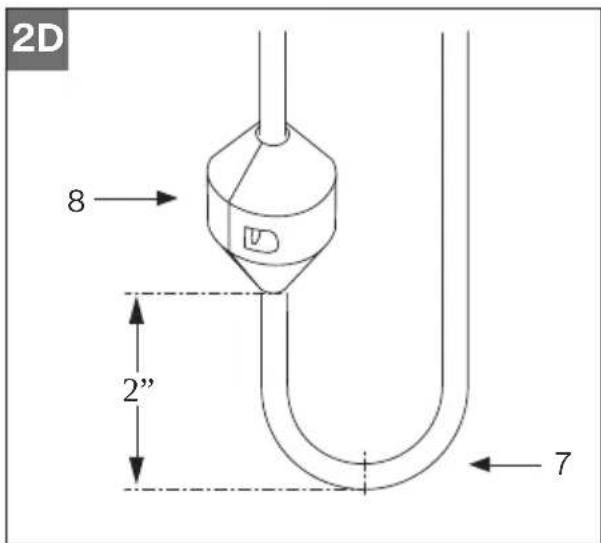

1. Attach the Weight (8) to the Spray Hose (7) approximately 2" (50 mm) above the bend in the bottom of the Spray Hose (fig. 2D).

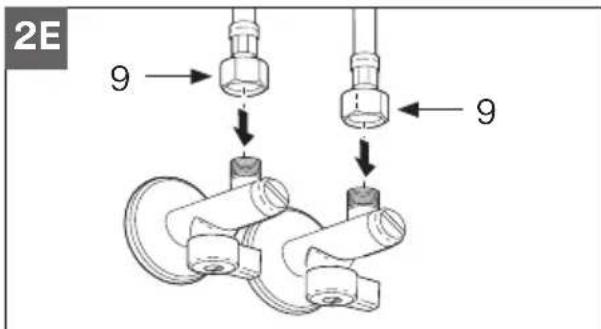

1. Connect the Flexible Supply Hoses (9) to the water supply in the home (fig. 2E).

1. For EOS-PD-304 and EOS-PR-304, remove Aerator (10) using the Aerator Key (11) (fig. 2F).

EOS-BR-304, remove Aerator (10) by unscrewing the Aerator Cap (12) by hand (fig. 2G).

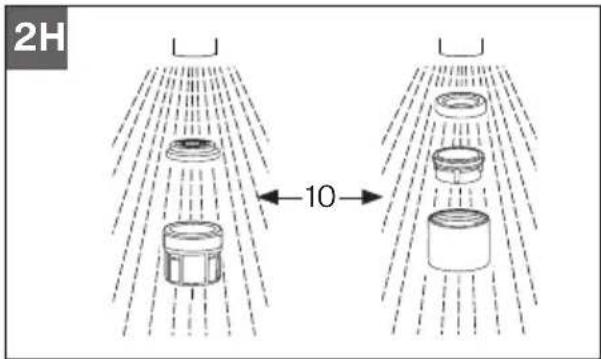

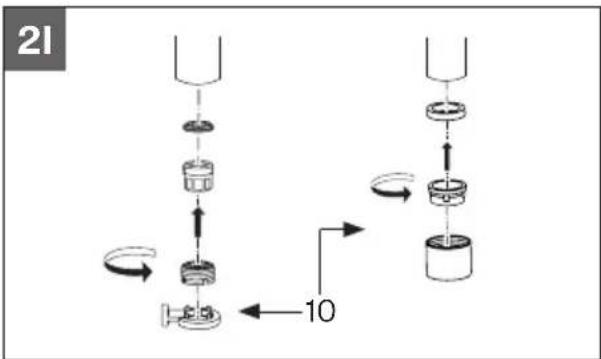

1. Turn on water, flush the faucet and Aerator (10) to remove any debris and check for leaks (fig. 2H).

1. Reinstall the Aerator (10) and ensure everything is functioning properly.

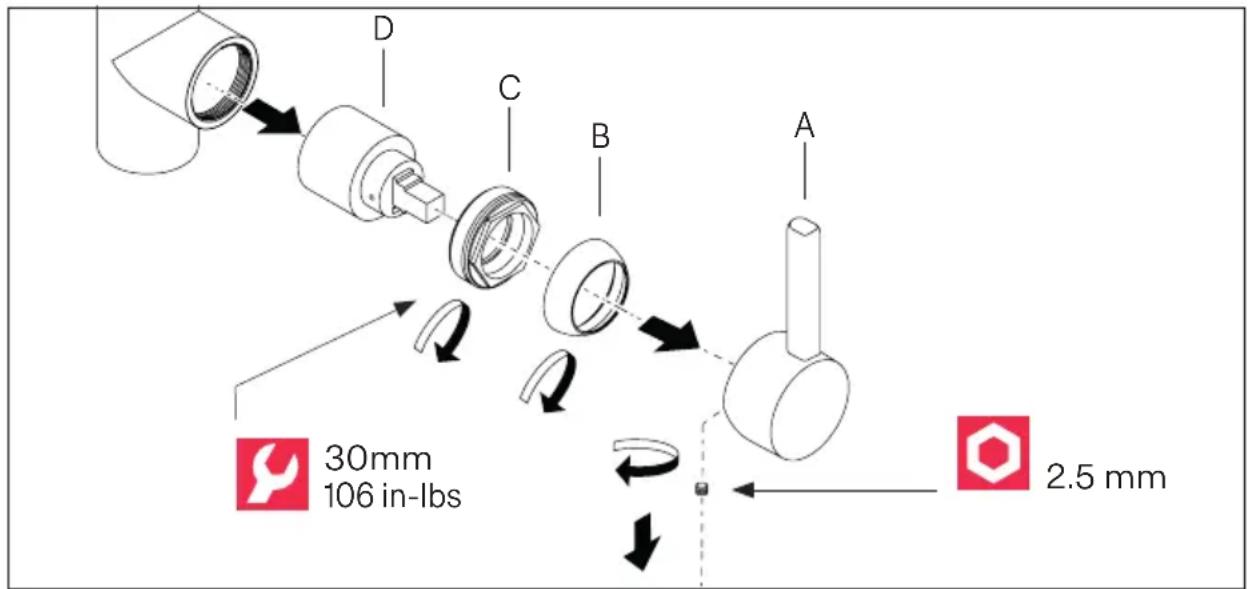

Replacing the cartridge

1. Shut off the water supply to the faucet.
2. Turn on the faucet briefly to relieve any pressure inside the faucet.
3. Move the faucet handle to the "OFF" position.
4. Remove the set screw from the Handle Assembly (A) using a 2.5 mm Hex Key.
5. Pull the Lever Handle (A) from faucet body.
6. Unscrew the Cartridge Cap (B) from faucet body.
7. Unscrew the Cartridge Lock Nut (C).
8. Lift Ceramic Disc Cartridge (D) from the body and repalce it with a new one. Ensure the two lugs on bottom of the cartridge sit properly in the allocated holes at the base of the body.
9. Re-assemble faucet in reverse order.
10. Test for leakage.

General maintenance

Clean aerator periodically for any buildup. Do not use harsh detergents, solvents, chemical agents, especially CHLORINE, or metallic sponges as these can damage the surface finish. Clean only with a soft sponge and soapy water.

Do not store chemicals or cleaning agents in the immediate vicinity of the faucet and connection hoses. Chemical vapors could cause damage.

Attention! For outdoor installation product must be protected from freezing temperatures. Disconnect hot and cold supply hoses from home, open the handle to drain out all water. Disconnect spray hose and ensure all water is removed from spray hose/spray head. Cover faucet with protective covering to keep warm.

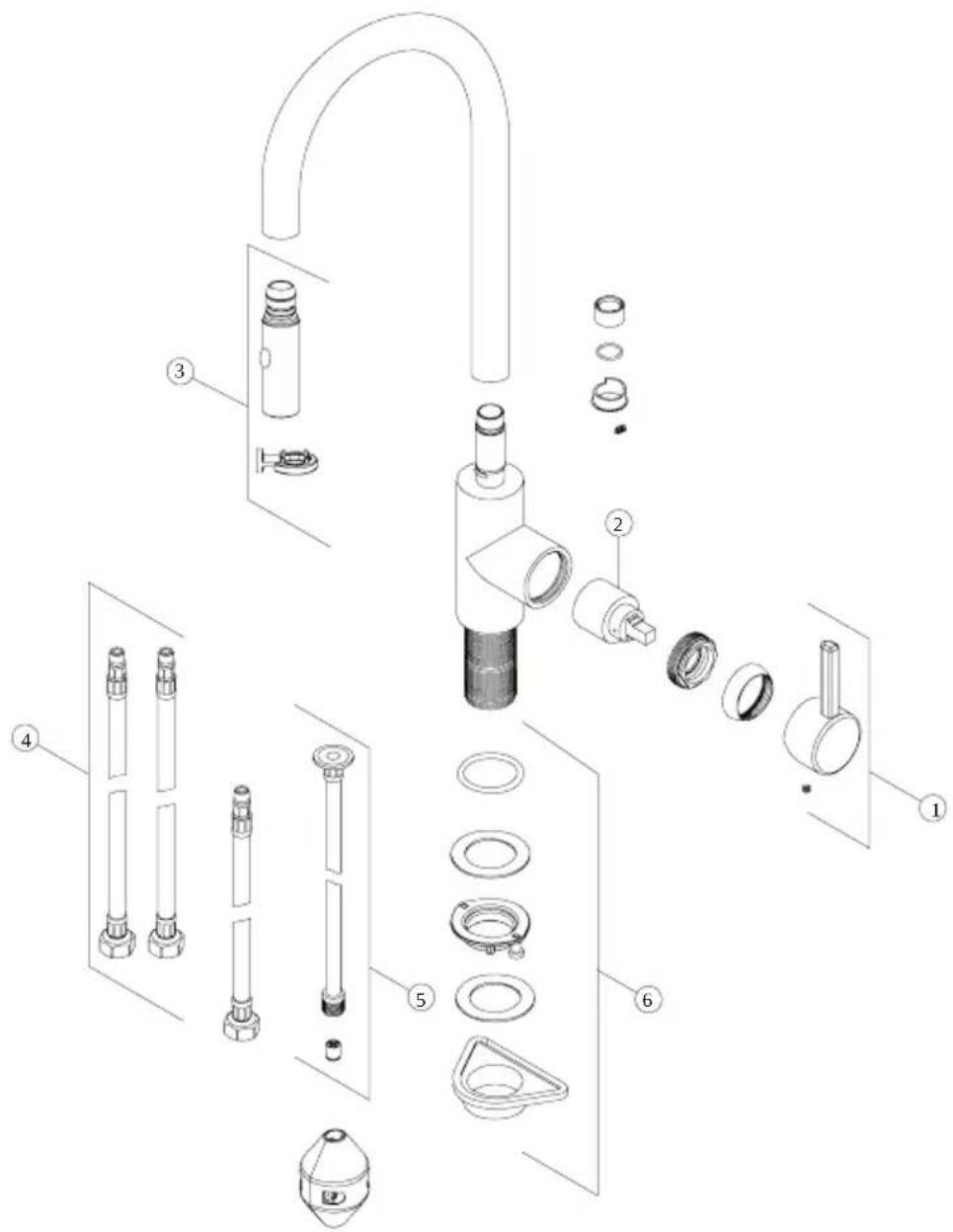

Spare/replacement list EOS-PD-316 / 304 / IBK / GLD and EOS-PR-304 / IBK / GLD

1	F4202* Handle Assembly
2	F206502 Cartridge
3	F3319* Spray Head Assembly
4	F3320 Hot&Cold Supply Hose
5	F3321 Pull Out Spray Hose
6	F4203 Fastening Set

*Must specify finish.

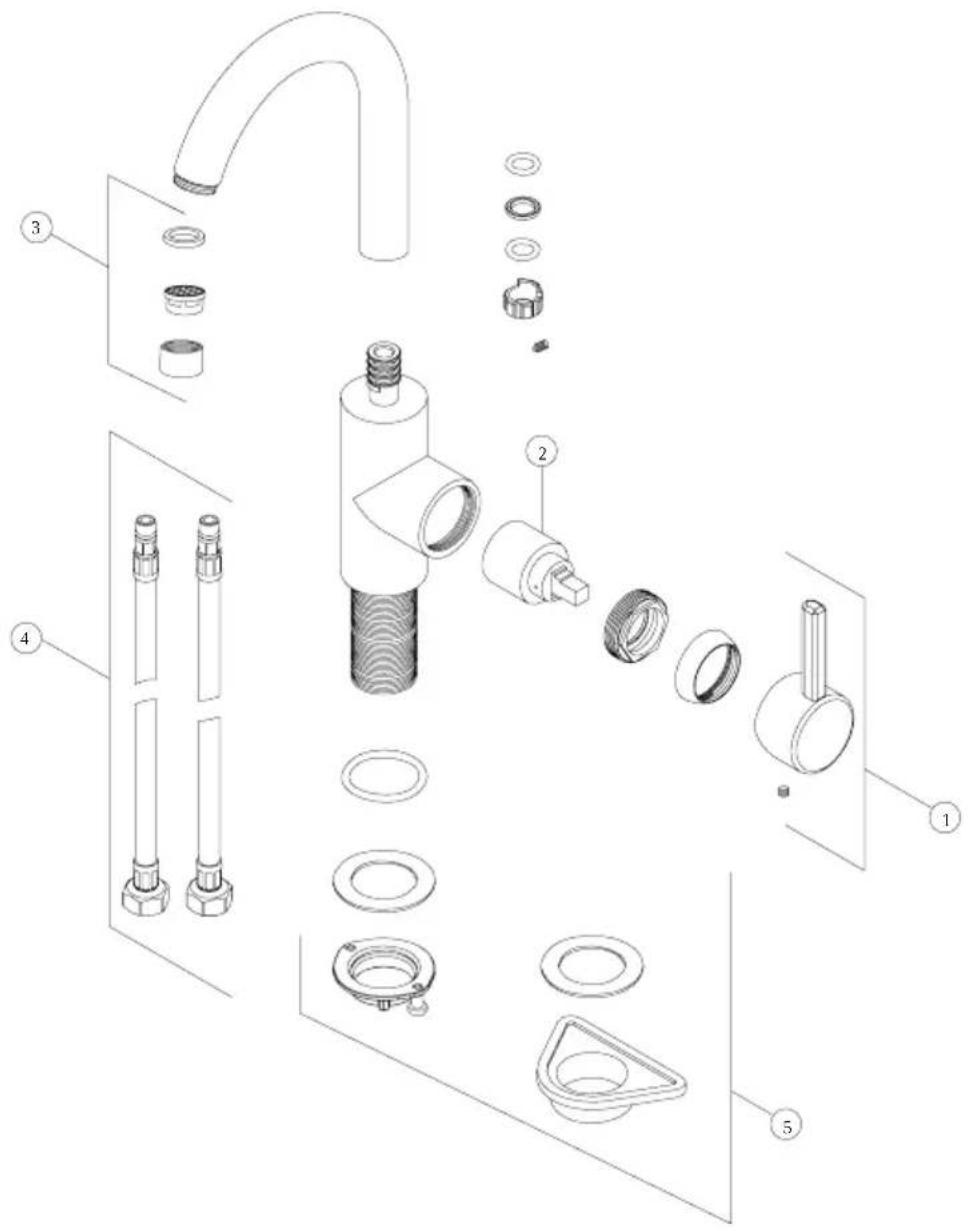

Spare/replacement list EOS-BR-304 / IBK / GLD

1	F4202* Handle Assembly
2	F206502 Cartridge
3	F3322* Aerator and O-Ring
4	F3320 Hot&Cold Supply Hose
5	F4203 Fastening Set

*Must specify finish.

For any further information about our products, about the installation of them or about the warranty please contact our customer service department:

Franke Kitchen Systems

North America, LLC

800 Aviation Parkway

Smyrna, TN 37167, USA

Phone: [phone]

[e-mail]

Franke Kindred Canada Ltd.

1000 Franke Kindred Way

Midland, ON LR4 4K9

Phone: [phone]

[e-mail]

Warranty website: https://www.franke.com/us/en/hs/support/warranty.html
