Brand	NuTone
Model	Flex AN000HLKT
Product Type	Ceiling Fan with Light
Series	Roomside / Flex
Use	General Ventilation
Installation	Ceiling or wall (minimum 2.4 m from floor)
Duct Diameter	10 cm (4 in.) round
Airflow	Selectable: 50, 80 or 110 CFM
Power Supply	120 V~, 60 Hz
Lighting	Integrated LED (model with light)
Control	Two-function wall control (sold separately)
Motor	Permanently lubricated, maintenance-free
Cleaning	Vacuum with dusting brush
Opening dimensions (remodel)	24.8 cm x 26.7 cm
Housing Material	Steel (estimate)
Protection	Ground fault circuit interrupter (GFCI) recommended
Grounding	Required
Warranty	See website or call 800-558-1711 (United States)

Frequently Asked Questions - Flex AN000HLKT NuTone

How to clean the fan?

Lower or remove the grille and clean the inside of the unit with a vacuum with a dusting brush.

Can I install the fan in a bathroom?

Yes, if it is connected to a circuit protected by a ground fault circuit interrupter (GFCI) and installed only on the ceiling.

How to select the airflow?

On some models, you can choose between 50, 80 or 110 CFM using a switch located on the fan housing.

Does the motor need oiling?

No, the motor is permanently lubricated and requires no maintenance. If the bearings are noisy, replace the entire fan.

What type of control to use?

Use a two-function wall control (sold separately) to operate the fan and light separately. Do not use a speed control.

How to replace the lamp?

For models with LED lighting, the light module snaps into the grille. Disconnect power, remove the grille, and replace the module. Some models have a separate LED power supply module.

Where to find replacement parts?

Visit the website Broan-NuTone.com or call 800-558-1711 (United States) or 800-567-3855 (Canada).

Can the fan be installed in a shower?

Yes, if installed on the ceiling and protected by a ground fault circuit interrupter (GFCI). Do not install it in a cooking area.

What is the warranty?

See the warranty statement on the website or contact customer service at the numbers listed in the manual.

How to attach the grille?

Pinch the grille springs and insert them into the fan slots, then push the grille against the ceiling.

USER MANUAL Flex AN000HLKT NuTone

Roomside / Flex™ Series Fan/Light READ AND SAVE THESE INSTRUCTIONS

For Warranty Statement, Service Parts, Technical Support, or to Register your product, please visit our website or call: In the United States - Broan-NuTone.com 800-558-1711. In Canada - Broan-NuTone.ca 800-567-3855.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fi re-rated construction codes and standards.
4. Suffi cient air is needed for proper combustion and exhausting of gases through the fl ue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit (ceiling installation only).
8. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. This product can be installed in a wall if mounted 8-ft. or more above the floor.
3. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
4. Please read specification label on product for further information and requirements.

CLEANING & MAINTENANCE

For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting brush attachment.

The motor is permanently lubricated and never needs oiling. If the motor bearings are making excessive or unusual noises, replace the blower assembly (includes motor and impeller).

OPERATION

The fan and light can be operated separately. Use a 2-function wall control.

Flex™ Series Fan/Light ONLY: Do not use a speed control to operate the fan.

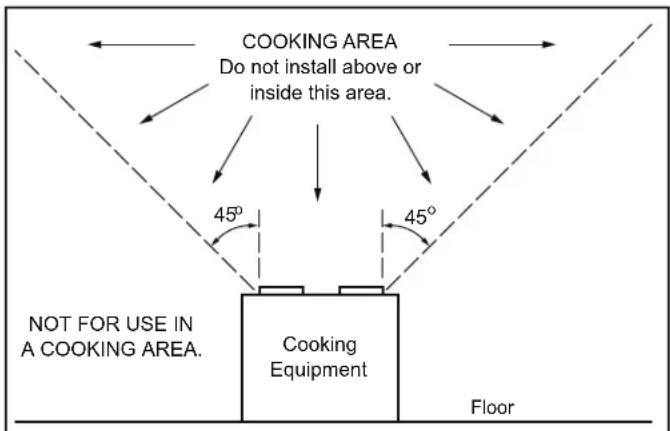

COOKING AREA Do not install above or inside this area. 45° 45° NOT FOR USE IN A COOKING AREA. Cooking Equipment Floor

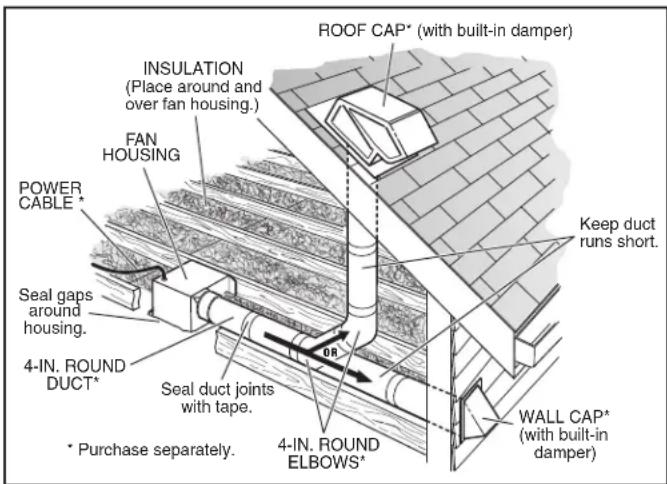

IMPORTANT - The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed with existing ducts may not achieve their rated airflow.

ROOF CAP* (with built-in damper) INSULATION (Place around and over fan housing.) FAN HOUSING POWER CABLE * Seal gaps around housing. 4-IN. ROUND DUCT* * Purchase separately. Seal duct joints with tape. 4-IN. ROUND ELBOWS* WR Keep duct runs short. WALL CAP* (with built-in damper)

OPTION - To mount housing anywhere between ceiling framing: Use optional Hanger Bar Kit (sold separately from local distributors or website). Follow mounting instructions included with kit.

ALL INSTALLATIONS

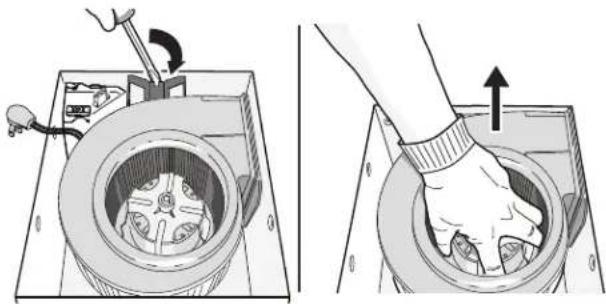

1 Remove all packing material, unplug and remove blower from fan housing.

Two-step diagram showing a hand operating a device inside a circular housing, with no visible text or symbols.

2 Remove wiring panel from fan housing. (if already installed).

Illustration of hands installing or adjusting a component with an arrow indicating upward motion (no text or symbols present)

1. The models only:

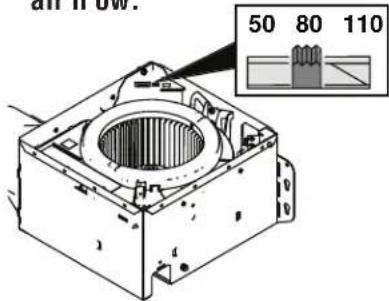

   Elect 50, 80 or 110 CFM based on your room size and desired air flow.

all now. 50 80 110

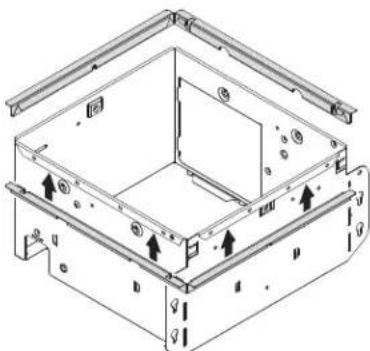

4 Some models only: A pair of fl anges may be attached to housing if desired or required.

Snap both fl ange pieces under rolled-over edge of housing (all four sides).

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

For Retrofi t Installation - Skip to Page 3.

NEW INSTALLATION

5 Attach damper/duct connector to fan housing.

Push connector through opening from inside of housing.

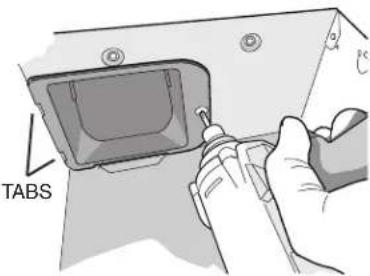

Engage tabs and secure with screw from parts bag.

TABS

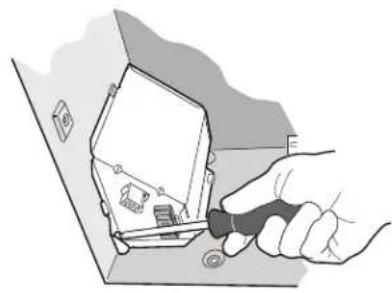

6 Mount housing to ceiling structure.

Make sure bottom of housing will be fl ush with fi nished ceiling.

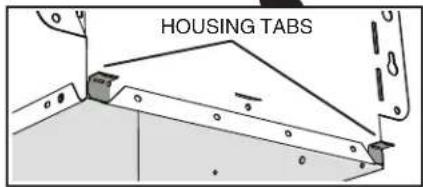

For proper location using 12 " ceiling material: Bend out housing tabs (on outside of housing) to fit against bottom of joist.

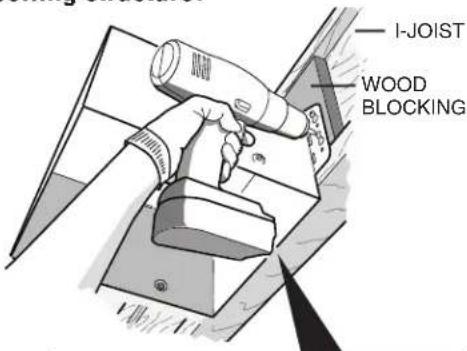

Secure housing through mounting ears with appropriate fasteners. If mounting housing to I-joist, use wood blocking as shown.

I-JOIST WOOD BLOCKING

HOUSING TABS

7
Connect 4-in. round duct.

Technical diagram of a mechanical component with labeled parts (no readable text or symbols)

8

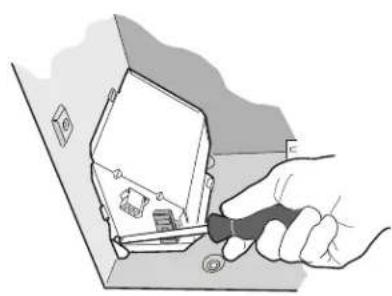

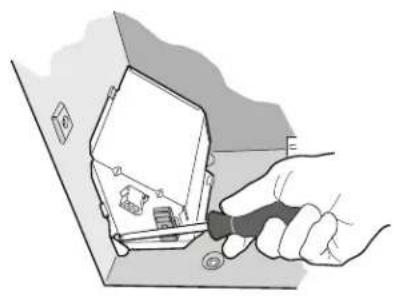

Connect wiring.

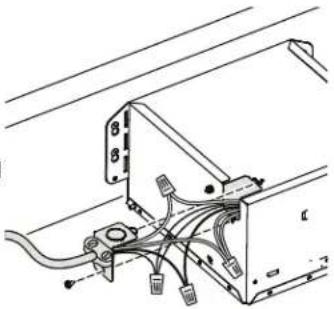

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring diagram for connection details. Use screw (from parts bag) to secure wiring plate to fan hou panel and secure with

Technical line drawing of a mechanical or electrical assembly with no visible text, numbers, or symbols.

Illustration of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Finish ceiling.

Then continue with Step 10.

RETROFIT INSTALLATION

5

Remove old fan and prepare ceiling.

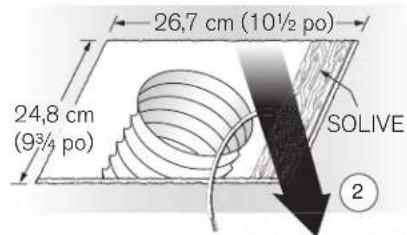

Enlarge ceiling opening

(if necessary) to 9 ^3/4 "

parallel to joist) by 10½"

(perpendicular to joist).

(Some models have a

cut-out template on side of carton or on grille packaging materials.)

Existing fan housings are typically attached to the structure:

• with screws, nails, or staples, which must be removed.

- with hangers or rails which are fastened to joists and must be removed along with housing.

A pry bar may be needed to remove the old housing.

Leave ductwork and wiring in place.

Technical diagram of a mechanical assembly with no visible text or symbols

10½-in. 9¾-in. JOIST ②

6
Fold mounting ears fl at against housing.

Hand inserting a component into a 3D box with arrows indicating rotation (no text or symbols)

7
Connect wiring.

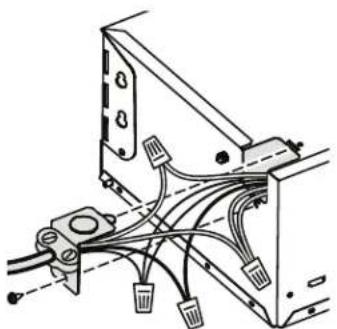

Connect power cable to wiring plate (from parts bag) using UL approved connector. Connect house wiring to fan wiring. Refer to wiring diagram for connection details. Use screw (from parts bag) to secure wiring plate to fan housing. Re-install wiring panel and secure with screw from parts bag.

Pure electrical circuit lines without any symbols

Illustration of a hand using a tool to adjust or install electronic components (no text or symbols visible)

8

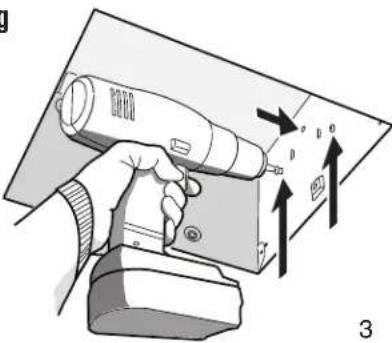

Mount fan to ceiling structure.

Mount housing to ceiling structure with appropriate fasteners in locations shown.

g 3

9

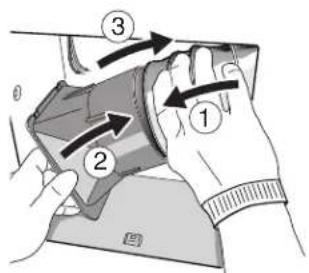

Connect 4-in. round duct.

① Pull existing ducting through housing discharge opening and ② tape ducting to duct connector. ③ Push connector/ducting back through opening. Engage tabs and ④ secure with screw from parts bag.

Diagram showing a hand holding a device with numbered arrows indicating motion or sequence, labeled 1, 2, and 3.

TABS ④

Continue with Step 10.

ALL INSTALLATIONS

10

Install blower.

Re-install blower removed in Step 1. Secure blower with 2 screws from parts bag. Plug blower into black receptacle.

Flex™ Series Fan/Light ONLY: Plug 5-wire plug into controller module.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object over a curved surface (no text or symbols)

Close-up of a mechanical component with internal structure and cable (no visible text or symbols)

Flex™ Series Fan/Light ONLY

11

Install grille.

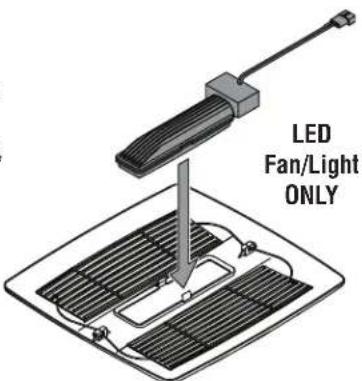

LED Fan/Light ONLY:

Snap LED light module into inside of grille.

Note: On some models, LED module may already be installed.

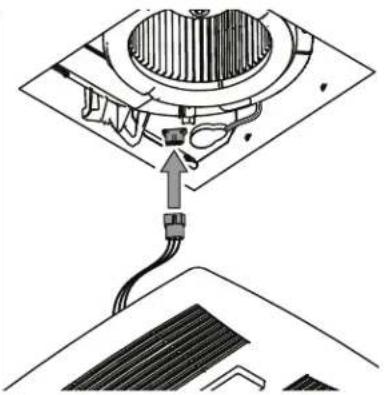

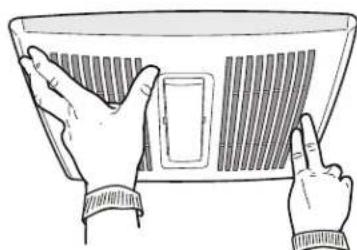

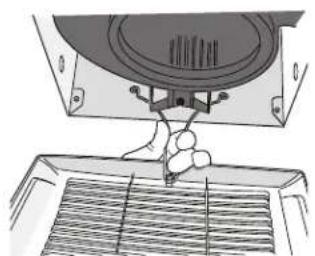

Plug in light module. Squeeze grille springs and insert into slots in blower. Push grille up against ceiling.

LED Fan/Light ONLY

Diagram of a mechanical assembly with a component inserted into a housing, showing internal wiring and a load arrow (no text or symbols)

For models 791LEDM and 791LEDNTM ONLY:

Plug in light ① and LED driver ②.

Diagram showing a hand operating a device with labeled parts, including numbered callouts and a magnified view of the component.

Depending upon model - your grille may look different.

Technical line drawing of a mechanical assembly with a component inserted into a grating (no text or symbols)

Illustration of two hands holding a large fan or container with a rectangular button, no text or symbols present.

Technical line drawing of a roof structure with an anchor and support points (no text or symbols)

If grille spring becomes dislodged from grille - snap it back into place as shown.

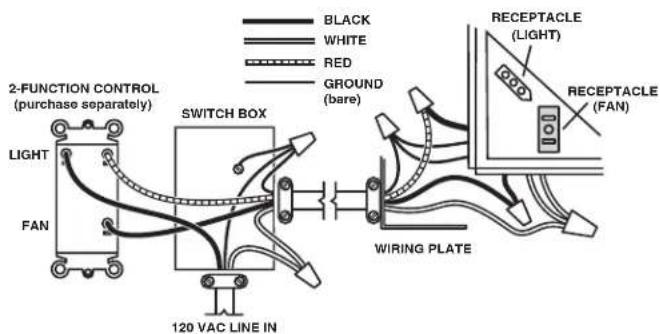

WIRING DIAGRAM

2-FUNCTION CONTROL (purchase separately) LIGHT FAN SWITCH BOX 120 VAC LINE IN GROUND (bare) BLACK WHITE RED RECEPTACLE (LIGHT) RECEPTACLE (FAN) WIRING PLATE

Two-step diagram showing a hand inserting a component into a circular housing, with no visible text or symbols.

Illustration of hands installing a component into a device (no text or symbols visible)

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal components (no text or symbols)

Technical diagram of a mechanical joint or bracket assembly (no visible text or symbols)

Branchez les fi ls.

Illustration of a hand using a tool to adjust or install a device with a battery (no text or symbols visible)

Diagram of a mechanical assembly with a tool and component, no visible text or symbols

26,7 cm (10½ po) 24,8 cm (9¾ po) SOLIVE ②

Hand inserting a component into a device housing (no text or symbols visible)

Technical diagram of electrical connectors and wiring (no text or labels)

Hand inserting a screwdriver into an electrical switch (no text or symbols visible)

Diagram showing a hand holding a handheld device with directional arrows and labeled points (p, v, o) indicating movement or force vectors.

9

Raccordez un conduit rond de 10 cm (4 po).

Diagram showing a hand holding a device with numbered arrows indicating motion or sequence, labeled 1, 2, and 3.

ERGOTS ④

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object near a curved surface (no text or symbols)

Diagram showing a mechanical assembly with a central component and cable connection (no text or symbols)

Diagram showing a hand operating a device with labeled parts and directional arrows indicating motion or operation.

Diagram of a hand operating a mechanical device with a mesh grille (no text or symbols)

Illustration of two hands pointing at a large fan or vent (no text or symbols visible)

Technical diagram showing a mechanical assembly with a downward arrow and labeled point C (no text or symbols present)

Two technical diagrams showing a hand operating a mechanical device with a circular component inside, and a close-up of the interior view of the device (no text or symbols present)

2

Illustration of hands installing a component with an arrow indicating upward motion (no text or symbols present)

3

Technical line drawing of a mechanical housing or enclosure with mounting holes and internal components (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Technical line drawing of an electrical enclosure with wiring and components (no text or symbols)

Illustration of a hand using a tool to adjust or install electronic components on a device (no text or symbols visible)

Hand inserting a component into a device housing (no text or symbols visible)

Technical diagram of a mechanical or electrical component with multiple wires and connectors (no text or symbols visible)

Illustration of a hand using a screwdriver to adjust or install electronic components on a box (no text or symbols visible)

Diagram showing a hand holding a handheld device with directional arrows and labeled parts, likely illustrating a process or operation.

9

Diagram showing hand positioning of a device with numbered arrows indicating movement paths

LENGÜETAS 4

Illustration of a hand using a wrench to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with a magnified view, no text or symbols present

Ventilador / Luz Serie Flex™ SOLAMENTE

11

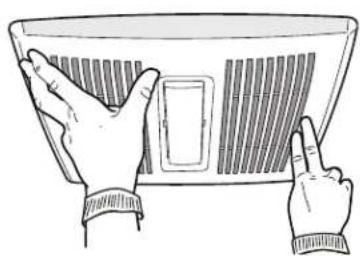

Instale la rejilla.
