USER MANUAL WDD 8640 B EU HOTPOINT

Health and Safety guide 3 SAFETY INSTRUCTIONS 3 SAFEGUARDING THE ENVIRONMENT 6 DECLARATION OF CONFORMITY 6 Installation guide 27

FR FRANÇAIS Health and Safety guide

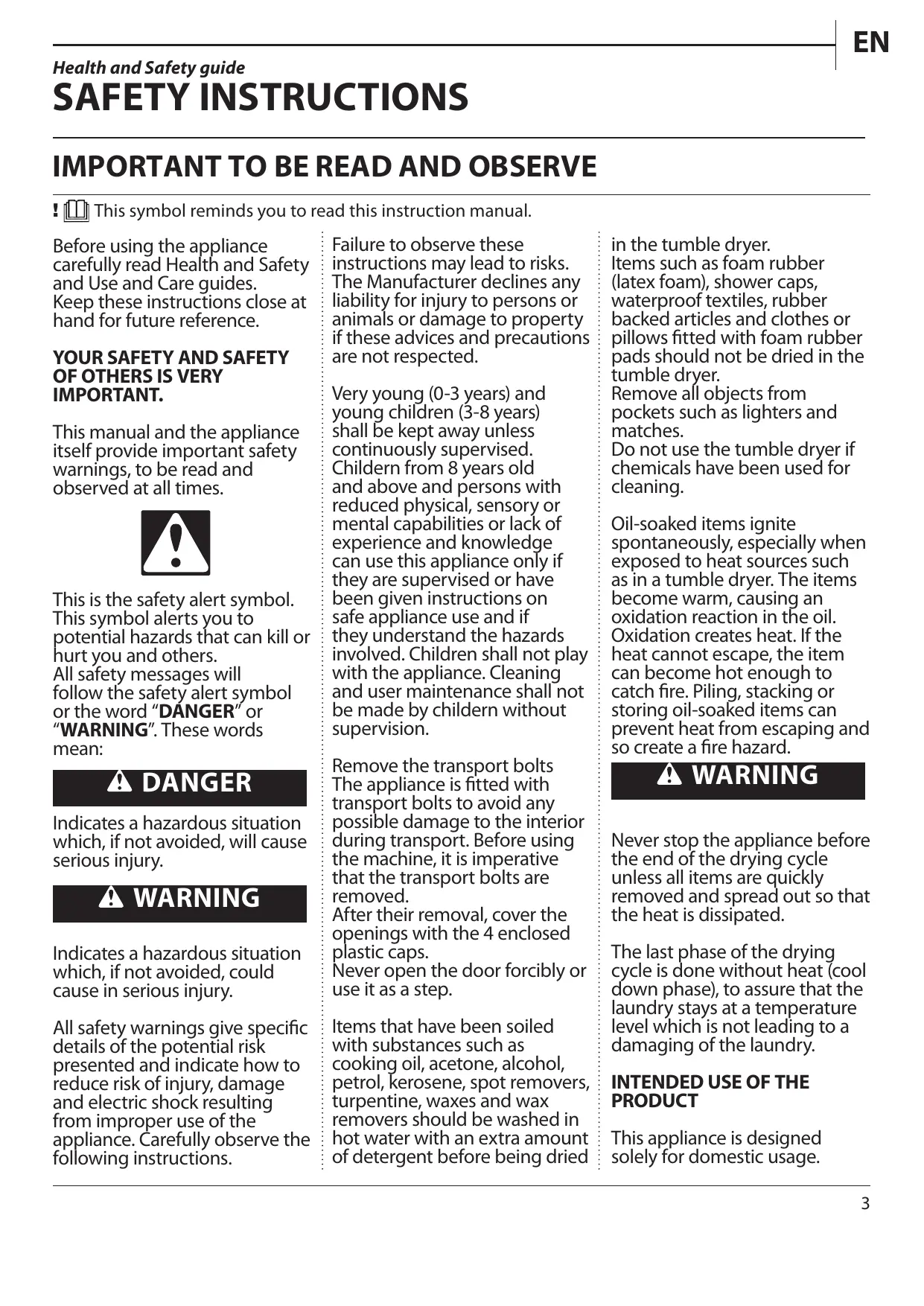

SAFETY INSTRUCTIONS IMPORTANT TO BE READ AND OBSERVE

This symbol reminds you to read this instruction manual.

Before using the appliance carefully read Health and Safety and Use and Care guides.

Keep these instructions close at hand for future reference. YOUR SAFETY AND SAFETY OF OTHERS IS VERY IMPORTANT. This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol or the word “DANGER” or “WARNING”. These words mean:

Failure to observe these instructions may lead to risks.

The Manufacturer declines any liability for injury to persons or animals or damage to property if these advices and precautions are not respected. Very young (0-3 years) and young children (3-8 years) shall be kept away unless continuously supervised. Childern from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe appliance use and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by childern without supervision.

Indicates a hazardous situation which, if not avoided, could cause in serious injury.

Remove the transport bolts

The appliance is fitted with transport bolts to avoid any possible damage to the interior during transport. Before using the machine, it is imperative that the transport bolts are removed. After their removal, cover the openings with the 4 enclosed plastic caps. Never open the door forcibly or use it as a step.

All safety warnings give specific details of the potential risk presented and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions.

Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried

DANGER Indicates a hazardous situation which, if not avoided, will cause serious injury.

in the tumble dryer.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer. Remove all objects from pockets such as lighters and matches. Do not use the tumble dryer if chemicals have been used for cleaning. Oil-soaked items ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the item can become hot enough to catch fire. Piling, stacking or storing oil-soaked items can prevent heat from escaping and so create a fire hazard.

WARNING Never stop the appliance before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

The last phase of the drying cycle is done without heat (cool down phase), to assure that the laundry stays at a temperature level which is not leading to a damaging of the laundry. INTENDED USE OF THE PRODUCT This appliance is designed solely for domestic usage. 3

To aim the appliance as professional use is forbidden.

The manufacturer declines all responsibility for innapropiate use or incorrect setting of the controls. CAUTION : The appliance is not intended to be operated by means of an external timer or separate remote control system. Do not use the appliance outdoors. Do not store explosive or flammable substances such as aerosol cans and do not place or use gasoline or other flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched on. This applianceis exclusively destined to treat machine washable laundry in quantities which are usual for private households. INSTALLATION Installation and repairs must be carried out by a qualified technician, in compliance with the manufacturer’s instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Children should not perform installation operations. Keep children away during installation of the appliance. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, during and after the installation of the appliance. Use protective gloves to perform all unpacking and installation operations. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest Aftersales Service. 4

The appliance must be handled and installed by two or more persons.

Keep children away during installation of the appliance. The appliance must be disconnected from the power supply before carrying out any installation operation. During installation, make sure the appliance does not damage the power cable. Only activate the appliance when the installation procedure has been completed. After installation of the device to wait a few hours before starting it, to acclimatize to the environmental conditions of the room. Do not install your appliance where it may be exposed to extreme conditions, such as: poor ventilation, high temperature or below 5°C or above 35°C. When installing the appliance make sure that the four feets are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. In case of wooden or so-called “floating floors” (for instance certain parquet or laminate floors), place the appliance on a sheet of plywood at least 60 x 60 cm wide/ deep and at least 3 cm thick which is secured to the floor. Use only new hoses to connect the appliance to the water supply. Used hoses must not be used and should be discarded. Move the appliance without lifting it by the worktop. Connect the water inlet hose(s) to the water supply in accordance with the regulations of your local water company.

For models dedicated only for cold water: Do not connect to the hot water supply.

For models with hot fill: the hot water inlet temperature must not exceed 60 °C. Make sure that the ventilation openings in the base of your appliance (if available on your model) are not obstructed by a carpet or other material. The supply water pressure must be in range 0.1 -1 MPa. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer, in such a way that a full opening of the appliance is restricted. ELECTRICAL WARNINGS Make sure the voltage specified on the rating plate corresponds to that of your home. For installation to comply with current safety regulations, an omnipolar switch with minimum contact gap of 3mm is required. Regulation require that the appliance is earthed. For appliances with fitted plug, if the plug is not suitable for your socket outlet, contact a qualified technician. Do not use extension leads, multiple sockets or adapters. Do not connect the appliance to a socket which can be operated by remote control. The power cable must be long enough for connecting the appliance, once fitted in its housing, to the main power supply. Do not pull the power supply cable. If the power cable is damaged it must be replaced with an identical one. The power cable must only be replaced

EN by a qualified technician in compliance with the manufacturer instruction and current safety regulations.

Contact an authorized service center. Do not operate this appliance if it has a damaged mains cord or plug, if it is not working properly, or if it has been damaged or dropped. Do not immerse the mains cord or plug in water. Keep the cord away from hot surfaces. The electrical components must not be accessible to the user after installation. Do not touch the appliance with any wet part of the body and do not operate it when barefoot. ELECTRICAL CONNECTIONS FOR GREAT BRITAIN AND IRELAND ONLY Fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A .S .T .A . approved fuse to BS 1362 type and proceed as follows:

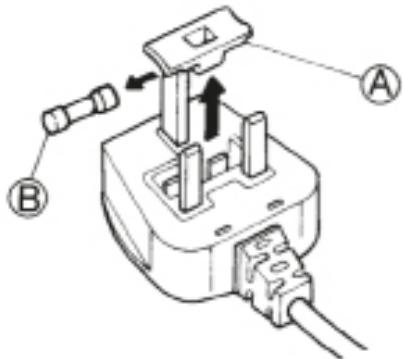

1 .Remove the fuse cover (A) and fuse (B) .

2 .Fit replacement 13A fuse into fuse cover. 3 .Refit both into plug. Important: The fuse cover must be refitted when changing a fuse and if the fuse cover is lost, the plug must not be used until a correct

replacement is fitted. Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug. Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

CLEANING AND MAINTENANCE The appliance must be disconnected from the power supply before carrying out any cleaning or maintenance operation.

Never use steam cleaning equipment.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, contact After-Sales Service for further instruction. Do not attempt to change the plug yourself .This procedure needs to be carried out by a qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations. CORRECT USE Do not exceed the maximum load allowed. Check the maximum load allowed in the programme chart. Turn off the tap when not in use. Do not use any solvents (e.g. turpentine, benzene), detergents containing solvents, scouring powder, glass or general purpose cleaners, and flammable fluids; do not machine wash fabrics that have been treated with solvents or flammable liquids. Do not overdry the laundry Fabric softeners, or similar products, should be used as specified by the fabric softener instructions. Do not dry unwashed items.

SAFEGUARDING THE ENVIRONMENT DISPOSAL OF PACKAGING MATERIALS The packaging material is 100% recyclable and is marked with the recycle symbol (*). The various parts of the packaging must therefore be disposed of responsibility and in full compliance with local authority regulations governing waste disposal.

The various parts of the package must therefore be disposed of responsibly and in strict accordance with the rules laid down by local authorities.

SCRAPPING OF HOUSEHOLD APPLIANCES When scrapping the appliance, make it unusable by cutting off the power cable and removing the doors and shelves (if present) so that children cannot easily climb inside and become trapped. This appliance is manufactured with recyclable (*) or reusable materials.

Dispose of it in accordance with local waste disposal regulations.

For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchase the appliance.

This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol (*) on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

DECLARATION OF CONFORMITY

“This appliance has been designed, constructed and distributed in compliance with the safety requirements of European Directives : LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU.

ENERGY SAVING TIPS Always dry a full load, depending on the type of laundry and the programme/drying time. For more detailed information, see the programme chart.

By preference use the maximum spin speed allowed by your appliance, since draining the water mechanically requires less energy. You will save time and energy when running your drying cycle. Always select the correct programme/drying time for the load in order to obtain the desired drying results. Select the Delicates program only in case of drying small loads. When drying cotton, for example, dry Iron Dry and Cupboard Dry loads together. Start with the Iron Dry programme/drying time setting, remove the laundry to be ironed at the end of that cycle and dry the remainder of the load on the Cupboard Dry setting.

39 inch min 65 cm 25 inch

39 inch min 65 cm 25 inch
