USER MANUAL WineExclusive 12 CASO

COSO® DESIGN

Original-Bedienungsanleitung | Instruction Manual Mode d'emploi | Istruzione d'uso | Manual del usuario Gebruiksaanwijzing | Bruksanvisning | Kullanım Kılavuzu Instrucoes de funcionamento | בַרָבִי בַרָבִי

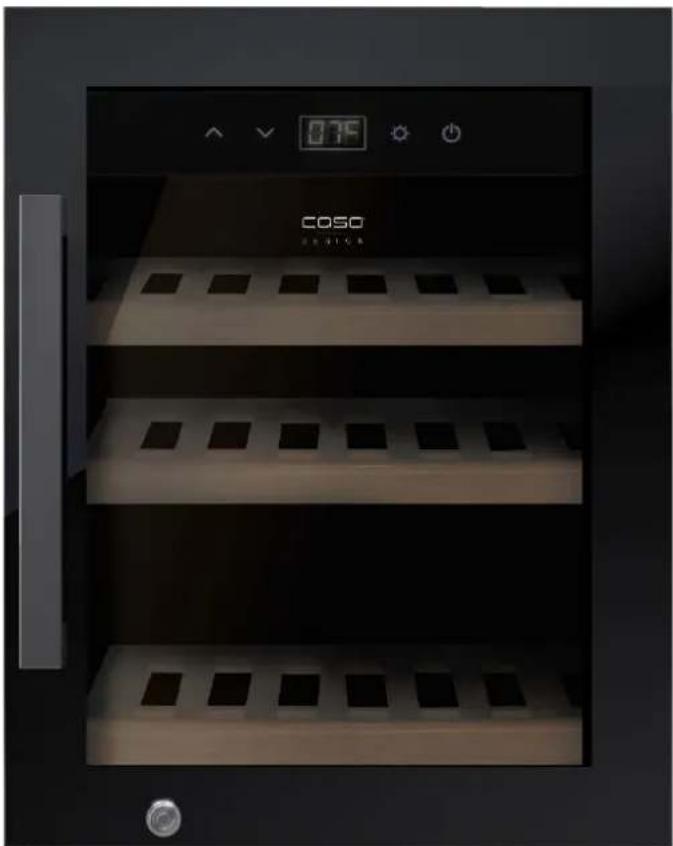

WineExclusive 12 (716)

Exterior view of a modern kitchen appliance with digital display and control buttons (no readable text or symbols)

CE H12

CASO GmbH

Raiffeisenstraße 9

D-59757 Arnsberg

Tel.: [phone] / 54 76 6 - 99

Fax: [phone] / 54 76 6 - 77

eMail: [e-mail]

Homepage: www.caso-design.de

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
FR	Vous trouverez ce mode d'emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
IT	Ulteriori lingue di queste istruzioni per l'uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
TR	Bu kılavuzun diğer dillere çevirileri için şu bağlantıya bakınız: www.caso-design.de. Bu amaçla, geçerli QR kodunu da tarayabilirsiniz.
PT	Pode encontrar este manual de instruções noutras líinguas em www.caso-design.de ou através da leitura do código QR.
HE	הכלההוּרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹשְׁבָרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹאָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹר

DE Sicherheit

Warnhinweise

The following warning notices are used in the Operating Manual concerned here.

▲GEFAHR DANGER

A warning notice of this level of danger indicates a potentially dangerous situation.

If the dangerous situation is not avoided, this can lead to death or serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the danger of death or serious personal injuries.

▲WARNUNG WARNING

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to serious injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

▲VORSICHT ATTENTION

A warning notice of this level of danger indicates a possible dangerous situation.

If the dangerous situation is not avoided, this can lead to slight or moderate injuries.

▶ Observe the instructions in this warning notice in order to avoid the personal injuries.

HINWEIS PLEASE NOTE

A notice of this kind indicates additional information, which will simplify the handling of the machine.

Intended use

This device is only intended for use in households in enclosed spaces for cooling wine and other beverages. Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

▲WARNUNG WARNING

Danger due to unintended use!

Dangers can emanate from the device if it is used for an unintended use and/or a different kind of use.

▶ Use the device exclusively for its intended use.
▶ Observe the procedural methods described in this Operating Manual.

Claims of all kinds due to damages resulting from unintended uses are excluded. The User bears the sole risk.

General Safety information

HINWEIS

PLEASE

NOTE

Please observe the following general safety notices with regard to the safe handling of the device.

▶ Examine the device for any visible external damages prior to using it. Never put a damaged device into operation.
▶ If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.
▶ This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
- Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised.
▶ Children are not allowed to play with the device.
▶ The device and its connecting cable must be kept away from children who are less than 8 years old.
▶ The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
▶ Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
▶ Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.

Risk of fire / flammable materials used. Danger of burns or of explosion

⚠GEFAHR

DANGER

There is a danger of burns and explosion due to excess pressure that is created in the event the device is not used properly. Observe the following safety notices to avoid dangers of burns or an an explosion:

Warning: Risk of fire / flammable materials used.

▶ Do not store explosive substances such as I cans with a flammable propellant in this device.

▶ Blowing gas inside the unit is flammable.
▶ Do not damage the cooling circuit of the device.
▶ Do not use electrical devices inside the device.
▶ Do not use mechanical devices or other means to accelerate the defrosting process.
▶ Never use the device to store or dry flammable materials.
▶ Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
▶ Do not store or use gasoline or any other flammable vapours and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.

Dangers due to electrical power

⚠GEFAHR

Mortal danger due to electrical power!

Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power:

▶ Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.

▲GEFAHR DANGER

▶ Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

Transport inspection

▲WARNUNG WARNING

Personal and property damages can occur during commissioning of the device!

Observe the following safety notices to avoid such dangers:

▶ Packaging materials may not be used for playing. There is a danger of suffocation.
▶ Transport, unpack and use two persons to set down the device because of the heavy weight of the device.

HINWEIS Please note

▶ Examine the shipment for its completeness and for any visible damages.
▶ Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded.

- Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.

- This device is not designed for use in a garage or any other outside installation.

- Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

- The device requires an adequate flow of air in order to operate correctly. Leave a clearance of 15 cm around the appliance.

- WARNING! Do not close the ventilation openings in the device housing.

- The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

- The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

- For energy saving reasons please ensure that the door is closed when the appliance is turned on.

Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. If in doubt, ask your qualified electrician.
• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5 mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under or over hot or sharp surfaces.
• This unit is not designed to be installed in an RV or used with an inverter.
• The electrical outlet must be protected by a 16A safety cut-out switch.

The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

FR Sécurité

12.1 Safety information....66

12.2 Cleaning....66

12.3 Moving the appliance....67

13 Troubleshooting....67

13.1 Safety notices....67

13.2 Fault indications and rectification of faults 67

14 Disposal of the Old Device....68

14.1 Disposal of the packaging....68

15 Guarantee 69

16 Technical Data....69

Simple line drawing of a curved pipe or wire inside a circular boundary, with no text or symbols present.

Diagram showing a vertical structure with arrows indicating direction, enclosed in a circle (no text or symbols)

Diagram of a curved structural element with directional arrows, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a circular outline and number 4, no text or symbols present.

2.3 Holzlagerböden

Three identical white cylindrical objects with flared ends, arranged horizontally on a gray background (no text or symbols)

Normaler Boden

Abstract geometric pattern with three horizontal oval shapes and rounded ends, no text or symbols present.

unterer Boden.

Interior view of an appliance showing internal components including a black compressor, wiring, and labeled parts (no readable text or symbols)

Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your wine refrigerator will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it!

9.1 Information on this manual

These Operating Instructions are a component of the WineExclusive (referred to hereafter as the Device) and provide you with important information for the initial commissioning, safety, intended use and care of the device. The Operating Instructions must be available at all times at the device. This Operating Manual must be read and applied by every person who is instructed to work with the device:

• Commissioning
• Operation
• Troubleshooting and/or
• Cleaning

Keep the Operating Manual in a safe place and pass it on to the subsequent owner along with the device.

9.2 Limitation of liability

All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration.

No claims can be derived from the information provided, the illustrations or descriptions in this manual.

The manufacturer does not assume any liability for damages arising as a result of the following:

• Non-observance of the manual
• Uses for non-intended purposes
- Improper repairs
• Technical alterations, modifications of the device
- Use of unauthorized spare parts

Modifications of the device are not recommended and are not covered by the guarantee. All translations are carried out to the best of our knowledge. We do not assume any liability for translation errors, not even if the translation was carried out by us or on our instructions. The original German text remains solely binding.

9.3 Copyright protection

This document is copyright protected. CASO GmbH reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes.

9.4 Delivery scope

As a rule, the WineExclusive delivered with the following components:

• Wine refrigerator WineExclusive (lockable)
- 3 wooden shelves
- Operating Instructions with handle and screws

9.5 Unpacking

To unpack the device, proceed as follows:

• Remove the device out of the carton and remove the packaging material.
• Your wine refrigerator should only be moved in an upright position.
• Clean the interior surface with lukewarm water using a soft cloth.
• After at least 24 hours, plugging the appliance into the wall outlet, than place wine bottles or beverages in the appliance.

HINWEIS

Please note

If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

10 Design and function

10.1 Feet

The appliance is supplied with 3 large feet and a small levelling foot. Align the feet so that the appliance is level and does not tilt.

10.2 The handle installing

Please note that you must screw the stainless steel handle supplied to the door of the appliance before using it for the first time. To do this, slide the rubber seal on the back of the door to the side to expose the pre-drilled holes. Use the enclosed screws to fit the handle to the door. Then replace the door seal in the correct position.

Simple line drawing of a curved pipe or wire inside a circular boundary, with an arrow pointing to the pipe's center (no text or symbols)

Diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

Diagram of a curved structural element with directional arrows, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a circular outline and number 4, no text or symbols present.

10.3 Wine shelves

Each wooden storage shelf can be removed to store larger bottles.

Three identical white cylindrical objects with flared ends, arranged horizontally on a gray background (no text or symbols)

Usual
shelf

Abstract geometric pattern of three horizontal oval shapes with rounded ends, no text or symbols present.

Lower
shelf

10.4 To remove a shelf

To remove a wooden storage shelf, first remove the bottles. Then lift the shelf slightly and pull it out. (If necessary, loosen the screws first).

HINWEIS

Please note

▶ Make sure that the wooden storage shelves are properly engaged before placing bottles on them.
▶ Ensure that the bottles are evenly distributed in the interior.

11 Operation and Handing

This chapter provides you with important notices with regard to operating the device.

11.1 Operating elements and displays

HINWEIS

Please note

▶ Use the buttons ▲ and ▼ to set the temperature in the range of 5-20°C.
▶ Temperature recommendations: Red wine: 12^ C – 16^ C and white wine 6^ C – 10^ C.
The device can achieve the best cooling and consumption results at a recommended ambient temperature of 16-20 °C.

If you press the power button the device starts/stops working.

When the LED lights the device is working.

You can set the temperature as your desire by pressing the button. There are buttons on the panel to adjust the temperature by 1°C among 5-20°C.

You can turn the interior light on or off by pressing the "Light" button. The light will be off automatically after 4 hours to save energy.

Pushing the temperature key 📂 for 5 °C and °F, then, temperature display mode will be exchange between °C and °F. The temperature in the device depends on the room temperature, the quantity of bottles and the chosen temperature. Please note that your device is intended to cool wine. The maximum temperature that can be reached inside the device cannot be significantly ABOVE the ambient temperature at the setup location.

11.2 Rating plate

The rating plate with the connection and performance data can be founded on the back of the device.

12 Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation.

12.1 Safety information

▲VORSICHT Attention

Please observe the following safety notices, before you commence with cleaning the device:

▶ Prior to commissioning, clean the appliance thoroughly.
▶ Switch the wine cabinet off prior to cleaning it and unplug the plug from the wall power outlet. Remove all content.
▶ Do not use any aggressive or abrasive cleaning agents or solvents.

12.2 Cleaning

◆ Interior space

Wash the inside with a damp cloth soaked in lukewarm water and a bit of mild detergent.

Tip for neutralisation of odors: Wash the inside with a damp cloth soaked in lukewarm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to a quarter of water. After cleaning the interior space, leave the oven door open until the interior of the device is completely dry.

Door gasket

Be sure to keep the door gasket clean to keep the unit running efficiently.

Cabinet

The cabinet should be cleaned with a mild detergent and warm water.

Use a soft, damp cloth for drying.

◆ Vent opening

Dust or anything else may block the vent and hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.

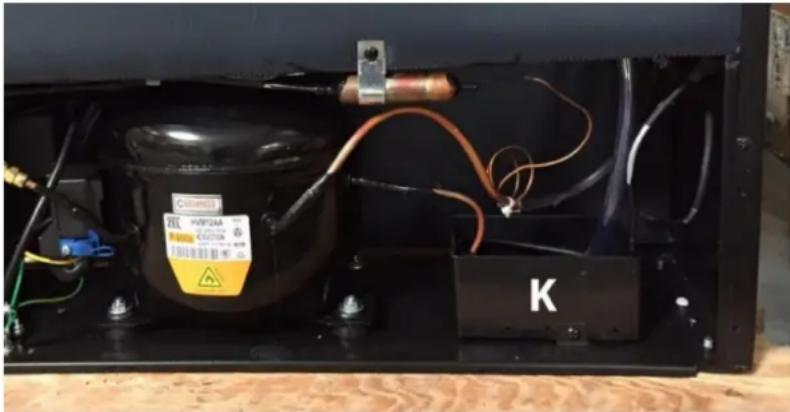

◆ Container for condensed water (K)

Remove regularly the condensed water with a sponge from the container for condensed water. The container is located on the back side of the device at the right bottom.

◆ Manual defrosting

Please defrost the device at least every 6 months. When you open the door of the device frequently, you need to perform the defrosting more often. Turn off the power but do not unplug the power plug. Let the appliance then defrost manually. Pay attention to the container for condensed water(K) and remove the condensed water during the defrosting.

Interior view of an appliance showing internal components like a black refrigerator, wiring, and labeled parts (no readable text or symbols)

12.3 Moving the appliance

Turn off the appliance first and then unplug the unit from the wall outlet.

Remove all content. Shurely tape down all lose items inside your appliance.

Tape doors shut. Be sure the wine refrigerator stays in the upright position during transportation.

13 Troubleshooting

This chapter provides you with important notices with regard to operating the device.

Observe the following notices to avoid dangers and damages:

13.1 Safety notices

▲VORSICHT Attention

▶ Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.
▶ Improperly performed repairs can cause considerable dangers for the user and damages to the device.

13.2 Fault indications and rectification of faults

The following table assists in localizing and rectifying minor faults.

Fault Possible Cause
Your device is not cold enough or it does not reach the adjusted temperature:	Check the temperature control setting.External environment may require a higher setting.The door is open too often.The door is not closed completely.The door seal does not seal properly. Defrost the device.
The light does not work. Contact customer service.
Vibrations & too much noise & door does not close properly	Check to assure that the wine refrigerator is level. Check the fan. Components are loose.Device touches the wall.The door is reversed and not properly installed.The seal is weak. The shelves are out of position.
LED could not display.LED display error – LoButtons are not functional	Contact customer service.
Compressor will not start	Room temperature is lower than desired temperature.
Dew on the surface of cabinet	The surface of wine cabinet especially the glass door appear some frost if item in a damp room. This is due to the moisture in the air coming into contact with the cabinet.Please wipe it away with dry cloth.

Liquid sound 1) The sound of compressor when starts or stops working2) The flowing sound of refrigerant in the refrigeration system3) The evaporating sound of refrigerant in the evaporator

Condensation formed inside the cabinetUnder the environment with high level of humidity or the door of wine cabinet has been left open for a long period or opened frequently, wipe off the door and walls. Open the door as rarely as possible.

Error code E2 Desired temperature is not reached.If necessary defrost the device (Please follow the hints for manual defrosting in chapter cleaning).

HINWEIS

Please note

▶ If you are unable to solve the problem with the steps shown above, please contact customer service.

14 Disposal of the Old Device

Old electric and electronic devices frequently still contain valuable materials. However, they also contain damaging substances, which were necessary for their functionality and safety. If these were put in the non-recyclable waste or were handled incorrectly, they could be detrimental to human health and the environment. Therefore, do not put your old device into the non-recyclable waste under any circumstances.

HINWEIS

Please note

▶ Utilise the collection point, established in your town, to return and recycle old electric and electronic devices. If necessary, contact your town hall, local refuse collection service or your dealer for information.
▶ Ensure that your old device is stored safely away from children until it is taken away: Before you throw away your old refrigerator take off the doors and leave the shelves in place, so that children may not easily climb inside.
▶ Blowing gas inside the unit is flammable. The disposal of this flammable material should be in accordance with national regulations.

14.1 Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled. Returning the packaging back

to the material loop saves raw materials and reduces the quantities of accumulated waste.

Take any packaging materials that are no longer required to "Green Dot" recycling collection points for disposal.

15 Guarantee

We provide a 24-month guarantee for defects caused by production or material faults, beginning on the date of purchase. Our guarantee is valid for Germany, Austria and the Netherlands. For all other countries, please contact us.

Your legal guarantee claims as per Art. 437 ff. German Civil Code (BGB) will remain unaffected by this. You may exercise your statutory guarantee rights free of charge. The guarantee does not cover damage caused by improper handling or use of the product or defects which have only a minor impact on the product's functionality or value. In addition to this, the guarantee also excludes parts which are subject to wear and tear; transport damages insofar as we are not responsible for them and damages caused by repairs which were not carried out by us.

This product has been constructed for non-commercial use (domestic use) and its performance is designed to meet the corresponding needs. The guarantee only covers commercial use insofar as it is comparable to domestic use. The product is not intended for any other type of commercial use.

In the case of legitimate complaints we may either repair the defective product or replace it with a defect-free product at our discretion. Obvious defects must be notified to us within 14 days of the product's delivery. Any further claims are excluded.

When making a guarantee claim please contact us before you return the product (always with the purchase receipt!). Our contact details ("Guarantor") are provided at the beginning of this instruction manual.

16 Technical Data

Name WineExclusive 12
Item no. 716
Power 60W
Average daily energy consumption 0.355kW.h/24h
Daily energy consumption at 16 °C ambient temperature	0.110kW.h/24h
Daily energy consumption at 32 °C ambient temperature	0.60kW.h/24h
Connection 220V~240V/50Hz
External measurements (W x H x D)	395 x 515 x 550 mm
Capacity	12 bottles
Weight 22,3 kg
Climate class ST

17 FR Généralités

Simple line drawing of a vertical pipe or tube with an arrow pointing to it, enclosed in a circle (no text or symbols)

Diagram showing a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a small attached rod, enclosed in a circle (no text or symbols)

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Abstract geometric pattern with three horizontal oval shapes and a vertical line above (no text or symbols)

Interior view of an appliance showing a black cylindrical component with wiring and a labeled switch (K), no visible text or symbols beyond the label.

Diagram of a curved pipe or wire inside a circular boundary, with an arrow pointing to it (no text or symbols present)

Diagram of a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a mechanical linkage or bracket assembly with arrows indicating direction (no text or symbols)

Simple line drawing of a vertical pipe or tube inside a circle, with no text or symbols present.

Three identical white cylindrical objects with flanges, arranged horizontally on a gray background (no text or symbols)

Ripiani
normale

Abstract geometric pattern with three horizontal oval shapes and a central rectangle (no text or symbols)

ripiani
inferiore

Interior view of an industrial appliance showing internal components like a transformer, wiring, and labeled parts (no readable text or symbols beyond labels)

28.3 Muovere l'apparecchio

Simple line drawing of a bent pipe or wire inside a circle, with no text or symbols present.

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a circular outline and number 4, no text or symbols present.

Three identical white cylindrical objects with flanges, arranged horizontally on a gray background (no text or symbols)

Estante
normal

Abstract geometric pattern with three horizontal lines and rounded ends, no text or symbols present.

Estante
inferior

Interior view of an appliance showing a black box with internal components and wiring, no visible text or symbols.

36.3 Transporte del aparato

Simple line drawing of a curved pipe or tube inside a circle, with an arrow pointing to it (no text or symbols)

Diagram showing a curved structure with directional arrows, enclosed in a circle (no text or symbols)

Diagram of a curved structural element with directional arrows, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a circular outline and number 4, no text or symbols present.

Three identical white cylindrical objects arranged vertically on a gray background (no text or symbols)

normale

bodem

Abstract geometric pattern of three horizontal oval shapes with rounded ends, no text or symbols present.

onderbodem

42.4 Houten bewaarplateaus eruit nemen

Interior view of an appliance showing internal components including a black compressor, wiring, and labeled blocks (no readable text or symbols)

Diagram of a pipe joint with a dashed line indicating direction, no text or symbols present

Diagram showing a mechanical component with directional arrows, no text or symbols present

Diagram of a mechanical or structural component with arrows indicating direction, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a circular outline and number 4, no text or symbols present.

Three identical white cylindrical objects with black outlines, arranged vertically on a gray background (no text or symbols)

normal
hylla

Abstract geometric pattern with three horizontal oval shapes and rounded ends, no text or symbols present.

undre
hylla

Interior view of an electronic appliance showing exposed wiring, a black cylindrical component, and a labeled switch (K), with no visible text or symbols beyond the label.

Three identical white cylindrical objects with flared ends, arranged horizontally on a gray background (no text or symbols)

Normal
raf

Abstract geometric pattern with three horizontal lines and rounded ends, no text or symbols present.

Alt
raf

Interior view of an electronic device showing a black box with internal components and wiring, no readable text or symbols present.

Simple line drawing of a pipe or tube with an arrow pointing to it, enclosed in a circle (no text or symbols)

Diagram showing a curved mechanical component with directional arrows, enclosed in a circle (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical pipe or tube with a circular outline and number 4, no text or symbols present.

66.3 Prateleiras de madeira

Three identical white cylindrical objects with black outlines, arranged horizontally on a gray background (no text or symbols)

Prateleira
normal

Abstract geometric pattern with three horizontal oval shapes and vertical lines, no text or symbols present.

Prateleira
inferior

Interior view of an industrial refrigerator with visible electrical components and wiring (no text or symbols)

Diagram of a curved pipe or wire inside a circular boundary, with an arrow pointing to the pipe's end (no text or symbols present)

Diagram showing a curved pipe or channel with directional arrows, enclosed in a circle (no text or symbols)

Diagram of a mechanical or structural component with arrows indicating direction, enclosed in a circle (no text or symbols)

Simple line drawing of a vertical strip with a rectangular object inside, enclosed in an oval frame (no text or symbols)

74.3 γγη μιοπχ '97η

Three identical white cylindrical objects with flared ends, arranged horizontally on a gray background (no text or symbols)

הכלה

Abstract geometric pattern with three horizontal oval shapes, no text or symbols present

בַרְשָׁה

Interior view of an appliance showing a black box with internal components and wiring, labeled 'K' (no readable text or symbols beyond labels)

QR code image containing encoded data, no visible human-readable text

DE	Weitere Sprachen dieser Bedienungsanleitung finden Sie unter www.caso-design.de oder wenn Sie den QR-Code scannen.
EN	To see these operating instructions in more languages, visit www.caso-design.de or scan the QR code.
FR	Vous trouverez ce mode d'emploi en plusieurs langues sur www.caso-design.de ou en scannant le code QR.
IT	Ulteriori lingue di queste istruzioni per l'uso sono disponibili al seguente link www.caso-design.de o scansionando il codice QR.
ES	Este manual de instrucciones está disponible en otros idiomas en www.caso-design.de o escaneando el código QR.
NL	Je vindt deze gebruiksaanwijzing met vertaling in verschillende talen op de volgende link op de website www.caso-design.de. U kunt ook de QR-code scannen om toegang te krijgen tot de vertalingen.
SV	Det finns tillgång till flera språk i denna bruksanvisning på www.caso-design.de eller om du scannar QR-koden.
TR	Bu kılavuzun diğer dillere çevirileri için şu bağlantıya bakınız: www.caso-design.de. Bu amaçla, geçerli QR kodunu da tarayabilirsiniz.
PT	Pode encontrar este manual de instruções noutras líinguas em www.caso-design.de ou através da leitura do código QR.
HE	הכלההוּרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹשְׁבָרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹאָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹרָהַעֹר

CASO GmbH
