Product type	Portable LED floodlight
Brand	Brennenstuhl
Model	EL 750 M
Power	9.9 W
Rated voltage	220 V - 240 V, 50/60 Hz
Protection class	I
Protection rating	IP65
Impact resistance	IK08
Temperature range	-20°C to +45°C
Cable length	1.5 m
Weight	0.8 kg
Maximum projected area	35 cm²
Plug type	Schuko (type F)
Use	Indoor and outdoor
Power on	Automatic when plugged in
Adjustment	Adjustable tilt via screw
Tripod mounting	Possible (tripod not included)
Maintenance	Clean with a dry or slightly damp cloth, without solvents
Light source replacement	Not replaceable, device to be replaced at end of life
Safety instruction	Do not look directly into the beam; keep out of reach of children; hot surface
Manufacturer	lectra technik ag, Blegistrasse 13, CH-6340 Baar

Frequently Asked Questions - EL 750 M BRENNENSTUHL

What to do if the floodlight is damaged?

Before each use, check that the floodlight is not damaged. If the device is damaged, do not use it and contact a qualified electrician or the manufacturer's after-sales service. A damaged protective housing cannot be replaced and the floodlight must be disposed of.

Can I use this floodlight with an external dimmer?

No, the floodlight is not suitable for use with external dimmers. Using a dimmer may damage the device or cause malfunction.

How to clean the floodlight?

Always unplug the floodlight before cleaning. Use a dry or slightly damp cloth. Never use solvents, abrasive cleaning products or similar.

Can the LED bulb be replaced?

No, the LED light source is not replaceable. When the LED reaches the end of its life, you must replace the entire floodlight.

How to mount the floodlight on a tripod?

Use the holes in the holding bracket (marker D on the illustration) to attach the floodlight to a Brennenstuhl tripod. Fixing materials are not supplied with the floodlight.

Does the floodlight turn on automatically?

Yes, as soon as the plug is inserted into a suitable socket, the floodlight turns on automatically. There is no switch.

What is the protection class and IP rating?

The floodlight is protection class I and has an IP rating of IP65 (protected against dust and water jets) and an impact resistance of IK08.

Can I use this floodlight outdoors?

Yes, the floodlight is designed for indoor and outdoor use thanks to its IP65 rating. However, observe the temperature range of -20°C to +45°C.

What to do at the end of the floodlight's life?

Do not dispose of the device in household waste. According to European Directive 2012/19/EU, used electrical appliances must be collected separately for environmentally friendly recycling. Inquire at your local authority.

Where can I find the EU declaration of conformity?

The EU declaration of conformity is available from the manufacturer. You can visit the website www.brennenstuhl.com for more information, especially in the Service/FAQ section.

USER MANUAL EL 750 M BRENNENSTUHL

Operating Instructions Mobile LED Light

EL 750 M / EL 2050 M / EL 4050 M
EL 2052 M / EL 4052 M
EL 753 M / EL 2053 M / EL 4053 M

Attention: Before use of the light, please carefully read the operating instructions and store them at a proper location!

SAFETY INSTRUCTIONS

• Always check the product for damage before use.

Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.

Non-compliance poses a risk of fatal injury from electrical current!

• Do not use the product in potentially explosive atmospheres - danger of death!
• Keep the light away from children. Children are not aware of the risks posed by electric current.
• Please never look directly into the light.
• A destroyed protective cover cannot be replaced. The light has to be disposed of.
• The external flexible line of this lamp cannot be exchanged; if the line is damaged, the lamp has to be scrapped.

Hot surface.

Not suitable for applications with external dimmers.

TECHNICAL DATA

Nominal voltage: 220V - 240V 50 / 60Hz

Protection class: I

IP class/shock resistance: IP65,IK08

Temperature range: -20 °C to +45 °C

Connection cable: H07RN-F 3G1,0

Type: EL 750 M EL 2050 M EL 4050 M EL 2052 M
Mains plug: Schuko Schuko Schuko CH
Cable length (m): 1.5 1.5 1.5 5.0
Power consumption (W): 9.9 29.8 49.9 29.8
Max. current (A): 0.06 0.127 0.213 0.127
Power factor: 0.7 0.9 0.9 0.9
Max. projected area (cm²):	35	88	130	88
Weight (kg):	0.8 1.1 1.3 1.5

Type: EL 4052 M EL 753 M EL 2053 M EL 4053 M
Mains plug:	CH	BS	BS	BS
Cable length (m): 5.0 1.5 1.5 1.5
Power consumption (W): 49.9 9.9 29.8 49.9
Max. current (A): 0.213 0.06 0.127 0.213
Power factor: 0.9 0.7 0.9 0.9
Max. projected area (cm²):	130	35	88	130
Weight (kg):	1.7 0.8 1.1 1.3

This LED light is suitable for indoor and outdoor lighting purposes.

COMMISSIONING

Place the light on a dry and level surface. As soon as the main plug is inserted into a suitable socket, the light is automatically switched on.

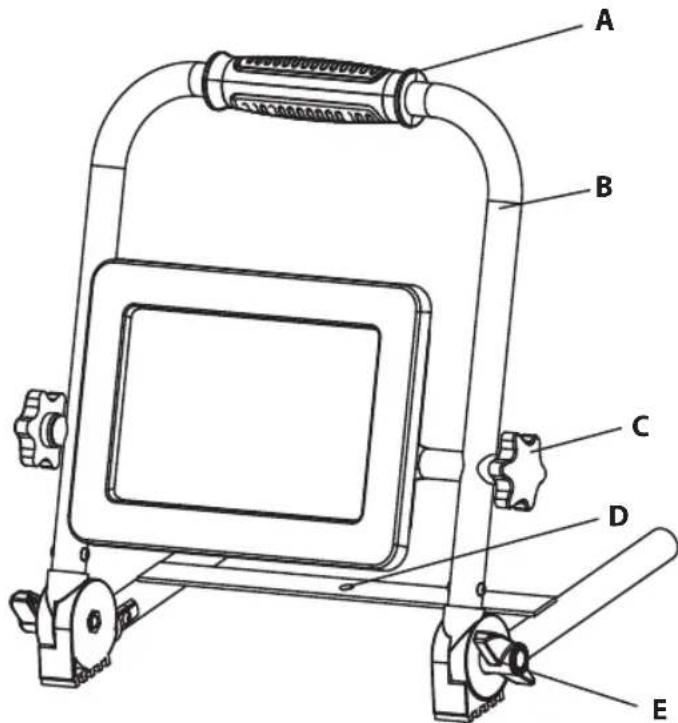

CONTROL ELEMENTS

A Handle
B Frame
C Adjustment screw light inclination
D Tripod fastening
E Adjustment screw for frame inclination

TRIPODMOUNTING

By means of the holes in the holding bracket (D in the figure), the light can be mounted on a Brennenstuhl tripod (fastening material not included in the scope of delivery).

CLEANING

Before cleaning, disconnect the product from the power supply.

Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.

MAINTENANCE

ATTENTION: The LED lamp does not contain components that require maintenance. The light source of this lamp cannot be replaced If the light source has reached the end of its service life, the entire lamp has to be replaced. The lamp may not be opened.

EU DECLARATION OF CONFORMITY

The declaration of conformity is deposited with the manufacturer.

DISPOSAL

Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.

For possibilities of disposal of the used appliance, please contact your local or municipal administration.

MANUFACTURER

For more information, we recommend the Service/FAQs section on our homepage

Cable deraccordement:H07RN-F3G1,0

YKA3AHNRA MEP NOTEXHNIKBE3ONACHOCTN

• Pered KaJdbim NcNoJb3OBaHHeM N3dJIeN HeXHO npOBepaTb Ha BO3MOxHbIe NOBpeXDeHn. Pn O6HApUKeHn KaKx 6bl To Hn 6blIO NobpeXdHn Hn B Koem cIyuae HeIb3r NOJb3OBAtbcra N3dJIeHm. B 3OM clyuae Heo6xOJMo 6paTntbcr K cneuaJIncTy no 3JIeKtpueeCKo qactn IIN B cepBnCHyO cIyX6by No aDpcy, yKa3aHHOMy n3ROTOBHTeMe.

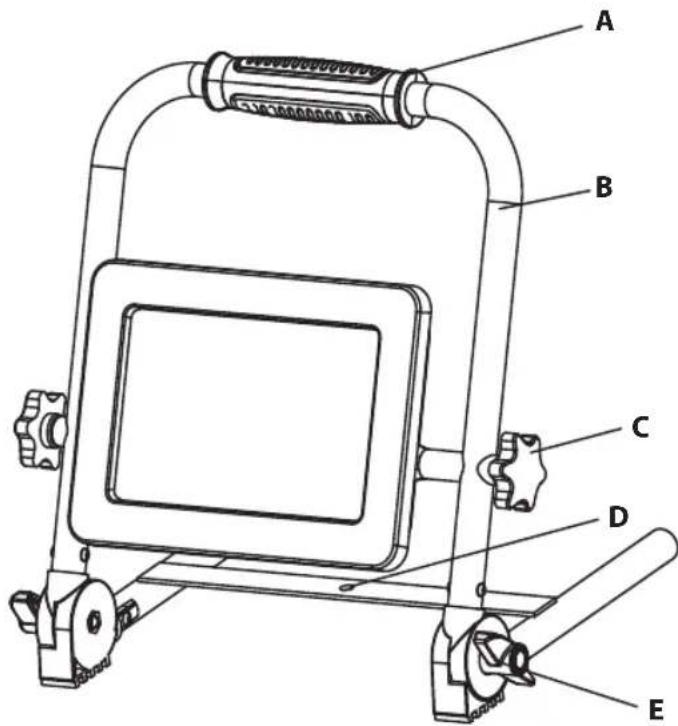

A Pyka
B CToNka
C YcTaHOBOUHbIN BnHT nHaKIOHa npOKeKTopa
D 3neMeHT KpePnneHnHa WtTaTUBE
E UCTaHOBOUHbI BnHT IJIHaKIOHa CTOJKN

MOHTAX HA WITATUBE

C NOMOUIO OTBepCTN B KpeIeXHOM KPOHHTeHHe (no3.DHa nIJIIOCTpaun) npOKeKTOPOMKeT MOHTnPOBaTbCra Ha 7aTtBe OnpMbIBrennenstuhl (KpeIeXHbMaTePnaB Oobem NOCTABKN He BXoDNT).

OuNCTKA

Ipeed ouhctkO u3dennne cJeDyET OTKJIouHTb OT cTeBOrO HnpaXeHn.

Helenb3y nCnoB3OBaTb paCTBOpnten, pa3beJaIOuIne YnCTraIue BeUeCTBa n T. n.

Iy ouhctkn CneNyET nCnOlb3OBaTb TOnbKO cyxuIO nn CnerKa yBnaXHeHHyTO KaHb.

TEXHnueCKOE OBCJyXnBAHne

BHIMAHHE: B CBETnIbHnke Ha CBETOAnOdaX Het KOMnOHeTOB, Tpe6yUxN TxHNueCKoTo 06CnyKuBaHn. IcTOuyHK CBeTa B 3TOM CBETnIbHnke He NOpJnxT 3aMeHe. Ecln IcTOuyHK CBeTa NcyePnA1 CBoi pa6Ouyn pecypc, 3aMeHe NOpJnxT BeCb CBETnIbHnK. BckpbIbAtb CBETnIbHnK 3anpeuaetca.

CEKJIAPAUH COOTBETCTBHA HOPMAMEC

Декларачи COOTBETCTBну HopMaM EC xpaHntc y I3roTOBnTeJI.

YTNIN3AUIN

3anpeaetc BbipacBaT bEeKtpnp60pBt BmecTe C 6bITOBIMN OTXoamn!

B COOTBETCTBnC DnpeKTHBOE NC No Otpa6oTaHHbIM 3eKTPoPnp6opam N 3eKTPoHHo annapaType, Otpa6oTaHHbIe 3eKTPoPnp6Opby DoJXHbI Co6nPaTbcB B OTdJIbHbIe KOHTeHepbI N OTpabJIaTBcRA Ha yTININ3aUIO C cO6JIIODeHNEM HOPM 3aUNTbi OKpyKaIOSeI cpebl.

O BO3MOxHOCCTaYtIIN3aUIN np6OpOB, Otpa6oTAbuNX CBOJ pecypc, MoXHO y3HaTb BC0eM MeCTHom CeIbCKOM INI TROPDCOM MyHUNaJIITeTe.

M3ROTOBNTJIb

Cabo de ligaçao: H07RN-F 3G1,0

Tipo: EL 750 M EL 2050 M EL 4050 M EL 2052 M
Ficha de rede: Schuko Schuko Schuko CH
Comprimento do cabo (m): 1,5 1,5 1,5 5,0
Consumo de potência (W): 9,9 29,8 49,9	29,8
Corrente max. (A): 0,06 0,127 0,213 0,127
Factor de potência: 0,7 0,9 0,9 0,9
Superficialie projetada max. (cm2):	35	88	130	88
Peso (kg):	0,8 1,1 1,3			1,5

Tipo: EL 4052 M EL 753 M EL 2053 M EL 4053 M
Ficha de rede:	CH	BS	BS	BS
Comprimento do cabo (m): 5,0 1,5 1,5 1,5
Consumo de potência (W): 49,9 9,9 29,8
Corrente max. (A): 0,213 0,06 0,127 0,213
Factor de potência: 0,9 0,7 0,9 0,9
Superficialie projetada max. (cm2):	130	35	88	130
Peso (kg):	1,7 0,8 1,1			1,3
