LED LED INOperating Instructions Mobile LED Light
EL 750 M / EL 2050 M / EL 4050 M EL 2052 M / EL 4052 M EL 753 M / EL 2053 M / EL 4053 M
Attention: Before use of the light, please carefully read the operating instructions and store them at a proper location!
SAFETY INSTRUCTIONS
- Always check the product for damage before use. Never use the product in case of any damage. In case you find the product to be damaged, please refer to an electrician or the manufacturer's service address.
Non-compliance poses a risk of fatal injury from electrical current!
- Do not use the product in potentially explosive atmospheres – danger of death!
- Keep the light away from children. Children are not aware of the risks posed by electric current.
- Please never look directly into the light.
- A destroyed protective cover cannot be replaced. The light has to be disposed of.
- The external flexible line of this lamp cannot be exchanged; if the line is damaged, the lamp has to be scrapped.
Hot surface.
Not suitable for applications with external dimmers.
If the minimum distance is not complied with, illuminated objects may overheat.
TECHNICAL DATA
Nominal voltage: 220 V-240 V\~ 50/60 Hz
Protection class: I
IP class/shock resistance: IP65, IK08
Temperature range: -20 °C to +45 °C
Connection cable: H07RN-F 3G1,0
| Type: EL 750 M EL 2050 M EL 4050 M EL 2052 M | |||
| Mains plug: Schuko Schuko Schuko CH | |||
| Cable length (m): 1.5 1.5 1.5 5.0 | |||
| Power consumption (W): 9.9 29.8 49.9 29.8 | |||
| Max. current (A): 0.06 0.127 0.213 0.127 | |||
| Power factor: 0.7 0.9 0.9 0.9 | |||
| Max. projected area ( cm^2 ): | 35 | 88 | 130 |
| Weight (kg): | 0.8 1.1 1.3 1.5 |
| Type: EL 4052 M EL 753 M EL 2053 M EL 4053 M | ||||
| Mains plug: | CH | BS | BS | BS |
| Cable length (m): 5.0 1.5 1.5 1.5 | ||||
| Power consumption (W): 49.9 9.9 29.8 49.9 | ||||
| Max. current (A): 0.213 0.06 0.127 0.213 | ||||
| Power factor: 0.9 0.7 0.9 0.9 | ||||
| Max. projected area ( cm^2 ): | 130 | 35 | 88 | 130 |
| Weight (kg): | 1.7 0.8 1.1 1.3 | |||
This LED light is suitable for indoor and outdoor lighting purposes.
COMMISSIONING
Place the light on a dry and level surface. As soon as the main plug is inserted into a suitable socket, the light is automatically switched on.
CONTROL ELEMENTS

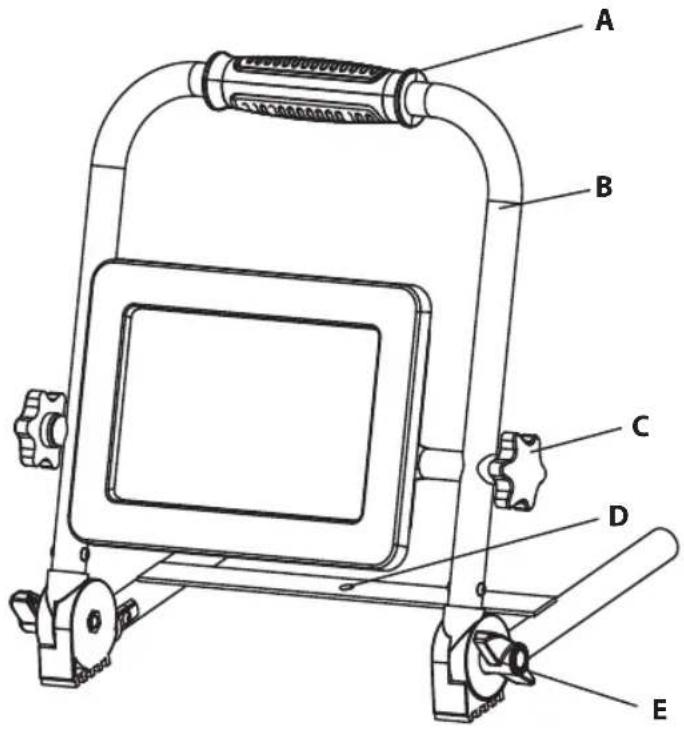

A Handle
B Frame
C Adjustment screw light inclination
D Tripod fastening
E Adjustment screw for frame inclination
TRIPOD MOUNTING
By means of the holes in the holding bracket (D in the figure), the light can be mounted on a Brennenstuhl tripod (fastening material not included in the scope of delivery).
Before cleaning, disconnect the product from the power supply.
Do not use solvents, caustic cleaning agents or similar products. Only use a dry or slightly moistened cloth for cleaning.
MAINTENANCE
EU DECLARATION OF CONFORMITY
The declaration of conformity is deposited with the manufacturer.
DISPOSAL
Dispose of electric appliances in an environmentally friendly manner! Electric appliances must not be disposed of in household waste!
The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment rules that used electric appliances should be collected separately and recycled in an environmentally friendly manner.
For possibilities of disposal of the used appliance, please contact your local or municipal administration.
MANUFACTURER
For more information, we recommend the Service/FAQs section on our homepage www.brennenstuhl.com.
