USER MANUAL ROG STRIX B860-A GAMING WIFI ASUS

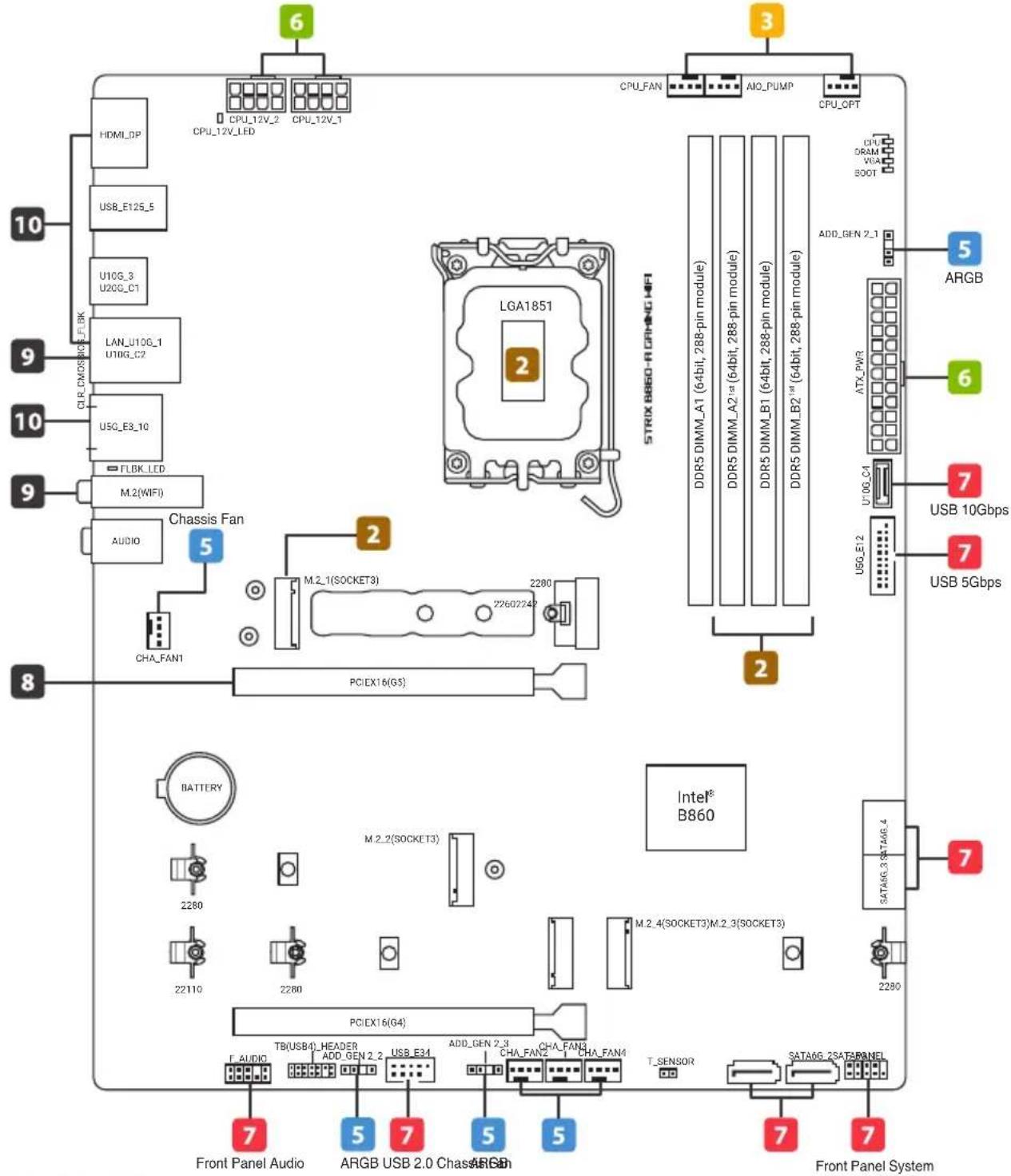

The items labeled below correspond to the installation steps, for steps 1 4 11 12 and more information on the steps, please refer to the rest of the guide.

1 Prepare the components

Chassis

CPU Memory M.2 SSD

CPU cooler

SATA device

Power supply unit Graphics card

NOTE: The components listed above are recommendations, please prepare components according to your needs.

2 Install key components

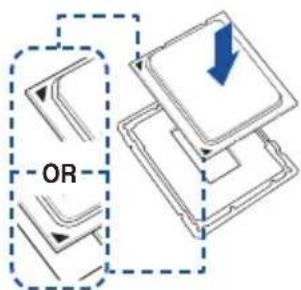

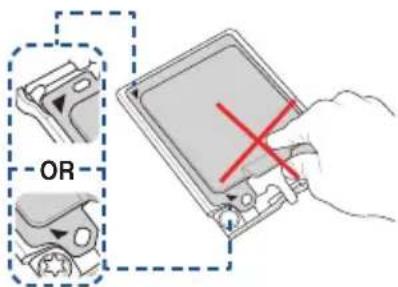

Install the CPU

NOTE: Do not remove the PnP cap before the CPU is properly installed.
Please refer to the manual(s) for more information: Motherboard

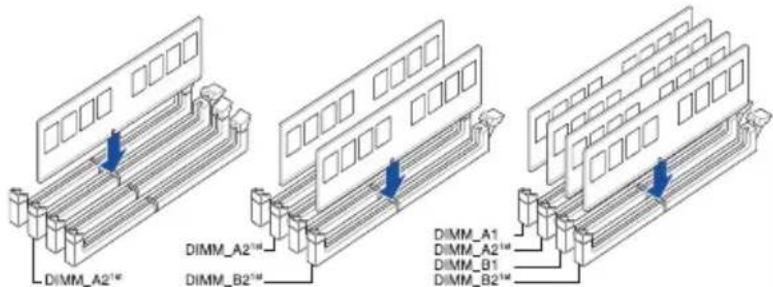

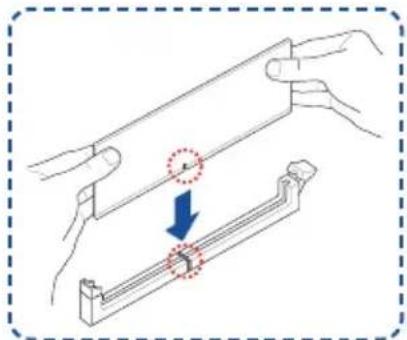

Install the Memory
NOTE: Please refer to the manual(s) for more information: Motherboard

Motherboard

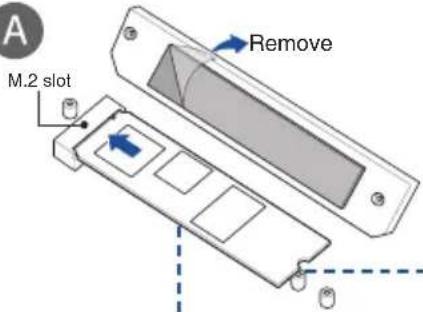

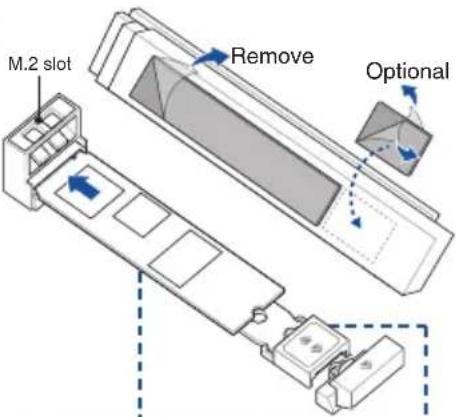

Install the M.2 SSD

A

OPTIONAL

Install the bundled M.2 rubber when installing a single sided M.2 module

B

OR

OPTIONAL

Install the bundled M.2 rubber when installing a single sided M.2 module

Make sure of the following:

M.2 Q-Latch clicks and locks the M.2 SSD

• Secure the screw properly

• Insert the pin of the M.2 Anchor into the hole

Make sure the M.2 Q-Slide clicks and locks the M.2 SSD

Additional Information (on selected models)

M.2 Q-Release M.2 Q-Slide

Type-A Install

RemoveType-B

NOTE: Please refer to the manual(s) for more information:

Motherboard

Connect to chassis fan and ARGB/RGB headers

NOTE: Please refer to the manual(s) for more information: Motherboard Chassis Fan

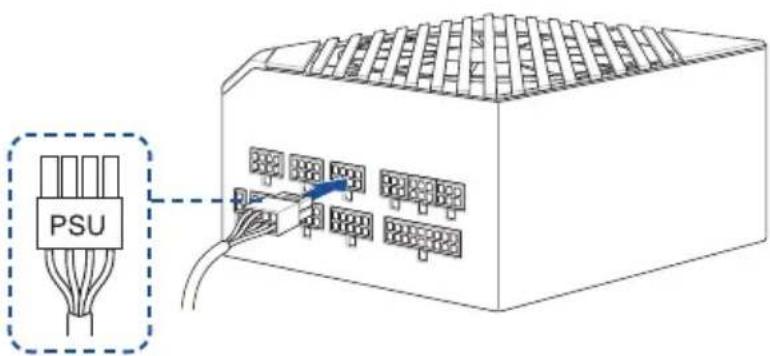

Install and connect the power supply unit (PSU)

Make sure the PSU is secured to the chassis using screws, and that the chassis has proper airflow

NOTE: Input: AC 100~240V, 6A/3A, 50/60Hz

Please refer to the manual(s) for more information: Chassis PSU

Connect cables from PSU

• Connect the power cables to the motherboard

NOTE: Please refer to the manual(s) for more information: Motherboard PSU

Connect everything to the motherboard

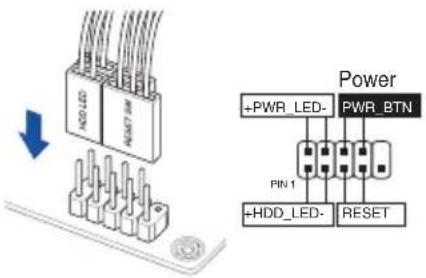

• Front panel system header

• Front panel audio header

• USB connector/header

NOTE: Please refer to the manual(s) for more information:

Motherboard Chassis

Connect cables from PSU

SATA

NOTE: Please refer to the manual(s) for

more information: Motherboard

Connect cables from PSU

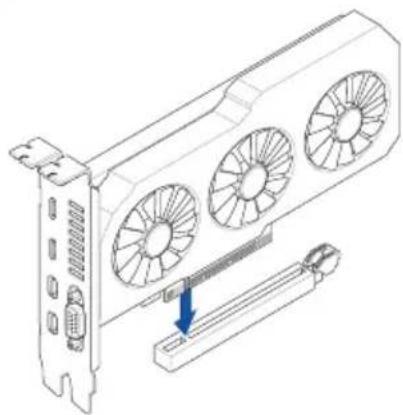

Install the graphics card

NOTE: Please refer to the manual(s)

for more information:

Motherboard Chassis Graphi

Please note that power connection is required for selected models.

12 Install the operating system and drivers

Driver and Utilities installation

Ctbnkn:

1. IIOIROTBETe KOMNOHEHTNTe
   2.Интуларпг TEKIOOBOKOMNOHEHTN
   3.Инсталразе oxлждаца сизема
   4.Инстапаite БьHHATA ПАТКВ KOPNYCA
   5.CbpxkeTe BeHTnlaTopaHa Kopnyca n ARGB/RGB 3arJnaBkn
2. MoHTnpaTe n CbPjKeTe 3axpaHbaun 6nok (PSU)
   7.CbpxTe BCNUKO KbM DbHHaTa NnTaK
   8.ИнстампайтБидаокарТа

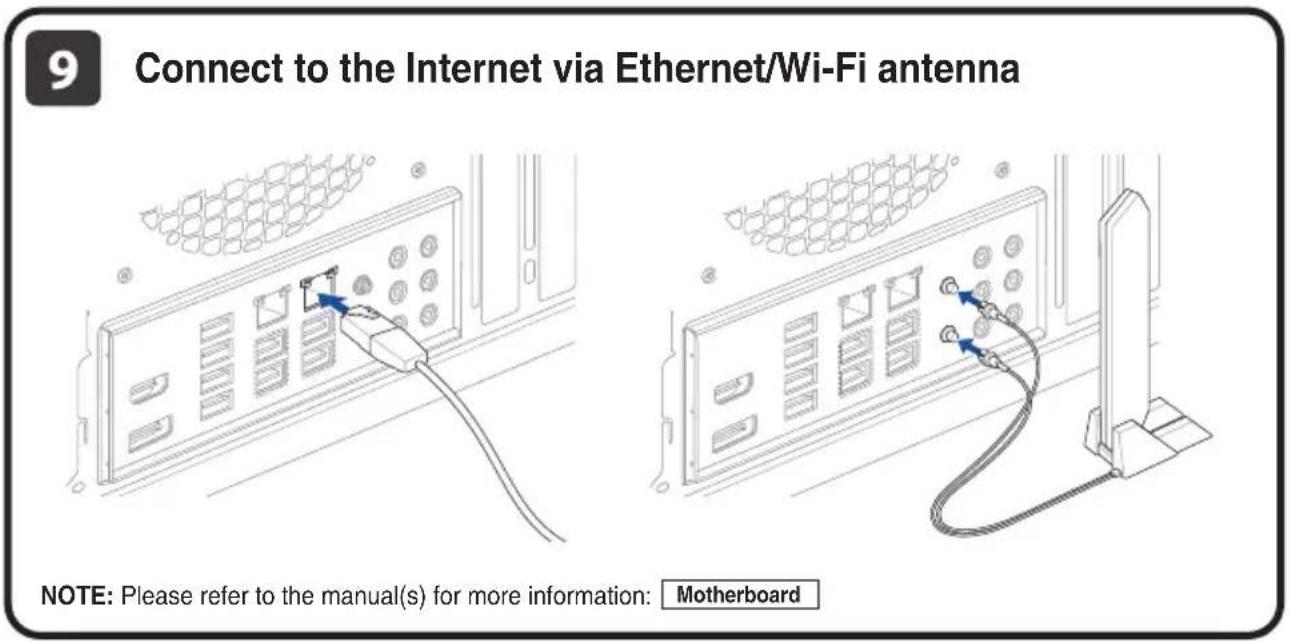

3. CbpxkeTe KbM VHTepHET ype3 Ethernet/Wi-Fi ahteha

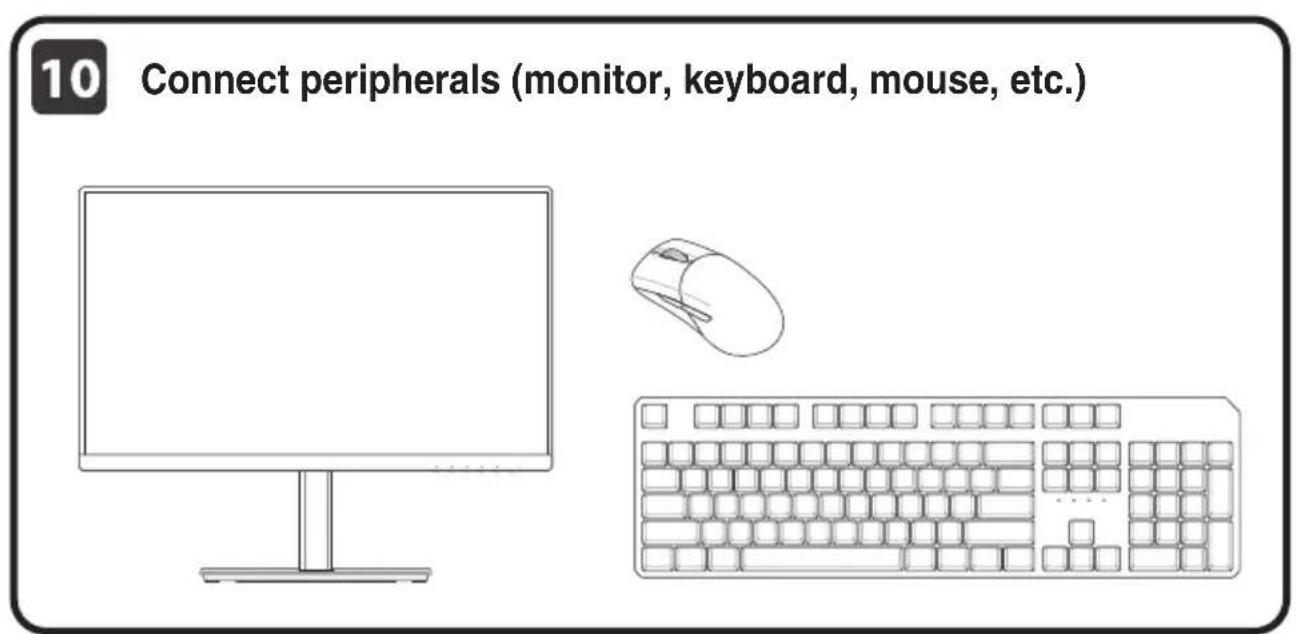

10.CbpxTe nepnepn yctpoaCTBa (MOHITOP,KnabnaTpa,MNIka nDp).

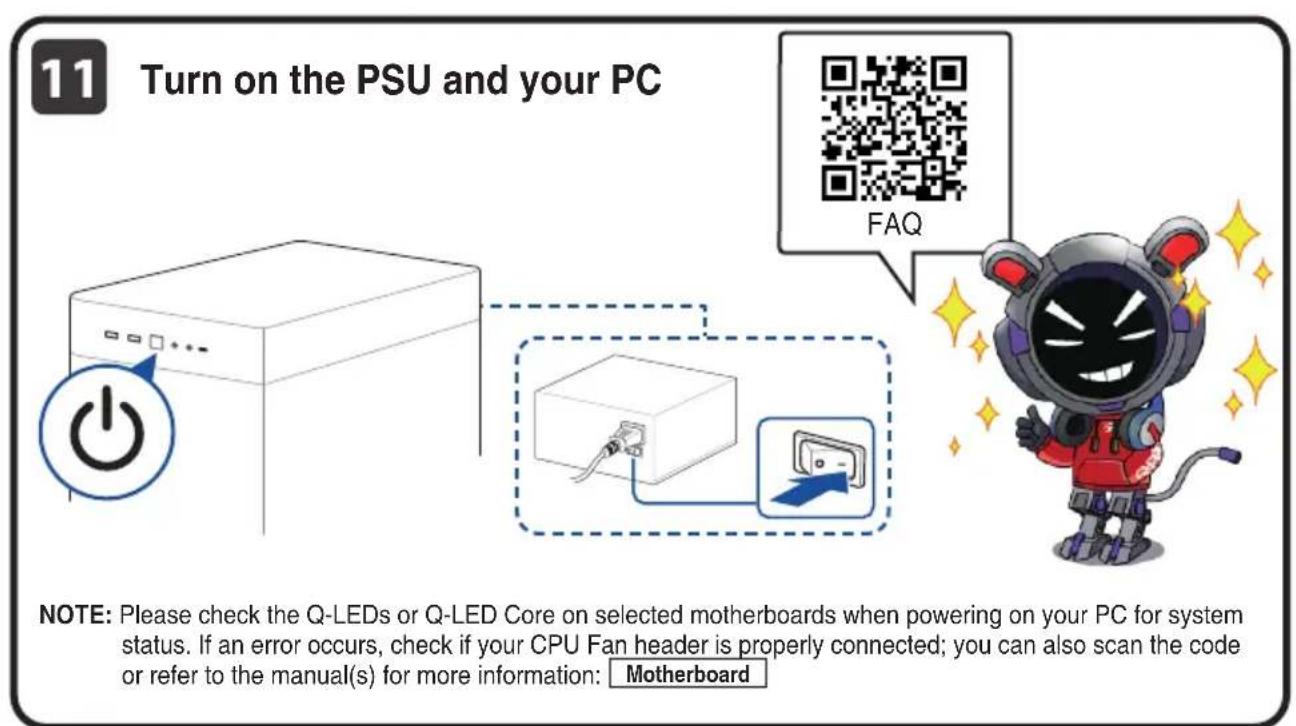

11.BKIOUeTe PSU BaUN KOMNIOBp
12.Инстампаite onepaioHHa TcNCTema nДраьВерпte

Koraci:

1. Prippremite componente
2. Ugradite componente
3. Ugradite sustav za hladenje
4. Ugradite matichnu plocu u kuciiste
5. Spojite na ventilator kuciesta in a konektore ARGB/RGB
6. Ugradite i spojite jedinicu za elektricno napajanee (PSU)
7. Spojite sve na maticnu plocu
8. Ugradite graficku kartic
9. Spojite se na internet preko Ehternet/Wi-Fi ante
10. Spojite vanjske uredaje (monitor, tipkovnica itd.)
11. Ukljucite PSU i racunalo
12. Ugradite operacijski sustav i upravljache programe

Kroky:

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
  Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
  Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
  If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
- Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
- To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
- Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
- Place the product on a stable surface.
- If you encounter technical problems with the product, contact a qualified service technician or your retailer.
- Your motherboard should only be used in environments with ambient temperatures between 10^ and 35^ .

Button/Coin Batteries Safety Information

1. Remove and immediately recycle or dispose of used batteries according to local regulations and keep out of reach of children. Do not incinerate or dispose of batteries in household trash.
2. If ingested or inserted inside any part of the body, call a local poison control center for treatment information. Even used batteries may cause serious injury or death.
3. This product uses CR2032 type batteries with a nominal voltage of 3V.
4. Do not attempt to recharge non-rechargeable batteries.
5. Do not forcibly discharge, recharge, disassemble, heat above the battery manufacturer's specified temperature rating, or incinerate. Doing so may result in injury or chemical burns caused by venting, leakage, or explosion.
6. This product contains non-replaceable batteries.

WARNING

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN.
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

General Notices

FCC Compliance Information

Responsible Party: Asus Computer International

Address: 48720 Kato Rd., Fremont, CA 94538, USA

Phone/Fax No: [phone] / [phone]

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

HDMI Trademark Notice

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

HIGH-DEFINITION MULTIMEDIA INTERFACE

安全上のご注意

Australia statement notice

From 1 January 2012 updated warranties apply to all ASUS products, consistent with the Australian Consumer Law. For the latest product warranty details please visit https://www.asus.com/support/. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

If you require assistance please call ASUS Customer Service 1300 2787 88 or visit us at https://www.asus.com/support/.

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to https://esg.asus.com/Compliance.htm for information disclosure based on regulation requirements. ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at https://esg.asus.com/Compliance.htm.

EU RoHS

This product complies with the EU RoHS Directive. For more details, see https://esg.asus.com/Compliance.htm.

India RoHS

This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

Cac san pham ASUS bàn tai Viet Nam, vao ngay 23 thang 9 nam2011 trove sau, deu thai dap ung cac yeu cau cua Thong tu 30/2011/TT-BCT cua Viet Nam.

Türkiye RoHS

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to https://esg.asus.com/en/Takeback.htm for detailed recycling information in different regions.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

France sorting and recycling information

Notices for Wi-Fi model

FCC RF Caution Statement

WARNING: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC 5.925-7.125 GHz Caution Statement

Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CANICES-003(B)/NMB-003(B)

ISED 5.925-7.125 GHz Caution Statement (RLAN devices)

Devices shall not be used for control of or communications with unmanned aircraft systems.

KC: Korea Warning Statement

B图（）

i）其之为（B）即自动的，即为

• *

NCC: Wireless Statement

Japan RF Equipment Statement

屋外その使用にて

Simplified UKCA Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 (S.I. 2017/1206). Full text of UKCA declaration of conformity is available at https://www.asus.com/support/.

The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for the country listed below:

UKCA RF Output table (The Radio Equipment Regulations 2017) Model: MT7925B22M

a. Low power indoor (LPI) Wi-Fi 5,945-6,425 GHz devices: The device is restricted to indoor use only when operating in the 5925 to 6425 MHz frequency range in UK.
b. Very Low Power (VLP) Wi-Fi 5.945-6.425 GHz devices (portable devices): The device is not permitted to be used on Unmanned Aircraft Systems (UAS) when operating in the 5925 to 6425 MHz frequency range in UK.

Function Frequency Maximum Output Power EIRP (mW)
WiFi	2.4 - 2.4835 GHz < 100
	5.15 - 5.35 GHz < 200
	5.47 - 5.725 GHz < 200
	5.725 - 5.875 GHz* < 25
	5.925 - 6.425 GHz < 200
Bluetooth	2.4 - 2.4835 GHz < 100

Receiver Category 1
* Non-Intel modules: 5.725 - 5.85 GHz

Complies with IMDA Standards DB103778

UK CA R-NZ

Simplified EU Declaration of Conformity

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at

https://www.asus.com/support/.

The WiFi operating in the band 5150-5350 MHz shall be restricted to indoor use for countries listed in the table below:

a. Low power indoor (LPI) Wi-Fi 5.945-6.425 GHz devices:

The device is restricted to indoor use only when operating in the 5945 to 6425 MHz frequency range in Austria (AT), Belgium (BE), Bulgaria (BG), Cyprus (CY), Czech Republic (CZ), Estonia (EE), France (FR), Germany (DE), Iceland (IS), Ireland (IE), Latvia (LV), Luxembourg (LU), Netherlands (NL), Norway (NO), Romania (RO), Slovakia (SK), Slovenia (SI), Spain (ES), Switzerland (CH)

b. Very Low Power (VLP) Wi-Fi 5.945-6.425 GHz devices (portable devices):

The device is not permitted to be used on Unmanned Aircraft Systems (UAS) when operating in the 5945 to 6425 MHz frequency range in Austria (AT), Belgium (BE), Bulgaria (BG), Cyprus (CY), Czech Republic (CZ), Estonia (EE), France (FR), Germany (DE), Iceland (IS), Ireland (IE), Latvia (LV), Luxembourg (LU), Netherlands (NL), Norway (NO), Romania (RO), Slovakia (SK), Slovenia (SI), Spain (ES), Switzerland (CH)

https://www.asus.com/support/.

WiFi,pa6oTeaB Dmna30n 5150-5350MHz,tp86Ba Da ce orpaHnD no ynoTpe6a Ha 3akpnto 3a cTpaHnTe, nocouEHn B tabnIaTaNo-dJy:

a.Hncko 3axpaHbAHe Ha 3akpTo (LPI) Wi-Fi 5,945-6,425 GHz ycTpoIcTaB: YctpoIcTBTO e ORpAHmEO do yontpe6a cAmo Ha zakpTo, KOrto pa60TH B yeCTOTHM Imaa3OH ot 5945 do 6425 B AcbTPry (AT), BeInr (BE), BByrapn (BG), KInbp CY), Hexy (CZ), EctOny (EE), DpaHn (FR), FepMaHy (DE), NcAnDn (IS), InpHaN (IE), IatBn (LV), IIOKcEMypr (LU), HnpePnAn (NL), HopBerri (NO), Pymhnr (RO), CnoBakn (SK), CnoBeHn (SI), IcnAna (ES), USeBicapn (CH).
6. MHoro HnCKO 3axpaHbHe (VLP) Wi-Fi 5,945-6,425 GHz yctpoiCTBa (npehocmm yctpoiCTBA):

UcTPOIcTBOTHe e p3aPteHHe 3a yNtOpe6b B6e3nIOHTn IeTaTeHN cpeCCTBa (UAS) npaBotaB uCeTOTHn DmAnaoh O T 5945 do 6425 MHz B AScTPNi (AT), BeLrna (BE), BbIrapra (BG), Kmbp (CY), Yexnx (CZ), EctOnHn (EE), OpaHn (FR), FepMaHn (DE), NcAhnDA (IS), IVpAhnDA (IE), NaTbn (LV), IIOKem6ypr (LU), HndepnA (NL), HopBeRn (NO), PyMbHn (RO), CNoBaKn (SK), CNoBHeNn (SI), UcnAna (ES), UWeBauPn (CH).

Pojednostavljena EU Izjava o sukladnosti

ASUSTEK Computer Inc. ovm izjavljue da je ovj uredaj sukladan s bitnim zahtjevima i ostalim odgovarajucim odredbama directivesi 2014/53/EU. Cijeli tekst EU izjave o sukladnosti dostupan je na https://www.asus.com/support/.

WiFi koji radi na opsegu frekvencija 5150-5350 MHz bit ce ograničen na upotrebu u zatvorenom prostoru u zemljama na donjem popisu:

a. Unutarnji uredaji male snage (LPI) Wi-Fi 5,945 - 6,425 GHz: Uredaj je ogranici na upotrebu u zatvorenom prostoru sama kada radi frekvencijskom pojasu od 5945 do 6425 MHz u Austrija (AT), Beligi (BE), Bugarskoj (BG), Cipru (CY), Ceskoj (CZ), Estonij (EE), Franciskoj (FR), Njemackoj (DE), Islandu (IS), Irskoj (IE), Latvija (LV), Luksemburg (LU), Nizozemskoj (NL), Norveska (NO), Rumunjtska (RO), Slovačka (SK), Slovenija (SI), Spanjolskoj (ES), Svicarska (CH).
b. Uredajni vrlo male snage (VLP) Wi-Fi 5,945 - 6,425 GHz (prijenosni uredaji): Uredaj nije dopusteno koristiti u sustavima bespilotinh letjelica (UAS) kada radiu u frekvencijskom pojasu od 5945 do 6425 MHz u Austria (AT), Belgiji (BE), Bugarskoj (BG), Cipru (CY), Ceskoj (CZ), Estonij (EE), Francuskoj (FR), Njemackoj (DE), Islandu (IS), Irskoj (IE), Latvija (LV), Luksemburg (LU), Nizozemskoj (NL), Norvejska (NO), Rumunjtska (RO), Slovačka (SK), Slovenija (SI), Spanjolskoj (ES), Svicarska (CH).

Zjednodusene prohlasei o shode EU

Spolecnost ASUSTek Computer Inc. timto prohlasej, ze toto zaifeni splnjuze zakladni pozadavya a dalisi prisluasn ustanoveni smernice 2014/53/EU. Plne zneni prohlaseni o shode EU je k dispozici na adre https://www.asus.com/support/.

V zemich uvedenych v tabulce je provoz site Wi-Fi ve frekvencnim rozsahu 5 150 - 5 350 MHz povolen pouze ve vnitnich prosterech:

Anonounieyn Anjwn∑uoppwong EC

Aidounapovtocn ASUSTek Computer Inc. 0nauve otu aunn n ouokeanivai oumuopqn me tccbauec npounotheaeic kai dacexetkeic diataeic nC odnylac 2014/53/EE.To napece keiEvno tnc dnwanc oumuopxpwnc nC EE ivai diaBteao ptn
dieuovnnhttps://www.asus.com/support/.

To WiFi nou leitroupeiy otz wv 5150-5350MHnzepiopietai yia xprn oe eoutepkoc xpuoc ia tic xwpcn ou avapepovtai otov napakatw nivaka:

a. uokuevc Wi-Fi xaunlnc ioxuoc yia oouteipkooc xupoc (LPI) 5.945-6.425 GHz: H ouokueh nepiapicetai oe xpnan oe oouteipkooc xupoc mvo otav leitoupyei oto eupoc ovovntuv 5945 ec6425 MHz otnv Auotpi (AT), to Bekyo (BE), tn Boulyapia (BG), tn Knpo (CY), tn Toeikn dnojkopacia (CZ), tn Eo8ovia (EE), tn Falaa (FR), tn Epmavla (DE), tn IoAovla (IS), tn IpAovla (IE), tn Aetovla (LV), tn AouEmuBouyo (LU), tn OAnovla (NL), tn NopBnyia (NO), tn Pouavla (RO), tn loBakia (SK), tn loBevia (SI), tn Ionaivia (ES), tn EBeTria (CH).
b. uokuec Wi-Fi nolu xunlnc 10xoc (VLP) 5.945-6.425 GHz (oopntec ouokuec): H ouokueh dev emptentai va xnpauonoeiata oe nj enavdpwjuva ouotnmuata aepooakpuw (UAS) otav letovpyei oto eupoc ovovtnw 5945 ec 6425 MHz otny AuotpiA (T), to BExyio (BE), tn Bouvayia (BG), tv Nkpo (CY), tv Toexikn 出 出 出 出 CZ, tv Eoovia (EE), tn faIla (FR), tn Tepuavia (DE), tv Ioavia (IS), tv Ipaovia (IE), tn Aetovia (LV), to AoueBupoyo (LU), tv Ollawia (NL), tn Nopnyia (NO), tn Pouavia (RO), tn LaoBacia (SK), tn LaoBevia (SI), tv Ianavia (ES), tn EAETIA (CH).

19X TINN NNNN NNNN NNNN

ASUSTek Computer Inc.
nynn nn nnnn nn nnnn 2014/53/EU npn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nennn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

yin 5150-5350MHz nnnn nn nn Wi-Fi nnnn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn nn

(LPI) nnnn Wi-Fi 5.945-6.425 GHz nn a.

6425MHz 5945 nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnne

(A) (VLP) (LVP) (W-Fi 5.945-6.425 GHz)
(A) (UAS) (A) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P) (P
(AY, CY), (BG), (BE), (AT), 6425MHz, 5945,
(LV), (IE), (IS), (DE), (FR), (EE), (CZ),
(SI), (SK), (RO), (NO), (LU),
(CH), (ES),

a.

https://www.asus.com/support/.

Toliau nurodytose salyse, ^ rysiu, veikianciu 5 150-5 350 MHz daznio juostoje, galima naudotis tik patalpose:

a. Maños galíos, patalpose naudiojami (angl. Low Power Indoor - LPI) "Wi-Fi" 5.945-6.425 GHz jrenginai: Šj jrenginī galáma nudoti tik patalpoje, kaijisveikia 5 945-6 425 MHz dažniú diapazone Austrija (AT), Belgioje (BE), Bulgarijoe (BG), Kipre (CY), Čekijoce (CZ), Estijoje (EE), Prancūjoje (FR), Vokietijoje (DE), Islandijoje (IS), Airijoje (IE), Latvija (LV), Liuksemburgas (LU), Nynderlanduose (NL), Norwegija (NO), Rumunija (RO), Slovakijoje (SK), Slovensija (SI), Ispanijoje (ES), Šveicarija (CH).

b. Labai mazos, patalpose naudiojami (angl. Very Low Power - VLP), Wi-Fi" 5.945-6.425 GHz jrenginiali (nesiojamieji jrenginiali): Sio jrenginio neidziama naodoti bepilociu oraiviu sstemose (UAS), kaijis velkia 5 945-6 425 MHz dazni diapazona Austria (AT), Belgijoje (BE), Bulgarijoje (BG), Kipre CY, Cekijoje (CZ), Estjoje (EE), Prancuzijooje (FR), Voklietijooje (DE), Islandijoe IS), Airijoje (IE), Latvija (LV), Liuksemburgas (LU), Nyderlanduose (NL), Norvegija (NO), Rumunija (RO), Slovakijoje (SK), Slovenija (SI), Ispanijoje (ES), Svecarija (CH).

Forenklet EU-samsvarserklaering

https://www.asus.com/support/.

5150-5350 MHzarasindakiWiFi calismas,tabloda listelenen uikeler icin ic mekan kullanimyia kisitlanacaktir.

a. Dusuk Guc Ic Mekan (LPI) Wi-Fi 5.945-6.425 GHz cihazlan: Avusturya (AT), Belcika (BE), Bulgaristan (BG), Kibrs (CY), Cek Cumhuriyeti (CZ), Estonya (EE), Fransa (FR), Almanya (DE), Izlanda (IS), Iranda (IE), Letonya (LV), Lüksemburg (LU), Hollanda (NL), Norvec (NO), Romano (RO), Slovakya (SK), Slovenia (SI), Ispanya (ES), Ivscire (CH'da) 5945 iia 6425 Mhz frekans analiginda calisirken cihaz yalnica ic mekanda kullanim ile smirlandinlmstir.
b. Cok Dusuk Guc (VLP) Wi-Fi 5,945-6,425 GHz cihazlari (tasinabilir cihazlar): Avusturya (AT), Belcika (BE), Bulgaristan (BG), Kbrs (CY), Cek Cumhuriyeti (CZ), Estonya (EE), Fransa (FR), Almanya (DE), Izlanda (IS), Irlanda (IE), Letonya (LV), Lüksemburg (LU), Holland (NL), Norvec (NO), Romania (RO), Slovakya (SK), Slovenia (SI), Ispanya (ES), Ivicre (CH')da 5945 iha 6425 Mhz frekans araliqinda calisirken cihazin Innsanzi Hava Aracı Sistemleri (UAS)'ta kullanimi izinli degildir.

CnpoueHa deKnapaui npo BiinobiHicb HopMaE C

ASUSTek Computer Inc. 3aBnHne, 00 uei npCtpi BIDNObIAe OCHOBHM BIMORAM ta HIM BIDNObIHMMBIMOR AnpeKTVBN 2014/53/EU.NobHm TeKCT DeJnapaiBIBIOINHOCTI HOPMAM EC DcOCTYNHnHa

https://www.asus.com/support/.

Po6oTaWi-FHaactoti5150-5350MfO6mExyETbCBAKOpNCTAHHMy npMIeHHI dKaipnNoaHnxY tabuHnHxue:

a.ПистpoI Hn3bKoiNotyHooTdI pynpMiuieHb(LPI)Wi-Fi 5,945-6,425TTu. BAVKOPINAHII PnIcTPOIO6MeKeHO NIIe PnIMiUeHNHM iDianA3OHOM TactOT Bi4 5945 MfUo 6425 MfUy AByctPi(AT),Bebri (BE),BoIapRI (BG),HaKiPi (CY), YCecBkiPecNpy6lii(CZ),EctOnii(EE),OPhanii(FR),HimeyuHI (DE),IcnaiII (IS), IpnAnII (IE),Latbiy (LV),IIOkCeMbypr (LU),HIpepNaHdx (NL),Hoperia (NO), PymHyI (RO),CNoBaUChu (SK),CNoBHei (SI),IcnaiII (ES),IUsbeuApia (CH).
b. pncptpo nyke Hn3bkoi noTyxHocti (VLP)Wi-Fi 5,945-6,425 TTu (nopatmbni npctpo). BkopnCTAHn pncptpo He do3B0eHO Ha 6e3nIOHTHX nIraBHX anapatax (UAS) i diaa3oHOM qactot BI 594 MfOdo 6425 MfU y AcbTpi (AT), Benr (BE), Bonrapi (BG), Ha Kini (CY), y Checkii Pecnybni (CZ), Ecton (EE), Phan (FR), Himeun (DE), IcnaHII (IS), IpnaHII (IE), PatBIA (LV), IioKem6ypr (LU), HiepnaHdx (NL), Hopberia (NO), PymHyria (RO), CnoBaunHa (SK), CnoBeHria (SI), IcnaHII (ES), Ubeuapria (CH).

AT BE	BG CZ DK	EE FR
DE IS IE IT EL ES	CY
LV	LI	LT	LU	HU	MT	NL
NO PL	PT RO SI K TR
FI SE CH HR UK(NI)

CE RED RF Output table (Directive 2014/53/EU) Model: MT7925B22M

Function Frequency		Maximum Output Power EIRP (mW)
WiFi	2.4 - 2.4835 GHz	< 100
	5.15 - 5.35 GHz	< 200
	5.47 - 5.725 GHz	< 200
	5.725 - 5.875 GHz*	< 25
	5.925 - 6.425 GHz	< 200
Bluetooth	2.4 - 2.4835 GHz	< 100

Receiver Category 1

• Non-Intel modules: 5.725 - 5.85 GHz

Warranty

EN:ASUS Guarantee Information

ASUS offers a voluntary manufacturer's Commercial Guarantee.
- ASUS reserves the right to interpret the provisions of the ASUS Commercial Guarantee.
- This ASUS Commercial Guarantee is provided independently and in addition to the statutory Legal Guarantee and in no way affects or limits the rights under the Legal Guarantee.

For all the guarantee information, please visit https://www.asus.com/support.

F: Garantie ASUS

For all garantiinformation, besok https://www.asus.com/se/support/.

https://www.asus.com/vn/support

ASUSnxyHB

ASUS

ASUS 7nnonnn ninn nn nnnn nn nnnn nn nss

nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

http://www.asus.com/support 1770x,1770x1770x

Warranty Card (Online)

ASUS contact information

ASUSTeK COMPUTER INC.

Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112

https://qr.asus.com/ProductSafety

ASUS COMPUTER INTERNATIONAL (America)

Address: 48720 Kato Rd., Fremont, CA 94538, USA

ASUS COMPUTER GmbH (Germany and Austria)

Address: Harkortstrasse 21-23, 40880 Ratingen, Germany

ASUSTeK (UK) LIMITED

Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL, England, United Kingdom

ASUS GLOBAL PTE. LTD.

Address: 10 Changi Business Park Central 2 #02-01 Hansapoint Singapore 486030

https://qr.asus.com/ProductSafety

Service and Support

Visit our multi-language website at https://www.asus.com/support.

Product Register

Log in and register your device for better product support.

REPUBLIC OF GAMERS
