USER MANUAL TUF GAMING B760M-PLUS II ASUS

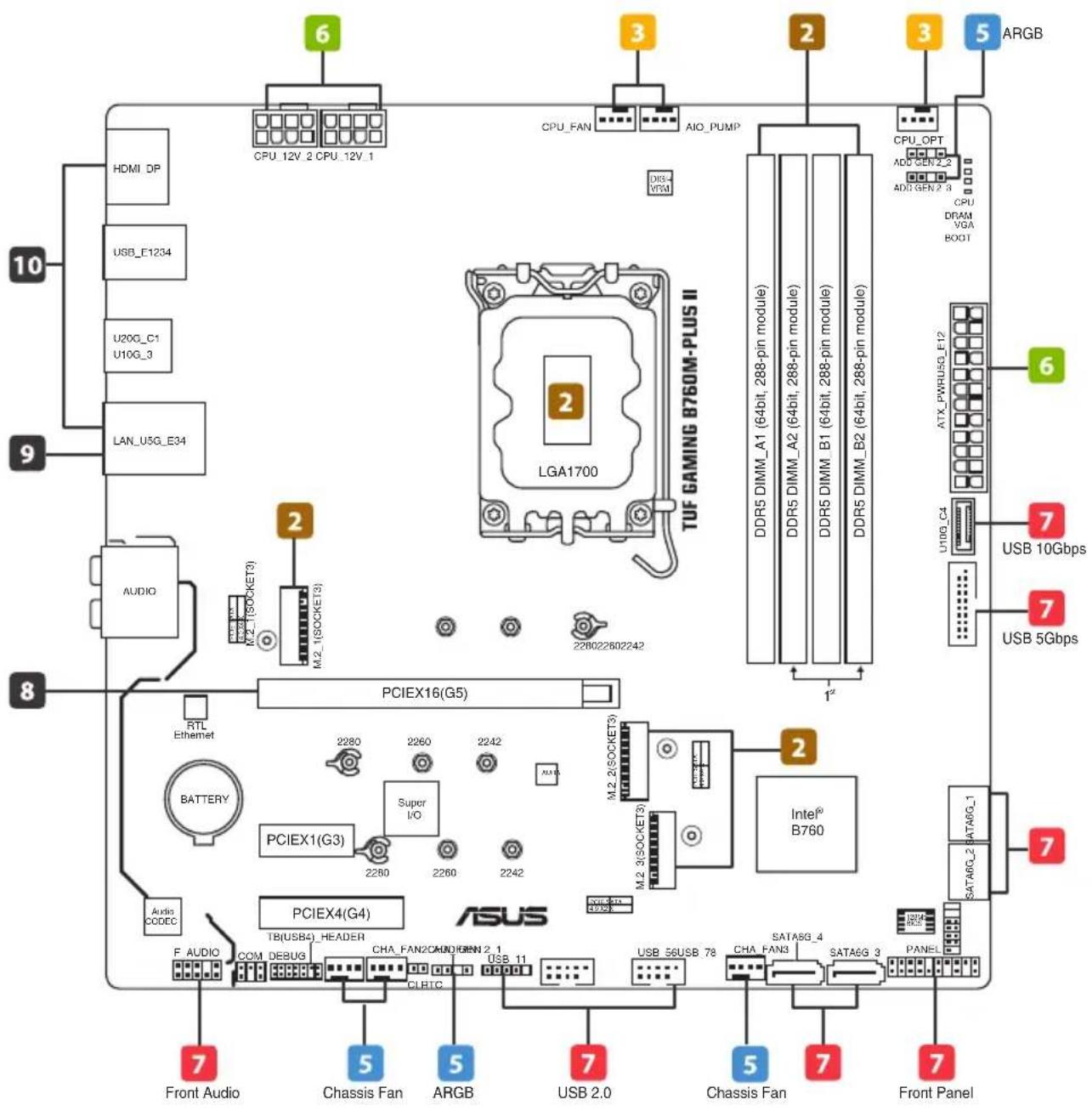

The items labeled below correspond to the installation steps, for steps 1 4 11 12 and more information on the steps, please refer to the rest of the guide.

More info

TUF GAMING B760M-PLUS WIFI II

CPU 12V 2 CPU 12V 1 HDMI DP USB_E1234 U20G_C1 U10G 3 LAN_USG_E34 M.2(WIFI) AUDIO PCIEX16(G5) RTL Ethernet BATTERY Super I/O PCIEX1(G3) Audio CODEC PCIEX4(G4) F_AUDIO COM_DEBUG TB(USB4)_HEADER ASUS Chassis Fan CHA_FAN2CM/DOTIN 2_1 USB 11 CLRTC USB 56USB_78 CHA_FAN3 SATA50_4 SATA6G_3 Chassis Fan PANEL Front Audio Chassis Fan ARGB USB 2.0 Chassis Fan Front Panel CPU_FAN AIO_PUMP D30H-VPM TUF GAMING B760M-PLUS WIFI II LGA1700 DDR5 DIMM_A1 (64bit, 288-pin module) DDR5 DIMM_A2 (64bit, 288-pin module) DDR5 DIMM_B1 (64bit, 288-pin module) DDR5 DIMM_B2 (64bit, 288-pin module) CPU_OPT ADD GEN 2_2 ADD GEN 2_3 CPU DRAM VGA BOOT ATX_PWRU58_E12 VY100_C4 USB 10Gbps USB 5Gbps ARMGB

CPU 12V 2 CPU 12V 1 HDMI DP USB_E1234 U20G_C1 U10G_3 LAN_USG_E34 AUDIO PCIEX16(G5) RTL Ethernet BATTERY Super I/O PCIEX1(G3) Audio CODEC PCIEX4(G4) F AUDIO COM DE8UG TB(USB4)HEADER CHA_FAN2/AUDI/GEN 2.1 CLRTC USB 11 USB 56USB 78 CHA FAN3 SATA6G 4 SATA6G 3 Chassis Fan USB 2.0 Chassis Fan SATA6G 2 SATA6G_1 SATA6G_0 INTe® B760 PCU_FAN AIO_PUMP DRB-VRM DDR5 DIMM_A1 (64bit, 288-pin module) DDR5 DIMM_A2 (64bit, 288-pin module) DDR5 DIMM_B1 (64bit, 288-pin module) DDR5 DIMM_B2 (64bit, 288-pin module) CPU_OPT ADU GEN 2.2 ADU GEN 2.3 CPU DRAM VGA BOOT ATX_PWRU50_E12 U10G_C4 USB 10Gbps USB 5Gbps ARMGB 6 3 2 1² 2 7 7 7 Front Audio Chassis Fan ARGB USB 2.0 Chassis Fan Front Panel

1 Prepare the components

Line drawing of a simple rectangular appliance with wheels and a lid (no text or symbols)

Chassis

Two technical line drawings of rectangular components: a square and a rectangular, both without any text or symbols.

CPU Memory M.2 SSD

Technical line drawings of a mechanical component, one showing a fan-like structure and the other a cylindrical housing with a tool inserted (no text or symbols)

CPU Cooler

SATA device

Power supply unit Graphics card

Line drawing of a card with three fans and a card slot (no text or symbols)

NOTE: The components listed above are recommendations, please prepare components according to your needs.

2 Install key components

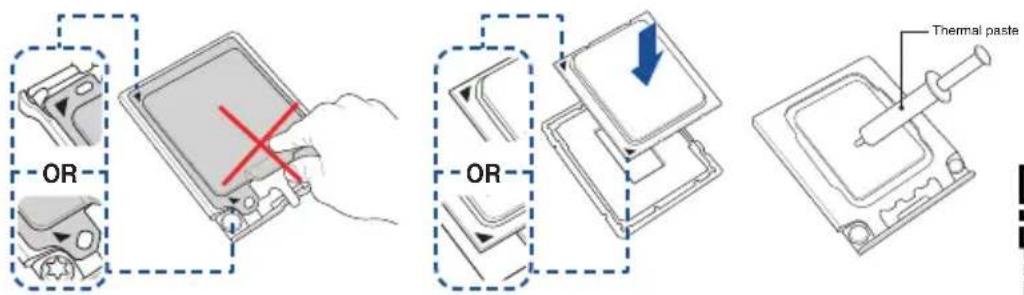

- Install the CPU

OR OR Thermal paste

NOTE: Do not remove the PnP cap before the CPU is properly installed. Please refer to the manual(s) for more information: Motherboard

CPU installation

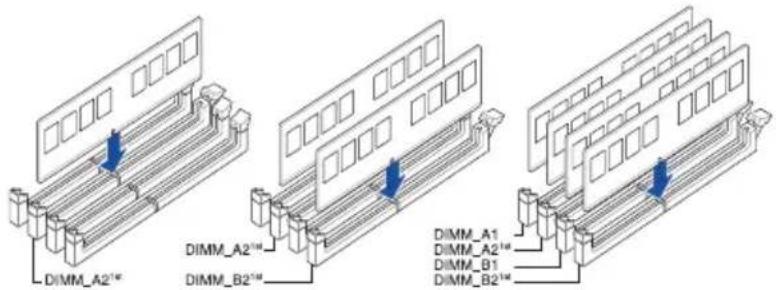

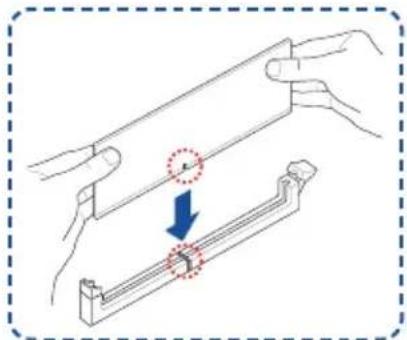

• Install the Memory

Diagram showing two hands holding a metal rod with a magnified view of the rod being inserted (no text or symbols present)

NOTE: Please refer to the manual(s) for more information: Motherboard

DIMM_A2 DIMM_A2 DIMM_B2 DIMM_A1 DIMM_A2 DIMM_B1 DIMM_B2

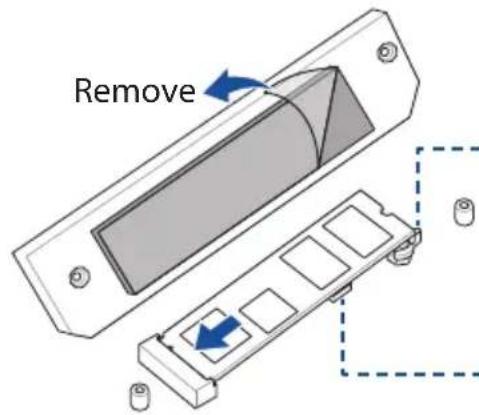

• Install the M.2 SSD

Remove

Remember to rotate the M.2 Q-latch, secure the screw properly, or insert the pin of the M.2 Anchor into the hole.

Install the bundled rubber for M.2 when installing a single sided M.2 module.

NOTE: Please refer to the manual(s) for more information:

Motherboard

3 Install the cooling system

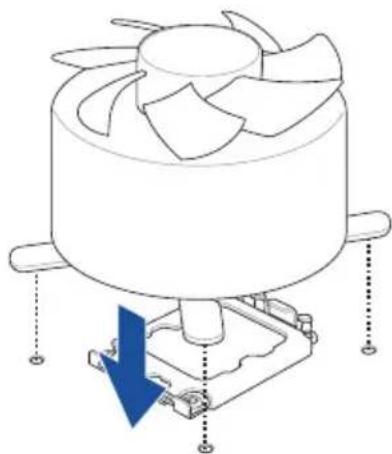

• Air Cooler


Technical line drawing of a mechanical fan assembly with a blue arrow indicating a downward motion (no text or symbols present)

Isometric illustration of a CPU fan connector with multiple pins (no text or symbols on the diagram itself)

CPU_FAN / CPU_OPT

OR

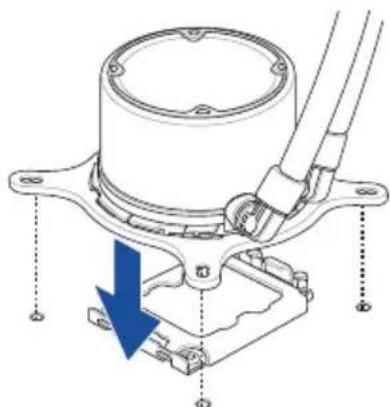

- AIO Cooler

Technical diagram of a mechanical assembly with a blue arrow indicating a downward motion (no text or symbols present)

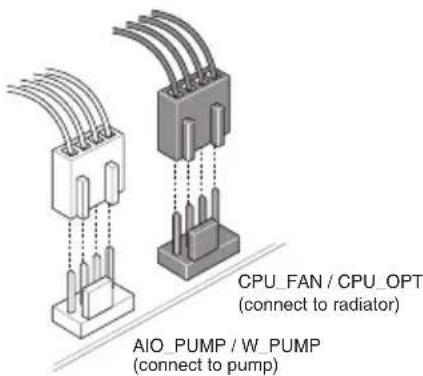

CPU_FAN / CPU_OPT (connect to radiator) AIO PUMP / W PUMP (connect to pump)

NOTE: Please refer to these manual(s) for more information:
Cooler Chassis

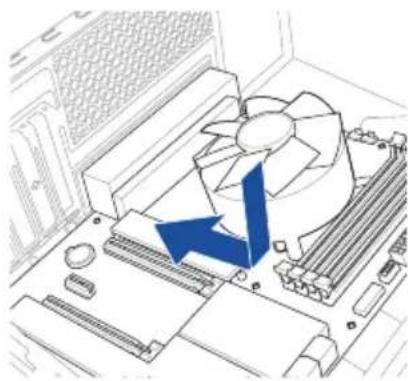

4 Install the motherboard into the chassis

A

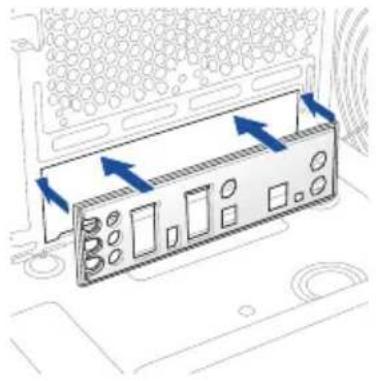

For non pre-mounted I/O shield models only.

Diagram of a computer monitor with directional arrows indicating movement or force (no text or symbols present)

B

Diagram of a computer motherboard with a fan and heatsink, showing a blue arrow indicating a process or operation (no text or symbols present)

C

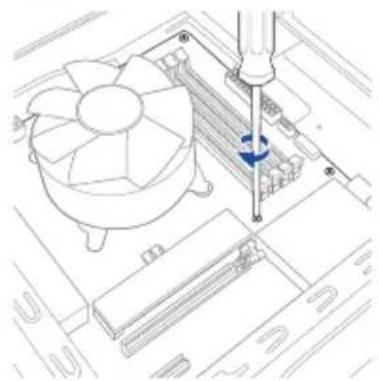

Technical line drawing of a computer motherboard with a screwdriver inserted, showing fan and drive components (no text or symbols)

NOTE: Please refer to the manual(s) for more information: Motherboard Chassis

Connect cables from Chassis

5 Connect to chassis fan and ARGB/RGB headers

NOTE: Please refer to the manual(s) for more information: Motherboard Chassis Fan

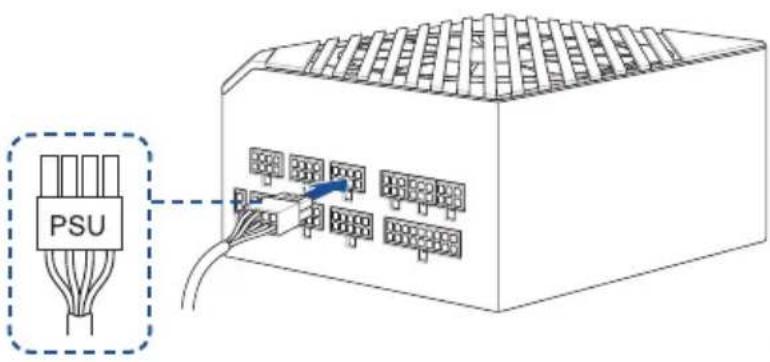

6 Install and connect the power supply unit (PSU)

PSU

Diagram of a computer power supply unit with arrows indicating airflow or cooling process (no text or symbols)

Make sure the PSU is secured to the chassis using screws, and that the chassis has proper airflow.
NOTE: Please refer to the manual(s) for more information: Chassis PSU

Connect cables from PSU

- Connect the power cables to the motherboard

A

Diagram showing a mechanical assembly with a top component and a base component, no text or symbols present.

B

OROR

NOTE: Please refer to the manual(s) for more information: Motherboard PSU

Connect cables from Chassis

7 Connect everything to the motherboard

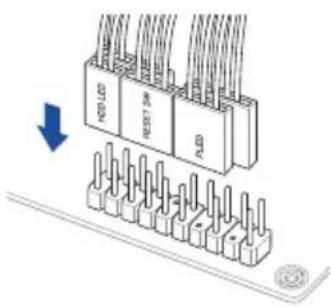

- Front panel header

Diagram showing a connector with labeled pins and a downward arrow indicating direction, likely illustrating a process or assembly.

Diagram of a connector pinout assembly with three main blocks and terminal connectors (no text or symbols)

•FrontAudio header

Diagram showing a connector being inserted into a socket (no text or symbols present)

- USB connector/header

NOTE: Please refer to the manual(s) for more information:

Motherboard Chassis

Connect cables from PSU

- SATA

Diagram of an Ethernet device showing cable routing and port connections (no text or labels)

NOTE: Please refer to the manual(s) for more information: Motherboard

Connect cables from PSU

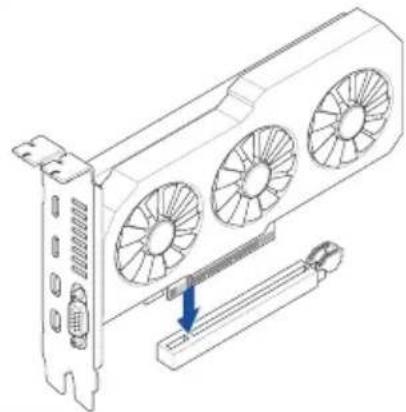

8 Install the graphics card

Technical line drawing of a server rack with three fans and a cable inserted into a slot (no text or symbols)

NOTE: Please note that power connection is required for selected models.

Please refer to the manual(s) for more information:

Motherboard Chassis Graphics Card

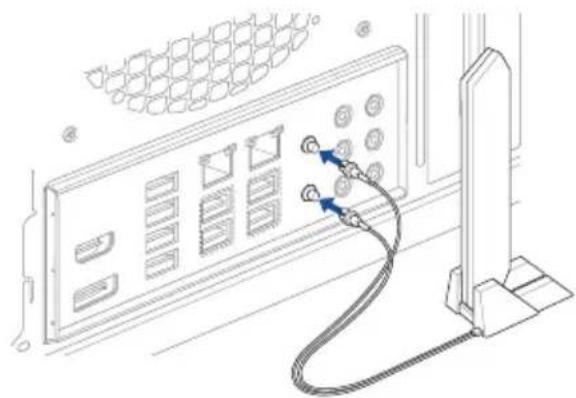

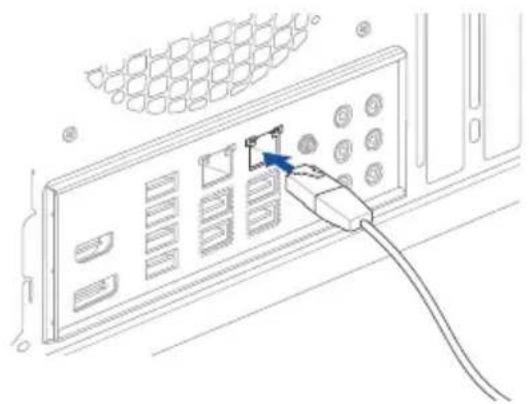

9 Connect to the Internet via Ethernet/Wi-Fi antenna

Line drawing of a server rack with an attached cable and a switch, showing no text or symbols

Line drawing of a server rack with connected cables and buttons (no text or symbols)

NOTE: Please refer to the manual(s) for more information: Motherboard

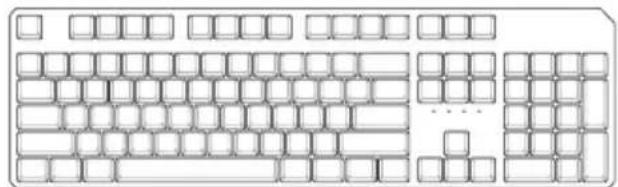

10 Connect peripherals (monitor, keyboard, mouse, etc.)

Line drawing of a flat-screen computer monitor with a blank screen and stand (no text or symbols)

Line drawing of a standard computer keyboard layout (no text or symbols)

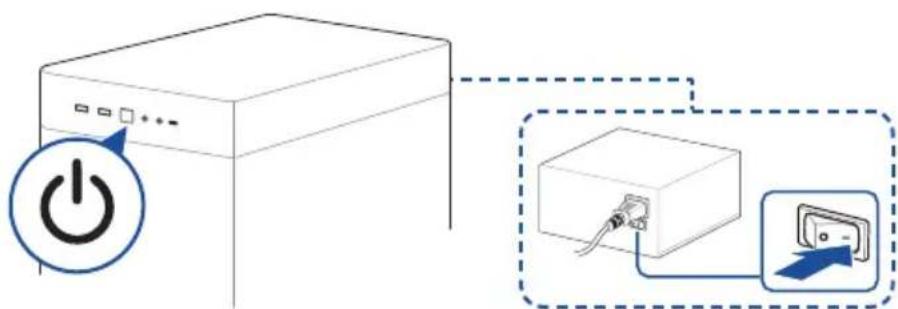

11 Turn on the PSU and your PC

Diagram showing power connection to a server with power icon and card connection diagram

FAQ
NOTE: Please check the Q-LEDs or Q-LED core on selected motherboards when powering on your PC for system status. If an error occurs, check if your CPU Fan header is properly connected; you can also scan the code or refer to the manual(s) for more information: Motherboard

12

Install the operating system and drivers

QR code image containing encoded data, no visible human-readable text

Driver and Utilities installation

Стъпки:

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
- When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
- Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
- Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
- Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.
• Your motherboard should only be used in environments with ambient temperatures between 10^ and 35^ .

Button/Coin Batteries Safety Information

Warning symbol with exclamation mark and plus/minus signs, commonly used in safety or hazard prevention contexts

WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.

General Notices

FCC Compliance Information

Responsible Party: Asus Computer International

Address: 48720 Kato Rd., Fremont, CA 94538, USA

Phone / Fax No: [phone] / [phone]

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

HDMI Trademark Notice

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

Safety Precautions

Accessories that came with this product have been designed and verified for the use in connection with this product. Never use accessories for other products to prevent the risk of electric shock or fire.

安全上のご注意

Declaration of compliance for product environmental regulation

ASUS follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASUS product is in line with global environmental regulations. In addition, ASUS disclose the relevant information based on regulation requirements.

Please refer to http://csr.asus.com/Compliance.htm for information disclosure based on regulation requirements ASUS is complied with:

EU REACH and Article 33

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

EU RoHS

This product complies with the EU RoHS Directive. For more details, see http://csr.asus.com/english/article.aspx?id=35

India RoHS

This product complies with the “India E-Waste (Management) Rules, 2016” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Vietnam RoHS

ASUS products sold in Vietnam, on or after September 23, 2011, meet the requirements of the Vietnam Circular 30/2011/TT-BCT.

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

France sorting and recycling information

Notices for Wi-Fi model

FCC RF Caution Statement

WARNING: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

FCC 5.925-7.125 GHz Caution Statement

Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems.

RF exposure warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CAN ICES-003(B)/NMB-003(B)

ISED 5.925-7.125 GHz Caution Statement (RLAN devices)

Devices shall not be used for control of or communications with unmanned aircraft systems.

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

NCC: Wireless Statement

Japan RF Equipment Statement

屋外での使用について

Simplified UKCA Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of The Radio Equipment Regulations 2017 (S.I. 2017/1206). Full text of UKCA declaration of conformity is available at https://www.asus.com/support/.

The WiFi operating in the band 5150-5350MHz shall be restricted to indoor use for the country listed below:

UK

UKCA RF Output table (The Radio Equipment Regulations 2017)

Model: RTL8852CE

a. Low Power Indoor (LPI) Wi-Fi devices:
The device is restricted to indoor use only when operating in the 5925 to 6425 MHz frequency range in UK.
b. Very Low Power (VLP) Wi-Fi devices (portable devices):
The device is not permitted to be used on Unmanned Aircraft Systems (UAS) when operating in the 5925 to 6425 MHz frequency range in UK.

Function Frequency Maximum Output Power (EIRP)
WiFi	2412 - 2472 MHz 18 dBm
	5150 - 5350 MHz 20 dBm
	5470 - 5725 MHz 21 dBm
	5725 - 5850 MHz 12 dBm
	5945 - 6425 MHz 20 dBm
Bluetooth 2402 - 2480 MHz 14 dBm

* Receiver category 1

V-M.2 PCI WIFI CARD/ RTL852CE Wi-FI 6E module with Bluetooth Contains Model: RTL852CE FCD ID: TX2-RTL852CE CMNT ID: 2022AJB304(M) IC: 631TA-RTL852CE ANATEL: 20275-22-0476 TA-2022218 ICASA APPROVED Complies with IMDA Standards DB103778 CCAF:22Y10250T1 R-C-RTK-RTL852CE 020-220232 D220078020 R-C-RTK-RTL852CE 020-220232 D220078020 UK CA R-NZ

UKCA RF Output table (The Radio Equipment Regulations 2017)

Model: MT7922A22M

a. Low Power Indoor (LPI) Wi-Fi devices:
The device is restricted to indoor use only when operating in the 5925 to 6425 MHz frequency range in UK.
b. Very Low Power (VLP) Wi-Fi devices (portable devices):
The device is not permitted to be used on Unmanned Aircraft Systems (UAS) when operating in the 5925 to 6425 MHz frequency range in UK.

Function Frequency Maximum Output Power (EIRP)
WiFi	2412 - 2472 MHz 18 dBm
	5150 - 5350 MHz 20 dBm
	5470 - 5725 MHz 21 dBm
	5725 - 5850 MHz 12 dBm
	5945 - 6425 MHz 20 dBm
Bluetooth 2402 - 2480 MHz 11 dBm

* Receiver category 1

V-M.2 PCIE Wi-Fi 2400 W-FI-IE module with Bluetooth Contains Model: MT7922A22M FCC ID: RAS-MT7922A22M CMT ID: 2021AJ1235(M) IC: 7542A-MT7922A22M ANATEL: 08626-21-2676 TA-REPROD ICASA APPROVED Complies with IMDA Standards DB103778 CCA1Y10050T2 CEK RC-MDS-MT7922A22M © 020-202114 © 020-20215500 © 020-20215500 © 020-20215500 © 020-20215500 © 020-20215500 © 020-20215500 © 020-20215500 © 020-201914 © 020-201914 © 020-201914 © 020-201914 © 020-201914 © 020-201914 © 020-201914 © 020-201914 © 020-213333333333333333333333333333333333333333333333333333333333333

* The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details.

Simplified EU Declaration of Conformity

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/.

The WiFi operating in the band 5150-5350MHz shall be restricted to indoor use for countries listed in the table below:

a. Low Power Indoor (LPI) Wi-Fi devices:

The device is restricted to indoor use only when operating in the 5945 to 6425 MHz frequency range in Belgium (BE), Bulgaria (BG), Cyprus (CY), Czech Republic (CZ), Estonia (EE), France (FR), Iceland (IS), Ireland (IE), Lithuania (LT), Germany (DE), Netherlands (NL), Spain (ES).

b. Very Low Power (VLP) Wi-Fi devices (portable devices):

The device is not permitted to be used on Unmanned Aircraft Systems (UAS) when operating in the 5945 to 6425 MHz frequency range in Belgium (BE), Bulgaria (BG), Cyprus (CY), Czech Republic (CZ), Estonia (EE), France (FR), Iceland (IS), Ireland (IE), Lithuania (LT), Germany (DE), Netherlands (NL), Spain (ES).

https://www.asus.com/support/.

https://www.asus.com/support/

https://www.asus.com/support/

* Receiver Category 1

V-M-2 PCI Wi-Fi module with Bluetooth Contains Model: RTL8852CE FCC ID: IX3-RTL8852CE CAMIT ID: 2022A-9304(M) IC: 8117A-RTL8852CE ANATEL 20275-22-04076 TA-20225105 ICASA APPROVED Complies with IMDA Standards DB103778 CCAF22Y10250T1 R-CRTK-RTL8852CE Q20-220232 D220076020 R-CRTK-RTL8852CE R-NZ UK CA R-NZ

CE RED RF Output table (Directive 2014/53/EU) Model: MT7922A22M

Function	Frequency Maximum Output Power (EIRP)
WiFi	2412 - 2472 MHz	18 dBm
	5150 - 5350 MHz	20 dBm
	5470 - 5725 MHz	21 dBm
	5725 - 5850 MHz	12 dBm
	5945 - 6425 MHz	20 dBm
Bluetooth	2402 - 2480 MHz	11 dBm

* Receiver category 1

V-M.2 PCIE W-1 CARD MODEL: MT7922A22M FCC ID: RAS-MT7922A22M CMRT ID: 2021AJ1235(M) IC: 7542A-MT7922A22M ANATEL: 09828-21-06766 ICASA APPROS Complies with IMDA Standards DB103778 UK CA R-NZ CCAI21Y10050T2 CE R-C-MD6-MT7922A22M E200-220194 D2203558020 B200-220194 (MIL) A10.1.1 B200-220194 (MIL) A10.1.1 B200-220194 (MIL) A10.1.1 B200-220194 (MIL) A10.1.1 B200-220194 (MIL) A10.1.1 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2019 B200-2008-2017-2018 B200-2008-2017-2019 B200-2008-2017-2018 B200-2008-2017-2019 B200-2008-2017-2019 B200-2008-2017-2019 B200-2008-2017-2019 B200-2008-2017-2019 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2018 B200-2008-2017-2017 B200-2008-2017-2017 B200-2008-2017-2017 B200-2008-2017-2017 B200-2008-2017-2017 B200-2008-2017-2016 B200-2008-2017-2016 B200-2008-2017-2016 B200-2008-2017-2016 B200-2008-2017-2016 B2O3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3N3

* The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details.

Notices for non Wi-Fi model

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-003(B)/NMB-003(B)

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

Simplified UKCA Declaration of Conformity

ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related UKCA Directives. Full text of UKCA declaration of conformity is available at: www.asus.com/support

Simplified EU Declaration of Conformity

English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: www.asus.com/support

- ASUS offers a voluntary manufacturer's Commercial Guarantee.

• ASUS reserves the right to interpret the provisions of the ASUS Commercial Guarantee.
- This ASUS Commercial Guarantee is provided independently and in addition to the statutory Legal Guarantee and in no way affects or limits the rights under the Legal Guarantee.

For all the guarantee information, please visit https://www.asus.com/support.

F: Garantie ASUS

https://www.asus.com/vn/support

QR code image containing encoded data, no visible human-readable text

ASUS contact information

ASUSTeK COMPUTER INC.

Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112

ASUS COMPUTER INTERNATIONAL (America)

Address: 48720 Kato Rd., Fremont, CA 94538, USA

ASUS COMPUTER GmbH (Germany and Austria)

Address: Harkortstrasse 21-23, 40880 Ratingen, Germany

ASUSTeK (UK) LIMITED

Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL, England, United Kingdom

Service and Support

Visit our multi-language website at https://www.asus.com/support.

QR code with embedded logo and text 'ASUS' in center

Product Register

Log in and register your device for better product support.

QR code image containing encoded data, no visible human-readable text

ASUS
