USER MANUAL SHX360PTC SHX

White electric heater with dual control knobs and ventilation grille (no visible text or symbols)

HERZLICHEN GLÜCKWUNSCH!

VIELEN DANK, DASS SIE SICH FÜR DIESES PRODUKT VON SHX ENTSCHIEDEN HABEN.

QR code image containing encoded data, no visible human-readable text

Current operating instructions and other languages

Download current user manuals in various languages via the link www.becool.at/downloads or scan the displayed QR code. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

White electric heater with dual gauges and control panel (no visible text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI CE PRODUIT DE SHX.

Front view of a white electric heater with dual gauges and control knobs (no visible text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO QUESTO PRODOTTO DI SHX.

White electric heater with dual control knobs and a black lid (no visible text or symbols)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN DIT PRODUCT VAN SHX.

Front view of a white electric heater with dual gauges and control knobs (no visible text or symbols)

¡ENHORABUENA!

GRACIAS POR ELEGIR ESTE PRODUCTO DE SHX.

White electric heater with black and white casing, dual gauges, and ventilation grille (no visible text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI TENTO PRODUKT OD SPOLEČNOSTI SHX.

White electric heater with black and white casing, dual gauges, and ventilation grille (no visible text or symbols)

GRATULUJEME!

ĎAKUJEME, ŽE STE SI VYBRALI TENTO PRODUKT OD SPOLOČNOSTI SHX.

White electric heater with black top and control panel, no visible text or symbols

FELICITĂRI!

VĂ MULȚUMIM CĂ AȚI ALES ACEST PRODUS DE LA SHX.

White electric heater with dual gauges and control panel (no visible text or symbols)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE TEGO PRODUKTU FIRMY SHX.

White electric heater with dual gauges and control panel (no visible text or symbols)

ČESTITAMO!

HVALA, KER STE IZBRALI TA IZDELEK IZ SHX.

White electric heater with dual gauges and control panel (no visible text or symbols)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI OVAJ SHX PROIZVOD.

White electric heater with dual gauges and control panel (no visible text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING THIS PRODUCT FROM SHX.

This product is only suitable for well-insulated rooms or for occasional use.

TABLE OF CONTENTS

EN

Important information on safety, location and electrical connection

Recycling, disposal, declaration of conformity

Scope of delivery

Description of the device

Location and connection

Commissioning and function

Protective devices

Cleaning and maintenance

Technical information

Required information on electric individual room heaters

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR INVALIDATE THE WARRANTY!

Intended use

This appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARD AND ELECTRICAL CONNECTION

1. use this appliance only in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.

2. this appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

3. remove the packaging and ensure that the device is not damaged. If in doubt, do not use the appliance and contact your dealer.

4. Before connecting to the mains, you must check that the type of current and mains voltage correspond to the specifications on the appliance rating plate.

5. The electrical socket into which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

6. avoid using an extension cable, as this could overheat and cause a fire.

1. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre in order to avoid all possible risks. Do not twist or kink the power cable.

2. the appliance must not be installed directly under a wall socket. If in doubt, have your electrical installation checked by a qualified electrician.

3. It is forbidden to adapt or modify the properties of this appliance in any way whatsoever. Only use spare parts and accessories recommended by the manufacturer (failure to do so may invalidate the warranty).

4. do not use this heater if it shows visible signs of damage.

5. Always and exclusively contact customer service centres authorised by the manufacturer for any repairs to the appliance, mains plug or cable.

6. This appliance may only be used by adults.

7. children aged 3 years and over and under 8 years may only switch the appliance on and off if they are supervised or have been instructed in the safe use of the appliance and have understood the resulting hazards, provided that the appliance is placed or installed in its normal position of use. Children aged 3 years and younger than 8 years must not insert the plug into the socket, regulate the appliance, clean the appliance and/or carry out user maintenance.

1. Do not operate the appliance unattended. If you leave the room, always switch off the appliance.
2. Do not use the device in small rooms where people are present who are unable to leave the room independently, unless they are constantly monitored.
3. children must not play with the appliance.

Keep children under the age of 3 away from the appliance unless they are constantly supervised.

1. Keep children away from packaging material.

Choking hazard if swallowed!

1. This appliance is not equipped with a device for regulating the room temperature.
2. The appliance is not suitable for continuous and precision operation.
3. Do not use this heater if it has been dropped.
4. This appliance is only intended for use in dry indoor areas.
5. Do not use the appliance in the vicinity of water or high humidity, e.g. in a damp cellar, next to a swimming pool, bathtub or shower. Ensure that no water can penetrate the appliance.

6. Do not use the appliance in the direct vicinity of petrol, gas, oil, alcohol or other explosive and highly flammable liquids or gases.

7. To reduce the risk of fire, keep the air outlet of the appliance at least one metre away from all highly flammable substances such as e.g:

a. pressurised vessels (e.g. spray containers)

b. Furniture

c. Textiles of any kind

1. Only use this heater on a level and stable surface.

2. Never cover the appliance during operation and the cool-down phase.

3. Ensure that no objects touching the heating surface get between the appliance and the mounting wall.

4. Always switch off the appliance before disconnecting the mains plug.

5. Caution - Some parts of the product can become very hot and cause burns. Special care must be taken when children and vulnerable persons are present. Always allow the appliance to cool down before cleaning or dismantling it.

6. unplug the appliance when not in use, before cleaning or when maintenance is required.

Cleaning and user maintenance must not be carried out by children without supervision.

1. Do not touch the plug with wet hands to avoid electric shocks.

ATTENTION	RISK OF INJURYThe appliance becomes hot during operation!Never touch the appliance during operation→ this could lead to serious BURNS.
ATTENTION	FIRE HAZARDThe appliance must not be covered during operation!
ATTENTION	SAFETY DISTANCEKeep a safe distance of at least one metre from easily flammable objects such as furniture, curtains, paper, etc.!LOCATIONAlways position the appliance so that the air can flow in and out unhindered.RISK OF BURNSThe appliance becomes very hot during use and can cause burns. Special care must be taken when children and vulnerable persons are present.RISK OF OVERHEATINGDo not heat rooms with a volume of less than 4m3

Symbols on the device

Symbol:

Significance:

Caution! Do not cover!

The symbol on the appliance indicates that it is not permitted to hang objects (e.g. towels, clothing, etc.) above the appliance or directly in front of it. The heater must not be covered in order to avoid overheating and the risk of fire!

Symbol:

Significance:

Protection class 2

The symbol indicates that the appliance is assigned to protection class 2.

Protection class 2 devices are not connected to the protective conductor. Instead, they have reinforced or double insulation at the level of the rated insulation voltage between active and touchable parts. Electrically conductive surfaces or conductive touchable parts are thus separated from live parts by reinforced or double insulation.

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThe "crossed-out wheelie bin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

Scope of delivery

• Fan heater
• Operating instructions

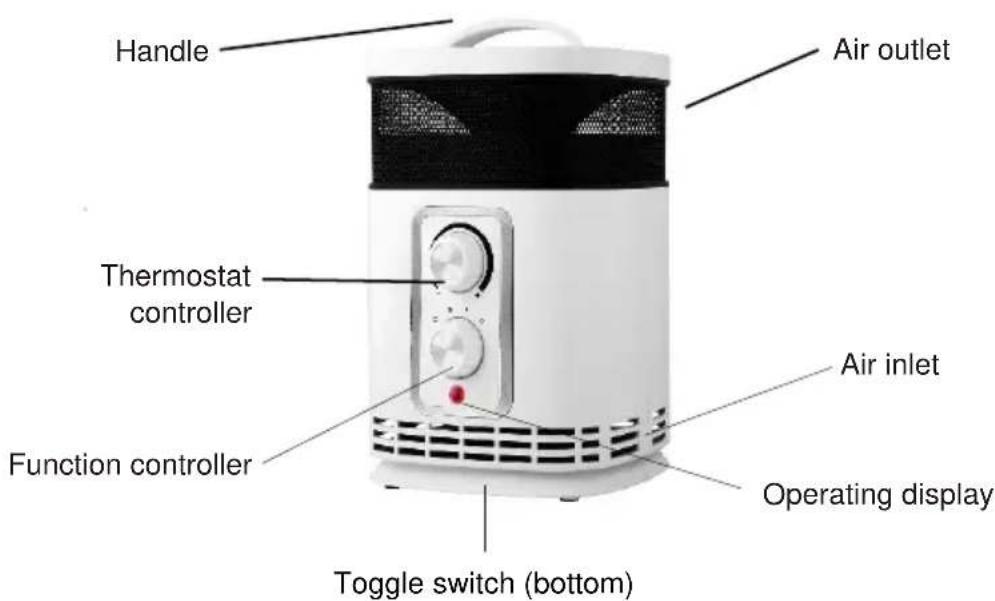

Description of the device

Handle Air outlet Thermostat controller Function controller Air inlet Operating display Toggle switch (bottom)

Location and connection

1. remove all packaging material and keep it out of the reach of children. After removing the packaging, please check the appliance for any damage or signs of malfunction. If you have any doubts, do not use the appliance and contact your dealer for inspection or replacement.
2. choose a suitable location for the fan heater that is at least one metre away from all obstacles, walls and flammable materials (also observe the safety regulations).
3. ensure that the fan heater is always placed on a stable, level and horizontal surface.

4. check that the control knob is set to OFF (O).

5. unroll the connection cable completely and insert the plug into a suitable 230 volt socket. To avoid overloading, please do not connect any other devices to the same circuit.

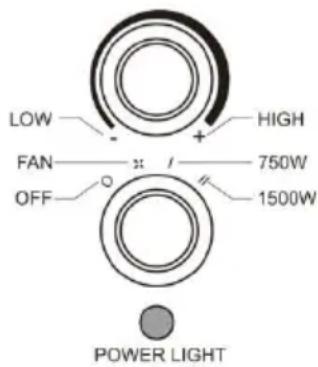

Commissioning and function

• Turn the thermostat control to maximum (clockwise as far as possible).
• Switch the fan heater on by turning the function control to one of the three positions.

O OFF

Ventilation only (thermostat set to maximum)

I Heating at half power (750 W)

II Heating at full power (1500 W)

LOW FAN OFF HIGH 750W 1500W POWER LIGHT

The display on the front now lights up. It is most economical to heat the room at full power and then switch to half power to regulate the temperature.

• The fan runs at half or full power at the same speed; the difference lies in the number of heating elements used.
• When the desired temperature has been reached, slowly turn the thermostat control back until you hear a click. The temperature is now set.
• The fan heater switches on and off automatically to regulate the set temperature. When switching off, the signal light goes out. To set a higher or lower temperature, turn the thermostat control clockwise/anti-clockwise.
• To switch off the fan heater, you must set the power control to OFF (O). The signal indicator goes out. The signal display therefore indicates that the fan heater is in operation, not whether it is connected to the mains or not.
• Then pull the plug out of the socket.

Protective devices

The fan heater is equipped with a tilt safety device that switches the appliance off if it falls over unexpectedly. If you then put it upright again, it will resume operation.

However, first switch off the appliance, remove the plug from the socket and check the fan heater for damage. If it is damaged or does not function properly, do not use it but take it to be checked/ repaired.

NOTE

The overheating protection switches the fan heater off if the appliance gets too hot!

This can happen if the fan heater does not emit enough heat or cannot draw in enough fresh air. As a rule, the causes include (partially) covering the fan heater, blockage of the intake and/or outlet grille, dirt, positioning too close to a wall, for example, etc.

If the overheating protection switches the fan heater off, you must set the function controller to OFF (O), remove the plug from the socket and give the fan heater the opportunity to cool down. Eliminate the cause of the overheating before putting the fan heater back into operation.

If you cannot find the cause of the overheating and the problem persists, stop using the fan heater and return it for inspection/repair.

Cleaning and maintenance

Keep the fan heater clean. Dust and dirt deposits in the appliance are one of the most common causes of overheating. You should therefore remove these regularly. Switch off the fan heater for cleaning or maintenance work, remove the plug from the socket and allow the fan heater to cool down.

• Clean the outside of the appliance regularly with a dry or very slightly damp cloth. Do not use harsh soaps, sprays, cleaning or scouring agents, wax, polishing agents or other chemical solutions.
• Use a hoover to carefully remove dust and dirt from the grilles and check that the air inlets and outlets are clean. When cleaning, make sure that you do not touch or damage any internal parts.
• The fan heater does not contain any other parts that require maintenance.
• Put the fan heater away at the end of the season, if possible in its original packaging. Place it upright in a cool, dry and dust-free place.
• If the appliance needs to be disposed of at the end of its expected service life, it should not be disposed of with household waste. Take it to your local authority's designated collection point for electrical appliances, where they will ensure that any materials that can still be used are recycled.

TECHNICAL INFORMATION

Item number:	SHX360PTC
Input voltage:	220-240 V~
Frequency:	50 Hz
Performance range:	1500W
Setting options:	0 - 15 - 750 - 1500W
Thermostat:	Yes
Oscillating:	No
Weight	2 kg
Dimensions (W x H x D)	205 x 286 x 186 cm
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaService line: [phone]www.schuss-home.atFB-No.: 236974 t / FB-Court: Vienna

Required information on electric individual room heaters

Item number SHX360PTC
Specification	Symbol	Value	Unit		Specification	Unit
Heat output					Only for electric storage single-room heaters: Type of heat supply control
Nominal heat output	Pnom	1.50	kW		Manual control of the heat supply with integrated thermostat	No
Minimum heat output (guide value)	Pmin	0.75	kW		Manual control of the heat supply with feedback of the room and/or outside temperature	No
Maximum continuous heat output	Pmax,c	1.50	kW		Electronic control of the heat supply with feedback of the room and/or outside temperature	No
Auxiliary power consumption					Heat output with fan support	No
With Nominal heat output	elmax	0	kW		Type of heat output/room temperature control
With Minimum heat output	elmin	0	kW		Single-stage heat output, no room temperature control	No
In the Ready state	el sB	0,000	kW		Two or more manually adjustable levels, no room temperature control	No
					Room temperature control with mechanical thermostat	Yes
					With electronic room temperature control	No
					Electronic room temperature control and time-of-day control	No
					Electronic room temperature control and weekday control	No
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with open window detection	No
					With remote control option (WiFi)	No
					With adaptive control of the heating start	No
					With operating time limit	No
					With black ball sensor	No
Contact details:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 Vienna Austria

WARRANTY

With this quality product from SHX, you have made a decision in favour of innovation, durability and reliability. For this SHX device we grant a warranty period of 2 years from the date of purchase valid in Austria and Germany!

If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labour) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In any case, please contact the customer hotline as a first step (see instructions for use - "Contact addresses for further information and service line").

Please note that any repair work carried out by unauthorised workshops will immediately invalidate this warranty.

This guarantee does not cover

• Damage due to non-compliance with the operating instructions
  • Repair or replacement of parts due to normal wear and tear
  • Devices that are used - even partially - for commercial purposes
  • Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of aesthetic wear and tear
  • Devices that have been handled improperly
  • Devices that have not been opened by our authorised service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning, overvoltage
• Devices for which the type designation and/or serial number on the device has been changed, deleted, made illegible or removed
  • Defects due to extraordinary soiling
  • Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back and the associated risks

We would like to emphasise that within the warranty period, a lump sum of € 60 (indexed based on CPI 2015, June 2020) will be charged in the event of operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute< warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents are only liable for damages in the event of gross negligence or wilful intent. Liability for loss of profit, expected but unrealised savings, consequential damage and damage arising from third-party claims is excluded.

You can find the contact address of the relevant service centre on our homepage www.schuss-home.at. Congratulations on your choice. We hope you enjoy using your SHX device!

ADDRESS

SHX Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:
