USER MANUAL SHXFP1950 SHX

Black portable electric stove with visible flames and ventilation grilles (no text or symbols)

HERZLICHEN GLÜCKWUNSCH!

QR code image containing encoded data, no visible human-readable text

Current operating instructions and other languages

Download current user manuals in various languages via the link www.becool.at/downloads or scan the displayed QR code. Follow the instructions on the website.

QR code image containing encoded data, no visible human-readable text

DE

Black portable electric stove with visible flames and heat grating (no text or symbols)

FÉLICITATIONS !

MERCI D'AVOIR CHOISI UN PRODUIT DE SHX.

Black portable electric stove with visible flames and heat retention (no text or symbols)

CONGRATULAZIONI!

GRAZIE PER AVER SCELTO UN PRODOTTO SHX.

Black portable electric stove with visible flame inside, mounted on a tripod base (no text or symbols)

GEFELICITEERD!

BEDANKT VOOR HET KIEZEN VAN EEN PRODUCT VAN SHX.

Black portable electric stove with visible flames and heat grating (no text or symbols)

¡ENHORABUENA!

GRACIAS POR ELEGIR UN PRODUCTO DE SHX.

Black portable electric stove with visible flames and ventilation grilles (no text or symbols)

GRATULUJEME!

DĚKUJEME, ŽE JSTE SI VYBRALI PRODUKT OD SPOLEČNOSTI SHX.

Black portable electric stove with visible flames and heat retention (no text or symbols)

GRATULUJEME!

ĐAKUJEME, ŽE STE SI VYBRALI PRODUKT OD SPOLOČNOSTI SHX.

Black portable electric stove with visible flames and heat retention (no text or symbols)

FELICITĂRI!

VĂ MULTUMIM CĂ ATI ALES UN PRODUS DE LA SHX.

Warning symbols including a hand holding a circle, an exclamation mark, and a lightning bolt symbol

Black portable electric stove with visible flame inside, mounted on a tripod base (no text or symbols)

GRATULACJE!

DZIEKUJEMY ZA WYBRANIE PRODUKTU FIRMY SHX.

Black portable electric stove with visible flames and heat grating (no text or symbols)

ČESTITAMO!

HVALA, KER STE IZBRALI IZDELEK PODJETJA SHX.

Black portable electric stove with visible flames and heat retention (no text or symbols)

ČESTITAMO!

HVALA VAM ŠTO STE ODABRALI SHX PROIZVOD.

Black portable electric stove with visible flames and heat grating (no text or symbols)

CONGRATULATIONS!

THANK YOU FOR CHOOSING A PRODUCT FROM SHX.

This product is only suitable for well-insulated rooms or for occasional use.

EN

PLEASE READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE STARTING ASSEMBLY, INSTALLATION, OPERATION OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO FOLLOW THE INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR INVALIDATE THE WARRANTY!

Intended use

This appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

IMPORTANT INFORMATION ON SAFETY, STANDARD AND ELECTRICAL CONNECTION

1. use this appliance only in accordance with the guidelines in the operating instructions. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
   2 This appliance is intended exclusively for heating living spaces in households and must not be used for any other purpose.

2. remove the packaging and make sure that the device is not damaged. If in doubt, do not use the appliance and contact your dealer.

3. Before connecting to the mains, you must check that the type of current and mains voltage correspond to the specifications on the appliance rating plate.

4. The electrical socket into which you connect the appliance must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed.

5. avoid using an extension cable, as this could overheat and cause a fire.

6. the appliance must not be installed directly under a wall socket. If in doubt, have your electrical installation checked by a qualified electrician.

7. It is forbidden to adapt or modify the characteristics of this appliance in any way. Only use spare parts and accessories recommended by the manufacturer (failure to do so may invalidate the warranty).

8. Do not use this heater if it shows visible signs of damage.

9. Do not operate the appliance unattended. If you leave the room, always switch off the appliance.

10. Do not use the device in small rooms where people are present who are unable to leave the room independently, unless they are constantly monitored.

11. children must not play with the appliance.

Children under the age of 3 must be kept away from the appliance unless they are constantly supervised.

1. Keep children away from the packaging material.

Choking hazard if swallowed!

1. The appliance is not suitable for continuous and precision operation.

2. Do not use this heater if it has been dropped.

3. This appliance is only intended for use in dry indoor areas.

1. Do not use the appliance in the vicinity of water or high humidity, e.g. in a damp cellar, next to a swimming pool, bathtub or shower. Ensure that no water can penetrate the appliance.
2. Do not use the appliance in the direct vicinity of petrol, gas, oil, alcohol or other explosive and highly flammable liquids or gases.
3. To reduce the risk of fire, keep the air outlet of the appliance at least one metre away from all highly flammable substances such as e.g:

a. pressurised vessels (e.g. spray containers)
b. Furniture
c. Textiles of any kind

1. Only use this heater on a level and stable surface.

2. Never cover the appliance during operation and the cool-down phase.

3. Ensure that no objects touching the heating surface get between the appliance and the mounting wall.
4. Always switch off the appliance before disconnecting the mains plug.
5. Do not pull on the mains cable to disconnect the appliance from the mains. Always pull the plug to disconnect the mains cable.
6. Unplug the appliance when not in use, before cleaning or when maintenance is required.

Cleaning and user maintenance must not be carried out by children without supervision.

1. Do not touch the plug with wet hands to avoid electric shocks.

ATTENTION	RISK OF INJURYThe appliance becomes hot during operation!Never touch the appliance during operation→ this could lead to serious BURNS.
ATTENTION	FIRE HAZARDThe appliance must not be covered during operation!
ATTENTION	SAFETY DISTANCEKeep a safe distance of at least one metre from easily flammable objects such as furniture, curtains, paper, etc.!LOCATIONAlways position the appliance so that the air can flow in and out unhindered.RISK OF BURNSThe appliance becomes very hot during use and can cause burns. Special care must be taken when children and vulnerable persons are present.RISK OF OVERHEATINGDo not heat rooms with a volume of less than 4m3

Symbols on the device

Symbol:

Significance:

Caution! Do not cover!

The symbol on the appliance indicates that it is not permitted to hang objects (e.g. towels, clothing, etc.) above the appliance or directly in front of it. The heater must not be covered in order to avoid overheating and the risk of fire!

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. It is therefore recommended to dispose of them in sorted waste
	DISPOSALThe "crossed-out wheelie bin" symbol requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally harmful substances. Therefore, do not dispose of them in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. This will help to protect resources and the environment. For further information, please contact your dealer or the local authorities. Directive 2012/19/EU
	DECLARATION OF CONFORMITYWe hereby confirm that this product complies with the essential requirements, regulations and directives of the EU.You can view the detailed declaration of conformity at any time under the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

Commissioning

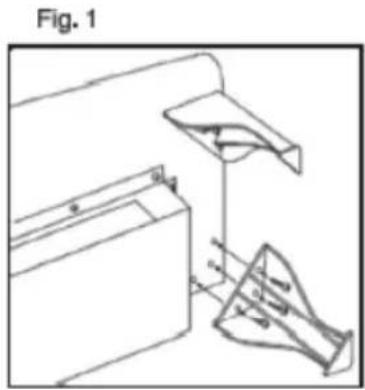

1. mounting the feet:

Use a screwdriver to thread three screws through the holes in each stand as shown in Figure 1 below and tighten them anti-clockwise to the underside of the heater. Please note: Additional screws are supplied. Therefore, you may have some screws left over after you have completed the assembly.

Fig. 1

Always operate the fan heater in an upright position and follow all instructions and recommendations in this manual.

Fan heater location: Place the fan heater in the area of the room that is coolest.

Fan heater connection: Insert the plug of the fan heater directly into a 220-240 volt AC socket at 50Hz . Ensure that the plug is firmly seated in the socket. A loose connection can lead to overheating and damage to the plug or fan heater.

NOTE:

To avoid overloading the circuit, do not connect the fan heater to a circuit that is already being used for other electrical appliances.

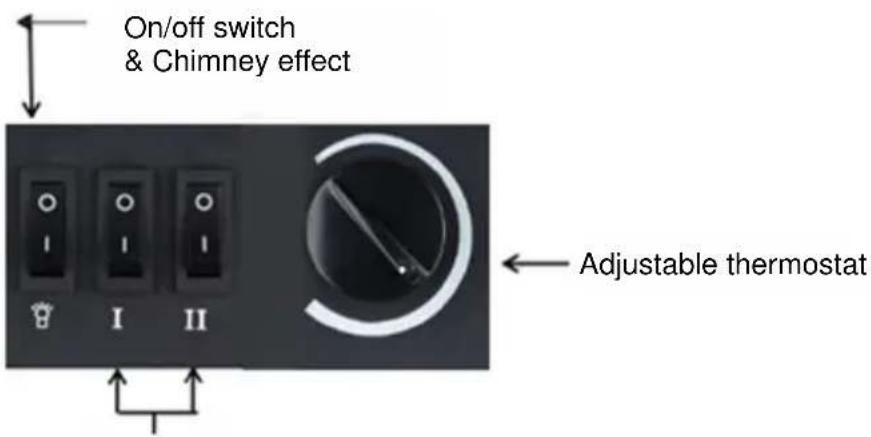

Functions of the heater

On/off switch & Chimney effect Adjustable thermostat

Heating level 1: 950W

Heating level 2: 1950W

Setting the chimney effectSlide the on/off switch to position (I) to activate the fireplace effect without the heating function.
Setting the thermostatTo reach the desired room temperature, slowly turn the thermostat knob anti-clockwise until the fan heater switches off (you should hear a soft "click"). The set temperature is automatically maintained. To lower the temperature, turn the knob further anti-clockwise. To increase the temperature, turn the thermostat knob clockwise.
Heating level 1Set the on/off switch to the on position and also set the "I" switch to on.
Heist level 2Set the on/off switch to the on position and also set the "I" and "II" switches to on.

Important safety functions:

The fan heater is equipped with an automatic overheating protection device located inside the appliance. If the ventilation grille is blocked or the fan heater becomes too hot for any reason, the automatic overheating protection device switches the fan heater off. To reset the fan heater, simply switch off the power supply and unplug the fan heater for 10 minutes until it cools down. You can then reinsert the plug into the socket and restart the fan heater. Make sure that the fan heater is placed on a level, smooth surface without any obstacles.

Attention

One common cause of overheating is dust deposits or fluff in the appliance. You should therefore clean the appliance regularly and remove these deposits using a hoover.

Cleaning instructions

Cleaning

Caution - Before cleaning the fan heater, ensure that the power cable is disconnected and the fan heater has cooled down completely. Clean the outer surface with a clean damp cloth. Do not use harsh chemical or abrasive cleaning agents. Do not immerse the fan heater in water. Allow the fan heater to dry completely before using it again. Use a hoover or feather duster to keep the area around the heat and ventilation clean and free of dust and dirt.

Attention

The fan heater must not be immersed in or come into contact with water or other liquids.

Never use petrol, alcohol or solvents to clean the appliance - this could be dangerous.

Do not spray insecticides or similar products on the fan heater.

Do not use in damp rooms.

DO NOT COVER - FIRE HAZARD!

TECHNICAL INFORMATION

Item number:	SHXFP1950
Input voltage:	220-240V~
Frequency:	50 Hz
Performance range:	1750 - 1950W
Setting options:	0 - 6W - 950W - 1950W
Thermostat:	Yes
Oscillating:	No
Weight	4.2 kg
Dimensions (W x H x D)	350 x 425 x 220 mm
Contact address for further information:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 ViennaServiceline: [phone]www.schuss-home.atFB-No.: 236974 t / FB-Court: Vienna

Required information on electric individual room heaters

Item number SHXFP1950
Specification	Symbol	Value	Unit		Specification	Unit
Heat output					Only for electric storage single-room heaters: Type of heat supply control
Nominal heat output	P_nom	1,9	kW		Manual control of the heat supply with integrated thermostat	N/A
Minimum heat output (guide value)	P_min	0,9	kW		Manual control of the heat supply with feedback of the room and/or outside temperature	N/A
Maximum continuous heat output	P_max,c	1,9	kW		Electronic control of the heat supply with feedback of the room and/or outside temperature	N/A
Auxiliary power consumption					Heat output with fan support	N/A
With Nominal heat output	el_max	1.884	kW		Type of heat output/room temperature control
With Minimum heat output	el_min	0.884	kW		Single-stage heat output, no room temperature control	No
In the Ready state	el_sB	N/A	kW		Two or more manually adjustable levels, no room temperature control	No
					Room temperature control with mechanical thermostat	Yes
					With electronic room temperature control	No
					Electronic room temperature control and time-of-day control	No
					Electronic room temperature control and weekday control	No
					Other control options
					Room temperature control with presence detection	No
					Room temperature control with open window detection	No
					With remote control option (WiFi)	No
					With adaptive control of the heating start	No
					With operating time limit	No
					With black ball sensor	No
Contact details:	Schuss Home Electronic GmbH Scheringgasse 3 - 1140 Vienna - Austria https://www.schuss-home.at/

WARRANTY

With this quality product from SHX, you have made a decision in favour of innovation, durability and reliability. This SHX device is guaranteed for 2 years from the date of purchase in Austria and Germany!

If, contrary to expectations, service work on your device should nevertheless be necessary during this period, we hereby guarantee you a free repair (spare parts and labour) or (at Schuss's discretion) replacement of the product. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a time value credit note.

In any case, please contact the customer hotline as a first step (see instructions for use - "Contact addresses for further information and service line").

Please note that any repair work carried out by unauthorised workshops will immediately invalidate this warranty.

This guarantee does not cover

• Damage due to non-compliance with the operating instructions
  • Repair or replacement of parts due to normal wear and tear
  • Devices that are used - even partially - for commercial purposes
  • Devices mechanically damaged by external influences (fall, impact, breakage, improper use, etc.) as well as signs of aesthetic wear and tear
  • Devices that have been handled improperly
  • Devices that have not been opened by our authorised service workshop
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning, overvoltage
• Devices for which the type designation and/or serial number on the device has been changed, deleted, made illegible or removed
  • Defects due to extraordinary soiling
  • services outside our authorised workshops, the transport costs to an authorised workshop or to us and back and the associated risks

We would like to emphasise that within the warranty period, a lump sum of € 60 (indexed based on CPI 2015, June 2020) will be charged in the event of operating errors or if no error is detected.

The provision of a warranty service (repair or replacement of the device) does not extend the absolute< warranty period of 2 years from the date of purchase.

The 2-year guarantee is only valid on presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding guarantee certificate, on which the appliance type and the serial number (visible on the box and on the back or bottom of the appliance) must be noted! Without the warranty certificate, only the statutory warranty applies! We expressly point out that the statutory warranty rights are not affected by this guarantee and remain unaffected.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or wilful intent. Liability for loss of profit, expected but unrealised savings, consequential damage and damage arising from third-party claims is excluded.

You can find the contact address of the relevant service centre on our homepage www.schuss-home.at.

Congratulations on your choice. We hope you enjoy using your SHX device!

ADDRESS

SHX Distribution

Schuss Home Electronic GmbH

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:
