Vestia No. 3 - Speaker FOCAL - Free user manual and instructions

Product type	3-way bass-reflex floorstanding speaker
Brand	Focal
Model	Vestia No. 3
Drivers	3 × 16.5cm Slatefiber bass drivers, 16.5cm Slatefiber midrange, 25mm inverted dome TAM "M" Al/Mg tweeter
Sensitivity	92 dB (2.83 V / 1 m)
Frequency response	42 Hz - 30 kHz (+/-3 dB)
Low frequency cut-off	35 Hz (-6 dB)
Nominal impedance	8 Ω
Minimum impedance	2.9 Ω
Recommended amplifier power	40 - 300 W
Crossover frequency	280 Hz / 3,100 Hz
Dimensions (W × D × H)	25.6 × 37.5 × 112.2 cm
Net weight (with grille)	26.5 kg
Operating temperature	5 - 35 °C
Storage temperature	0 - 50 °C
Maintenance and cleaning	Dust with dry cloth; for stains, damp cloth without solvent
Safety	Do not expose to water, naked flames; max ambient temperature 35°C; listen at reasonable volume
Spare parts and repairability	Contact a Focal dealer; do not open yourself
Warranty	2 years (France); registration possible at focal.com/warranty

Frequently Asked Questions - Vestia No. 3 FOCAL

How to install the base of the Vestia No. 3 speaker?

Position the base under the speaker, align the fixing holes, insert the 4 supplied screws and tighten them with the supplied Allen key. Then choose rubber pads for hard floors or spikes for carpet.

What is the best placement for the speakers?

Place the speakers symmetrically relative to the listening area, ideally forming an equilateral triangle. The tweeter should be at ear level. Keep them away from corners and walls to avoid exciting resonances.

Can I use the grille (cloth cover) while listening?

Yes, but for best performance, it is recommended to remove the grille during listening. The magnetic attachment allows easy removal.

What amplifier power is recommended for the Vestia No. 3?

Focal recommends an amplifier power between 40 and 300 W. Avoid amplifiers that are too weak as saturation can damage the tweeter.

How do I maintain my Vestia No. 3 speakers?

Dust with a dry cloth. For stains, use a slightly damp cloth. Never use solvents, alcohols, or corrosive products.

Is a break-in period needed for the speakers?

Yes, the drivers need a break-in period of a few weeks. To speed up break-in, run the speakers for about twenty consecutive hours at moderate volume.

What cables to use for connection?

Use quality cables with a cross-section suitable for the length. The connectors accept bare wires (up to 4 mm), spades, or banana plugs. Be sure to respect polarity (+/-).

What to do in case of problem or failure?

Contact your Focal dealer. Do not attempt to repair the speaker yourself. If it is under warranty (2 years in France), it will be repaired or replaced.

Can I use these speakers for a Home Theater system?

Yes, the Vestia No. 3 are suitable for both music and Home Theater. Follow placement guidelines for optimal soundstage.

How to improve sound quality if it seems harsh or aggressive?

Add absorbent materials (carpets, curtains) to reduce reverberation. Move speakers away from walls. Adjust orientation towards the listening point.

USER MANUAL Vestia No. 3 FOCAL

Line drawings of four different speaker models in ascending order, showing front, side, top, and back views (no text or symbols present)

VESTIA™

Isometric line drawing of a rectangular electronic component with a recessed inner cavity and mounting holes (no text or symbols)

E × 1

×1

Simple 3D rectangular shape with a small circle labeled 'G' and 'x1' at the bottom (no text or symbols on the shape itself)

1 × 1

J × 1

VESTIA N°1

VESTIA N°2 / VESTIA N°3 / VESTIA N°4

A

Diagram of a decorative lamp structure inside a circular frame, with no visible text or symbols.

Technical line drawing of a square-shaped structure with supports and a circular inset showing a hexagonal component (no text or symbols)

B

VESTIA™

Line drawing of a speaker tower with two speakers and a small bowl, labeled C (no text or symbols on the device itself)

Line drawing of a mechanical device with multiple cylindrical components and a circular opening (no text or symbols)

①2 ≡ ○ ≥ ○

VESTIA N°1 VESTIA N°2

Manutention (fig. A)

IMPORTANT SAFETY INSTRUCTIONS!

The bolt of lightning in an equilateral triangle warns the user that the device has high voltage that could result in a risk of electric shock.	WARNING: To prevent any risk of electric shock, do not remove the cover (or the back) from the device. There are no user-serviceable parts in this device. For maintenance or repairs, contact a qualified professional.	Warning symbol. This symbol is designed to warn the user of the presence of important instructions mentioned in the user manual and relating to the handling, operation and maintenance of the device.
1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Only use attachments/accessories specified by the manufacturer.10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.	11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.12. When using the device, the ambient temperature should not exceed 95°F (35 degrees Celsius).13. Do not use this device in tropical climates.14. Do not place naked flame sources, such as lit candles, near the device.15. The appliance should only be mounted on a wall or ceiling if the manufacturer allows for this.16. This product has sharp corners. Handle it with care.17. Do not attempt to repair this device yourself. Opening the device may be dangerous. Contact a qualified professional for all work on the device.18. When replacement components are needed, use only the components specified by the manufacturer or components with identical technical features to those of the original product. Using non-compliant components could cause fires, electric shocks or other risks.19. After any maintenance or repair work on the device, test it to check that it is working safely.20. Turn the source to minimum before connecting the products and turning up the volume. Once the products are in place, gradually increase the volume to a reasonable and comfortable level.	21. To avoid damaging your hearing, do not listen to loudspeakers at high volumes for long periods of time. Listening to loudspeakers at an excessive volume can cause damage to the user's ears and may lead to hearing problems (temporary or permanent deafness, buzzing in the ears, tinnitus, hyperacusis). Exposing your ears to a volume higher than 85dB SPL-LAeq for several hours can irreversibly damage your hearing.22. After removing the product from its packaging, keep the packaging out of the reach of children. It could present a suffocation risk.23. Some users who are not self-sufficient enough to use the product on their own without danger. In particular, children under 14 or people with some types of disabilities must be supervised and/or accompanied when using the device.

Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty

Thank you for purchasing a Focal product. Welcome to our High-Fidelity world. Innovation, tradition, excellence and pleasure are our values; our one and only aim is to bring you a sound that is rich, pure and true. To get the most out of your product, we recommend that you read the instructions in this booklet, then store it in a safe place to refer to in the future.

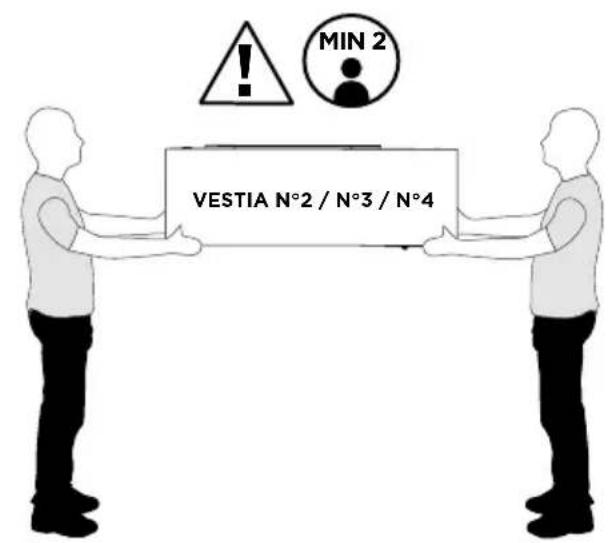

Handling (fig. A)

Vestia N°2/N°3/N°4 loudspeakers weigh almost 20kg. We strongly advise having 2 people lift them during unpacking and installation.

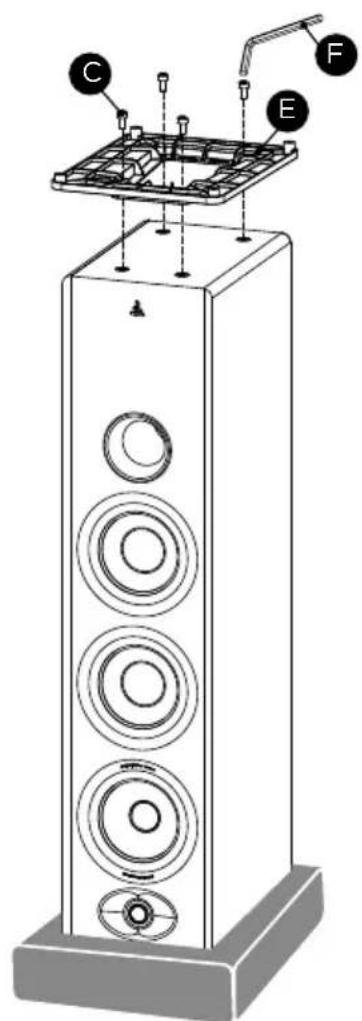

Fixing the base (N°2, N°3, N°4) (fig. B)

Align the base opposite the fixing holes, position the 4 screws supplied and tighten them using the Allen-key provided.

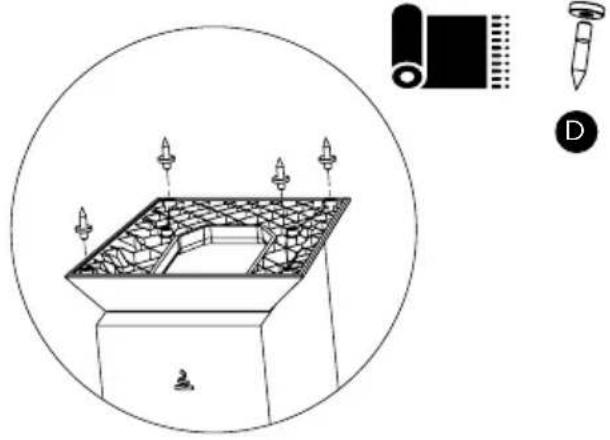

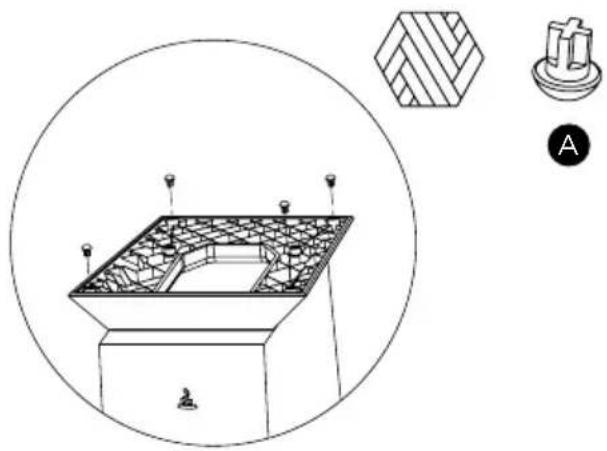

Then simply attach the rubber feet or spikes depending on the type of floor your loudspeaker will stand on. For hard floors, we recommend using the rubber feet.

If installing your loudspeaker on carpet, using the spikes will provide greater stability.

Fixing the silicone feet (N°1) (fig. C)

Silicone feet are included with the Vestia N°1 library loudspeakers. If positioning the loudspeakers on a shelf or furniture unit, make sure you stick on the silicone feet before installation.

If you wish to install your loudspeakers on the Vestia feet (optional), please refer to the assembly instructions supplied with the feet.

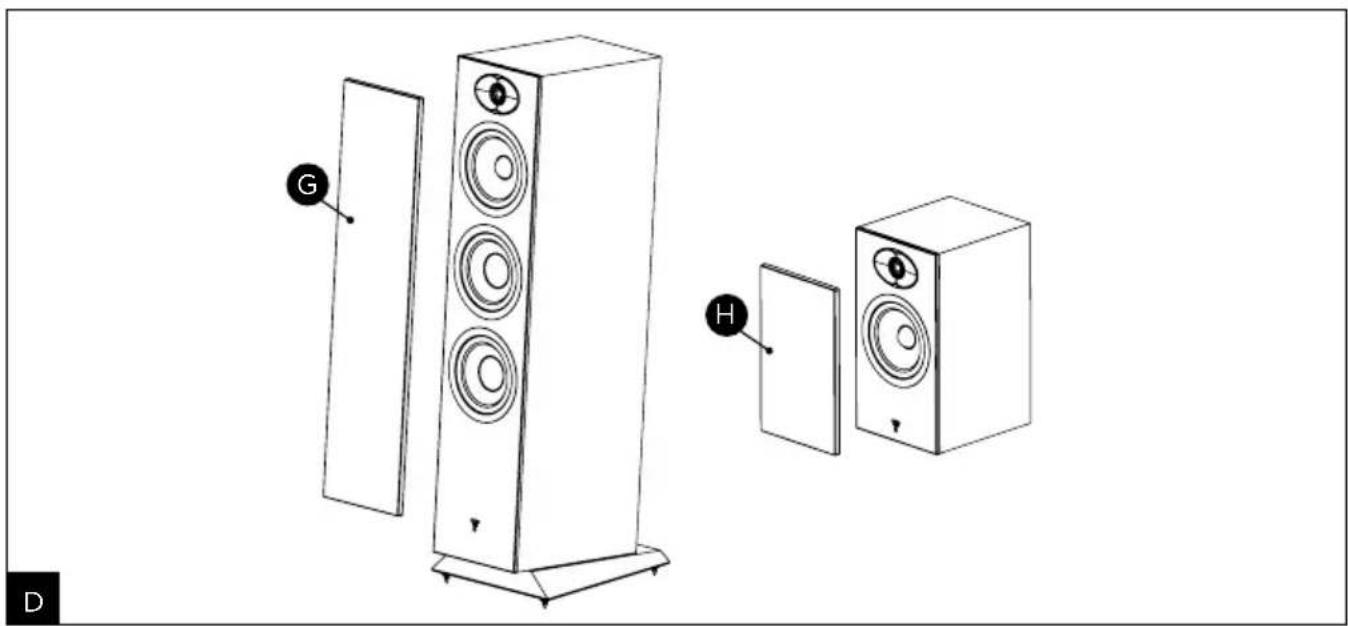

Grilles (fig. D)

Vestia loudspeakers are supplied with grilles to protect the speaker drivers. They are easy to fit or remove thanks to their magnetic attachment system.

We advise removing them when you are listening to music to get the best performance from your loudspeakers.

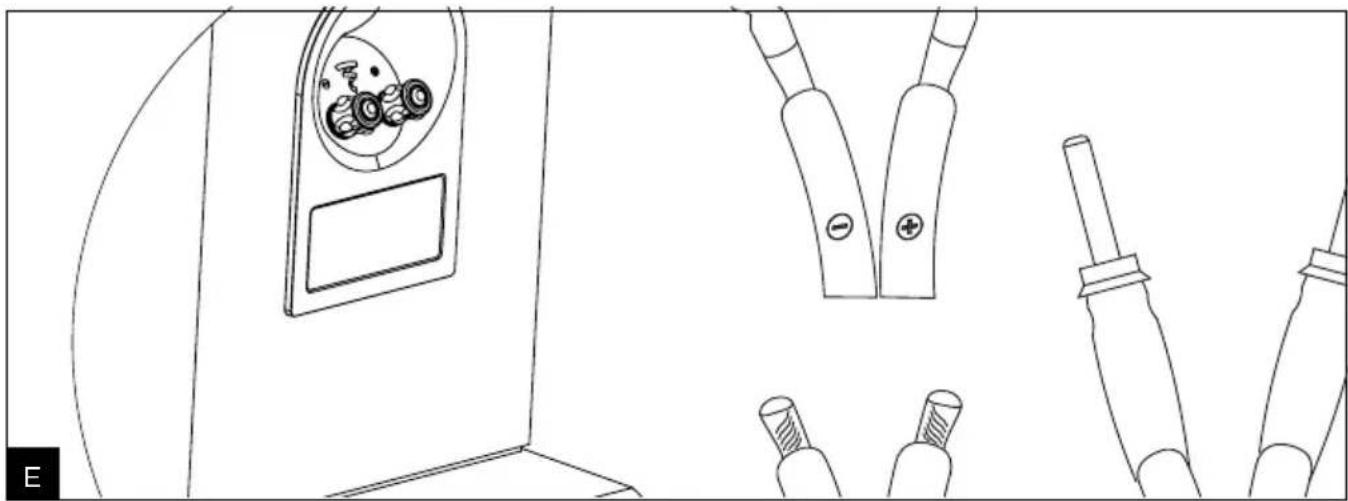

Connections (fig. E)

Vestia connectors provide reliable, multi-purpose contacts for stripped cables (up to 4mm diameter), fork terminals or banana connectors. It is imperative to respect the connector polarity of both the loudspeaker and the amplifier. The connector marked “+” must be connected to the positive output on the amplifier and the connector marked “-” must be connected to the negative terminal. Stereo image and bass perception would be seriously compromised if these conditions are not respected. Choose good quality cables with a cross-section appropriate to their length: your retailer will be able to advise you.

Positioning (fig. F, G, H)

These loudspeakers have been designed to deliver the most faithful reproduction of all kinds of music or home cinema programmes. Nonetheless, we recommend following these simple rules to optimise their performance and to warranty good tonal balance and a realistic sound image.

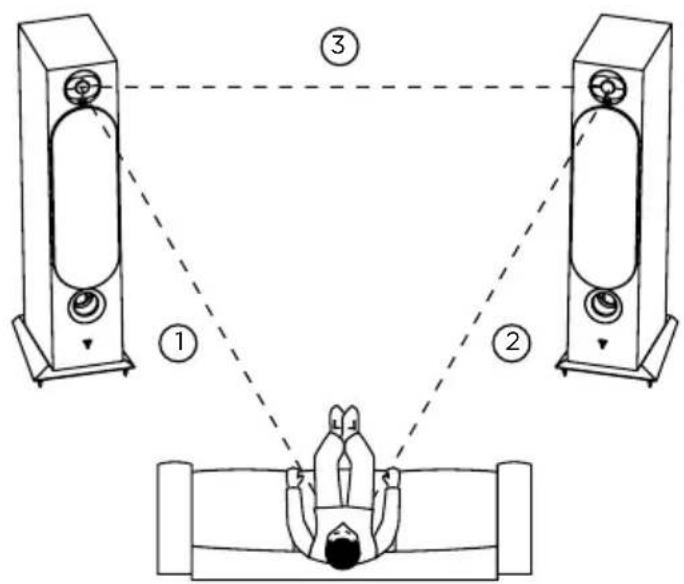

The loudspeakers should be positioned symmetrically, facing the listening area, ideally forming an equilateral triangle with it. However, these distances may be adjusted to find the ideal compromise according to the design of your interior (fig. F).

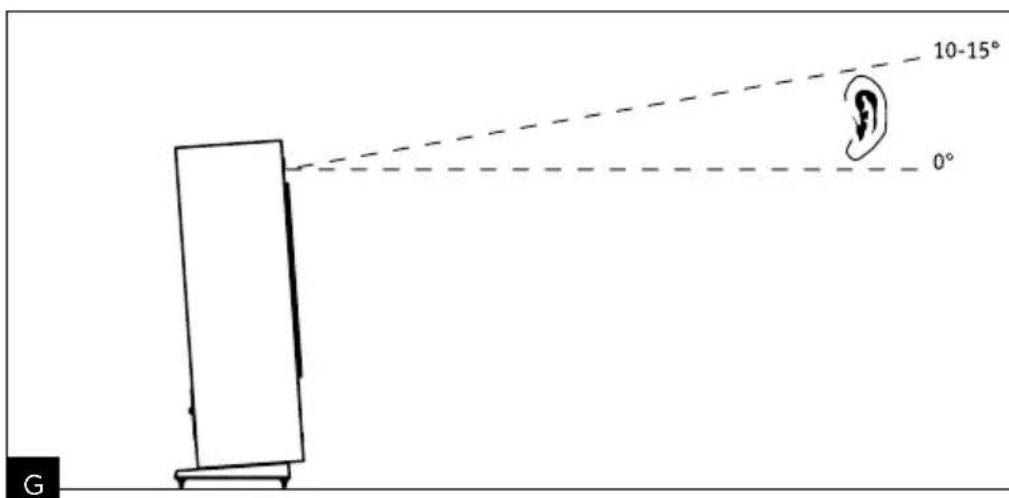

The loudspeakers should be positioned at the same height, in the same horizontal plane. Ideally, the tweeter should be positioned at the same height as the listener's ears in the usual listening position (fig. G).

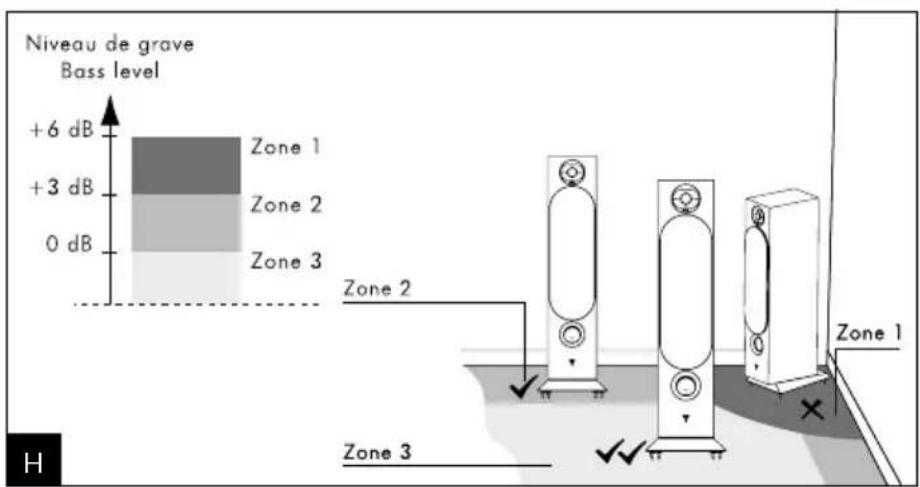

Do not position your loudspeakers too close to a corner of the room and do not place them too close to a wall. This will induce some unwanted room resonance and artificially increase bass response. On the other hand, if the bass level is considered to be insufficient, you could try moving the loudspeakers nearer a wall to re-balance the bass level (fig. H).

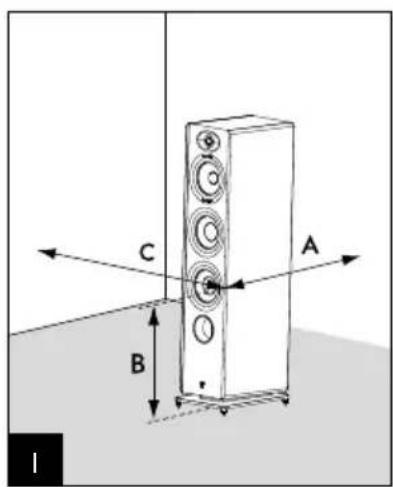

For perfectionists, here is a formula for optimal positioning:

If A is the distance from the centre of the woofer to the nearest floor or wall, B is the distance to the next closest floor or wall, and C is the greatest distance (A < B < C), the equation B^2 = AC defines the ideal loudspeaker position.

• Example:

If the centre of the woofer is 20" (50cm) away from the rear wall (A) and 24" (60cm) above the floor (B), then the side wall will be ideally 28" (72cm) away [C = B ^2 /A = 28" (72cm)].

Recommendations for use

The behaviour of the loudspeakers depends on the acoustics of the listening room, on the correct positioning of the loudspeakers within the room, and on the position of the listener.

It is possible to tweak each of these parameters to obtain or improve a desired effect.

Stereo perception is imprecise and poorly centred: try moving the loudspeakers closer together and/or have them facing the listening point:

The sound is harsh, aggressive: the acoustics of your listening room are probably too reverberant.

Consider using sound-absorbing materials (carpets, upholstered furniture, tapestries, curtains, etc.) and sound-reflecting materials (furniture) to absorb or diffuse resonance.

The sound is "flat", strangled: there are too many sound-absorbing materials in the room, the sound is soaked up, it has no relief. Look for the best compromise between sound-absorbing and sound-reflecting materials in your room.

In general, aim to have a reflective wall behind the loudspeakers for the sound to develop correctly. The wall behind the listening area, on the other hand, should ideally be sound-absorbing to avoid rear reflections “contaminating” the stereo image.

Furniture can be judiciously placed near the side walls of the room to diffuse sound waves and ensure certain frequency ranges are not excited, particularly in the midrange (suppression of flutter echoes).

Break-in period

The speaker drivers used in Vestia loudspeakers are complex mechanical components which require a certain time to adapt to operate at their best and to become acclimatised to the temperature and humidity of the listening environment. This break-in period varies depending on the climate and may last a few weeks. To reduce the break-in period, we recommend operating the loudspeakers for approximately twenty consecutive hours. Once the loudspeakers' characteristics have totally stabilised, you will be able to enjoy your Vestia loudspeakers' performance to the full.

Special precautions

The only maintenance required for the Vestia loudspeakers is dusting with a dry cloth. If your loudspeaker becomes dirty, we recommend simply cleaning it with a damp cloth.

Never use solvents, detergents, alcohol-based or corrosive products, scrapers or scourers to clean the surface of a loudspeaker.

Keep the loudspeakers away from sources of heat.

Choosing the right amplifier

It is not an excess of amplifier power that can damage your loudspeakers and speaker drivers but a lack of power. Moreover, if the volume is turned up too high, the amplifier saturates and generates parasite signals that may damage the tweeter. The dynamic capacity and definition of Vestia loudspeakers are sufficient to reveal the strengths and weaknesses of whatever amplifier is connected. Your retailer will be able to help you choose the amplifier best suited to your tastes and budget.

Conditions of warranty

All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.

Correct elimination of this product.

This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely.
