USER MANUAL Mapuna Sport Bluemarina

We would like to congratulate you on the purchase of your new Bluemarina SUP board. Bluemarina offers a wide range of Stand Up Paddles. All boards comply with current standards and therefore meet the highest quality standards.

To ensure that you can use your board with full functionality and enjoy it for a long time to come, please read the instructions carefully before using it.

We wish you lots of fun!

Read this entire document carefully before commissioning and using the appliance for the first time. It is your responsibility to carefully and properly instruct every user of this appliance in all safety precautions and instructions. Keep these instructions for use in a safe and careful place!

We will not leave you alone!

If you need help with commissioning or maintaining, you can contact us on the telephone number below. All questions can be clarified quickly and easily over the phone. Alternatively, you can also send us an e-mail. Our service team will also be happy to answer any questions you may have about repairing and replacing parts.

Miweba GmbH

Gewerbepark 20

96149 Breitengüßbach

09544 9879080

[e-mail]

WEEE-Nr. DE54010438

@miweba.de @[e-mail]

TABLE OF CONTENTS

1. Safety instructions
2. Scope of delivery
3. Product overview
4. Assembly
5. Commissioning
6. Technical data
7. Maintenance and servicing
8. Storage
9. Waste disposal
10. Disclaimer
11. Guarantee conditions
12. Conformity

HELP WITH THE PRODUCT

Further information such as YouTube assembly videos, the latest instructions, FAQs about the product and technical data can be found under this link.

Simply scan the QR code.

I.miweba.de/mapuna

1. SAFETY INSTRUCTIONS

Read this entire document carefully before commissioning and first use. It is your responsibility to instruct every user of this board carefully and properly in all safety precautions and instructions. Keep these instructions for use in a safe and careful place! Maintain the board regularly, otherwise the warranty may be invalidated.

This board is intended for outdoor use.

The following instructions must be observed and followed:

1. Check the board and equipment before entering the water.
2. Do not go into the water alone. Always have a contact person nearby.
3. Find out about the weather before you set off.
4. Do not use the SUP in strong winds.
5. Find out about the tide and how it will affect your trip. Wear a wetsuit or dry suit.
6. Always wear a lifejacket or other form of buoyancy aid.
7. Attach the foot strap for every trip
8. Take a first aid course and carry a first aid kit with you if necessary.
9. Only use the SUP if you can swim.
10. Do not go into the water if you have been drinking alcohol or are under the influence of drugs.
11. Do not use the SUP board in salt water, lakes or the open sea.

1. SAFETY INSTRUCTIONS

(CONTINUATION)

Explanation of the symbols

Symbol Explanation
	Warning: Danger
	Does not protect against drowning.
	Max. 1 bar (15 psi)
	For swimmers only.
	Children only under supervision.
	Prohibition
	Do not use it in white water.
	Do not use it in breaking waves.
	Do not use it in offshore currents.
	Do not use it in offshore winds.
	Not for children under 15 years of age.
	Read the operating instructions first.
	Inflate the board completely.
	Only one user.
	Max. 150 metres to the shore
	Observe maximum load capacity: 200 kg

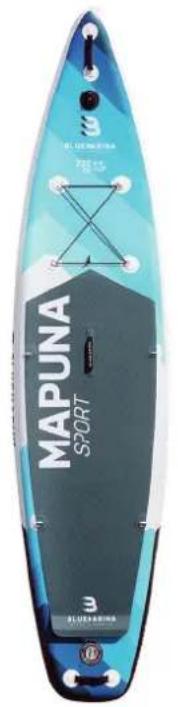

2. SCOPE OF DELIVERY

1x SUP Board Mapuna Sport 1x Transport backpack1x paddle

1x9inchfin

1x Foot strap1x Double stroke piston

1x Repair kit 1x Operating instructions
or QR code flyer

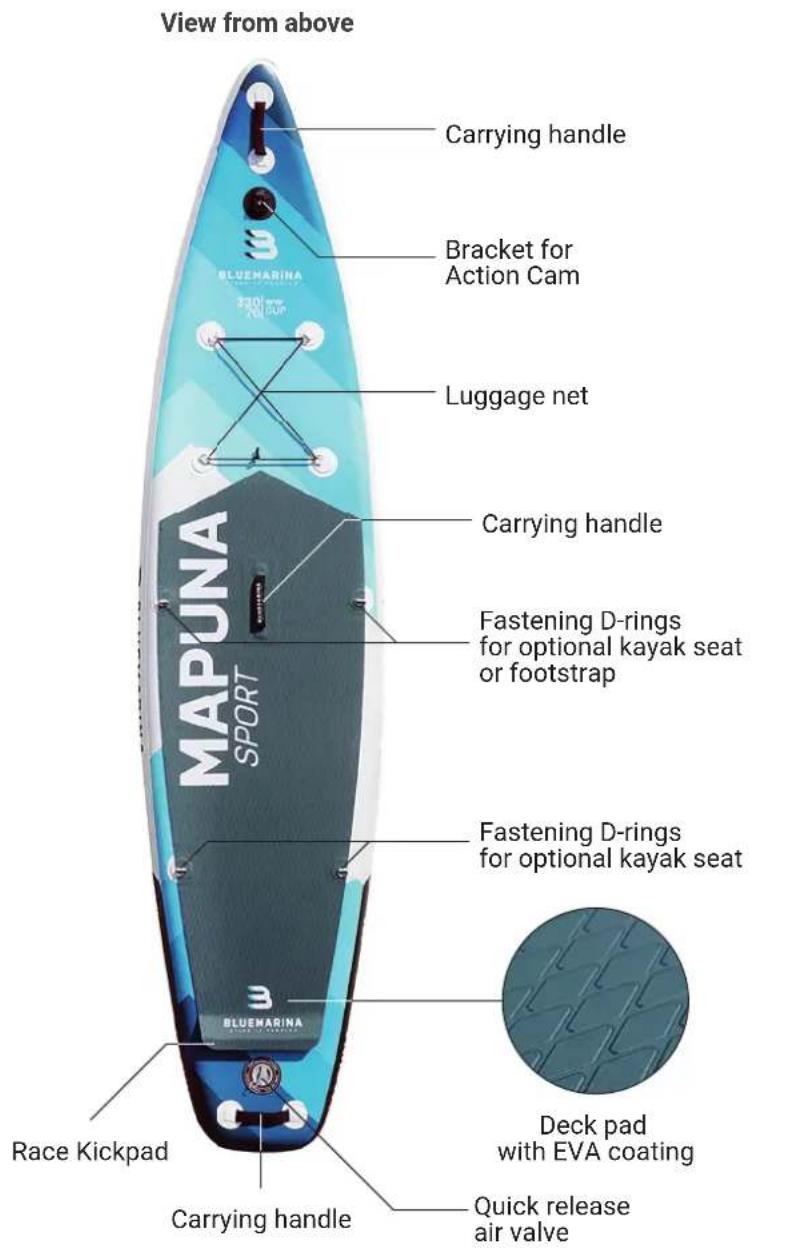

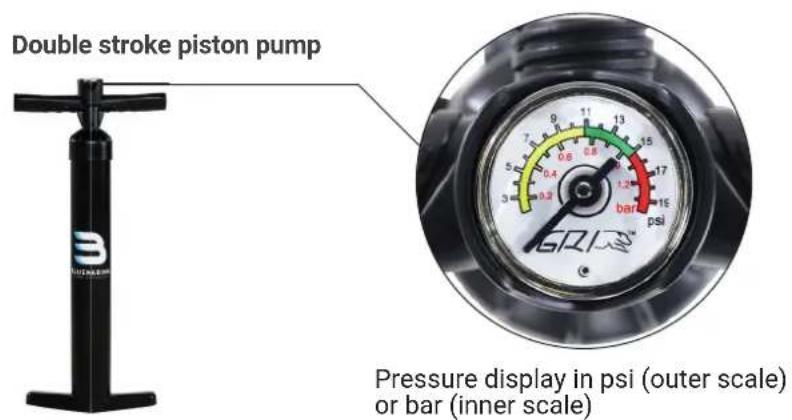

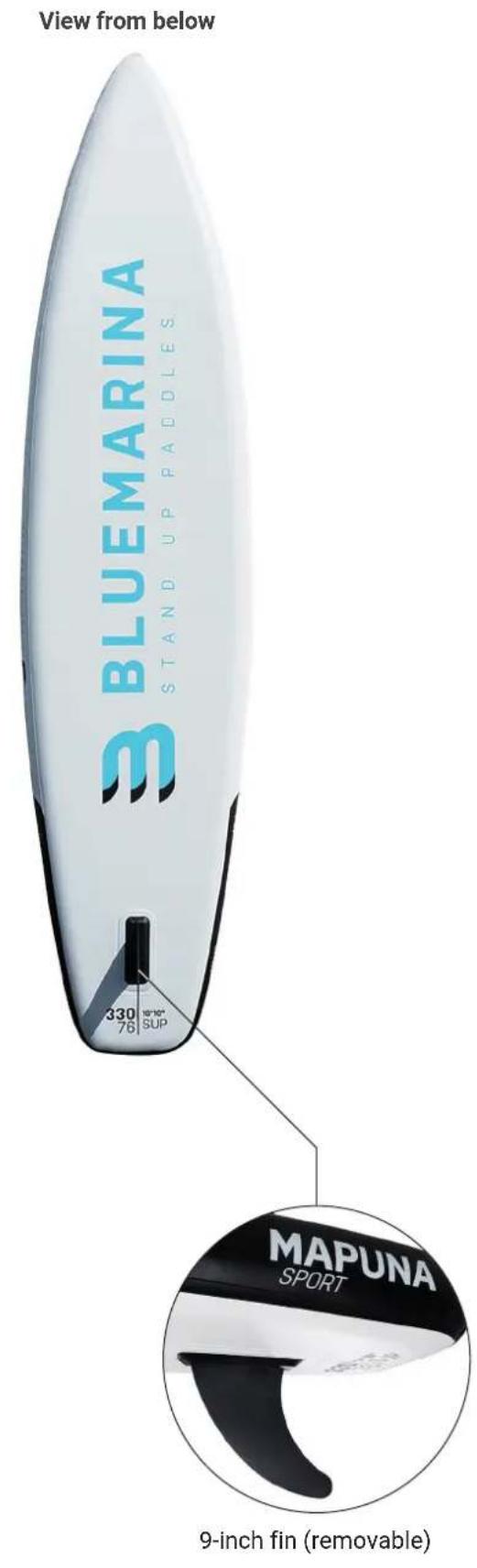

3.PRODUCT OVERVIEW

4. ASSEMBLY

Remove the board from the packaging. Choose a smooth and clean surface to spread the board out on. Roll out the SUP board flat with the top side facing upwards.

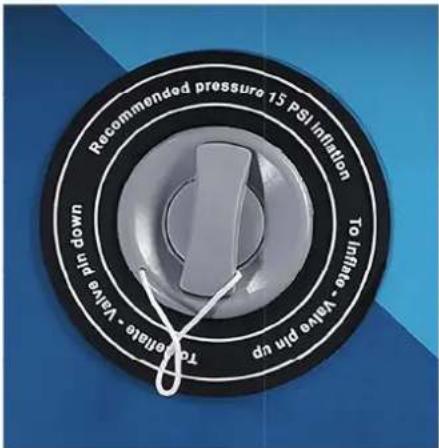

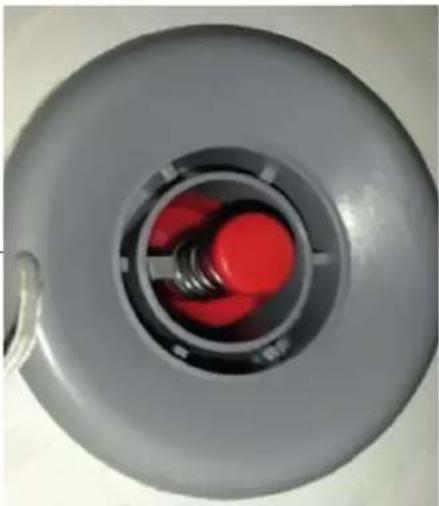

Valve operation

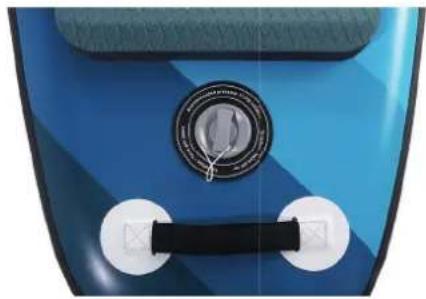

Follow the instructions below to inflate and deflate the air correctly. The valve is located near the nose of the board. To close the valve for inflation, check that the valve pin is in the deflated position. If this is not the case, press and turn the valve by 45 degrees so that it pops out upwards.

To deflate the SUP board, press the valve pin and turn it by approx. 45 degrees so that it engages in the lower position. To prevent damage to the valve, clean it before each deflation and inflation of the board.

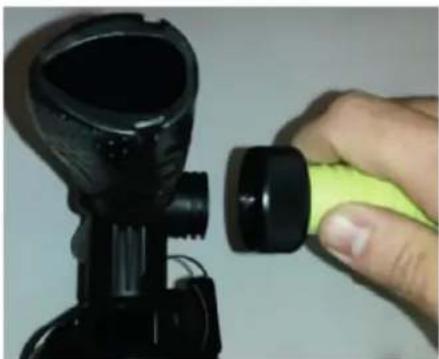

Inflating the Bluemarina SUP board

Press the valve pin to allow some air to enter the SUP board through a natural vacuum. Make sure that the valve is closed before inflating with the pump.

Make sure that the inflation hose is attached to the inflation valve.

Connect the pump to the valve by turning it half a turn clockwise until the hose is clearly engaged.

4. ASSEMBLY

(CONTINUATION)

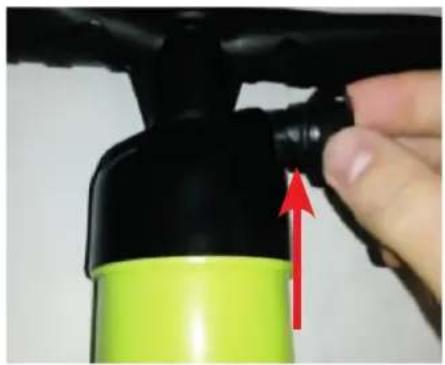

Now start pumping the air into the board by moving the handle of the pump up and down. To begin with, you can utilise the full effect of the double-stroke piston pump and switch to double-stroke operation at the pump valve. If the SUP board is inflated to such an extent that the pump can no longer be pumped using double action mode, switch the pump valve to single stroke mode. Now inflate the SUP board to 1 bar (15 psi).

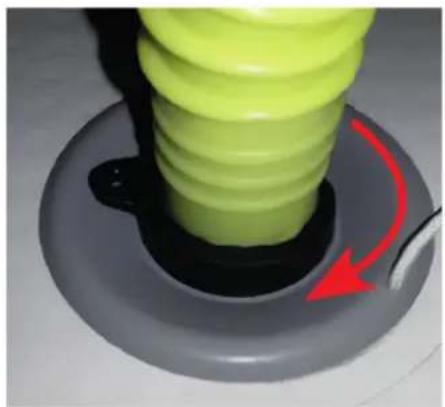

Now turn the pump hose on the valve of the board anti-clockwise.

Inflation tips and precautions

Do not use an air compressor for your SUP board. Damage caused by an air compressor is not covered by our warranty. After a few days, the air pressure may have changed due to fluctuating temperatures. If this is the case, pump in some air. Before using the SUP board, leave it inflated for 24 hours to ensure that it is not damaged. If you notice that air is escaping, follow the instructions in the leak detection and repair section of this manual.

Do not pump too much air into the board. A maximum pressure of 1034 mbar (1 bar or 15 psi) is sufficient. A measure of the correct filling quantity is when the SUP board feels firm. Do not over-inflate the SUP board and do not expose it to permanent sunlight. If the SUP board is exposed to heat, let some air out of the board as the air in the SUP board expands as it heats up. If you are paddling, the cold temperature of the water can reduce the pressure in the SUP board. In such cases, it is advisable to check the air pressure before use and adjust it if necessary.

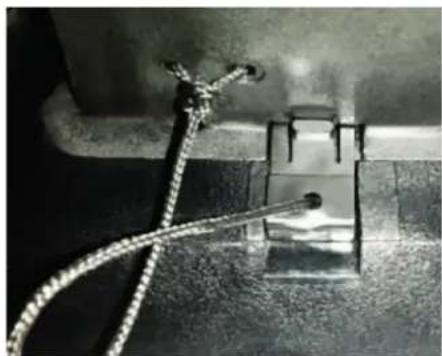

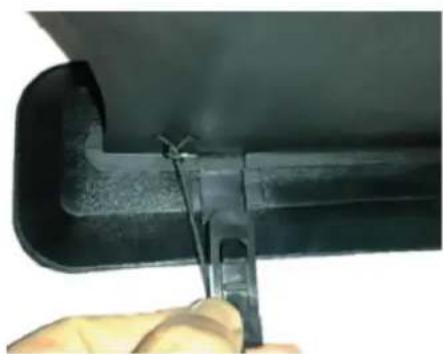

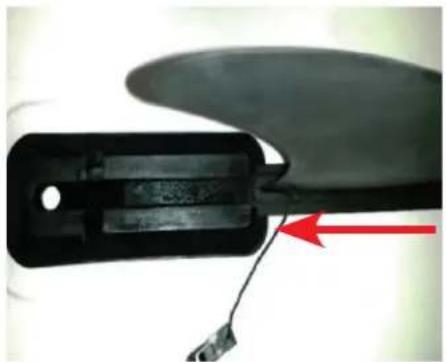

Fitting the fin

Now attach the fin to the bracket and secure it with the fixing pin. This is seated correctly when it audibly clicks into place.

5.COMMISSIONING

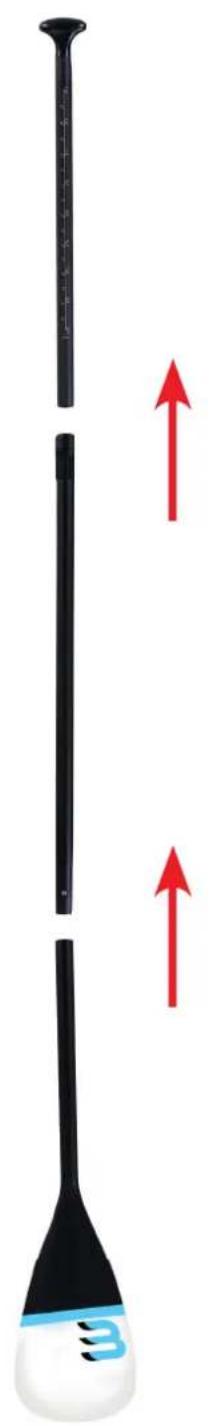

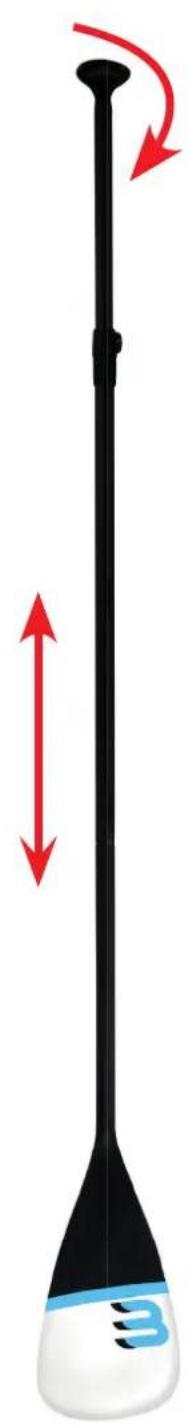

Aluminium telescopic paddle

The telescopic paddle for your SUP board consists of three parts. To assemble the paddle, press and hold the button while connecting the parts together until you hear a click. The head section of the paddle is adjustable. For the perfect length, your paddle should be set about 15 cm longer than you are.

From here, adjust the length of the paddle until you find it comfortable. A long paddle is better suited for standing use, smooth and even movements. A shorter paddle is suitable for use with the optional seat.

6. TECHNICAL DATA

Product dimensions (L x W x H)	330 x 76 x 16 cm
Product weight 11,7 kg
Product thickness 16 cm
Load capacity 200 kg
Air pressure 1 bar or 15 psi
Pump Branded double-stroke piston pump
Air valve Quick-release air valve
Material UV-resistant 1000 denier laminated PVC
PVC Double Layer PVC
Floor space EVA-coated deck pad with carrying handle and kickpad
Stability Drop stitch technology (over 15000 stitches)
Buoyancy Special rocker profile
Fin	9 inch main fin
Paddle	Adjustable aluminium paddle (165 - 210 cm)
Kayak seat	D-rings for attaching the kayak seat (seat not included)
Luggage carrier	Elasticated rubber strap as luggage holder
Pull handle	Pull handles front and rear
Transport Exclusive Bluemarina transport backpack, water-repellent
Accessories	Holding device for action cam, foot strap (spiral leash), repair kit
Guarantee	5 years

Subject to technical changes without prior notice and errors excepted.

Accessories:

PR0025581-01 Bluemarina SUP seat/kayak seat for stand up paddle with paddle

7. MAINTENANCE AND SERVICING

Recognising leaks

If your SUP board is losing air (regardless of low outside temperatures), check whether it has a leak. To do this, start with the valve. If air is escaping from the valve, tighten it using the valve spanner supplied. If air is still escaping from the valve, dismantle it using the valve spanner

and apply a little grease to the outside of the valve to make the material supple and ensure an optimum seal. Then screw the valve back on tightly. If air is still escaping, the valve appears to be defective. Contact our customer service for a replacement valve.

If the SUP board is leaking air but the valve is OK, the SUP board probably has a small hole. Small holes can be repaired easily and permanently. Spray the board with a spray bottle and some foaming detergent and look for the leak by spotting any bubbles and mark the spot. If you do not find any bubbles, inflate the board to the maximum air pressure (1 bar) and check whether you can hear where the air is escaping. If you can narrow down the area, spray the area again to pinpoint the exact location of the hole.

Carry out repairs to the SUP board yourself

Holes of less than 3mm can be repaired without having to be patched. Let the air out of your SUP board, dry and then clean the area that needs to be repaired. Apply a small drop of liquid glue (not included) to the hole and leave to dry for at least 12 hours.

If your SUP board needs to be repaired, use the patches in the repair kit.

Proceed as follows:

1. Deflate the SUP board completely and allow it to dry.
2. Cut a patch that is 6cm larger on all sides than the hole.
3. Use alcohol to clean the repair area without leaving any residue.
4. Use three layers of adhesive between the board and the patch.

Wait at least 5 minutes before applying the next layer.

1. Glue the patch over the hole. The adhesive will react quickly, so you should check carefully that the patch has been applied in the correct position. Smooth it out so that it adheres smoothly and cleanly.
2. Wait at least 24 hours before inflating the SUP board again.

8. STORAGE

Below you will find detailed instructions and best practices to ensure that your SUP board is stored in the best possible way. Proper storage is crucial to preserving the life and quality of your SUP board. Find out here how to best protect and prepare your SUP board when it's not out on the water. We recommend the following steps for the proper storage of your SUP board:

Remove all air from your SUP board before storage and allow it to dry thoroughly to prevent mould growth. Use mild soap and water to remove dirt and avoid harsh cleaning agents. Store your SUP board in the carrying bag supplied.

The SUP board should be set up outdoors and covered with a tarpaulin to prevent direct sunlight. It is not recommended to store the SUP board hanging.

Take care not to expose the SUP board to extreme temperatures (below -23 °C or above 60 °C) and store it in a clean, dry place.

Do not roll up your SUP board too tightly after deflating. If the fins are bent, you can immerse them in hot water or use heat, such as a hairdryer, to get them back into shape.

9. WASTE DISPOSAL

Attention: At the end of its service life, this appliance must not be disposed of with normal household waste, but must be handed in at a collection point for recycling. For more information, please contact your local waste disposal centre. The materials are recyclable according to their labelling. By reusing, recycling or otherwise recovering old appliances, you are making an important contribution to protecting the environment.

European Waste Disposal Directive 2012/19/EU

Never dispose of your appliance with normal household waste. Only dispose of the device via a municipal or authorised waste disposal company. Observe the currently applicable regulations. If in doubt, enquire with your municipal or local authority about proper and environmentally friendly disposal options.

Recycling

Your new appliance has been protected by the packaging on the way to you. Packaging materials can be returned to the raw materials cycle. Please help and dispose of the packaging in an environmentally friendly manner. Please contact your dealer or your local waste disposal centre for information on current disposal methods.

10. DISCLAIMER

All rights reserved.

Miweba GmbH cannot be held responsible for any inaccuracies or inappropriate information in these operating instructions. The information in this document is subject to change without prior notice, but there is no obligation to update it on an ongoing basis. We reserve the right to make design and device changes that serve to improve the production process or the product.

11. GUARANTEE CONDITIONS

Miweba GmbH grants consumers a manufacturer's warranty for appropriately labelled products in addition to the statutory warranty. You can find our warranty conditions here (click on the QR code or the link to get there):

I.miweba.de/5jahrre

12. CONFORMITY

With the CE mark, the distributor declares that the product fulfils the basic requirements and directives of the European regulations.
