Read these instructions carefully before starting to use any components. Keep the manual so you can refer to it at a later date if required. If you hand over the device to other persons for use, please hand over the operating manual as well.

You can always find the most up-to-date version of the installation manual on www.doorbird.com/support To make things easier we use the term "device" for the product "IP Video Door Station D11x series" and "mobile device" for a smartphone or tablet.

Liability

Every care has been taken in the preparation of this document. Please inform Bird Home Automation GmbH of any inaccuracies or omissions. Bird Home Automation GmbH cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. Bird Home Automation GmbH makes no warranty of any kind with regard to the content of this document, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Bird Home Automation GmbH shall neither be liable nor responsible for incidental or consequential damages in connection with the furnishing, performance or use of this material. This product is only to be used for its intended purpose.

Equipment Modifications

This equipment must be installed and used in strict accordance with the instructions given in the user documentation. This equipment contains no components that require service by the user. Unauthorized equipment changes or modifications will invalidate all applicable regulatory certifications and approvals.

Symbols used

Danger: Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Warning: Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Caution: Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Notice: Indicates a situation which, if not avoided, could result in damage to property.

Important: Indicates significant information which is essential for the product to function correctly.

Note: Indicates useful information which helps in getting the most out of the product.

Hazard information

WARNING

• Mounting, installation and servicing work on electrical devices may only be performed by a qualified electrician. Failure to observe this regulation could result in the risk of serious damage to health or fatal injury due to electric shocks.
  • Devices with 110-240 V connection: The device may only be connected to an easily accessible power socket outlet. The mains adapter must be pulled out if a hazard occurs.
• For power supply, only use the original plug-in mains adapter delivered with the device, separately available DIN rail power supplies or a recommended PoE-Switch/PoE-Injector as specified in this manual.
• Because of electrostatic charging, direct contact with the circuit board can result in destruction of the device. Direct contact with the circuit board must therefore be avoided at any time.
• Observe the EN 60065 resp. EN 60950 resp. EN 62368 standard.
• Do not use the device if there are signs of damage to the housing, control elements or connecting sockets, for example, or if it demonstrates a malfunction. If you have any doubts, please have the device checked by an authorized expert.
• Do not open the device. This voids the warranty of the device. The device does not contain any parts that can be maintained by the user. In the event of an error, please have the device checked by an authorized expert.
• For safety, approval and licensing reasons (CE/FCC/IC etc.), unauthorized change and/or modification of the device is not permitted.
  • The device is not a toy: do not allow babies and children to play with it.
  • To avoid the danger of suffocation, keep any packing materials away from babies and children. Plastic films/bags, pieces of polystyrene, etc. are not a toy and can be dangerous in the hands of a child. Discard any packing materials immediately after removing the product. Do not reuse packing materials.
  • Always lay cables in such a way that they do not become a risk to people and domestic animals.
  • Voltage is applied to parts within the equipment. Do not touch any parts that are not associated with the installation, wiring, or connection. Electric shock could result.
• On devices which are not marked as weatherproof: Keep the device away from water or any other liquid.
• Do not install or make any wire terminations while power supply is plugged in. It can cause electric shock or damage to the device.

WARNING

• Before turning on power, make sure wires are not crossed or shorted. If not, fire or electric shock could result.
• High voltage may be present internally. Do not open the device. Electric shock could result.
• The device is not of explosion-proof. Do not install or use near gases or flammable materials. Fire or explosion could result.
• Do not install two power supplies in parallel to a single input. Fire or damage to the device could result. Be sure to connect a single power supply to the device.
• Do not connect any terminal on the device to an AC power line. Fire or electric shock could result.
• Keep AC cord from being marred or crushed. If the AC cord is fractured, fire or electric shock could result.
• Do not plug or unplug with wet hands. Electric shock could result.
• Do not put any metal or flammable material into the device. Fire, electric shock, or device trouble could result.
• Existing wiring may contain high voltage AC electricity. Damage to the device or electric shock could result. Wiring and installation must be done by a qualified electrician.
• When mounting the device on a wall or ceiling, install the device in a convenient location, but not where it could be jarred or bumped. Injury could result.
• On devices with ground terminals, connect to an earth ground. Otherwise fire or malfunction could result.
• On devices with plastic or real glass, do not put high pressure on the glass. If fractured, injury could result.
• On devices with LCD, if LCD is punctured, do not allow contact with the liquid crystal inside. Injury could result. If necessary, gargle your mouth and clean your eyes or skin with clear water for at least 15 minutes and consult your doctor.
• Do not put anything on the device or cover the device with cloth, silicone, glue, coating, separate covering etc. Fire or device issues could result.
• Do not install the device in any of the following locations. Fire, electric shock, or device trouble could result.
• Places under direct sunlight or places near heating equipment that varies in temperature.
• Places subject to dust, oil, chemicals, hydrogen sulfide (hot spring).
• Places subject to moisture and humidity extremes, such as bathrooms, cellars, greenhouses, etc.
• Places where the temperature is very low, such

as inside a refrigerated area or in front of an air conditioner.

• Places subject to steam or smoke (e.g. near heating or cooking surfaces).
• Where noise generating devices such as dimmer switches or inverter electrical appliances are close by.
• Locations subject to frequent vibration or impact.

- On devices with intercom, be sure to perform a call test with low audio volume on both intercom devices. A sudden call etc. may arrive causing for example damage to your ear.

- If the device does not operate properly, unplug the power supply.

- All devices which are not marked as weatherproof are designed for indoor use only. Do not use outdoor.

- On devices which are marked weather-proof: Do not spray with high-pressure water. Device issues could result.

- We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases, any claim under warranty ceases. For consequential damages, we assume no liability!

- For devices that are supplied with a power supply unit: In accordance with Article 33 of the REACH Regulation (Regulation (EC) No. 1907/2006), we inform you that the metal contact of the plug pin of the mains adapter contains a concentration of >0.1% of the substance EC / List no.: 231-100-4 (lead) listed in the REACH Regulation. When used as intended, no measures are required to be able to use the product safely due to the lead concentration.

Safety instructions

NOTICE

• The device shall be used in compliance with local laws and regulations.
• Store the device in a dry and ventilated environment.
• Avoid exposing the device to shocks or heavy pressure.
• Do not install the device on unstable brackets, surfaces or walls. Make sure the material is strong enough to support the weight of the device.
• Use only applicable tools when installing the device. Using excessive force with tools could cause damage to the device.
• Do not use chemicals, caustic agents, or aerosol cleaners.

• Use a clean dry cloth for cleaning.

• Use only accessories that comply with technical specification of the device. These can be provided by Bird Home Automation GmbH.

• Use only spare parts provided by or recommended by Bird Home Automation GmbH.
• Do not attempt to repair the device by yourself. Contact Bird Home Automation GmbH for service matters.
• Keep the device more than 1 m (3.3') away from microwave, radio, TV, wireless router and any other wireless devices.
• On devices with intercom or built-in speaker or built-in microphone or signal transmission functions, keep the wires more than 30 cm (12") away from AC 100-240 V wiring. AC induced noise and/or device malfunction could result.
• Install the device in an area that will be accessible for future inspections, repairs and maintenance.
• If the device is used close to a cellular phone, the device may malfunction.
• The device can be damaged if dropped. Handle with care.
• The device turns inoperative during power failure.
• On devices with intercom or built-in speaker or built-in microphone, in areas where cellular or Radio / TV broadcasting station antennas are close by, the device may be affected by radio frequency interference.
• On devices with LCD screen, it must be noted in advance that the LCD panel, though manufactured with very high precision techniques, inevitably will have a very small portion of its picture elements always lit or not lit at all. This is not considered a device malfunction.
• On devices with intercom, due to the environmental sound around the device, it may hinder smooth communication, but this is not a malfunction.
• On devices with Username/Password, the Username/Password to access the device is the customer's responsibility. Make sure to use a password that cannot be easily guessed by a third party. We recommend that you change the Password on a regular basis.
  • We will, under no circumstances, be liable for damage that occurs due to failures in power supply, network equipment or terminal devices; failures due to Internet providers and cellular network providers; failures such as disconnected lines and other losses in communication, which makes it impossible to provide this service as well as in any way delay this service due to any other causes outside of our responsibility; or if an error or missing data occurs during transmission.

FCC Caution:

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC Statement

EN: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

IC radiation exposure: This equipment complies with ISEDC radiation exposure limits defined for a controlled environment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Information on disposal for users of waste electrical & electronic equipment (private household)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted an a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Information on disposal in other countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Transportation

When transporting the device, use the original packaging or equivalent to prevent damage to the device.

Warranty Information

For information about the device warranty, see www.doorbird.com/warranty

COMPONENTS\*

with call button(s) and front panel

Simple line drawing of a rectangular box with internal components and a circular base (no text or symbols)

1x Back-housing with wall-mounting bracket

1-2000-2007 • 1987 • 2007

1x Installation manual1x

Unfanned

Main Quickstart Guide with Digital Passport

Simple line drawing of a device with no text or symbols

1x Drilling template 1x Waterproof A4 laser printer paper for labelling name plates

Simple line drawing of a rectangular envelope (no text or symbols)

1x Screw connection terminal plug

Illustration of four electrical components: a wire-wrapped box, two plug-in switches, and a terminal block (no text or symbols)

1x Power supply unit (mains adapter) with up to four country-specific adapters

Line drawings of four different types of dental tools or instruments, including a tool with handles and three variants of screws (no text or symbols present)

Small parts

* The sketches in this manual may differ from the purchased model.

DEVICE WITH 1 CALL BUTTON

Front Inside

inside 1 2 3 4 5 6 7 8 9 WIFI

1) Front panel
2) HDTV Video
3) Security screws
4) Light Sensor
For night-vision mode
5) Bluetooth transceiver
6) Speaker
7) Microphone
8) 4D Motion sensor

9) Illuminated call button with nameplate

Technical diagram of a device with numbered components labeled 10, 11, 12, and 13.

14

10) Diagnostic-LED Lights up a few seconds after connecting the device to power

11) Main Electrical Unit

12) Screw connection terminal

13) Gasket

14) Housing with wall-mounting bracket

The flush-mounted model may differ optically.

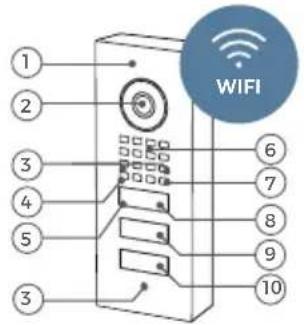

DEVICE WITH 2 CALL BUTTONS

Front

1 2 3 4 5 3 6 7 8 9 10 WIFI

1) Front panel
2) HDTV Video
3) Security screws
4) Light Sensor For night-vision mode
5) Bluetooth transceiver
6) Speaker
7) Microphone
8) 4D Motion sensor
9) First illuminated call button with nameplate
10) Second illuminated call button with nameplate

Inside

Technical diagram of a device with numbered components labeled 11, 12, 13, and 14

15

11) Diagnostic-LED Lights up a few seconds after connecting the device to power

12) Main Electrical Unit

13) Screw connection terminal

14) Gasket

15) Housing with wall-mounting bracket

The flush-mounted model may differ optically.

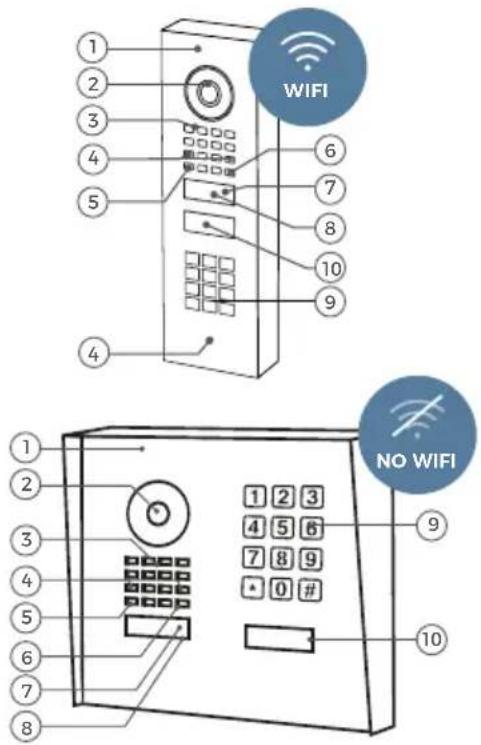

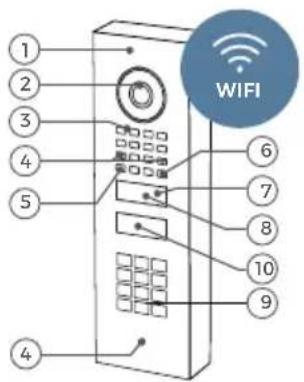

DEVICE WITH KEYPAD MODULE

Front

WIFI NO WIFI

1) Front panel
2) HDTV Video
3) Speaker
4) Security screws
5) Light Sensor For night-vision mode
6) Microphone
7) Bluetooth transceiver
8) 4D Motion sensor
9) Keypad Module The illumination is also acting as Diagnostic LED(s)
10) Illuminated modern call button (with nameplate) or illuminated classic call button (round)

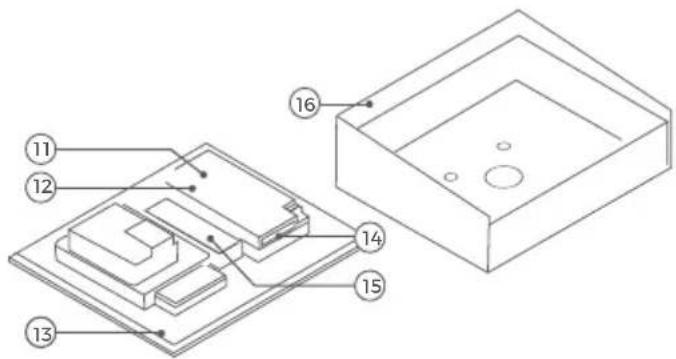

Inside

Technical diagram of a device with numbered components labeled 11 to 14

16 16

Technical diagram of a device with numbered components, showing internal structure and housing layout

11) Main Electrical Unit

12) Diagnostic-LED Lights up a few seconds after connecting the device to power

13) Gasket

14) Screw connection terminal

15) Holder for 2-Wire Ethernet PoE Converter A1071 (optional)

16) Housing with wall-mounting bracket

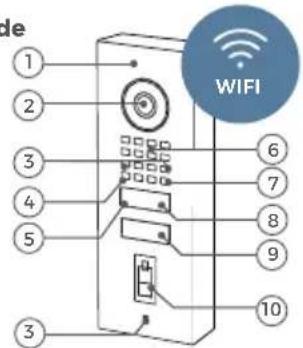

DEVICE WITH FINGERPRINT READER MODULE

Front Inside

WIFI ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩

1) Front panel
2) HDTV Video
3) Security screws
4) Light Sensor
For night-vision mode
5) Bluetooth transceiver
6) Speaker
7) Microphone
8) 4D Motion sensor
9) Illuminated call button with nameplate
10) Fingerprint Reader

Technical diagram of a device with numbered components labeled 11 to 14

15

11) Diagnostic-LED
Lights up a few seconds after connecting the device to power
12) Main Electrical Unit
13) Screw connection terminal
14) Gasket
15) Housing with wall-mounting bracket

The flush-mounted model may differ optically.

VIDEOS

Need help with the installation? Be sure to watch our installation videos which can be found on http://www.doorbird.com/support

Each individual step of the installation is clearly documented in the videos.

INSTALLATION

All the steps below should be carried out carefully by a competent adult, taking into consideration any applicable safety regulations. Please contact us directly or seek the advice of a competent specialist.

Please ensure that all wires used for the installation are undamaged along their entire length and approved for this type of use.

Network speed and network components

Please ensure that the upload speed of your Internet connection is at least 0.5 Mbps. The user experience is only as good as your network speed, network stability and quality of your network components, such as your Internet Router and WiFi access points or WiFi repeaters. Please also make sure that your network components are no older than two years old, have been manufactured by a well-known manufacturer, and have the latest firmware installed.

Should these requirements not be fulfilled, it may occur, for example that the performance of audio and video is poor or push notifications are delayed or do not arrive on your smartphone or tablet at all.

Requirements:

High-speed Internet (via landline): DSL, cable or optical fibre

Network: Ethernet, with DHCP

1

SWITCHING OFF POWER

Switch off the power to all wires leading to the assembly location, i.e. the door chime, electric door opener, power supply unit for the video door station etc.

2

DISMANTLING THE EXISTING DOORBELL

Should there already be a doorbell or door station on the exterior wall of the house, please remove it.

3

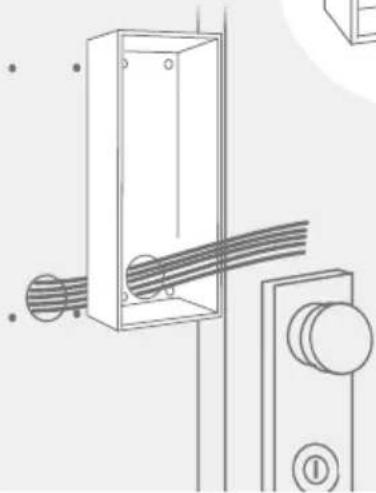

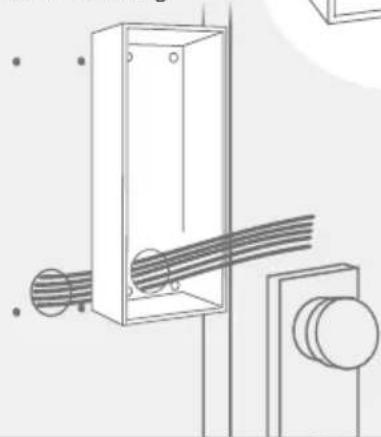

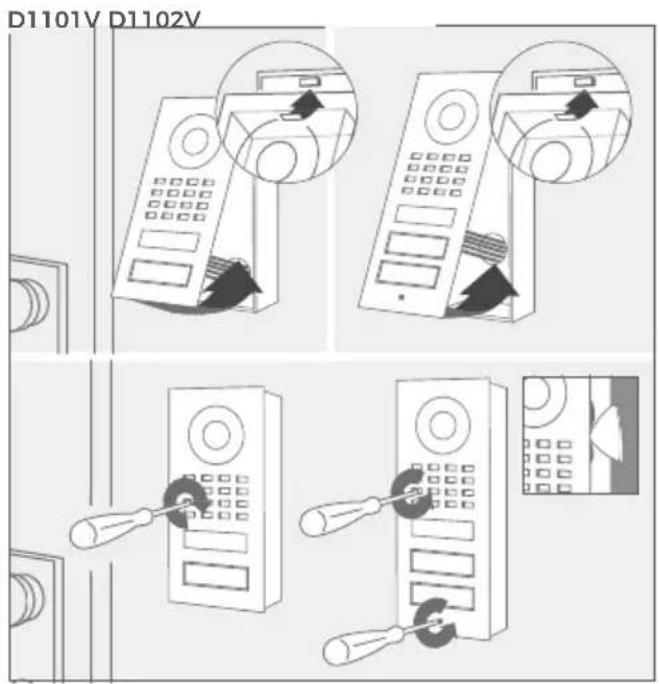

DETERMINING THE ASSEMBLY LOCATION

The device uses an ultra wide-angle hemispheric lens so that even when the person is a minimum distance of 50 cm (19.68 in) away from the device, a low installation height is sufficient. The lens is therefore not mechanically adjustable. The camera lens should be located at an altitude of at least 145 cm (57 in).

You may check this prior to the final mounting.

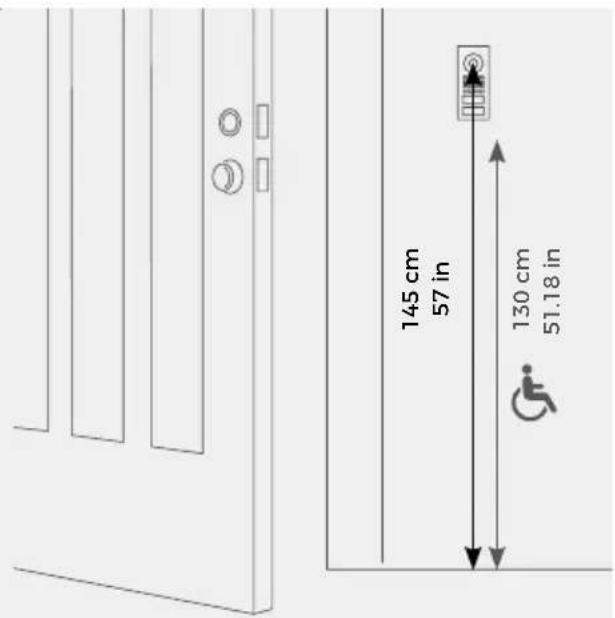

145 cm 57 in 130 cm 51.18 in

Only for D1101V & D1102V

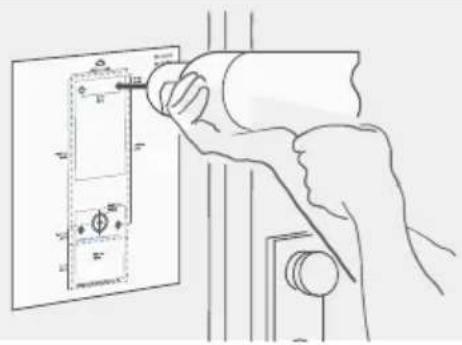

We offer additional wall-mounting kits for D1101V and D1102V Surface-Mount with a wedge corner wall-mount adapter (7.5° vertical down or up) and alternatively an angle corner wall-mount adapter (45° horizontal, mounts left or right).

Line drawing of a mounted device with control panel (no text or symbols)

A8001 Wedge corner wall-mount adapter (7.5°, mounts vertical down or up), sold separately

Line drawing of a wall-mounted door with control panel and doorbell (no text or symbols)

A8002 Angle corner wall-mount adapter (45° horizontal, mounts left or right), sold separately

When choosing the assembly location, consider the lighting conditions. Avoid direct sunlight, direct backlight and reflective surfaces.

Do not expose the device to direct sunlight. The housing temperature can exceed the maximum allowed temperature limit. This can result in damage of electric and mechanic components of the device and injuries especially when touching exterior parts of the device. White and bright silver-colored front plates absorb less sunlight than dark ones.

An image sensor must not be exposed to direct sunlight for an extended period of time. Direct sunlight will "blind" the camera and may permanently bleach the small color filters on the image sensor chip.

Any defects caused by direct sunlight are not covered by warranty.

Important note for cavity mounting (e.g. in pedestals and mailboxes):

To protect the electronic units, please ensure that the technical components are protected against dripping and running water caused by condensate or entering the mounting space through openings.

To protect the electronic units, ensure that the mounting space inside is not accumulating water.

Sufficient air circulation must be ensured, as well as unobstructed drainage of water at the base of the installation.

Failure to do so will result in warranty being declined.

4

ASSEMBLING THE MOUNTING HOUSING

The product is available as a surface-mounted and flush-mounted version. In the flush-mounted version, the front panel is slightly larger to better cover the hole in the wall, and the mounting housing (backbox) is made entirely of metal instead of plastic. If you use the flush-mounted housing, lever up the wall accordingly.

Technical diagram showing a hand using a tool to adjust or install a wall-mounted component with labeled parts and dimensions.

Pure electrical circuit lines without any symbols

If the wall of the house is not made of wood, you should drill dowel holes 5 mm (0.19 in) in diameter in the wall according to the drilling template and then place the dowels provided into the boreholes.

If you must drill holes in a wall, insert screws into a wall or lever up a wall, ensure that no cables or mains (gas, water, etc.) are to be found in the wall.

If the wall of the house is made of wood, dowels are not normally required. There are special dowels for assembling the device on an insulating wall, e.g. Fischer insulating dowels.

4.1 DISASSEMBLING THE FRONT PANEL

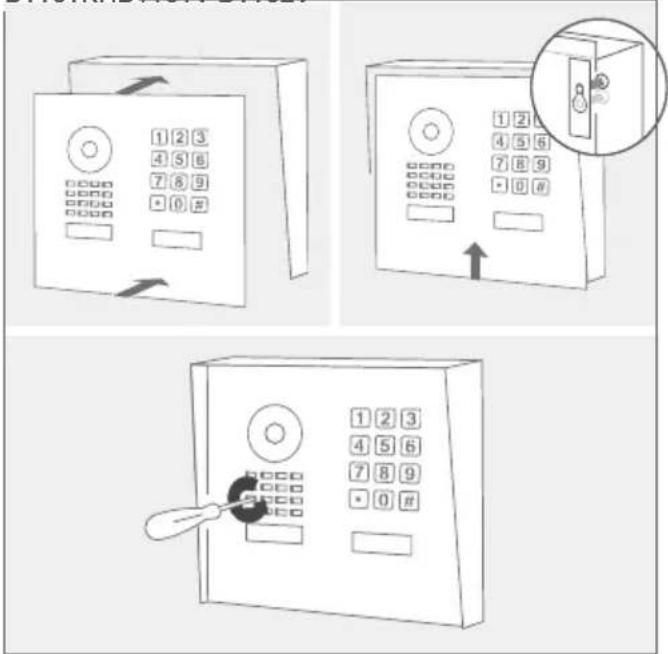

Remove the front panel with the attached Main Electrical Unit carefully from the mounting housing (backbox) using the orange (Torx+Pin) screw driver provided.

We have designed the front panel and safety screws in a way that they cannot be screwed through the front panel so that they do not fall off / get lost during installation.

D1101V

D1102V

D1101KH

Turn the safety screws counter-clockwise until they are loose.

Simple line drawing of a door with a key inserted, no text or symbols present

Line drawing of a control panel with buttons and display panels (no text or symbols)

Turn the safety screws counter-clockwise until they are loose.

Diagram of a digital control panel with labeled buttons and a handle, showing numeric keypad layout

D1101V
D1102V

Line drawing of a rectangular electronic device with control panel and buttons (no text or symbols)

Line drawing of a remote control device with buttons and a scroll (no text or symbols)

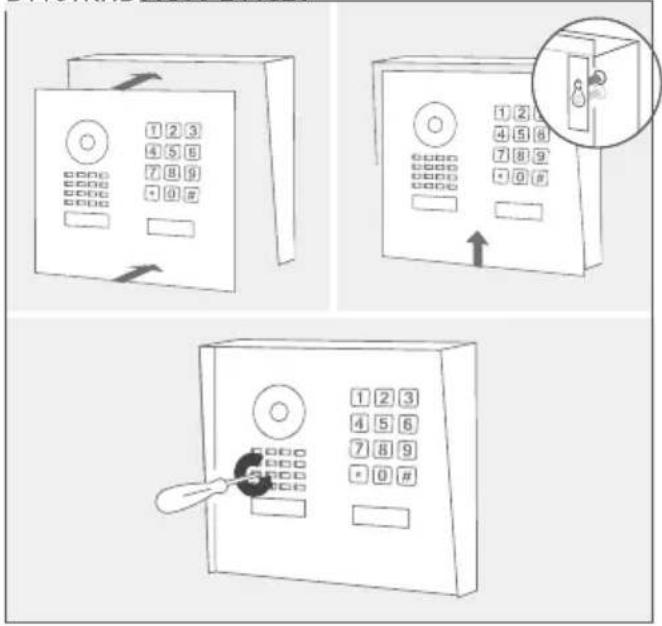

Pull the front panel with attached Main Electrical Unit out of the mounting housing (backbox).

D1101KH

1 2 3 4 5 6 7 8 9 + 0 F

Pull down the front panel.

1 2 3 4 5 6 7 8 9 1 0 1 □

Pull the front panel with attached Main Electrical Unit out of the mounting housing (backbox).

4.2 MOUNTING

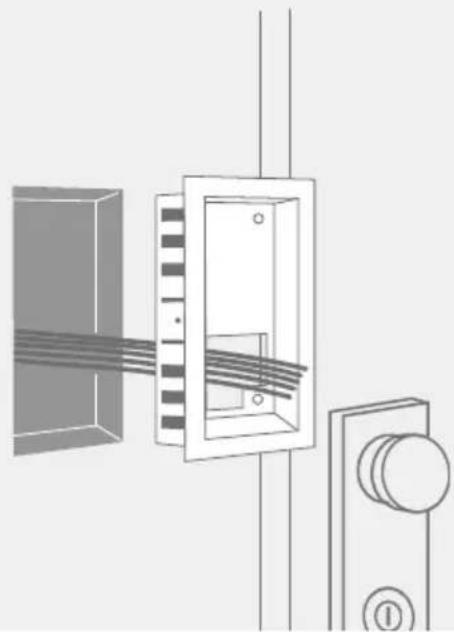

Lead all cables and wires you want to connect to the device through the mounting housing. Screw the wall-mounting bracket of the mounting housing to the wall.

Flush-mounted models Surface-mounted models

Diagram of a mechanical or electrical component with internal wiring and a button (no text or symbols)

Before mounting: Pierce through the middle of the rubber seal for the cable entry using a screwdriver.

Simple line drawing of a hand inserting a plug into a container with a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure diagram of a rectangular device with internal components and no text or symbols

Please make sure that the outer frame of the flush-mounted housing rests on the outside of the wall and that the edge of the flush-mounted housing is sealed all around against moisture from the outside.

Pure technical diagram of a rectangular enclosure with internal cables and two connectors, no text or symbols present.

You can connect the device to the network by either using a WiFi 2.4 GHz connection (only for D1101V and D1102V) or a network cable.

OPTION 1

Network cable (recommended, maintenance free)

Install a network cable (which is plugged into a network switch / router with Internet access) from the inside of your building to the assembly location. The network cable between the assembly location and the network switch / router can have a maximum length of 80 m/262 ft (IEEE 802.3). If you must span a distance of more than 80 meters/262 feet you can put a network switch in between. Make sure to use a high-quality Cat.5 network cable or better and with proper shielding (Screened Foiled Twisted Pair (S/FTP or SFTP)) whereby the shield is connected to the outer metal shield of the RJ45 plug (8P8C).

The device itself does not have an RJ45 socket. The scope of delivery includes an RJ45 adapter that can be routed out of the housing. As an alternative, the RJ45 connector of the network cable can be removed on the device side to connect the wires directly to the Phoenix strip according to the assignment under point 7 „CONNECTING THE DEVICE“.

OPTION 2

WiFi 2.4 GHz (only for D1101V and D1102V)

When using WiFi please make sure you have a good WiFi signal at the assembly location of the device. You can increase the WiFi signal by using so called "WiFi repeaters", which can boost your WiFi signal. You should install such a WiFi repeater close to the assembly location of the device, typically inside your home and close to the device.

For further information regarding WiFi installations, please visit www.doorbird.com/wifi

6

PREPARE POWER SUPPLY

The device does not have a battery as power supply, therefore, choose one of the following options.

OPTION 1

Power supply using the power supply unit (mains adapter)

To power the device using the provided mains adapter, 2 insulated wires are required. The power supply unit has a 300 cm (9.8 ft) long cable with two insulated wires. The network connection is then established via a network cable or alternatively via WiFi.

Do not plug the power supply unit into the wall socket yet.

Only use the power supply unit provided along with the device, or a DIN-rail power supply unit (see "OPTION 3") that you can obtain from us separately, since this has been specially stabilized electrically and is equipped with an integrated audio interference reduction device. Other power supply units may destroy the

If you have only two wires available at the assembly location, you may use the "DoorBird 2-Wire Ethernet PoE Converter A1071", sold separately. It allows you to transfer network data (Ethernet) and power (PoE) with a simple two-wire cable over long distances. For example, existing buildings with a simple two-wire bell wire can be equipped with network technology without having to retrofit any network cables.

Diagram of a smart home control room with access devices and signal icons (no text or symbols)

For reasons of network stability, we principally recommend using a network cable, as WiFi is sensitive to interference (range, house walls acting as shields, reliability of performance, third party WiFi networks, wireless transmitters causing interference in the area, etc.).

The provided mains adapter is only capable to power one device. It is not designed to power multiple devices simultaneously.

If you must power more than one device with one power supply, we recommend to use a PoE-Switch with PoE Standard IEEE 802.3af Mode A or an appropriate DIN rail power supply (see "OPTION 3").

device or cause poor transmission quality. The warranty automatically expires if you use a different power supply unit.

The power supply unit is plugged into a wall socket inside your house, usually where the two wires from your assembly location come out of the wall in the interior of the house.

The provided mains adapter is not outdoor-ready and for indoor-use only.

OPTION 2

Power supply and network connection using PoE (Power over Ethernet)

To power the device via a PoE-Switch (e.g. D-Link DGS-1008P) or PoE-Injector (e.g. DoorBird Gigabit PoE Injector A1091), use a CAT.5 cable or higher in accordance with the PoE standard IEEE 802.3af Mode A.

A CAT.5 cable or higher must be used for this purpose, as network signals can only be transmitted over completely insulated, shielded and twisted cables. If you use PoE as a source of power, the four wires for PoE then simultaneously form the data line. The device will not start if your PoE-Switch/PoE-Injector does not support the PoE Standard IEEE 802.3af Mode A.

Do not combine the power supply from the power supply unit (mains adapter) with the power supply via PoE.

You can find further information about PoE here: http://www.doorbird.com/poe

1. Disconnect the PoE-Switch or PoE-Injector from the power grid.
2. Place the network cable in the installation site of the device.

OPTION 3

Power supply using a DIN rail power supply unit

Alternatively to the mains adapter, we offer DIN rail power supplies in our online shop, which can be installed by a specialist. The network connection is then made via a network cable or alternatively via WiFi.

7

CONNECTING THE DEVICE

It is possible to connect the cables and wires to the device conveniently and safely via the labeled screw connection terminal. You can connect all necessary cables and wires to the device now.

Please remove any cables and wires from the connection ports of the device that you do not need.

If you must power more than one device with one power supply, we recommend to use a PoE-Switch with PoE Standard IEEE 802.3af Mode A or an appropriate DIN rail power supply (see "OPTION 3").

Theoretically (not recommended by us!), an unshielded, but over the whole length (max. 80 m/262 ft) twisted bell wire with two pairs of wires (first twisted pair of wires: "T+, T-", second twisted pair of wires "R+, R-") can be used for the network and PoE transmission as an alternative to a Cat.5 network cable or better. This is comparable to a Cat.3 network cable. In this case, however, we cannot guarantee the data throughput or the stability of the network connection and power supply; this must be measured and checked on site by qualified personnel over several hours (network data is transmitted at high frequency, therefore a shielded Cat.5 network cable twisted in pairs or better must normally be used).

For easier installation we strongly recommend to remove the plug from screw connection terminal while you connect the cables and wires.

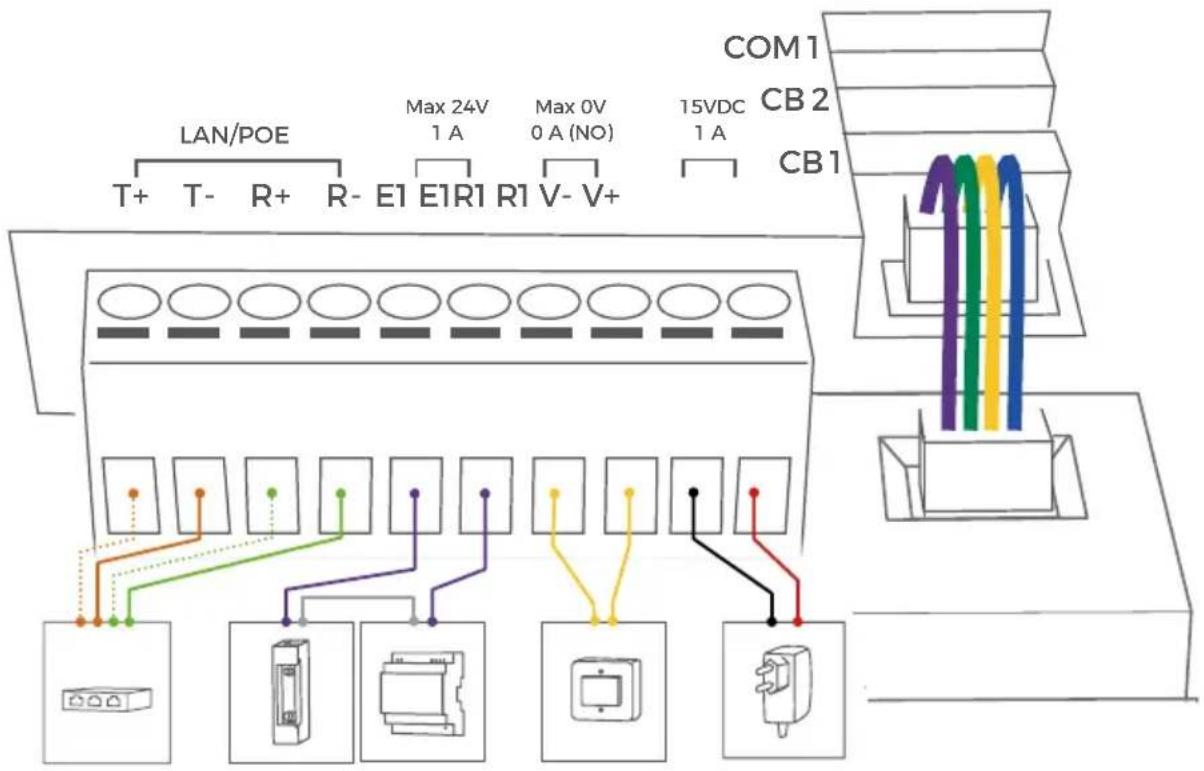

LAN/POE T+ T- R+ R- E1 E1R1 R1 V- V+ Max 24V 1 A Max 0V 0 A (NO) 15VDC 1 A COM1 CB2 CB1

Port Description

LAN/POE The device does not have an integrated standardized RJ45 socket to ensure ...

• that the device rests as flat as possible on the wall.
• that no wall needs to be levered up.
• that a strong and inflexible Cat.6 or Cat.7 installation cable can be used.

Use only four wires (1, 2, 3 and 6) of a standard Network cable Cat.5 or better, coming from the Internet Router/PoE-Switch/PoE-Injector.

Cat.5 / Cat.6 Network cable

T+ White and orange network cable wire (Number 1, Transmit Data +)
T - Orange network cable wire (Number 2, Transmit Data -)
R+ White and green network cable wire (Number 3, Receive Data +)
R - Green network cable wire (Number 6, Receive Data -)

Cat.7 Network cable (Installation cable)

T+ White network cable wire from pair "orange/white" (Number 1, Transmit Data +)
T- Orange network cable wire from pair "orange/white" (Number 2, Transmit Data -)
R+ White network cable wire from pair "green/white" (Number 3, Receive Data +)
R- Green network cable wire from pair "green/white" (Number 6, Receive Data -)

Do not power the device simultaneously via the power supply from the power supply unit (mains adapter) and the power supply via PoE.

R1, R1 Bi-stable latching relay #1, max. 24 V DC/AC, 1 A. Security feature: The relay keeps its state even in the case of loss of power. You can configure the default state of the relay (open/close) via the DoorBird App. These ports can be used to connect e.g. an electric door opener. The device does not supply power to the connected device. The power supply for the electric door opener must be installed separately.
	When wiring an electric door opener directly to a door station, there is a risk that the electric door opener could be tampered by unauthorized third parties (e. g. by breaking the door station and short-circuiting the wiring of the door opener). Therefore, we generally recommend the use of a remote safety relay mounted indoors (e. g. DoorBird I/O Door Controller A1081) for wiring an electric door opener for a more secure installation in your home.
E1, E1 Digital Input (0 V, 0 A (NO)), for door opener button, max. 0 V DC/AC, 0 A. These ports can be used to connect e.g. a door opener button inside the home. It will can trigger the bi-stable latching relay of the device (R1, R1)NOTICE Please make sure to add no voltage on these ports. Extra voltage may destroy the device immediately.
15 VDC - 15 V DC Power supply input, negative pole (-). Please connect the black wire of the power supply unit (mains adapter) supplied with this device if you do not power the device using PoE. We only recommend PoE.
	Do not power the device simultaneously via the power supply from the power supply unit (mains adapter) and the power supply via PoE.
15 VDC + 15 V DC Power supply input, positive pole (+). Please connect the red wire of the power supply unit (mains adapter) supplied with the device here, if you do not power the device using PoE. We only recommend PoE.
	Do not power the device simultaneously via the power supply from the power supply unit (mains adapter) and the power supply via PoE.
COM 1 Jack for authorized peripherals of Bird Home Automation which will be released in the future, e.g. keypad
CB 2 Jack for second call button.
CB 1 Jack for first call button.

The jacks "CB1", "CB2" and "COM1" on the rear side of the Main Electrical Unit must only be used to connect components certified by Bird Home Automation.

CALL BUTTON PORT —
SWITCH(4 PIN)	Use the four wire call-button cable provided to connect the call-button to the Main Electrical Unit (already connected in delivery condition to the jack "CB1"/"CB2").

NOTICE Please take care when connecting the cables and wires. Connecting the cables and wires the wrong way may damage the device. Wires without insolation material must not protrude out of the green screw connection terminal, it may lead to electrical short and damage the device.

Assemble the front panel with the attached Main Eletrical Unit carefully using the orange (Torx+Pin) screw driver provided.

D1101V D1102V

D1101KH 1 2 3 4 5 6 7 8 9 - 0 # 1 2 3 4 5 5 7 8 9 - 0 # 1 2 3 4 5 6 7 8 9 - 0 #

Turn the safety screws clockwise until they are firmly tightened.

Tighten the safety screws by hand only (less than 5 newton meter [Nm]), otherwise the Main Eletrical Unit housing may be damaged.

If any of the black foam rubber gasket under the front panel protrudes, you can carefully press it in with the triangle tool provided in the small parts bag. Please do not press too hard, so that the gasket is not pressed too far into the inside of the housing and the unit will have a leak.

ACTIVATE THE DEVICE

If the device is to be supplied with power by a mains adapter, plug the power adapter of the device into a wall socket. If the device is to be powered via PoE, switch on the PoE-Switch/PoE-Injector which is connected to the device. If the device is to be powered via DIN-rail power supply, switch on the DIN-rail power supply.

The Diagnostic-LED indicates whether the device is supplied with power. This LED lights up in green color a few seconds after you have connected the device to the power supply.

If the Diagnostic LED does not light up, please check the power supply. When using a wall-plug power supply and not PoE please check whether you have connected the positive pole and negative pole to the device correctly.

The device is ready for operation (booting up process, any software updates, etc.) once it has emitted a short diagnosis sound from the integrated loudspeaker. This may last for up to 5 minutes.

10

DOWNLOADING AND INSTALLING THE APP

Download the "DoorBird" App by Bird Home Automation onto your mobile device from the Apple App Store or Google Play Store. You can always find the most up-to-date version of the App manual on www.doorbird.com/support

If you use WiFi for connecting the device to your Internet Router, first go to the DoorBird App > "WiFi Setup" and follow the instructions.

If you have finished the WiFi setup or have connected the device to your Internet Router by means of a network cable, go to the DoorBird App > "Add device" and click on the QR code icon in the "User" field. Scan the user QR code found on the "Digital Passport" provided with the device.

If you have problems adding the device to the App please check if the device is online ( www.doorbird.com/checkonline ). If the device is not online, please check the WiFi or network cable connection again.

DIAGNOSTIC-LED

You can see if the device is powered by checking the Diagnostic LEDs, which lights up a few seconds after the power is connected.

The Diagnostic-LED is designed to illuminate only slightly.

DIAGNOSTIC-SOUNDS

After around one minute, the device emits brief diagnostic sounds after it has been connected to power supply / network / internet.

LENS

The product uses a straightened Wide-Eye hemispheric lens (HD). Due to the wide angle of coverage (horizontal, vertical, diagonal), a small edge may appear in the corners of the image as well as reflections in the image from the surface of the front of the unit.

MOTION SENSOR

The device has a built-in Motion Sensor with 4D Technology. You can use it for numerous applications, e.g. to send an alarm to a mobile device or to switch a relay to turn on an outdoor light.

The adjustable distance is optimized for a 1.75m (69 in) tall 70kg (165 lbs) person in a free environment. The accuracy of the distance of the motion sensor can vary depending on the environment.

BLUETOOTH TRANSCEIVER

The device has a built-in Bluetooth® transceiver. Compatible with the DoorBird Bluetooth Keyfob Remote A8007.

API

The device features a well documented API for third-party integration. For information, terms and conditions see www.doorbird.com/api

DOORBIRD CONNECT

The device features many options to integrate it into third-party applications. For information, terms and conditions see www.doorbird.com/connect

CHANGING THE LABEL OF A CALL BUTTON NAMEPLATE

Applies only to devices with 1 and more illuminated call buttons with nameplate.

Illustration of a hand using a tool to apply a small object to a rectangular block (no text or symbols present)

Simple 3D illustration of a rectangular object with a curved edge, resembling a folded paper or mechanical part (no text or symbols)

S. Martin click

MAINTENANCE OF THE FRONT PANEL

Cleaning and maintenance instructions

All of our front panels are made of high-quality materials and are designed for a durable lifetime. Since door stations are usually installed in unprotected outdoor areas, they are exposed to adverse weather conditions and aggressive substances, especially close to frequently used roads, in coastal and industrial areas. Therefore, please consider the following care instructions. Unfortunately, we cannot accept any liability for damage if these instructions are not being observed. Aggressive dirt such as bird droppings should be removed as quickly as possible.

Aggressive stains such as bird droppings should be removed as soon as possible.

Never use abrasive detergents such as steel wool or scouring milk!

Warm water is usually sufficient, if necessary with a little detergent, a soft cloth or brush. Plastic parts (camera or name tags) must not be treated with metal care products. Remove all residues of cleaning agents or lubricants to avoid stains or discolouration after the maintenance.

Stainless Steel

Only high-quality stainless steel is used for all available DoorBird door stations. However, high-quality stainless steel can also rust, as approx. 70% of stainless steel is made of iron. Rust resistance is only achieved by a protective layer (also called passive layer), which covers the iron like a skin. This protective layer consists essentially of chromium and other precious metals.

Iron particles, grinding dust and chips deposited on stainless steel can lead to corrosion (rust film). These iron particles can be found everywhere, but especially in coastal and industrial areas and close to frequently used roads. Please remove ferrous deposits immediately, as they will attack your door station and lead to real rust if not removed. To remove rust, simply wipe off the dust; in addition, a care product is recommended, e.g. WD 40, available e.g. at Amazon for less than € 5.00. Simply apply in a thin layer and rub in. The same applies if rust appears on the engravings on the stainless steel surface.

Cement or lime splashes should be carefully removed as soon as possible with a wooden spatula before hardening.

The following cleaning detergents are not to be used as they reduce corrosion resistance:

• products containing chloride and hydrochloric acid
• Bleach (in case of accidental use, rinse thoroughly with water)
  • Silver polish

After the cleaning with clear water wipe with damp

cloth and rub dry to avoid lime traces. Lime residues can be avoided by using demineralised water.

Stainless steel PVD coated

PVD coated, chrome-plated or gold-plated surfaces are recommended to be cleaned with a grease-dissolving detergent and clear water or with a clean and dust-free microfibre cloth. For high-gloss surfaces, use a scratch-free cloth (e.g. cleaning cloth for glasses, furniture polishing cloth, etc.).

Lacquered surfaces

Clean painted surfaces and lettering with a soft, scratch-free cloth moistened with a mild soap solution (e.g. cleaning cloth for glasses, furniture polishing cloth, etc.). To prevent stains or discolouration, the detergents should be wiped off without leaving any residue. Be particularly careful with lettering in order not to damage the film or the print.

TROUBLESHOOTING

The device does not power up

If the device is to be supplied with power by a mains adapter, plug the power adapter of the device into a wall socket. If the power adapter was already plugged into a wall socket, check if the cables and wires are correctly connected to the screw connection terminal. In most cases, removing the cable and wires from the screw connection terminal plug and reconnecting them to the screw connection terminal plug helps (loose contact). If you are powering more than one device simultaneously with one mains adapter, check if the mains adapter is able to deliver enough power over the full cable length.

If the device is to be powered via PoE, switch on the PoE-Switch/ PoE-Injector which is connected to the device. If the PoE-Switch/ PoE-Injector was already switched on, check if the cables and wires are correctly connected screw connection terminal. In most cases, removing the cable and wires from the screw connection terminal plug and reconnecting them to the screw connection terminal plug helps (loose contact). If the problem still exists, please check if your PoE-Switch / PoE Injector supports the PoE Standard IEEE 802.3af Mode A, see also www.doorbird.com/poe

If the device is to be supplied with power by a DIN-rail power supply, switch on the DIN-rail power supply If the DIN-rail power supply was already switched on, check if the cables and wires are correctly connected to the screw connection terminal. In most cases, removing the cable and wires from the screw connection terminal plug and reconnecting them to the screw connection terminal plug helps (loose contact). If you are powering more than one device simultaneously with one DIN-rail power supply, check if the DIN-rail power supply is able to deliver enough power over the full cable length.

The device does not connect to network via network cable ("No Network" diagnosis sound)

In most cases, removing the cable and wires from the screw connection terminal plug and reconnecting them to the screw connection terminal plug helps (loose contact). If the problem still exists, please check if the network cable is properly connected to your router / switch and the network cable is not broken.

If the problem still exists, please check if your Router has DHCP turned on and is able to assign an IP address to the device.

The device does not connect to Internet ("No Internet" diagnosis sound)

In most cases, your Internet is down or your router blocks Internet access for the device. Please see www.doorbird.com/downloads/ports.pdf

If the problem still exists, please check if your Router has DHCP turned on and is able to assign an IP address to the device.

The device does not connect to Internet

In most cases, your Internet is down or your router blocks Internet access for the device. Please see www.doorbird.com/downloads/ports.pdf

LEGAL NOTES

General remarks

1. DoorBird is a registered trademark of Bird Home Automation GmbH.
2. Apple, the Apple logo, Mac, Mac OS, Macintosh, iPad, Multi-Touch, iOS, iPhone and iPod touch are trademarks of Apple Inc.
3. Google, Android and Google Play are trademarks of Google, Inc.
4. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG, Inc.
5. QR Code is a registered trademark of Denso Wave Incorporated in Japan and other countries.
6. All other company and product names may be trademarks of the respective companies with which they are associated.
7. We reserve the right to make changes to our products in the interests of technical advancement. The products shown may also look different from the products supplied based on ongoing enhancement.
8. Reproducing or using texts, illustrations and photos from this instruction manual in any media - even if only in the form of excerpts - shall only be permitted with our express written consent.
9. The design of this manual is subject to copyright protection. We do not accept any liability for any errors or any erroneous content or printing errors (even in the case of technical specifications or within graphics and technical sketches).
10. Our products are in compliance with all technical guidelines, electrical and telecommunications regulations applicable in Germany, the EU and the USA.
11. Our products and also the components contained therein (ICs, software, etc.) may only be used for civilian non-military purposes.

Data privacy and data security

1. For maximum security, the device uses the same encryption technologies as are used in online banking. For your security, no port forwarding or DynDNS is used either.
2. The data centre location for remote access over the Internet by means of an App is obligatory in the EU if the determined Internet IP-Address location of the device is within the EU. The data centre is operated in line with the most stringent security standards.
3. Video, audio and any other surveillance methods can be regulated by laws that vary from country to country. Check the laws in your local region before installing and using this device for surveillance purposes.

If the device is a door-, indoor station or camera:

• In many countries video and voice signal may only be transmitted once a visitor has rung the bell (data privacy, configurable in the App).
• Please carry out the mounting in such a way that the detection range of the camera limits the device exclusively to the immediate entrance area.
• The device may come with a visitor history and motion sensor. You can activate/deactivate this function if required.

If necessary, indicate the presence of the device in a suitable place and in a suitable form.

Please observe any relevant country-specific statutory regulations concerning the use of surveillance components and surveillance cameras applicable at the installation site.

Check with the property owner and your house community if you are allowed to install and use this product. Bird Home Automation GmbH cannot be held responsible for any miss-use or miss-configuration of this product, including the unauthorized opening of a door.

Bird Home Automation cannot be held responsible for damages caused by improper existing installations or improper installation.

Software and operating system's updates (so-called "firmware updates") are generally automatically installed on the products of Bird Home Automation GmbH via Internet, if technically possible. Automatic firmware updates keep the products' software up to date so that they always work reliably, safely and efficiently. Through further development, features can be added, extended or slightly changed. Major changes or limitations to existing features will generally occur if Bird Home Automation GmbH deems it necessary (e.g. for data protection, data security or stability reasons, or to keep them up to date). When a firmware update is available, Bird Home Automation GmbH's servers generally automatically distribute it to all compatible products connected to the Internet or Bird Home Automation GmbH's servers. This process is gradual and can take several weeks. As soon as a product receives a firmware update, the system will be installed and will restart by itself. Installed firmware updates cannot be undone. Since the products and software of Bird Home Automation GmbH are not explicitly customer-specific products, a customer cannot deny an automatic update if the product is connected to the Internet or to the Bird Home Automation GmbH's server.

Publisher

It is possible that these manual still contains typographical errors or printing errors. The information in this manual will be checked regularly and corrections will be made in the next version. We accept no liability for errors of a technical or printing nature and their consequences.

Simple line drawing of a rectangular box with internal components and a circular base (no text or symbols)

Simple line drawing of a device with no text or symbols

1x Bohrschablone

Simple line drawing of a rectangular envelope (no text or symbols)

Technical diagram of a layered electronic device with numbered components labeled 10, 11, 12, and 13.

14

10) Diagnose LED

Technical diagram of a layered electronic device with numbered components labeled 11, 12, 13, and 14.

15

Technical diagram of a mechanical assembly with numbered components, showing cross-sectional and top views.

1 2 3 4 5 6 7 8 9 10 WIFI

1) Frontblende
2) HDTV Video
3) Lautsprecher
4) Sicherheitsschrauben
5) Lichtsensor

Technical diagram of a layered electronic device with numbered components labeled 11, 12, 13, and 14.

16

145 cm 57 in 130 cm 51.18 in

Diagram showing a door with a mounted device and a lock, labeled in Chinese.

Line drawing of a wall-mounted phone unit and a doorbell (no text or symbols)

Diagram showing hand using a tool to adjust or install an electrical panel, with Chinese labels and symbols

Line drawing of a door with control panel and handle (no text or symbols)

Illustration of a control panel with buttons and display panels (no text or symbols)

Line drawing of a rectangular electronic device with control panel and buttons (no text or symbols)

Line drawing of a remote control device with buttons and a scroll (no text or symbols)

Diagram of an industrial control panel with labeled buttons and a handle, showing numeric keypad layout

1 2 3 4 5 6 7 8 9 + 0 2 CODE CODE CODE CODE ↓

Diagram of a control panel with labeled buttons and numeric keypad

Technical line drawing of a mechanical assembly with a rectangular housing and a vertical rod (no text or symbols)

Simple line drawing of a hand inserting a circular component into a rectangular box (no text or symbols)

Technical line drawing of a mechanical assembly with coiled wires and mounting brackets (no text or symbols)

Pure diagram of a rectangular device with internal components and no visible text or symbols

Pure technical diagram of a rectangular enclosure with internal layered structure and no text or symbols

5

Diagram of a smart home security system with surveillance camera and signal output (no text or symbols)

Two abstract geometric pattern with diagonal stripes in orange and green (no text or symbols)

- g 15 V DC S +

Diagram illustrating door panel door operation with labeled buttons and directional arrows indicating movement

D1101KHD1101V D1102V

Diagram showing three views of a door panel with numeric keypad and control buttons, including a magnified inset highlighting the door handle.

Illustration of a hand using a tool to mark a button or connector (no text or symbols present)

Simple line drawing of a rectangular object with a curved edge, resembling a stylized box or panel (no text or symbols)

S. Martin click

MANUEL D'INSTALLATION

Simple line drawing of a rectangular enclosure with internal compartments and a circular base (no text or symbols)

Simple line drawing of a device with a rectangular frame and control buttons (no text or symbols)

Simple line drawing of a rectangular envelope (no text or symbols)

Line drawings of electrical components including a power plug, capacitor, and socket (no text or symbols)

Illustration of four different types of dental implants or tools, including a tool with handles and multiple screws arranged in groups (no text or labels)

1x Adaptateur RJ45

à vis

Technical diagram of a device with numbered components labeled 10 to 13

14

Technical diagram of a device with numbered components labeled 11 to 14

Port public bus 15

Technical diagram of a mechanical assembly with numbered components, showing cross-sectional and top views of a housing or enclosure.

1 2 3 4 5 6 7 8 9 10 WIFI

Technical diagram of a device rear panel with numbered components and labeled parts

Technical diagram of an electronic device with numbered components and labeled parts

Conditions requises:

145 cm 57 in 130 cm 51.18 in

Line drawing of a wall-mounted control panel with buttons and a door, no text or symbols present

Line drawing of a wall-mounted control panel with circular components nearby (no text or symbols)

Sufficient air circulation must be ensured, as well as unobstructed drainage of water at the base of the installation.

Failure to do so will result in warranty being declined.

4

ASSEMBLAGE DU BOÎTIER DE MONTAGE

Technical diagram showing a hand using a tool to adjust or install a component, with dimension annotations and control buttons visible.

Pure electrical circuit lines without any symbols

Line drawing of a control panel with a knob and indicator lights (no text or symbols)

Line drawing of a control panel with buttons and display panels (no text or symbols)

Simple line drawing of a remote control device with buttons and a scroll arrow (no text or symbols)

Line drawing of a remote control device with buttons and display panel (no text or symbols)

Line drawing of a control panel with labeled buttons and a dial indicator

1 2 3 4 5 6 7 8 9 + 0 1 ↓

Technical line drawing of two electrical wall-mounted components with wiring and mounting holes (no text or symbols)

Architectural diagram showing a building with stairs and a staircase, featuring circular annotations of a vehicle and signal waves (no text or symbols present)

Diagram illustrating door panel installation steps with labeled components and directional arrows indicating movement

D1101KHD1101V D1102V

Diagram showing three variations of a door lock control panel with numeric keypad and a close-up of the lock mechanism.

Line drawing of a hand holding a small object with a bell icon, no text or symbols present

Simple 3D diagram of a rectangular object with a curved top edge, no text or symbols present

S. Martin click

ENTRETIEN DE LA FACE AVANT

Simple line drawing of a rectangular box with internal components and a circular base (no text or symbols)

Blank rectangular document with faint lines and a small printed label on top (no legible text or symbols)

Simple line drawing of a square electronic component with mounting holes (no text or symbols)

Simple line drawing of a rectangular envelope (no text or symbols)

Illustration of four different types of dental tools or implants: a tool with flat blade, a series of screws, a multi-pronged screw, and a triangular base (no text or symbols present)

Technical diagram of a layered electronic device with numbered components labeled 10 to 13

14

Technical diagram showing labeled components of an electronic device with numbered parts and a close-up view of the internal component.

Technical diagram of a device with numbered components labeled 11, 12, 13, and 14

THBS BONE LIP 16

Technical diagram of an electronic device with numbered components and labeled parts

145 cm 57 in 130 cm 51.18 in

Line drawing of a wall-mounted device with a circular button and two buttons, mounted on a door (no text or symbols)

Line drawing of a wall-mounted control panel and a circular button (no text or symbols)

Line drawing of a hand using a tool to adjust or install a wall-mounted device (no text or symbols visible)

Pure electrical circuit lines without any symbols

Two identical line drawings of a control panel with buttons and display screens, no text or symbols present.

D1101KH

Diagram of an electronic control panel with labeled buttons and a hand pointing to the button

D1101V
D1102V

Line drawing of a remote control device with keypad and buttons (no text or symbols)

Line drawing of a remote control device with buttons and a scroll (no text or symbols)

Pure technical diagram of a mechanical assembly with no visible text, numbers, or symbols

Simple line drawing of a hand inserting a screw into a container (no text or symbols)

Technical line drawing of a mechanical assembly with coiled wires and mounting brackets (no text or symbols)

Pure diagram of a rectangular structure with internal parallel lines and labeled points (no text or symbols)

Pure technical diagram of a rectangular box with internal curved lines and two protruding elements (no text or symbols)

Diagram of a smart home control system with sensors and access points (no text or symbols)

TRANSCEPTOR BLUETOOTH

Illustration of a hand using a tool to mark a small object on a surface (no text or symbols present)

Simple 3D illustration of a rectangular object with a curved cutout, no text or symbols present

S. Martin click

MANTENIMIENTO DE LA PLACA FRONTAL

EU DECLARATION OF CONFORMITY (DoC)

IP Video Door Station

IP Video Türstation

Type number:

Typnummer:

D11x product series, including D1101V flush-mounted version, D1101V surface-mounted version, D1101KH Classic flush-mounted version, D1101KH Classic surface-mounted version, D1101KH Modern flush-mounted version, D1101KH Modern surface-mounted version, D1101FV flush-mounted version, D1101FV surface-mounted version, D1102V flush-mounted version, D1102V surface-mounted version, D1102FV flush-mounted version, D1102FV surface-mounted version, D1101KV surface-mounted version, D1101KV flush-mounted version, D1102KV surface-mounted version, D1102KV flush-mounted version

Intended purpose:

Verwendungszweck:

IP Video Door Station

IP Video Tür Station

We, Bird Home Automation GmbH, declare under our sole responsibility that the above referenced product complies with the following:

2014/53/EU Radio Equipment Directive (RED)

2011/65/EC RoHS 2 Directive

Health & Safety (Art. 3.1.a):

The CE symbol confirms that this product conforms with the above mentioned norms and regulations.

Conformity was assessed with the aid of the accessories/components that were included with delivery and described in the manual, including the current software officially approved for release. If other accessories/components are used, or current operating software not officially approved for release by Bird Home Automation GmbH, conformity with the above mentioned directives cannot be guaranteed.

This declaration is submitted by:

Berlin, 31. September 2023

Sascha Keller CEO

Geschäftsführer
