Technical data

Parameter description Parameter value
Product name	Commercial fridge
Model	RCRC-1D450	RCRC-1D750		RCRC-1D630
Rated voltage [V~] / frequency [Hz] / current [A]	230 / 50 / 1.6	230 / 50 / 2.24		230 / 50 / 2.14
Protection class	I
Dimensions [width x depth x height; mm]	715 x 680 x 2000	740 x 990 x 1990		740 x 830 x 1990
Weight [kg]	81	104.8		93.6
Capacity [L]	351	630		485
Number of shelves	3
Cooling temperature range [°C]	2~8
Refrigerant type / amount [g]	R290 / 110	R290 / 130
AEC (Annual Energy Consumption) [kWh]	919	1364		659
Energy class	E			C
Insulation blowing gas	Cyclopentane
Climate class	4
Automatic defrosting	√
Light source	LED 18W	E14 bulb 14W
Safety lock	√
Parameter description Parameter value
Product name	Commercial fridge
Model	RCRC-2D520	RCRC-2D630	RCRC-2D750	RCRC-2D1150	RCRC-2D1340
Rated voltage [V~] / frequency [Hz] / current [A]	230 / 50 / 2.14 230 / 50 / 2.4
Protection class	I
Dimensions [width x depth x height; mm]	740 x 730 x 2000	830 x 740 x 1990	740 x 990 x 2010	1480 x 720 x 1990	1480 x 830 x 1990
Weight [kg]	93	97.2	105.4	143.2	150.4
Capacity [L]	373	485	630	800	1001
Number of shelves	3			6
Cooling temperature range [°C]	2~8
Refrigerant type / amount [g]	R290 / 130			R290 / 135
AEC (Annual Energy Consumption) [kWh]	858	659	1364	1492	1843
Energy class	D	C	E
Insulation blowing gas	Cyclopentane
Climate class	4
Automatic defrosting	√
Light source	E14 bulb 14W
Safety lock	√
Parameter description Parameter value

Product name	Commercial fridge
Model	RCRC-4D1340	RCRC-4D1160
Rated voltage [V~] / frequency [Hz] / current [A]	230 / 50 / 2.4
Protection class	I
Dimensions [width x depth x height; mm]	1480 x 860 x 1990	1350 x 810 x 2030
Weight [kg]	160.2	130
Capacity [L]	1001	800
Number of shelves	6
Cooling temperature range [°C]	2~8
Refrigerant type / amount [g]	R290 / 135	R290 / 145
AEC (Annual Energy Consumption) [kWh]	1843	4398
Energy class	E
Insulation blowing gas	Cyclopentane
Climate class	4
Automatic defrosting	√
Light source	E14 bulb 14W	LED 18W
Safety lock	√

Installation

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces. To prevent injury or damage to the unit, the appliance should be unpacked and set up by two people.
2. Maintain a distance (at least) of 20 cm between the appliance and walls or other objects for ventilation. Increase this distance accordingly if the obstacle is a source of heat.
3. Level the appliance by adjusting the screw feet. It should be placed on the level solid floor or base to reduce the vibration and noise.
4. The temperature in the place where the appliance is located must be between 10 and 32 °C. Avoid locating it in direct sunlight or near heat source such as an oven or a radiator.
5. If the unit has not been stored or moved in an upright position, let it stands upright for approximately 12 hours before operation.
6. Before using the appliance for the first time, clean the shelves and interior with warm water and some dishwasher fluid or similar neutral food grade cleaning detergent.
7. Please make sure the appliance is properly ventilated.
8. Power supply and voltage at the operating point used comply with the details on the rating label. The plug must be accessible after installation.
9. Correctly connect and disconnect the plug. When insert the plug, it must be plugged tightly when pulling out the plug, the plug should be held by hand. Never pull the supply cord directly.
10. If the appliance will be shut down for longer period, switch it off and disconnect the plug from socket outlet. Clean the appliance and leave the door & lid open to prevent odor and maintain ventilation.
11. Important! For your personal safety, this appliance must be properly grounded. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be inserted into an outlet that is properly grounded and installed. Consult a qualified electrician or service center if you do not completely understand the grounding instructions. If doubt exits as to whether the appliance is properly grounded, have a qualified electrician check the circuit to make sure the outlet is properly grounded.
12. If the cable does not reach the nearest socket, either rearrange the position of this appliance or ask a qualified electrician to fix a new socket.
13. If power is cut off, wait for at least 3 minutes before restart the appliance to avoid damaging the compressor.
14. When placing food for storage, a maximum weight of 40 kg may be placed, but not allowed to hang over the front and rear edges of the shelf!
15. Do not modify or disassemble the refrigerant circuit system – service can be done only by a qualified service.

Storing food

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Always close the door & lid when not in use.
• Do not place uncovered hot food or liquid inside the appliance.
- Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
- Avoid opening the doors for prolonged periods of time.
- The food must be put into container before placed into cabinet or on the shelf. Food must not be placed into food cabinet directly.
- When wet food/vegetable are put in the appliance, it's normal that ice (frost) can appear on the surface.

Operation

A. Temperature setting and control

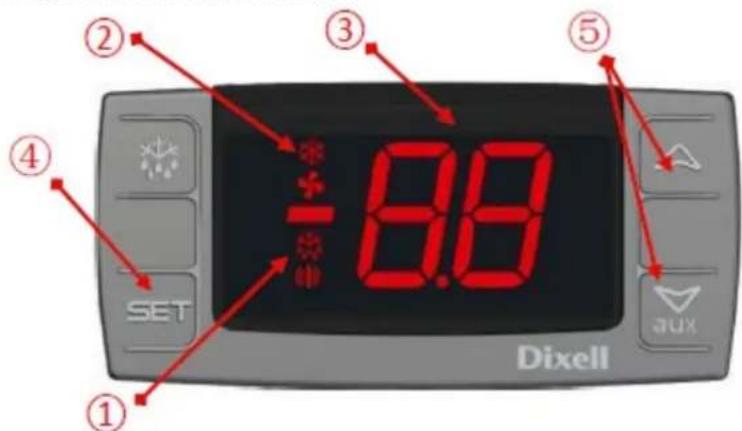

① ② ③ ④ SET -8.8 ⑤ Dixell JUX

1. Defrosting indicator light
2. Compressor operation indicator light
3. Digital thermostat

4. Selection key

5. Temperature modification button (press both buttons at once to lock or unlock the control keyboard)

Indicator light			Mode	Meaning
			On Compressor enabled
			Flashing	Anti short-cycle delay enabled
			On Defrost in progress
			Flashing Dripping in progress
			On	Temperature indication unit (Celsius).
			Flashing In programming mode
			On	Temperature indication unit (Fahrenheit).
			Flashing In programming mode

B. Turning on the appliance

1. Close all the doors of the appliance.
2. Ensure the backlit power switch is set to "O" and put the power cord's plug to the electric socket.

3. Switch on the power supply by putting the power switch on the "I" position. The current temperature within the appliance is displayed.

4. The thermostat on the control panel flash for 3 min for anti-short cycle delay between the motor compressor stop and the following restart.

C. Checking the set point

• Push and immediately release the "SET" key and the set point will be showed;
• Push and immediately release the SET key or wait about 5s to return to normal visualization.

D. Changing the set point

1. Push and keep pushed the "SET" key for more than 2 s to change the set point value;
2. The value of the set point will be displayed and the "oC" starts blinking;
3. To change the set value push the UP or DOWN arrows within 10 s.
4. To memories the new set point value push the SET key again or wait 10 s.

E. Defrosting

This appliance is equipped with Auto-defrosting function, so manual defrosting not needed. This process starts when the appliance is initially powered up and starts working. The frost is automatically removed every 6 h.

Maintenance

A. Routine

• Switch off and disconnect from the power supply before cleaning.
• Clean the enclosure and interior of the appliance as often as possible.
• Wash the unit with moist cloth. Never allow the switch, control panel, cable or plug to get wet.
• Do not use abrasive cleaning agents. These can leave harmful residues. Use only water with some dishwasher fluid or similar food grade mild detergent.
• Clean the door seal with water only.
  • Do not use pressurized water for cleaning.
• Ensure that no cleaning water penetrates into the electrical components.
  • Always wipe dry after cleaning with soft cloth.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
  • Take care when cleaning the rear of the appliance.
  • An agent or qualified technician must carry out repairs if required.
• If the appliance is to be left inactive for long periods, unplug the appliance after having turned the switch to off "O" position, empty the refrigerating compartment and clean thoroughly.

B. Periodically

• Periodically clean the condenser using suitable tools (vacuum cleaner or soft brushes)
• Check that the electrical connections are not loose.
- Check that the thermostat and the sensor are in proper working order.
• Periodically cleaning the condenser can extend the life of the appliance.
- Recommend that an agent or qualified technician clean the condenser.
• The key to the electrical cabinet should be kept out of the reach of children and users.
- Only use the key to open the lock.

Troubleshooting

Problem	Possible cause	Action
The appliance is not working	The unit is not switched on	Check the unit is plugged
	Plug and lead are damaged	Call your agent or qualified technician
	Fuse in the plug has blown (UK)	Replace the fuse (UK plug)
	Power supply	Check power supply
	Internal wiring fault	Call your agent or qualified technician
The appliance turns on, but the temperature is too high/ low	Too much ice on the evaporator	Defrost the appliance
	Condenser blocked with dust	Call your agent or qualified technician
	Doors are not shut properly	Check the doors are correct shut and seals are not damaged
	Appliance is located near a heat source or the air flow to the condenser is being interrupted	Move the refrigerator to a more suitable location
	Ambient temperature is too high	Increase ventilation or move appliance to a cooler spot
	Unsuitable foodstuffs are being position stored in the appliance	Remove any excessive hot foodstuff or blockages to the fan
	Appliance is overloaded	Reduce the amount of food stored in
The appliance is unusually loud	Loose nut/screw	Check and tighten all nuts and screws
	The appliance has not been installed in a level or stable position	Check the installation position and change if necessary
The appliance is leaking water	The appliance is not properly leveled	Adjust the screw feet to level the appliance (if applicable)
	The discharge outlet is blocked	Clear the discharge outlet
	Movement of water to the drain is obstructed	Clear the floor of the appliance (if applicable)
	The water container is damaged	Call your agent or qualified Technician
	The drip tray is overflowing	Empty the drip tray with sponge
