We are delighted that you have chosen this equipment. In the case of a defect, please return the device together with the receipt and original packing material to the point of sale.

Intended use

The label printer is used to print labels. Any other use is considered improper use. Unauthorised modifications or conversions that are not described in these operating instructions are not permitted and will result in damage to this product. Proper installation and observance of and compliance with the instructions in this operating manual are prerequisites for the intended use of the device.

Table of contents

Warranty 17

Intended use....17

Important safety instructions....18

Instructions for use 20

Scope of delivery 20

Product overview 21

Charge battery 21

Download app....21

Establish connection....23

Create label 24

Print templates 26

LED display 27

Cleaning 28

Cleaning the print head 28

Troubleshooting 28

Notes on disposal....29

Technical data....29

Battery information 30

Technical changes 30

Data protection information 31

Declaration of Conformity. 31

Manufacturer 31

Important safety instructions

Danger! Danger of electric shock! Never open or repair the appliance yourself. Never touch bare contacts with metal objects. Never handle the product with wet hands. Do not operate the product if it is damaged.

Danger! Choking hazard due to small parts, packaging materials and protective film! Keep children away from the product and its packaging.

Danger! Risk of strangulation due to hand strap. Keep children away from the product.

Warning! Risk of injury due to integrated blade. Do not press the cutting button when the lid is open.

Caution! There are various dangers when handling rechargeable batteries. Please note the following information:

• Do not short-circuit the battery and do not open the battery. Overheating, fire hazard or explosion may result.
• Improper handling of rechargeable batteries can endanger your health and the environment. Rechargeable batteries can contain toxic and environmentally harmful heavy metals (e.g. Cd = cadmium, Hg = mercury, Pb = lead).
• Never throw batteries into fire or water and/or subject them to mechanical stress.

• Leaking batteries can damage your device. Use protective gloves when handling damaged or leaking batteries and avoid any contact with skin, eyes and mucous membranes.

• Avoid extreme conditions and temperatures, e.g. from radiators or direct sunlight.

• You are legally obliged to dispose of rechargeable batteries at your dealer or via the collection points provided by the responsible waste disposal organisation.
• Do not touch damaged or leaking batteries.

Caution! Risk of jamming when closing the lid!

Caution! Risk of burns due to hot print head! Do not touch the print head directly after operation.

Attention! Material damage possible! Use a power supply unit with max. 5 V DC / 1 A for charging.

Attention! Attention! Bluetooth can cause interference! Make sure that several Bluetooth devices are not too close to each other.

Attention! Material damage possible! Only use label rolls recommended by the manufacturer.

Attention! Material damage possible! If the product exhibits unusual characteristics such as noise, odour or smoke, disconnect the power supply immediately or switch off the appliance.

Attention! Material damage possible! Do not drop or shake the appliance.

Instructions for use

Please read these operating instructions before using the device. Keep these operating instructions for future reference. Hand over all documents when passing the device on to third parties.

• Protect the device from direct sunlight, naked flames, heat sources, moisture, humidity and dust.
• High ambient temperatures can lead to poor print quality.
• The appliance is not intended for commercial use.
• Only connect the device to a properly installed socket for charging. Observe the information under Technical data.
• Only use accessories that fulfil the requirements under Technical data.
• Do not open the lid during operation.
• Ensure that the appliance is not used unsupervised by children or persons with reduced physical, sensory or mental capabilities.
• Make sure that the label compartment and the print head are free of dirt.
• The appliance is not suitable for continuous operation.
• Do not remove or damage the label on the side of the label roll.

Scope of delivery

1 Label printer P22
1 charging cable
1 label roll
1 Operating instructions

Product overview

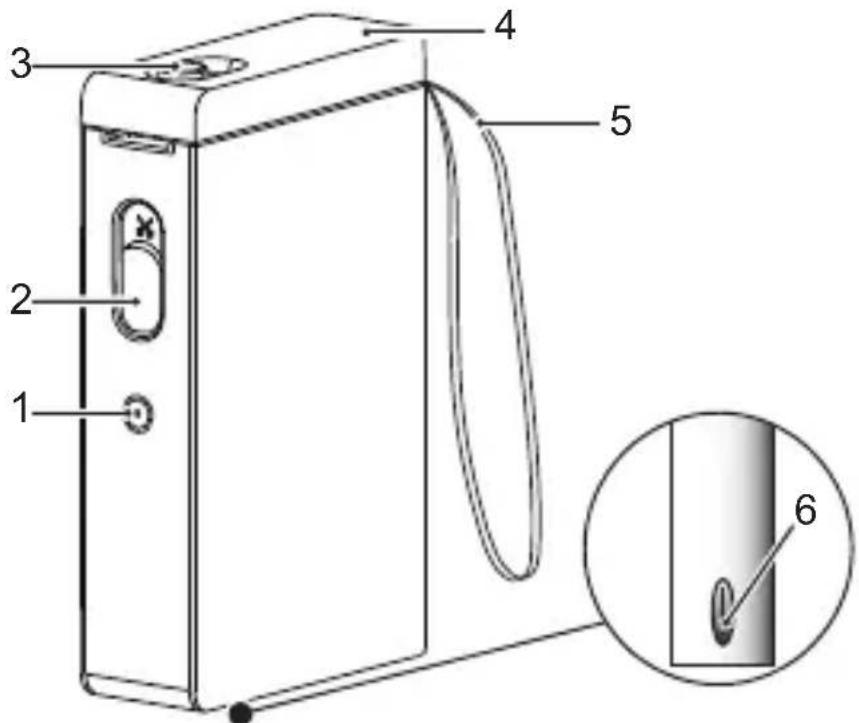

Technical diagram of a device with numbered parts and an inset close-up showing a small component labeled 6.

1 On/off/feed button 4 Lid

2 Cut button 5 Hand strap

3 Unlock button 6 USB-C connection

Charge battery

Charge the device fully before using it for the first time. You can see the battery status in the app.

Download app

Download the "Labelnize" app. Scan the following QR code with your mobile phone. Alternatively, use the Google Play Store for Android devices or the App Store for Apple devices.

QR code with central logo and text 'LABEL WZE' visible in the image

Important: You can use the "Labelnize" app without registering or logging in.

Should you nevertheless register or log in, please note the data protection information of the "Labelnize" app.

Insert label roll

1 Slide the release button to open the lid.

2 Insert the label roll into the tray. Pay attention to the correct positioning.

3 Unroll the paper so that it protrudes slightly from the printer.

4 Close the lid. Press and hold the on/off/advance button to switch on the appliance.

5 Briefly press the on/off/feed button to calibrate the label. The printer outputs a test print.

Note: The printer automatically recognises the format of the inserted label roll.

Note: Only use label rolls recommended by the manufacturer.

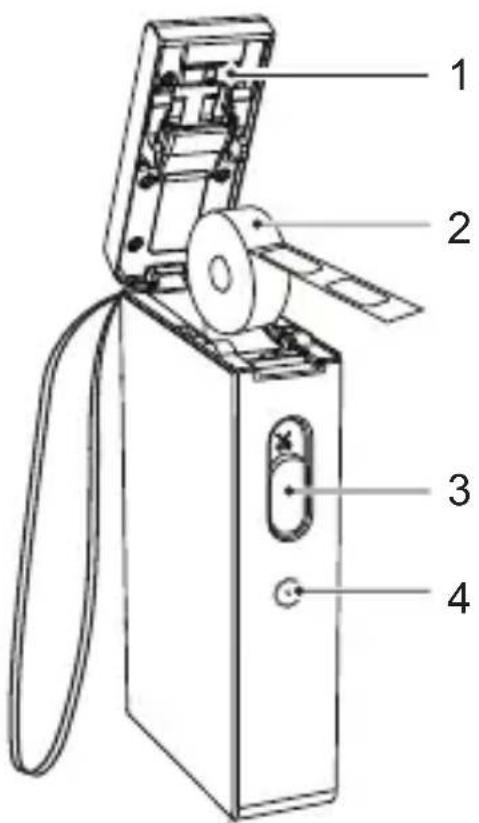

Technical diagram of a device with numbered parts labeled 1 to 4, showing internal components and wiring.

1 Print head 3 Cut button

2 Label roll 4 On/off/feed button

Establish connection

1 Switch on Bluetooth on your mobile phone.
2 Switch on the device.

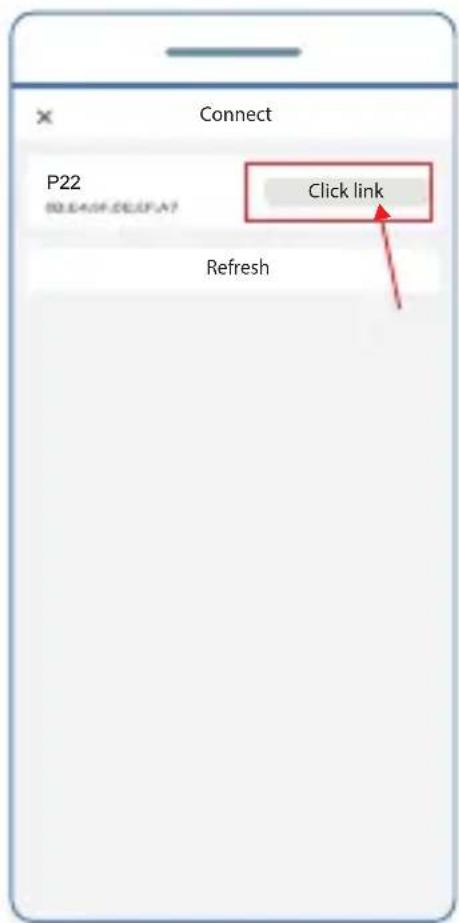

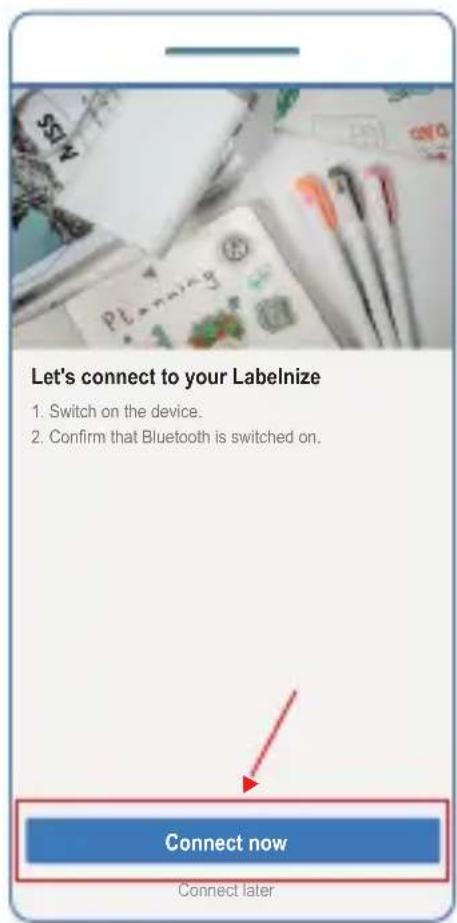

3 Open the app and establish a connection.

Let's connect to your Labelnize 1. Switch on the device. 2. Confirm that Bluetooth is switched on. Connect now Connect later

Connect P22 00.640F.DELUF.A7 Click link Refresh

(The images show the iOS version of the app.)

Create label

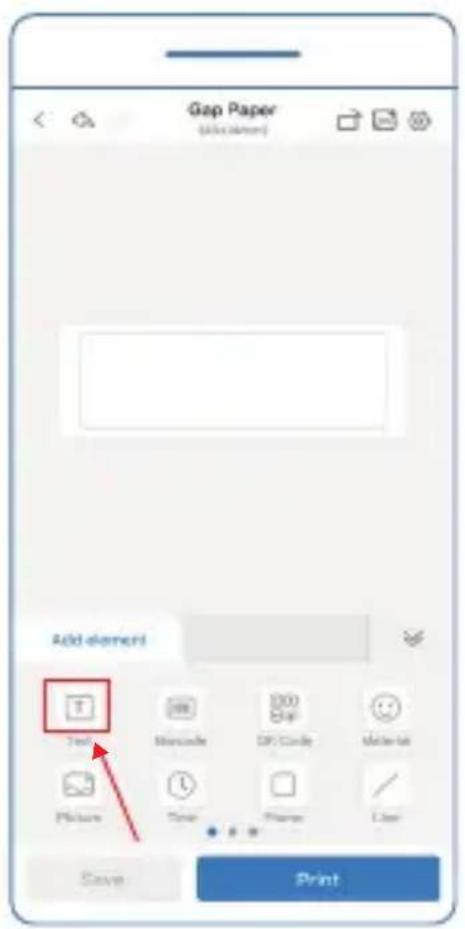

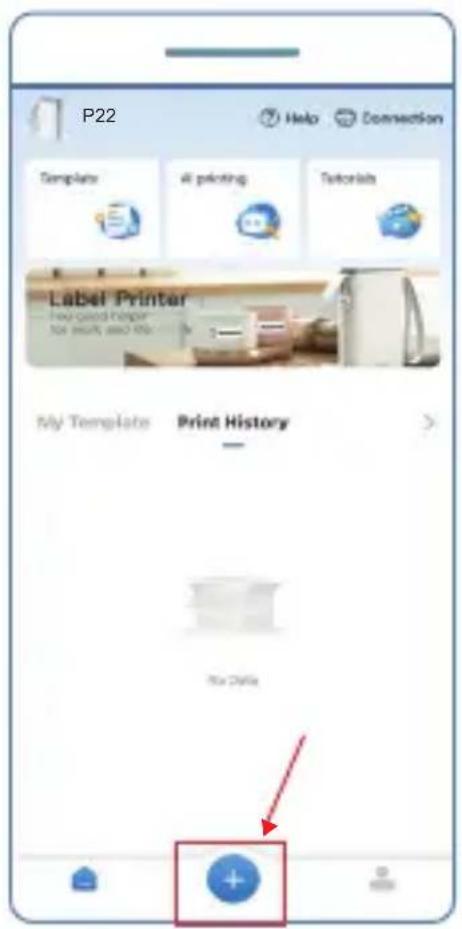

1 Tap on
2 Tap on

P22 Help Connection Templates at printing Tutorials Label Printer My Good Helper for much and no My Template Print History - For Change +

Gap Paper (employees) Add element Text Membrane DPI Code Material Picture Time Phone User Save Print

(The images show the iOS version of the app.)

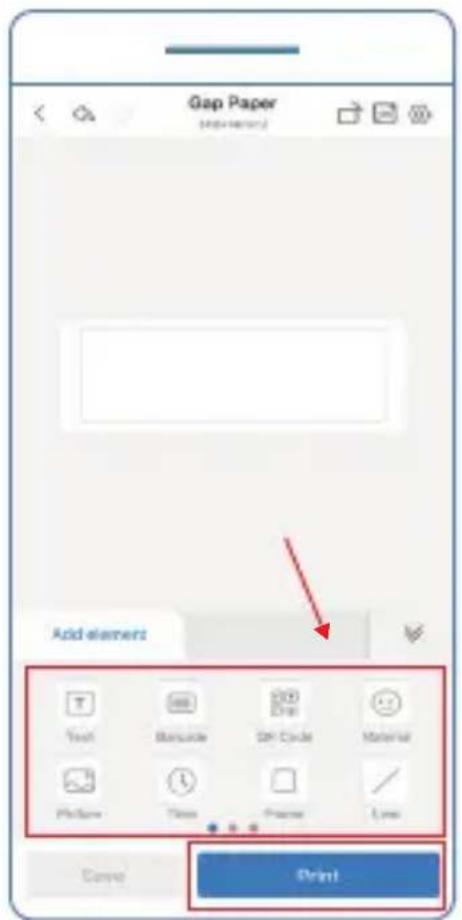

3 Select one or more elements for editing.

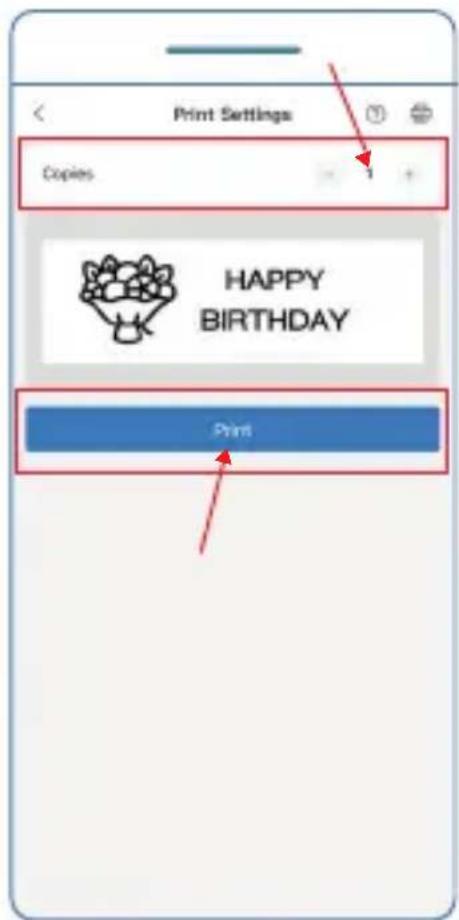

4 Select the number of copies and print the label.

Gap Paper Add elements Text Blendside SF Cycle Material Printer Tens Paper Line Copy Print

Print Settings Copies HAPPY BIRTHDAY Print

(The images show the iOS version of the app.)

5 Once finished, move the cut button upwards to cut the label.

Print templates

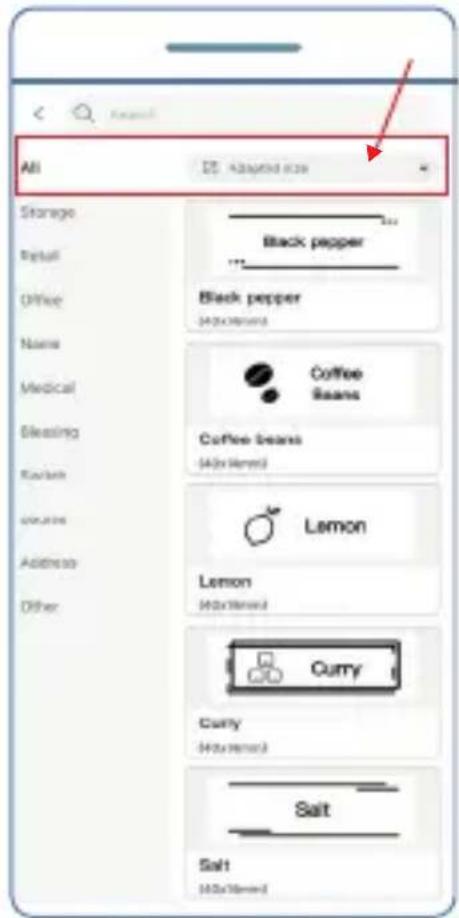

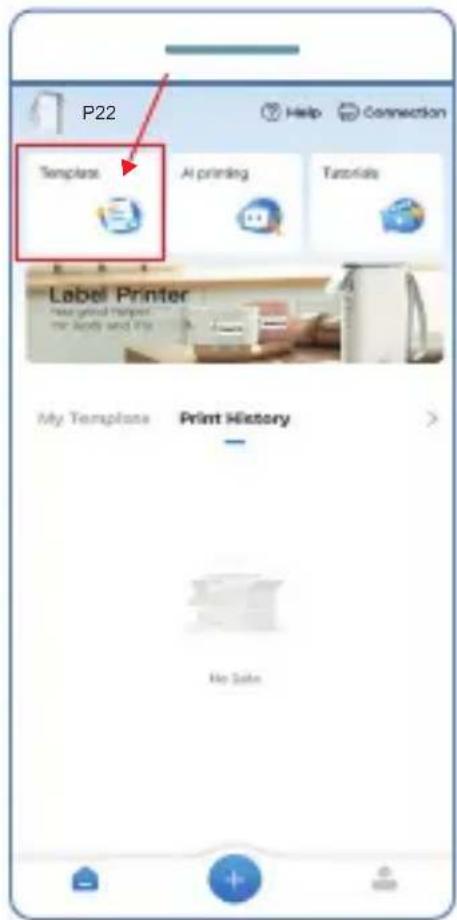

1 Select the desired template.

P22 Template AI printing Tutorials Label Printer My Templates Print History No Scales

All Adapted ice Storage Black pepper Retail Black pepper Office Coffee beans Bleeding Coffee beans (All Years) Lemon Lemon Mourished Curry Curry Mourished Salt Salt Mourished

(The images show the iOS version of the app.)

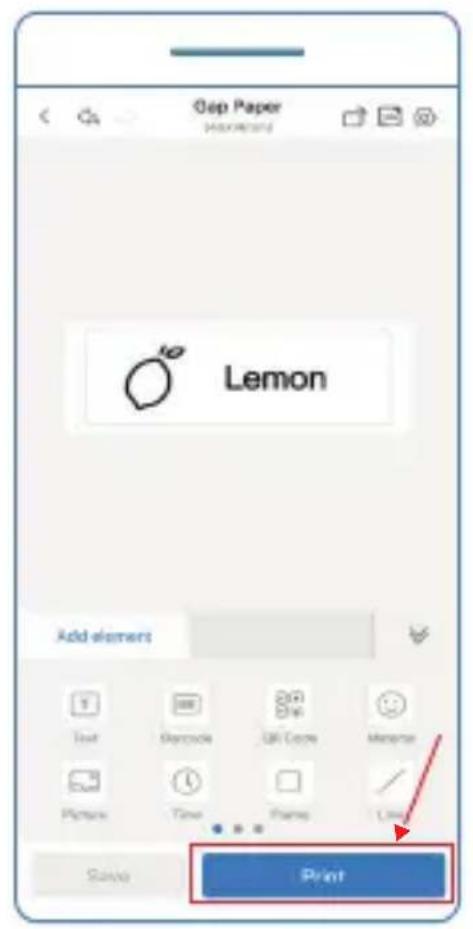

2 Edit the selected template if required.

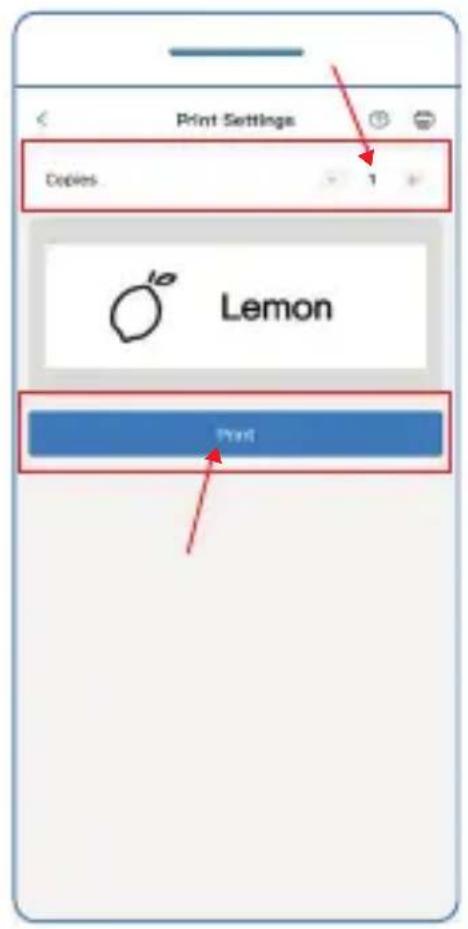

3 Select the number of copies and print the label.

Gop Paper Lemon Add elements Text Recycle UF Copy Message Picture Time Frame Use Save Print

Print Settings Copies 1 Lemon Print

(The images show the iOS version of the app.)

4 Once finished, move the cut button upwards to cut the label.

LED display

Status Meaning
Light off Charging	process completed /Device switched off
Glowing green Device switched on
Flashing green Charging process
Glowing red Cover open / paper is used up
Flashing red Low battery / print head overheated
Glowing blue Bluetooth connection successful

Cleaning

1 Switch off the device.
2 Clean the outside of the appliance with a soft, dry, lint-free cloth. Do not use any cleaning agents or solvents.

Cleaning the print head

1 Switch off the device.
2 Allow the appliance to cool down.
3 Open the lid.
4 Clean the print head with a cotton bud moistened in alcohol (ethanol or IPA).

Troubleshooting

Malfunction Solution
The device does not start	Check whether the device is switched on.Check whether the device is connected to the app.
The labels are not aligned correctly	Briefly press the on/off/feed button to recalibrate the label.If necessary, change the label format in the app.
The labels are not clearly printed	Check that the print head is clean. Clean the print head if necessary.Only use label rolls recommended by the manufacturer.

Notes on disposal

Find out about the options for taking back old appliances and used batteries free of charge from your retailer.

The packaging is made from environmentally friendly materials that can be disposed of at local recycling centres. Ask your local authority about the options for correct disposal.

Observe the labelling of the packaging material when separating waste; these are marked with abbreviations (b) and numbers (a) with the following meaning: 1–7: Plastics / 20-22: Paper and cardboard / 80-98: Composite materials.

Faulty or used batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Return batteries and/or the device to the collection facilities provided.

The adjacent symbol means that old electrical and electronic appliances must be disposed of separately from household waste in accordance with legal regulations. Dispose of your appliance at the collection point of your municipal waste disposal organisation.

Technical data

Printing technology Direct thermal

Resolution 203 dpi

Roll width 15 mm

Pressure range 12 mm

Label type Single / Endless

Bluetooth 5.1

Knives Manual

Battery 1300 mAh

Connection USB-C

Required power supply 5V DC / 1A unit

Ambient conditions 0 °C to 40 °C at 30 % to 75 % humidity

Automatic switch-off function Never, 15 min., 30 min., 60 min.

Weight 172 g

Dimensions 79.5 x 30 x 130.6 mm

Battery information

Manufacturer: Huizhou huiwang Electronics Technology Co., Ltd. ,Huifeng 7th Road, Commercial and Residential Building, Huizhou, Guangdong, China

Li-ion battery: 0 % mercury, 0% cadmium, 3.7V, 1300mAh

Technical changes

These operating instructions are for information purposes only. Their content is not the subject matter of the contract. All data shown are only nominal values. The equipment and options described may vary depending on the country-specific requirements.

Data protection information

Go Europe GmbH is not the provider of the "Labelnize" app and assumes no responsibility for data protection and the processing of personal data collected or processed via external services or platforms. The provider of the "Labelnize" app is responsible for protecting your personal data. Please read the privacy policy of the relevant provider for information on their data processing practices.

Declaration of Conformity

QR code image containing encoded data, no visible human-readable text

We, GO Europe GmbH, Zum Kraftwerk 1, 45527 Hattingen, GERMANY, declare under our sole responsibility that the product complies with EU directives: 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity can be found at the following Internet address or by scanning the QR code.

The CE mark on the device confirms conformity. The declaration of conformity can be found at: http://productip.com/?f=2d3b37

Manufacturer

GO Europe GmbH

Zum Kraftwerk 1

45527 Hattingen, Germany

www.go-europe.de

[e-mail]
