Product type	Programmable logic controller (PLC) with AS-i master
Brand	IFM
Model	AC1355
Power supply	24 V DC (20...30 V), SELV, with galvanically isolated power supply and UL fuse (max. 5 A for 0...20 Veff or 100/Vpeak for 20...30 Veff)
Interfaces	RS232C (4800...115200 baud), Ethernet 10/100 Mbps (RJ45), Profibus DP (9600...12 MBaud), 2 x AS-i (AS-i master)
Protocols	TCP/IP, Modbus TCP (diagnostic), UDP, CoDeSys
Display	LCD screen with contrast adjustment (right button + up/down)
LED indicators	PWR/COM, PROJ, CONF/PF, ETH NET, PROFIBUS
Protection rating	IP20 (mounting in electrical cabinet)
Mounting	On 35 mm profile rail with ground connection
Main functions	AS-i bus control, signal preprocessing, gateway mode, standalone PLC, CoDeSys programming
Programming	Via CoDeSys software on RS232C (cable E70320) or Ethernet
Safety	Galvanically isolated power supply, user password (default 'CE01' for user mode)
Maintenance	Clean with a dry cloth, avoid dust, condensation, vibrations and shocks
Repairability	Spare parts available on request (e.g. programming cable E70320)
Operating conditions	Environment without condensation, IP20, mounting away from frequency inverters
Number of AS-i slaves	Up to 31 slaves per master (1 master on AC1355)
PC distance	RS232C: max. 20 m; Ethernet: depending on cable; Profibus: depending on baud rate
Update	Operating system via System Setup menu (specific software required)
Required accessories	Specific AS-i power supply (e.g. AC1216), programming cable E70320

Frequently Asked Questions - AC1355 IFM

How to connect the controller to a PC?

Use the programming cable E70320 on the RS232C interface. The maximum distance is 20 meters. You can also use the Ethernet interface (RJ45) with TCP/IP.

What is the required power supply?

The controller requires a 24 V DC (20...30 V) SELV power supply with galvanic isolation and a UL fuse (5 A max for 0...20 Veff or 100/Vpeak for 20...30 Veff). Use a specific AS-i power supply like the ifm DN2011.

How to adjust the screen contrast?

Press simultaneously the right button and the up button (to lighten) or down button (to darken) to adjust the contrast.

What do the LEDs on the front panel mean?

PWR/COM: AS-i power present and at least one slave detected (solid) or no slave (blinking). PROJ: project mode (solid) or unable to switch to protected mode (blinking). CONF/PF: configuration fault (solid) or periphery fault (blinking). ETH NET: Ethernet data exchange. PROFIBUS: Profibus bus error.

How to change the menu language?

Press simultaneously the two navigation buttons (up and down) to toggle between German and English.

How to reset to factory settings?

Go to the 'System Setup' menu and select 'Factory reset'. Warning: this erases all customized settings.

What is the maximum number of AS-i slaves supported?

The AC1355 controller has one AS-i master and can handle up to 31 slaves per master (addresses 1 to 31).

How to program the controller?

Use the CoDeSys software. Connect via the RS232C interface (cable E70320) or Ethernet. Network global variables and CoDeSys functions are compatible.

What is the default password for user mode?

The default password to reactivate user mode is 'CE01'. Enter an invalid password (e.g. 1000) to lock the settings.

Can I use a standard 24 V power supply?

No, a specific AS-i power supply (e.g. AC1216) is necessary because standard switching power supplies suppress AS-i data signals. The AS-i power supply ensures data decoupling.

USER MANUAL AC1355 IFM

Line drawing of a server rack with indicator lights and terminal blocks (no text or symbols)

Function and features

• The controller _e integrates one or two AS-i masters (AC1355/AC1356, both in accordance with the AS-i version 3.0), a mini controller, an Ethernet interface and a Profibus DP interface.
• It controls the exchange of data to the sensor/actuator level
• processes the peripheral data in the integrated processor (signal preprocessing)
• works as stand-alone controller with exchange of data to the PC (visualisation)
• communicates with the higher control level (in the gateway mode)

Programming interface RS232C

• Baud rate 4800 to 115,200 baud
- Max. distance between controller e and PC: 20 m
- Potential separation from the controller e power supply
- Programming cable E70320 for connection to PC required

Ethernet programming interface

• 10 Mbps and 100 Mbps
- TCP/IP - Transport Control Protocol/ Internet Protocol
- Modbus TCP (only as diagnostic interface)

The outputs are not reset when the connections are disconnected (no watchdog function)

• UDP - User Datagram Protocol
• Support of the CoDeSys programming functions and the global network variables
• RJ45, Twisted-Pair

Profibus-DP interface

• baud rate 9600 baud to 12 MBaud
• max. distance between controller e and DP master: depending on the baud rate
• potential separation from the controller e power supply
• up to 31 controllers connected in parallel per segment
• pin connection: pin 3: signal B, pin 8: signal A

Installation

Fix the controller e onto a 35 mm DIN rail which has an electrically safe ground connection. The protection rating of the unit is IP20, therefore it should be mounted in a protected location (e.g. control cabinet).

Ensure a condensation-free environment. Avoid excessive dust, vibration and shock. The air circulation through the vents must not be impeded.

Avoid installation in direct vicinity of frequency inverters.

Electrical connection

Disconnect the installation from power. Connect the unit as indicated on the terminals. Never connect the minus potentials to each other or the minus potentials to the FE connection.

Ensure an electrically safe ground connection between AS-i controller _e (terminal FE) and ground connection of the unit.

Supply the controller _e with a 24 V DC voltage (20...30 V PELV), e.g. from the 24 V power supply DN2011 of ifm electronic. The connection is made to the terminals +24 V and 0 V.

Operating and indicating elements

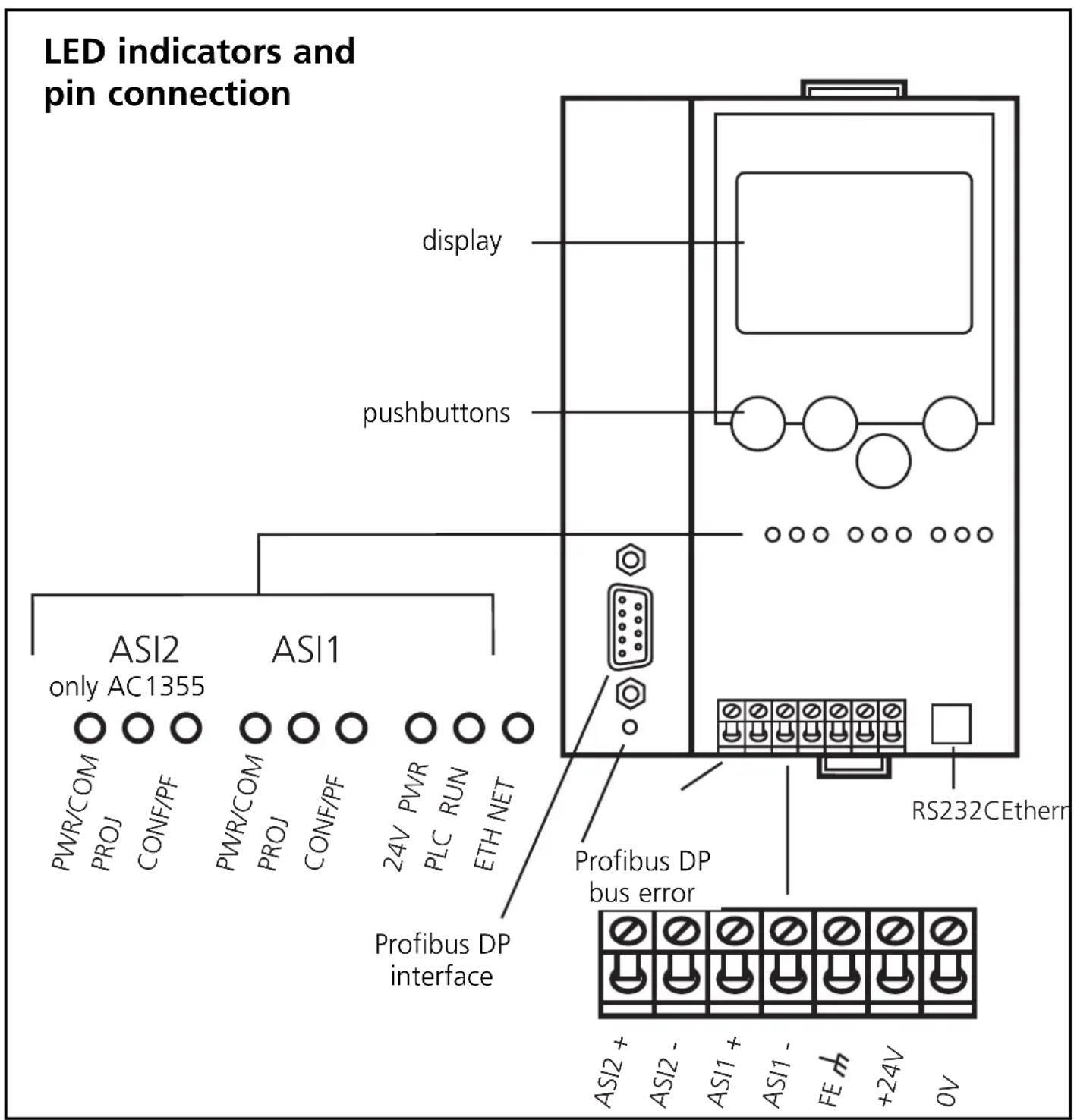

Information concerning the state of the master (AC1355)/masters/AC1356) and the connected system is given via three diagnostic LEDs on the controller _e .

• LED PWR/COM lights: AS-i voltage present, at least one slave was detected
• LED PWR/COM flashes: AS-i voltage present, but no slave was detected correctly
• LED PROJ lights: Projection mode active, the configuration monitoring is deactivated

• LED PROJ flashes: Projection mode active, changeover to protected mode not possible as a slave with the address 0 is connected

• LED CONF/PF lights: Projected and current configuration do not match

• LED CONF/PF flashes: Periphery fault on at least one connected slave
  • LED ETH NET: Exchange of data via the Ethernet interface
  • LED PROFIBUS lights: Bus error Profibus DP

Contrast setting

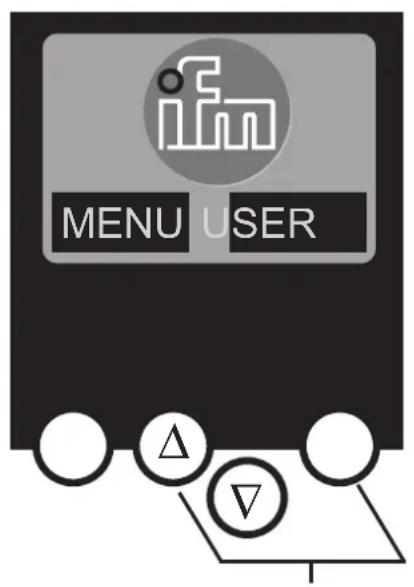

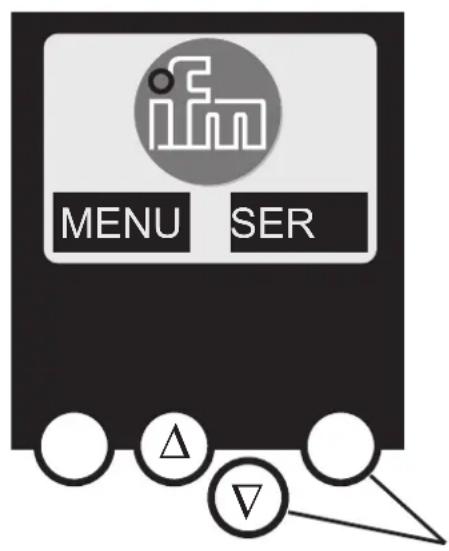

The contrast can be directly changed by simultaneously pressing the right button and the -button (too bright) or the -button (too dark).

increase contrast

decrease contrast

Operation

To operate an AS-i system a special AS-i power supply is required (e.g. AC1216). The AS-i power supply supplies the yellow AS-i cable with energy and implements a data decoupling to the voltage regulator of the power supply. Standard switched-mode power supplies would consider the AS-i data signals as interference signals and suppress them.

Disconnect the power supply before connecting the controller _e .

The AS-i system is operated ungrounded. AS-i + and AS-i - are to be symmetrical to the ground potential of the installation.

Ensure a low resistance connection of the symmetry point of the AS-i power supply (terminal shield) to the ground of the installation.

Menu overview

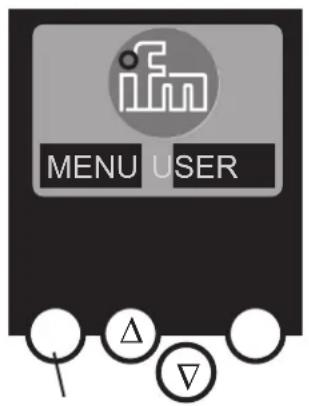

Open the main menu by pressing the left button "MENU" in the start display.

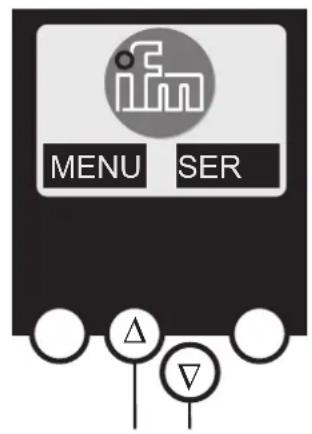

To navigate within a menu point press the button or .

Press the buttons simultaneously to switch between the German and English menu.

MENU button

navigation buttons

Password

Important:

When selecting 'Password' in the 'System Setup' menu, operation can be restricted or released.

When delivered, the device is in the user mode. By entering an invalid password (e.g. 1000) all menu items that allow settings to be changed will be blocked.

By entering the password 'CE01' the user mode is enabled again.

The password is stored non-volatily by the System Setup / Store System menu item.

Menu navigation

By pressing the left button in the start display (AS-i error diagnostics) the main menu is opened. The two buttons in the middle allow scrolling through the menu.

O Quick Setup (summary of the menu items for a basic configuration)

∇ 'Teach in' of the current AS-i configuration (Project all)

∇ Settings of the fieldbus interface (option)

O PLC Setup (settings of the optional PLC)

∇ Switch the gateway mode on or off (operation without PLC)
∇ Start and stop the PLC in the controller _e (if used)
∇ plc project name, version, date and author

O Slave Lists (Checking of the addresses of the connected AS-i slaves)

∇ Indication of the list of detected slaves (LDS)
∇ Indication of the list of projected slaves (LPS)
∇ Indication of the list of activated slaves (LAS)
∇ Indication of the list of periphery faults in AS-i slaves (LPF)

O Address Slave (Programming of the addresses of the connected AS-i slaves)

∇ Readdressing of an AS-i slave connected to the controller _e
∇ Automatic addressing of new AS-i slaves to the next free address (easy start-up)

O Diagnostics (diagnostics of the connected AS-i networks)

∇ Counting the AS-i voltage dips since power on of the controller e
∇ Counting the AS-i configuration errors since power on of the controller e
∇ Verify the fault rate of the AS-i messages of the connected AS-i system
∇ Indication of the number of connected AS-i slaves and the cycles per second
∇ List of the AS-i slaves with faulty messages since power on of the controller _e
∇ Reset of the error counter
∇ Indication of the maximum system cycle time
∇ Reading the diagnostic information of Safety-at-Work monitors

O Master Setup (information on the AS-i master system)

∇ 'Teach in' of the current AS-i configuration (project all)
∇ Changeover to the projection mode: configuration of the AS-i system
∇ Changeover to the protected mode: normal operation (master monitors configuration)
∇ Enable the automatic AS-i slave addressing in the protected mode
∇ Deactivation of the AS-i reset during the change to the protected mode

O Fieldbus Setup(Setting of the optional fieldbus interface)

∇ Setting of the device address of the controller _e in the higher-level fieldbus
∇ If necessary further settings of the higher-level fieldbus

O Slave Info (Details about the connected AS-i slaves)

∇ Indication of the digital or analogue inputs / outputs of the connected AS-i slaves
∇ Indication of the parameters of the connected AS-i slaves
∇ Indication of the ID and IO codes of the connected AS-i slaves
∇ Indication of the transmission errors to the connected AS-i slaves

O Slave Setup (settings of the connected AS-i slaves)

∇ Forcing the parameters of the connected AS-i slaves
∇ Forcing the digital or analogue inputs / outputs of a connected AS-i slave

O System Setup (Device settings of the controller _e )

∇ Store the current system settings
∇ Setting of the baud rate of the serial programming interface
∇ Setting of the parameters of the Ethernet programming interface (option)
∇ Enter the new password to disable or enable the menu functions
∇ Update the controller e operating system (special software required!)
Reset to the factory settings of the controller e

O System info (Device information)

∇ hardware and operating system version numbers of this controller _e
∇ type and version number of the optional fieldbus interface

Limited voltage / Current

The device shall be supplied from an isolating transformer having a secondary Listed fuse rated either

a) max 5 amps for voltages 0\~20 Vrms (0\~28.3 Vp) or

b) 100/Vp for voltages of 20\~30 Vrms (28.3\~42.4 Vp).
