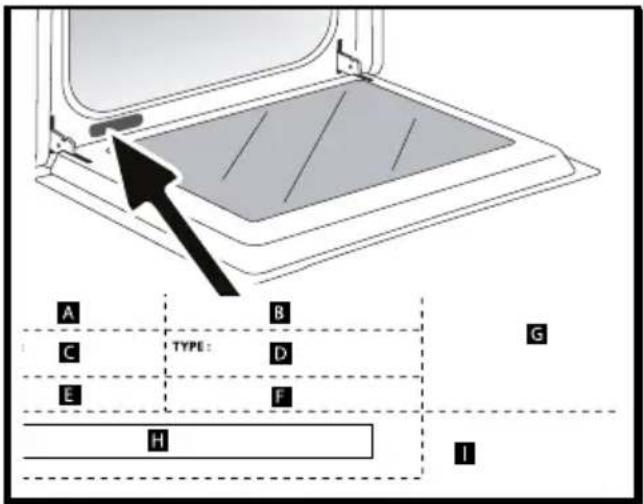

A C TYPE: B D E F H I G

B: Handelsreferenznummer
C: Service-Referenznummer
H: Seriennummer

ORIGINAL-ERSATZTEILE

Black-and-white photo of a bowl with mint leaves and a flower, surrounded by other bowls (no visible text or symbols)

ΟΔΗΠΕΣ ΧΡΗΣΗΣ EL

Οδηγιεσ Χρησησ

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Αγαπητέ Πελάτη,

QR code image containing encoded data, no visible human-readable text

Σημαντικό:

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a circular icon and letter C.

ΗΛΕΚΤΡΙΚΗ ΣΥΝΔΕΣΗ

1000 W 9:30 13:20 X2 13:28 13:28

1000 W 900 00:00 00:20 00:20

A C E H TYPE: B D F I G

Black-and-white photo of a dessert with a mint leaf garnish, blurred background objects (no text or symbols visible)

USER GUIDE EN

Microwave oven

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Dear Customer,

Thank you for purchasing and placing your trust in a BRANDT product.

We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. This product benefits from our know-how, our innovative spirit and the passion that has been guiding us for over 60 years.

In a continuous effort to better satisfy your needs, our customer service department is available to listen and answer all your questions and receive any suggestions you may have.

We also invite you to visit our website www.brandt.com where you will find the very latest innovations, along with some additional, useful information.

BRANDT is pleased to be on hand to offer daily support and to help you make the most of your purchase.

ORIGIVE FRANCE® GARANTIE

The label "Origine France Garantie" assures the consumer the traceability of a product by giving a clear and objective indication of the source. Brandt brand is proud to affix this label on products from our French factories based in Orléans and Vendôme.

https://brandt.com/

QR code image containing encoded data, no visible human-readable text

Important:

Before using your appliance, read this user guide carefully to familiarise yourself more quickly with its operation.

SAFETY INSTRUCTIONS 4

ENVIRONMENT AND ENERGY SAVING 7

Environment 7

Energy Saving Council 7

installation of your appliance 8

Choice of location and installation ....8

Electrical connection 9

Description of your appliance 10

Presentation of the oven 10

Display and control keys 10

Operating principle 11

Using your device 12

Settings 12

Settings menu 13

Cooking methods 14

Starting a cooking process 14

Caring for your appliance 16

Cleaning inside - outside 16

Anomalies and solutions .... 16

After-sales service 17

Interventions 17

COOKING AID 18

Tests of fitness for duty 18

IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY AND RETAIN FOR FUTURE USE.

This user guide is available for download on the brand's website.

Important:

Before switching your appliance on, please read this installation guide carefully to familiarise yourself quickly with its operation. Keep this manual with the appliance. If you sell or give the appliance to anyone else, make sure that you also give them this manual.

Please read this advice carefully before installing and using your appliance. It is intended to protect your safety and the safety of others.

— This appliance is designed to be used for domestic and similar applications such as: Kitchen areas for the staff of shops, offices and other professional premises. Farms. Use by clients of hotels, motels and other residential type establishments; guest house type environments.

— This appliance may be used by children aged 8 years and older, and by persons with

impaired physical sensorial or mental capacities, or without experience or knowledge, if they are supervised or have received prior instructions on how to use the appliance safely and have understood the risks involved. Children must not be allowed to play with the appliance. Cleaning and maintenance operations must not be carried out by children without supervision.

— Children must be supervised to prevent them from playing with the appliance.

WARNING: The appliance and its accessible parts become hot during use. Be careful not to touch the heating elements inside the oven. Children under 8 years old must not be allowed near it unless they are supervised at all times.

It is dangerous for anyone other than a qualified person to perform maintenance or repairs that requires the removal of the cover providing

protection against exposure to microwave power.

Liquids and other foods must not be heated in sealed containers, as they may explode.

Only allow children to use the oven without supervision if adequate instructions have been given so that the child is able to use the oven safely and understands the dangers of incorrect use.

If the appliance is being used in combination mode, it is recommended that children only use the oven under adult supervision due to the temperatures generated.

— Only use utensils suitable for usage in microwave ovens. — While heating food items in plastic or paper containers, monitor the micro-wave's contents, since there is a risk of spontaneous combustion.

— If smoke appears, stop or unplug the oven and leave the door closed to smother any flames that may appear.

— Heating beverages in the microwave oven can cause the sudden and/or delayed splattering of boiling liquid,

so care must be taken when handling their containers.

— The contents of baby bottles and baby food jars must be stirred or rearranged and the temperature must be checked before consumption, so as to prevent burning.

— Metal food and beverage containers must not be used when microwave cooking.

— It is not recommended to heat eggs in their shells or whole hardboiled eggs in a microwave oven, as they may explode, even after cooking has ended.

— This appliance is designed to cook with the door closed.

— The microwave oven is intended for heating food and drinks.

The drying of food products or linen and the heating of heating pads, slippers, sponges, damp clothes and the like can cause injury, inflammation or fire.

WARNING: If the door or door seal is damaged, the oven should not be used until it has been repaired by an authorised person.

SAFETY INSTRUCTIONS

— It is recommended that you clean your oven regularly and to remove any food build-up.
— If the appliance is not cleaned regularly, its surface could become damaged, permanently affecting the appliance's lifespan and possibly causing a safety hazard.
— Do not use a steam cleaner.
— Do not use abrasive cleaning products or hard metal scrapers for cleaning the oven's glass door, as they could scratch the surface and cause the glass to shatter.

The electrical plug must remain accessible after installation.

It must be possible to disconnect the appliance from the power supply, either using a plug or by fitting a switch on the fixed wiring system in accordance with installation rules. The safety wire (green-yellow) is connected to the appliance's ground terminal and must be connected to the installation's ground lead.

If the power cable is damaged, it should be replaced by the manufacturer, its after-sales service department or by a similarly qualified person in order to avoid danger.

Center the oven in the unit so as to ensure a minimum distance of 10 mm between the appliance and the surrounding unit. The material of the unit supporting the appliance must be heat-resistant (or covered with a heat-resistant material).

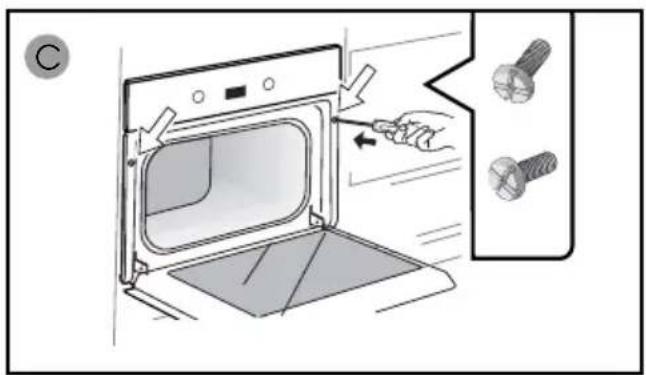

For greater stability, attach the oven to the unit with 2 screws through the holes provided on the side panels.

This appliance must be installed more than 850 mm up off the ground.

In order to avoid overheating, the appliance must not be installed behind a decorative door.

CARE FOR THE ENVIRONMENT

This appliance's packaging can be recycled. Recycle and help protect the environment by disposing of packaging in local waste containers designed for this purpose.

Your appliance also contains a lot of recyclable material. This logo indicates that used appliances must not be mixed with other waste.

Appliance recycling organised by your manufacturer is carried out un-

der optimum conditions, in accordance with European Directive 2002/96/EC on the disposal of waste electrical and electronic equipment.

Contact your local authority or retailer for information on used appliance collection points close to your home.

We thank you for your help in protecting the environment.

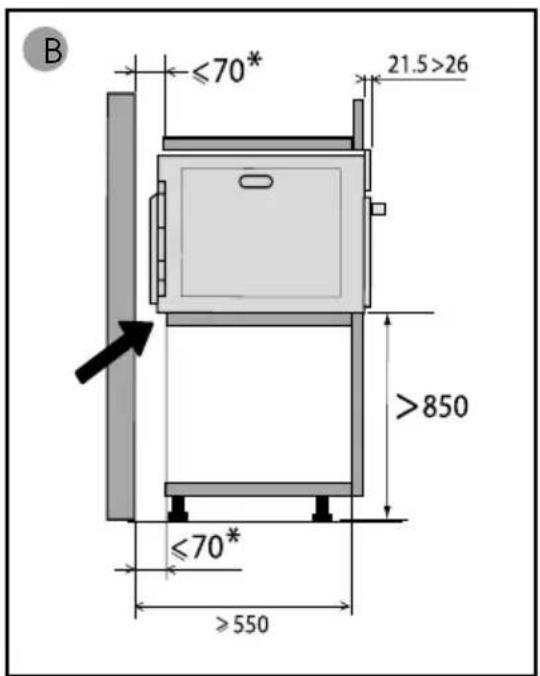

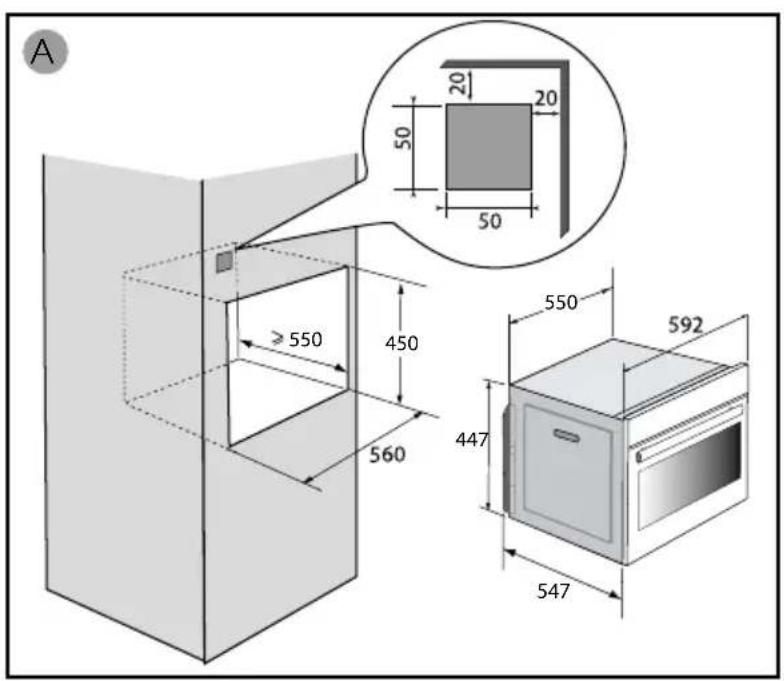

CHOICE OF LOCATION AND FITTING

To be certain that you have properly installed your appliance, do not hesitate to call on a household appliance specialist.

A ≥ 550 450 560 50 20 50 550 592 447 547

B ≤70* 21.5>26 >850 ≤70* >550

Attention :

This appliance must be installed more than 850 mm from the floor. It can be installed in a column as shown in the installation diagram (fig. A).

if the bottom of the cabinet is open, the space between the wall and the board on which the oven rests must be a maximum of 70 mm* (fig. B).

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a letter C.

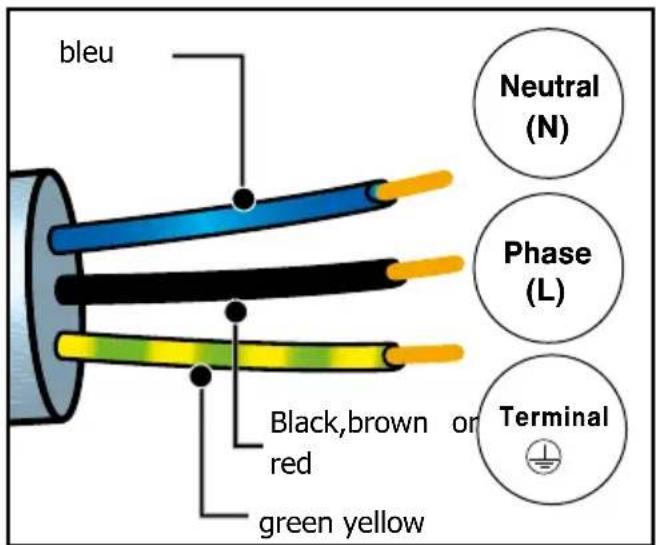

ELECTRICAL CONNECTION

Your oven must be connected with a (standard) power cable with 3 conductors of 1.5mm^2 (1 live + 1 neutral + earth) which must be connected to a 220 - 240V_ single-phase grid by means of a 1 live + 1 neutral + earth CEI 60083 standard power socket or via an all-poles cut-off device in compliance with the installation rules.

Warning

The safety wire (green-yellow) is connected to the appliance's terminal and must be connected to the earth terminal of the electrical set-up.

The fuse in your set-up must be 16 amperes.

We cannot be held responsible for any accident resulting from inexistent, defective or incorrect earthing.

bleu Black,brown or red green yellow Neutral (N) Phase (L) Terminal

- Prior to first use

Do not use your unit immediately (wait about 1-2 hours) after moving it from a cold to a warm place, as condensation may cause a malfunction.

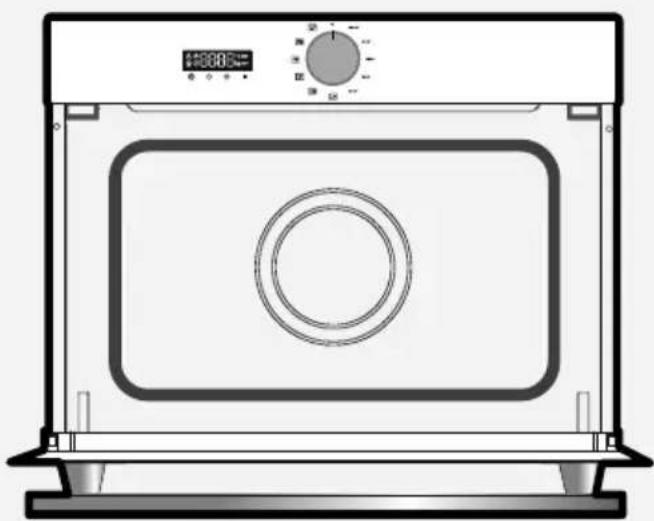

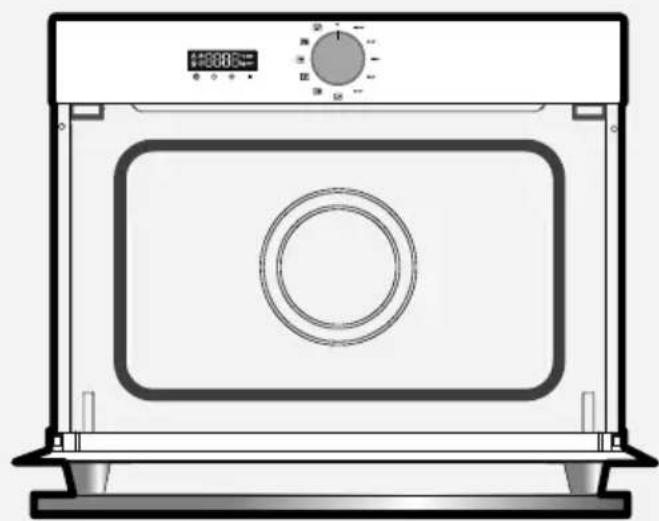

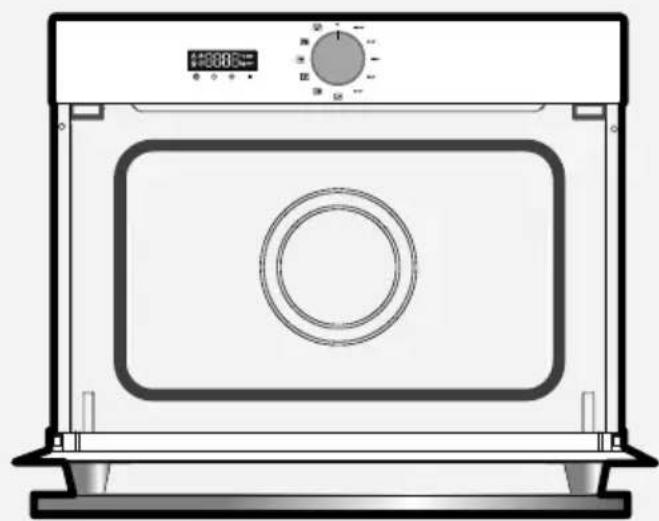

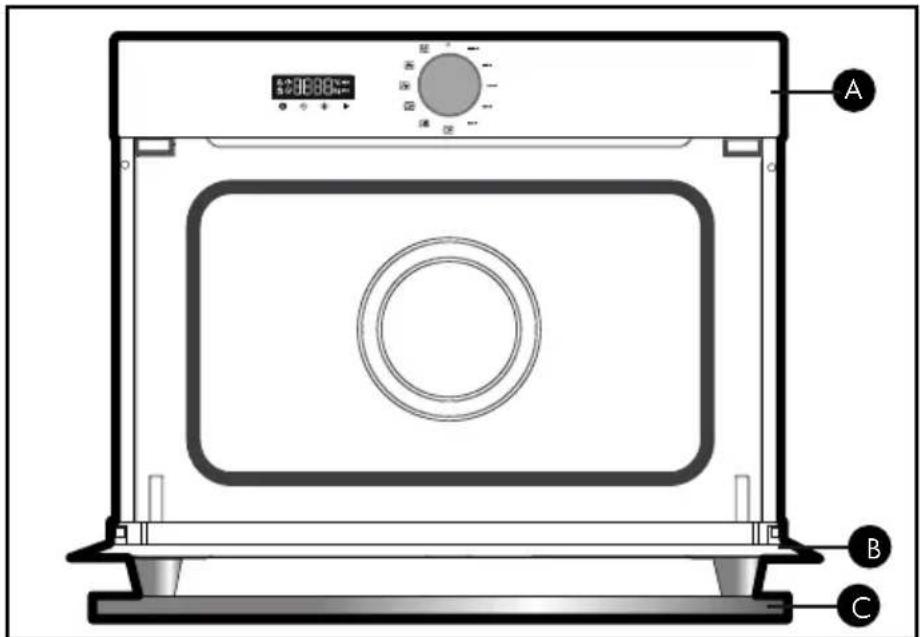

DESCRIPTION OF THE OVEN

A B C

A Control panel
BDoor
C Handle

- DISPLAY

8888 g

Cooking time
End of cooking
Keypad lock
Minute Minder

g Weight

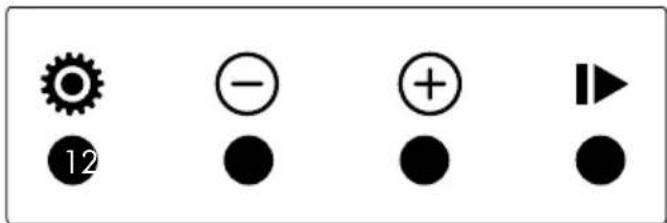

- BUTTONS

12 -

1 Set clock and cooking time/Menu
② - button
③ + button
4 Start/Pause

OPERATING PRINCIPLE

The microwaves used for cooking are electromagnetic waves. They are commonly found in our environment in the form of radio waves, light and infrared rays.

Their frequency is in the 2450 MHz range.

Their behaviour:

• They are reflected by metals.
• They travel through all other materials.
• They are absorbed by water, fat and sugar molecules.

When food is exposed to microwaves its molecules begin moving rapidly, causing it to heat up.

The penetration depth of waves into the food is approximately 2.5 cm; if the food is thicker, the centre of the food will be cooked by conduction, as in conventional cooking.

Note that microwaves cause a simple thermal phenomenon within food and are not harmful to health.

SETTINGS

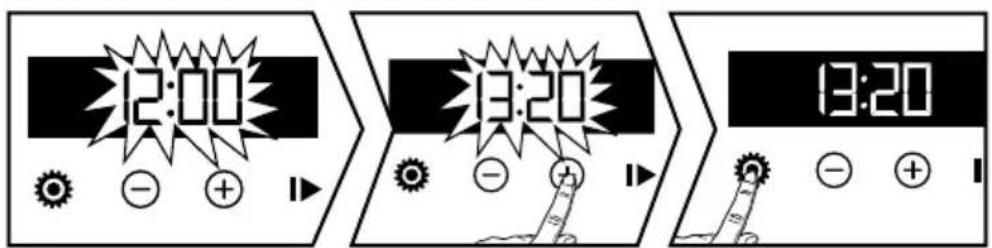

- SETTING THE CLOCK

When switching on the display flashes at 12:00.

12:00 13:20 13:20

Set the clock with + or -.Confirm with 🔒. If there is a power cut, the clock flashes.

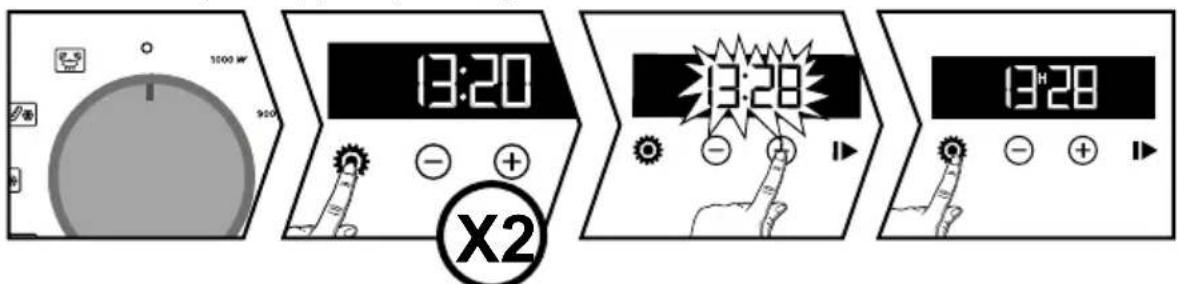

- CHANGING THE CLOCK

The function selector switch must be in the 0 position.

Press ☐ the symbol appears press again.

1000 W 950 13:20 X2 13:28 13:28

Adjust the clock setting with + or - .Confirm with ☐.

The cooking end time is automatically saved after a few seconds.

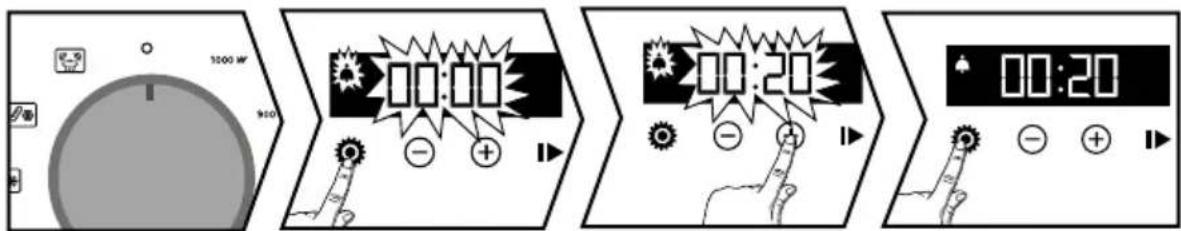

• TIMER

This function can only be used when the oven is off.

1000 W 900 00:00 00:20 00:20

Press 🔒; the ⬆ symbol appears .The minute minder flashes . Set the minute minder with + and -. Press 🔒 to confirm. The timer will then start. Once the time has lapsed, there is a sound signal. To stop it, press any key. The time appears again in the display.

NB: NB: You can modify or cancel the timer at any time. To cancel, return to the timer's menu and set to 00:00.

- KEYPAD LOCKING

13:45

Press + and - at the same time until the 🔗 symbol appears on the screen. To unlock, press + and - until the 🔗 symbol disappears o the screen.

MENU REGLAGES

You can adjust different settings on your oven. To do so:

Hold 📷 down until you get to the "MENU" display to access the settings mode.

Press 📄 again to scroll through the different settings.

Activate or de-activate the different parameters with + and -; see table below:

	Activate/de-activate the beeping sound of the buttons
	Activate/de-activate demonstration setting
	Keep warm mode:ON position, function activated.OFF position, function deactivated.
	Display standby:ON position, display off after 90 seconds.OFF position, reduction of display brightness after 90 seconds.

To exit the "MENU", press

KEEP WARM FUNCTION

If the door is not opened after the cooking process, after 2 minutes the oven switches to keep warm function for 15 minutes and HH is displayed on the screen.

Quick reheating drinks, water and dishes that contain a large quantity of liquid.

Cooking food that contains a lot of water (soups, sauces, tomatoes, etc.).

900W :

Cooking fresh or frozen vegetables.

500W :

Cooking fish and seafood.

Cooking dry vegetables over a low heat. Reheating or cooking fragile egg-based foods.

300W :

Cooking dairy products and jam at low heat.

100W :

Defrosting pastries that contain cream.

Reheating :

Reheating position programmed at 2 min 30.

IMMEDIATE COOKING

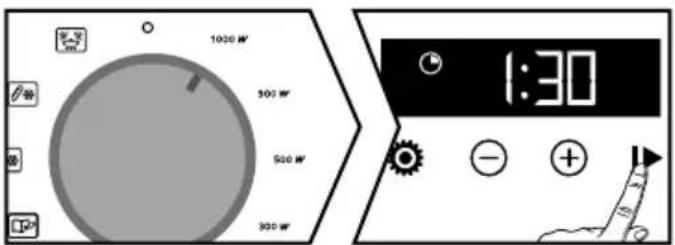

• USE OF THE MICROWAVE FUNCTION

Turn the function selector to choose the required power.

1000 W 300 W 500 W 300 W 1:30

The display flashes. A cooking time is displayed according to the selected power. Confirm with the ▶ key; the cooking starts and the countdown is displayed.

You can modify the cooking time with the + and - keys.

• USE OF THE MICROWAVE FUNCTION

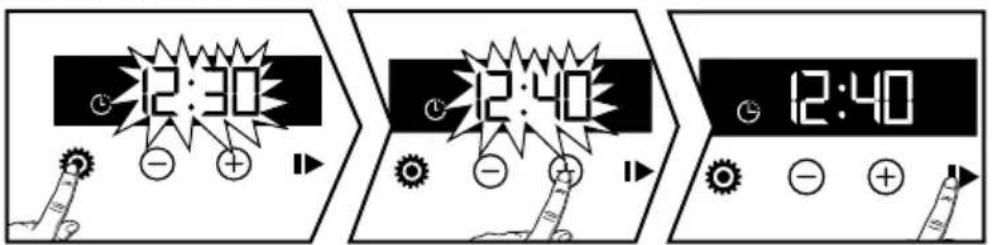

• DELAYED COOKING

Select a cooking mode. Change the time if necessary. Press ☐. The end of cooking symbol flashes to indicate that it can be set.

12:30 12:40 12:40

You can modify the end of cooking time with the + and - keys. Confirm with ▶.

AUTOMATIC FUNCTIONS

The automatic functions select the appropriate cooking parameters for you based on the food being prepared and its weight. Select a pre-programmed food from the following list:

: Cooking fresh vegetables*
: Cooking frozen vegetables*
: Cooking fish*
: Defrosting meat**
: Defrosting bread**

* For fresh vegetable and fish cooking functions:
Halfway through the cooking time, the oven beeps and displays «TURN» to tell you to turn your food over.
** These positions do not allow a delayed start.

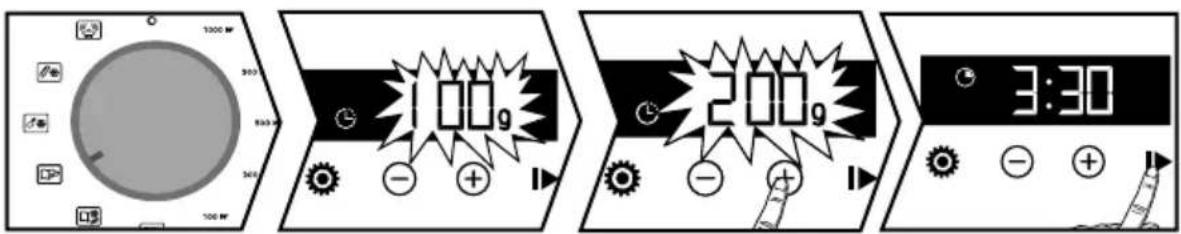

Turn the function selector to the automatic function of your choice.

Enter the weight of the food with + and - in 50g steps) then confirm by pressing ▶. The oven starts.

By pressing you access the cooking end time setting (see the delayed start chapter).

100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100

CLEANING THE OUTER SURFACES

Use a window washing product applied to a soft cloth.

Warning

Do not use scouring products, abrasive sponges or metal scrapers to clean the glass oven door as this could scratch the surface and cause the glass to shatter.

CLEANING INSIDE THE OVEN

It is recommended that you regularly clean your oven and remove any food debris on the inside and outside of the appliance. Use a damp sponge and a little soap. If the door or door seal are damaged, the oven should not be used until it has been repaired by a qualified person. If the oven smells bad or is dirty, boil a cup of water with lemon juice for 2 minutes and clean the walls with a small amount of washing up liquid.

REPLACING THE LIGHT BULB

For all operations on the light bulb, contact the After Sales Department or a qualified professional accredited to work on the brand.

ANOMALIES AND SOLUTIONS

You may resolve certain little problems yourself:

The oven is not heating.

Check that the oven is correctly connected and that your installation's fuse is not out of service. Increase the selected temperature.

The oven light is not working.

Contact after sales service. Check that the oven is correctly connected.

SERVICE CALLS

Any repairs made to your appliance must be carried out by a qualified professional authorised to work on the brand. When calling, please provide the complete references of your appliance (commercial reference, service reference, serial number), so that we can handle your call better. This information appears on the manufacturer's nameplate on the equipment.

A C E H TYPE: B D F I G

B: Commercial reference

C: Service reference

H: Serial number

GENUINE PARTS

When having work carried out, insist on the use of genuine, certified spare parts only.

• FUNCTION SUITABILITY TESTS

Functional suitability tests in accordance with IEC/EN/NF EN 60705 standards.

The International Electrotechnical Commission, SC.59K, has established a standard for comparative performance tests conducted on various microwave ovens.

We recommend the following for this appliance:

Test Load	Approx. time	Power selector	Cookware/Tips
Custard (12.3.1)	1000 g 16 - 18 min 500 W		Pyrex 227On the turntable
Savoie cake (12.3.2)	475 g 6 - 7 min 700 W		Pyrex 827On the turntable
Meatloaf (12.3.3)	900 g 14 min 700 W		Pyrex 838Cover with plastic lm.On the turntable
Defrosting meat (13.3)	500 g 11 - 12 min 200 W		On a at plateOn the turntable
Defrosting raspberries (B.2.1)	250 g 6 - 7 min 200 W		On a at plateOn the turntable

FR

CS

DA

DE

EL

EN

FI

IT

NL

NO

PL

PT

SK

SV

Brandt

Black-and-white photo of a bowl with mint leaf garnish, blurred background objects (no text or symbols visible)

KÄYTTÖOPAS FI

Mikroaaltouuni

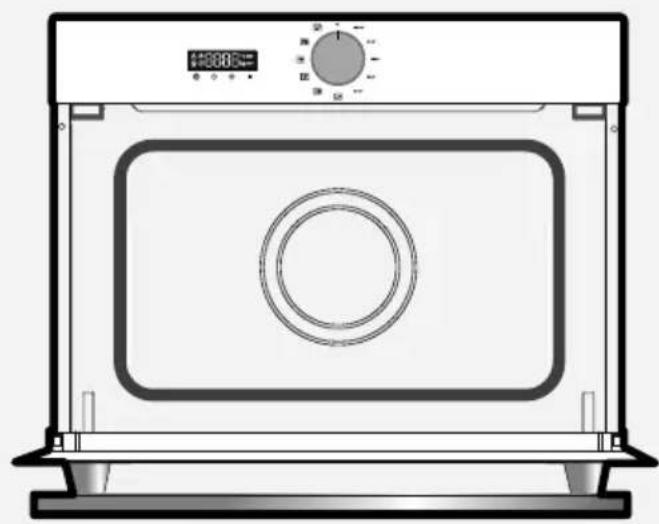

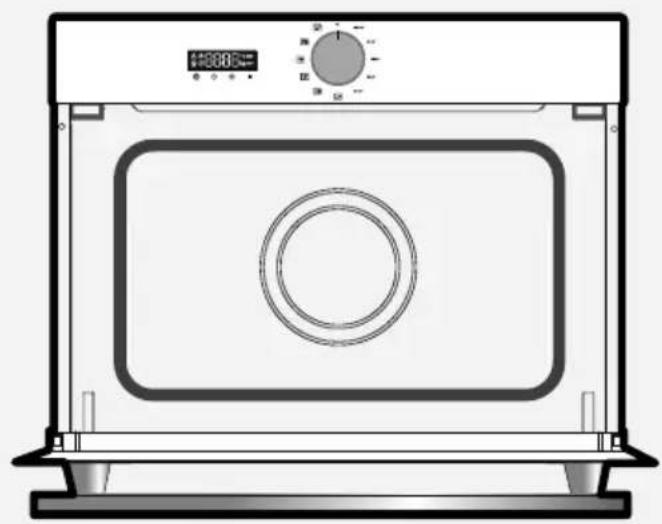

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Hyvä asiakas,

QR code image containing encoded data, no visible human-readable text

Tärkeä:

Diagram showing a hand using a screwdriver to install a oven, with separate images of screws and bolts nearby.

SÄHKÖLIITÄNTÄ

10:00 W 9:30 00:00 00:20 00:20

AUTOMAATTISET TOIMINNOT

POIKKEAMAT JA RATKAISUT

A C TYPE: B D E F H I G

B : Tuotenumero

C : Huoltotiedot

H : Sarjanumero

ALKUPERÄISET OSAT

• TOIMINNAN SOVELTUVUUSTESTIT

Black-and-white photo of a bowl with decorative elements, possibly a dessert or dessert, with blurred background objects (no visible text or symbols)

MANUALE D'USO IT

Per forno microonde

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GARANTIE

Gentile Cliente,

QR code image containing encoded data, no visible human-readable text

Importante:

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a letter C in the corner.

A C E H TYPE: B D F I G

QR code image containing encoded data, no visible human-readable text

Belangrijk:

APPARAAT INSTALLEREN 8

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a letter C in the corner.

ELEKTRISCHE VERBINDING

1000 W 900 00:00 00:20 00:20

A C E H TYPE: B D F I G

Black-and-white photo of a bowl with mint leaf garnish, blurred background with indistinct objects (no visible text or symbols)

BRUKERHÅNDBOKEN NO

Mikrobølgeovn

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Kjære kunde

Du har nettopp kjøpt et produkt fra BRANDT og vi takker for tilliten til våre produkter.

QR code image containing encoded data, no visible human-readable text

Diagram showing a hand using a screwdriver to install a oven, with icons for bolt and nut assembly.

ELEKTRISK TILKOBLING

Ovnen må tilkobles med en standard treleders strømledning på 1,5 mm ^2 (1 strømførende leder +1 nulleder + jord) som kobles til et strømnett på 220-240 V med en stikkontakt etter standard CEI 60083 eller en flerpolsbryter i henhold til gjeldende installasjonsregler.

Advarsel:

ANOMALIES AND SOLUTIONS

You may resolve certain little problems yourself:

The oven is not heating.

Check that the oven is correctly connected and that your installation's fuse is not out of service. Increase the selected temperature.

The oven light is not working.

Contact after sales service. Check that the oven is correctly connected.

REPARASJONER

A C E H TYPE: B D F I G

B: Salgsreferanse

C: Servicereferanse

H: Serienummer

OPPRINNELIGE DELER

Black-and-white photo of a bowl with mint leaf garnish, blurred background with indistinct objects (no visible text or symbols)

INSTRUKCJA OBSŁUGI PL

KUCHENKA MIKROFALOWA

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Szanowni Klienci,

QR code image containing encoded data, no visible human-readable text

Uwaga:

WYBÓR MIEJSCA INSTALACJI I WBUDOWANIA

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a letter C in the corner.

1000 W 9:00 00:00 00:20 00:20

A C E H TYPE: B D F I G

Black-and-white photo of a bowl with leaf garnish, blurred background with indistinct objects (no visible text or symbols)

INSTRUÇÕES DO USUÁRIO PT

FORNO MICRO-ONDAS

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GARANTIE

Caro(a) cliente,

QR code image containing encoded data, no visible human-readable text

Importante:

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a letter C in the corner.

LIGAÇÃO ELÉTRICA

A C TYPE: B D E F H I G

Black-and-white photo of a bowl with mint leaf garnish, blurred background bowls (no text or symbols visible)

POKYNY PRE POUŽÍVATEL'A SK

MIKROVLNNÁ RÚRA

Line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Vážený klient,

QR code image containing encoded data, no visible human-readable text

Dôležité:

Diagram showing a hand inserting into an oven with screw and nut parts, labeled with a letter C in the corner.

ELEKTRICKÉ ZAPOJENIE

Four-step digital display system interface showing timer, alarm, and screen status with icons and labels

Stlačte tlačidlo 🚙zobrazí sa symbol .Časovač zabliká. Nastavte časovač pomocou tlačidiel + alebo –. Stlačte tlačidlo 🚙na overene. Začne sa odpočítavanie. Po uplynutí doby sa ozve bzučiak. Na zastavenie stlačte l'ubovolné tlačidlo. Na displeji sa zobrazí čas.

REŽIM UDRŽIAVANIA TEPLOTY

100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% MF 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100% 100 3:30

ČISTENIE VONKAJŠIEHO POVRCHU

A C TYPE: B D E F H I G

B: Údaje o obchode

C: Údaje o servise

H: Sériové číslo

ORIGINÁLNE DIELY

Black-and-white photo of a bowl with mint leaf garnish, blurred background with indistinct bowls (no text or symbols visible)

BRUKERHÅNDBOKEN SV

Mikrovågsugn

Front view line drawing of a microwave oven with control panel and digital display (no text or symbols)

ORIGINE FRANCE® GRANTIE

Bästa kund,

QR code image containing encoded data, no visible human-readable text

Viktigt:

VAL AV PLACERING OCH INBYGGNAD

Diagram showing a kitchen oven with screwdriver and bolt, indicating assembly or repair steps

ELANSLUTNING

1000 W 900 00:00 00:20 00:20

Reheating position programmed at 2 min 30.

OMEDELBAR TILLAGNING

• ANVÄNDNING AV MIKROVÅGFUNKTIONEN

A C TYPE: B D E F H I G
