USER MANUAL BFU8631NX BRANDT

Ref: BFU8631NW BFU8631NX

Chère Cliente, Cher Client,

Interventions France

Thank you for purchasing and placing your trust in a BRANDT product.

We have designed and made this product with you, your lifestyle and your requirements in mind so that it meets your expectations. It comes packed with more than 60 years of expertise, innovative spirit and passion.

In an effort to ensure that our products meet your requirements in the best possible way, our Customer Relations department is at your service, to answer all your questions and to listen to all your suggestions.

Visit our website at www.brandt.com where you will find our latest innovations, as well as useful and complementary information.

BRANDT is pleased to be on hand to offer daily support and to help you make the most of your purchase.

Important: Before using your appliance, read this user guide carefully to familiarise yourself more quickly with its operation.

SAFETY

CE This appliance complies with the European directives.

SAFETY GUIDELINES

For your safety and in order to use your appliance correctly, carefully read these instructions (including the warnings and useful advice), before installation and first use.

To avoid damaging the appliance and unnecessary injury, it is important that the persons who use the appliance fully understand how it works and the safety instructions.

Always keep these instructions close to the appliance so that they can accompany it in the event of resale or a change of house. In this way, the appliance will continue to function optimally and any risk of injury will be avoided.

The manufacturer shall not be held liable in the event of misuse of the appliance.

GENERAL SAFETY AND WARNINGS

This appliance is exclusively intended for domestic use in private households. It may only be used in a roofed, enclosed and heated environment such as a kitchen or any other room fulfilling these conditions. Its use on shared or professional premises such as in an office or workshop break room, a camp site building, or a hotel, etc., does not comply with the use defined by the manufacturer.

WARNING! Keep your appliance away from any source of flame during installation, servicing and use. The symbol in the margin which is found on the rear of your appliance, means that there are inflammable materials in this area.

The refrigerating and insulating agents used in this appliance contain inflammable gases.

When transporting, installing and servicing the appliance, make sure that none of the components of the cooling circuit are damaged. If the cooling circuit is damaged:

Avoid naked flames and all sources of inflammation.
Ventilate the room in which the appliance is installed.

Installation safety

• Your appliance must be installed and, if necessary, secured and used in accordance with the instructions in this manual in order to avoid any risks due to poor installation.
• Maintain clear of obstruction ventilation openings in the appliance enclosure or in the built-in structure.
• It is dangerous to change the composition of this model in any way whatsoever.
• Ensure that the power cord is not trapped or damaged when you position your appliance.
• Any damage to the power cord may result in a short circuit and/or electrocution.
• If the power cord is damaged, it should be replaced by the manufacturer, its after-sales service department or a similarly qualified person, so as to avoid danger.
• Do not place multiple plugs or portable power supply units behind the appliance.
• For models fitted with a water dispenser or an ice compartment, only fill or connect using a supply of drinking water.

Safety of vulnerable persons

• This appliance may be used by children aged 8 years or more and by people with physical, sensual or metal deficits and lacking experience or knowledge of the device provided that they are correctly supervised or have been provided with instructions regarding the safe use of the appliance and provided that the risks present have been fully

understood.

Children must not play with the appliance.
- Cleaning and maintenance operations must not be carried out by children without supervision.
- Children aged 3 to 8 are allowed to load and unload refrigeration appliances.
- Keep all the packaging materials out of the reach of children, as they can cause suffocation.

Safety of use

• Do not damage the refrigerating circuit.
• Do not use any mechanical or other means, other than those recommended by the manufacturer, to speed up the defrosting process.
• Do not use any electric appliances inside the compartment for food, unless they are of a type recommended by the manufacturer.
• Do not store any explosive substances, such as aerosols containing inflammable propellant gases, inside the appliance.

Food safety

To avoid contaminating food, follow the instructions below:

• Leaving the door open for long periods of time may significantly raise the temperature in the appliance compartments.
• Regularly clean any surfaces that may come into contact with food and accessible drain systems.
• Clean water containers if they have not been used for 48 hours. Properly rinse the water distribution system connected to a fresh water network if no water has been drawn off for five days.
• Store raw meat and fish in the appropriate refrigerator compartments so that the latter products are not in contact with other food and do not drip onto other food.

• The "two star" compartments for frozen foods are suitable for storing food that is already frozen, for storing or making ice cream and ice cubes.

• The "one, two and three star" compartments are not suitable for freezing fresh foods.

• If the refrigerator remains empty for an extended period of time, switch it off, defrost it, clean it, dry it and leave the door open to prevent any mould from forming inside the appliance.

DISPOSAL

This symbol indicates that this product should not be treated as household waste.

Only dispose of the appliance in certified collection centres.

Your appliance contains a large amount of recyclable material. It is marked with this label to indicate the used appliances must be disposed of in certified collection points.

Contact your local authority or retailer for details of your nearest used equipment collection points. Recycling of appliances organised by your manufacturer is carried out under the best conditions, in accordance with the European regulation on waste disposal of electronic and electrical equipment.

This appliance's packing materials are also recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.

In accordance with the most recent legislative provisions applying to the protection and respect for the environment, your appliance does not contain any CFCs, but a refrigerant called R600a. The exact type of coolant gas used in your appliance is clearly shown on the ID plate inside the fridge part of your appliance, at the foot of the left-hand side panel. R600a is a non-polluting gas that does not harm the ozone layer and hardly contributes to the greenhouse effect at all.

Used appliances must be immediately made unusable.

Disconnect the power cord and cut it as close to the appliance as possible. Inhibit the closing mechanism of the door or, even better, detach the door, so that children or pets cannot remain enclosed inside the appliance when playing.

ECODESIGN

To access the data on your model, stored in the product database in line with regulation (EU) 2019/2016 and data relating to energy labelling, please connect to the dedicated website at https://eprel.ec.europa.eu/

Find the reference of your appliance on the website by entering the service reference shown on the ID plate on your appliance.

Another way to access this information is to flash the QR code found on the energy label on your product.

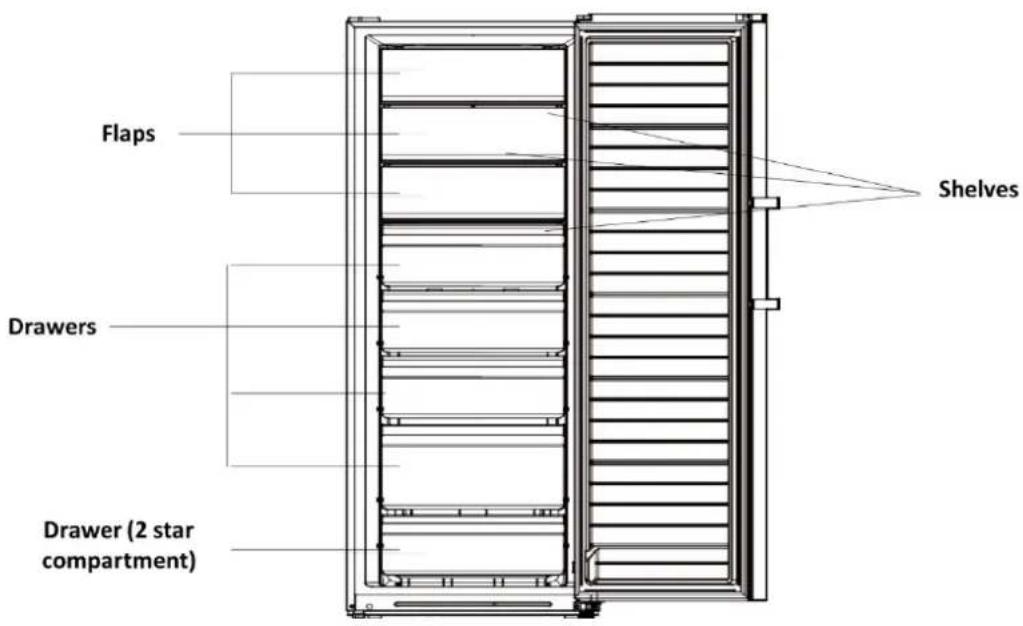

Layout and presentation of your appliance

• This refrigeration appliance is not intended to be used as a built-in appliance
• Your appliance was designed and tested to optimise its energy use.
• The proposed layout represents the ideal solution for achieving ideal energy consumption and optimum food storage.

Note: The above diagram is for guidance only. The characteristics of your appliance may vary.

Fridge

• The fridge is suitable for storing various kinds of fruit and vegetables, drinks and other foods to be used over the short term. Recommended storage times range from 3 to 5 days.
• Let cooked food cool to ambient temperature before placing it in the fridge compartment.
  We recommend placing food in sealed containers before placing them in the fridge.

Freezer

• The freezer can store fresh foods for long periods and is primarily used to store frozen food and to make ice cubes.
  The freezer compartment is suitable for storing meat, fish, rice and other foods that are not

going to be eaten in the near future.

Split pieces of meat into smaller portions for fast freezing and easier access. Food should always be consumed before its expiry date.

Storage drawers, food boxes, shelves, etc. placed in the positions shown in the photograph below ensure the most energy efficient performance.

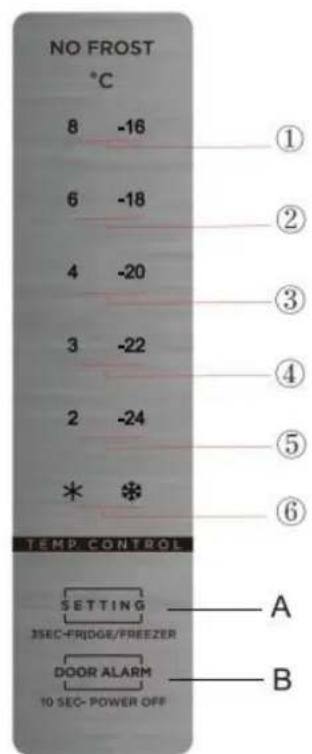

The appliance lets you move from fridge to freezer controls using the display panel.

Consumers can choose the fridge or freezer as required.

You can only keep your food in good condition and optimise your energy consumption by following the instructions in this installation and user guide.

Energy-saving measures

In order to reduce the power consumption of your appliance:

• Install it in a suitable location (see "Installing your appliance").
• Leave the doors open for the shortest time possible.
• Never put hot food in the fridge or the freezer, and in particular soups and other preparations that release a lot of steam.
• Check that your appliance is working correctly and do not allow too much ice to accumulate in the freezer (defrost when the ice is more than 5 - 6mm thick). Clean the condenser on a regular basis.
• Regularly check the door seals and make sure that the doors can be closed properly. If this is not the case, contact after-sales service.
• Do not adjust the temperature too low.

Storing food

Here are some rules you should follow:

• Maintain the cold chain and select "Booster" or "Super-freezing" mode at least 6 hours before coming home with groceries.
• Defrost the freezer and clean it at least once a year.
• Keep home-made food in the refrigerator after first taking care to leave it to cool.
• Make sure that your appliance is set to the recommended temperatures shown below. The temperatures for every compartment are recommended to optimise storing food and avoid any waste.

Area	Type of compartment	Temperature temperature
Frozen food compartments	0 star compartment (depending on model)	0°C
	1 star compartment (depending on model)	-6°C
	2 star compartment (depending on model)	-12°C
	3 star compartment (depending on model)	-18°C
	4 star freezer drawers/shelves (depending on model)	-18°C

• Place the food in the locations recommended in the tables below.

Frozen food compartments (compartments available depending on model)

Freezer compartments	Logos & Markings	Type of food
0 star compartment		To store sorbet for a few hours and make ice cubes. This compartment is not suitable for freezing fresh food.
1 star compartment	*	To store frozen products for a few hours and make ice cubes. This compartment is not suitable for freezing fresh food.
2 star compartment	***	To store frozen products for a few days, make ice cream and ice cubes. This compartment is not suitable for freezing fresh food.
3 star compartment	***	To store frozen products for a few weeks/months and to make ice cubes. This compartment is not suitable for freezing fresh food.
4 star freezer drawers/shelves	***	To freeze food and store: - Meat, fish (lower drawer/shelf). - Vegetables, chips (intermediate drawer/shelf). - Ice cream, fruit, ready-made dishes (upper drawer/shelf)

INSTALLATION

Care before installation

Before installing the appliance and connecting it to the power, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Never use detergents or abrasive cleaners, they will damage the inside coating.

When using the appliance for the first time or after a period of non-use, before putting the food in the compartment let the appliance run at least two hours on the higher settings.

Location

Warning! Never expose the appliance to a naked flame.

• Install the appliance in a dry and well ventilated place.
  The appliance should be located far from heat sources like radiators, boilers, sunlight, etc.
• Your appliance is designed to function optimally at a given ambient temperature. In this case, it is said to be designed for a particular "climate class". The climate class is clearly shown on the ID plate (see the "Contact" chapter). The freezer may not maintain satisfactory inside temperatures if it operates outside of the temperature limits set for the climate class it is designed for. Ensure that the chosen location is compliant with these temperature limits:

Class	Ambient temperature
SN	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 32°C
SN-ST	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 38 °C
SN-T	This refrigeration appliance is designed for use at ambient temperatures between 10°C and 43 °C
N	This refrigeration appliance is designed for use at ambient temperatures between 16 °C and 32°C
ST	This refrigeration appliance is designed for use at ambient temperatures between 16 °C and 38 °C
T	This refrigeration appliance is designed for use at ambient temperatures between 16 °C and 43 °C

• Based on the above, avoid locating your appliance on balconies, verandas, terraces, in garages, etc. Excessively high temperature in summer and excessively low temperatures in winter can prevent it from functioning properly and therefore properly conserving food.
• The appliance must be made suitably level by adjusting one or more of the adjustable feed under the cabinet (see the "Levelling the appliance" section).

If your appliance is fitted with casters, then remember that they should only be used for short movements. Do not move the appliance over long distances on its casters.

Reversing the opening direction of the doors

Before reversing the opening direction of the doors, prepare the following tools and equipment:

List of tools to be provided by the user:
	Cross screwdriver		Putty knife Thin blade screw driver
	5/16" Socket and ratchet		Tape

Parts to be used for door reverse
No.	Name	Number.	Note
1	Upper hinge axle sleeve	1	Pre-installed on the door, removed when the door, and kept for future use
2	Upper hinge screw	3	Pre-installed on the refrigerator and to be used when changing the door
3	Right upper hinge	1	Pre-installed on the refrigerator, removed when the door is reversed, and kept for future use
4	Right upper hinge cover	1	Pre-installed on the refrigerator, removed when the door is reversed, and kept for future use
5	Hole cover	1	Pre-installed on the refrigerator and to be used when changing the door
6	Cap of cover	1	Pre-installed on the door, removed when the door, and kept for future use
7	Adjustable foot	1	Pre-installed on the refrigerator and to be used when changing the door
8	Stopper Lower hinge	1	Pre-installed on the refrigerator and to be used when changing the door
9	Lower hinge screw	2	Pre-installed on the refrigerator and to be used when changing the door
10	Stopper	1	Pre-installed on the door, removed when the door, and kept for future use
11	Lower hinge axle sleeve	1	Pre-installed on the door, removed when the door, and kept for future use
12	Stopper screw	1	Pre-installed on the door, removed when the door, and kept for future use
13	Left upper hinge	1	In the attached plastic bag, take them out for use when door is reversed
14	Left upper hinge cover	1	In the attached plastic bag, take them out for use when door is reversed

1) Unplug the fridge and remove everything from the door compartments.
2) Remove the screw covers, the screws and the handles. Remove the plastic screw hole covers from the other side. (Refer to Fitting the ergonomic handle.)

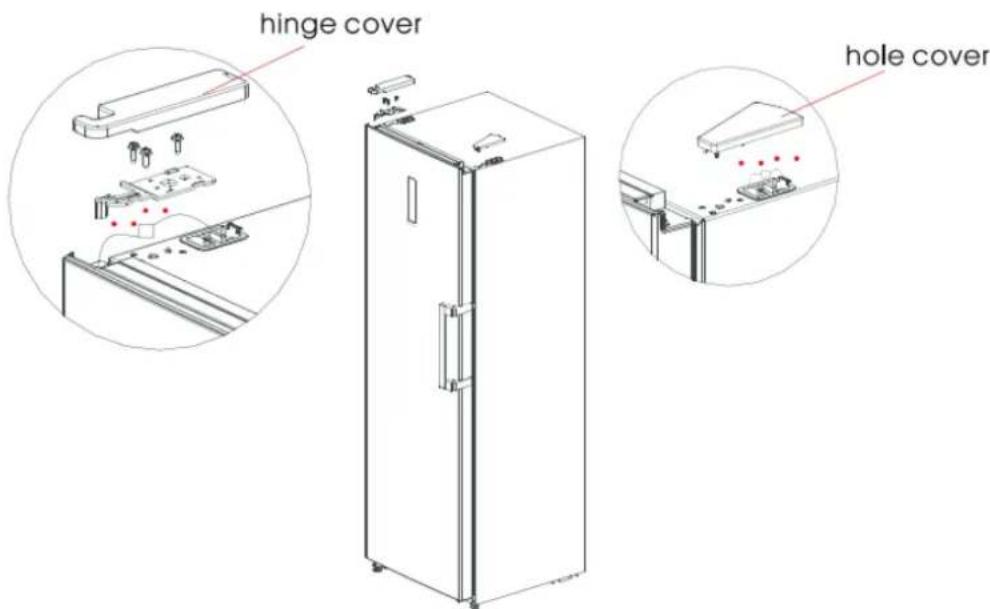

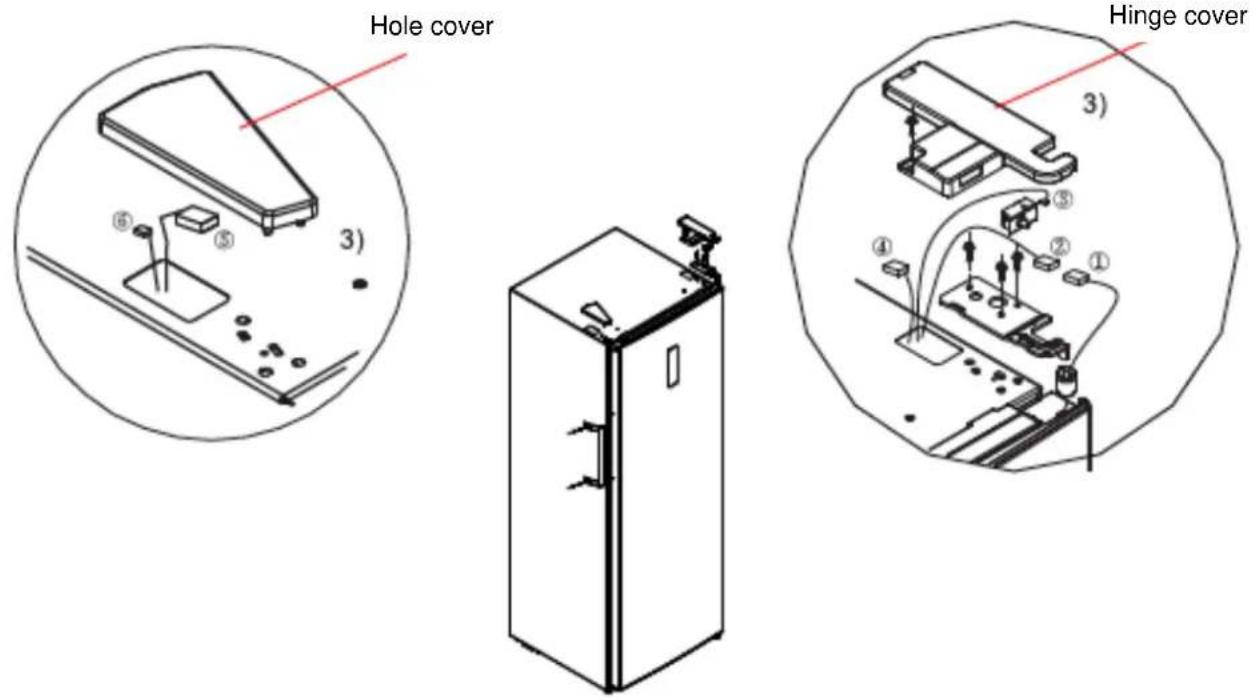

3) Remove the upper hinge cover, the screws and the upper hinge; remove the screw hole cover from the other side, disconnect the wiring connector from the top right hand side of the fridge ( ,, (wiring connector).

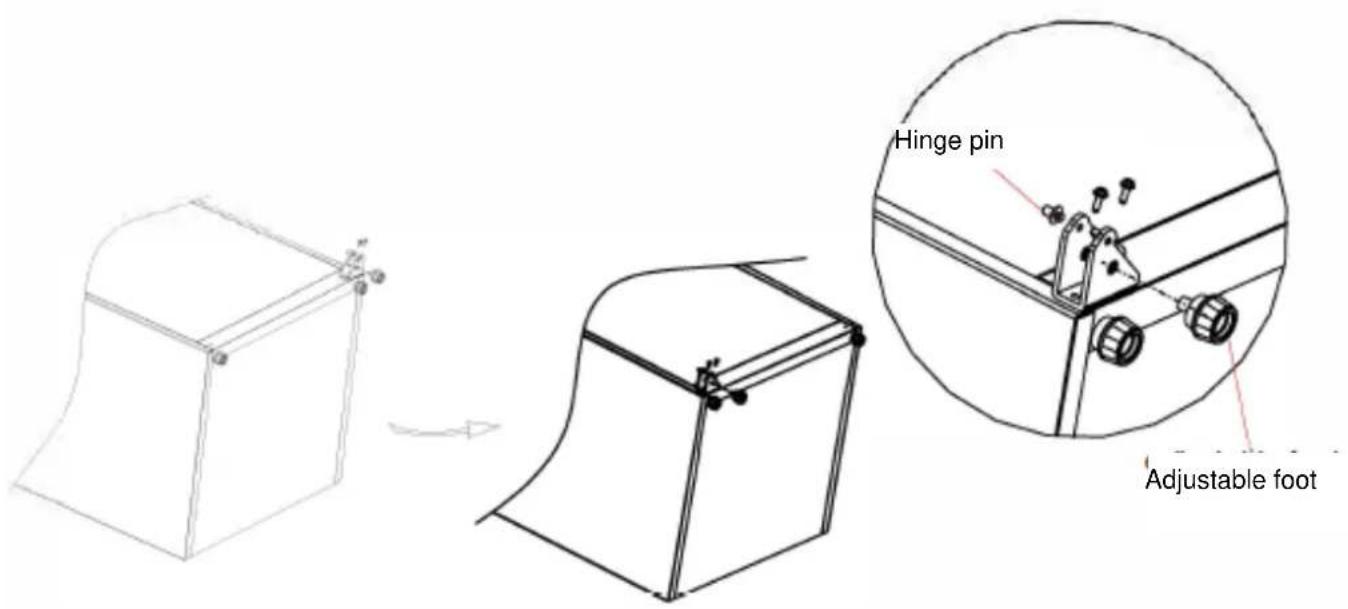

4) Remove the door and the lower right hinge assembly (hinge pin, adjustable foot and hinge) from the appliance. Then re-fit the hinge pin and the adjustable foot on the other side of the appliance, then finish fitting the complete hinge assembly.

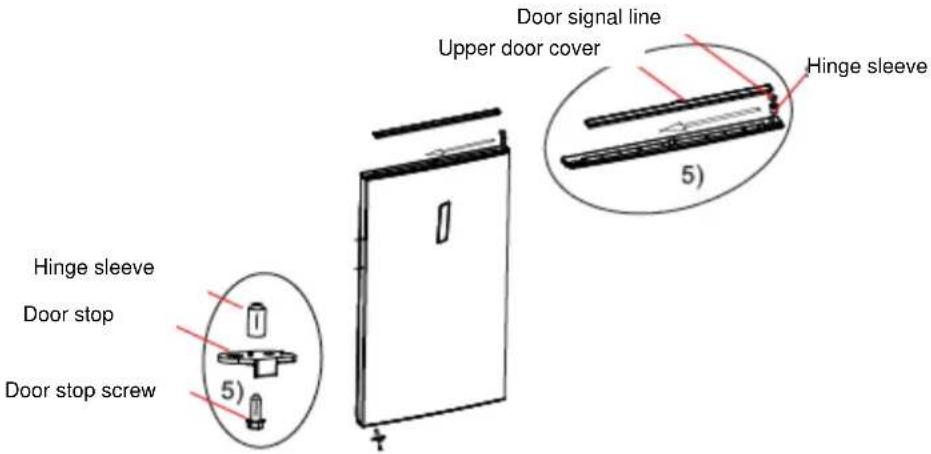

5) Remove the upper door cover, fit the upper hinge sleeve, the door signal line, on the other side and refit the upper door cover.

Remove the right hand door stop and the hinge sleeve from the lower right hand side of the door.

Insert the hinge sleeve into the opening on the lower left hand side of the door and take the left hand door stop out of the accessory bag.

Fit it on the lower left hand side of the door. The right hand door stop can be retained for future use.

6) Take out the left top hinge, left top hinge cover from accessories package, place the door on bottom hinge, and mount left top hinge. Connect signal line terminal ③ with signal line terminal ②, connect signal line terminal ① with signal line terminal ④ mount top hinge cover and hole cover.

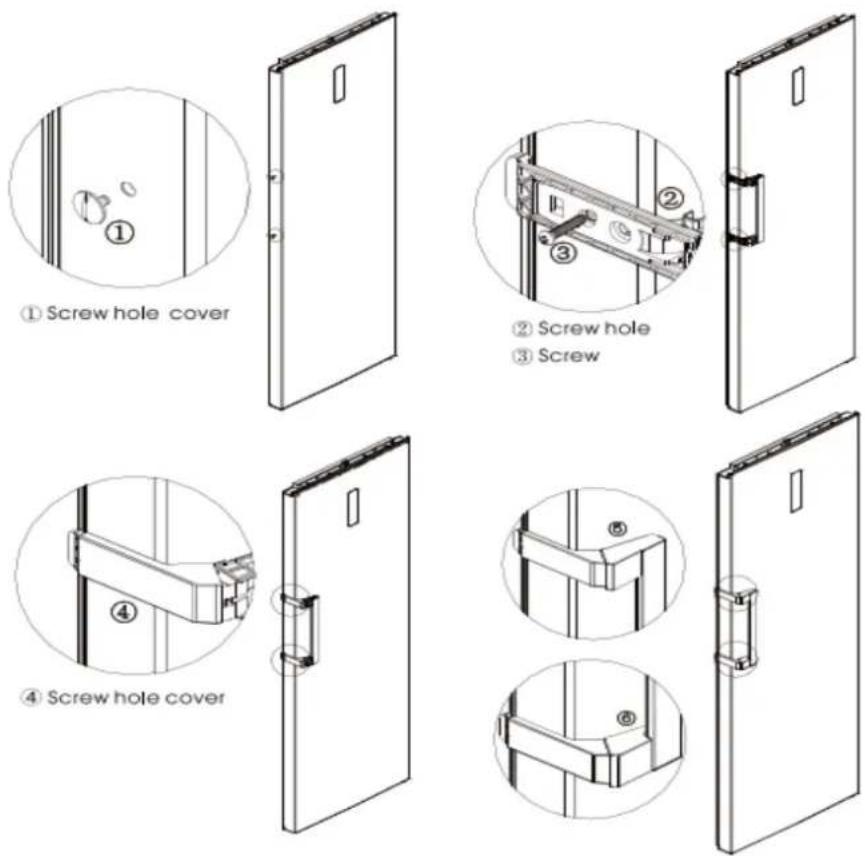

Fitting the ergonomic handle

Take care to avoid injury caused by dropping the handle.

List of tools to be provided by the user:
	Cross screwdriver

(The above illustration is for guidance only. The actual configuration depends on the physical product or the declaration by the distributor.)

Fitting steps

Remove the screw hole covers ① from the door and use a cross screwdriver to firmly tighten down the screws ③ in the screw ② holes.

Fit the screw hole covers ④ over the handle screw holes.

Repeat the operation in reverse order for removal.

Levelling feet

Choose a place to install the freezer on a flat surface.

If the appliance is not level, the doors will not be correctly aligned and the compartment seal cannot be guaranteed.

To level the appliance laterally, adjust the two adjustable feet on the front of the product.

Once the appliance is installed, ensure that it is slightly inclined rearwards. In this way, it will be easier to close the door. If necessary, adjust the setting of the adjustable feet.

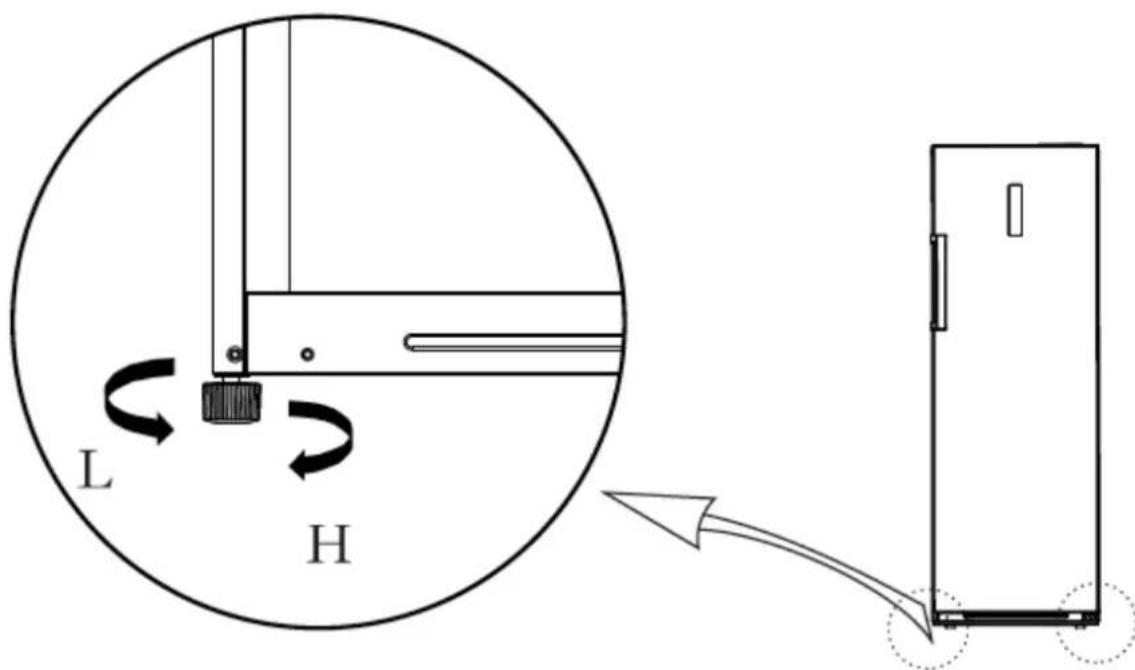

Procedure for adjusting the feet at the front of the product:

(The above illustration is for guidance only. The actual configuration depends on the physical product or the declaration by the distributor.)

Adjustment procedures:

Turn the levelling feet clockwise to raise the appliance;

Turn the levelling feet counter clockwise to lower the appliance;

Adjust the feet on the left and the right using the procedure described above until the appliance is level horizontally.

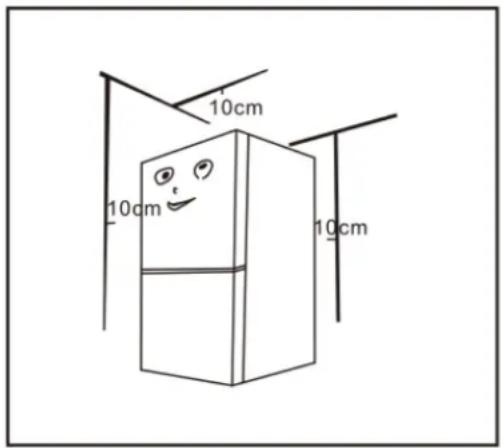

Space required

• Choose a location that is not directly to sunlight.
• Choose a location with enough space so that the freezer doors can open easily.
• Allow for a safety distance on the right-hand side, left-hand side, back and above the appliance when installing it. This allows optimising product performance, reduces your power consumption and therefore limits your electricity bill.

• Make sure that air can freely circulate behind the appliance.
• Allow enough space to be able to effortlessly open the doors and pull out the drawers or as required by the declaration made by the distributor.

Note that this appliance is not designed for built-in installation.

Electrical connections

Warning! It must be possible to unplug the appliance from the mains power, so the plug must remain easy to access after installation.

• The electric connections must meet the applicable standards and be capable of withstanding the maximum power shown on the ID plate.
• Never pull on the power cord to remove the appliance's power plug. Hold the plug firmly and pull it straight out of the power outlet.
• To guarantee completely safe use, avoid damaging the power cord and do not use the appliance if the power cord is damaged or worn.
• Should any leak of refrigeration gas or other inflammable gas occur, shut off the relevant gas valve and open doors and windows. Do not unplug the fridge or any other electrical appliances as a spark could cause a fire.
• The power plug must be easily accessible and out of the reach of children.
• For your safety this appliance must be earthed. If the power plug is not earthed, consult a qualified electrician to connect your appliance in line with applicable regulations.
• Do not use extensions, adapters or multiple plugs.
• Do not place multiple plugs or portable power supply units behind the appliance.

The manufacturer declines all liability if the above mentioned safety precautions are not complied with. If in doubt, refer to your reseller.

Presentation of the user interface

(The above illustration is for guidance only. The actual configuration depends on the physical product or the declaration by the distributor.)

A. Temperature control button and Fridge/freezer button
B. Standby button

Temperature icons

① Setting 1: the temperature setting is 8 or -16°C
② Setting 2: the temperature setting is 6 or -18^
③ Setting 3: the temperature setting is 4 or -20^
④ Setting 4: the temperature setting is 3 or -22^
⑤ Setting 5: the temperature setting is 2 or -24^
^ 念 Setting 6: fast cooling or fast freeze

When the appliance is switched on:

All of the temperature icons light for 3 seconds after the appliance is switched on. When the appliance is switched on for the first time, the default temperature setting is -20^ . In normal use, as soon as you switch the appliance on, it will return to the temperature setting used the last time it was switched on.

After 30s of unmanned operation, the indicator light goes out. When adjusting the gear, you need

to press the

key “A” to light up the indicator, and then press the key “A” again to adjust the gear

Open door alarm

There is no door opening prompt tone; there is an open door alarm tone: when the refrigerator door is not closed for two minutes after it is opened, the buzzer will sound until the door is closed. Press the B button to cancel the buzzer alarm, it is recommended to close the door in time.

Fridge/freezer button

Setting Press the button for 3 seconds to switch between fridge/freezer. Once pressed, the corresponding temperature icons light.

Standby Function

Long press the standby button for 10 seconds to set the standby function.

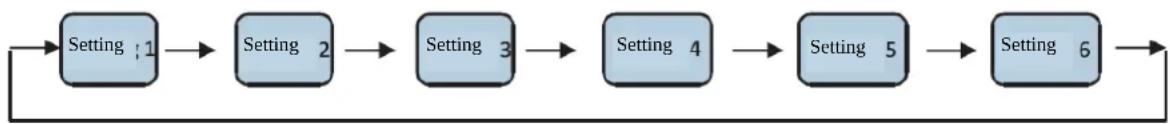

Adjusting the temperature

The temperature setting is changed by pressing ( ). Then the appliance will use the new temperature setting after 15 seconds.

Fast cooling mode

Selection: when in fridge mode, press the ( ) button until the icon lights.

In Fast freezing mode, the appliance will use the temperatures set at 2^ in fridge mode and will automatically exit this mode after 150 minutes of operation or if a temperature or mode setting is changed.

Fast freezing mode

Selection: when in freezer mode, press the ( ) button until the icon light

In Fast freezing mode, the appliance will use the temperatures set at -24^ in freezer mode and will automatically exit this mode after 24 hours of operation or if a temperature or mode setting is changed.

Failures

Should a failure occur, the corresponding icons will blink together: the error codes and types are as follows:

Fridge:

Error code

Description of the error

Display

E1	Fridge inside temperature sensor fault	The "*and "2" icons light at the same time
E5	Fridge inside defrosting sensor fault	The "*and "2" icons light at the same time
E6	Communication error	The "2" and "4" icons light at the same time
E7	Ambient temperature sensor fault	The "*and "4" icons light at the same time
E10	Button adhesion problem	The "2" and "3" icons light at the same time

Freezer:

Error code	Description of the error	Display
E1	Freezer inside temperature sensor fault	The " \*and "-24" icons light at the same time
E5	Freezer inside defrosting sensor fault	The " \*and "-22" icons light at the same time
E6	Communication error	The "-24" and "-20" icons light at the same time
E7	Ambient temperature sensor fault	The " \*and "-20" icons light at the same time
E9	High temperaturealarm in freezing chamber	Icon "-24" and "-18" light at the same time
E10	Button adjustment problem	The "-24" and "-22" icons light at the same time

When there are no failure conditions, the display shows the temperature setting inside the fridge.

Daily use

Your freezer compartment is equipped with drawers with various logos to help you store your food in the right place.

Freezing tips (depending on model)

To help you optimise the freezing process, here are some important tips:

• The maximum amount of food that you can freeze every 24 hours can be found on the ID plate.
• The freezing process takes 24 hours. Do not add any more food to freeze during this time.
• Only freeze good quality, fresh and properly washed food.
• Prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminium foil or polyethylene food wraps which are airtight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid raising their temperature.
• Iced products, if consumed immediately after removal from the freezer compartment, may

cause frost burns to the skin.

• We recommend labelling and dating each frozen package.
• To obtain ice cubes faster, we recommend placing the ice cube trays in the top drawer.

Defrost

Before eating, frozen or deep frozen food may be thawed in the refrigerator compartment or at ambient temperature, depending on the time available.

Some food may also be cooked directly when taken out of the freezer, while it is still frozen. In this case, cooking will take longer.

Important In the event of accidental thawing, caused for example by a power break, quickly eat the thawed food. Never refreeze thawed food.

Hints for the storage of frozen food

To guarantee optimum performance, comply with the following instructions:

• Ensure that frozen food has been stored correctly by the food retailer.
• Ensure that frozen food is quickly carried from the retailer to your freezer.
• Do not open the door too often or avoid leaving the door open longer than necessary.
• Once thawed, food will deteriorate rapidly and should never be refrozen.
• Do not exceed the storage states shown on the food.

Warning! Always unplug your appliance before any maintenance work. Never pull on the power cord, but only on the plug itself.

Cleaning

For hygiene reasons, regularly clean the appliance (side walls and interior and exterior accessories).

Important! Ethereal oils and organic solvents can damage plastic parts, e.g. lemon juice, butyric acid or acetic acid.

• Do not allow such substances to come into contact with appliance parts.
• Do not use any abrasive cleansers.
• Remove food from the appliance. Store it in a cool place and keep well covered.
• Clean the appliance and the interior accessories with a cloth and lukewarm water with a diluted white vinegar or bicarbonate of soda solution.
  After cleaning them, rinse surfaces with clear water and dry them.
• After everything is dry, plug the appliance back into the plug.

Never clean the appliance with a steam cleaner.

Defrosting the freezer

Warning! No thawed food may be replaced in the freezer. Place it in the refrigerator then eat it quickly.

This fridge is a ventilated cooling appliance and does not therefore have an automatic defrosting function. Any frost that forms due to a change of season or temperature can also be eliminated by hand by disconnecting the appliance or wiping it with a dry cloth.

Troubleshooting

Warning! If there is a fault, unplug your appliance. Only a qualified electrician or competent person may carry out troubleshooting.

If there is a fault during operation, check the following points before calling our approved after-sales service or a qualified professional.

Problem	Possible cause	Solution
Appliance does not work	The power cord is not plugged in or is loose.	Connect the power cord.
	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Outlet is defective.	Electrical malfunctions need to be repaired by an electrician.
Appliance freezes or cools too much.	Temperature is set too cold	Turn the thermostat to a warmer setting temporarily.
Food is not frozen enough.	Temperature is not properly set.	Please refer to the section on setting the temperature.
	Door was open for an extended period.	Only open the door when necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the thermostat to a colder setting temporarily.
	The appliance is near a heat source.	Please refer to the installation location section
Heavy build-up of frost on the door seal.	The door seal is not sealing.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time, handle the heated door seal with your hands to ensure that the appliance seals.
Water on the floor.	Water drain hole is blocked.	Please refer to the "Care and cleaning" section.
Appliance surfaces are hot when in use.	This is normal. Heat exchanger parts are located in the side walls.	Wear gloves when touching the side walls if necessary.
Unusual noises	The appliance is not level.	Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
High casing temperature	This is due to normal heat dissipation by the condenser built into the casing.	When the casing heats up due to high ambient temperature, an excessive quantity of stored food or when the compressor stops, ensure that the appliance is well ventilated to facilitate heat dissipation.
Surface condensation	Condensation on the outside of the appliance and on the fridge door seals is normal when the ambient humidity is too high.	Wipe off the condensation with a dry cloth.
Prolonged compressor operation	Prolonged compressor operation is normal during the summer months when the ambient temperature is high. Storing excessive quantities of food in the appliance is not recommended.	Food must be cooled to ambient temperature before it is placed in the appliance. The doors are opened too often.
The water tank overflows	There is too much food in the compartment or the food stored contains too much water causing excessive defrosting. The doors were not properly closed so that air can get in causing defrosting and a consequent increase in the amount of water.

① Some noises may be heard during normal appliance operation (compressor operating cycle, automatic defrosting, circulation of the refrigerating gas through the appliance, etc.).

If you cannot find the cause of the fault, only call our approved after-sales service or a qualified professional.

Original replacement parts

During servicing, ask for only original spare parts to be used.

The minimum length of time for making available spare parts listed in European Regulation 2019-2019-EU and accessible especially to the appliance user is 10 years under the terms set out in the above regulation.

Guarantee

The manufacturer does not offer a commercial warranty for the refrigerating appliance; please contact your retailer to benefit from the guarantee.

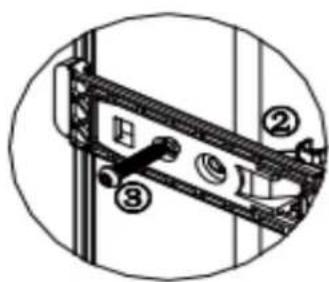

② TpuTnβiδαs
③ Bδa

④ Káluμpa tpuας βδας
