Product type	Decorative wall hood
Brand	Pando
Model	NEO
Dimensions (W x D x H)	900 x 500 x 600 mm (estimated)
Weight	Approximately 14 kg (estimated)
Power supply	220-240 V ~ 50 Hz
Maximum motor power	200 W (estimated)
Maximum airflow	600 m³/h (estimated)
Maximum noise level	65 dB(A) (estimated)
Lighting type	LED (not user-replaceable)
Number of lamps	2 (estimated)
Filter type	Washable metal grease filter
Charcoal filter (optional)	For recirculation mode
Operating modes	External extraction or recirculation
Controls	Electronic (buttons or touch depending on version)
Speeds	3 speeds (estimated)
Minimum distance to cooking surface	65 cm (gas cooking)
Material	Stainless steel (Inox)
Use	Domestic
Maintenance	Regular cleaning of filters and surface
Electrical connection	Accessible power outlet
Included accessories	Installation kit, user manual
Warranty	Manufacturer warranty according to conditions

Frequently Asked Questions - NEO Pando

What is the safety distance between the hood and the cooking surface?

The minimum distance is 65 cm for gas cooking. For electric cooktops, it may be lower, but please consult the manual. Always follow the installation instructions.

How to clean the grease filters?

Metal filters can be cleaned in the dishwasher or by hand with hot water and detergent. Let them dry before putting them back. Clean them every month or more often with heavy use.

Can I replace the LED lamps myself?

No, replacement of LED lamps must be carried out by a qualified professional or authorized technical service due to risk of electric shock. Contact Pando customer service.

Can the hood operate in recirculation mode?

Yes, with an optional activated carbon filter. This filter must be installed to filter the air before it is returned to the kitchen. Check availability with your dealer.

What to do if the hood makes abnormal noise?

Check that the filters are not clogged and that the exhaust duct is not blocked. If the noise persists, contact Pando technical service.

Can I use the hood at the same time as a fireplace or gas heater?

Yes, but with caution. Ensure the room is sufficiently ventilated to prevent backdraft of combustion gases. The negative pressure must not exceed 0.04 mbar. Consult a professional.

How to install the hood?

Installation must be carried out by a qualified professional. Follow the instructions in the manual. Ensure the safety distance is respected and the exhaust duct is correct.

Where to find spare parts?

Contact Pando technical service or an authorized dealer. Charcoal filters and LED lamps are available. Use only original parts.

What is the disposal procedure for the hood?

Do not dispose of the hood with household waste. Take it to a collection point for waste electrical and electronic equipment (WEEE) for recycling.

Does the warranty cover aesthetic damage during installation?

No, aesthetic damage (scratches, impacts, stains) occurring during installation is not covered by the warranty. Protect the hood during work.

USER MANUAL NEO Pando

First of all we wish to thank you for the trust shown on our Company by purchasing one of our products. We are sure you have made the right choice.

In Pando, not only we offer first quality products, but also we make available a large professional team to serve and assist you on any query you may have regarding installation and/or performance.

We also suggest you to pay a visit to our web site (www.pando.es/en) to get to know us better and where you will find all product range containing all necessary commercial and technical information.

A wide selection of extractor hoods can be found there; Wall Hoods, Ceiling, Island or Canopy Hoods. Four types of installation making possible to adapt ourselves to any type of kitchen based on different needs.

At the same time, we take the opportunity to introduce you our collection of in house essential appliances, such our new high performance Ovens and Microwaves, Induction and Gas Hobs to make real your best recipes. Wine Coolers and Aging Wine Coolers to maintain and keep your wines in best of conditions and built-in Dishwashers with latest technology.

All that under a brand with over 40 year history in the market, making products like a real craftsman, and gathering in them the best of our experience to please all your needs.

We sincerely look forward you to have fun, experience and enjoy with the comfort and capacity of what already became your new kitchen ally.

Many Thanks

The PANDO Team

ES - Español

RECOGIDA DE LOS ELECTRODOMÉSTICOS

The symbol on the product or its packaging indicates that this product cannot be disposed of like normal domestic waste. The product must be handed over at a collection point for recycling electrical and electronic equipment. If you ensure that this product is correctly disposed of, you will help to avoid the possible negative environmental and public health effects that could arise from incorrect disposal. For more detailed information about recycling this product, please contact your city authorities, the domestic waste service or the establishment where you purchased it. This electrical appliance is marked in compliance with European Directive 2002/96/EC on electrical and electronic appliance waste (WEEE).

ENVIRONMENTAL PROTECTION AND WASTE TREATMENT

DISPOSAL OF THE PACKAGING. The packaging is marked with in Green Dot.

In its commitment to the protection of the environment and in compliance with the provisions of the European Directive 94/62 / EC on packaging and packaging waste and the derived Law 22/2011 on Contaminated Residues and Soils, Pando entrusts entities of social economy an Integrated Management System, responsible for the periodic collection at the consumer's home or in its vicinity of used packaging and packaging waste for subsequent treatment.

To remove all packaging materials such as cardboard, expanded polyurethane, and film, use the appropriate containers.

This ensures the correct treatment and reuse of packaging materials.

The manufacturer will not be held liable for any possible inaccuracies due to printing or trans-cription errors in this manual. The manufacturer reserves the right to incorporate modifications considered useful or necessary into the products, which will not alter their essential functional and safety characteristics.

EN - INTRODUCTION

Firstly, we would like to thank you for your confidence in our firm when you chose a Pando extractor hood.

This manual and its annexes are a guide for the correct installation, usage and maintenance of your new Extractor Hood.

To learn everything about your hood, we recommend you read these instructions carefully from beginning to end and keep them for future reference.

Before starting the installation process read with care this installation manual and the attached user's manual, There are also instructions for the correct installation of the product.

Installation should only be carried out by qualified professionals, professional installers or the official technical service. The manual or installation guide must be read with care before starting the installation process.

When opening the packaging, check that all the components are in perfect state and all the accessories are present. If this is not the case, contact the dealer and do not install. Once installed, any damage to the exterior such as scratches, dents, stains, etc. will not be covered by the guarantee.

EN - RECOMMENDATIONS TO BEAR IN MIND BEFORE INSTALLATION.

VERY IMPORTANT!

DO NOT REMOVE THE PROTECTIVE PLASTIC FROM THE HOOD UNTIL IT IS COMPLETELY INSTALLED, IF THIS PLASTIC IS NOT PRESENT IN AREAS THAT COULD HAVE A RISK OF DAMAGE DURING INSTALLATION, IT IS RECOMMENDED TO APPLY PROTECTIVE MATERIALS AGAINST IMPACT, SCRATCHES AND CONTACT WITH CORROSIVE AGENTS.

TAKE ESPECIAL CARE DURING THE INSTALLATION IF OTHER WORK IS ALSO IN PROGRESS, BECAUSE PAINT, SILICON, PLASTER AND OTHER MATERIALS COULD CONTAIN CORROSIVE CHEMICALS THAT MAY DAMAGE THE PRODUCT, IN THESE CASES IT IS RECOMMENDED TO ADEQUATELY PROTECT THE HOOD, BY FOR EXAMPLE, HERMETICALLY COVERING AREAS THAT COULD BE AFFECTED WITH PLASTIC.

THIS WILL AVOID DAMAGE TO THE OUTSIDE OF THE APPLIANCE, SOMETHING THAT WILL NOT BE COVERED BY THE GUARANTEE.

EN - SAFETY INSTRUCTIONS

- If the hood is to be used at the same time as gas fuelled or other fuelled appliances (not applicable to appliances exclusively designed to blow air into the room) the room must be properly ventilated.

- The exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (not applicable to devices destined exclusively to discharge the air inside the room).

-The minimum distance between the surface of the cooktop and the lower edge of the hood must be 65 cm if the the extractor hood is fitted over gas cooker. If the installation instructions of the gas cooker indicates a greater distance, this must be followed.

- Regulations regarding air evacuation must be respected.

- If the hood does not have a power cable with a plug, or other means for disconnection from the mains, with a separation of all poles to ensure total disconnection under category III conditions of overvoltage, means for disconnection of the fixed installation must be incorporated in accordance with installation regulations.

EN - SAFETY INSTRUCTIONS

- Once the appliance has been delivered, within 24h, remove the packaging and check that it is in good state, visually inspecting the general state of the outside. If any anomaly or damage is observed, do not install and immediately inform the dealer or installer within 24h of reception.

- This hood has been designed for normal domestic use. It must not be used for industrial, professional, or any other use different from what it has been designed for.

- Pando will not be held liable for consequences or damages resulting from incorrect installation or misuse of the appliance.

- Do not try to alter any of the characteristics of this appliance, this could be dangerous and will automatically render the guarantee void.

- It must be possible and accessible for the user to disconnect the appliance from the mains after installation. The power plug should be easily accessible, if this is not the case, a switch for electrical disconnection, compliant with electrical installation regulations, must be fitted.

- Take special care when perforating walls or ceilings and ensure that there are no hidden electrical cables, pipes, metal beams, etc., as perforating them could cause great damage, short circuits or the transmission of noise and vibrations.

- IMPORTANT: Before connecting the appliance to the mains, make sure the current is first turned off (differential or circuit breaker on the general electrical panel of the house).

- Hood and conduit installation must comply with regulations on ventilation of closed spaces. More specifically, the exhausted air must not be led through a conduit that is used for exhausting fumes from other appliances using gas or other fuels (central heating installations, etc.).

- Negative pressure in the premises must not exceed 0.04 mbar. This will allow the hood to operate in optimum conditions. To achieve this, it is necessary to have a permanent entry of fresh air to avoid air stagnation, it is recommended to have a ventilation grille for this purpose. Doors and windows are not enough.

EN - SAFETY INSTRUCTIONS

- Attention! When the hood is in operation “in suction” at the same time as a heating system that depends on ambient air (gas, oil, coal boiler, chimney, etc.), take special care to avoid the hood absorbing air needed for combustion, this could cause dangerous accumulations of carbon monoxide in the premises or home, which could be deadly. If the extractor hood is installed together with a combustion appliance such as a boiler, chimney or local heating, the manufacturers of these appliances must be contacted to ensure optimum and risk-free operation.

- Electrical power supply must be stable and meet the electrical requirements of the appliance (see the nameplate of the appliance). If the power supply is unstable, with variations in voltage, current, surges and cuts, electrical storms, etc., the hood could malfunction and even be damaged, in which case repairs will not be covered by the guarantee. If any of these things happen, disconnect the hood and contact an electrician or your electrical company to solve the problem.

- To avoid hazards, it is forbidden to manipulate the appliance. If the power cable is damaged it must be replaced by the manufacturer through an authorised technical service. Any repairs that involve manipulating the appliance or its components must only be done by an authorised technical service.

- Improper and unauthorised handling of the hood, as well as modifying, cutting or perforating the body, structure, motor or wiring of the hood are expressly forbidden. In case of any of the above, the guarantee will be automatically void and the manufacturer will not be held liable for any possible harm or damages.

- The hood is an electrical appliance for fume extraction and must not be used as a support for objects or utensils.

- The LED lamps can not be manipulated by the user as there are risks of electric shock, handling, maintenance or replacement is a task reserved exclusively for official technical assistance service or authorized specialist installer.

- With the aim of constantly improving our products, we reserve the right to modify their functional characteristics or their appearance.

EN-It must be taken into account and provide that the hood and peripherals must have easy and safe access for possible maintenance or repair tasks of the official Pando technical service (SAT). The guarantee will NOT cover the costs and means necessary for access to a product that does not meet these conditions. In the event that the product is not easily accessible or safe, a criterion that will be issued by SAT in its initial inspection, it will be the responsibility of the client to place the means and assume the necessary costs so that the SAT can perform the intervention adequately.

CONTENIDO / CONTEÚDO / CONTENU / CONTENT

Line drawing of a technical enclosure or enclosure with internal components and mounting holes (no text or symbols)

Close-up of a metallic threaded component with no visible text or symbols

Simple line drawing of an open box with a curved arrow indicating rotation (no text or symbols)

(x3)

4x20 (x4)

HERRAMIENTAS NECESARIAS / FERRAMENTAS NECESSÁRIAS / LES OUTILS NÉCESSAIRES / TOOLS NEEDLE

Line drawing of a screwdriver with a cylindrical head and threaded shaft (no text or symbols)

Isometric illustration of a rectangular electronic component with two circular holes and evenly spaced pins (no text or symbols)

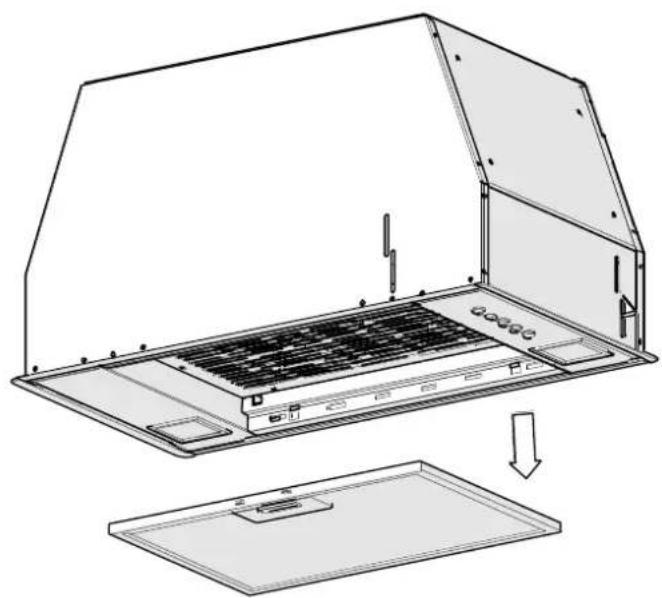

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

371 - 632 270 496 - 757 520 - 780 260 283

1

262 502 - 762

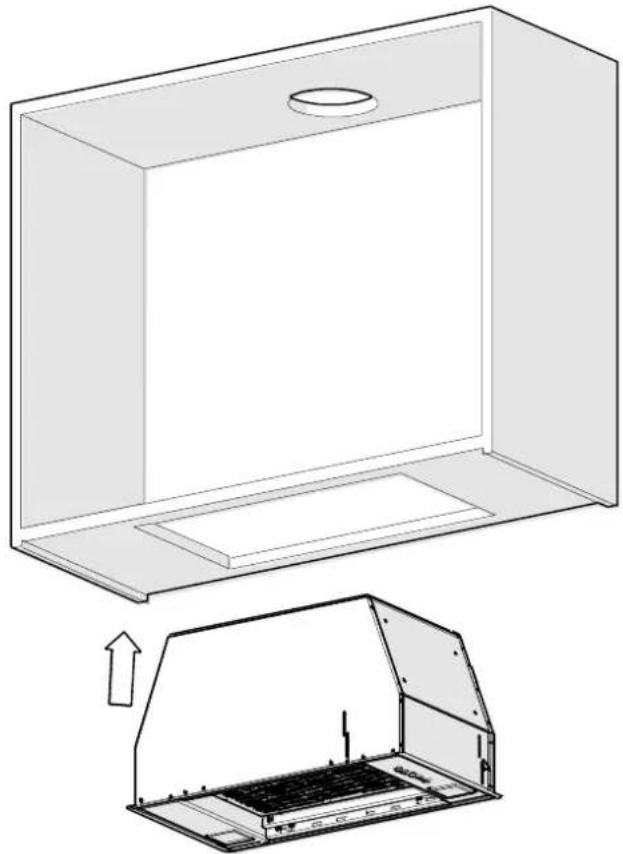

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

2

Technical line drawing of a laptop chassis showing front panel, rear panel, and internal components (no text or symbols)

3

Technical line drawing of a cabinet with an open lid and internal structure, showing internal components (no text or symbols)

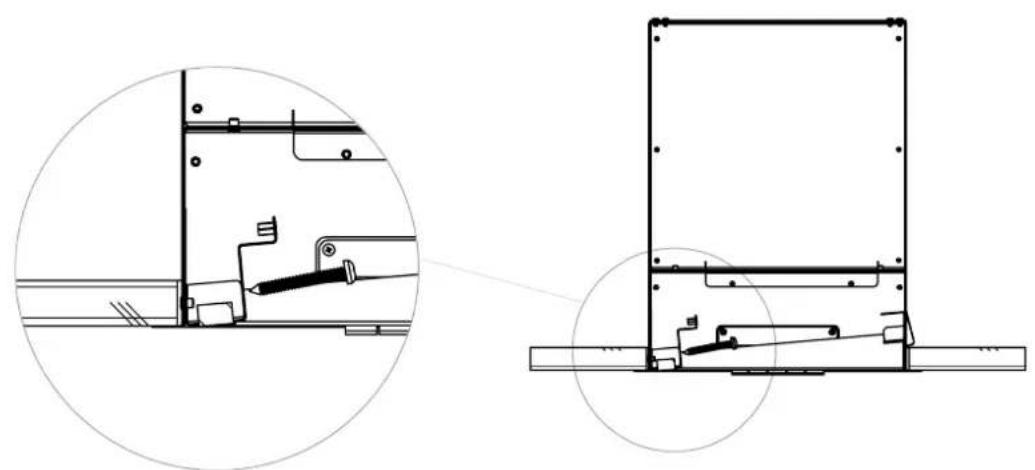

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

4

Technical diagram showing a mechanical assembly with an inset circular detail and a close-up of a component (no text or symbols)

Diagram showing a door lock mechanism with a screwdriver, illustrating the process (no text or symbols present)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

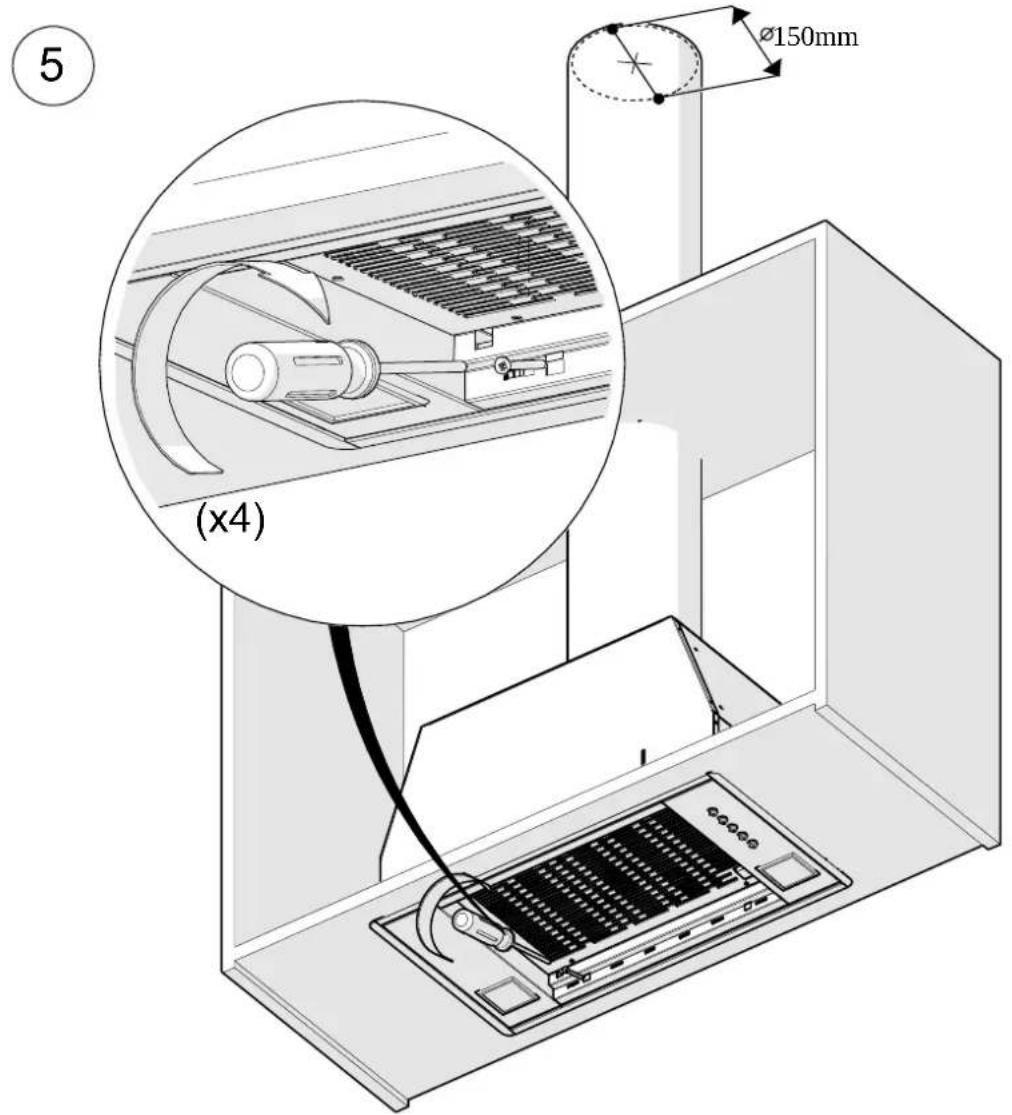

5 Ø150mm (x4)

Technical line drawing of a mechanical assembly with two views: top shows internal components, bottom shows close-up of a bracket (no text or symbols)

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION

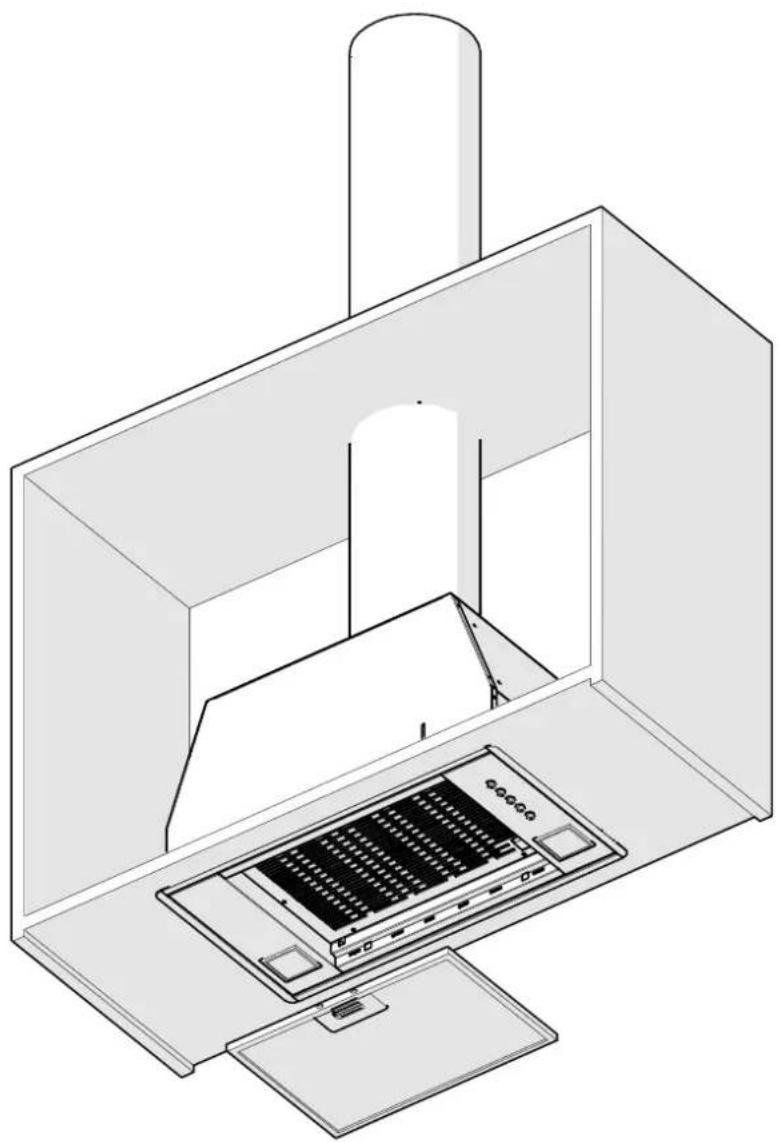

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

FILTRO ALUMINIO

FILTRO ALUMÍNIO

FILTRE D'ALUMINIUM

ALUMINIUM FILTER

Isometric line drawing of a kitchen appliance with a chimney, fan, and base (no text or symbols)

Illustration of hands interacting with a grid-patterned device (no text or symbols visible)

TIPO C / TYPE C

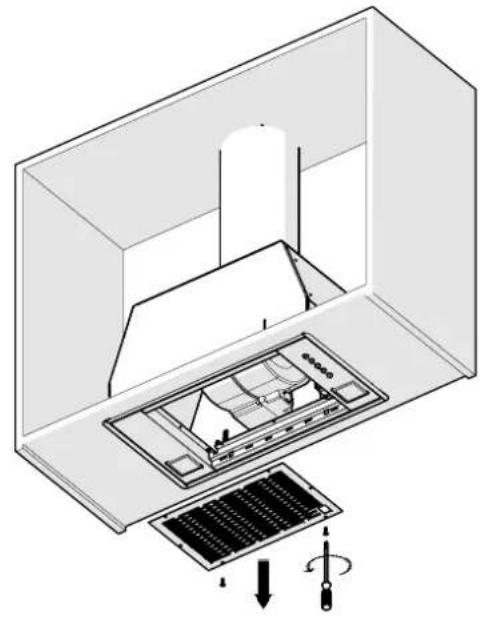

INSTALACIÓN / INSTALAÇÃO / INSTALLATION / INSTALLATION (OPCIONAL / EN OPTION / OPTIONAL)

FILTROS DE CARBON ACTIVO (FCA) / FILTROS DE CARVÃO ACTIVO (FCA) / FILTRES A CHARBON ACTIF (FCA) / ACTIVE CARBON FILTERS (FCA)

1

Diagram showing a device inside a transparent enclosure with an inset image of a hand interacting with a screen, labeled with number 1.

2

Technical diagram of a kitchen or oven interior with internal components and a screwdriver, showing no text or symbols.

3

Technical diagram of a mechanical device inside a transparent enclosure, showing internal components and directional arrows (no text or symbols)

4

Isometric technical diagram of a mechanical assembly inside a housing, showing internal components and a directional arrow (no text or labels)

5

Isometric line drawing of a computer setup with monitor, tower, and keyboard (no text or symbols)

TIPO C / TYPE C

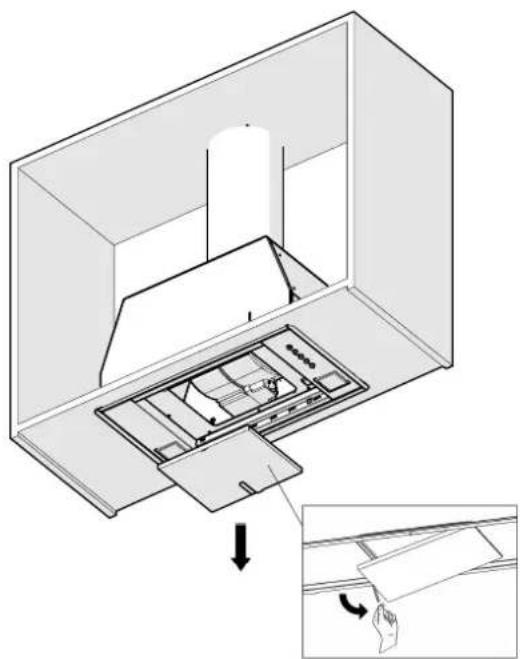

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

(OPCIONAL / EN OPTION / OPTIONAL)

FILTROS DE CARBON ACTIVO (FCA) / FILTROS DE CARVÃO ACTIVO (FCA) / FILTRES A CHARBON ACTIF (FCA) / ACTIVE CARBON FILTERS (FCA)

1

Isometric line drawing of a computer setup with monitor, tower, and keyboard (no text or symbols)

2

Technical diagram of a cabinet interior with internal compartments and a hand holding a shelf, showing a close-up of the shelf (no text or symbols present)

3

Isometric technical diagram of a mechanical assembly inside a housing, showing internal components and a directional arrow (no text or labels)

4

Isometric diagram of a kitchen appliance with a tray and door, showing internal components (no text or symbols)

MANTENIMIENTO / MANUTENÇÃO / MAINTENANCE / MAINTENANCE

Simple geometric shape with a rectangular outline on a gray background (no text or symbols)

3D diagram of a rectangular electronic component with wires and a small protrusion (no text or symbols)

¡ATTENCIÓN!

LED-type lamps involve a complex manipulation in addition to an aerial connection of an internal connector that involves the risk of electric shock. Therefore, this type of manipulation must be done by the Pando technical assistance service or by a qualified and authorized professional installer. The manufacturer is not responsible for any damage caused by improper handling of led lamps by unauthorized personnel.

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

NOTAS/NOTAS/REMARQUES/NOTES:

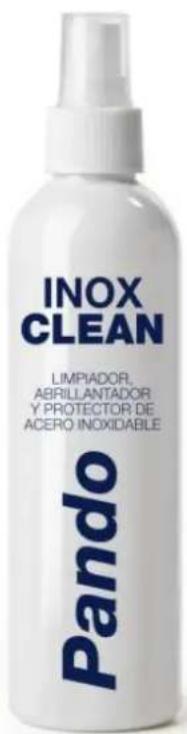

INOX CLEAN LIMPIADOR, ABRILLANTADOR Y PROTECTOR DE ACERO INOXIDABLE Pando

ES

ESPRODUCTO EXCLUSIVO

LIMPIADOR,

ABRILLANTADOR Y

PROTECTOR DE ACERO INOXIDABLE

INOX PANDO, Referencia 1059.

PROPIEDADES:

EXCLUSIVE PRODUCT CLEANER, POLISH AND STAINLESS PROTECTOR

INOX PANDO, Reference 1059.

PROPERTIES:

Degreaser especially recommended for polishing stainless steel surfaces, with its complex formula based on paraffin it leaves an invisible film that acts as a protector and makes it shine.

APPLICATIONS:

Cleans, polishes and evens out stainless steel surfaces of extractor hoods and stainless steel kitchen furniture.
