USER MANUAL WSnow13S WESTINGHOUSE

Blue circular icon with a white crown symbol (no text or numbers)

User Manual

WSnow13S AC

13-in. Corded Snow Shovel

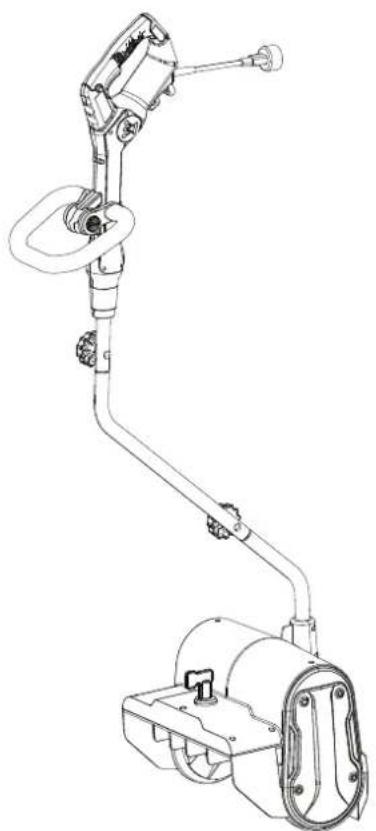

Technical line drawing of a mechanical device with articulated arms and housing (no text or symbols)

TABLE OF CONTENTS

Introduction 2-3
Safety....4-6
Electrical Safety....6-7
Components....8
Assembly 9
Operation 10-11
Maintenance....12
Troubleshooting....13
Parts Page....14
Service Hot Line/Company Address......Back Page

INTRODUCTION

WARNING

Operating, servicing, and maintaining this equipment may expose you to chemicals which are known to

the State of California to cause cancer and birth defects or other reproductive harm. To minimize exposure, wear gloves or wash your hands frequently when servicing this equipment. For more information go to www.P65warnings.ca.gov.

DISCLAIMERS

All information, illustrations, and specifications in this manual were in effect at the time of publishing. The illustrations used in this manual are intended as representative reference views only. We reserve the right to make any specification or design change without notice.

ALL RIGHTS RESERVED

All rights reserved. No reproduction allowed in any form without written permission from Westinghouse Outdoor Power Equipment.

DANGER

Read this manual before using or performing maintenance on this product. Failure to follow the

instructions and safety precautions in this manual can result in serious injury or death.

UPDATES

The latest User Manual for Westinghouse products can be found under the support tab. wpowereq.com/pages/manuals

Or scan the following QR code with a smartphone camera to be directed to the link.

PRODUCT REGISTRATION

For trouble-free warranty coverage, it is important to register the Westinghouse product.

Register by:

• Completing and mailing the product registration card included in the carton.
• Going online at: wpowereq.com/pages/warranty-registration
• Scanning the following QR code with a smartphone camera to be directed to the mobile registration link.

For Your Records

Date of Purchase:

Model Number:

Serial Number:

Place of Purchase:

QR code image containing encoded data, no visible human-readable text

- Sending the following product information to:

Westinghouse Outdoor Power

Warranty registration

777 Manor Park Drive

Columbus, OH 43228

IMPORTANT: Keep the purchase receipt for trouble-free warranty coverage.

SPECIFICATIONS

AC Voltage 120V / 60Hz, 12 Amps

Clearing Width 13 in. (33 cm)

Maximum Throwing Distance up to 20 ft. (6.1 m)

Maximum Snow Intake Height 7 in. (18 cm)

Machine Weight 15.7 lbs. (7.1 kg)

NOTICE

This product is designed and rated for continuous operation at ambient temperatures above 23°F (-5°C). If

needed, this product can be operated in extremely cold temperatures for short periods. If the product is exposed to extreme temperatures during storage, it should be brought back within the optimal temperature range before operation.

NOTICE

Thank you for choosing Westinghouse! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON.

If you have a question or experience a problem with your Westinghouse purchase, call us at 1-855-944-3571 to speak with an agent.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

HAVE QUESTIONS?

Email us at [e-mail]

or call 1-855-944-3571

SAFETY DEFINITIONS

The words DANGER, WARNING, CAUTION, and NOTICE are used throughout this manual to highlight important information. Be sure that the meanings of this safety information are known to all who operate, perform maintenance on, or are near the unit.

This safety alert symbol appears with most safety statements. It means attention, become alert, safety is involved! Please read and abide by the message that follows the safety alerts symbol.

DANGER

Indicates a hazardous situation

which, if not avoided, will result in death or serious injury.

WARNING

Indicates a hazardous situation

which, if not avoided, could result in death or serious injury.

CAUTION

Indicates a hazardous situation

which, if not avoided, could result in minor or moderate injury.

NOTICE

Indicates a situation which can cause dam-

age to the unit, personal property, and/or the environment, or cause the equipment to operate improperly.

NOTE: Indicates a procedure, practice or condition that should be followed for the unit to function in the manner intended.

SAFETY SYMBOLS

Follow all safety information contained in this user manual as well as the information on the product labeling.

SYMBOL	DESCRIPTION
	Safety Alert Symbol. Indicates a potential personal injury hazard.
	Read User Manual. To reduce the risk of injury, the user must read and understand user manual before using this product.
	WARNING! Electrical shock hazard.
	Wet Conditions Alert. Do not expose plug to water or rain.
	DANGER! Cutting/dismemberment hazard. Keep feet away from the rotating paddle.

SYMBOL	DESCRIPTION
	DANGER! Cutting/dismemberment hazard. Keep Hands away from the rotating paddle. Do not use hands to unclog rotor housing. Stop motor before removing debris.
	Keep the flexible power supply cord away from the rotating paddle.
	Wear safety gloves during use to protect hands. Wear safety footwear at all times to provide protection against objects that may accidentally fall on feet.
	Keep all bystanders 50 ft away.
	CAUTION! Beware of stones and other foreign objects that could be thrown from the product.
	Always keep the power cable away from heat sources, oils, or sharp edges. Immediately remove plug from the mains if the cable is damaged, frayed, or entangled.
	Wear hearing and eye protection. Always wear eye protection with side shields marked to comply with ANSI Z87.1.
	WARNING! Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories, or any other maintenance task.
	DOUBLE INSULATED. Grounding not required. When servicing, use only identical replacement parts.
	The rotating part will continuously run for several seconds after turning off the machine.
	Do not open or remove the safety shield while the unit is in operation.
	WARNING! Rotating blades while the unit is in operation.
	Keep hands away from the blades.

WARNING

READ AND UNDERSTAND ALL IN-

STRUCTIONS. Failure to follow all instructions listed below and on the machine may result in electric shock, fire, and/or serious personal injury.

- Know the snow shovel. Read the user manual carefully. Learn its applications and limitations, as well as the specific potential hazards related to this snow shovel. Following this rule will reduce the risk of electric shock, fire, or serious injury.

- Do not permit children to use snow shovel.

- Only use accessories that are recommended by the manufacturer for the model described in this manual. Accessories that may be suitable for one snow shovel may create a risk of injury when used on another snow shovel. Use only as described in this manual.

- Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.

- Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Be sure the extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current that the product will use. A wire gauge size (A.W.G.) of at least 14 is recommended for an extension cord 50 feet or less in length. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

- WARNING: Use outdoor extension cords marked SOW, STW, SJTW, or SJTOW. These cords are rated for outdoor use and reduce the risk of electric shock.

- This product is designed with a cord retainer that prevents the extension cord from being pulled loose while using.

- If cord is damaged in any manner while plugged in, pull extension cord from wall receptacle.

- Never carry the snow shovel by the cord or yank it to disconnect from a receptacle. Keep the cord from heat, oil, and sharp edges.

- Keep hands away from moving parts.

- Avoid Unintentional Starting – Do not carry plugged in appliances with a finger on the switch trigger. Be sure the switch trigger is not engaged before plugging in.

- Do not use the tool if the switch trigger does not turn it on or off. Any tool that cannot be controlled with the switch trigger is dangerous and must be repaired.

- Do not operate snow shovels in the presence of flammable liquids, gases, or dust. Snow shovels create sparks which may ignite the dust or fumes.

- Keep bystanders, children, and visitors at least 100 ft. away while operating a snow shovel.

- If the appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call customer service.

- Do not use the snow shovel while tired, upset, or under the influence of drugs, alcohol, or medication. A moment of inattention while operating snow shovels may result in serious personal injury.

- Use safety equipment. A dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.

- Do not wear loose clothing, scarves, or jewelry. They can be caught in moving parts.

- Inspect for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect operation. If damaged, call customer service.

- Keep the snow shovel and the handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean the snow shovel. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic.

- Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury.

- Always wear eye protection with side shields marked to comply with ANSI Z87.1 along with hearing protection when operating this equipment.

- Protect hearing – Wear hearing protection during extended periods of operation. Following this rule will reduce the risk of serious personal injury.

- Do not expose snow shovels to rain. Water entering a snow shovel will increase the risk of electric shock.

- Wear heavy long pants, long sleeves, boots, and gloves. Avoid loose garments or jewelry that could get caught in moving parts of the machine or its motor.

- Wear rubber boots when operating the snow shovel. Protective footwear will protect feet and improve footing on slippery surfaces. Do not operate barefoot or while wearing sandals.

- Keep firm footing and balance. Do not overreach. Overreaching can result in loss of balance.

- Do not operate the snow shovel in a direction that will cause snow to be thrown on people or pets. Thrown snow or other objects can cause serious personal injuries.

- Store idle snow shovels indoors — When not in use, snow shovel should be stored indoors in a dry, locked up place — unplugged and out of the reach of children.

- Keep all bystanders, children, and pets at least 50 ft. away.

- When servicing a snow shovel, use only identical replacement parts. Replace or repair damaged cords. Follow all instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury.

- Never use the snow shovel near fires, fireplaces, or hot ashes. Use near fires or ashes can spread fires and result in serious injury and/or property damage.

• Never use the snow shovel to spread chemicals, fertilizers, or any other toxic substances. Spreading these substances could result in serious injury to the operator or bystanders.
• Never place the snow shovel on any surface, except a hard, clean surface when the motor is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.
• Inspect the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string that can be thrown or become entangled in the machine.
• Do not use the snow shovel on ice. This can cause the operator to slip and fall, resulting in possible serious personal injury.
• Never use the snow shovel on frozen lakes, rivers, or similar surfaces. Serious injury or death could occur if the ice breaks.
• Never use the snow shovel on a rooftop or other unstable surface. This can result in death or serious personal injury.
• For household use only.
• Use the right appliance — Do not use the snow shovel for any purpose other than the intended purpose.
• Do not force the snow shovel - It will operate better and safer at the rate for which it was designed.
• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Stop the snow shovel when crossing gravel or rocky surfaces.
• If the snow shovel strikes a foreign object, follow these steps:
• Release the switch trigger and wait until the unit comes to a complete stop.
• Disconnect the snow shovel from the power supply.

• Thoroughly inspect the snow shovel for any damage.

• Repair any damage before restarting and operating the snow shovel.

• Do not lift or hold the snow shovel above the ground when operating. This can result in loss of control and possible serious personal injury. Only operate the snow shovel in accordance with the operating instructions provided in this manual.
• Keep the guards in place and in working order.
• Disconnect the plug from power sources when not in use, before servicing, and when changing accessories.
• Follow all instructions for lubricating and changing accessories.
• Retain these instructions. Refer to them frequently and use them to instruct others who may use this tool.

ELECTRICAL SAFETY

DOUBLE-INSULATED APPLIANCES

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words "Double Insulation" or "Double Insulated." The symbol (square within a square) may also be marked on the appliance. This electric snow shovel is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double- insulated appliances. Use this snow shovel only as described in this manual.

EXTENSION CORDS

See Figure 1.

When using a power tool at a considerable distance from a power source, be sure to use an extension cord that has the capacity to handle the current the product will use. An undersized cord will cause a drop in line voltage. This can result in overheating and loss of power. Use the chart to determine the minimum wire size required in an extension cord. Only round jacketed cords listed by Underwriter's Laboratories (UL) should be used.

When working outdoors with a product, use an extension cord that is designed for outside use. This type of cord is designated with "WA" or "W" on the cord's jacket. Be sure to use a heavy guage (A.W.G.) wire for the product based on the chart below. If in doubt, use the next heavier gauge. (smaller gauge numbers equal heavier cords). Using an undersized cord will cause a drop in line voltage and result in loss of power and overheating.

**Ampere rating (on product data plate)
0-2.0 2.1-3.4 3.5-5.0 5.1-7.0 7.1-12.0 12.1-16.0

Cord Length	Wire Size (A.W.G.)
25' 16 16 16 16 14 14
50' 16 16 16 14 14 12
**Used on 12 gauge – 20 amp circuit.
NOTE: AWG = American Wire Gauge

Before using any extension cord, inspect it for loose or exposed wires and cut or worn insulation.

It is possible to tie the extension cord and power cord in a knot to prevent them from becoming disconnected during use. See Figure 1. Make the knot. Connect the plug end of the power cord into the receptacle end of the extension cord. This method can also be used to tie two extension cords together.

WARNING

Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with a power tool. Failure to do so can result in serious personal injury.

WARNING

Inspect extension cords before each use. If damaged, replace the extension cord immediately. Never use the product with a damaged cord. Contact with the damaged area could cause an electrical shock and result in serious injury.

ELECTRICAL CONNECTION

This product has a precision-built electric motor. It should be connected to a power supply that is nominal 120V / 60Hz AC (typical U.S. household circuit). Do not operate this product on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If the product does not operate when plugged into an outlet, check the power supply.

SPEED AND WIRING

The speed is not constant and decreases under a load or with lower voltage. For voltage, the wiring in a shop is as important as the motor's horsepower rating. A line intended only for lights cannot

FIG. 1
TIE CORDS AS SHOWN

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

1 - Extension cord
2 - Appliance cord

FIG. 2

Technical line drawing of a mechanical component with two circular parts and a labeled pin (no text or symbols present)

1 - Polarized blade

properly carry a power tool motor. Wire that is heavy enough for a short distance will be too light for a greater distance. A line that can support one power tool may not be able to support two or three tools.

POLARIZED PLUG

See Figure 2.

To reduce the risk of electric shock, this product has a polarized plug featuring one blade that is wider than the other. Do not modify the plug provided. The plug will fit into a polarized extension cord only one way. Use only a polarized UL-, CSA-, or ETL-listed extension cord when using this snow shovel. If the plug does not fully fit into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet.

WARNING

Improper installation of a nonpolarized extension cord increases the risk of electric shock.

Repair or replace a damaged or worn cord immediately.

This product is for use on a nominal 120 V circuit and has a polarized plug similar to the plug shown in figure 2. Only connect the product to an extension cord that has the same configuration as the plug. Do not use an adapter with this product.

WARNING

SAVE THESE INSTRUCTIONS. When

using this product safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury.

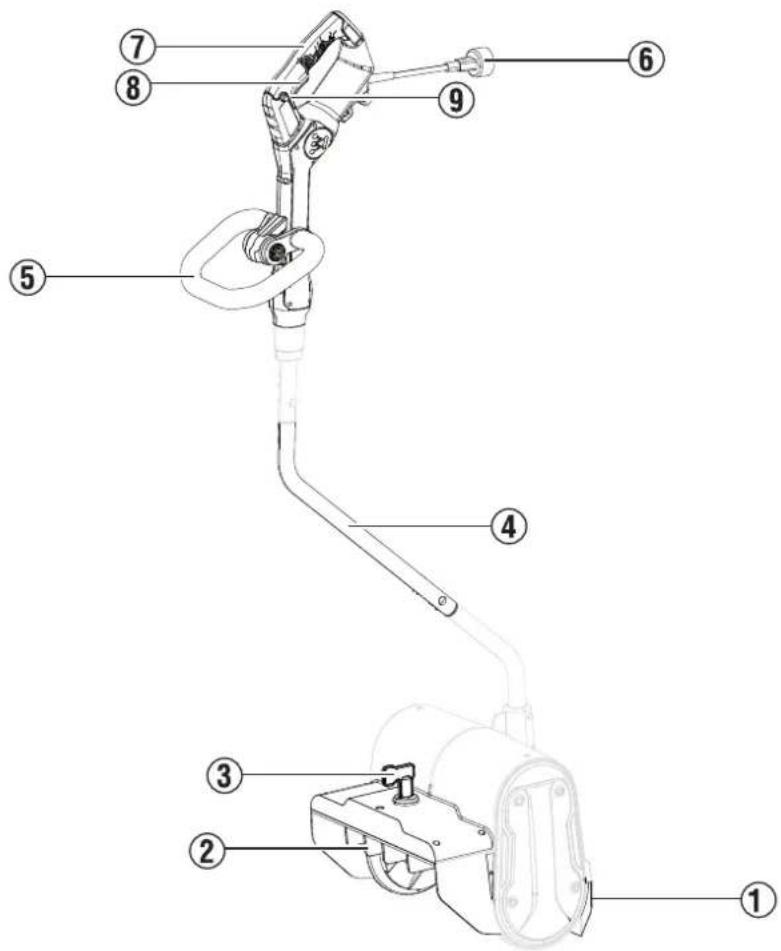

FIG. 3

Technical diagram of a mechanical device with numbered parts for identification

UNDERSTANDING THE SNOW SHOVEL

See Figure 3.

To reduce the risk of personal injury and product failure, read and understand the information in this user manual and the information on the product labeling.

Component Table
Index Number	Component Description
1 Scraper blade	Enables proper distribution of snow through the auger.
2 Auger Allows the removal of snow up to 7 inches in depth and 13 inches wide.
3	Directional throw lever	Provides preference on the direction that the snow is thrown during use.
4 Middle tube The tube that connects the lower tube and auger housing to the upper tube and control handle.
5 Front handle Provides the user additional comfort and stability during use.
6 Power cord The source of connection between the snow shovel and the power source.
7 Top handle Provides additional user comfort and stability during use.
8 Switch trigger Initiates the auger for operation when squeezed in conjunction with the lock-out button. The switch trigger must be held throughout use, or the snow shovel will not operate.
9 Lock-out button Prevents the snow shovel from starting accidentally.

REMOVING CARTON CONTENTS

WARNING

This product requires assembly. Do not attempt to operate this product if any items in the INCLUDED LIST

are already assembled when you remove the carton contents. These items are not assembled by the manufacturer and should require customer assembly. Using an improperly assembled product can be hazardous and could result in serious personal injury.

• Open the carton.
• Remove and inspect the carton contents. Confirm that all the items in the INCLUDED LIST are present and undamaged.
• Recycle or dispose of the packaging materials.

INCLUDED LIST
ITEM QUANTITY
Spindle 2
Screw 2
Top handle 1
Auger housing 1
Middle tube 1

If any parts are missing, contact our service team at [e-mail] or call 1-855-944-3571.

WARNING

Do not alter or modify this product unless instructed otherwise in this manual or by the manufacturer. Do accessories that are not recommended for use with this product. Making unauthorized modifications and essories can damage the unit and may void your warranty.

WARNING

Do not connect to power supply until assembly is complete. Failure to comply could result in accidental serious personal injury.

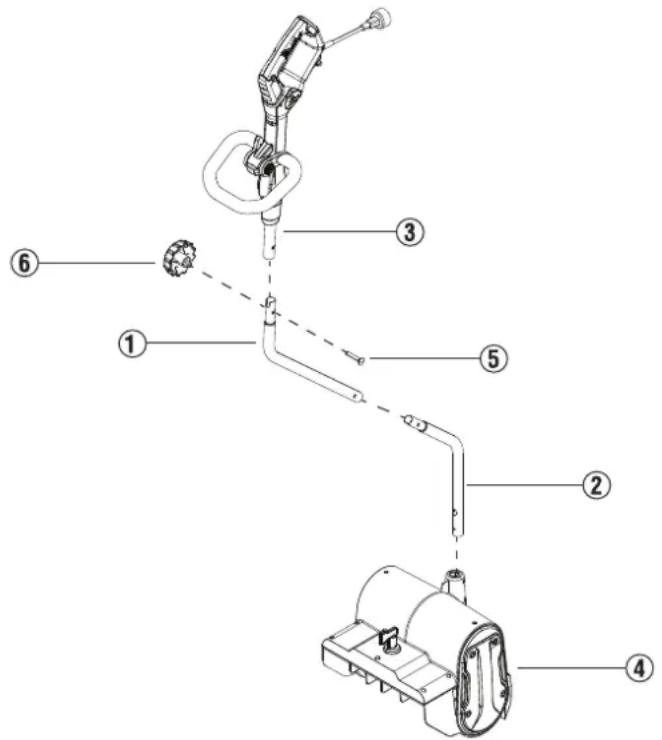

ASSEMBLING THE SNOW SHOVEL

See Figure 4.

1. Insert the lower tube (2) into the auger housing (4).
2. Attach the middle tube (1) to the lower tube and secure with the spindle (6) and screw (5).
3. Attach the upper tube (3) to the middle tube and secure with the spindle and screw.

FIG. 4

Technical diagram of a mechanical assembly with numbered components for identification

WARNING Do not allow familiarity with products to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING Always disconnect snow shovel from power supply when you are assembling parts, making adjustments, cleaning, or when not in use. This will prevent accidental starting that could cause serious personal injury.

NOTICE Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or a qualified service center for assistance.

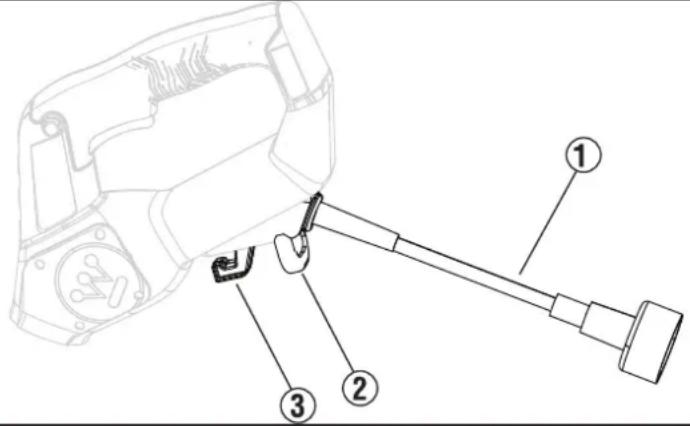

CONNECTING TO POWER SUPPLY

See Figure 5.

This product is designed with a cord retainer that prevents the extension cord from coming loose while in use.

1. Form a loop with the extension cord.
2. Insert the loop of the extension cord through the opening (2) underneath the handle.
3. Place the loop over the hook (3). Pull on the cord to reduce the slack and secure it over the hook.
4. Plug the power cord (1) into the extension cord.

NOTE: Removing excess cord slack will help prevent the plug from loosening from the extension cord.

FIG. 5

Technical diagram of a mechanical device with numbered parts labeled ①, ②, and ③

STARTING AND STOPPING THE SNOW SHOVEL

To start the motor:

- Connect the snow shovel to the power supply.

NOTICE

Always secure the extension cord to the unit by using the power cord retainer. Failure to use the power cord ult in damage to the snow shovel and/or extension cord.

• Press and hold the trigger lockout button with.
• Squeeze the switch trigger.
  NOTE: Once the snow shovel is on, release the lock-out button.

To stop the motor:

- Release the switch trigger.

OPERATING TIPS

WARNING Never use the snow shovel on frozen lakes, rivers, or similar surfaces. Death or serious injury could occur if the ice breaks.

WARNING Never use the snow shovel on a rooftop or other unstable surface. This can result in death or serious personal injury

WARNING Do not use snow shovel on ice. This can cause the operator to slip and fall, and result in serious personal injury.

WARNING Do not wear loose clothing, scarves, or jewelry. They can be caught in moving parts and cause death or serious personal injury.

WARNING Keep all snow discharge pointed away from all electrical devices to reduce the risk of electrocution or electric shock.

WARNING Never point the snow shovel or discharge chute in the direction of people or pets. Thrown snow or other objects can cause serious personal injuries.

WARNING Be sure the area to be cleared is free of stones, sticks, wires, gravel, and other objects that could be accidentally thrown by the snow shovel in any direction and cause serious personal injury to the operator and others.

• Take notice of the direction of the wind before beginning. When possible, discharge snow in the same direction as the wind to prevent snow from being thrown back into your face.
• If the unit comes in contact with any type of obstruction or debris during use, stop the snow shovel, disconnect from the power supply, remove the obstruction, and inspect the unit carefully for damage before proceeding.

WARNING Never reach into the auger or place any body part in front of the snow shovel when the unit is operating or when the unit is plugged in. Always be sure all moving parts have stopped and the snow shovel has been unplugged before clearing any obstructions. Failure to follow these instructions can result in serious personal injury.

• Some parts of the snow shovel can freeze under extreme weather conditions. Do not attempt to operate the unit with frozen parts.
- Start the electric snow shovel and tilt it forward until the scraper blade at the base of the unit contacts the ground. Push the shovel forward at a comfortable rate, yet slow enough to clear the path completely. The clearing width of the snow shovel and the depth of snowfall should dictate forward speed.

- To remove snow most efficiently, throw the snow downwind and slightly overlap each swath.

- To clear snow from a crushed rock or gravel surface, push down on the handle to clear the scraper of any loose material that the rotating paddles could throw.

- This electric snow shovel cuts a path 13 in. (33 cm) wide and up to 7 in. (18 cm) deep in one pass.

- When clearing deeper drifts, hold the electric snow shovel by the top and front handles and use a swinging or sweeping motion. Remove up to 7 in. (18 cm) of snow with each pass and repeat as many times as needed.

- Keep the cord clear of obstructions, sharp objects and the rotating paddles. Do not pull sharply on the cord or abuse it in any manner. Frequently inspect the cord for signs of damage. If damage is found, replace the cord immediately.

- Disconnect the extension cord after using the electric snow shovel. Hang the extension cord with the shovel so it will not be misplaced or damaged.

- When finished, allow the motor to run for an additional few minutes, then turn the chute rotation lever back and forth several times to remove any remaining snow from the chute.

WARNING Before inspecting, cleaning or servicing the unit, stop the motor, wait for all moving parts to stop, and disconnect the snow shovel from the power supply. Failure to follow these instructions can result in serious personal injury or property damage.

WARNING Always wear eye protection with side shields marked to comply with ANSI Z87.1. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.

WARNING Use only authorized replacement parts. Use of any other parts can create a hazard or cause product damage.

NOTICE Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, and caps. Tighten all fasteners and caps. Do not operate this product until all missing or damaged parts are replaced. Please contact customer service for assistance.

GENERAL MAINTENANCE

Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, and grease.

WARNING Do not let brake fluids, gasoline, petroleum-based products, or penetrating oils contact plastic parts. Chemicals can damage, weaken, or destroy plastic which can result in serious personal injury.

LUBRICATION

All of the bearings in this product are lubricated with a sufficient amount of high grade lubricant for the life of the unit under normal operating conditions. Therefore, no further bearing lubrication is required.

STORING THE SNOW SHOVEL

CAUTION Be sure all melted snow that may drip from the snow shovel is properly cleaned to prevent a slip and fall hazard.

• Wipe the snow shovel with a clean dry cloth.
• Inspect all nuts, bolts, knobs, screws, and fasteners for tightness.
• Inspect moving parts for damage, breakage, and wear. Have repairs made on any damaged or missing parts.
• Store snow shovel indoors in a clean, dry place out of the reach of children.
• Do not store near corrosive materials such as fertilizer or rock salt.

PROBLEM POSSIBLE CAUSE CORRECTION
Snow shovel won't start	Snow shovel is not plugged in. Connect snow shovel to 120V power supply. Be sure the snow shovel plug is properly connected to the extension cord.
	The trigger lockout button was not depressed. Press and hold the trigger lockout button before squeezing the switch trigger.
The motor is on but the auger does not turn.	The drive belt may be worn or broken. Replace the drive belt.
A layer of snow remains on the ground after passing over it.	The auger or scraper may be worn. Call customer service.

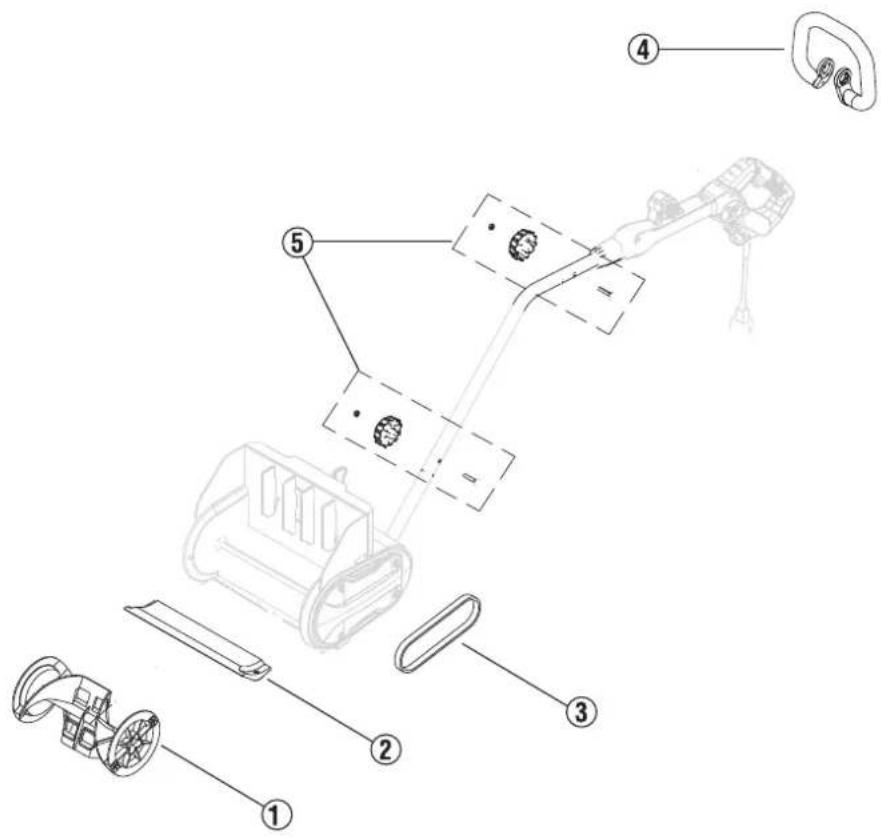

Exploded diagram of a smart water heater with numbered parts for identification

Index Number Description Part Number
1 Auger assembly 120120003
2 Scraper assembly 120200001
3 Multi-Wedge belt assembly 120210002
4 Assistant handle assembly 120170003
5 Knob assembly 120150001

NOTES/NOTAS

QR code image containing encoded data, no visible human-readable text

Para sus registros

Fecha de compra:

Número de modelo:

Número de serie:

Lugar de compra:

INTRODUCCIÓN

PRESUPUESTO

Technical diagram of a mechanical device with numbered parts for identification

Technical diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a mechanical device with numbered parts labeled ①, ②, and ③

ARRANQUE Y PARADA DE LA PALA NIEVE

QR code image containing encoded data, no visible human-readable text

Pour vos archives

Date d'achat :

Numéro de modèle :

Numéro de série:

Lieu d'achat :

CARACTÉRISTIQUES

Tension alternative 120 V / 60 Hz, 12 ampères

AVEZ-VOUS DES QUESTIONS?

Pure electrical circuit lines without any symbols

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with two circular parts and a labeled pin (no text or symbols present)

1 - Lame polarisée

VITESSE ET CÂBLAGE

Technical diagram of a mechanical device with numbered parts for identification

COMPRENDRE LA PELLE À NEIGE

Voir la figure 3.

Technical diagram of a mechanical assembly with numbered parts for identification

Technical diagram of a device with numbered parts labeled ①, ②, and ③ indicating different components.

DÉMARRAGE ET ARRÊT DE LA PELLE À NEIGE

PROBLÈME CAUSE POSSIBLE CORRECTION

Exploded diagram of a smart water heater with numbered parts for identification

Blue circular icon with a white crown symbol (no text or numbers)

www.WestinghouseOutdoorPower.com

Service Hotline [phone]

777 Manor Park Drive, Columbus, OH 43228

and Westinghouse are trademarks of Westinghouse Electric Corporation.

Used under license by Westinghouse Outdoor Power Equipment.

© 2025 MWE Investments, LLC All Rights Reserved.
