Product Type	Lawn Mower
Brand	Texas
Model	Razor 4611W
Cutting Width	46 cm
Height Adjustment	28 to 75 mm (6 positions)
Wheels	Front 7", rear 10"
Grass Catcher	65 liters with fill indicator
Engine	TG480, 145 cc
Weight	30.5 kg
Sound Pressure Level	82.1 dB(A)
Guaranteed Sound Power Level	96 dB(A)
Fuel	Unleaded petrol E5
Engine Oil Capacity	0.5 liter (SAE-30)
Functions	Mulching, rear discharge, side discharge (depending on model), electric starter as option, water injector
Safety	Blade brake stops in 3 seconds, engine brake handle
Warranty	2 years
Maintenance	Oil change after 5h then yearly, air filter cleaning, blade sharpening/replacement, spark plug gap 0.7-0.8 mm
Spare Parts	Blade, spark plug (ref. 40-11294), air filter, cables, belt
Manual	80 pages, available in several languages

Frequently Asked Questions - Razor 4611W Texas

How to start the Razor 4611W lawn mower?

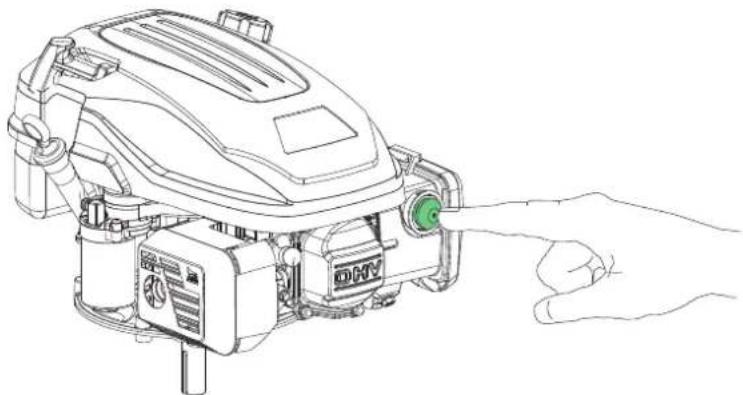

Ensure the tank has petrol and the oil level is correct. Press the primer 1 to 3 times if necessary. Hold the engine brake handle, then pull the recoil starter quickly. If the engine is cold, use the choke. For models with electric starter, insert the button and hold it down.

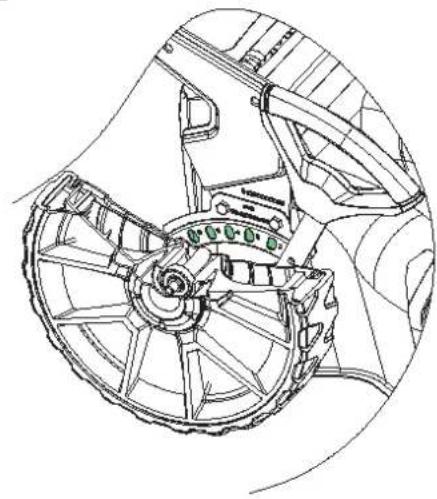

How to adjust the cutting height?

The mower has 6 cutting heights from 28 mm to 75 mm. Use the adjustment lever (ID: P) to set the desired height.

What to do if the mower does not start?

Check that the brake handle is engaged, that the machine is not on tall grass, that the primer has been used, that the choke is in the correct position, and that there is enough petrol. If the engine only makes a dry noise, check the battery cables (for electric starter).

How to maintain the blade?

Regularly inspect the blade for cracks or wear. If it is dull, sharpen it while maintaining balance. If damaged, replace it. For removal, use a torque wrench and tighten to 50 Nm.

What oil to use and how to drain it?

Use SAE-30 oil. The capacity is 0.5 L for the TG480 engine. Drain after 5 hours the first time, then once a year. Use an oil extraction kit (ref. 40-11336) and suck through the fill hole while engine is warm.

How to clean the cutting deck?

Use the water injector on the left side. Place the mower at the lowest height on the lawn, connect a hose, turn on the water and start the engine. The rotating blades clean the underside of the deck.

What to do in case of abnormal vibrations?

Stop the engine immediately. Vibrations often indicate damage. Inspect the blade and attachments. An unbalanced or poorly sharpened blade can cause vibrations. Have it checked by a professional if necessary.

How to store the mower in winter?

Empty the petrol tank, run the engine until it stops. Remove the spark plug, pour a tablespoon of oil into the hole, pull the starter. Reinstall the spark plug without the cap. Change the oil. Clean the mower and apply a light coat of oil to metal parts.

Does the mower have a blade brake?

Yes, the mower is equipped with a blade brake that stops the engine and blade in less than 3 seconds when you release the engine brake lever. It is an essential safety feature.

Where to find the serial number?

The model number and serial number are indicated on the CE label of the machine. They are needed for warranty repairs or purchasing spare parts.

USER MANUAL Razor 4611W Texas

Line drawing of a lawn mower with visible blades and wheels (no text or symbols)

VIGTIGT! ÄFYLDE MOTOROLIE SAE-30 ∅R START!

IMPORTANT! REMEMBER TO FILL WITH ENGINE OIL SAE-30 BEFORE START!

ACHTUNG! DENKEN SIE DARAN, VOR INBETRIEBNAHME MOTORÖL (SAE-30) AUFZUFÜLLEN!

IMPORTANT! NE PAS OUBLIER DE REMPLIR AVEC DE L'HUILE DE MOTEUR SAE-30 AVANT LE DEMARRAGE!

ATENTIE! GÂNDIRE TU AMINTIȚI ÎNAINTE ULEI MOTOR DE FUNCȚIONARE (SAE-30) COMPLEȚEAZA!

Technical diagram of a lawn mower with labeled components and exploded views of the engine compartment

M7
123

Technical line drawing of a vehicle chassis with exposed tires and wheels (no text or symbols)

Technical line drawing of a mechanical lawn mower with visible tire, wheel, and bucket (no text or labels)

Technical line drawing of a mechanical assembly with gears and a green battery pack (no text or symbols)

F1

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical line drawing of a mechanical assembly with gears and levers (no text or symbols)

F2

Line drawing of a mechanical device with a green indicator knob, connected to a hand (no text or symbols present)

Technical line drawing of a mechanical component with green highlighted section and arrow indicating direction (no text or symbols)

Diagram of a green tool inserted into a car door, showing a handle and arrow indicating direction (no text or symbols)

3D diagram of a green mechanical component with directional arrows indicating movement or force (no text or symbols)

F3

F4

Diagram of a green mechanical linkage system with directional arrows indicating movement (no text or symbols present)

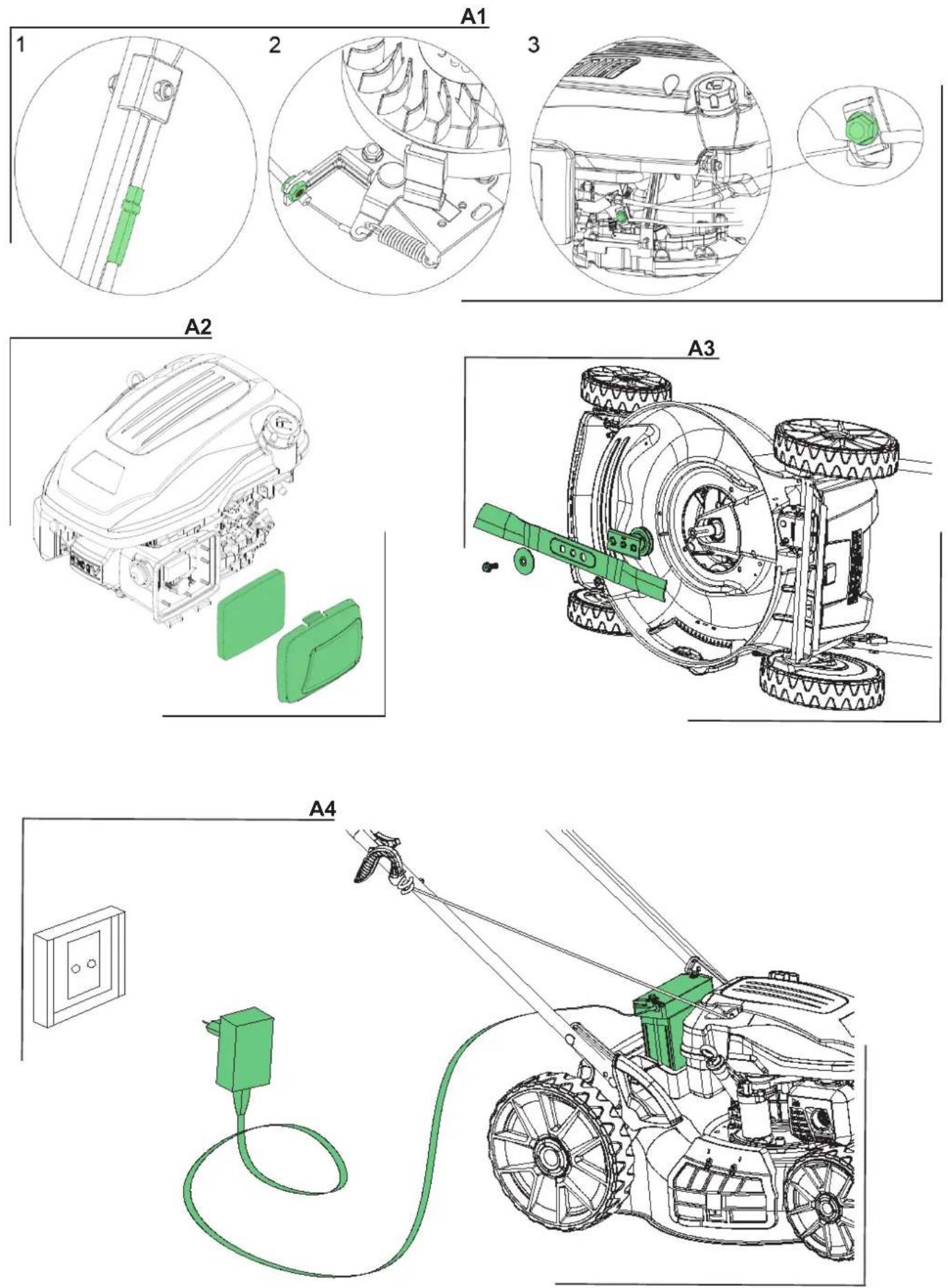

A5
123

Technical line drawing of a green mechanical pulley or wheel assembly (no text or symbols)

Technical line drawing of a mechanical component with concentric rings and a central green circular feature (no text or symbols)

Technical line drawing of a mechanical gear assembly (no text or symbols)

456

Technical line drawing of a mechanical component with central hub and circular features (no text or symbols)

Technical line drawing of a mechanical gear assembly with no visible text or symbols

Technical line drawing of a mechanical gear assembly with a green component, no text or symbols present

Advarselssymboler / Warning symbols / Warnsymbole / Simboluri de avertizare / Simboli di pericolo

DK

Please read the user manual Always wear eye and ear carefully before operating the protection. machine.

Warning:

Safety information about hazards that can result in personal injury

Warning:

Pay attention to thrown objects

Do not use on hills above 22°

Do not touch rotating parts

D

Remove the spark plug cap from the spark plug before service or repair. Stop the engine before cleaning of work area.

Keep distance to other people, children and animals

Warning:

The blade is sharp, do not touch the blade edge.

Do not place hands or feet under cutting deck.

Warning:

Always use correct tools and original spare parts.

D

Always use correct tools and original spare parts.

TR

GB Original instructions

Safety....6

Identification of the parts 7

Mounting 7

Cable Adjustment....8

Battery (Electric starter)* 8

Operation 8

Water nozzle 9

Oil change....9

Air Filter....9

Blade....9

Spark plug....10

Storage and maintenance 10

Warranty terms and conditions.... 10

Technical specifications 56

Troubleshooting 62

EC Certificate of conformity....71

Safety

Setup

Do not put hands or feet near or under rotating parts.

A. Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment.

Know how to stop the unit and ensure that you are familiar with emergency stop.

A. Never allow children or people unfamiliar with these instructions to use the machine. Note, that local regulations can restrict the age of the operator.

If you feel unwell, tired or have consumed alcohol or drugs, do not operate the machine.

Always inspect the machine before usage Ensure that no parts are worn or damaged.

1 Replace worn out or damaged elements and bolts in sets to preserve balance.

The operator of the machine is responsible for people's safety.

Never use the machine near children or animals.

The operator of the machine is held liable for any accidents or hazards to other people and their property.

A. Thoroughly inspect the area, where the equipment is to be used, if necessary remove any foreign objects.

Do not refuel gasoline indoors or while the engine is running.

Spilled gasoline is extremely flammable, never refuel while the engine is still hot.

Wipe off any spilled gasoline before starting the engine. Spilled gasoline on a hot engine may cause a fire or explosion!

Boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes.

Operation

A. After striking a foreign object, stop the engine immediately, remove the spark plug cap and inspect the machine thoroughly for damage. Repair the damage before continuing.

A. If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of damage.

A. Always turn off the engine and ensure that all moving parts have come to a complete stop before making any repairs, adjustments, or inspections.

Exercise extreme caution when operating on slopes.

Never operate the machine at a fast pace.

Do not overload machine capacity by attempting to push at too fast a rate.

Do not carry passengers.

Never allow any bystanders in front of unit.

1. Only operate the machine at daylight or in fully illuminated areas.

1 Ensure a stable foothold and always keep a firm hold on the handles. Always walk, never run.

Do not operate the machine when barefoot or wearing sandals.

Exercise extreme caution when changing direction on slopes

1. Never attempt to make any adjustments, while the engine is running.

1 Use extreme caution when reversing or pulling the machine backwards

Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide. Failure to observe could result in permanent injury or death.

Due to vibrations from the handle, long time use can result in white fingers. If fatigue is felt in arms, hands or fingers – or visible signs of white fingers is appearing, the work should be stopped immediately and a sufficient time of break should be taken for recovery. To avoid white fingers, each user should operate the machine for no more than 1.5 hours per day.

Gasoline safety

Use extreme care in handling gasoline.

Gasoline is extremely flammable and the fumes are explosive. Serious personal injury can occur, when gasoline is spilled on yourself or your clothes. Rinse your skin and change clothes immediately!

1. Use only an approved gasoline container. Do not use soft drink bottle or similar!

Extinguish all cigarettes, cigars, pipes and other sources of ignition.

4 Never refuel your machine indoors.

Let the engine cool down before refilling

1. Never fill the fuel tank to more than 2.5 cm below filler in order to provide space for fuel to expansion.

After refueling, ensure that the cap tighten securely.

Never use the lock-function on the gasoline gun, when refueling.

Do not smoke while refueling.

1. Never refuel gasoline inside a building or where gasoline fumes may get in contact with an ignition source.

Keep gasoline and engine away from appliance, pilot lights, barbecues, electric appliances, power tools, etc.

Maintenance and storage

The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power.

1. Check regularly that all bolts and nuts are tightened. Retighten if necessary.

The engine must be completely cooled before storing indoors or covered.

If the machine unused for a period of time, please refer to the instructions in this manual.

Maintain or replace safety and instruction labels, as necessary.

A. Only use original spare parts or accessories. If not original parts or accessories is used, the liability is no longer applied.

Miscellaneous

The motor is not pre-filled with oil.
Always before start check the engine oil level.
A Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed or exposed.
Only drain the fuel tank outdoors. Gasoline is extremely flammable and the fumes are explosive.
A Ensure that the machine is properly secured when transported on a flatbed etc.

Waste electrical products must not be disposed of with the household waste. This tool should be taken to your local recycling centre for safe treatment.

The lawnmower is manufactured according to the latest safety requirements. These include a blade brake that stops the motor and blade in 3 seconds when the blade brake. Every precaution is only effective when it is followed exactly. Use the following description when you mount your lawnmower.

Identification of the parts

See Illustration ID

Notice: the illustrations may vary from your present model

A. Handlebar for drive *
B. Handlebar for engine brake
C. Recoil starter
D. Wing nut
E. Rear discharge guard with spacer blocks *
F. Water nozzle *
G. Grass collector
H. Gasoline filling cap
I. Air Filter
J. Exhaust
K. Spark plug
L. Oil cap
M. Mulching plug
N. Throttle lever - Speed lever *
O. Choke*
P. Height adjustment *
Q. Side discharge guard*
R. Primer *
S. Panel *
T. Electric starter *

* may vary from your actual model.

Mounting

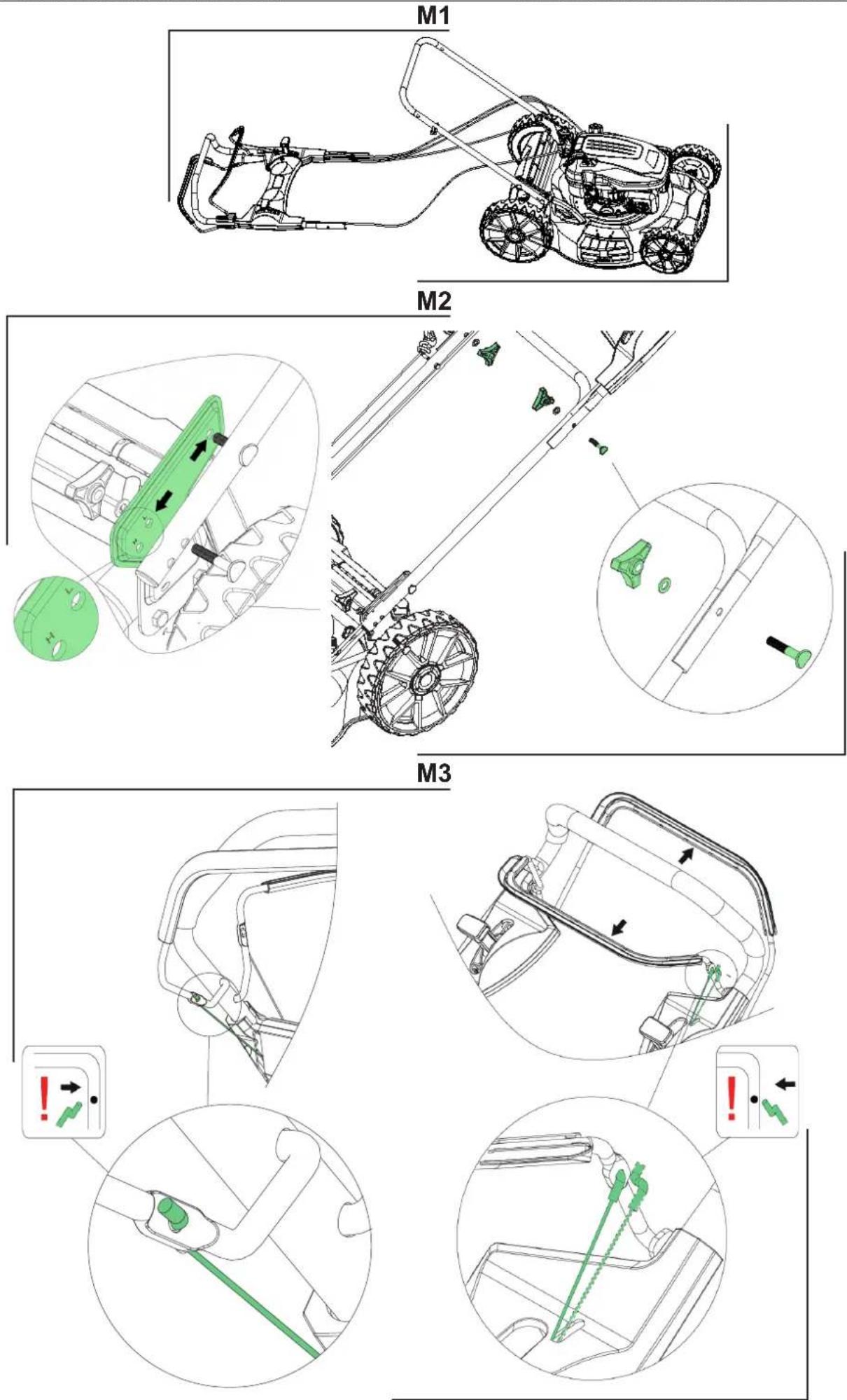

Unpacking: Illustration M1

Remove the mower from the box by pulling the machine out from the side. The box contains:

1 pcs mower
4 pcs wing nut set consisting of wing nuts, bolts and washers. (See ID; D)
2 pcs spacer blocks (See ID; E)

Warning: Ensure that cables are not pinched.

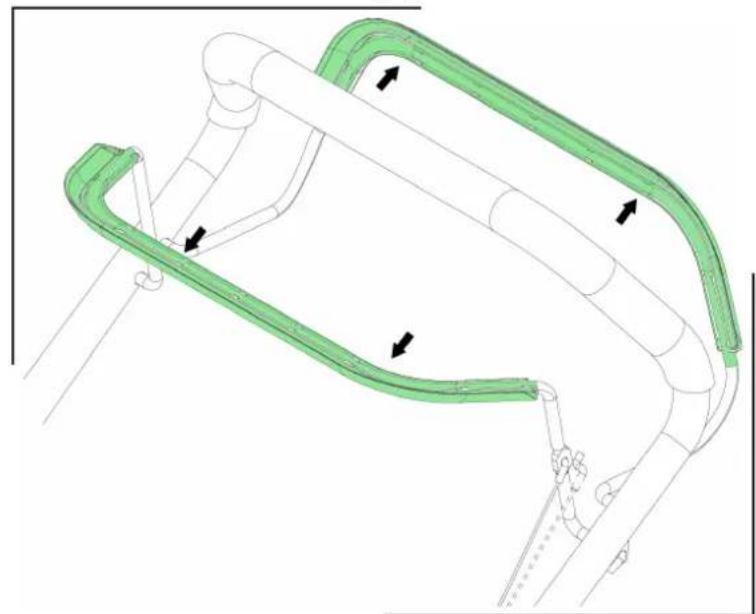

Handlebar and height adjustment: Illustration M2

The handlebars are height adjustable. This means that they can be adjusted so that it best fits you. Before you install the handlebar, it may be a good idea to have decided which height is best for you.

1. Set the lower handlebar tube to the working height that suits you. "H" is high position and the "L" is low position.
2. Attach the wing nut from the inside of the side bracket and into the lower handlebar.
3. Attach the upper handlebar on the lower. Fasten with wing nut from the inside of the handlebar.
4. Customize cable and secure with cable clamps

Mounting the engine brake cable: Illustration M3

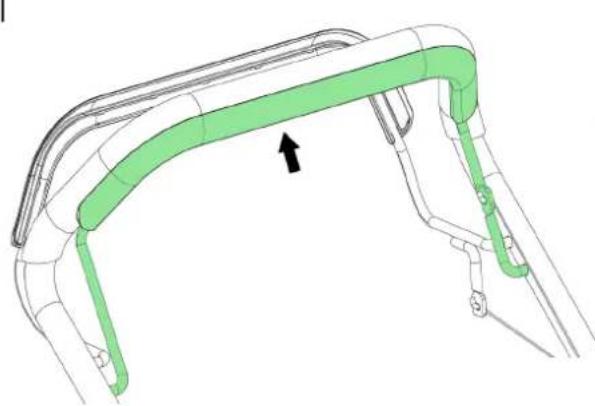

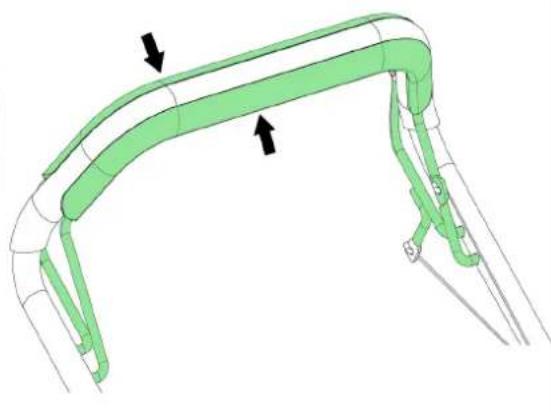

1. Gently push the top handlebar ID:B forward
2. Insert the engine brake cable from the outside, into the hole in the bracket on handlebar ID:B and lock.

Mounting the drive cable: Illustration M3

1. Gently push the lower handlebar ID:A downward
2. Insert the drive cable from the inside, into the hole in the bracket on handlebar ID:A and lock.

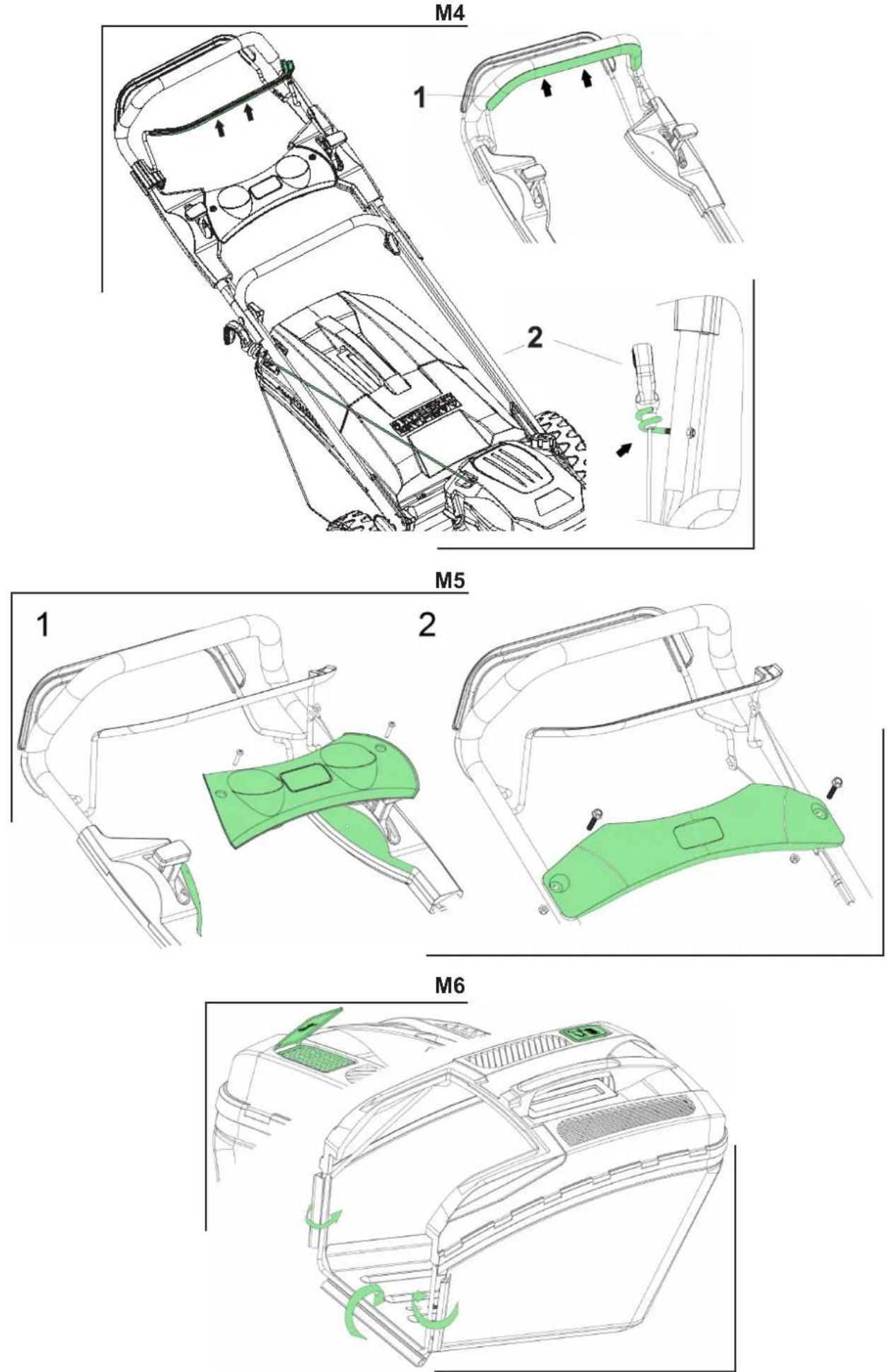

Mounting the recoil-starter: Illustration M4

1. Pull the engine brake handlebar and hold, in order to release the starter cord on the engine.
2. Pull gently the starter cord from the engine (Engine brake handlebar MUST be hold)
3. Attach the starter grip on the rack of handlebar.
4. Release the engine brake handlebar and the starter grip.

Mounting the panel: illustration M5\*

1. For models with panel with cup holder follow illustration M5-1
2. For models with panel follow illustration M5-2

*Note: Not all models do have panel

Mounting the grass collector: Illustration M6

1. Click the frame to the grass collector.
   The grass collector comes with a handy indicator showing whether the box is full of grass and needs emptying.

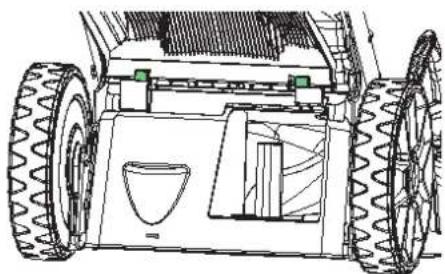

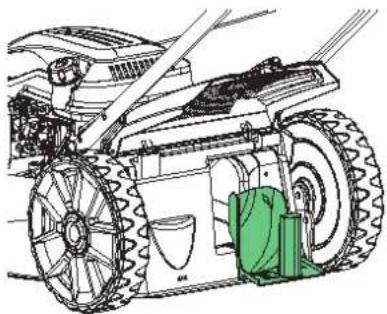

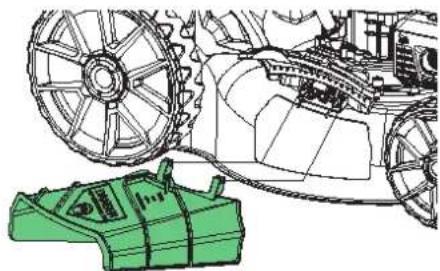

Rear discharge guard: Illustration M7-1

If you want to mow without grass collector it is important to attach the two spacer blocks.

1. Insert the 2 blocks (ID:E) under the rear discharge guard.

Note: The spacer blocks are for rear ejection only! Otherwise they should be removed.

Warning: If the two blocks are not mounted. The mower will have difficulties to dispose the grass.

Mulching plug: Illustration M7-2

1. Insert the mulching plug and remove side discharge guard, if you want to mow with mulching functionality.
   NB Don't use the grass collector

Important: Remember to remove the mulching plug, when using the grass collector.

Side discharge guard: Illustration M7-3\*

1. Lift the side guard and insert side discharge guard. Then insert the mulching plug in rear discharger to

mow with side discharge function. NB Don't use the grass collector

* Note: Not all models do have side discharge guard

Cable Adjustment

Before the machine is being used, the cable adjustment should always be checked.

The cables can be checked by activating the handles fully and check if the cable is tight. If not, it must be tightened. If the handle cannot easily be fully activated, the cable should be loosened.

After first season, it must be expected that the cables need to be adjusted for optimal activation, as cables can stretch when used.

The following cables may be necessary to readjust: Illustration A1

1. Cable for drive
2. Cable for engine brake
3. Cable for throttle cable

Note: The choke cable cannot be adjusted!

Adjusting the drive cable: Illustration A1-1\*

If you experience slack in the drive cable, this can be solved simply by tighten or loosen the bolt on the cable.

1. Tighten turning clockwise - loosen the cable.
2. Tighten turning anti clockwise - tighten the cable.
   * Cable can only be adjusted on some models.

Adjusting the engine brake cable: Illustration A1-2

If you experience slack in engine brake cable, this can be solved simply by tighten or loosen the bolt on the engine block.

Adjusting the throttle cable: Illustration A1-3\*

If you experience slack in throttle cable, this can be solved simply by tighten or loosen the bolt on the engine block.

* Not all models have throttle cable.

Battery (Electric starter)\*

Charge the battery before use

Before the electric start function is used, the battery must be charged for 5 hours. Put the charger plug into the hole in the battery and connect the charger to a power supply. See illustration. A4

Charging during the season

The battery is not charged during use, so it will likely be necessary to charge the battery a couple of times during the season - depending if the number of start/stops of the engine. Put it for charging for around 5 hours.

Storage of battery

The battery must always be stored dry and warm during the winter. Never expose it for low temperatures. Charge the battery completely before storing and then place the lawn mower in a place where it is not exposed to frost. Alternatively cover the battery with a thick carpet or similar, If the mower is in a shed/garage where there may be cold.

Charge the battery 1-2 times during the winter (at least every 3^rd month) to make sure the battery keeps it full capacity.

Incorrect storage can damage the battery and is not covered by warranty.

* Note: Not all models have electric starter

Operation

Always check and refill oil before the start! Read and apply the instructions given in the enclosed start guide!

The oil level should always be between min. and max on the dipstick. Fill with SAE-30 oil.

There should be 0.5 liter oil in TG480/TG580 engine There should be 0.6 liter oil in Briggs & Stratton/Honda engine.

Use only unleaded E5 fuel to the engine. Never overfill the tank.

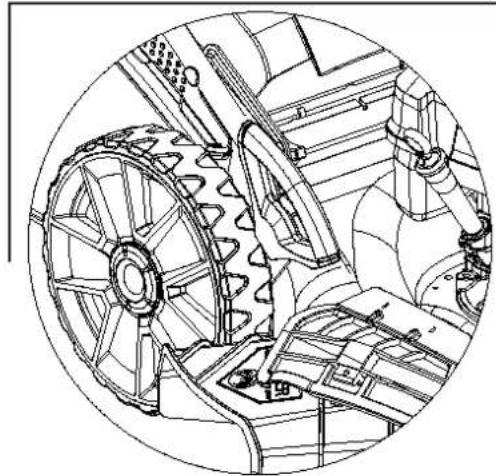

Cutting height adjustment: Illustration F1

(the illustrations may vary from your actual model) The mower has 6 different heights. The cutting height ranges from 28 mm to 75 mm

Start: Never start the mower directly on long grass.

Recoil with primer: Illustration F2

1. Push the primer several times, first time push 1-3 times, if necessary, supplement with up to 3-5 times.
   Note: It is not possible to drown engine
2. Hold the handlebar for the engine brake; this will release the engine brake.
3. Pull the recoil starter gently until you feel resistance in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.
4. Hold the bar for self-propelled in order to start mowing

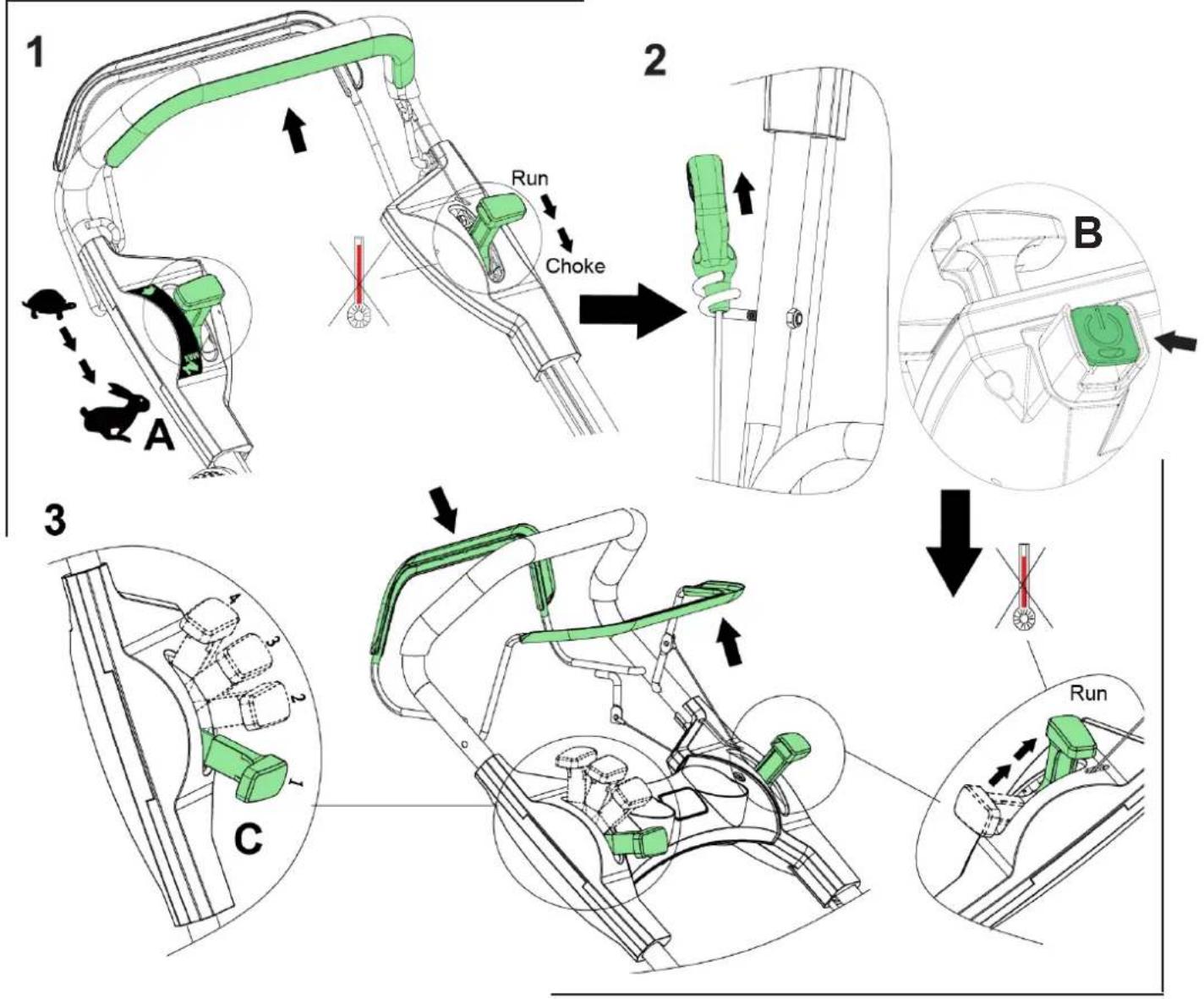

Recoil with choke, throttle lever: Illustration F3-A

1. By cold engine set the choke lever on "Choke". By warm engine set the choke lever on "Run".
2. Move the throttle lever to full "Rabbit" (A)
3. Hold the handlebar for the engine brake; this will release the engine brake.
4. Pull the recoil starter gently until you feel resistance in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.
5. Adjust the throttle lever if necessary and return the choke lever in the "Run" position (only cold engine).
6. Hold the bar for self-propelled in order to start mowing.

Electrical starter: Illustration F3-B

A To avoid unintentionally starting the machine, the start button should be removed from the machine and stored safely when the machine is not in use.

1. By cold engine set the choke lever on "Choke". By warm engine set the choke lever on "Run".
2. Move the throttle lever to full "Rabbit" (A)
3. Hold the handlebar for the engine brake; this will release the engine brake.
4. When starting the machine, insert the start button in the ignition lock below the handlebar and push in.

5. Hold the button (B) in until the engine starts and then release.

6. Adjust the throttle lever if necessary and return the choke lever in the "run" position (only cold engine).

7. Hold the bar for self-propelled in order to start mowing.

Recoil with choke, speed lever illustration F3-C*

1. By cold engine set the choke lever on "Choke". By warm engine set the choke lever on "Run".
2. Hold the handlebar for the engine brake; this will release the engine brake.
3. Pull the recoil starter gently until you feel resistance in the rope, then pull quickly and energetic. Do not at any time let go of the recoil starter but slide it gently into starting position.
4. Return the choke lever in the "Run" position (only cold engine).
5. Set speed lever in gear from 1 to 4 (C)
6. Hold the bar for self-propelled in order to start mowing.

* Note: Not all models are equipped with choke lever.

Note: As long as operating the mower, the bar forengine brake must be engaged.

Throttle lever*

Engine speed can be adjusted while driving. Turn gas handle to adjust rpm. (ID: M) It is recommended to run at full throttle for best cutting results.

* Note: Not all models have throttle control

Regulation of speed*

Speed can be adjusted from 2.7 – 5.0 km/h while driving. Activate the right handle on the dashboard and set in one of the 4 different speeds. When driving in one the two lowest speeds the pace difference will not vary significantly.

Change the speed only while the machine is operating with the self-propelled function engaged.

This ensures a minimum of wear on the drive belt and ensures an easy speed change.

If the drive speed is changed when the machine is not moving, there is a risk that the belt will fall off as soon as the machine starts to move. In addition, there is a risk that the cable and the belt may become damaged.

* Note: Not all models have speed lever

Stop: Illustration F4

1. Release the engine brake and self-propelled bar to turn off the mower and the engine

Note: The blades will still rotate at up to 3 seconds after stopping.

Water nozzle

The left side of the mower deck is fitted with a water nozzle for washing the deck. (See Illustration ID-F)

• When using the water nozzle, the machine must be in the lowest height position and placed on the lawn. This ensures that the water remains under the deck during cleaning.
• Attach a hose to the nozzle.
• Turn on the water and start the engine.
• The rotations of the blades will ensure that the water will clean the underside of the deck.
  If above instruction is not followed, water may splash back on the gearbox and clutch cable,

which increases the risk of corrosion and damage to both parts. This will not be covered by the warranty!

Note: For best result clean the deck with the water nozzle function right after each mowing. If the grass dries out, this function will not work optimally.

* Note: Not all models have water nozzle

Oil change

Oil should be changed for the first time after 5 hours, then at least 1 time per year.

You will need an oil extractor kit. Art. no. 40-11336 Oil and oil extractor kit is not included

Use an extractor kit and do as follows:

1. Turn on the engine and let it run for 5 min or until the engine is hot. A hot engine liquefies the oil which makes it easier to drain.
2. Suck the oil up through the oil filler hole using the syringe that came with the oil extractor kit. Use the hose to reach the sump.
3. Transfer the used oil into a empty container.
4. Fill the engine with SAE-30 oil.
5. Check the oil level using the dipstick. (Min / Max)

Remember to dispose the used oil so that it does no harm to nature. Use your local recycling station.

Air Filter

The air filter should be inspected and cleaned regularly. If the filter has not been cleaned for a long time, the engine's power will drop.

See Illustration A2

1. Clean around the air filter before removing the cap.
2. Push the two flaps down and gently pull the cover
3. Carefully remove the paper filter and inspect it. Brush it with a soft brush. If it is very dirty, replace it. Be careful that no dirt gets into the inlet.
4. Wash the black foam element in the right side in warm water and soap.
5. Press the water out of the foam element and let it dry. Put a few drops of SAE-30 oil on the filter to moisten it lightly. Carefully squeeze any surplus oil out of the foam element and reattach.
6. Please note that all parts are assembled correctly and properly closed, as shown in the picture.

Blade

Inspection of the blade

• Tilt the mower with the front upwards.
• Inspect blade for damage, cracks or excessive rust or corrosion.
• Check that the blade bolt is tightened.

Note: A dull blade can be sharpened! But a blade that is worn, bent, cracked or otherwise damaged must be replaced.

Removing the blade: See illustration A3

If you remove the blade to sharpen or replace it, you must use a torque wrench and some heavy gloves to protect your hands.

1. Loosen the blade bolt. Use a piece of wood to prevent the blade from turning around.

2. Remove the bolt, washer, blade and blade holder in that order

3. Sharpen or replace the blade.

4. Insert the blade holder, blade, washer and bolt in that order.
5. Tighten the blade bolt with 50 Nm. Use a piece of wood to prevent the blade from turning around.

Warning: A blade must be sharpened so it is in 100 % balance, otherwise it may cause vibrations that could damage the engine. Damage to engine due to faulty sharpening is not covered by warranty. We therefore recommend letting a service center sharpen the blade.

Spark plug

1. Remove the spark plug.
2. Brush off dirt from the spark plug.
3. Use a spark plug wrench to loosen the spark plug.
4. Check the insulation is intact.
5. Clean the spark plug with a wire brush.
6. Measure the electrode, taking care not to damage the electrode.
7. The distance should be: 0.7 to 0.8 mm
8. If the spark plug is undamaged refit or replace. Art. no. 40-11294
9. Reattach the spark plug.

Storage and maintenance

Maintain your lawnmower: Check all bolts, screws, nuts and deck. Dismount the blade and the belt plastic cover for regular cleaning. Always make sure that the blade is sharp. It's a good idea to take your lawn mower to an annual service check with your authorized service dealer. See your nearest service center at www.texas.dk.

Storage: After use the lawnmower kept in a dry and clean room. Clean the machine after every use. Grass and dirt must be removed from the underside of the deck. By tipping the mower (for cleaning) is recommended to tilt the front up (max. 45 degrees). If you tilt it sideways, the carburetor and air filter always face upwards, since oil may run out and destroy the engine. Be aware that removing the spark plug before the mower maintenance.

Winter storage: Empty the fuel tank and let the engine run until the gasoline in the carburetor is used up. Spark plug removed. Remove the spark plug and add a teaspoon of oil (engine oil) in the hole. Pull the starter to distribute oil. Mount the spark plug, but not the spark plug cap. Change oil as described in the section above. Spray silicone lubrication into the cables and move them.

Finally, clean the mower thoroughly. Dip a cloth in oil and luricate metal parts to prevent rust.

Cleaning and lubricating of rachet wheels: See illustration A5

Cleaning and lubricating of all rachet wheels should be done minimum once per year to ensure longer durability. If no maintenance is performed, the warranty will not cover these parts.

Follow below procedure (for both rear wheels)*:

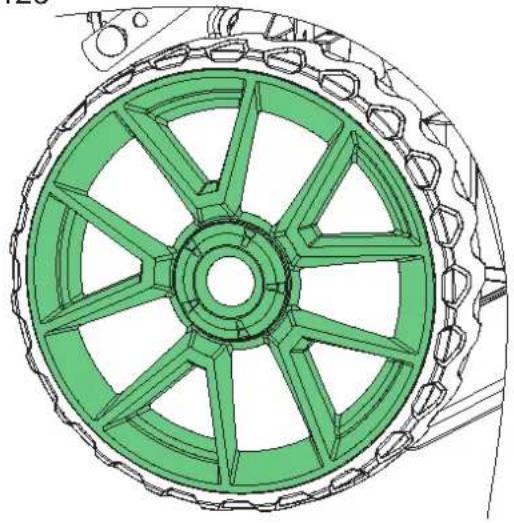

1. Remove the wheel covers

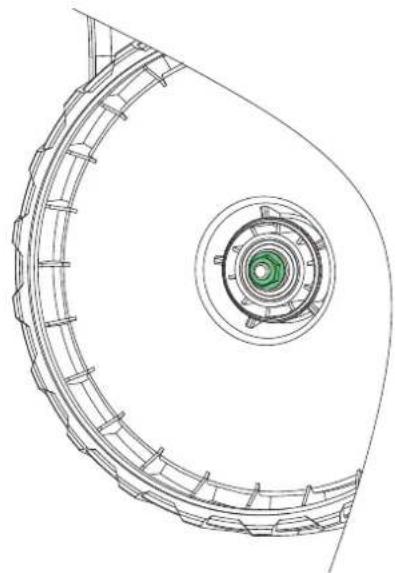

2. Unscrew the nut with a 13 mm wrench

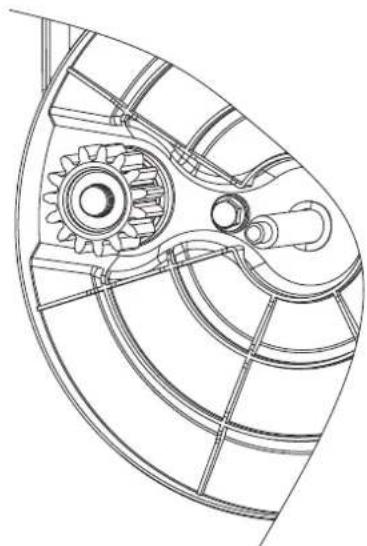

3. Pull of the washer and the wheel

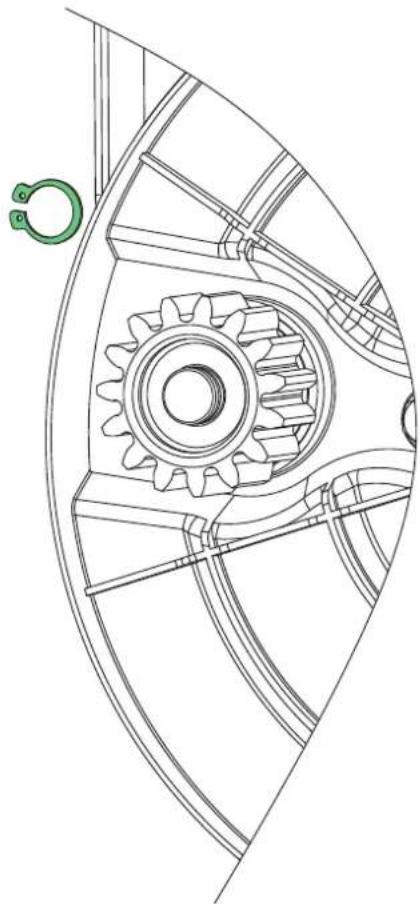

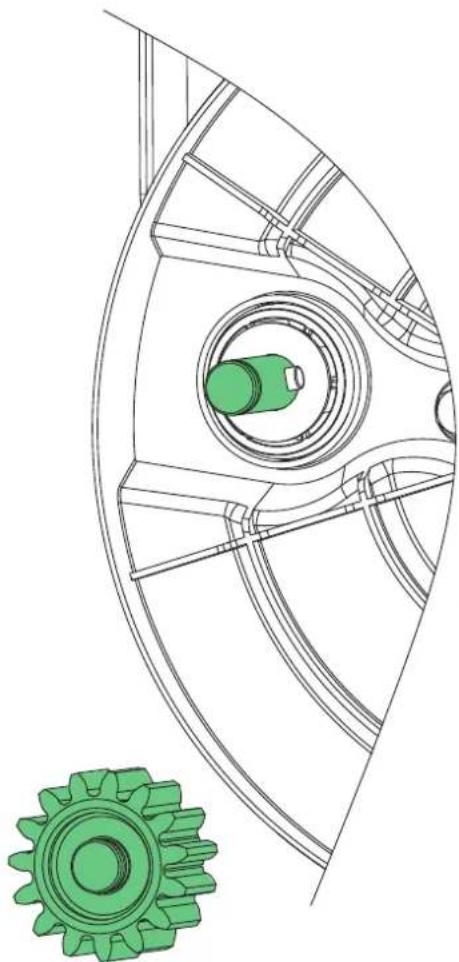

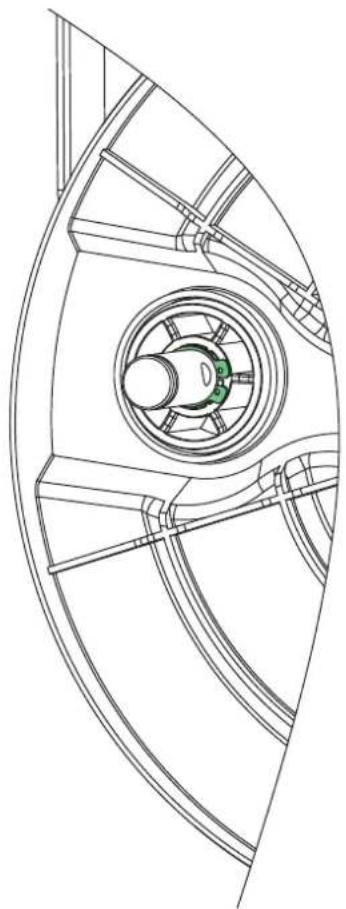

4. Remove the retainer ring with a suitable tool and the ratchet wheel

5. Clean shaft/rachet wheel for old grease and dirt.

6. Lubricate with suitable grease (e.g. EP-0)

7. Mount the wheel and wheel cover again

* Only apply for self-propelled models.

Warranty terms and conditions

The warranty period is 2 years for private end users in EU countries. Products sold for commercial use, only have a warranty period of 1 year.

The warranty covers material and/or fabrication faults.

Restrictions and requirements

Normal wear and replacement of wearing parts are NOT covered by the warranty.

Wearing parts, which are NOT covered for more than 12 months:

• Blades
• Cables
• Belts
• Fuses
• Switches
• Membranes/gaskets
• Spark plugs
  • Engine liquids (oil, gasoline)
• Starter cords
• Filters
• Battery: If the battery is not stored correct (frost-free and recharged every 3 months), the durability is only guaranteed for 6 months.

If you start the engine without adding oil, it will be damaged and cannot be repaired and therefore not covered by the warranty.

The warranty does NOT cover damages/faults caused by:

• Lack of service and maintenance
• Structural changes
• Exposure to unusual external conditions
• Damages to the bodywork, deck, handles, panels etc.
• If the machine has been improperly used or overloaded
• Wrong use of oil, gasoline or other liquid types, which are not recommended in this user manual
• Bad or dirty gasoline, which results in contamination of the fuel system
• Use of unoriginal spare parts.
• Other conditions where Texas cannot be held responsible.

Whether a case is a warranty claim or not is determined in each case by an authorized service center.

Your receipt is your warranty note, why it should always be kept safe.

REMEMBER: The purchase of spare parts as well as any request for warranty repair, art. number (e.g. 900665XX), year and serial number should always be informed. It can be found on the CE-label located on the rearpart of the cutting deck behind the engine!

* We reserve the right to change the conditions and accept no liability for any misprints.

If your problem is not described above, please contact an approved service centre or Texas A/S.

Dépannage

2006/42/EC - 2014/30/EU - 2000/14/EC amended by 2005/88/EC

Overensstemmelsesvurdering procedure i henhold til bilag I • Conformity assessment procedure according to Annex I • Konformitätsbewertungsverfahren nach Anhang I • Procédure d'évaluation de la conformité conformément à l'annexe I • Procedura oceny zgodności zgodnie z załącznikiem I • Procedura de evaluare a conformitàții în conformitate cu anexa I • Conformiteits assessment-procedure conform Annex I • Procedura di valutazione della conformità secondo l'allegato I

2006/42/EC

Materiellet er udfört i overensstemmelse med fölgende standarder • Conforms with the following standards • In Übereinstimmung mit den folgende Standards • Conformément aux normes suivantes • Jest zgodna z następującymi normami • Echipament se face în conformitate cu urmätoarele standarde • Conforme ai seguenti standard

EN ISO 14982: 2009, EN ISO 5395-1: 2013, EN ISO 5395-2: 2013

Serial numbers: 2407110001 - 2612259999

Model

4611W, 4611TR/W, 4651TR/WE

4681TR/W

5111TR/W, 5121TR/W, 5141TR/W, 5151TR/WE, 5161TR/WE

5131TR/W, 5181TR/WE

5191TR/W

Guaranteed LwA

96 dB(A)

96 dB(A)

98 dB(A)

98 dB(A)

98 dB(A)

Measured L_wA

93.61 dB(A)

94.55 dB(A)

95.38 dB(A)

97.04 dB(A)

96.59 dB(A)

LpA

82.1 dB(A)

82.4 dB(A)

84.4 dB(A)

83.3 dB(A)

84.5 dB(A)

Texas Andreas Petersen A/S

Knullen 22 • DK-5260 Odense S

Responsible for documentation

Johnny Lolk

24.10.2023

Henry Tahn

Johnny Lolk

Managing Director
