USER MANUAL CFM7353I BEKO

Simple black-and-white icon of a mug filled with beer (no text or symbols)

CFM 73531

Please read this guide first!

Dear Customer,

Thank you for choosing an Beko product. We want you to get the most out of this high quality product which has been manufactured with the state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. If you give the appliance to someone else, give them this user manual as well. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

The following symbols are used throughout this guide:

Important information and useful tips for using the appliance.

WARNING: Warnings about dangerous situations concerning safety of life and property.

Suitable for contact with food.

Do not immerse the appliance, the power cord or the plug in water or in any other liquids.

1 Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage.

Failure to follow these instructions will void any warranty.

1.1 General safety

• This appliance complies with international safety standards.
• This appliance can be used by children aged 8 years and over and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved.

- Children should not play with the appliance. Children should not clean and maintain the appliance unless they are aged 8 or over and are under adult supervision.

- Keep the appliance and its cable out of

1 Important safety and environmental instructions

the reach of children under 8 years of age.

• Do not use the appliance if the power cord or the appliance is damaged. Contact authorised service.
• This device is intended to be used in household and similar applications such as the following places:

- Staff kitchen areas in shops, offices and other working environments,

- Farm houses,

-Areas used by customers in motels and hotels, and other residential settings,

- Bed and Breakfast establishments.

- Your mains power supply should be in align with the specified information on the type tag of the appliance.

- The appliance should be supplied through a residual current device (RCD) whose rated residual operating current does not exceed 30 mA.

- Use the appliance with an earthed plug.

- Do not use the appliance with an

1 Important safety and environmental instructions

extension cord.

• To avoid damage to the power cord, prevent it from being pinched, crimped or rubbed against sharp edges.
• Do not touch the plug of the appliance with damp or wet hands while the appliance is plugged in.
• Do not pull on the cord while unplugging the appliance.
• The appliance is intended for home use only and is not suitable for professional use.
• Do not fill up the appliance above maximum level mark. Boiling water may splash out.
• Do not fill the appliance below the minimum line.
• Do not remove the appliance's lid while the water is boiling.
• Position the vents on the appliance lid so that you will not be exposed to hot steam.

1 Important safety and environmental instructions

• Hold the appliance by its handle only.
• If water drips from the filter basket during use, unplug the appliance, wait 10 minutes for it to cool down, then open the filter cap and check it.
• Do not operate the appliance without water inside.
• Use and store the appliance on a flat and stable surface.
• Do not disassemble the appliance.
• Use only original parts or parts recommended by the manufacturer.
• Before cleaning the appliance, unplug it and dry it completely after cleaning.
• Do not immerse the appliance or its power cord in water.
• Do not use the appliance in or near explosive or flammable environments and substances.
• If you keep the packaging materials, keep them out of the reach of children.
• There is a risk of injury when appliances

1 Important safety and environmental instructions

are used incorrectly.

• Do not touch without first making sure that the heating plate are cooled down.
• This appliance is intended for boiling water only. It cannot be used for boiling other fluids as this may cause hazards.
• This appliance cannot be built-in and is not designed for use in a cupboard. The coffee machine should not be placed in the cupboard while it is operating.

- Do not touch the appliance or the appliance plug with damp or wet hands.

- While using the appliance, make sure that there is no risk of its power cord being pulled by mistake or tripping someone up.

- Make sure the appliance is off before moving it.

- Do not use in flammable or combustible environments or in or near places containing flammable or combustible materials.

1 Important safety and environmental instructions

• Do not use the appliance near or on heat sources (furnace, barbecue, radiator, stove etc.).
• Use the appliance always on a stable, flat, clean, dry and non-slip surface.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

This symbol indicates that this product shall not be disposed with other household waste at the end of its service life. The used device must be returned to an official collection point for the recycling of electrical and electronic devices. To find these collection points, please contact your local authority or retailer where the product was purchased. Each household performs an important role in the restoring and recycling of old appliances. The appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Packaging information

Recycling symbol with four arrows forming a triangle (no text or labels)

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose of the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local authorities.

1 Important safety and environmental instructions

1.5 Important points for saving energy

Comply with the times recommended by the manual while using the appliance. Unplug the appliance after each use.

2 Your drip coffee machine

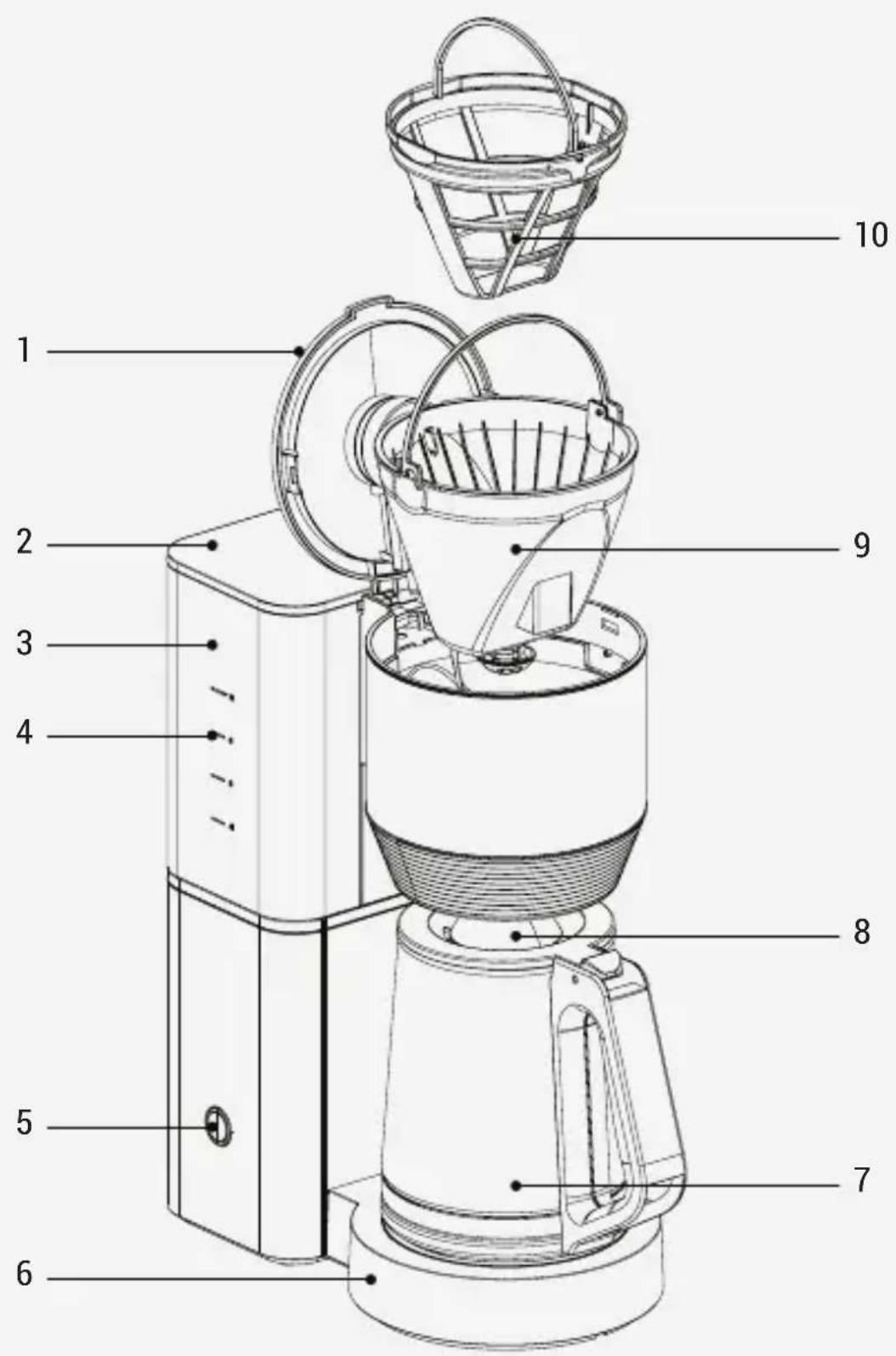

Technical diagram of a coffee maker with numbered parts labeled for identification.

2 Your drip coffee machine

1. Coffee basket cover
2. Water tank cover
3. Water tank
4. Water level indicator
5. On/Off button
6. Heating plate
7. Glass jug
8. Glass jug lid
9. Filter basket
10. Filter

Technical data

Voltage: 220-240 V\~, 50-60 Hz

Power consumption: 1050-1150W

Max. water volume: 1.25 Lt

The rights to make technical and design changes are reserved.

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

3 Installation and use

3.1 First operation

1. Remove all packaging and labelling materials and dispose of them in accordance with the applicable law.
2. When operating the appliance for the first time, fill with water to the maximum capacity but do not add coffee.
3. Before using the appliance for the first time, carefully clean all of the parts that come in contact with water. Please see the details in the "Cleaning and Maintenance" section.
4. Make sure your appliance is standing upright on a stable, smooth, clean, dry and non-slip surface.

3.2 Making drip coffee

Illustration of a coffee maker pouring liquid into a stand mixer (no text or symbols)

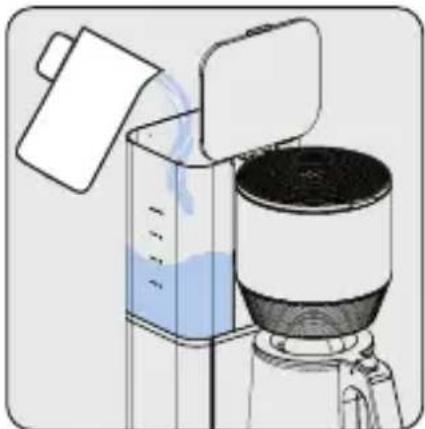

Open the water reservoir lid and fill the reservoir with drinking water. Add a sufficient amount of water; do not go past the "MAX" marking. Then, close the water reservoir lid.

Illustration of a coffee maker with a lid and spool, showing liquid level and a spoon (no text or symbols)

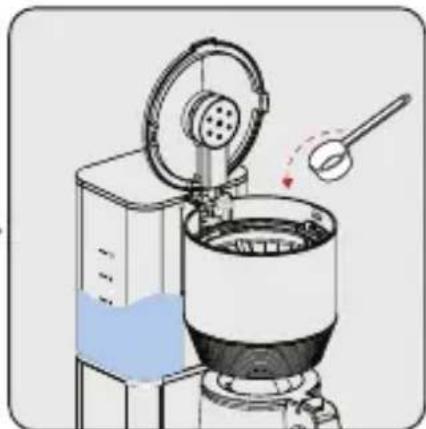

Open the lid on the coffee compartment and add enough coffee to make drip coffee. Then, close the coffee compartment lid.

Illustration of a coffee maker with a speech bubble containing an icon and warning symbol (no text or labels present)

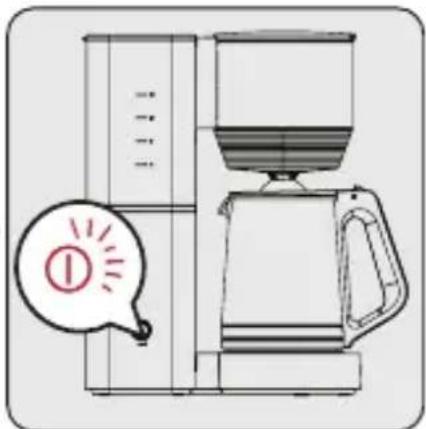

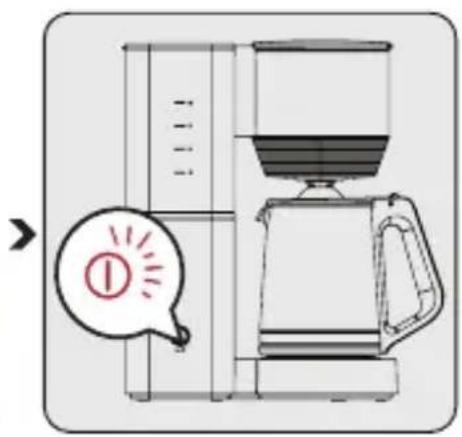

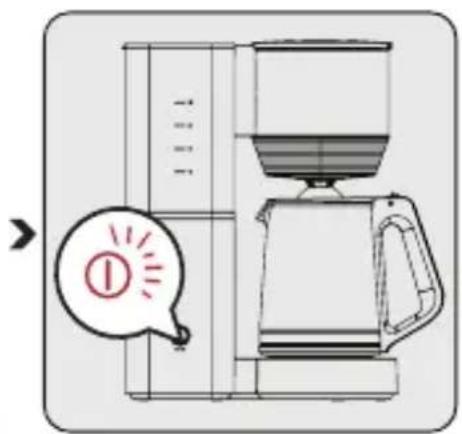

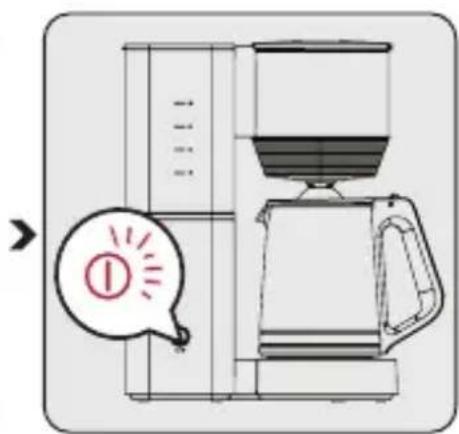

Press the On/Off button. Brewing will begin. The LED indicator light will blink on and off while the coffee is being made. Your coffee is ready when the LED shines continuously.

3 Installation and use

• If the LED indicator is shining continuously, your coffee is ready. The appliance will keep the coffee hot. Press the cancel button to start/stop the coffee heating function.
• Use only clean, cold, and fresh drinking water.
• One spoonful of coffee should be enough for one cup of coffee but you can change this according to your personal preference.
• Use 0.125 l water for each cup of coffee. You can change this according to your personal preferences.

WARNING: If the hinged filter compartment does not close or if the carafe is placed incorrectly, the drip guard will not work properly. This may cause hot water or hot coffee to spill over.

• You can keep your appliance connected to the mains even if the brewing is finished. This will keep the coffee hot. Even if you do not turn off the appliance after the coffee is brewed, it will power off automatically after 35 minutes.
• For the ideal coffee taste, serve immediately after brewing.
• You can stop the brewing at any time by pressing the On/Off button.

3 Installation and use

WARNING:

• Be sure to put the carafe back on the hot plate quickly (max. 30 seconds). If not, the brewed coffee may spill out of the filter. Turn the appliance off if you want to use the carafe for more than 30 seconds.
• Never open the hinged filter container while brewing even if no water is being drawn through the filter. Scalding hot water could pour out of the hinged filter compartment and injure you. If water is not leaving the hinged filter compartment, unplug the appliance immediately, wait 10 minutes, then open the filter compartment to check it.
• When the brewing is finished and the water level indicator marked MAX is empty, there will still be hot liquid in the hinged filter compartment. Wait a few minutes for the remaining liquid to drain into the glass carafe.

Illustration of a coffee maker with a filter and two cups (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered label and a warning icon.

Diagram showing a coffee maker with an open circuit board and a close-up of its internal components, indicating a power switch or power outlet.

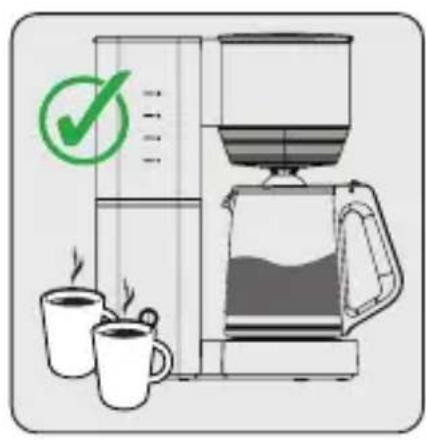

To serve, remove the glass carafe once the brewing is complete (about one minute after the coffee has finished dripping).

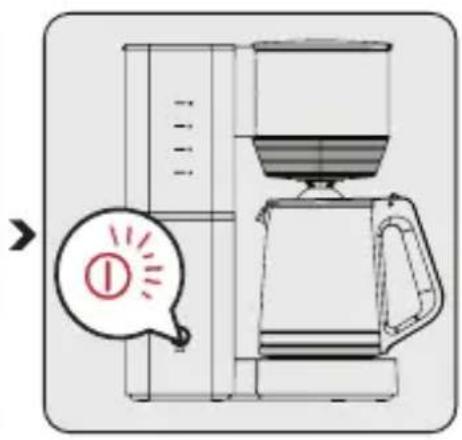

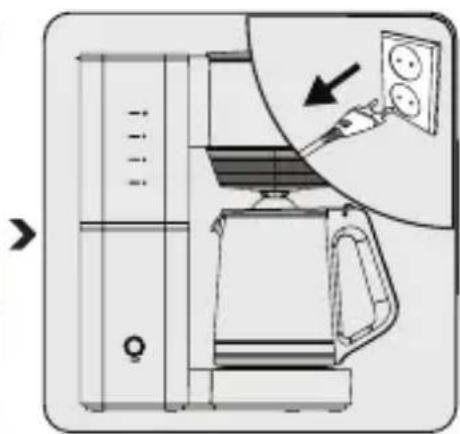

Press the On/Off button to turn off the appliance.

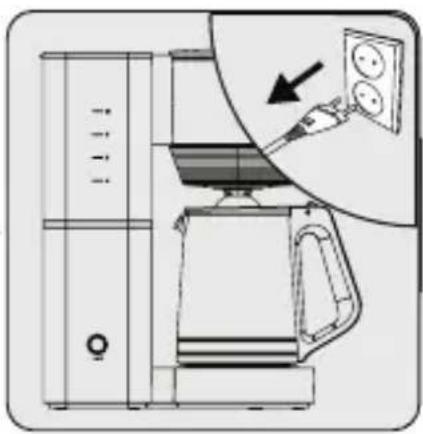

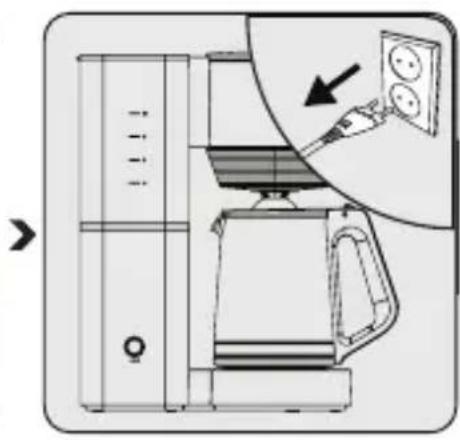

Unplug the appliance.

Allow the appliance to cool for at least 15 minutes between each brewing operation.

3 Installation and use

Tips and Suggestions

• Use soft or filtered water to prevent limescale from forming.
• Store unused coffee in a cool and dry place. After opening a packet of coffee, close it tightly to stop air getting in and to keep it fresh.
• Do not use the coffee grounds in the filter again and again because it loses its flavour.
• As coffee tastes best when it is first brewed, reheating coffee is not recommended.
• To serve, remove the glass carafe once the brewing is complete (about one minute after the coffee has finished dripping).

4 Cleaning and maintenance

4.1 Cleaning

WARNING: Do not use benzene, solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

WARNING: Do not immerse the appliance or its power cord in water or in any fluid.

Line drawing of a kitchen setup with a kettle and a refrigerator, showing an open electrical outlet (no text or symbols)

1 2 3

Diagram showing a trash bin with a downward arrow and a waste container, indicating a reduction or disposal process.

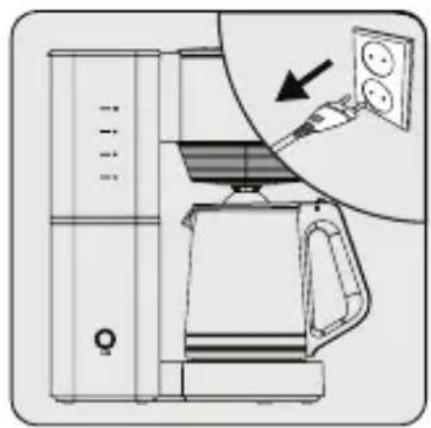

Turn the appliance off and unplug it. Allow the appliance to cool down completely.

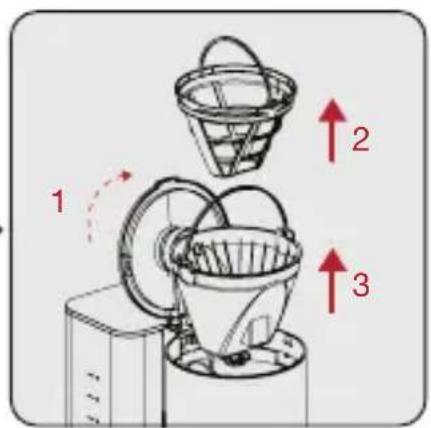

Remove the glass carafe. Open the water reservoir lid. Remove the filter and filter basket by pulling upwards.

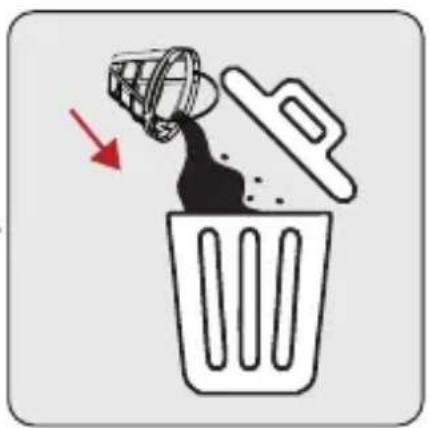

Empty the coffee grounds from the filter.

Illustration of a hand cleaning a coffee machine with a paper filter (no text or symbols)

Illustration of a kitchen sink with water being poured into a cup and a bucket, no text or symbols present

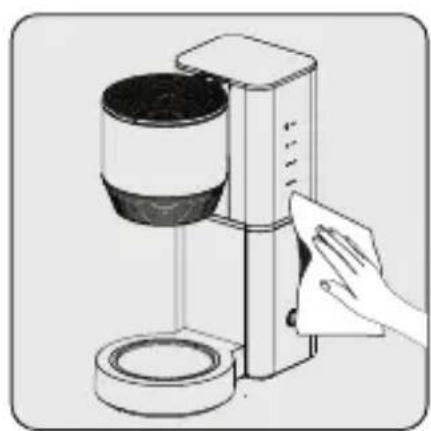

Clean the outside of the appliance with a soft damp cloth.

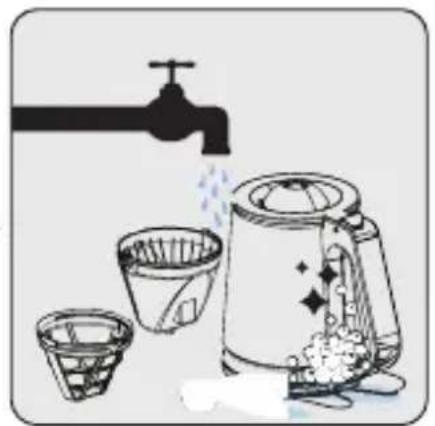

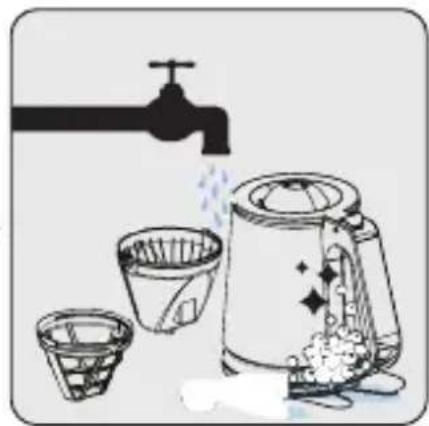

Use a mild detergent and running water to clean the filter basket, filter, and ca- rafe.

4 Cleaning and maintenance

Dry all the parts after cleaning the appliance.

The glass carafe, filter basket,.and filter are dishwasher safe.

Turn the appliance upside down to drain any residual water. The, fill the appliance with clean water once and operate it empty. Make sure the appliance is cold when you do this.

4.2 Descaling

Descaling will prolong your appliance's life. Descale your drip coffee maker at least 4 times a year. This period depends on the hardness of the water you use. The harder the water, the more frequently you have to descale the appliance.

1. Purchase an appropriate descaler from a specialist store. Please give the name of the appliance when asking for descaler.
2. Carefully read the instructions on the packet of descaler before using it. If the manufacturer's instructions differ from those we have listed below, follow the manufacturer's instructions.

4.3 Storage

- If you do not plan to use the appliance for a long period of time, please store it carefully.

• Ensure that the appliance is unplugged, cooled down completely.
• Store the appliance in a cool and dry place.
• Make sure the appliance is kept out of reach of children.

4 Cleaning and maintenance

4.4 Transportation and handling

• Transport the appliance in its original packaging during handling and transport. The packaging protects the appliance from physical damage.
• Do not place heavy objects on the appliance or its packaging. The appliance may get damaged.
• If the appliance is dropped, it may stop working or permanent damage may occur.

4.5 What to do for energy saving

Turn off and unplug the appliance after each use.

Recycling symbol icon (three chasing arrows) in black on white background, enclosed in a square border

Technical diagram of a coffee maker with numbered parts labeled for identification.

2 Filtre kahve makineniz

Illustration of a coffee maker pouring liquid into a stand mixer (no text or symbols)

Illustration of a coffee maker with a lid and water bath, showing a hand pouring liquid from a container (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered label and warning symbol

Illustration of a coffee maker with a filter, accompanied by a green checkmark and two cups (no text or symbols)

Illustration of a coffee maker with a speech bubble containing an icon and a warning symbol (no text or labels present)

Line drawing of a coffee maker with an inset showing the electric plug and power outlet (no text or symbols)

Diagram of a coffee maker with an open lid and a hand inserting into the socket (no text or symbols)

1 2 3

Diagram showing a trash bin with a downward arrow indicating waste reduction, symbolizing environmental improvement.

Illustration of a hand cleaning a coffee maker with a paper filter (no text or symbols)

Illustration of a kitchen sink with buckets and a faucet, showing food being poured into a pot (no text or symbols)

- https://twitter.com/beko_tr

- https://www.facebook.com/bekoturkiye/

- https://www.youtube.com/user/BekoChannel

* Posta Adresimiz:

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Technical diagram of a coffee maker with numbered parts for identification

Illustration of a coffee maker pouring liquid into a container (no text or symbols)

Illustration of a coffee maker using a blender with a lid, showing liquid level and a spoon (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing the number 1, indicating a notification or notification.

Illustration of a coffee maker with a checkmark and two cups (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered item and a warning icon.

Diagram showing a coffee maker with an inset view of its electrical socket connected to a power outlet, indicating the process.

Cher/Chère client(e),

Prohibition sign with crossed-out trash bin and no text or symbols

Technical diagram of a coffee maker with numbered parts labeled for identification.

Illustration of a coffee maker pouring liquid into a stand mixer (no text or symbols)

Illustration of a coffee maker using a lathe machine with a lid, showing liquid level and a spoon (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered label and warning symbol

Illustration of a coffee maker with a filter and two cups, no text or symbols present

Diagram showing a coffee maker with a speech bubble containing the number 1, indicating a notification or notification.

Diagram showing a kitchen setup with a kettle and an electrical outlet, including an arrow indicating the process.

Illustration of a kitchen setup with a kettle and a stand, showing a hand inserting into a wall socket (no text or symbols present)

Diagram showing a trash bin with a downward arrow indicating waste reduction, symbolizing environmental improvement.

Illustration of a hand cleaning a coffee maker with a paper filter (no text or symbols)

Illustration of a kitchen setup with a faucet, two cups, and a kettle pouring liquid (no text or symbols)

Technical diagram of a coffee maker with numbered parts for identification

Illustration of a coffee maker pouring liquid into a container (no text or symbols)

Illustration of a coffee maker using a blender with a lid, showing liquid level and a spoon (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered note and warning symbol

Illustration of a coffee maker with a filter and two cups (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered item, likely indicating a step or notification.

Diagram showing a kettle setup with an open door, highlighting the electrical outlet and power outlet.

Diagram of a coffee maker with an open lid and a hand inserting into the socket (no text or symbols present)

Diagram showing a trash bin with a downward arrow indicating waste reduction, symbolizing environmental improvement.

Illustration of a hand cleaning a coffee maker with a paper filter (no text or symbols)

Illustration of a kitchen setup with a faucet, two cups, and a kettle pouring liquid (no text or symbols)

Warning sign with crossed-out electrical circuit diagram and a blank rectangular symbol below

Technical diagram of a coffee maker with numbered parts labeled for identification.

Illustration of a coffee maker pouring liquid into a container (no text or symbols)

Illustration of a coffee maker using a blender with a lid, showing liquid level and a spoon (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered note, indicating a notification or notification.

Illustration of a coffee maker with a checkmark and two cups (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing the number 1, indicating a notification or notification.

Diagram of a coffee maker with an open lid and a kettle, showing a close-up of its interior (no text or symbols present)

Line drawing of a coffee maker with an open electrical outlet, showing the kettle and front panel (no text or symbols)

Diagram showing a trash bin with a downward arrow and a label '中' (mid) in Chinese, likely indicating a waste sorting or disposal process.

Illustration of a hand cleaning a coffee machine with a lid and base (no text or symbols)

Illustration of a water tap pouring liquid into a bucket and a water dispenser with granular contents (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or numbers present.

Technical diagram of a coffee maker with numbered parts for identification

Illustration of a coffee maker pouring liquid into a stand mixer (no text or symbols)

Illustration of a coffee maker using a lathe machine with a lid, showing liquid level and a spoon (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered label and warning symbol

Illustration of a coffee maker with a filter, accompanied by a green checkmark and two cups (no text or symbols)

Illustration of a coffee maker with a speech bubble containing an icon (no text or symbols on the device itself)

Line drawing of a coffee maker with an open electrical outlet, showing internal components and a close-up of the device (no text or symbols)

Illustration of a kitchen setup with a kettle and a stand, showing a hand inserting into a wall socket (no text or symbols present)

1 2 3

Diagram showing a trash bin with a downward arrow indicating waste reduction, symbolizing environmental improvement.

Illustration of a hand cleaning a coffee maker with a paper filter (no text or symbols)

Illustration of a kitchen sink with water being poured into a cup and a faucet above (no text or symbols)

Prohibition sign with crossed-out trash bin and no text or symbols

Technical diagram of a coffee maker with numbered parts labeled for identification.

Illustration of a coffee maker pouring liquid into a container (no text or symbols)

Illustration of a coffee maker using a blender with a lid, showing liquid level and a spoon (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing the number 1, indicating a notification or notification.

Illustration of a coffee maker with a filter, accompanied by a green checkmark and two cups (no text or symbols)

Diagram showing a coffee maker with a speech bubble containing a numbered label and a warning icon.

Diagram showing a coffee maker with an open lid and a close-up of its stand, highlighting the use of a power outlet.

Diagram of a coffee maker with a kettle and a wall-mounted electrical outlet, showing a close-up of its lid (no text or symbols present)

Diagram showing a trash bin with a bag pouring into a trash can, indicating waste disposal or disposal process.

Illustration of a hand using a handheld device to press or clean a coffee machine (no text or symbols visible)

Illustration of a water tap pouring liquid into a bucket and a filter with sparkles (no text or symbols)

Line drawing of a coffee maker with an open electrical outlet, showing the kettle and front panel (no text or symbols)

Diagram showing a trash bin with a container pouring liquid into a trash bin, indicating waste disposal or disposal process.

Illustration of a hand cleaning a coffee machine with a paper filter (no text or symbols)

Illustration of a kitchen sink with water being poured into a bucket and a kettle (no text or symbols)

Illustration showing a coffee maker with a green checkmark and two cups, indicating a cooking or processing step.

Diagram showing a coffee maker with a speech bubble containing a numbered circle and warning symbol, likely illustrating a cooking or cooking process.

Diagram of a coffee maker with an open electrical outlet, showing internal components and a close-up of the device (no text or symbols present)

Illustration of a coffee maker pouring liquid into a container (no text or symbols)

Illustration of a coffee maker using a saucer with a lid, showing liquid and a spoon (no text or symbols)

Illustration of a coffee maker with a speech bubble containing a numbered label (no text or symbols on the device itself)

Technical diagram of a coffee maker with numbered parts for identification

Diagram showing a grid of rectangular blocks with varying fill patterns and a small inset image of a vehicle with crosshairs.

Image containing a recycling symbol and a row of identical rectangular blocks with a central recycling icon.

Simple black icon of a mug filled with beer, no text or symbols present

CFM 73531

AR
