USER MANUAL HPFD11XHTC HAIER

Portable Air Conditioner

Line drawing of a portable air conditioner unit with control panel and buttons (no text or symbols)

Design may vary by model number.

Some models may have an additional letter after the model number.

AIR CONDITIONER SAFETY 2

PARTS AND FEATURES....3

INSTALLATION REQUIREMENTS 4

Tools and Parts 4

Location Requirements 4

Electrical Requirements....4

INSTALLATION INSTRUCTIONS 5

Step 1 - Unpack Air Conditioner 5

Step 2 - Install Exhaust .... 5

Step 3 - Install Window Panel 6

Step 4 - Attach Exhaust Hose to the Exhaust Nozzle ...... 6

Step 5 - Complete Installation.... 6

CONTROL PANEL....7

Buttons 7

Remote Control 8

AIR CONDITIONER USE 9

AIR CONDITIONER CARE 9

Cleaning 9

Air Filters....9

Internal Water Tank 9

Storage 9

TROUBLESHOOTING....10

LIMITED WARRANTY 11

RECORD KEEPING 1

RECORD KEEPING

Thank you for purchasing this Haier product. This user manual will help you get the best performance from your new air conditioner.

Model number

For future reference, record the model and serial number located on the label on the side of your air conditioner, and the date of purchase.

Serial number

Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

Date of purchase

AIR CONDITIONER SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word "DANGER," "WARNING" or "CAUTION."

These words mean:

! DANGER

An imminently hazardous situation. You could be killed or seriously injured if you don't immediately follow instructions.

WARNING

A potentially hazardous situation which, if not avoided, could result in death or serious bodily injury.

CAUTION

A potentially hazardous situation which, if not avoided, may result in moderate or minor injury.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical shock, injury to persons, or damage when using the air conditioner, follow basic precautions, including the following:

• Read all of the instructions before using this appliance.
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Do not operate the air conditioner if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
• The air conditioner should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.

• Disconnect power before servicing.

• Disconnect power before cleaning.
  NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply.

• Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is contaminated. Avoid any chemicals coming in contact with your air conditioner.
• Do not store anything directly on top of the air conditioner.
• Use two or more people to move and install air conditioner.
• Never operate the air conditioner without the filters in place.
• Do not use the air conditioner near a bathtub, shower or wash basin or other wet area.

READ AND SAVE THESE INSTRUCTIONS

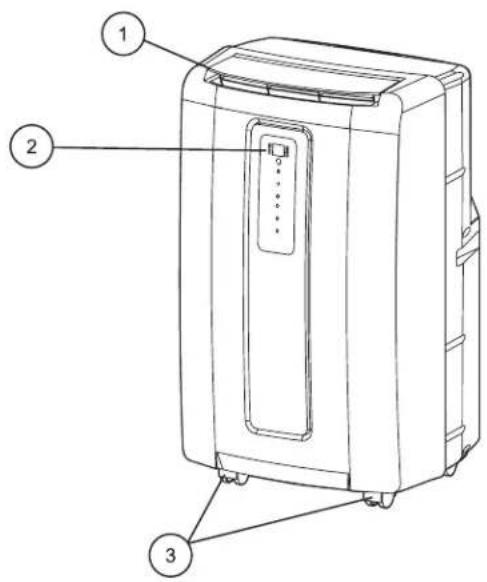

PARTS AND FEATURES

Technical diagram of a portable air purifier with labeled parts 1, 2, and 3

1. Air Outlet
2. Control Panel
3. Casters
4. Air Filter
5. Handle
6. Air Inlet
7. Air Oulet

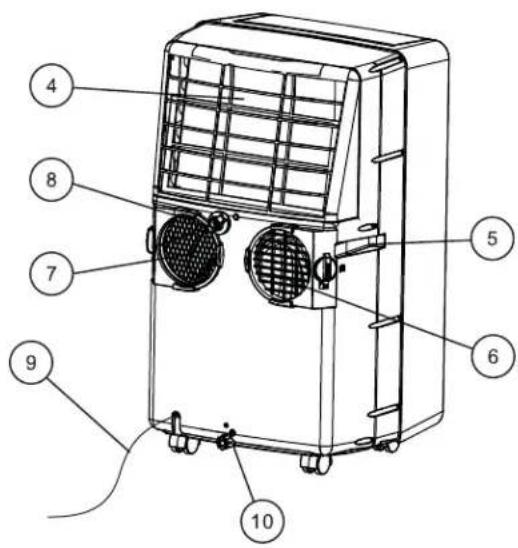

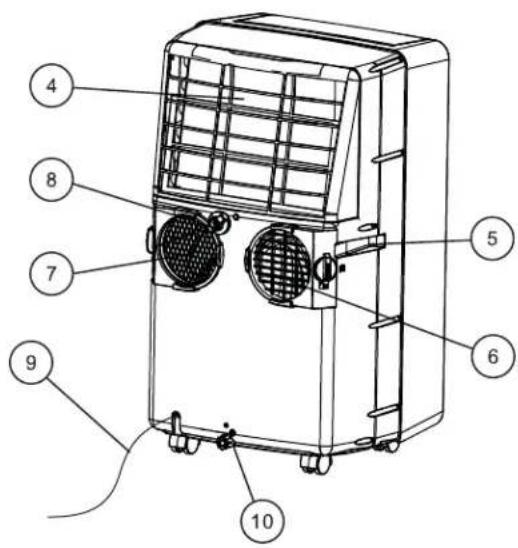

Technical diagram of an air conditioner unit with numbered components for identification

1. Upper Drain
2. Power Cord
3. Lower Drain

NOTE: Please ensure if the water outlet drain is well installed before use.

Power Cord

RESET TEST

TEST: When this button is pressed or when there is a current leak, the unit will not operate.

RESET: After resolving the problem, press the reset button to resume operation.

INSTALLATION REQUIREMENTS

TOOLS AND PARTS

Gather the required tools and parts before starting installation.

PARTS SUPPLIED

Exhaust Hose (2)

Hose Connector (2)

Hose Connector (2)

Cover (2)

Window Panel and Extension Panel (3)

LOCATION REQUIREMENTS

- Place the air conditioner on a flat, level surface in a location that is at least 20" (51 cm) from any wall.

NOTE: The recommended distance from the window for optimal performance is 31.5 (80 cm).

• Maintain a minimum 20" (51 cm) clearance around the air conditioner to not block airflow.
• Keep the air conditioner free of any obstructions such as drapes, curtains, blinds, etc.
• The exhaust hose should be free of any obstructions.
• Do not place the air conditioner on an unstable or raised surface because it could fall and cause damage or injury.
• Do not place the air conditioner in direct sunlight or near a heat source such as baseboard heaters, stoves, etc.
• The window panel can be installed in a window with a minimum 20" (51 cm) to a maximum 46" (117 cm) opening.

ELECTRICAL REQUIREMENTS

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

POWER SUPPLY CORD

Wiring Requirements

• 115 Volt, 60Hz, 15-amp fused grounded 3 prong outlet
- The use of a time-delay fuse or time-delay circuit breaker is recommended.
- Use a dedicated circuit only.

NOTE: Do not operate any other electrical appliances on this circuit or you may trip the circuit breaker/fuse.

If this power supply cord is damaged, it cannot be repaired. It must be replaced with a cord from the product manufacturer. If the power supply cord is damaged call Haier Customer Service: 1-877-337-3639.

To test the power supply cord before operation:

1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Test button, and then press and release the Reset button to restore power.

REQUIRED GROUNDING METHOD

This air conditioner must be grounded. The air conditioner is equipped with a power supply cord that has a 3 prong grounding plug. The power supply cord must be plugged into a mating, grounded 3 prong outlet, and grounded in accordance with all local codes and ordinances.

115V 15 Amp

INSTALLATION INSTRUCTIONS

STEP 1 - UNPACK AIR CONDITIONER

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

- Remove packaging materials. Save the carton and the foam packaging for storing the air conditioner when not in use.

NOTE: There are NO packing materials inside the air conditioner to remove—Do Not open the cabinet.

• Properly dispose of/recycle all packing material.
- Handle the air conditioner gently.
- Keep the air conditioner upright and level. Do not set the air conditioner on its side, front, back or upside down.

STEP 2 - INSTALL EXHAUST

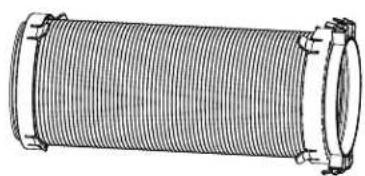

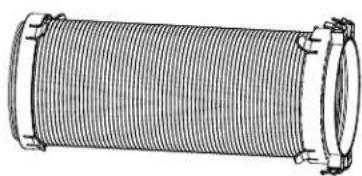

1. Connect the connectors #2 and #3 to two sides of exhaust hose #1 to create an exhaust assembly.

2 1 3

Technical line drawing of a coiled pipe with flanged ends and central hub (no text or symbols)

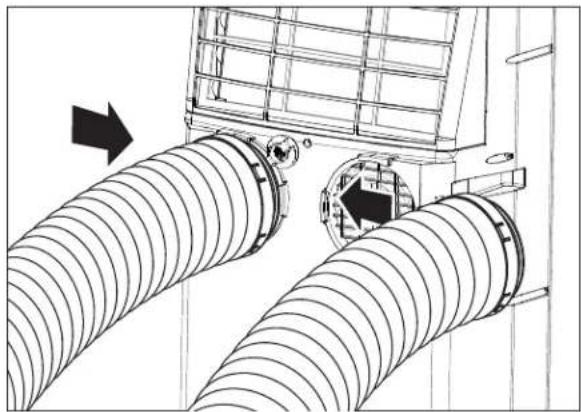

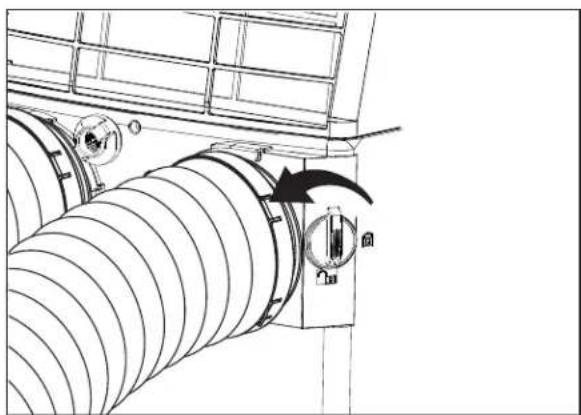

1. Sliding in one end of hose assembly (with hose connector #2) to rear panel.

Technical line drawing of a mechanical assembly with coiled pipes and a valve (no text or symbols)

Then turn knob to fix the hose assembly firmly. NOTE: Smaller diameter hose to slide in from right of rear panel, and the larger one from left side.

Technical line drawing of a mechanical assembly with coiled pipes and control panel (no text or symbols)

INSTALLATION INSTRUCTIONS

STEP 3 - INSTALL WINDOW PANELS

1. Insert the window panel B and C to each end of the main panel A. Adjust to fix the length of window

C

A

B

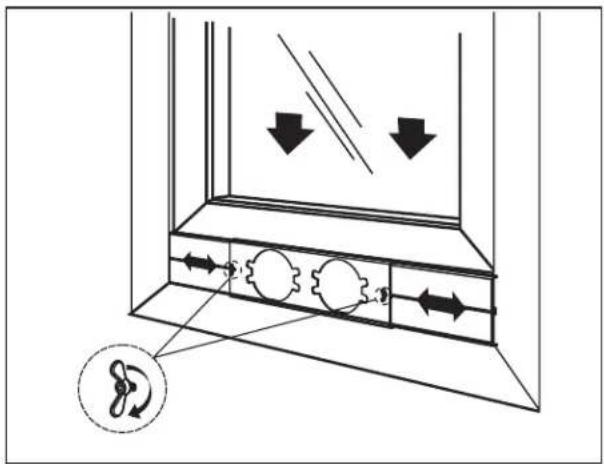

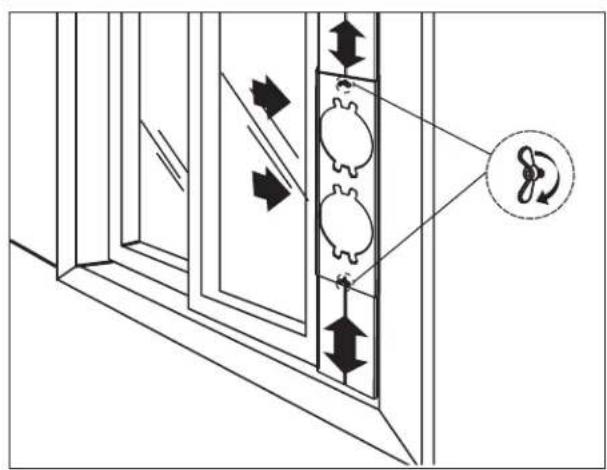

1. Open the window and place window panels into window. Adjust the extension panels to fit width or height of window by the screw and nut sets mounted on the main panel A.

Diagram of airflow or ventilation system inside a container with directional arrows and a circular inset showing a fan-like symbol (no text or labels)

Diagram showing door door mechanism with directional arrows and a labeled component, likely illustrating safety or ventilation system.

STEP 4 - ATTACH EXHAUST HOSE TO THE EXHAUST NOZZLE

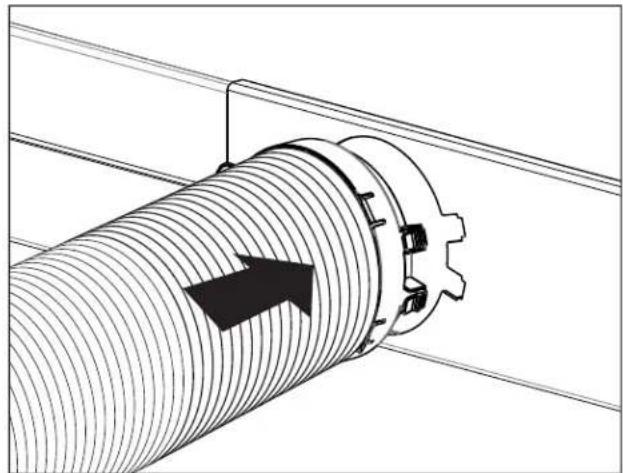

1. Insert the other end of the exhaust hose assembly (with hose connector #3) onto the window bracket.

Technical diagram of a mechanical pipe assembly with a gear and directional arrow (no text or symbols)

1. Repeat Steps 2 - 4 for the installation of the second hose assembly.

STEP 5 - COMPLETE INSTALLATION

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

1. Plug the power cord into a grounded 3 prong outlet.
2. Press the Reset button on the power cord to ensure the safety plug is providing power to the air conditioner.
3. Allow 8" of space around the unit for proper air circulation.
4. When removing the portable air conditioner for storage, the window panel may be left in place. Simply place the cover (#5) over the hole on the window panel.

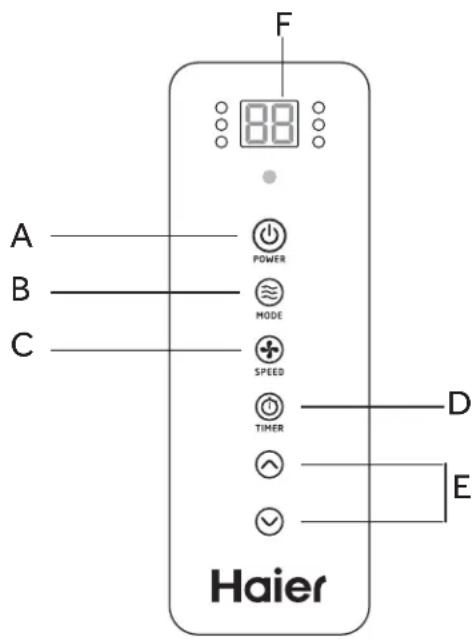

A B C 88 POWER MODE SPEED TIMER D E Haier

BUTTONS

A. Power On/Off
B. Mode

Press this button to change the operation mode.

COOL: Blue LED lights when in cooling mode.

DEHUM: Yellow LED lights when in dehumidification mode.

FAN: Green LED lights when in fan mode.

HEAT: Red LED lights when in heat mode (applies only to heat and cool models).

C. Fan Speeds

There are 3 speeds in the cool and fan modes: Low, Medium and High.

In Dehumidification mode, and room temperature is greater than 77^ F, fan speed can be adjusted, otherwise fan speed is fixed to Low.

D. On/Off Timer

The timer can be used to automatically turn on or off the air conditioner.

To automatically turn on the air conditioner, set the timer while the power control is in the OFF position.

1. Turn off the air conditioner
2. Press the Timer button.
3. Press the ∧ or ∨ button to change the delay start time from 1 to 24 hours.
4. The delay start time will display on the control panel.

To automatically turn off the air conditioner, set the timer while the power control is in the ON position.

1. Turn on the air conditioner
2. Press the Timer button.
3. Press the ∧ or ∨ button to change the delay stop time from 1 to 24 hours.
4. The delay stop time will display on the control panel.

To clear the timer setting.

1. The power control can be either in the on or off position.
2. Press the Timer button.
3. Press the v button until the timer display has been cleared.

E. Setting the Temperature

The ∧ or ∨ buttons can be used for adjusting the timer and temperature settings.

To set the timer: see "On/Off Timer" instructions.

To set the temperature: While in the COOL mode, press the or button to raise or lower the temperature. The set temperature is displayed and may be adjusted. The temperature can be set between 61°F and 89°F (Cool mode) and 61°F to 80°F (Heat mode). After 15 seconds the display will revert back to the room temperature.

NOTE: The temperature cannot be adjusted in the fan or dehumidification modes.

F. Display

When the red indicator light (on the right top side beside the LED display) flashes, the internal water tank has filled with condensed water and the air conditioner will turn off automatically. See the "Storage" section for directions on draining the water from the air conditioner.

NOTE: By pressing both ∧ and ∨ buttons at the same time, the display will toggle between Celsius and Fahrenheit. The temperature cannot be adjusted in the fan or dehumidification modes.

CONTROL PANEL

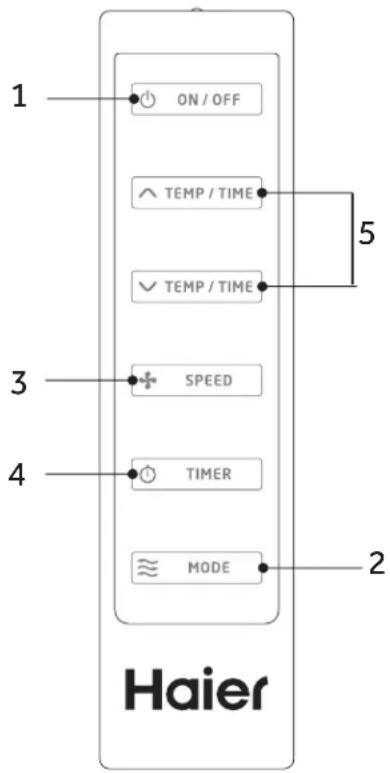

REMOTE CONTROL

1. Power On/Off

2. Mode ≈

Cool: Blue LED lights when in cooling mode.

Dehumidification: Yellow LED lights when in dehumidification mode.

Fan: Green LED lights when in fan mode.

Heat: Red LED lights when in heat mode (applies only to heat and cool modes).

3. Fan Speeds

There are three adjustable speeds in the cool and fan mode: Low, Medium and High. In dehumidification mode, and room temperature is greater than 77^ F, fan speed can be adjusted; Otherwise fan speed is fixed to "low".

4. On/Off Timer

To set the timer for a 1-24-hour delay until the air conditioner turns off:

1. When you use the timer setting button while the unit is operating, you can preset a time for the unit to turn off.
2. When you use the timer setting button while the unit is on standby, you can preset a time for the unit to turn on.
3. If you press the "ON/OFF" button, the preset timer function will be canceled.
4. Timer setting range is 1-24 hours.

To clear Timer Delay program:

NOTE: Air conditioner can be either on or off.

1. Press the Timer Button.
2. Press and hold the minus button until the timer display has cleared.
3. Press the Timer Button.
4. Press the plus or minus button to change the delay time from 1 to 24 hours.
5. The new delay time will display.

To change the remaining time (in hours):

5. Setting the Temperature

To set the temperature, press the V or A keys to raise or lower the temperature. The temperature can be raised or lowered in the cool mode. The temperature cannot be adjusted in fan or dehumidification mode.

NOTE; The temperature can be set between 61^ F to 89^ F (Cool Mode) and 61^ F to 77^ F (Heat Mode).

1 ON / OFF TEMP / TIME TEMP / TIME 5 3 SPEED 4 TIMER 2 MODE Haier

AIR CONDITIONER USE

IMPORTANT: If the air conditioner has been tilted on its side, wait 24 hours before turning on the air conditioner to allow the oil to return to the compressor. This will prevent the air conditioner from failing prematurely.

• Allow 20" (51 cm) of space around the unit for proper air circulation.
• Do Not operate the air conditioner without air filters in place.
• Do not spill liquid on the control panel; it may cause an electrical short to the interior electronic parts that would either disable them or cause them to function improperly.

• When turning on the air conditioner for the first time after plugging it into an electrical outlet, the unit will start in Cooling mode set at 75^ F ( 24^ C), and at High fan speed. The control panel will display the current room temperature.

• When turning on the unit after previous use, it will remember the last settings used.

• After a normal shut down, please wait for 3 minutes before restarting the unit.
• In Cooling mode, this unit should not require water to be removed. This model has a unique design that continuously evaporates the water.
• When the unit is operated in high humidity conditions, you may need to empty the water tank periodically.
• The unit will shut down automatically when the water tank is full. The Water Full indicator illuminates to alert you of this condition.

AIR CONDITIONER CARE

WARNING

Electrical Shock Hazard

Disconnect power before cleaning.

Failure to do so can result in death or electrical shock.

CLEANING

1. Unplug or disconnect power.
2. Use only a soft cloth dampened with water to clean the cabinet.

NOTE:

• Do not use a liquid or spray cleaner to clean the air conditioner.

• DO NOT use chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or scouring pads. Some of these chemicals/items may damage and/or discolor your air conditioner.

• Dry thoroughly with a soft cloth.

• Plug in or reconnect power.

AIR FILTERS

The air filters should be cleaned at least once a week for your unit to operate at optimum efficiency.

IMPORTANT: Do Not operate the air conditioner without air filters in place.

1. Unplug or disconnect power.
2. Pull on the tabs to slide out the filters from the back of the air conditioner. NOTE: The secondary filters are accessible once the main filters are removed.
3. Wash or vacuum the dust from the air filters. NOTE: If washed, gently shake the filter to remove the excess water and dust particles trapped in the filter.
4. Reinstall the filters.
5. Plug in or reconnect power.

INTERNAL WATER TANK

The Water Full indicator illuminates, when the internal water tank has filled with condensed water.

To Empty the Internal Water Tank:

1. Unplug or disconnect power.
2. Place a shallow 1 quart or larger pan (not included) below the lower drain located on the back (near the bottom) of the air conditioner.
3. Remove the cap and the rubber plug and drain the water tank.
4. Re-insert the drain plug and screw the cap snugly into place.
5. Plug in or reconnect power.

STORAGE

If the unit is not being used for a long period of time:

1. Unplug or disconnect power.
2. Drain the water from the water tank. See "Air Conditioner Care."
3. Use the original packaging to repack the unit to avoid a buildup of dust or dirt.
4. Store the air conditioner in a cool, dry location.

TROUBLESHOOTING

First try the solutions suggested here to possibly avoid the cost of a service call.

PROBLEM POSSIBLE CAUSE(S) SOLUTION
Unit does not start or operate	Power supply cord is not plugged into an outlet.	Plug the power cord into a grounded 3 prong outlet.
	Power supply cord has tripped. Press and release	the RESET button on the power supply cord.
	The Power button has not been pressed. Press	the Power button on the Control Panel or Remote Control to turn ON the air conditioner.
	There is no power to the electrical outlet. Plug a	working lamp into the outlet to check for power.
	A household fuse has blown or a circuit breaker has tripped.	Replace the fuse or reset the circuit breaker.
	The control was programmed for a Time Delay.	Cancel the Time Delay. See “Control Panel.”
	The batteries in the remote control are dead.	replace the batteries.
	The internal water tank is full.NOTE: The air conditioner automatically turns off, and the Water Full indicator illuminates to alert you of this condition.	Empty the water tank. See “Air Conditioner Care.”
Remote control is not working	Batteries are dead. Replace the batteries.
	Batteries are installed incorrectly. Make sure the batteries are inserted in the correct position.
Air conditioner is working but the room is not cooling.	The room temperature is hot.NOTE: On extremely hot and humid days,the air conditioner will take longer to cool the room.	Allow time for the room to cool when you first turn on the unit.Make sure the air conditioner has an adequate BTU rating for the size of the room being cooled.
	The control is set incorrectly to Fan or Dehum mode.	Set the Mode to Cool and the Fan Speed to High.
	Airflow is restricted. Remove any obstacles to	the airflow and redirect airflow for uniform cooling.
	Temperature set too high. Lower the set temper	rature.
	Air filters are dirty or restricted.	Clean the air filter. See “Air Conditioner Care.”
	Air conditioner installed incorrectly	Check the exhaust hose and window panel for proper installation.
	Doors and windows are open.	Close the doors and windows to the room being cooled to prevent cooled air from escaping.

FOR MORE HELP, VISIT HAIERAMERICA.COM OR CALL THE CONSUMER HELP LINE AT 1-877-337-3639.

LIMITED WARRANTY

For The Period Of: Will Replace:

One YearFrom the date of the original purchase

Replacement, repair, or refund of the original retail price for any product which fails due to a defect in materials or workmanship. If the unit is exchanged, the replacement unit is warranted for the remainder of your product's original one-year warranty period. GE will, at its sole discretion, replace the product with a product of the same or comparable functionality and quality or refund the original retail price.

In Order to Make a Warranty Claim During the First 90 Days from the Date of Original Purchase:

■ Properly pack your unit. We recommend using the original carton and packing materials.
■ Return the product to the retail location where it was purchased.

■ Include in the package a copy of the sales receipt or other evidence of date of original purchase. Also print your name and address and a description of the defect.

In Order to Make a Warranty Claim During the Remainder of the One-Year Warranty:

■ Locate your original sales receipt and make a note of your model and serial number.
■ Call 1.877.337.3639 (in the United States) to initiate the product replacement process. In Canada, call 1.877.470.9174.
■ You will be asked to provide your name, address, date of purchase, model and serial number.
■ GE Appliances will arrange for a carton to be sent to your home to recover the product.

■ Please return all requested materials (postage pre-paid) in the carton provided. Please include a description of the defect.
■ You should receive your replacement product or refund within 7 to 10 business days after your package is received.

What Will Not Cover:

• Customer instruction. This owner's manual provides information regarding operating instructions and user controls.
  ■ Improper installation. If you have an installation problem, or if the air conditioner is of improper capacity, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.
  ■ Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.

■ Replacement of house fuses or resetting of circuit breakers.
■ Failure due to corrosion on models not corrosion-protected.
■ Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this air conditioner.
■ Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Appliances Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor US:

GE Appliances, a Haier company

TABLE DES MATIÈRES

SÉCURITÉ DU CLIMATISEUR 13

PIÈCES ET CARACTÉRISTIQUES 14

EXIGENCES D'INSTALLATION....15

Technical diagram of a portable air conditioner unit with labeled parts 1, 2, and 3

Technical diagram of an air conditioner unit with numbered components for identification

Technical line drawing of a mechanical assembly with coiled pipes and a control panel (no text or symbols)

Technical line drawing of a mechanical component with internal tubing and directional arrows (no text or symbols)

Technical line drawing of a coiled pipe with flanged ends and central hub (no text or symbols)

INSTRUCTIONS D'INSTALLATION

ÉTAPE 3 - INSTALLATIONDES PAN-NEAUX DE FENÊTRE

Diagram of airflow or ventilation system inside a window with directional arrows and a circular inset showing a rotating component (no text or symbols)

Diagram showing airflow or ventilation system with directional arrows and a circular component labeled 'S' indicating clockwise motion.

ÉTAPE 4 - FIXATION DU TUYAU D'ÉVACUATION SUR L'EMBOU- CHURE D'ÉVACUATION

Technical line drawing of a mechanical pipe assembly with a gear and directional arrow (no text or symbols)

ÉTAPE 5 - FIN DE L'INSTALLATION

⚠ AVERTISSEMENT

GE Appliances, a Haier company

ÍNDICE

SEGURIDAD DEL ACONDICIONADOR DE AIRE 25

PIEZAS Y CARACTERÍSTICAS 26

Technical diagram of a portable air conditioner unit with labeled parts 1, 2, and 3

1. Salida de Aire
2. Panel de Control
3. Rueditas
4. Filtro de Aire
5. Manija
6. Entrada de Aire
7. Salida de Aire

Technical diagram of an air conditioner unit with numbered components for identification

Technical line drawing of a mechanical assembly with coiled pipes and a valve (no text or symbols)

Technical line drawing of a mechanical component with internal pipes and control valves (no text or symbols)

Technical line drawing of a coiled pipe or hose assembly (no text or symbols)

Diagram of airflow or ventilation system inside a window with directional arrows and a circular symbol (no text or labels)

Diagram showing airflow or ventilation system with directional arrows and a labeled component, likely illustrating a mechanical or electrical system.

PASO 4 - ADHIERA LA MANGUERA DEL EXTRACTOR A LA BOCA DEL EXTRACTOR

Technical diagram of a mechanical pipe assembly with a gear and threaded component, showing internal flow direction (no text or symbols)

If you have a problem with this product, please call 1-877-337-3639 for the name and telephone number of the nearest authorized service center.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANT
