USER MANUAL HWR05XCR HAIER

Front view of a modern air conditioner unit with ventilation grilles and a digital display (no text or symbols on the main body)

Design may vary by model number.

This user manual is to be only used for electronic control 5,000 BTU, 6,000 BTU, 8,000 BTU 10,000 BTU and 12,000 BTU Models. - Some models may have an additional letter after the model number.

SAFETY INFORMATION......2

Important Safety Precautions....2-3

Operational Safety & Warnings 4

INSTALLATION REQUIREMENTS....5

Tools and Parts....5

Location Requirements 6

Electrical Requirements 7-9

HOW TO INSTALL 10

Unpacking the Air Conditioner....10

Preparing the Air Conditioner 10-11

Preparing the Window 12

Completing the Installation....13

USING YOUR AIR CONDITIONER....14

Starting the Air Conditioner....14-18

Using the Remote Control....18-19

Changing the Air Direction....20

CARING FOR YOUR AIR CONDITIONER....21

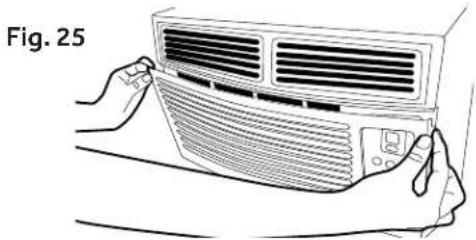

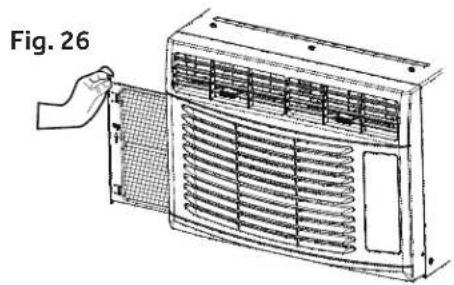

Cleaning the Air Filter 21

Cleaning the Front Panel 22

Customer Service 22

Normal Sounds of an Air Conditioner....23

TROUBLESHOOTING 24

LIMITED WARRANTY....25

PRODUCT REGISTRATION

Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your product.

Remember to record the model and serial numbers. They are on a label on the side of your unit.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

IMPORTANT SAFETY PRECAUTIONS

WARNING

THE INFORMATION IN THIS USE & CARE GUIDE MUST BE

FOLLOWED TO MINIMIZE THE RISK OF PERSONAL INJURY, FIRE,

ELECTRIC SHOCK OR OTHER UNSAFE CONDITIONS.

THE INSTRUCTIONS IN THIS USE & CARE GUIDE ARE NOT MEANT

TO INCLUDE EVERY POSSIBLE CONDITION OR SITUATION THAT

MAY OCCUR. USE CAUTION AND CARE WHEN INSTALLING, OPERATING

AND CLEANING THE AIR CONDITIONER.

1. Use this air conditioner only for its intended application as described in this Use & Care Guide.
2. This air conditioner must be properly installed and use the correct wall outlet that matches with the air conditioner's power supply cord in accordance with the Installation Section of this Use & Care Guide before it is operated.
3. Never unplug the air conditioner by pulling on the power supply cord. Always grip the plug firmly and pull straight out from the wall outlet.
4. Replace the power supply cord immediately if it becomes damaged in any way. A new power supply cord must be purchased from the air conditioner manufacturer and installed by a qualified technician. DO NOT use a power supply cord that is cracked, split, cut, or damaged anywhere along its length or either at the plug end or connector end.
5. Turn off the air conditioner and unplug it from the wall outlet before performing any cleaning or maintenance.
6. Do not store or use combustible or flammable materials or liquids on or near the air conditioner.
7. If the wall outlet configuration does not match the plug configuration on the air conditioner, the wall outlet must be changed by a qualified electrician.

IMPORTANT SAFETY PRECAUTIONS

1. This air conditioner contains R410a refrigerant and requires certified technicians to use the proper equipment, tools and safety standards that are approved for this refrigerant. Use only equipment certified for R410a refrigerant. In addition, under federal law, all refrigerant must be properly removed from the air conditioner prior to its disposal.

For responsible disposal of the product, please contact your local municipality for additional recycling options in your area.

READ AND FOLLOW THE SAFETY INSTRUCTIONS CAREFULLY.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

OPERATIONAL SAFETY & WARNINGS

1. This air conditioner contains no consumer serviceable parts. If you have problems or questions regarding the operation of your air conditioner always call Haier Customer Service: 1-877-337-3639.
2. Be sure that the air conditioner is properly and securely installed in the window according to the installation instructions included in this Use & Care Guide.
3. DO NOT drill any holes in the base or sides of the air conditioner.
4. DO NOT place fingers or objects in the air discharge or air intake in the front of the air conditioner.
5. DO NOT operate the air conditioner with a protective cover on the outside section.
6. DO NOT block the air discharge or air intake areas on the front panel.
7. DO NOT block the side louvers on the outside of the air conditioner.
8. DO NOT place any objects either on the indoor or outdoor sections of the air conditioner
9. Operate the air conditioner with the air filter installed.
10. Keep this Use & Care Guide, carton and packing material for future use in removing, storing and reinstalling the air conditioner.

TOOLS AND PARTS

Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED

□ Phillips head screwdriver

□ Level

Drill and 1/8" bit

□ Scissors

□ Tape measure

□ Pencil

PARTS SUPPLIED:

Check that all parts for your specific air conditioner are included in the parts package.

NOTE: If parts are missing, call Haier Customer Service: 1-877-337-3639.

IMAGE PART		5,000BTU6,000BTU	8,000BTU10,000BTU12,000BTU
	Top channel	1	1
	Foam seal	1	1
	Side bracket	2	2
	Window lock bracket	1	1
	3/8" self- tapping screws	3	4
	1" wood screws	9	9
	Side curtains	2	2
	Side curtain frames	2	2
	Remote control	1	1

LOCATION REQUIREMENTS

IMPORTANT: evresbO all governing codes and ordinances. Check the location where the air conditioner will be installed. Make sure you have everything necessary for correct installation.

THE LOCATION SHOULD PROVIDE:

- A grounded electrical outlet within 6 ft. (183 cm) of where the power supply cord exits the air conditioner, for models: ESA405R, ESA406R, ESA408R, HWR05XCR, HWR06XCR, HWE08XCR, HWE10XCR, HWE12XCR

NOTE: Do not use an extension cord, plug adapter, surge protector or multi-outlet adapter.

• Free movement of air in the room to be cooled.
- A large enough window opening for the air conditioner. (See Fig.2)
- The air conditioner must not be installed in a through-the-wall sleeve or in a wall. It can only be installed in a double-hung window.

NOTE: The outside cabinet louvers and air discharge must not be obstructed by bushes, trees, etc. Air must be able to pass freely through the cabinet louvers. (See Fig.1)

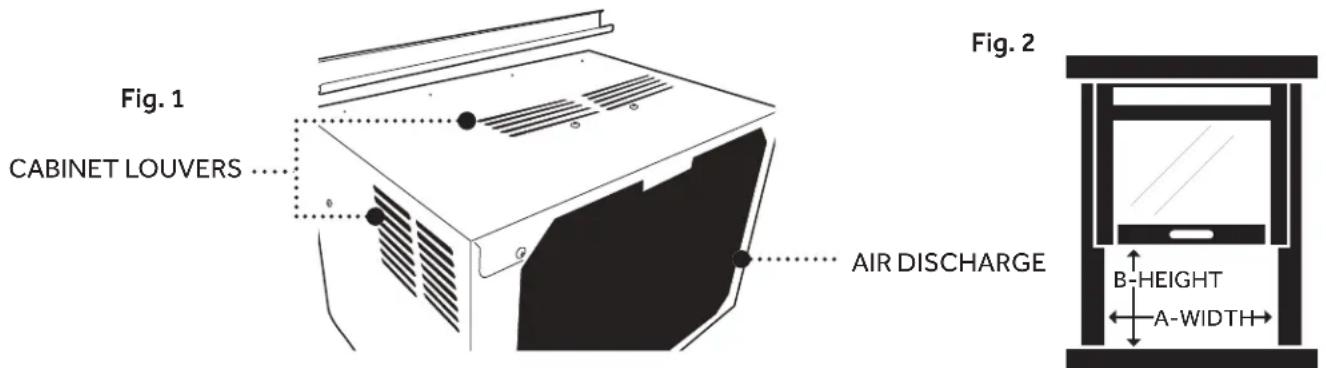

Fig. 1 CABINET LOUVERS AIR DISCHARGE Fig. 2 B-HEIGHT A-WIDTH

WINDOW INSTALLATION

Window opening measurements:

	HWR05XCR	HWR06XCR	HWR08XCRHWE08XCRHWR10XCRHWE10XCR	HWR12XCRHWE12XCR
A. Width	21-7/8" - 36"	24-1/2" - 36"	25" - 36-5/8"	26-1/8" - 37-3/4"
B. Height	13-3/8"	13-3/8"	14-9/16"	14-9/16"

WARNING

ELECTRICAL SAFETY and WARNINGS

1. DO NOT cut or remove the grounding prong on the attached power supply cord. Doing so may cause sparks or fire, and voids all warranties. For safety purposes the air conditioner must be properly grounded.
2. To avoid a fire hazard or possible electric shock, DO NOT use an adapter plug, extension cord, surge protectors, or multi-outlet adapters with the air conditioner.
3. The power supply cord is equipped with a 3-prong plug which mates with a standard 115 volt wall outlet to minimize the possibility of electrical shock from this air conditioner.
4. The power supply cord includes a leakage current detection interrupter device (LCDI). A RESET and TEST button are on the plug case. The device should be tested on a periodic basis by pressing the TEST button and then the RESET button while it is plugged into the wall outlet. If the TEST button does not trip or the RESET will not stay engaged, do not use the air conditioner and contact a qualified service technician.
5. Have the wall outlet and circuit inspected by a qualified electrician to ensure that the wall outlet is properly grounded.
6. If there is a 2-prong wall outlet present and not a 3-prong wall outlet, it is the responsibility of the user to have it replaced with a properly grounded 3-prong outlet.
7. The air conditioner should always be plugged into a dedicated electrical outlet which has a voltage rating that matches the serial label on the side of the air conditioner.
8. The electrical ratings for your air conditioner are listed on the Model/Serial Number label. The Model/Serial Number label is located on the side of the air conditioner cabinet.
9. Specific electrical requirements are listed in the chart below. Follow the requirements for the type of plug on the power supply cord.

POWER SUPPLY CORD

Wiring Requirements

• 115-Volt (103.5 min. to 126.5 max.)
• 15-Amp time-delay grounded fuse or circuit breaker
- Use on single outlet circuit only.

ELECTRICAL REQUIREMENTS cont.

REQUIRED GROUNDING METHOD (See Fig.3)

This air conditioner must be grounded. This air conditioner is equipped with a power supply cord that has a 3 prong grounding plug. The power supply cord must be plugged into a mating, grounded 3 prong outlet, and grounded in accordance with all local codes and ordinances. If a mating outlet is not available, it is the customer's responsibility to contact a qualified electrician and ensure that a properly grounded 3 prong outlet is installed.

Fig. 3

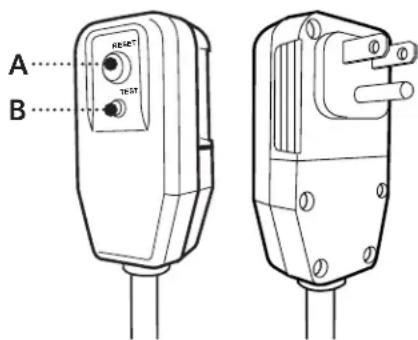

POWER SUPPLY CORD (See Fig.4)

NOTE: Your air conditioner's plug may differ slightly in appearance from the one shown.

A. Reset button
B. Test button

Fig. 4

A B FR547 TR57

This room air conditioner is equipped with an a leakage current detection interrupter (LCDI) power supply cord required by UL. This power supply cord contains a current detection device. If the power supply cord is crushed, this device will detect current leakage and power will be disconnected from the air conditioner. If this power supply cord is damaged, it cannot be repaired and must be replaced with a cord from the product manufacturer. If the power supply cord is damaged call Haier Customer Service: 1-877-337-3639.

WARNING

• Electrical shock hazard
- Plug into a mating, grounded 3 prong outlet.
- Do not remove the ground prong from the power supply cord.

• Do not use a plug adapter, extension cord, surge protector, or multi-outlet adapter
• Failure to follow these instructions can result in injury, fire, or electrical shock.

TO TEST YOUR POWER SUPPLY CORD:

1. Plug power supply cord into a mating, grounded 3 prong outlet. (See Fig.5)
2. Press RESET (on some devices, a green light will turn on).
3. Press TEST (listen for click; Reset button will trip, and on some devices, a green light will turn off).
4. Press and release RESET (listen for click; Reset button will latch, and on some devices, a green light will turn on). The power supply cord is ready for operation.

Fig. 5

Line drawing of an electrical outlet with a socket and plug, no text or symbols present

NOTE:

• The RESET button must be pushed in completely for proper operation. (See Fig.6)
• The power supply cord must be replaced if it fails to trip when the test button is pressed or fails to reset.
• DO NOT turn the air conditioner on or off by unplugging the power supply cord from the outlet. Always turn the air conditioner on or off at the control panel or by using the remote control.
• A damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and installed my a qualified service professional. It cannot be purchased at a retail store and must not be repaired by the user.

If the power supply cord is damaged please call Haier Customer Service: 1-877-337-3639.

• The power supply cord contains no user-serviceable parts.
• Opening the tamper-resistant case voids all manufacturer warranties.

Fig. 6

RESET TEST

UNPACKING THE AIR CONDITIONER

WARNING

EXCESSIVE WEIGHT HAZARD

When moving or lifting the air conditioner, use two or more people. Wear gloves when handling the air conditioner to protect against possible sharp edges and metal fins.

REMOVE PACKAGING MATERIALS

- Remove packaging materials. Save the carton and the foam packaging for storing the unit when not in use.

NOTE: There are NO internal packing materials inside the air conditioner to remove—Do Not open the cabinet.

• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not set the air conditioner on its side, front, back or upside down.
• The air conditioner must be standing upright for 2 hours prior to installation and operation.

PREPARING THE AIR CONDITIONER

INSTALL TOP CHANNEL

3/8" Screw (Actual Size)

Front Top Channel

1. Place the top channel on the top of the air conditioner, lining up the holes in the top channel with the holes in the top of the unit. Make sure the channel is facing forward as indicated by the illustrations. (See Fig.7 & 8)
2. Using 3/8" self-tapping screws, attach the top channel to the top of the air conditioner. (See Fig.8)

Use three (3) 3/8" self-tapping screws for models: HWR05XCR, HWR06XCR

Use four (4) 3/8" self-tapping screws for models: HWE08XCR, HWE10XCR, HWE12XCR, HWR08XCR, HWR10XCR, HWR12XCR

Fig. 7

Illustration of a hand using a pipette to measure a piece of paper or tool, labeled 'Fig. 8' (no other text or symbols)

PREPARING THE AIR CONDITIONER cont.

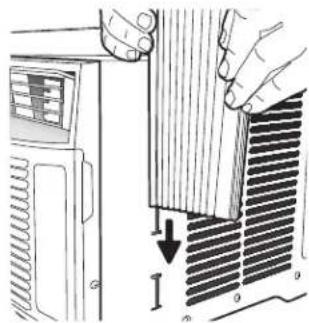

INSTALL SIDE CURTAINS

NOTE: Attach side curtains to the air conditioner before placing the unit in the window.

1. Place the tabbed side of the side curtain in the track on the right-hand side of the air conditioner cabinet. (See Fig.9)

Fig. 9 Fig. 10

TABBED SIDE OF SIDE CURTAIN

Pure technical line drawing of a mechanical component with no text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

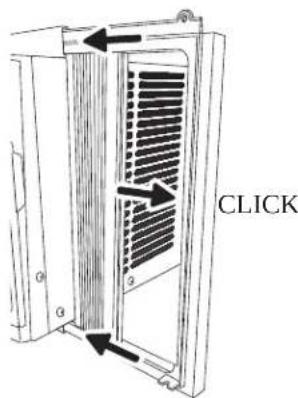

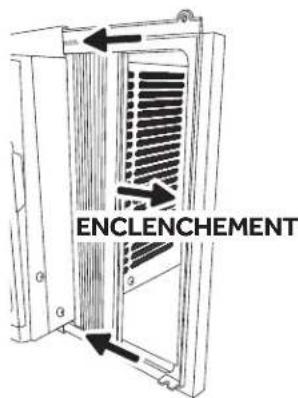

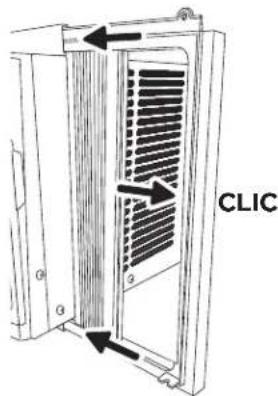

1. Slide the tabbed side of the side curtain down over all 3 tracks until the curtain is aligned with the top and bottom of the air conditioner cabinet. (See Fig.11)

2. Slide the side curtain frame over the top of the side curtain, then into the channel on the top of the air conditioner and into the track on the bottom of the air conditioner. (See Fig.12)

3. Slide the side curtain frame as close to the air conditioner cabinet as necessary to lock the side curtain to the frame. Gently press the frame until it clicks. (See Fig.10 & Fig.12)

4. Repeat above steps for the left-hand side curtain and frame. Make sure no gaps are left to ensure that air does not escape into or out of the room.

Fig. 12

Illustration of hands installing a component into a rack with a screw, showing structural details (no text or symbols)

CLICK

PREPARING THE WINDOW

1. Measure the width of the window opening. (See Fig.13)
2. Mark the center line on the inside of the windowsill with a pencil. (See Fig.14)

WIDTH OF WINDOW OPENING

Fig. 13

WIDTH

CENTER LINE

Fig. 14

Pure architectural line drawing of a vertical structure with a horizontal base labeled 'CENTER' (no text or symbols beyond label)

NOTES AND WARNINGS:

- Be sure your air conditioner does not fall out of the window opening during installation or removal.

• Do not block the air discharge or air intake areas on the front panel.

• Do not block the louvers on the outside of the air conditioner.

• Center the air conditioner in the window sill. Make sure to place the unit so that it is resting on the windowsill with a 14 " to 12 " downward tilt towards the outside. Lower the window sash behind the top channel to hold the unit in place. (See Fig.15)

NOTE: The appearance of your model may differ from the one shown.

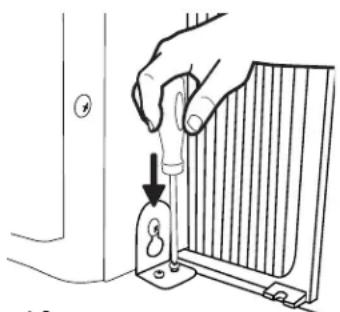

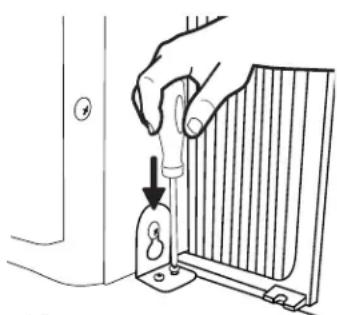

1. Loosen the screw located on the lower-right hand corner of the air conditioner.
2. Slide the side bracket over the screw. The side bracket should be resting on the window sill. (See Fig.16)
3. Partially tighten the screw. Secure the unit before tightening completely.
4. Use 1/8" drill bit to drill a starter hole through the holes in the side bracket.
5. Using two (2) 1" wood screws, attach the side bracket to the window sill.
6. Repeat for side bracket installation on the left-hand side of the air conditioner.

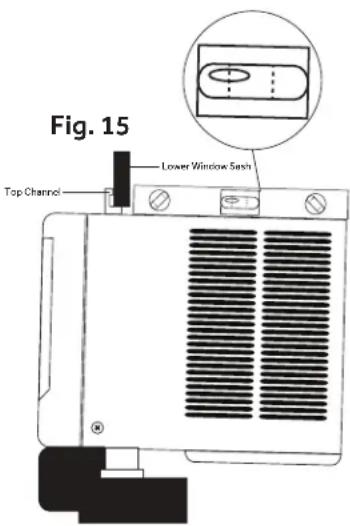

Fig. 15 Lower Window Sash Top Channel

Illustration of a hand using a tool to adjust or install a wall-mounted heating element (no text or symbols present)

Fig. 16

COMPLETING THE INSTALLATION

ATTACH SIDE CURTAINS TO WINDOW

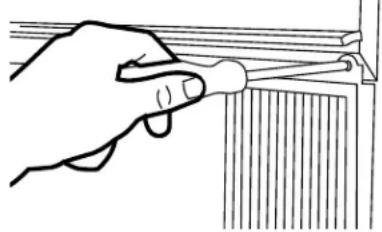

1. Pull the right-hand curtain and frame out until it fits flush to the side of the window frame. (See Fig.17)

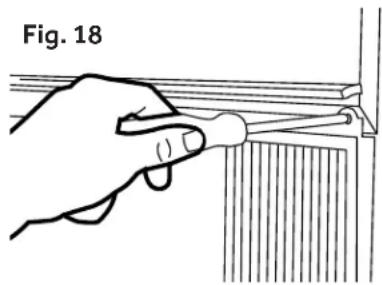

2. Use a 1/8" drill bit to drill a starter hole through the top hole in the side curtain and into the window sash.
3. Insert one (1) 1" wood screws through the top hole of the right-hand curtain and into the window sash. (See Fig.18)
4. Repeat for the left-hand curtain.
5. Use a 1/8" drill bit to drill a starter hole into the window sill using the bottom hole in the side curtain as a guide.
6. Insert one (1) 1" wood screws through the bottom hole of the right-hand curtain and into the window sill. (See Fig.19)
7. Repeat for the left-hand curtain.

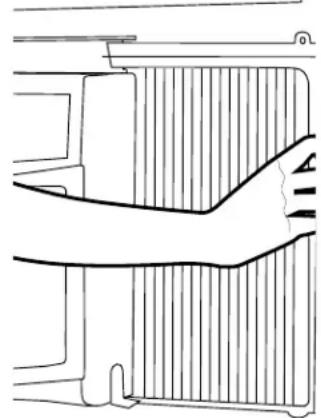

FINAL INSTALLATION

1. Uncoil the included foam seal. (See Fig.20)
2. Insert the foam seal behind the top of the lower window sash and against the glass of the upper window.

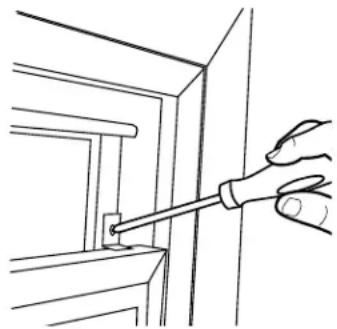

3. Place the window lock bracket as shown in the diagram using a screwdriver. Use a 1/8" drill bit to drill a starter hole through the hole in the window lock bracket and into the upper window. (See Fig.21)
4. Attach the window lock bracket to the upper window with one (1) 1" wood screw to secure the unit in place.
5. Plug unit into a grounded 3 prong outlet.
6. Press RESET on the power supply cord on some devices. A green light will come on. See "Electrical Requirements" for full detail.

Fig. 17

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a hand using a tool to adjust or trim a metal sheet (no text or symbols)

Fig. 19

Pure line drawing of vertical supports and a small object at the base (no text or symbols)

Fig. 20

Fig. 21

Line drawing of a hand using a screwdriver to lift a wall-mounted component (no text or symbols)

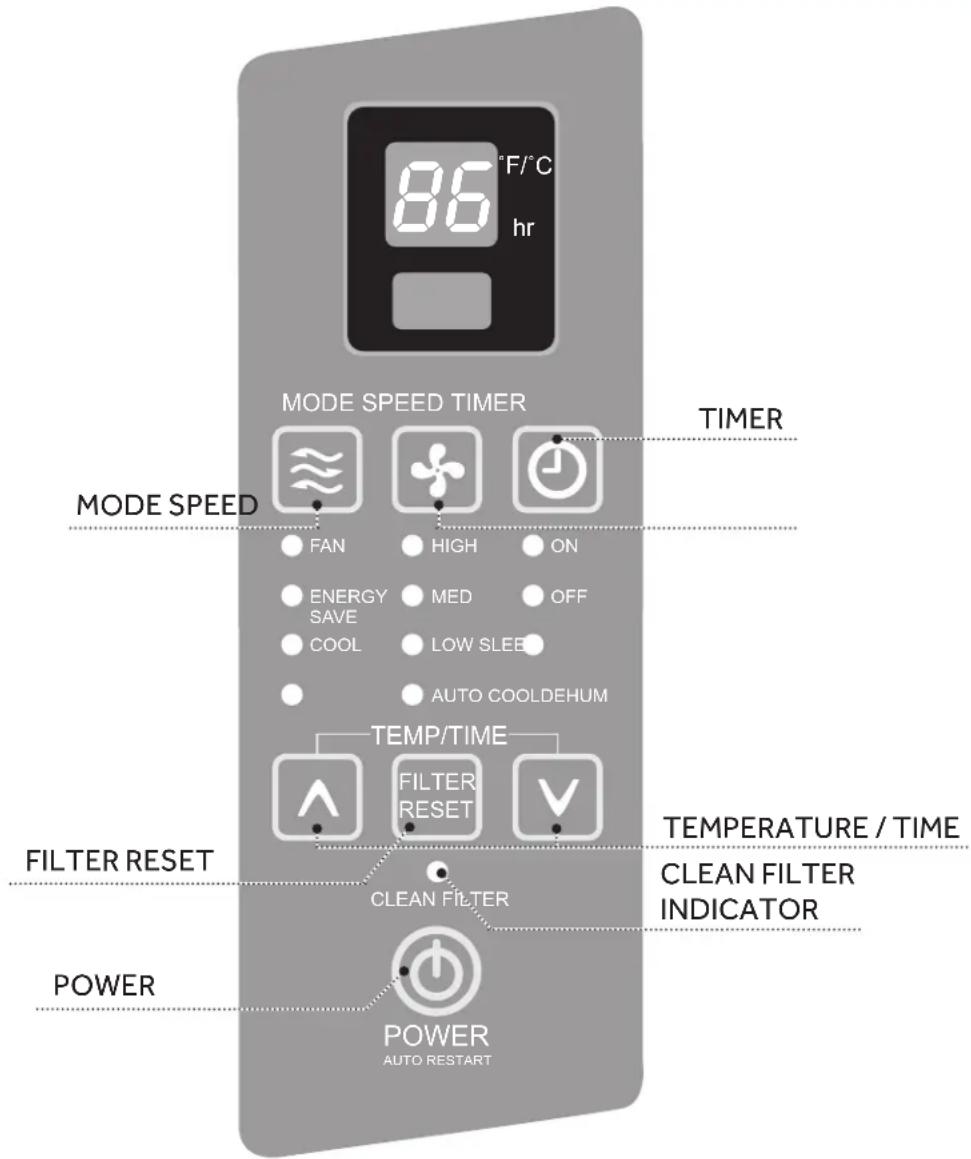

STARTING THE AIR CONDITIONER

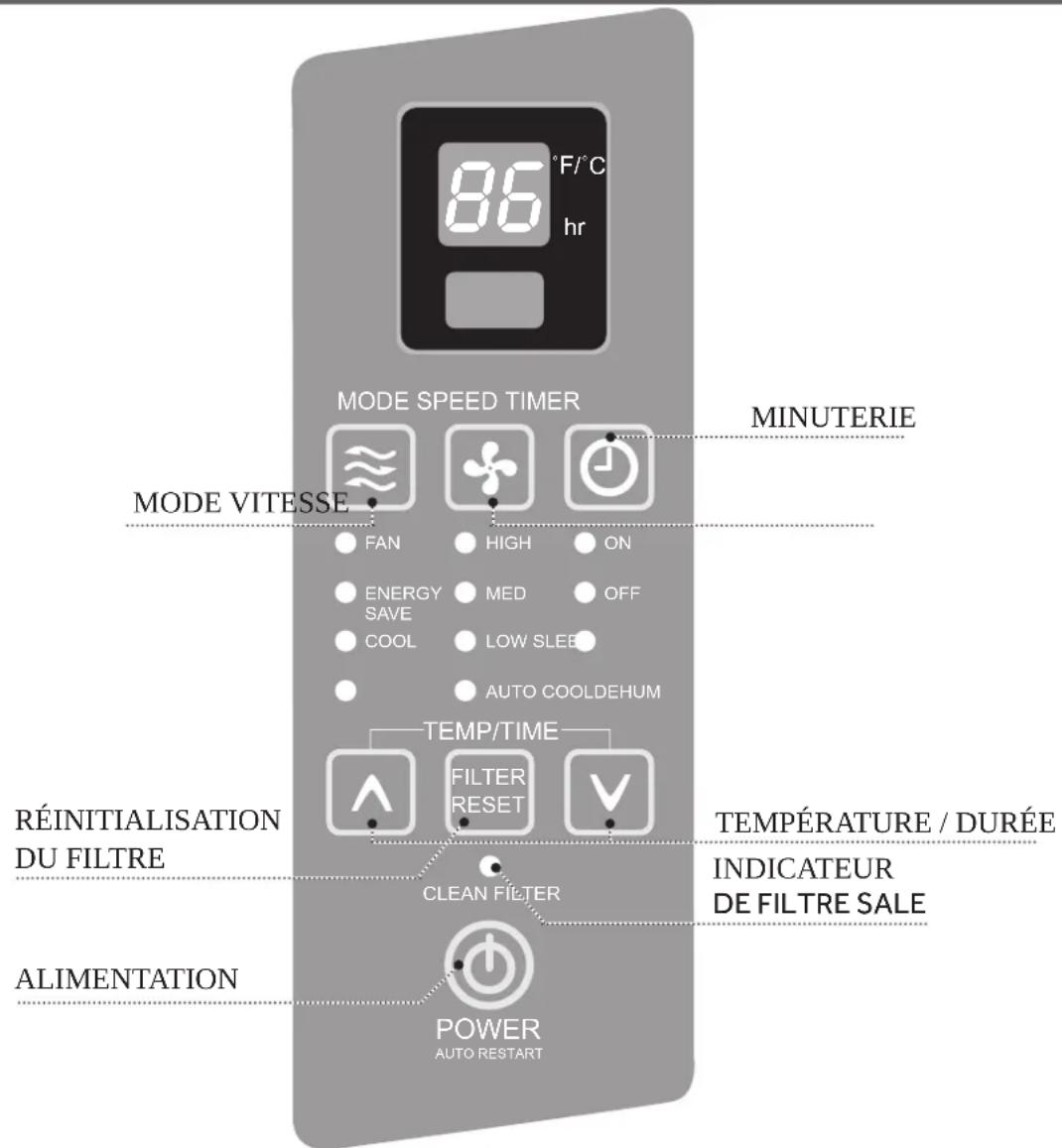

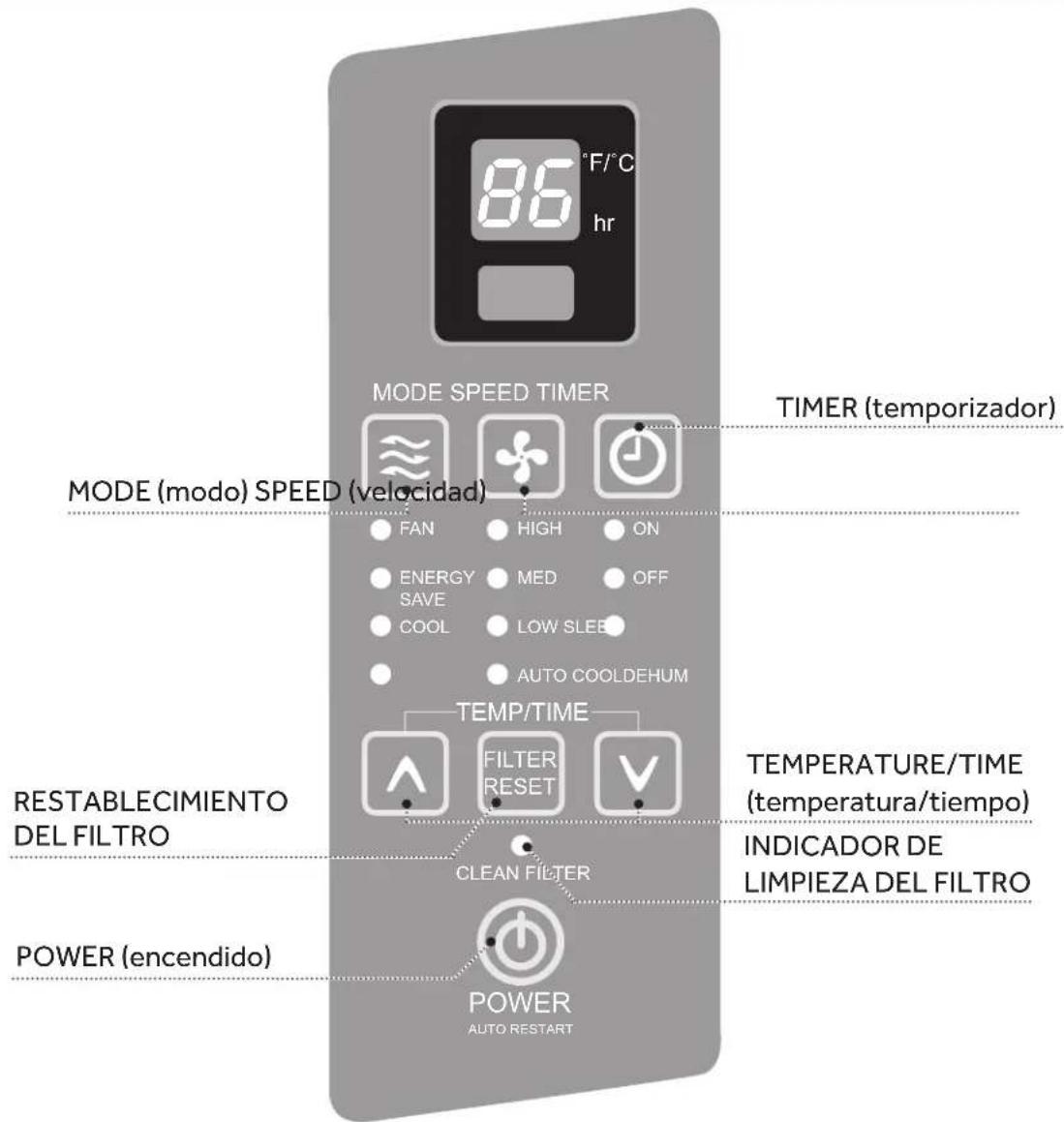

86°F/°C hr MODE SPEED TIMER TIMER MODE SPEED FAN HIGH ON ENERGY SAVE MED OFF COOL LOW SLEE AUTO COOLDEHUM TEMP/TIME FILTER RESET FILTER RESET CLEAN FILTER POWER POWER AUTO RESTART TEMPERATURE / TIME CLEAN FILTER INDICATOR

Operating your air conditioner properly helps you to obtain the best possible results.

This section explains how to operate this air conditioner.

IMPORTANT:

- When you turn off the air conditioner, either at the control panel or with the remote control, wait at least 3 minutes before turning it back on. This prevents the compressor from overloading. This 3 minute delay also applies when switching from cool mode to fan and back.

Note: There is a built in 3 minute delay. You may notice the compressor might not start right away. This was designed to protect the unit.

- Do not operate your air conditioner in the Cool mode when the outside temperature is below 61^ (16°C). The inside evaporator coil will freeze up, and the air conditioner will not operate properly.

1. Carefully remove the clear plastic film from the control panel.
2. Press POWER once to turn on the air conditioner.

NOTE: When the air conditioner is first plugged in, the LED display will show "88" for 3 seconds. After the air conditioner is turned on for the first time, the display will show the temperature 72 F and the fan is automatically set to Low speed and the Mode indicator will show ENERGY SAVE.

NOTE: To switch the temperature display between Fahrenheit (F) and Celsius(C), the air conditioner must be plugged in and turned on. On the control panel on the front of the AC, press the UP and DOWN button at the same time and hold for 3 seconds. The change cannot be done using the remote control.

1. Select Mode. Refer to "Mode."
2. Select Speed. Refer to "Speed."
3. Set Timer. Refer to "Temp/Time"
4. Reset the filter. Refer to "Filter Reset"

MODE

1. Press mode until you see the indicator light come on next to the desired setting.
2. Choose Fan, Cool, Energy Save, or Dehum.

FAN— Only the fan runs. Press SPEED to select High, Med or Low fan speed. The display shows the current room temperature.

NOTE: In fan mode, the temperature cannot be set.

ENERGY SAVE—In this mode the fan runs only when cooling is needed. The fan will run for 3 minute after the compressor shuts off. The fan then cycles on for 2 minutes at 10 minute intervals until the temperature in the room is above the set temperature. The compressor then turns back on.

COOL—Cools the room. Press SPEED to select High,Med, Low or Auto Cool fan speed. Press the TEMP/TIME up or down arrow button to adjust the temperature. The fan will run continuously in cool mode.

DEHUM—Aids in removing humidity from the room. Dehum mode cannot be used to cool room.

NOTE: In Dehum mode, when the set temperature is close to ambient temperature, the compressor may stop and the fan will run in low speed only.

STARTING THE AIR CONDITIONER cont.

SPEED

1. Press FAN SPEED until; you see the indicator light come on next to the desired setting.
2. Choose High, Med, Low or Auto Cool

HIGH—For maximum cooling

MED—For normal cooling

LOW—For minimum cooling

AUTO COOL – Adjusts the fan speed automatically to provide ideal cooling based on the room temperature.

TIMER OFF

To set the air conditioner to turn off between 1 hour and 24 hours (The air conditioner must be ON to set):

1. Press TIMER button until Timer Off indicator light illuminates. The display will show the remaining hours before the air conditioner will turn off.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.
3. Timer Off indicator light will remain on. The display will show the left time to Timer Off.

TIMER ON

To set the air conditioner to turn on bwtween 1 and 24 hours:

1. Press TIMER until Timer On indicator light illuminates. The display will show the remaining hours before the air conditioner will turn on.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.
3. Timer On indicator light will remain on. Unit will shut off and restart.

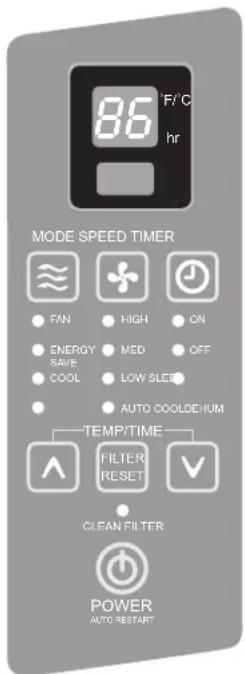

86°F/°C hr MODE SPEED TIMER FAN HIGH ON ENERGY MED OFF SAVE LOW SLEEP COOL AUTO COOLDEHUM TEMP/TIME FILTER RESET CLEAN FILTER POWER AUTO RESTART

STARTING THE AIR CONDITIONER cont.

TO CLEAR TIMER PROGRAM:

NOTE: Air conditioner can be either on or off.

Press TIMER until Timer indicator light turns off.

TO VIEW OR CHANGE THE REMAINING TIME (IN HOURS):

TIMER OFF

1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
2. After 5 seconds, the display will show the remaining time to Timer OFF.

TIMER ON

1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
2. The display will show the remaining time to Timer ON.
   NOTE: In TIMER and SLEEP mode, temperature cannot be adjusted.

SLEEP

1. Press the TIMER button to choose Sleep mode. The indicator light will turn on.
2. The temperature will increase by 2^ F 1 hour after the mode is chosen. The temperature then increases another 2^ F after 1 hour. The unit will hold this temperature for 6 hours then stops.
3. To turn off Sleep mode, press the TIMER button until the indicator light is off.

TEMP/TIME

1. Press the TEMP/TIME up arrow button to raise the temperature. Each time you press the TEMP/TIME up arrow button, the temperature will go up 1^ F until it reaches 86^ F ( 30^ C).
2. Press the TEMP/TIME down arrow button to lower the temperature. Each time you press the TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F (16°C).

NOTE: After 5 seconds, under Fan mode, the display will show the current temperature. Under Energy Save, Cool or Dehum mode, the display will show the set temperature.

FILTER RESET

This feature automatically notifies you that the air filter must be cleaned. The indicator light will come on after 240 hours of operation. Clean the air filter (refer to Care and Cleaning), place it back in the front panel, and press the Filter Reset button. The light will turn off.

NOTE: The raised dots are Braille for the visually impaired. (See Fig.22)

Remote control may differ in appearance from the image shown.

NOTE: Remove and discard protective film prior to use. The remote control runs on one CR2025 battery (included). Replace battery after 6 months of use, or when the remote control starts to lose power. To change battery, first remove screw on back panel of remote.

ON/OFF

MODE

SPEED

TIMER

POWER

Press ON/OFF to turn on the air conditioner. When you first press the ON/OFF button, the air conditioner will operate in Energy Save mode, low fan speed and temperature of 72^ F. You can select any other mode to satisfy your needs.

TEMP/TIME

TEMP/TIME

Mode

Fig. 22

Press MODE to choose Fan, Energy Save, Cool or Dehum.

Speed

Press SPEED to choose High, Med, Low or Auto Cool.

TIMER

To set the air conditioner to turn off after a set amount between 1 hour and 24 hours (unit must be ON):

1. Press TIMER. Timer OFF indicator light on the air conditioner control panel will illuminate.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.
3. Timer OFF indicator light on the air conditioner control panel will remain on.

To set the air conditioner to turn on between 1 hour and 24 hours:

1. Press TIMER. Timer On indicator light on the air conditioner control panel will illuminate.
2. Press the TEMP/TIME up or down arrow button to change the delay time from 1 hour to 24 hours.
3. Timer On indicator light on the air conditioner control panel will remain on.

USING THE REMOTE CONTROL cont.

TO CLEAR TIMER DELAY PROGRAM:

NOTE: Air conditioner can be either on or off.

Press TIMER until Timer indicator light turns off.

TO SEE OR CHANGE THE REMAINING TIME (IN HOURS):

TIMER OFF:

1. Press the TEMP/TIME up or down arrow button to increase or decrease the time.
2. The display on the air conditioner control panel will show the remaining time to Timer Off.

TIMER ON:

1. Display on the air conditioner control panel will show remaining time.
2. Press the TEMP/TIME up or down arrow button to increase or decrease the time.

SLEEP

1. Press the TIMER button to choose Sleep mode. The indicator light will turn on.
2. The temperature will increase by 2F^ 1 hour after the mode is chosen. The temperature then increases another 2F after 1 hour. The unit will hold this temperature for 6 hours then stops.
3. To turn off Sleep mode, press the TIMER button until the indicator light is off.

TEMP/TIME

• Press the TEMP/TIME up arrow button to raise the temperature. Each time you press the TEMP/TIME up arrow button, the temperature will go up 1°F until it reaches 86°F (30°C).
• Press the TEMP/TIME down arrow button to lower the temperature. Each time you press the TEMP/TIME down arrow button, the temperature will go down 1°F until it reaches 61°F (16°C). Note: In TIMER and SLEEP mode, temperature cannot be adjusted.

CHANGING THE AIR DIRECTION

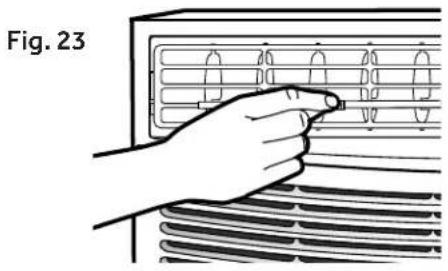

HWR05XCR

2-Way Air Flow: The air directional louvers let you control the direction of the airflow. The airflow can be directed left to right.(See Fig.23)

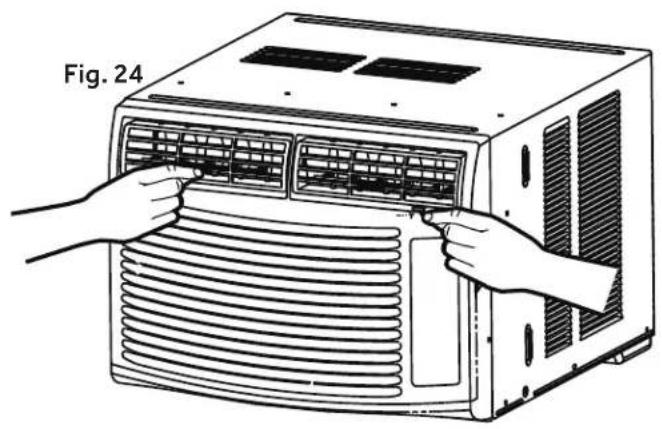

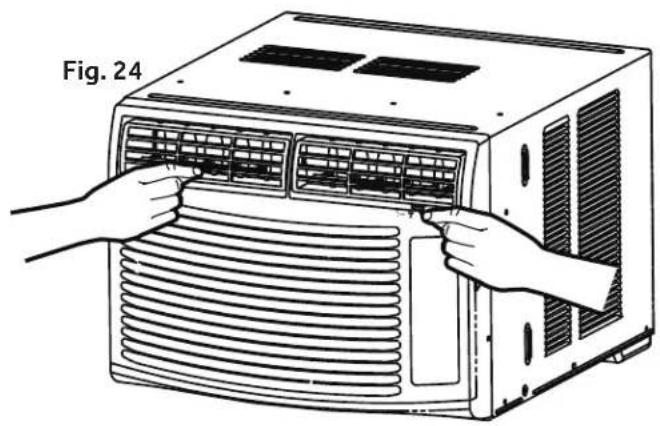

HWR06XCR, HWE08XCR, HWE10XCR, HWE12XCR, HWR08XCR, HWR10XCR, HWR12XCR

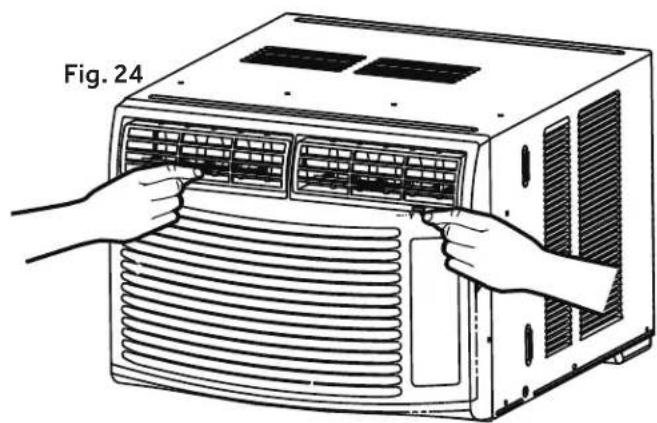

4-Way Air Flow: The air directional louvers let you control the direction of the airflow. The airflow

Hand pressing a button on a grid device (no text or symbols visible)

Illustration of two hands installing or adjusting an air conditioner unit (no text or symbols visible)

CLEANING THE AIR FILTER

While your air conditioner is operating, it is normal to hear the following sounds:

The air filter is removable for easy cleaning. A clean air filter helps remove dust, lint, and particles from the air for optimal cooling and operating efficiency. The Filter Reset light will turn on to notify you that the air filter must be cleaned. The light goes on after the air conditioner has been operating for 240 hours.

1. Turn off the air conditioner and unplug the power supply cord from the outlet.

Line drawing of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Line drawing of an air conditioner unit with cooling fins and a hand inserting a fan (no text or symbols)

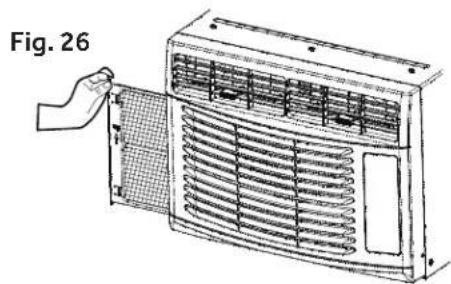

1. Remove the air filter by opening the front panel and removing the air filter. Some models may have a filter that slides out instead and does not require opening of the front panel. (See Fig.25 & Fig.26)

2. Use a vacuum cleaner with the hose attachment to clean the air filter. If the air filter is very dirty, wash it in warm water with a mild detergent. Do not wash the air filter in a dishwasher or clothes washer, or use any chemical cleaners. Do not use a clothes dryer or microwave oven to dry it. Air-dry the air filter completely before placing it back in the unit.

3. Place the air filter back in the air conditioner.

CLEANING THE FRONT PANEL

1. Close the front panel.
2. Plug the power supply cord into the outlet, turn on the air conditioner and press the filter reset button to turn off the indicator light.

NOTE: Do not operate the air conditioner without the filter in place.

1. Turn off the air conditioner and unplug the power supply cord from the outlet.
2. Clean the front panel with a soft cloth. Do not use chemical cleaners, especially spray cleaners, sharp instruments, or flammable fluids. These products can damage the surface of your air conditioner.
3. Air-dry the front panel completely.
4. Plug the power supply cord in the outlet and turn on the air conditioner.

In the event that the filter is damaged and needs replacing, call Haier Customer Service: 1-877-337-3639

CUSTOMER SERVICE

IMPORTANT

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have a problem with this product, please contact the Haier Customer Satisfaction Center at 1-877-337-3639.

DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE

CUSTOMER SERVICE 1-877-337-3639

NORMAL SOUNDS OF AN AIR CONDITIONER

can be directed up-down and left to right. (See Fig.24)

NORMAL SOUNDS

Your new air conditioner is designed to give you many years of dependable service. This section tells you how to clean and care for your air conditioner properly.

SOUNDS REASON
Air movement Air rotating around the fan.
Window vibration Installation not correct. Refer to Install section
Pinging	Water droplets being thrown against the outside coil. This helps cool the condenser coil.You can reduce this noise by removing the subbase water plug. (See Fig.27) Removing this plug will lower the Energy Efficiency of your unit.NOTE: Do not drill hole in base pan.
High pitched hum The compressor turning on and off.
Clicking The thermostat turning on and off.
Gurgling Refrigerant moving through the inside coil.

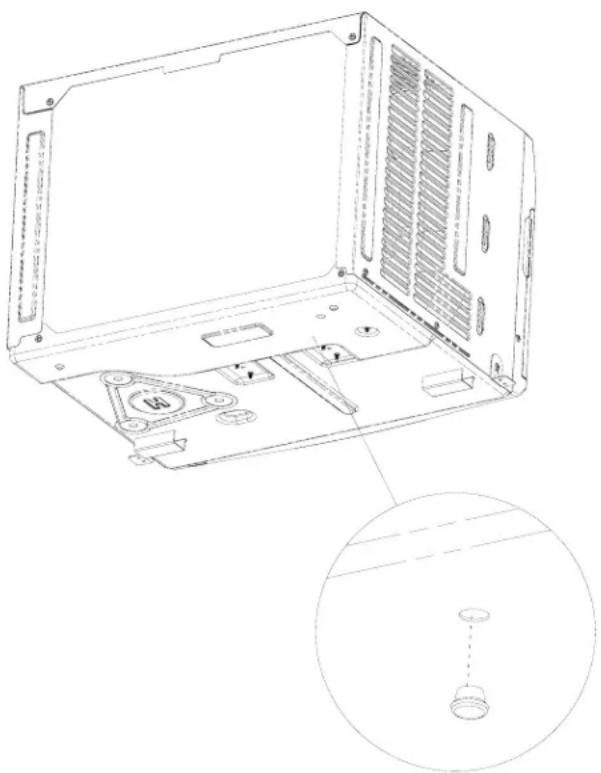

Fig. 27

Technical line drawing of a laptop case with ventilation grilles and internal components, plus an inset close-up of a mechanical component (no text or symbols)

TROUBLESHOOTING

POSSIBLE PROBLEM	POSSIBLE CAUSE REMEDY
Air Conditioner does not start or operate	Power supply cord is not plugged into an outlet.	Plug unit into a mating grounded outlet.
	Power supply cord has tripped. Press and release RESET button on the power supply cord.
	Unit is turned off. Turn on unit using remote control or on control panel.
	A household fuse or circuit breaker has blown.	Replace the fuse or reset the circuit breaker.
Remote control is not working	Batteries are dead. Replace the batteries.
	Batteries inserted wrong. Make sure batteries are inserted in the correct position.
Room does not feel cold enough	The room is too hot. Allow time for the room to cool down when you turn on the unit.
	The temperature control may not be set correctly.	Adjust the temperature control on the control panel or remote control.
	Air flow is restricted. Make sure the air discharge area is not blocked.
Room feels too cold	Temperature set too low. Raise the set temperature.
Air conditioner cycles on and off too often	Air filter is dirty or restricted. Clean the air filter.
	Air flow is restricted. Make sure the air discharge area is not blocked.
	Outside air temperature is below 61°F.	Do not operate the unit when the outside temperature is below 61°F.
	Outside temperature is very hot. Raise the FAN speed to the highest setting.
Water drips into your house	Air conditioner is not properly leveled.	Tilt unit slightly from the front to the back. Refer to Installation section. DO NOT drill a hole in the cabinet base.
Water drips outside your house	Hot, humid weather. This is normal during days with high humidity.
Water collects in cabinet base	Humidity drains into cabinet base. This is normal during days with high humidity. DO NOT drill a hole in the cabinet base.
Air conditioner is freezing up; ice forming on coil	Temperature outside is too low, below 61°F.	To defrost coil, set to FAN ONLY setting.

LIMITED WARRANTY

ONE YEAR LIMITED WARRANTY

This warranty covers all defects in workmanship or material for the mechanical and electrical parts (including labor costs) contained in this product for a period of 12 months from the date of purchase. For commercial or rental application, the warranty is 90 days. You must keep and be able to provide your original sales receipt as proof of the date of purchase.

The sealed system and compressor (hermetic compressor, condenser and evaporator) contained in this product is for a period of 1 year from the date of purchase. You must keep and be able to provide your original sales receipt as proof of the date of purchase.

WHO IS COVERED

The original retail purchaser of this product.

WHAT WILL BE DONE

Haier America will repair or replace any mechanical, electrical part or the compressor, which proves defective in normal household use for a period of 12 months.

HOW CAN YOU GET SERVICE

Contact your nearest manufacturer-authorized Service Depot. For the name of the Service Depot nearest you, contact Haier America at 1-877-337-3639.

All service must be performed by a manufacturer-authorized Service Depot.

THIS WARRANTY DOES NOT COVER

1. Damages from improper installation.
2. Damages in shipping.
3. Defects other than manufacturing.

4. Damages from misuse, abuse, accident, alteration, lack of proper care and maintenance or incorrect current or voltage.

5. Damage from other than household use.

6. Damages from service by other than an authorized dealer or service center.
7. Decorative trims.
8. Labor, service, transportation and shipping charges for the removal of defective parts and installation of replacement parts beyond the initial 12-month period.
9. Credit or refund for products over 30 days past date of purchase, or for any loss or injury caused by the product or defects to the product including but not limited to incidental or consequential damages.
10. Refurbished product purchased as/like new or second-hand.

THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

The remedy provided in this warranty is exclusive and is granted in lieu of all other remedies.

This warranty does not cover incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so this limitation may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so this limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

This warranty covers units within the continental United States, Canada and Puerto Rico.

Haier America,

Wayne, NJ 07470

TABLE DES MATIÈRES

RENSEIGNEMENTS SUR LA SÉCURITÉ ...... 2

Line drawing of a plug-in socket connected to a wall socket (no text or symbols)

REMARQUE :

Illustration of a hand using a pipette to measure a mechanical component, labeled 'Fig. 8' (no text or symbols on the diagram itself)

PRÉPARATION DU CLIMATISEUR (suite)

INSTALLATION DES PANNEAUX LATÉRAUX

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand inserting a spring into a rack with a downward arrow indicating compression (no text or symbols present)

Fig. 12

ENCLENCHEMENT

PRÉPARATION DE LA FENÊTRE

Pure architectural line drawing of a vertical structure with a horizontal base labeled 'CENTER' (no text or symbols beyond label)

REMARQUES ET AVERTISSEMENTS :

nt. Fig. 15 Lower Window Sash Top Channel

Illustration of a hand adjusting a wall-mounted device with a downward arrow (no text or symbols)

Fig. 16

ACHÈVEMENT DE L'INSTALLATION

Pure technical line drawing of a mechanical component with no text or symbols

Fig. 18

Line drawing of a hand holding a tool over a grid-like structure (no text or symbols)

Fig. 19

Pure line drawing of vertical supports and a small object, no text or symbols present

Fig. 20

Fig. 21

Line drawing of a hand using a screwdriver to adjust or install a component on a door (no text or symbols)

DÉMARRAGE DU CLIMATISEUR

86°F/°C hr MODE SPEED TIMER MINUTERIE MODE VITESSE FAN HIGH ON ENERGY SAVE MED OFF COOL LOW SLEE AUTO COOLDEHUM TEMP/TIME FILTER RESET RÉINITIALISATION DU FILTRE CLEAN FILTER ALIMENTATION POWER AUTO RESTART TEMPÉRATURE / DURÉE INDICATEUR DE FILTRE SALE

MISE EN MARCHE/ARRÊT

Hand pressing a button on an air conditioner panel (no text or symbols visible)

Line drawing of a car air conditioner unit with two hands inserting air filters (no text or symbols)

NETTOYAGE DU FILTRE À AIR

Illustration of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Line drawing of an air conditioner unit with cooling fins and a hand holding the lid (no text or symbols)

NE PAS RETOURNER CE PRODUIT AU MAGASIN.

Technical line drawing of a laptop chassis showing internal components and a magnified inset view (no text or symbols)

DÉPANNAGE

GARANTIE LIMITÉE D'UN AN

CETTE GARANTIE NE COUVRE PAS

Line drawing of an electrical outlet with a bulb and socket (no text or symbols)

NOTA:

HWE08XCR, HWE10XCR, HWE12XCR, HWR08XCR, HWR10XCR, HWR12XCR

Fig. 7

Pure technical diagram showing a structural component with arrows indicating downward forces or features (no text or symbols)

Illustration of a hand using a pipette to measure a mechanical component, labeled 'Fig. 8' (no text or symbols on the diagram itself)

Pure technical line drawing of a mechanical component with no text or symbols

Illustration of a hand inserting a spring into a rack with a screwdriver inserted (no text or symbols)

Fig. 12

CLIC

CÓMO PREPARAR LA VENTANA

Pure architectural line drawing of a vertical structure with a horizontal base and central window, labeled 'CENTER' at the bottom (no other text or symbols)

Fig. 15 Lower Window Sash Top Channel

Illustration of a hand using a tool to adjust or install a heater panel (no text or symbols visible)

Fig. 16

Pure technical line drawing of a mechanical component with no text or symbols

Fig. 18

Line drawing of a hand holding a tool over a grid-like structure (no text or symbols)

INSTALACIÓN FINAL

Simple line drawing of a vertical structure with a small protrusion and a base, no text or symbols present.

Fig. 20

Fig. 21

Line drawing of a hand using a screwdriver to adjust or install a component on a door (no text or symbols)

CÓMO ENCENDER EL AIRE ACONDICIONADO

86°F/°C hr MODE SPEED TIMER TIMER (temporizador) MODE (modo) SPEED (velocidad) FAN HIGH ON ENERGY MED OFF SAVE COOL LOW SLEE AUTO COOLDEHUM TEMP/TIME FILTER RESET RESTABLECIMIENTO DEL FILTRO CLEAN FILTER INDICADOR DE LIMPIEZA DEL FILTRO POWER (encendido) POWER AUTO RESTART TEMPERATURE/TIME (temperatura/tiempo)

Hand pressing a button on a panel with grid lines, labeled Fig. 23 (no text or symbols on the diagram itself)

Illustration of two hands installing or adjusting an air conditioner unit (no text or symbols visible)

LIMPIEZA DEL FILTRO DE AIRE

Line drawing of hands installing or adjusting a wall-mounted air conditioner unit (no text or symbols visible)

Line drawing of an air conditioner unit with cooling fins and a hand inserting a fan (no text or symbols)

Line drawing of a laptop chassis showing internal components and a close-up inset view (no text or symbols)

Model # HWR05XCR, HWR06XCR, HWE08XCR, HWE10XCR,

HWE12XCR,HWR08XCR,HWR10XCR,HWR12XCR

Issued Date: October 2015

Haier America

Wayne, NJ 07470

©2015 Haier America Trading, LLC.
