USER MANUAL QPSA13 HAIER

Installation Instruction

Line drawing of a portable air conditioner unit with wheels and top cover (no text or symbols)

Design may vary by model number. La conception peut varier

IMPORTANT SAFETY INFORMATION....4

CONTROLS 5

CARE AND CLEANING 8

INSTALLATION INSTRUCTIONS 10

TROUBLESHOOTING 14

WIFI SETUP 15

LIMITED WARRANTY 16

RECORD KEEPING

Thank you for purchasing this Haier product. This user manual will help you get the best performance from your new air conditioner.

Staple your proof of purchase to this manual to aid in obtaining warranty service if needed.

Model number

Serial number

Date of purchase

HAIER WEBSITE

Have a question or need assistance with your appliance? Try the Haier Website 24 hours a day, any day of the year! You can also shop for more great Haier products and take advantage of all our on-line support services designed for your convenience. In the US: Haierappliances.com

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, injury to persons, or damage when using the air conditioner, follow basic precautions, including the following:

• Read all of the instructions before using this appliance.
• Plug into a grounded 3 prong outlet.
• Do not remove ground prong.
• Do not use an adapter.
• Do not use an extension cord.
• Do not operate the air conditioner if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
• The air conditioner should be serviced only by qualified service personnel. Call an authorized service company for examination, repair, or adjustment.

• Disconnect power before servicing.

• Disconnect power before cleaning.
  NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply.

• Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is contaminated. Avoid any chemicals coming in contact with your air conditioner.
• Do not store anything directly on top of the air conditioner.
• Use two or more people to move and install air conditioner.
• Never operate the air conditioner without the filters in place.
• Do not use the air conditioner near a bathtub, shower or wash basin or other wet area.

READ AND SAVE THESE INSTRUCTIONS

CONTROLS

Features and appearance will vary.

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.


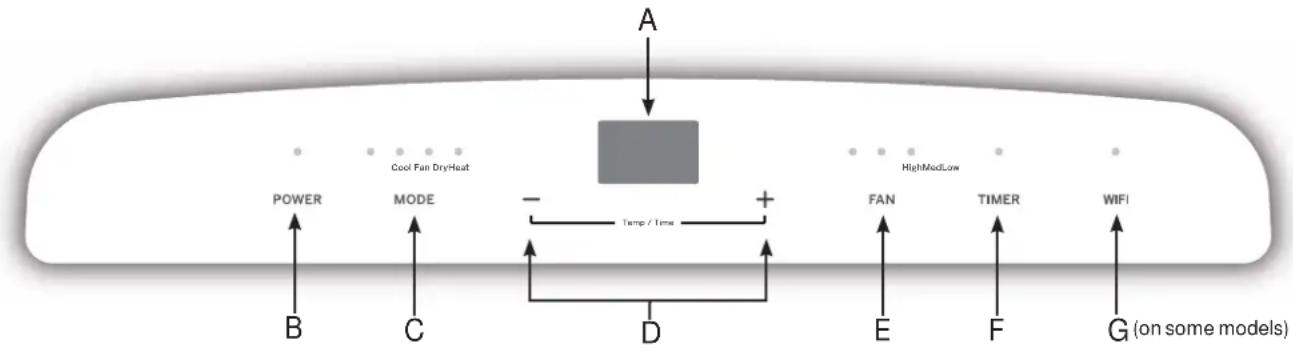

A. Control Panel Display

Displays the Set Temperature in degrees Fahrenheit or degrees Celsius, or the hours remaining in a Time Delay. The corresponding indicator light will illuminate.

B. Power Button

Turns ON/OFF power to the air conditioner.

NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply.

- Press the Power button. The Power indicator will illuminate.

C. Mode Button

Press the Mode button to toggle among the operating options. The corresponding indicator will illuminate: Heat (on some models) - Heats the room to the set temperature

Cool – Cools the room to the set temperature DRY – Reduces the humidity in the room

Fan – Circulates the air in the room without cooling

D. Timer / Temperature Set Controls

Adjusts the Temperature or Hours in Time Delay.

To Set the Temperature:

The temperature can be set between 61^ F and 89^ F ( 17^ C and 30^ C) when the air conditioner is in Cool mode.

1. Press the Mode button until the Cool mode is selected.
2. Press the Up Arrow or Down Arrow buttons to select the Temperature.

NOTE: The temperature cannot be set when the air conditioner is in either Fan or DRY mode.

NOTE: The Up Arrow and Down Arrow buttons, when pressed at the same time, allow you to select between displaying the temperature in ^ C or ^ F. The corresponding indicator will illuminate.

E. Fan Speed Button

The fan speed can be adjusted from Low, Medium, to High speed when the air conditioner is in operation.

NOTE: The fan speed cannot be adjusted when the unit is in DRY mode.

- Press the Fan Speed button to toggle among the three speeds. The corresponding fan speed indicator will illuminate.

F. Timer Button

Program a time from (1-hour to 24-hours) for the air conditioner to turn Off or On. When a Time Delay is programmed, the Timer indicator light will illuminate.

While the air conditioner is operating:

1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the number of hours you want the air conditioner to continue to operate before turning Off.

NOTE: Wait approximately 5 seconds for the Turn-Off time to be saved.

While the air conditioner is off:

1. Press the Timer button.
2. Press the Up/Down arrow buttons to select the number of hours you want the air conditioner to remain off before turning On.

NOTE: Wait approximately 5 seconds for the Turn-On time to be saved.

To cancel the timer:

- Press the Timer button once, the hours remaining will flash, press the timer button again and the timer will be canceled.

G. WiFi Connect Pad (on some Models)

1. Connect your air conditioner to WiFi router.
2. Press and hold the timer button for 3 seconds to connect the app or disconnect the app.

Refer to the "WiFi Set up" section for more information.

CONTROLS

The display will always default to show the room temperature.

When the air conditioner is turned on, it will automatically start in the last mode and fan settings selected.

Cool Mode

Use the COOL mode for cooling.

To set the COOL mode:

1. Press the MODE pad until the COOL indicator light is lit.
2. Press the FAN pad to set HIGH, MEDIUM, or LOW fan speed.
3. Press + or - to set the desired temperature between 61^ F and 89^ F in 1^ F increments.

After settings have been made, the display will change back to show the room temperature.

The temperature control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the temperature control at a lower number and the indoor air will become cooler. Set the temperature control at a higher number

and the indoor air will become warmer. NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH, MEDIUM, or LOW fan speed with a middle set temperature.

For Maximum Cooling—Select the COOL mode and HIGH fan speed with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW fan speed with a middle set temperature.

NOTE: If you switch from COOL or DRY mode setting to OFF, wait 3 minutes before restarting.

DRY Mode—Dehumidification

Use the DRY mode to provide dehumidification only. The fan will run at a fixed speed at this setting, so a fan speed cannot be set. Keep windows and doors closed for the best dehumidifying effects.

To set the DRY mode:

- Press the MODE pad until the DRY indicator light is lit.

In the DRY mode, a set temperature will not be displayed. After DRY mode has been set, the display will change back to show the room temperature.

NOTE: If you switch from a DRY setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a DRY setting.

FAN Mode

Use the FAN mode to provide air circulation and filtering without cooling.

To set the FAN mode:

- Press the FAN pad until the desired indicator light for high, medium, or low fan speed is lit.

Since fan only settings do not provide cooling, a set temperature will not be displayed. After FAN speed has been set, the display will change back to show the room temperature.

The exhaust hose and window kit do not need to be installed when operating in fan mode."

HEAT Mode

Use the Heat mode at Low, Med, High or Auto Fan Speed for heating. Use the Temperature Increase (+) / Decrease (-) pads to set the desired temperature between 61°F and 86°F in 1°F increments.

An electronic thermostat is used to maintain the room temperature. The heater will cycle on and off to keep the room at the set level of comfort.

Power Outage Recovery Feature

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored.

NOTE: If the TIMER was set before the power outage, it will need to be reset after power is restored.

CONTROLS

Features and appearance may vary.

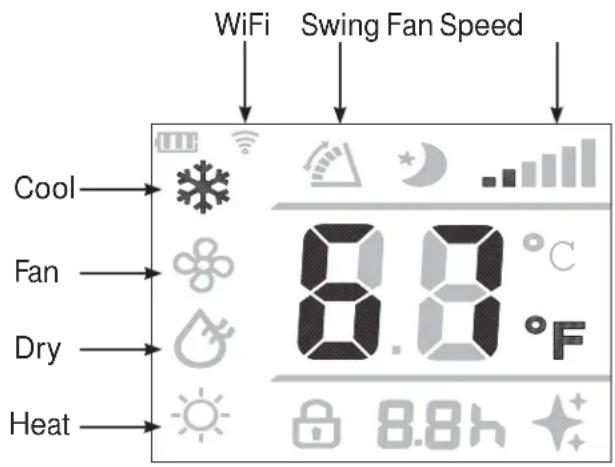

Icons on the remote control indicate the selected settings

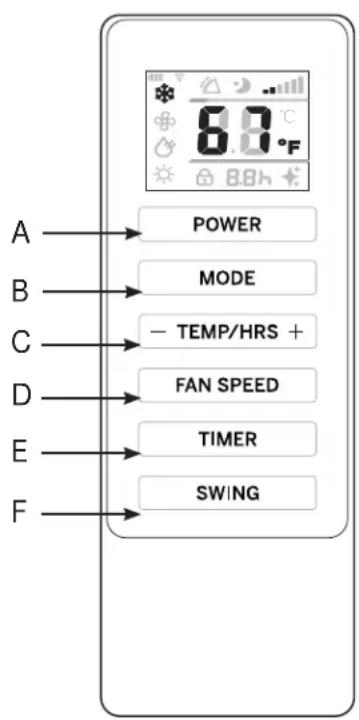

A → POWER B → MODE C → — TEMP/HRS + D → FAN SPEED E → TIMER F → SWING

WiFi Swing Fan Speed Cool Fan Dry Heat 8.8°F 8.8h

REMOTE CONTROL

1. Insert the two batteries (provided).
2. Aim the remote control at the signal receiver on the control panel to operate the air conditioner.

A. Power

Turns ON/OFF power to the air conditioner.

NOTE: Turning off power by pressing the Power button does NOT disconnect the appliance from the power supply.

- Press the Power button. The Power indicator will illuminate.

B. Mode

Press the Mode button to toggle among the operating options. The corresponding indicator will illuminate: Heat (on some models) - Heats the room to the set temperature Cool – Cools the room to the set temperature DRY – Reduces the humidity in the room Fan – Circulates the air in the room without cooling

C. Temperature

Adjusts the Temperature or Hours in Time Delay.

To Set the Temperature:

The temperature can be set between 61°F and 89°F (17°C and 30°C) when the air conditioner is in Cool mode.

1. Press the Mode button until the Cool mode is selected.
2. Press the Up Arrow or Down Arrow buttons to select the Temperature.

NOTE: The temperature cannot be set when the air conditioner is in either Fan or DRY mode.

NOTE: The Up Arrow and Down Arrow buttons, when pressed at the same time, allow you to select between displaying the temperature in °C or °F. The corresponding indicator will illuminate.

D. Fan Speed

The fan speed can be adjusted from Low, Medium, to High speed when the air conditioner is in operation.

NOTE: The fan speed cannot be adjusted when the unit is in DRY mode.

- Press the Fan Speed button to toggle among the three speeds. The corresponding fan speed indicator will illuminate.

E. Timer

Program a time from (1-hour to 24-hours) for the air conditioner to turn Off or On. When a Time Delay is programmed, the Timer indicator light will illuminate.

F. Swing Button

The louvers on your portable air conditioner will open automatically (do not pry them open or push them shut).

Use the Swing Button on your remote to adjust the louvers in the position you would like them to be in, or to operate in Swing mode the louvers will continue to move up and down.

CARE AND CLEANING

CLEANING

WARNING

Electrical Shock Hazard

Disconnect power before cleaning.

Failure to do so can result in death or electrical shock.

1. Unplug or disconnect power.
2. Use only a soft cloth dampened with water to clean the cabinet.

NOTE:

• Do not use a liquid or spray cleaner to clean the air conditioner.

• DO NOT use chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or scouring pads. Some of these chemicals/items may damage and/or discolor your air conditioner.

• Dry thoroughly with a soft cloth.

• Plug in or reconnect power.

Air Filter

The air filters should be cleaned at least every two weeks for your unit to operate at optimum efficiency.

CAUTION

DO NOT operate the air conditioner

without a filter because dirt and lint will clog it and reduce performance.

Technical line drawing of a mechanical device with spring and handle (no text or symbols)

To remove:

1. Unplug or disconnect power.
2. Pull to remove upper filter panel.
3. Wash or vacuum the dust from the air filters.

NOTE: If washed, gently shake the filter to remove the excess water and dust particles trapped in the filter.

1. Reinstall the filters.
2. Plug in or reconnect power.

CARE AND CLEANING

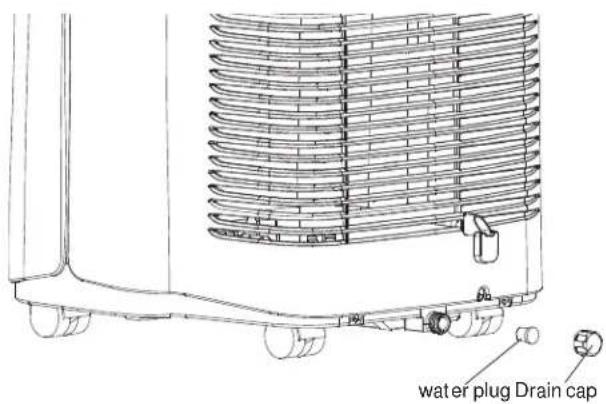

Internal Water Tank

The Water Full indicator ("FL" on the control panel display) illuminates when the internal water tank has filled with condensed water.

To Empty the Internal Water Tank:

1. Unplug or disconnect power.
2. Place a shallow 1 quart or larger pan (not included) below the lower drain located on the back (near the bottom) of the air conditioner.
3. Remove the cap and the rubber plug and drain the water tank.
4. Re-insert the drain plug and screw the cap snugly into place.
5. Plug in or reconnect power.

water plug Drain cap

Storage

If the unit is not being used for a long period of time: To Empty the Internal Water Tank:

1. Unplug or disconnect power.

2. Drain the water from the water tank. (See "Internal Water Tank section" above.)

3. Use the original packaging to repack the unit to avoid a buildup of dust or dirt.
4. Store the air conditioner in a cool, dry location.

How to Insert the Batteries in the Remote Control

1. Remove the battery cover by sliding it according to the arrow direction.
2. Insert new batteries, making sure that the (+) and (−) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.

NOTES:

• Use 2 "AAA" (1.5 volt) alkaline batteries. Do not use rechargeable batteries.
• Remove the batteries from the remote control if the system is not going to be used for a long time.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc) batteries.

INSTALLATION INSTRUCTIONS

Questions? visit our Website at: haierappliances.com.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT — Save these instructions for local inspector's use.
• IMPORTANT — Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
  • We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You MUST use all supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

RESET TEST

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

ELECTRICAL REQUIREMENTS

Some models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

CAUTION

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminium house wiring may present special problems—consult a qualified electrician.

LOCATION REQUIREMENTS

• Place the air conditioner on a flat, level surface in a location that is at least 30" (76.2 cm) from any wall.
  NOTE: A minimum clearance of 30" (76.2 cm) from the air conditioner to the wall must be maintained to ensure proper airflow.
• Maintain a minimum 30" (76.2 cm) clearance around the air conditioner to not block airflow.
• Keep the air conditioner free of any obstructions such as drapes, curtains, blinds, etc.
• The exhaust hose should be free of any obstructions.
• Do not place the air conditioner on an unstable or raised surface because it could fall and cause damage or injury.
• Do not place the air conditioner in direct sunlight or near a heat source such as baseboard heaters, stoves, etc.
• The window panel can be installed in a window with a minimum 20" (55.88 cm) to a maximum 46" (121.92 cm) opening.

Line drawing of a portable air conditioner unit with coiled hose, placed near a wall-mounted door (no text or symbols)

Simple line drawing of a portable air conditioner next to a wall-mounted control panel (no text or symbols)

INSTALLATION INSTRUCTIONS

PARTS INCLUDED (Appearance may vary)

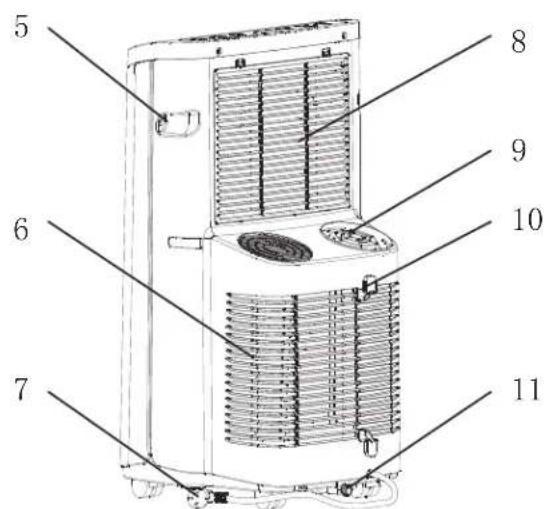

Technical diagram of a refrigerant air conditioner unit with numbered components labeled 1 to 4

1. Control Panel
2. Louver
3. Exhaust Hose

1. Casters
2. Handle (2)
3. Grill

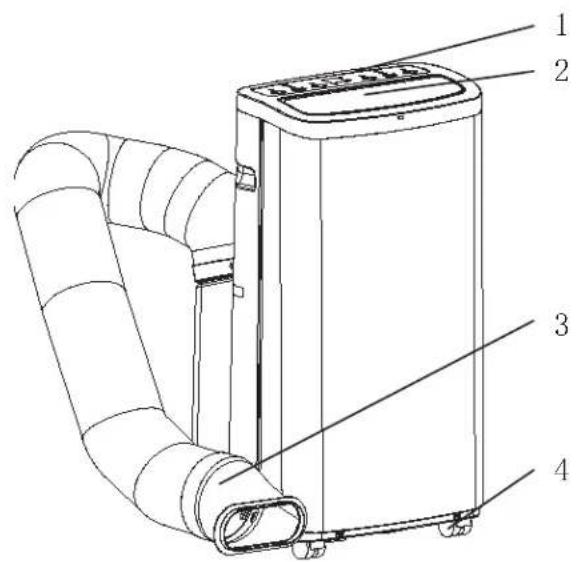

Technical diagram of a multi-tiered air conditioner unit with numbered parts labeled 5 to 11

1. Power Cord
2. Filter
3. Air Outlet
4. Hook for Power Cord (2)
5. Water Outlet
6. Window sealing plate assembly

Simple 3D diagram of a rectangular object with a central slot and two horizontal slats (no text or symbols)

INSTALLATION INSTRUCTIONS

1. UNPACK AIR CONDITIONER

WARNING

Excessive Weight Hazard

Use two or more people to move and install air conditioner.

Failure to do so can result in back or other injury.

• Remove packaging materials. Save the cart on and the foam packaging for storing the air conditioner when not in use.
  NOTE: There are NO packing materials inside the air conditioner to remove—Do Not open the cabinet.
• Properly dispose of/ recycle all packing material.
• Handle the air conditioner gently.
• Keep the air conditioner upright and level. Do not set the air conditioner on its side, front, back or upside down.

2. INSTALL EXHAUST HOSE ASSEMBLY TO BACK OF UNIT

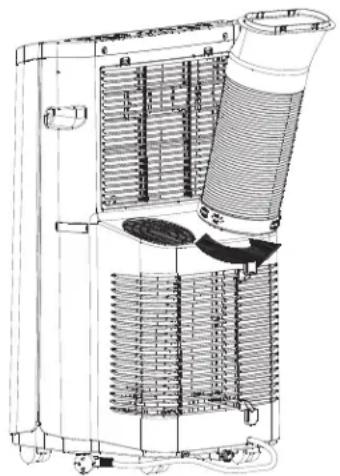

Install the exhaust hose assembly by twisting the round adapter counterclockwise into the exhaust port on the back of the Air Conditioner.

Technical line drawing of a mechanical device with internal components and heat dissipation (no text or symbols)

3. INSTALL WINDOW PANELS

A. Measure the window opening. For a 20" opening, use just the middle panel of the Window Kit with the opening for the Exhaust Hose Adapter. For openings from 20" to 33", insert one side panel to the middle panel, for openings from 33" to 46", insert both side panels.

Cam lock

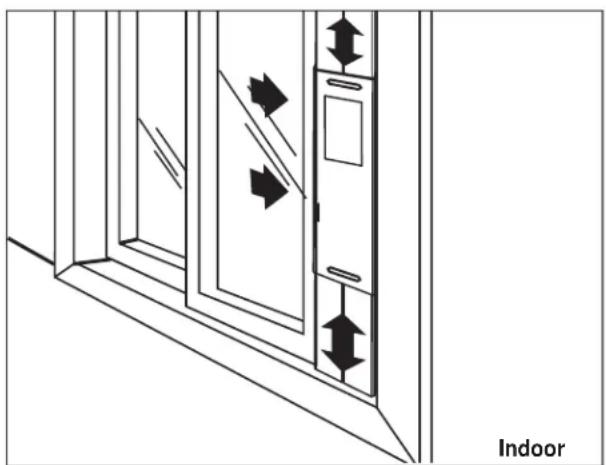

B. Place the Window Kit into the window opening (the Cam Locks should be towards you) and slide the side panels (if being used) outward to fill the opening. Lock the panels in place with the Cam Locks. Apply the foam seals to the top, bottom and ends to provide the best seal. Slide the window shut against the Window Kit.

Diagram of a room interior with directional arrows indicating airflow or movement, labeled 'Indoor' at bottom (no text or symbols on diagram itself)

Diagram of a door with directional arrows indicating movement, labeled 'Indoor' at bottom (no text or symbols on diagram itself)

4. CONNECT EXHAUST HOSE TO THE WINDOW PANEL

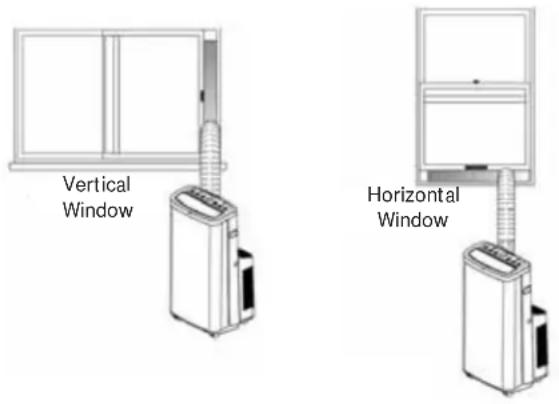

Place the Air Conditioner close to the window ensuring there is at least 20" of clearance from the wall and any other obstructions. Extend the hose so that it reaches the Window Kit. Insert the Exhaust Hose Adapter into the opening in the Window Kit and slide it into the locking position. Ensure that the hose runs straight to the window with no excess extension. Important: The Air Conditioner must be vented to the outside. Do not use a longer hose or extend the hose included with the Air Conditioner or the unit will not cool properly and will overheat.

5. COMPLETE INSTALLATION

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong from the power cord plug.

Do not use an adapter.

Do not use an extension cord.

Failure to do so can result in death, fire or electrical shock.

A. Plug the power cord into a grounded 3 prong outlet.
B. Press the Reset button on the plug to ensure the safety plug is providing power to the Air Conditioner.
C. Allow 20" of clearance around the Air Conditioner for proper air circulation
D. When removing the Air Conditioner, be sure to remove the Window Kit.

RESET TEST

TROUBLESHOOTING TIPS

Problem Possible Causes Solution
Unit does not start or operate	Power supply cord is not plugged into an outlet.	Plug the power cord into a grounded 3 prong outlet.
	Power supply cord has tripped. Press and release the RESET button on the power supply cord.
	The Power button has not been pressed. Press the Power button on the Control Panel or Remote Control to turn ON the air conditioner.
	There is no power to the electrical outlet. Plug a working lamp into the outlet to check for power.
	A household fuse has blown or a circuit breaker has tripped.	Replace the fuse or reset the circuit breaker.
	The control was programmed for a Time Delay.	Cancel the Time Delay. See “Control Panel.”
	The batteries in the remote control are dead. Replace the batteries.
	The internal water tank is full.NOTE: The air conditioner automatically turns off, and the Water Full indicator illuminates to alert you of this condition.	Empty the water tank. See “Air Conditioner Care.”
Remote control is not working	Batteries are dead. Replace the batteries.
	Batteries are installed incorrectly. Make sure the batteries are inserted in the correct position.
Air conditioner is working but the room is not cooling.	The room temperature is hot.NOTE: On extremely hot and humid days,the air conditioner will take longer to cool the room.	Allow time for the room to cool when you first turn on the unit.Make sure the air conditioner has an adequate BTU rating for the size of the room being cooled.
	The control is set incorrectly to Fan or DRY mode.	Set the Mode to Cool and the Fan Speed to High.
	Airflow is restricted. Remove any obstacles to the airflow and redirect airflow for uniform cooling.
	Temperature set too high. Lower the set temperature.
	Air filters are dirty or restricted.	Clean the air filter. See “Air Conditioner Care.”
	Air conditioner installed incorrectly	Check the exhaust hose and window panel for proper installation.
	Doors and windows are open.	Close the doors and windows to the room being cooled to prevent cooled air from escaping.

Error Codes

Error Codes	Meaning
E1	Abnormal sense of coil pipe sensor
E2	Abnormal sense of room temperature sensor
E4	Anti-frozen protection
FL	Full water

WIFI SETUP (on some models)

Haier Appliances WiFi Connect (for customers in the United States)

Haier Appliances WiFi Connect Enabled*. If your Air Conditioner (AC) has a Connected Appliance Information label located on the outside as shown below, your AC is Haier Appliances WiFi Connect Enabled. A WiFi communication card is built into the product allowing it to communicate with your smart phone for remote monitoring, control and notifications. Please visit haierappliances.com/connect to learn more about connected appliance features, and to learn what connected appliance apps will work with your smart phone.

Network: GE_MODULE_XXXX PASSWORD: XXXXXXXXX MAC ID: XX-XX-XX-XX-XX-XX CONTAINS FOCID: 7KJ-WCAT4068 CONTAINS IC: 100229A-WCAT4068 16501656P001

How it Works

Download the Haier Home App

Use the app to connect your room air conditioner to WiFi

Once connected, use the app to turn down your air conditioner as you leave work.

Getting Started

To connect your room air conditioner, you'll need the Haier Appliances App. The app will walk you through the connection process. Download the app from iTunes or Google Play.

All connected appliance data is held in strict accordance with the Haier Appliances Connected Data Privacy Policy. Visit geappliances.com/privacy/privacy_policy_connected to view this policy.

Questions about WiFi Connect

Get answers you need about setting up WiFi appliances and connecting to your home network in our support articles.

Visit products.geappliances.com/appliance/gea-support-search-content to view WiFi connect room air conditioner support articles.

REGULATORY INFORMATION

FCC/ IC Compliance Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
   This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Labelling: Changes or modifications to this unit not expressly approved by the manufacturer could void the user's authority to operate the equipment.

* Select Models Only

This product has WiFi capability and requires Internet connectivity and a wireless router to enable interconnection with an Energy Management System, and/or with other external devices, systems or applications.

Use of the Works with Apple HomeKit™ logo means that an electronic accessory has been designed to connect specifically to iPod touch®, iPhone®, or iPad®, respectively, and has been certified by the developer to meet Apple® performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

LIMITED WARRANTY

For The Period Of: Haier Appliances Will Replace:

One YearFrom the date of the original purchase

Replacement, repair, or refund of the original retail price for any product which fails due to a defect in materials or workmanship. If the unit is exchanged, the replacement unit is warranted for the remainder of your product's original one-year warranty period. Haier Appliances will, at its sole discretion, replace the product with a product of the same or comparable functionality and quality or refund the original retail price.

In Order to Make a Warranty Claim During the First 90 Days from the Date of Original Purchase:

• Properly pack your unit. We recommend using the original carton and packing materials.
• Return the product to the retail location where it was purchased.

- Include in the package a copy of the sales receipt or other evidence of date of original purchase. Also print your name and address and a description of the defect.

In Order to Make a Warranty Claim During the Remainder of the One-Year Warranty:

• Locate your original sales receipt and make a note of your model and serial number.
• Visit haierappliances.com to initiate the product replacement process.
• You will be asked to provide your name, address, date of purchase, model and serial number.

• Haier Appliances will arrange for a carton to be sent to your home to recover the product.

• Please return all requested materials (postage pre-paid) in the carton provided. Please include a description of the defect.

• You should receive your replacement product or refund within 7 to 10 business days after your package is received.

What Will Not Cover:

• Customer instruction. This owner's manual provides information regarding operating instructions and user controls.
• Improper installation. If you have an installation problem, or if the air conditioner is of improper capacity, contact your dealer or installer. You are responsible for providing adequate electrical connecting facilities.

• Failure of the product resulting from modifications to the product or due to unreasonable use including failure to provide reasonable and necessary maintenance.

• Replacement of house fuses or resetting of circuit breakers.

• Failure due to corrosion on models not corrosion-protected.
• Damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
• Incidental or consequential damage caused by possible defects with this air conditioner.
  • Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES - Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchant ability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For US Customers: This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a Haier Appliances Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized Haier Appliances Service location for service. In Alaska, the limited warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor US:

GE Appliances, a Haier company

Louisville, KY 40225

TABLE DES MATIÈRES

CONSIGNES DE SÉCURITÉ IMPORTANTES 4

COMMANDES....5

ENTRETIEN ET NETTOYAGE 8

INSTRUCTIONS D'INSTALLATION 10

CONSEILS DE DÉPANNAGE 14

CONFIGURATION DU WI-FI 15

GARANTIE LIMITÉE 16

CONSERVER DANS VOS DOSSIERS

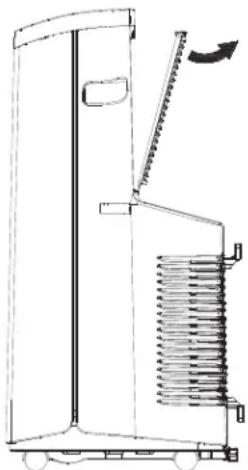

Technical line drawing of a mechanical device with spring and handle (no text or symbols)

Pour retirer :

Questions? Call GE Appliances at 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com.

In Canada, call 1.800.561.3344 or visit our Website at: www.GEAppliances.ca

AVANT DE COMMENCER

Line drawing of a portable air conditioner unit connected to a wall-mounted hose (no text or symbols)

Simple line drawing of a portable air conditioner unit connected to a wall-mounted hose (no text or symbols)

INSTRUCTIONS D'INSTALLATION

Technical diagram of a refrigerant air duct system with numbered components labeled 1 to 4

Technical diagram of a multi-tiered air conditioner unit with numbered labels pointing to different components.

Excessive Weight Hazard

Technical line drawing of a mechanical device with internal heat exchanger and cooling fins (no text or symbols)

Verrou à came

Line drawing of a handheld device with labeled buttons (no text or symbols beyond 'RESET' and 'TEST')

CONSEILS DE DÉPANNAGE

CONFIGURATION DU WI-FI (on some models)

Network: GE_MODULE_XXXX PASSWORD: XXXXXXXXX MAC ID: XX-XX-XX-XX-XX-XX CONTAINS I CCID: 2ALD3 MKQTWFTI1 CONTAINS ID: 229874KQTWFTI1

Icon of a house with Wi-Fi signal symbol (no text or numbers)

Garant : GE Appliances, a Haier company

Louisville, KY 40225

NOTES

ÍNDICE

Blank gray rectangular area with rounded corners (no text or symbols)

Technical line drawing of a mechanical device with spring and handle (no text or symbols)

Line drawing of a portable air conditioner unit connected to a wall-mounted hose (no text or symbols)

Simple line drawing of a portable air conditioner next to a wall-mounted control panel (no text or symbols)

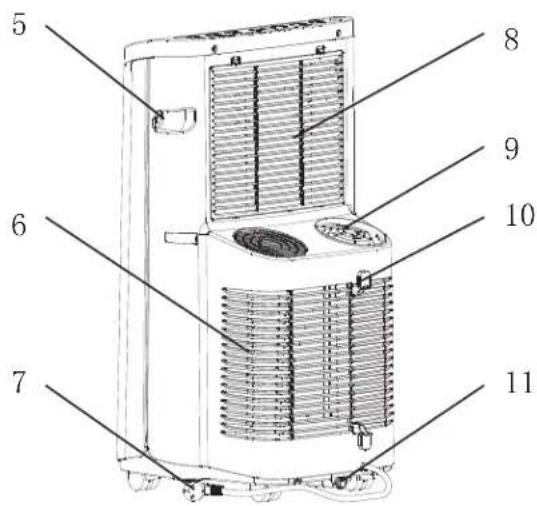

Technical diagram of a refrigerant unit with numbered components labeled 1, 2, 3, and 4

1. Panel de Control
2. Celosía
3. Manguera de Salida
4. Rueditas
5. Manija
6. Rejilla

Technical diagram of a multi-tiered air conditioner unit with numbered parts labeled 5 to 11

Technical line drawing of a mechanical device with heat exchanger and cooling fins (no text or symbols)

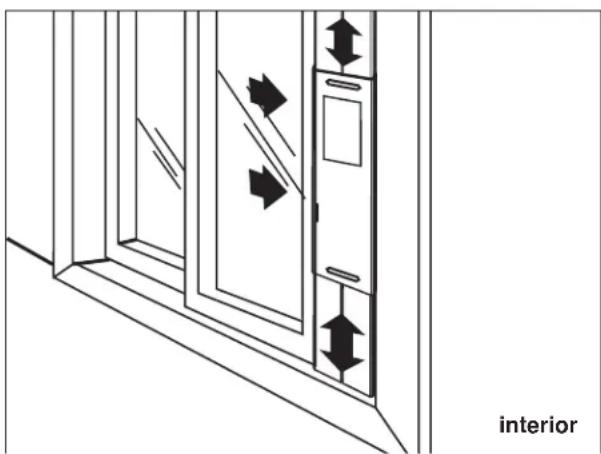

3. INSTALE LOS PANELES DE LA VENTANA

Interior view of a double door with ventilation airflow arrows (no text or symbols)

Interior view of a double door with directional arrows indicating movement, labeled 'interior' (no text or symbols on the diagram itself)

GE Appliances, a Haier company

Louisville, KY 40225

IMPORTANT

Do Not Return This Product To The Store

If you have a problem with this product, please call 1-877-337-3639 for the name and telephone number of the nearest authorized service center.

DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE

IMPORTANTE
