USER MANUAL COM30V SEB

natural_image Black SEB microwave oven with digital display and control panel (no visible text or symbols on main body)

Four à micro-ondes

SEB-COM30V

TABLE DES MATIERES

PRÉCAUTIONS AFIN D'ÉVITER UNE ÉVENTUELLE SUREXPOSITION AUX MICRO-ONDES 03

INDEX....03

AVERTISSEMENTS....03

INSTRUCTIONS POUR ÉVITER LES RISQUES DE DOMMAGES AUX PERSONNES INSTALLATION DE MISE À LA TERRE 05

USTENSILES....06

NOMS DES PIÈCES ET ACCESSOIRES DU MICRO-ONDES 08

INSTALLATION....09

INSTRUCTIONS SUR L'UTILISATION .... 10

NETTOYAGE 17

SPÉCIFICATIONS ...... 17

DIAGNOSTIC DES PANNES 18

SEB COM30V - TABLE DES MATIERES - 1

CET APPAREIL EST DESTINE A UN USAGE DOMESTIQUE UNIQUEMENT!

ÉLIMINATION CORRECTE DE CE PRODUIT

SEB COM30V - ÉLIMINATION CORRECTE DE CE PRODUIT - 1

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY 03

ADDENDUM 03

WARNINGS 03

TO REDUCE THE RISK OF INJURY TO PERSONS

GROUNDING INSTALLATION 05

UTENSILS 06

NAMES OF OVEN PARTS AND ACCESSORIES 08

INSTALLATION 09

CORRECT DISPOSAL OF THIS PRODUCT 18

SEB COM30V - TO REDUCE THE RISK OF INJURY TO PERSONS - 1

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

EN

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNINGS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

  1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
  2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  3. Keep the appliance and its cord out of reach of children less than 8 years.
  4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
  6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
  7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
  8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

  9. Only use utensils that are suitable for use in microwave ovens.

  10. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
  11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
  12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
  13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
  14. The oven should be cleaned regularly and any food deposits removed.
  15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
  16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
  17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
  18. The appliance must not be placed in a cabinet.
  19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)
  20. This appliance is intended to be used in household and similar applications such as:

  21. staff kitchen areas in shops, offices and other working environments;

  22. by clients in hotels, motels and other residential type environments;
  23. farm houses;
  24. bed and breakfast type environments.

  25. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

  26. Metallic containers for food and beverages are not allowed during microwave cooking.

  27. The appliance shall not be cleaned with a steam cleaner.

  28. The appliance is intended to be used freestanding.

  29. The rear surface of appliances shall be placed against a wall.

  30. Steam cleaner is not to be used.

  31. Surface of a storage drawer can get hot.

  32. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

  33. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

  34. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

  35. WARNING: Accessible parts may become hot during use. Young children should be kept away.

  36. The accessible surface may be hot during operation.

  37. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
  38. For details about cleaning door seals, cavities and adjacent parts please refer to the chapter of ‘CLEANING’.
  39. Leave a minimum clearance of 30cm above the oven
  40. Group 2 Class B appliance

Group 2 ISM equipment : group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies building used for

domestic purposes.

SEB COM30V - WARNING - 1

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug.

The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

  1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
  2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

  1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
  2. Cook on maximum power for 1 minute.
  3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
  4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks

Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.

Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.

Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.

Oven cooking bags Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.

Paper plates and cups Use for short-term cooking/warming only. Do not leave oven unattended while cooking.

Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Parchment paper Use as a cover to prevent splattering or a wrap for steaming.

Plastic Microwave-safe only. Follow the manufacturer's instructions.Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handleMay cause arcing. Transfer food into microwave-safe dish.
Metal or metal -trimmed utensilsMetal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

NAMES OF OVEN PARTS AND ACCESSORIES

(In case of any differences between the appliance and the pictures in this manual, the product shall prevail.)

Remove the oven and all materials from the carton and oven cavity.

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

SEB COM30V - NAMES OF OVEN PARTS AND ACCESSORIES - 1

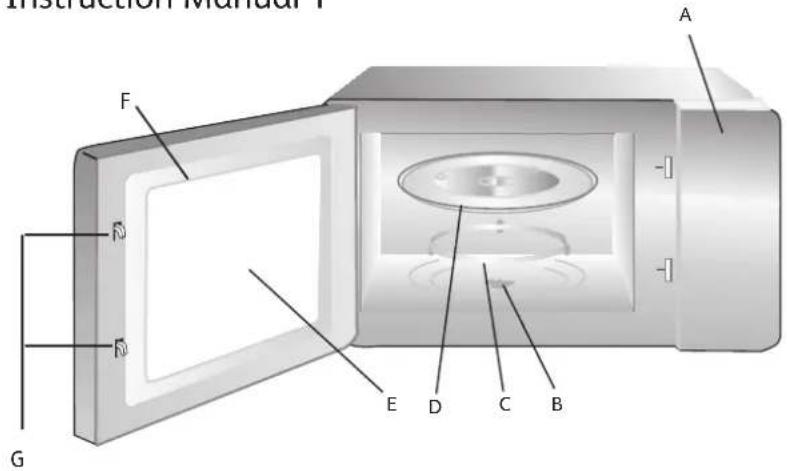

text_image Instruction Manual 1 A F R R G E D C B

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

SEB COM30V - NAMES OF OVEN PARTS AND ACCESSORIES - 2

SEB COM30V - NAMES OF OVEN PARTS AND ACCESSORIES - 3

Grill tray( Cannot be used in microwave function and must be placed on the grill rack)

Grill Rack( Cannot be used in microwave function and must be placed on the glass tray )

SEB COM30V - NAMES OF OVEN PARTS AND ACCESSORIES - 4

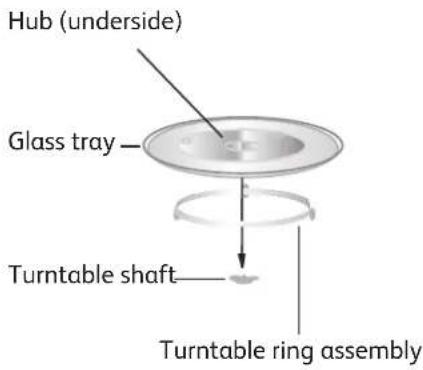

text_image Hub (underside) Glass tray Turntable shaft Turntable ring assembly

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

INSTALLATION

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

  1. Select a level surface that provide enough open space for the intake and/or outlet vents.

SEB COM30V - Installation - 1

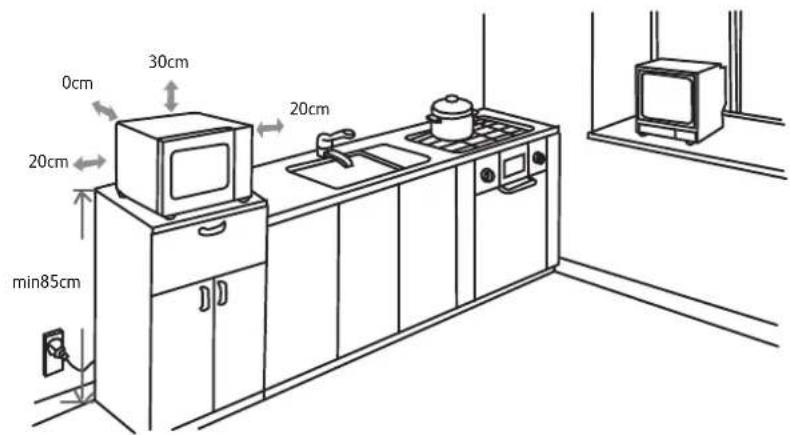

text_image 0cm 30cm 20cm 20cm min85cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

  1. Plug your oven into a standard household outlet.

Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance.

If installed near or over a heat source, the oven could be damaged and the warranty would be void.

This microwave oven uses modern electronic control to adjust cooking parameters to meet your needs better for cooking.

1. Clock Setting

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "Oassestretovesimell display" AS-1".
2) Press " tCONFIRMED DEPARTOSEC."
3) Turn " " to adjust the hour figures, the input time should be within 0--23(24-hour).
4) Press ", Absistanteufsiguerës will flash.
5) Turn " " to adjust the minute figures, the input time should be within 0--59.
6) Press "tAsfisismdlouksreeting.":" will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Ar, the Annotation" go back to the previous status automatically.

2. Kitchen Timer

When the microwave oven is electrified, the oven will display "0:00", buzzer will ring once.

1) Press "t" assistance will display "AS-2".
2) Press "t6@NffIRM,DR/DEPAspTdy3.0SEC."
3) Turn " " to enter the correct timer.(The maximum cooking time is 95 minutes.)
4) Press "t6@NffIRM/ER/DÉPART/+30SEC."

5) When the kitchen time is reached, the buzzer will ring 5 times.

If the clock be set(24-hour system), the screen will display the current time.

Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

3. Microwave Cooking

1) Press the "Auteesmpt"P40.0" will flash.
2) Press "t@confirmer/DEPART/WBLOGIC."
3) Press "Optional Function" repeatedly or turn " " to select the microwave power from 100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
4) Press "tOONFIRMER/DÉPART/+30SEC."
5) Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
6) Press " t CO N F R M E R I D E P A R T / + 30 S E C . "

NOTE: the step quantities for the adjustment time of the coding switch are as follow:

Microwave Power Chart

PressOnce Twice Thrice 4 times 5 times
Microwave Power80% 50%30% 10%100%
Display P100P80 P50 P30 P10

4. Grill Cooking

1) Press the twice options will flash.
2) Press " tGONFIRMER/DÉPARTIgBOSEC."
3) Turn " 🔍 " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
4) Press "CONFIRM/DEPART/+30SEC."

5. Combination Cooking

1) Press the "Autres options" four times and "C-1" will flash.
2) Press "Aptnés Options" " to select combination mode " C-1\~C-4 ".
3) Press "tCONHIRMER/DÉPART/+30SEC."
4) Turn " 🔍 " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
5) Press " CONFIRMER/DÉPART/+30SEC. " to start cooking.

6. Convection Cooking(With preheating& without preheating)

The convection cooking can let you to cook the food as a traditional oven.

Microwave is not used. It is recommended that you should preheat the oven to the appropriate temperature before placing the food in the oven.

1) Press the "Autres options" three times and "140" will flash.
2) Press" CONFIRMER/DÉPART/+30SEC." to enter the selecting of the convection temperature.
3) Press "Autres options " repeatedly or turn " 🔍" to select the temperature 140 °C\~230°C.
4) Press" CONFIRMER/DÉPART/+30SEC." to confirm.
5) Press the "CONFIRMER/DÉPART/+30SEC." to start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flash. Put the food into the oven and close the door.

(If preheating is not needed, please skip the step 5)

6) Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)
7) Press "CONFIRMER/DÉPART/+30SEC."

7. Defrost by W.T.

1) Press "Décongélation rapide" key once, the oven will display "dEF1".
2) Turn " 🔍 " to select the weight of food. At the same time, "g" will lights, The weight should be 100-000g.
3) Press "Key No IR MER/DEPAIRY/+30SEC."

Note: The buzzer will sound to remind of turning over the food during defrosting.

8. Defrost by Time

1) Press "Décongélation rapide" key twice, the oven will display "dEF2".
2) Turn " 🔍 " to select the cooking time. The maximum setting time is 95 minutes.
3) Press "Key No BRAMED/DBAIRg/+30SEC."

9. Multi-Stage Cooking

Two stages can be maximally set. If one stages is defrosting, it should be put in the first stage automatically. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu and preheating cannot be set as one of the multi-stage.

Example: If you want to defrost the food for 5 minutes, then to cook with 80% microwave power for 7 minutes. The steps are as following:

1) Press "Décongélation rapide" twice, the screen will display "dEF2";
2) Turn " 🔍 " to adjust the defrost time of 5 minutes;
3) Press "Optional Function" once;
4) Press "t60NfRmer/DÉPART/+30SEC."
5) Turn " 🔍 " to choose 80% microwave power till "P80" display;
6) Press "t60NfRmer/DÉPART/+30SEC."
7) Turn " 🔥 " to adjust the cooking time of 7 minutes;
8) Press "t6GNNFIRMER/GEPART/+30SEC."

10. Auto Menu

1) In waiting state, turn " 🔥" left, A10 will display, continue to turning it to choose the menu " A10\~A1 ".
2) Press "t6@DIFIRMERDEPARTy30SEC."
3) Turn " 🔍" to choose the weight of menu, and "g" indicator will light.
4) Press "tOONFIRMER/DEPART/+30SEC."

Note: The menu A8 need preheating before cooking it. The buzzer will sound to remind of turning over the food during menu A10.

MenuWeightDisplay Power
A1 AUTO REHEAT150g150100%
250g250
350g350
450g450
600g600
A2 POTATO1 (about 230g)1100%
2 (about 460g)2
3 (about 690g)3
A3 MEAT150g150
300g300
450g450
600g600
A4 VEGETABLE150g150100%
350g350
500g500
A5 FISH150g15080%
250g250
350g350
450g450
650g650
A6 PASTA50g(with 450 g cold water)5080%
100g(with 800g coldwater)100
150g(with 1200g cold water)150
A7 SOUP200g200100%
400g400
600g600
A8 CAKE475g475Preheat to 140°C
A9 PIZZA200g200C-4
300g300
400g400
A10 CHICKEN500g500C-4
750g750
1000g1000
1200g1200

11. Home Fry

1) Press the "Frite Maison" key.
2) Turn " 🔍" or continue to press " Frite Maison " to choose the menu H1\~H9.
3) Press "CONTINER/DEPART/+30SEC."

No.MenuWeight(g)
H1Frozen French fries300
H2Frozen Potato croquettes350
H3Frozen Squid250
H4Frozen Onion rings225
H5Frozen Chicken nuggets300
H6Escalope270
H7Shrimps250
H8Vegetable200
H9Spring Rolls250

12. Crispy Grill

1) Press the "Cuisson croustillante" once, C1 displays.
2) Press " Cuisson croustillante "repeafedly or turn " 🔍 " to select the menu "C1\~C4".
3) Press" CONNIRMER/DÉPART/+30SEC."
4) Turn " 🔥 " to select the cooking weight.
5) Press" CONTIRM/DEPART/+30SEC."

Crispy grillWeight(g) Power Initial Temp.
C1300C-4Room Temp.
Cordon bleu(fresh mini pizza)600
900
C2(lasagna)200C-4RefrigeratedTemp.
300
400
500
C3 (bread)100Conv.230°CFreezing Temp.
C4 (bread)300Conv.220°CRefrigerated Temp.

13. Low Temp Control

1) Press the "cncisbih displaytemp"
2) Press the "repressed by a set of "p " to select cooking mode.

"L1", "L2", "L3", "L4" or "L5" will flash.

3) Press "t6@NFFIRMER/DÉPART/+30SEC."
4) Turn " 🔥 " to select the cooking temperature.
5) Press "t6@NFFIRMER/DÉPART/+30SEC."
6) Turn " 🔍 " to adjust the cooking time.
7) Press "t60NFTRMBRngÉPART/+30SEC."

Display40°C50°C60°C70°C80°C90°C100 °C110°CCooking time (Max)
L1(Slow cook)12h
L2(Keep warm)95min
L3(Food dry)12h
L4(Yogurt)12h
L5(Warming box)95min

14. Deodorization

1) In waiting state, press "3Asiens, the uisien" displays "AS-3".
2) Press " tC O N F R M E D D E P A R T b r + 30 S i n C u t e s.

15. Mute Function

In waiting state, press "4Asinns theixine" displays "AS-4".

then press "tGONFERMER/ÉPARTUte30SE". Any operation cannot make the buzzer sound.

In mute mode, press "4Assists the uixireen" displays "AS-4".

then press "tGONFERMERDEPARTe+f308EC."

16. Steam Clean Function

1) In waiting state, press "Asinets, theusizen" displays "AS-5".
2) Press "tCONFIRMEY/DiePARTing+30SEC%" microwave power for 5 minutes).

17. ECO Function

Enter ECO mode: In waiting state, press "Ecofly, Store site Enfowl turn off.

Exit ECO mode: Press any key.

18. Lock-out Function for Children

Lock: In waiting state, press" for 3 seconds the fan will be a long "beep" denoting entering into the children-lock state and the lock indicator will light. screen will display current time or 0:00.

Lock quitting: In locked state, press "E603/Seconds", then will be a long "beep" denoting that the lock is released, and the lock indicator will disappear.

20. Inquiring Function

During cooking state, press "Assisted the cuisine time.

21. Turntable reset function

At the end of cooking, the turntable reset function will working automatically to reset the utensil to the original position in the oven, [ ] will display. That is convenient for you to take food out of the oven.

Notes: (1) This function is valid for a complete cooking. If you press "Arrêt/Annulation" and open or close the oven door during cooking, this function is invalid.
(2) If the cooking time within 5 minutes, the accuracy of the turntable is within 30 degree.

CLEANING

Be sure to unplug the appliance from the power supply.

  1. Clean the cavity of the oven after using with a slightly damp cloth.
  2. Clean the accessories in the usual way in soapy water.
  3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
  4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
  5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

SPECIFICATIONS

ModelSEB-COM30V
Rated Voltage220-230V~50Hz
Microwave Input1450-1500W
Microwave Output900-1000W
Grill2150-2400W
Convection2150-2400W

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception.Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light.In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.It is forbidden to run the unit without any food inside. It is very dangerous.
Trouble Possible Cause Remedy
Oven cannot be started.(1) Power cord is not plugged in tightly.Unplug. Then plug again after 10 seconds.
(2) Fuse blowing or circuit breaker works.Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
(3) Trouble with outlet.Test outlet with other electrical appliances.
Oven does not heat.4) Door is not closed well.Close door well.

CORRECT DISPOSAL OF THIS PRODUCT

SEB COM30V - CORRECT DISPOSAL OF THIS PRODUCT - 1

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that .used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97

Monday to Friday from 9:00 am to 19:00 pm Saturday from 9:00 am to 18:00 pm (local call price).

SEB COM30V - CORRECT DISPOSAL OF THIS PRODUCT - 2

LE TRI

SEB COM30V - CORRECT DISPOSAL OF THIS PRODUCT - 3

FACILE

SEB COM30V - CORRECT DISPOSAL OF THIS PRODUCT - 4

SEB COM30V - CORRECT DISPOSAL OF THIS PRODUCT - 5

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : SEB

Model : COM30V

Category : Microwave Oven
