USER MANUAL COM31 SEB

Exterior view of a modern white SEB microwave oven with control panel and door (no visible text or symbols on main body)

Four à micro-ondes

SEB-COM31

TABLE DES MATIÈRES

ÉLIMINATION CORRECTE DE CE PRODUIT ....18

CET APPAREIL EST DESTINE A UN USAGE DOMESTIQUE UNIQUEMENT!

Simple line drawing of a circular object with four small circular features at the center (no text or symbols)

Plateau en verre

Technical line drawing of a mechanical lever with a base and three legs, showing internal components and a close-up of the lever handle (no text or symbols)

Technical diagram of a microwave oven with labeled parts A, B, C, D, and E

Technical diagram of a kitchen sink with labeled parts, showing a circular basin and central handle mechanism.

1) Plateau en verre

Line drawing of a microwave oven with lid and door, showing internal components (no text or symbols)

REMARQUE :

Instructions	Afficher Micro-ondes Grill Convection
1	C-1	●	●
2	C-2	●	●
3	C-3		●
4	C-4	●	●

ÉLIMINATION CORRECTE DE CE PRODUIT

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY 03

ADDENDUM 03

WARNINGS 03

TO REDUCE THE RISK OF INJURY TO PERSONS

GROUNDING INSTALLATION 05

UTENSILS 05

NAMES OF OVEN PARTS AND ACCESSORIES 08

TURNTABLE INSTALLATION 09

INSTALLATION 10

CORRECT DISPOSAL OF THIS PRODUCT 18

THIS PRODUCT IS FOR HOUSEHOLD USE ONLY!

Please read these instructions carefully before the first use of this product and save this manual for your future reference.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

EN

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

IMPORTANT SAFETY INSTRUCTIONS

WARNINGS

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific:"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
14. The oven should be cleaned regularly and any food deposits removed.
15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)
18. The appliance must not be placed in a cabinet.
19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household and similar applications such as:

21. staff kitchen areas in shops, offices and other working environments;

22. by clients in hotels, motels and other residential type environments;
23. farm houses;

24. bed and breakfast type environments.

25. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

26. Metallic containers for food and beverages are not allowed during microwave cooking.
27. The appliance shall not be cleaned with a steam cleaner.
28. The appliance is intended to be used freestanding.
29. The rear surface of appliances shall be placed against a wall.
30. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
31. The temperature of accessible surfaces may be high when the appliance is operating.
32. The accessible surface may be hot during operation.

1. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

30??. For details about cleaning door seals, cavities and adjacent parts and how to clean surfaces in contact with food please refer to the chapter of ‘CLEANING’.

1. Leave a minimum clearance of 30cm above the oven
2. Group 2 Class B appliance

Group 2 ISM equipment : group 2 contains all ISM equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and EDM and arc welding equipment. Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies building used for domestic purposes.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

TO REDUCE THE RISK OF INJURY TO PERSONS GROUNDING INSTALLATION

DANGER

Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death.

Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug.

The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

UTENSILS

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer's instructions.Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal -trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

(In case of any differences between the appliance and the pictures in this manual, the product shall prevail.)

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass Tray

Turntable Ring Assembly

High Grill Rack

( Can not be used in

microwave function

and must be placed on

the glass tray )

Lower Grill Rack

( Can not be used in

microwave function

and must be placed on

the glass tray )

Instruction Manual

A) Control panel
B) Turntable Ring Assembly
C) Observation window
D) Door assembly
E) Safety interlock system
F) Oven cavity

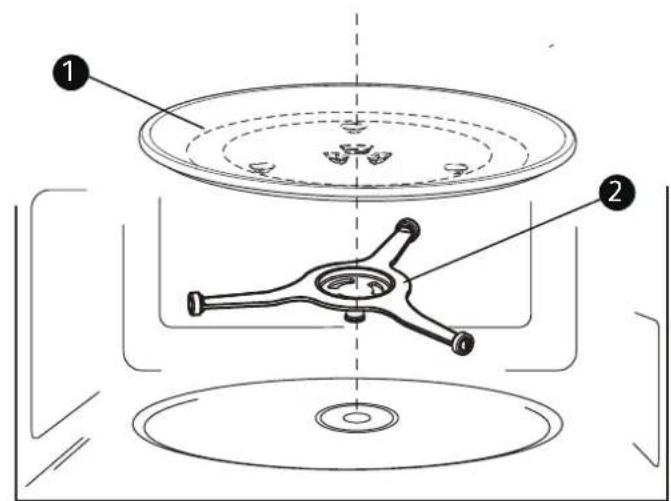

TURNTABLE INSTALLATION

Cleaning the cooking compartment and putting the turntable in place.

For new installations, make sure all packaging and shipping tape has been removed. Before using the appliance to prepare food for the first time, you will need to put the turntable in place correctly. You must clean the cooking compartment and accessories.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, including a central component and circular base.

1) Glass Tray

2) Turntable Ring Assembly

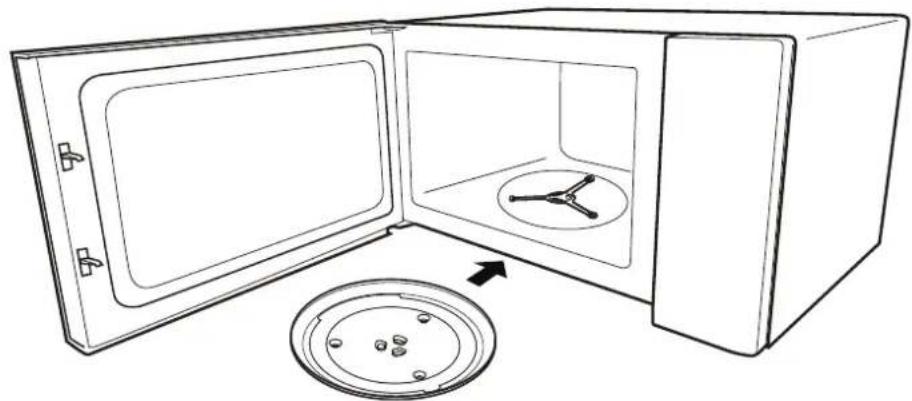

Line drawing of a microwave oven with a lid and fan, showing open door and interior (no text or symbols)

Note:

1. Never use the appliance without the turntable. Make sure that it is properly engaged. The turntable can turn clockwise or anti-clockwise.
2. Never place the glass tray upside down. The glass tray should never be restricted.
3. Both glass tray and turntable ring assembly must always be used during cooking.
4. All food and containers of food are always placed on the glass tray for cooking.
5. Never restrict the movement of the turntable.
6. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the waveguide cover that is attached to the oven cavity to protect the magnetron.

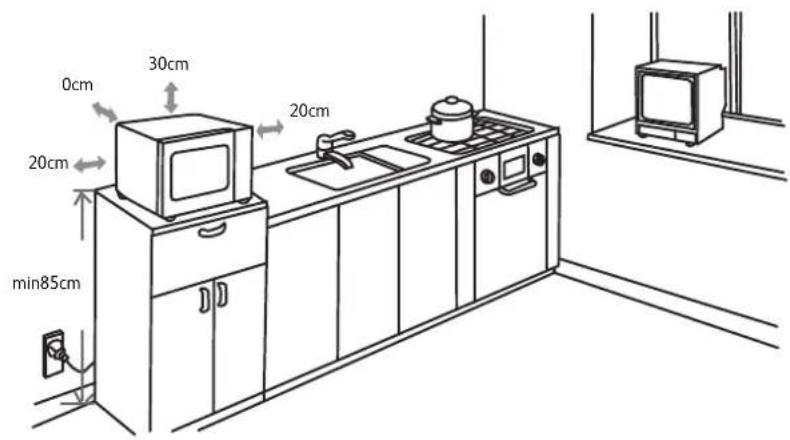

Installation

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

0cm 30cm 20cm 20cm min85cm

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall. Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.
(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet.

Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label. 已移到警告语部分

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

1. Setting the Clock

When the microwave oven is Powered On, the oven will display "0:00", and the buzzer will ring once.

1) Press "Houtage/MontenDisplays.
2) Turn " 🔍" to adjust the hour figures, the input time should be within 0--23(24-hour).
3) Press "Hothogen/Mutetefigures will flash.
4) Turn " 🔍" to adjust the minute figures, the input time should be within 0--29.
5) Press "Hodofge/Miclocksetting.

Notes:

(1) The clock is a 24-hour display. If the clock is not set, it would not work when powered.
(2) To reset the clock, please repeat step 1 to step 5.

2. Setting the Kitchen Timer

1) Press " Howlige/Menroerien will display " 00:00 ".
2) Turn " 🔍" to enter the desired time. (The maximum time value is 95 minutes.)
3) Press "Département Setting.
4) When the kitchen time is reached, the buzzer will ring 5 times.

Note: The kitchen Timer is different from 24-hour system. Kitchen Timer is a timer.

3. Microwave Cooking

Press "Mionce, the press" Mic will display "P100". Press " " repeatedly to choose the power you want, and " P100 ", " P80 ", " P50 ", " P30 " or " P10 " will display for each added press. Then press" Départ/+30Sec. " to confirm, and turn " 🔒 " to adjust the cooking time.(The maximum cooking time is 95 minutes.)

Press "Dépgain+30Start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven with the following steps.

1) Press "Mioncend the screen will display " P100".
2) Press "Micromondzin to choose 80% microwave power.
3) Press "DéparconB0Sesetting, and the screen displays " P80".
4) Turn " 🔍" to adjust the cooking time until the oven displays "20:00".
5) Press "Dépast/30 Seeking.

Note: The step quantities for the adjustment time of the coding switch are as follow :

Microwave Power Chart

Press Once		Twice Thrice	4 times	5 times
Microwave Power		80% 50%	30% 10%	100%

EN

4. Grill Cooking

1) Press " Gril/Combi./Convec." once, the screen will display " G-1 ".
2) Press "Déparo/n-30 Sec.
3) Turn " 🔍" to adjust the cooking time. The maximum time value is " 95:00 ".
4) Press "Dépostar30Seking.

Note: When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.

Example : If you want to use grill power to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Gril/Combi./Convec." once, the sreen display " G-1".
2) Press "Déparon+306ec.
3) Turn " 🔍 " to adjust the cooking time until the oven display " 10:00 ".
4) Press "DépourtárB0Seking.

5. Combination Cooking

Press "Gril/Combi./Convec." once, the screen will display "G-1", and press "Gril/Combi./Convec." repeatedly or turn the " 🔍" to choose the power you want, and "G-1 ", " C-1 ", " C-2 ", "C-3 ", " C-4 " will display for each added press. Then press "Départ/+30Sec. confirm, and turn " 🔍" to adjust the cooking time. (The maximum setting time is 95 minutes.) Press "Départ/+30Sec. cooking.

Note: Combination instructions

Instructions	Display Microwave Grill Convection
1	C-1	●	●
2	C-2	●	●
3	C-3		●
4	C-4	●	●

6. Convection Cooking (With preheating function)

1) Keep press " Gril/Combi./Convec." or turn " 🔍" to select the convection temperature. Note: The temperature including 150, 160, 170, 180, 190, 200, 210, 220, 230, 240°C.
2) Press "Dépoar/nf30Sec.
3) Press "Départure" to Start preheating. When the preheating temperature arrives, the buzzer will sound twice to remind you to put the food into the oven. And the preheated temperature is displayed and flashes.

4) Put the food into the oven and close the door.

Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)

5) Press "Dépasta B30 Solving.

7. Convection Cooking (Without preheating function)

1) Keep press " Gril/Combi./Convec." or turn " 🔍 " to select the convection temperature.

Note: The temperature including 150, 160, 170, 180, 190, 200, 210, 220, 230, 240 °C.

2) Press "Départure B06ec.

3) Turn " 🔍 " to adjust the cooking time. (The maximum setting time is 95 minutes.)

4) Press "Déposta#30Seking.

8. Defrost by Weight

1) Press "Pöids/Tethps Déconvélloison" d-1".

2) Turn " 🔍 " to select the weight of food. The w eight should be within 100-2000g.

3) Press "Dépastár30defesting.

Note: When half of the time has passed, the buzzer will sound to remind you to turn the food over. If no operation, the oven will continue working.

9. Defrost by Time

1) Press "Pôkts/TenthessDéconvélbl Display "d-2".

2) Turn " 🔍 " to set the desired time. The maximum setting time is 95 minutes.

3) Press "Dépastar30Seasting.

Note: The defrost power is P30, and it can not be changed.

10. Multi-Stage Cooking

Two stages can be maximally set. If you set defrost function, it will work automatically in the first stage. The buzzer will ring once after each stage and the next stage will begin.

Note: Auto menu and preheating cannot be set as one of the multi-stage.

Example: Defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes.

1) Press "Pôkts/TenthressDéconvélbl Display "d-2".

2) Turn " 🔍 " to adjust the defrost time of 5 minutes.

3) Press "Micron and PS100" will display.

4) Press "Micraga" does choose 80% microwave power then "P80" displays.

5) Press "Dépactn B06ec.

6) Turn " 🔍 " to adjust the cooking time of 7 minutes.

7) Press "Dépastar30Seling.

11. Speedy Cooking

In standby mode, turn " 🔍" left to choose cooking time with 100% power. Continue to turn the knob to adjust the cooking time. Then press " " Départ/+30Sec. cooking.

This program can be set as the first one of multi-stage.

12. Auto Menu

1) In stand by mo de, turn " 🔍" right to choose the function wanted, and "A-01", "A-02", "A-03".... "A-10" will be d isplayed.
2) Press "Déparo/305 the menu you need.
3) Turn " 🔍 " to choose the weight of menu.
4) Press "Dépostar B0Seking.

Notes:

(1) Opening the oven door or pressing "A" and Agropyation will interrupt the current mode.
(2) It is necessary to turn the " 🔍" right first in the standby mode for selecting " Auto Menu ". Turning the " 🔍" left first in the speedy cooking for selecting cooking time.

Auto menu Chart

Menu	Weight(g)	Display	Power
A-01 Auto Reheat	150g	150g	P100
	250g	250g
	350g	350g
	450g	450g
	600g	600g
A-02 Potato	1	1	P100
	2	2
	3	3
A-03 Meat	150g	150g	P80
	300g	300g
	450g	450g
	600g	600g
A-04 Vegetable	150g	150g	P100
	350g	350g
	500g	500g
A-05 Fish	150g	150g	P80
	250g	250g
	350g	350g
	450g	450g
	650g	650g
A-06 Pasta	50(with cold water 450g)	50	P80
	100(with cold water 800g)	100
	150(with cold water 1200g)	150
A-07 Soup	200ml	200	P100
	400ml	400
	600ml	600
A-08 Cake	475g	475g	Preheat at 180 degrees
A-09 Pizza	200g	200g	C-4
	300g	300g
	400g	400g
A-10 Chicken	500g	500g	C-4
	750g	750g
	1000g	1000g
	1200g	1200g

13. Lock Function for Children

You can use this function to prevent children from accidentally turning the oven on.

To activate the lock:

In standby mode, press and hold "A"fēt/threel seconds. A long beep sounds and the locked icon will display.

To deactivate the lock:

In locked state, press and hold "A"rfeir/Amel seconds. A long beep sounds.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

SPECIFICATIONS

Model:	SEB-COM31
Rated Voltage	230V~50Hz
Microwave Input	1550W
Microwave Output	1000W
Grill	1000W
Convection	2100W

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception.	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light.	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents.	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven cannot be started.	(1) Power cord is not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	4) Door is not closed well.	Close door well.

CORRECT DISPOSAL OF THIS PRODUCT

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that .used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our After-Sales Service, before going to your BUT store, call 09 78 97 97 97

Monday to Friday from 9:00 am to 19:00 pm Saturday from 9:00 am to 18:00 pm (local call price).

LE TRI

FACILE
