USER MANUAL CRF30A MSW

This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.

Technical data

Parameter description	Parameter value
Product name	Car refrigerator
Model	MSW-CRF40A	MSW-CRF30A
Supply voltage [V~]	12/24V DC
Rated power [W].	60
Safety class	III
Refrigerant / amount [g]	R600a(20g)
Temperature range[°C]	-20 ÷ 20
Climate class	T/ST/N/SN
Capacity [l]	40	30
Dimensions (width x depth x height) [mm]	580 x 370 x 470	570 x 380 x 370
Weight [kg]	13.1	12

1. General Description

The manual is intended to assist in safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards.

CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK.

To ensure the long and reliable operation of the device, make sure to operate and maintain it properly following the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way that risks resulting from noise emissions are reduced to the lowest possible level.

Explanation of symbols

CE	The product complies with applicable safety standards.
	Read the manual before use.
	Recyclable product.
	CAUTION! or WARNING! or REMEMBER! describing a situation (general warning sign).
	CAUTION! Risk of electric shock!

CAUTION! Fire hazard - flammable materials!

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.

2. Safety of use

CAUTION!

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury or death.

The term "device" or "product" in the warnings and the description of the instructions refers to Car refrigerator

2.1. Electrical safety

a) The plug of this device must fit into the outlet. Do not modify the plug in any way. Original plugs and matching outlets reduce the risk of electric shock.
b) Avoid touching grounded parts, such as pipes, heaters, ovens, and refrigerators. There is an increased risk of electric shock if your body is grounded and touches the device while exposed to direct rain, wet pavement, or while working in a damp environment. If water enters the device, there is an increased risk of damage to the unit and electric shock.
c) Do not touch the device with wet or damp hands.
d) Do not use the cord in an unintended manner. Never use it to carry the device or to pull the plug out of the socket. Keep the cord away from heat sources, oil, sharp edges, or moving parts. Damaged or tangled cords increase the risk of electric shock.
e) If you cannot avoid using the product in a wet environment, use a residual current device (RCD) to connect it to electrical mains. Using an RCD reduces the risk of electric shock.
f) To avoid electric shock, do not immerse the cable, plug, or the device itself in water or other liquid. Do not use the appliance on wet surfaces.
g) Never touch uninsulated wires with bare hands.
h) Do not allow the machine to get wet. Risk of electric shock!
i) Use only power sources that are grounded.

2.2. Safety in the workplace

a) Do not use the unit in a hazardous zone, for example in the presence of flammable liquids, gases or dust.
b) If you find any damage or irregularities in the operation of the product, immediately turn it off and report it to an authorized person.
c) If in doubt as to whether the device is working, contact the manufacturer's technical service.
d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own!
e) In the event of ignition or fire, use only powder or snow (CO2) fire extinguishers to suppress the live device.
f) Keep this manual for future reference. If the product is to be handed over to a third party, hand it over with this user manual.

Remember! Keep children and other bystanders safe while operating the appliance.

2.3. Personal safety

a) Do not operate this device if you are tired, ill, or under the influence of alcohol, drugs, or medication that could impair your ability to operate the device.

b) The device is not intended to be used by persons (including children) with reduced mental, sensory, or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device.
c) The appliance is not a toy. Children should be watched to ensure that they do not play with the appliance.

2.4. Safe use of the product

a) Do not use the device if the ON/OFF switch does not function properly (does not turn on and off). Units that cannot be controlled by the switch are unsafe, cannot operate, and must be repaired.
b) Disconnect the device from the power supply before adjusting, cleaning, or servicing. Such a preventive measure reduces the risk of accidental activation
c) Keep unused products out of the reach of children and anyone unfamiliar with the device or this manual. Products are dangerous when used by inexperienced users.
d) Keep the product in good working order.
e) Keep the product out of the reach of children.
f) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use.
g) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws.
h) When transporting or moving the unit from storage to the place of use, observe the health and safety rules for manual handling applicable in the country where the unit is used.
i) Do not move, shift, or rotate the machine while in operation.
j) Clean the device regularly to prevent permanent dirt build-up.
k) The product is not a toy. Cleaning and maintenance must not be performed by children without adult supervision.
I) Food and beverages may be stored in the unit only in the original packaging or in sealed containers.
m) Do not store heavy, poisonous or corrosive objects inside the unit.
n) Do not store explosive substances, such as cans containing compressed flammable gas, inside the unit.
o) Do not store glass vessels with freezing liquids in the unit.
p) CAUTION! Do not use any electrical devices inside the chamber of the device intended for food storage.
q) It is recommended to keep your hands dry when carrying out activities that require placing your hands inside the device, as otherwise it may result in frost damage to the skin.
r) Do not submerge the device in water and do not expose the device to weather conditions (rain, sun, etc.) or to conditions of increased humidity.
s) Do not use the device turned upside down with the upper cover on the ground. It is recommended that the tilt angle relative to the ground does not exceed 40^ .
t) The device should be defrosted and cleaned at regular intervals.
u) It is forbidden to use hard, metallic or sharp tools to remove ice from the cooling chamber.
v) It is forbidden to carry the device by the door.
w) Keep the unit away from sources of fire and heat.
x) At least 5 cm free space on the sides of the device and 10 cm on the back of the device should be provided to ensure proper ventilation.

CAUTION! Although the product has been designed to be safe, with adequate safeguards, and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the unit. Caution and common sense are advised when using the product.

3. Instructions for use

The device is intended for the storage of food products at low temperature. It is a portable (free-standing) device, that can be used in vehicles, boats, and trailers equipped with a 12 or 24V DC electrical system.

The product is intended for home use only!

The operator is responsible for any damage caused by misuse.

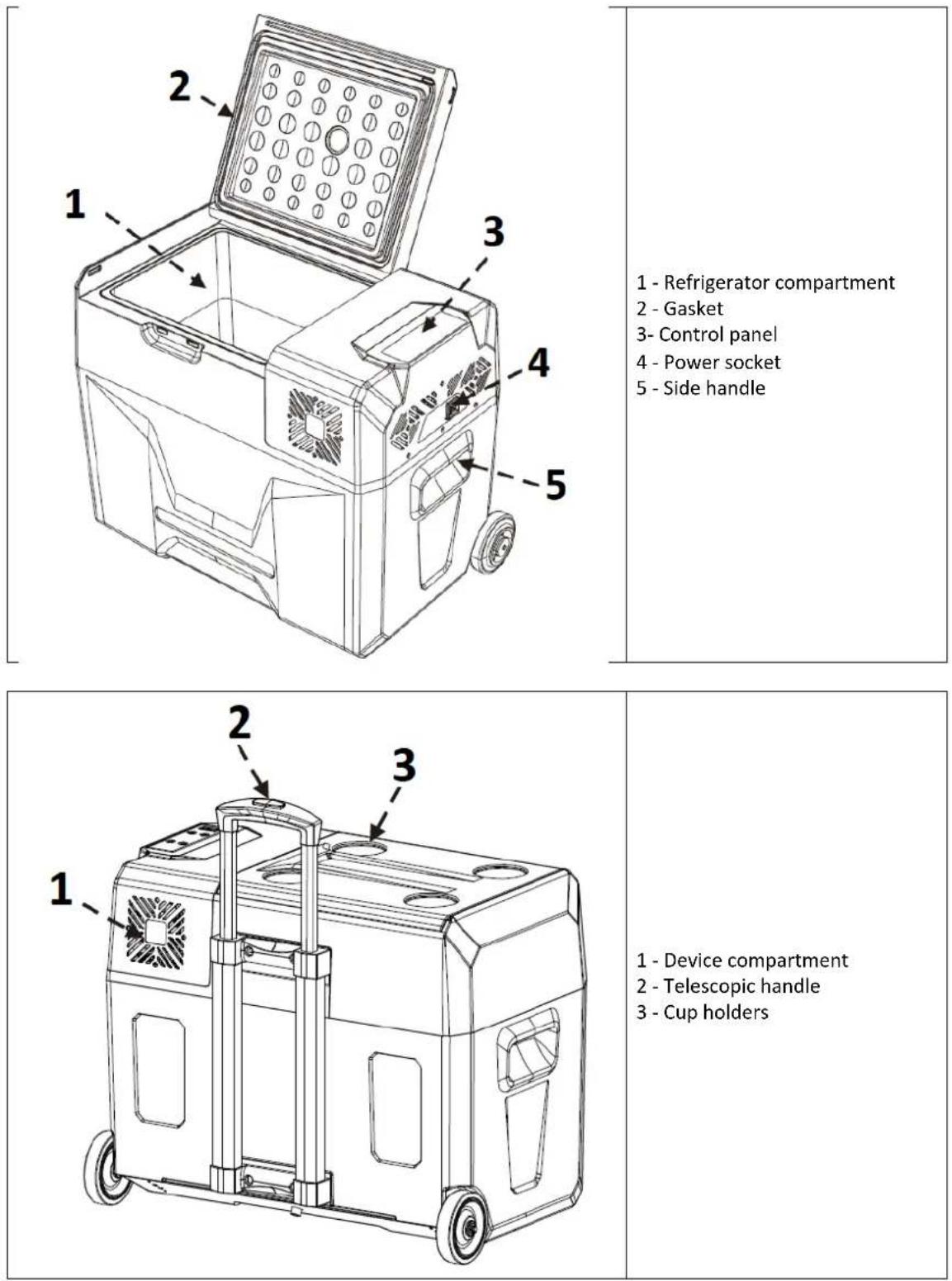

3.1. Product overview

The models described in this manual have the same functions, differing only in capacity.

1 - Refrigerator compartment
2 - Gasket
3- Control panel
4 - Power socket
5 - Side handle

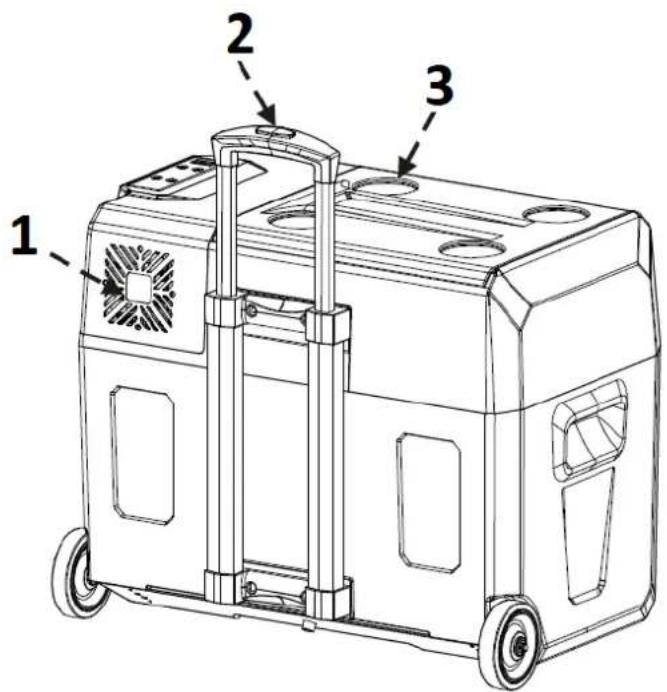

1 - Device compartment
2 - Telescopic handle
3 - Cup holders

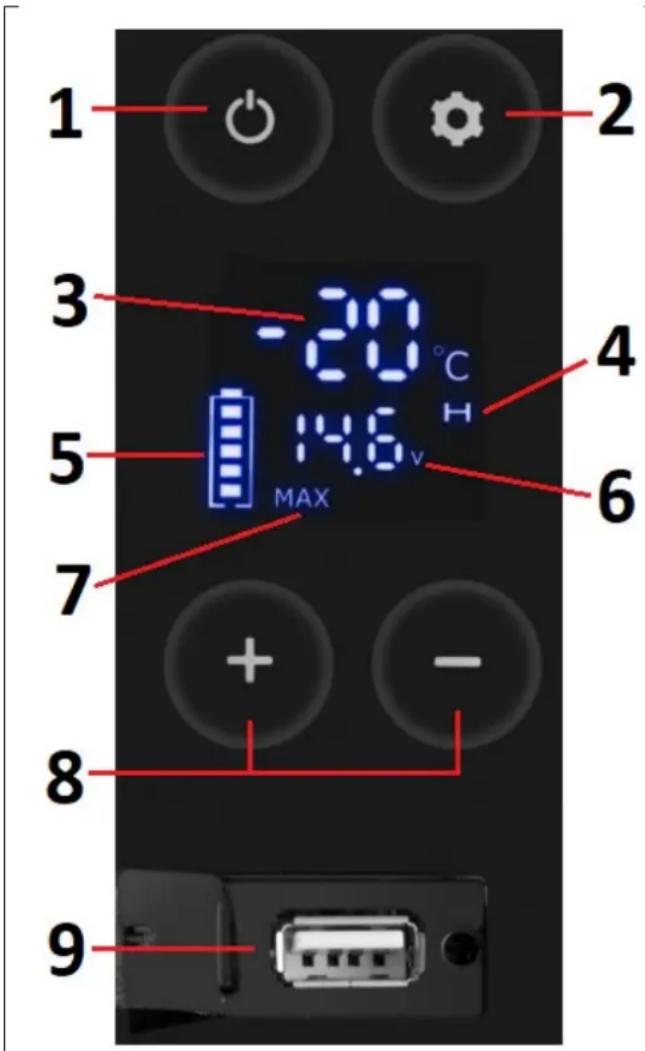

Control panel (same for both models):

1 2 3 -20°C 5 14.6V MAX 4 6 7 + - 8 9

1 - Power switch.
2 - Settings button.
3 - Indicator of the current temperature inside the refrigerator.
4 - Battery protection mode from which the refrigerator is powered.
5 - The current battery status from which the refrigerator is powered (for information).
6 - Indicator of the current battery voltage from which the refrigerator is powered.
7 - Cooling mode (MAX or ECO)
8 - Temperature setting buttons.
9 - USB socket.

3.2. Preparation for operation

POSITIONING OF THE UNIT

The ambient temperature must not exceed 40^ C and ambient humidity should not exceed 85%. Place the unit in a way that ensures good air circulation. Maintain a minimum clearance of 10 cm from any wall of the unit. Keep the unit away from any hot surfaces. Always operate the unit on a level, stable, clean, fireproof, and dry surface and out of the reach of children and persons with impaired mental, sensory, and intellectual functions. Place the unit in such a way that the main plug can be reached at any time. Ensure that the power supply to the unit corresponds to that specified on the identification plate!

Before the first use, clean the inside of the refrigerator with a damp cloth soaked in lukewarm water and a mild detergent intended for contact with food, e.g. dishwashing liquid or a small amount of baking soda. Wipe the device dry before switching on.

3.3. Working with the device

Connect the power supply to the refrigerator using a suitable cable - a power supply or a cable to connect to the car lighter socket.

Use the power switch to start the device. At this point, a sound will be heard and after a while, the display will show the current operating parameters.

Temperature setting : set the desired temperature using the "+" and "-" buttons on the control panel. The temperature value displayed is the current temperature inside the refrigerator, it takes some time for the temperature to reach the set value.

Cooling mode : You can set two cooling modes: MAX (quick cooling) and ECO (energy saving). In normal operation, press the setting button on the control panel to switch the cooling mode.

Battery protection mode from which the refrigerator is powered: You can set three protection modes for the battery from which the refrigerator is powered: H ("High"), M ("Medium"), and L ("Low"). To switch modes, press the settings button on the control panel during normal refrigerator operation and hold it for at least 3 seconds until the display screen starts flashing - then press the settings button again to switch to H, M, or L mode.

Indicative values of battery voltage (there may be differences depending on the environment in which the refrigerator is used):

Mode\Power supply	DC 12V DC 24V
	Power cutoff at:	Power on at:	Power cutoff at:	Power on at:
L	8.5V	10.9V	21.3V	22.7V
M	10.1V	11.4V	22.3V	23.7V
H	11.1V	12.4V	24.3V	25.7V

It is recommended that the H mode setting should apply when the device is connected to vehicle power, while M or L should apply when the device is connected to a portable or backup battery.

Changing the temperature units : turn off the refrigerator and then press the setting button for 3 seconds until the display shows E1. Press the setting button again to switch to E5, now use the "+" and "-" buttons to set the desired temperature unit (Celsius or Fahrenheit).

Resetting the settings : turn off the refrigerator and then press the settings button for 3 seconds until the display shows E1, at this point press and hold the "+" and "-" buttons simultaneously for a few seconds to reset the settings.

3.4. Cleaning and maintenance

a) Pull the mains plug and let the unit cool down completely before cleaning, adjusting or replacing accessories and when the unit is not in use.
b) Open the cover and remove the protection from the drain hole at the bottom of the device.
c) Use only non-corrosive cleaning agents for cleaning surfaces.
d) Only mild detergents designed for cleaning food contact surfaces may be used to clean the unit.
e) After each cleaning, all parts should be thoroughly dried before the device is reused.
f) Store the unit in a dry and cool place protected from moisture and direct sunlight.
g) Do not spray the unit with a stream of water or immerse it in water.
h) Make sure that no water enters through the ventilation openings in the casing.
i) Perform regular inspections of the unit checking technical fitness and any damages.
j) Use a soft, damp cloth for cleaning.
k) Do not use sharp and/or metal objects (e.g. wire brush or metal spatula) as they may damage the surface of the material from which the appliance is made.
I) Do not clean the unit with acidic substances, medical agents, thinners, fuel, oils, or other chemicals. It may cause damage to the device.
m) Defrosting: turn off the device and disconnect it completely from the power supply. Remove all food from the refrigerator. Leave the lid open and wipe out the water coming from thawing. Never use hard or pointed tools to remove or loosen items that have frozen inside the refrigerator.

DISPOSAL OF USED UNITS.

At the end of its useful life, this product should not be disposed of with normal household waste but should be taken to a collection point for the recycling of electrical and electronic equipment. This is indicated by the symbol on the product, operating instructions, or packaging. The materials used in this appliance are

recyclable according to their marking. By reusing, recycling, or applying other forms of use of waste machines, you make a significant contribution to the protection of our environment.

Your local administration will provide you with information about the appropriate disposal point for used appliances.

ERROR CODES:

Error code	Possible cause	Action
F1	The power supply voltage is too low.	Switch the battery protection mode from high to medium or from medium to low
F2 The condenser fan is overloaded.		Disconnect the power for 5 minutes and turn the device on again. If the problem reappears, contact the service center.
F3	The compressor turns on too often.	Disconnect the power for 5 minutes and turn the device on again. If the problem reappears, contact the service center.
F4 The compressor does not turn on.		Disconnect the power for 5 minutes and turn the device on again. If the problem reappears, contact the service center.
F5	Overheating of the compressor and electronics.	Disconnect the power for 5 minutes and turn the device on again. If the problem reappears, contact the service center.
F6	The controller does not read the parameters of the device.	Disconnect the power for 5 minutes and turn the device on again. If the problem reappears, contact the service center.
F7 or F8	The temperature sensor is defective.	Contact service centre

Technical diagram of a portable air purifier with labeled components including top, front, side, and interior views.

APPARATETS PLACERING

OBS! Brandrisk - brandfarliga material!

PLACERING AV APPARATEN

Technical diagram of a portable air purifier with labeled components including top, front, side, and interior views.

1 2 3

For the disposal of the device please consider and act according to the national and local rules and regulations.
