Brand	IKEA
Model	NORDMÄRKE 204.900.12
Product type	Wireless charger for mobile phone
Charging technology	Qi (standard 1.2.4BPP)
Power supply (input)	5.0 V DC, 2.0 A (power adapter not included)
Transmission frequency	115 kHz – 148 kHz
Output power (at 3 m)	23.5 dBμA/m
LED status indicator	Lights up 3 s at power-on, steady during charging, off when charging complete, flashing in case of error
Operating temperature	0 °C to 40 °C
Storage temperature	-20 °C to 25 °C
Intended use	Indoor only
Safety	Temperature and charge control, do not immerse, do not repair yourself
Cleaning and maintenance	Disconnect before cleaning, wipe with a damp cloth
Regulatory compliance	FCC Part 15, ISED RSS
Minimum user distance	10 cm for RF compliance

Frequently Asked Questions - NORDMÄRKE 204.900.12 IKEA

My phone is not charging on NORDMÄRKE, what should I do?

Check that your phone is compatible with Qi technology. Place it precisely on the (+) symbol of the charger. Make sure that the wireless charging function is enabled in your phone settings. If the battery is completely discharged, wait a few minutes before charging begins.

The LED is flashing, what does this indicator mean?

A flashing LED indicates an error. This may be due to improper positioning of the device, a metal object between the charger and the phone, or overheating. Remove the phone, wait a few seconds, and reposition it correctly.

Is it normal for the charger to heat up?

Yes, it is normal for the charger and phone to heat up slightly during charging. They will gradually cool down once charging is complete. If heat is excessive, unplug the charger and contact IKEA support.

Can I use the charger with a protective case?

Thin cases (< 3 mm) generally do not interfere with charging. Thick, metal, or magnetic cases may prevent charging. Remove the case if charging does not start.

What power adapter should I use?

Use a USB adapter providing at least 5 V / 2 A. A lower power adapter may slow charging or not work. The adapter is not included with the NORDMÄRKE.

How do I clean the charger?

Unplug the charger from the outlet before cleaning. Use a damp cloth and wipe gently. Never immerse the charger in water and do not use abrasive products.

Is the charger compatible with recent iPhones?

Yes, the NORDMÄRKE is compatible with all devices using the Qi standard, including iPhones from iPhone 8 and later models.

Can I repair the charger myself?

No, do not attempt to repair the charger yourself. Opening or modifying the product may cause electric shock. In case of malfunction, contact your IKEA store.

The USB cable is damaged, can I replace it?

The USB cable is fixed and cannot be replaced. If the cable is damaged, the product must be disposed of and replaced as it is not repairable.

How far from my body can I use the charger?

To comply with radiofrequency exposure regulations, maintain a distance of at least 10 cm between the charger and your body during normal use.

USER MANUAL NORDMÄRKE 204.900.12 IKEA

Line drawing of a mobile phone with a plus sign on its screen and a cable attached (no text or symbols)

English 6

Français 13

Español 21

Charger features

• USB power adapter (5.0V, 2.0A) not included.
• Wirelessly charges Qi-compatible devices.
• Compatible with Qi 1.2.4BPP specification.
• Temperature and power monitor for safety.
  • LED status indicator.

Instructions for use

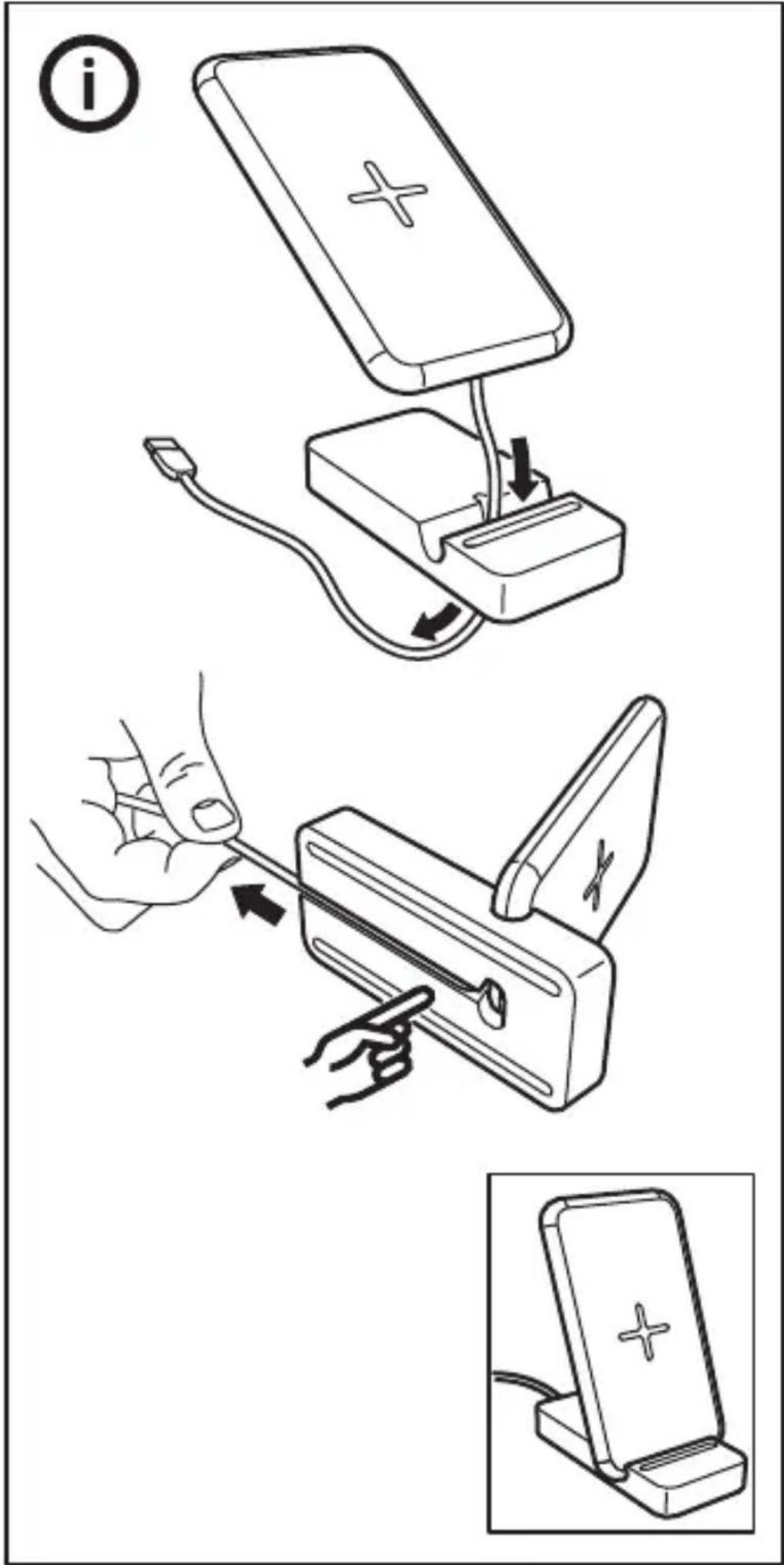

- Connect the USB cable to the power adapter and plug it into the wall socket.

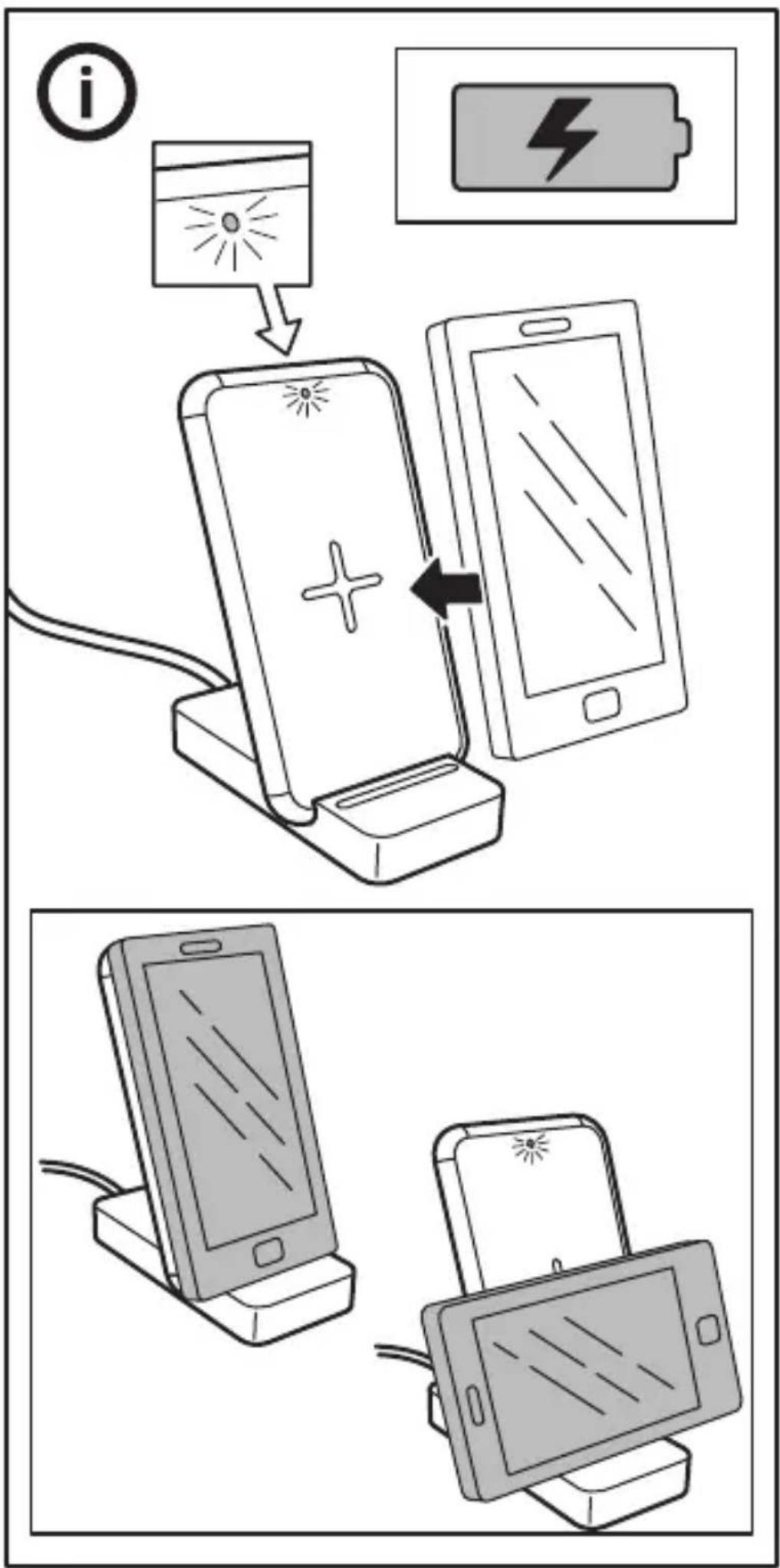

- For wireless charging, place the device to be charged on top of the plus sign (+) on the charger. The device must be placed directly over the plus sign (+) on the charger for the charging function to work optimally. Note that on some devices you may have to activate wireless charging in settings.

- If your battery is completely discharged, it may take a few minutes before it starts charging. This is entirely normal. You can see that the battery has begun charging

when the battery symbol appears on your phone.

LED indicator (see illustrations):

1. Power on: LED lights up for 3 seconds.
2. Charging: LED on.
3. Charging completed: LED off.
4. Error: LED flashes.

Good to know

• Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
- Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
- Charger storage temperature: -20°C to 25°C (-4°F to 77°F).
- Charger operating temperature: 0°C to 40°C (32°F to 104°F).
- Unplug the charger from the power source before cleaning and when it is not in use.

To clean the charger, wipe with a moist cloth.

Never submerge the charger in water. Recommended precautionary measures and technical data: see the back of the charger.

Save these instructions for future use.

WARNING:

• Only charge devices that are Qi-compatible.
• The wall socket must be located near the equipment and must be easily accessible.
• Only use in dry locations.
  • Children should be supervised to ensure they do not play with the product.
• The external flexible cable or cord of this product cannot be replaced; if the cord is damaged, the product shall be destroyed.

Product servicing

Do not attempt to repair this product yourself, as opening or removing

covers may expose you to dangerous voltage points or other risks.

Technical data

Type: E2009 NORDMÄRKE

Input: 5.0V DC, 2.0A

Indoor use only

Operating frequency:

115KHZ - 148 KHz

Output power: 23.5 dBμA/m at 3m

Manufacturer: IKEA of Sweden AB

Address:

Box 702, SE-343 81 Älmhult, SWEDEN

The 'Qi' symbol is a trademark of the Wireless Power Consortium

RF EXPOSURE INFORMATION

According to RF exposure regulations, under normal operations the end user shall refrain from being closer than 10 cm from the device.

This device complies with Part 15 of the FCC Rules.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation Science and Economic Development Canada's licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation of the device.

WARNING:

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.

Fabricant : IKEA of Sweden AB

Adresse :

Box 702, SE-343 81 Älmhult, SUÈDE
